Ground distribution
# Ground distribution circuit

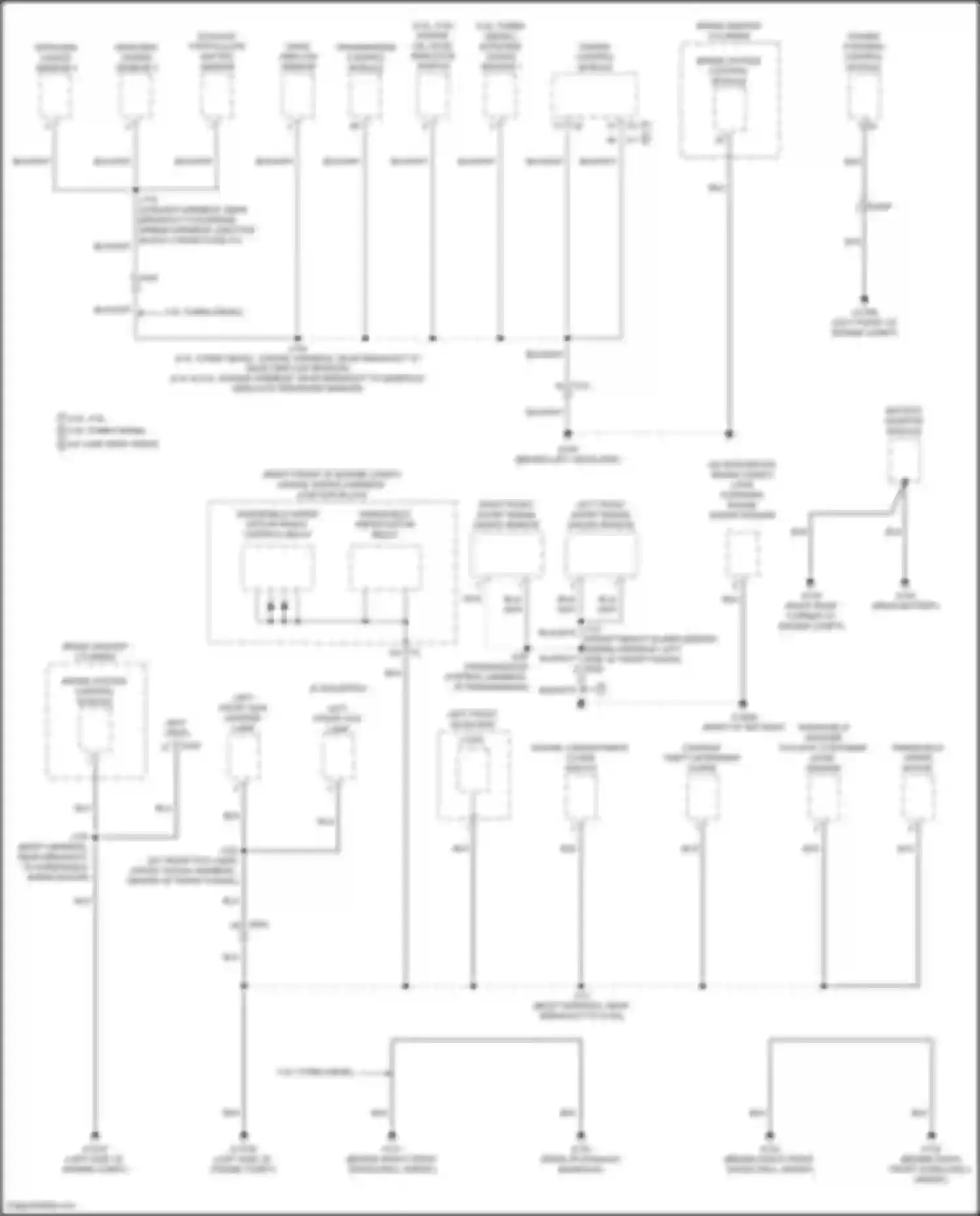

# Ground distribution circuit (1 of 11)
Components on the diagram
# Ground distribution circuit (2 of 11)
Components on the diagram
# Ground distribution circuit (3 of 11)
Components on the diagram
# Ground distribution circuit (4 of 11)
Components on the diagram
# Ground distribution circuit (5 of 11)
Components on the diagram
# Ground distribution circuit (6 of 11)
Components on the diagram
# Ground distribution circuit (7 of 11)
Components on the diagram
# Ground distribution circuit (8 of 11)
Components on the diagram
# Ground distribution circuit (9 of 11)
Components on the diagram
# Ground distribution circuit (10 of 11)
Components on the diagram
# Ground distribution circuit (11 of 11)
Components on the diagram
Components on these wiring diagrams 280
Click a component to highlight it on every diagram it appears on.
