Backup lamps circuit for Chevrolet Malibu V (1996-2000)

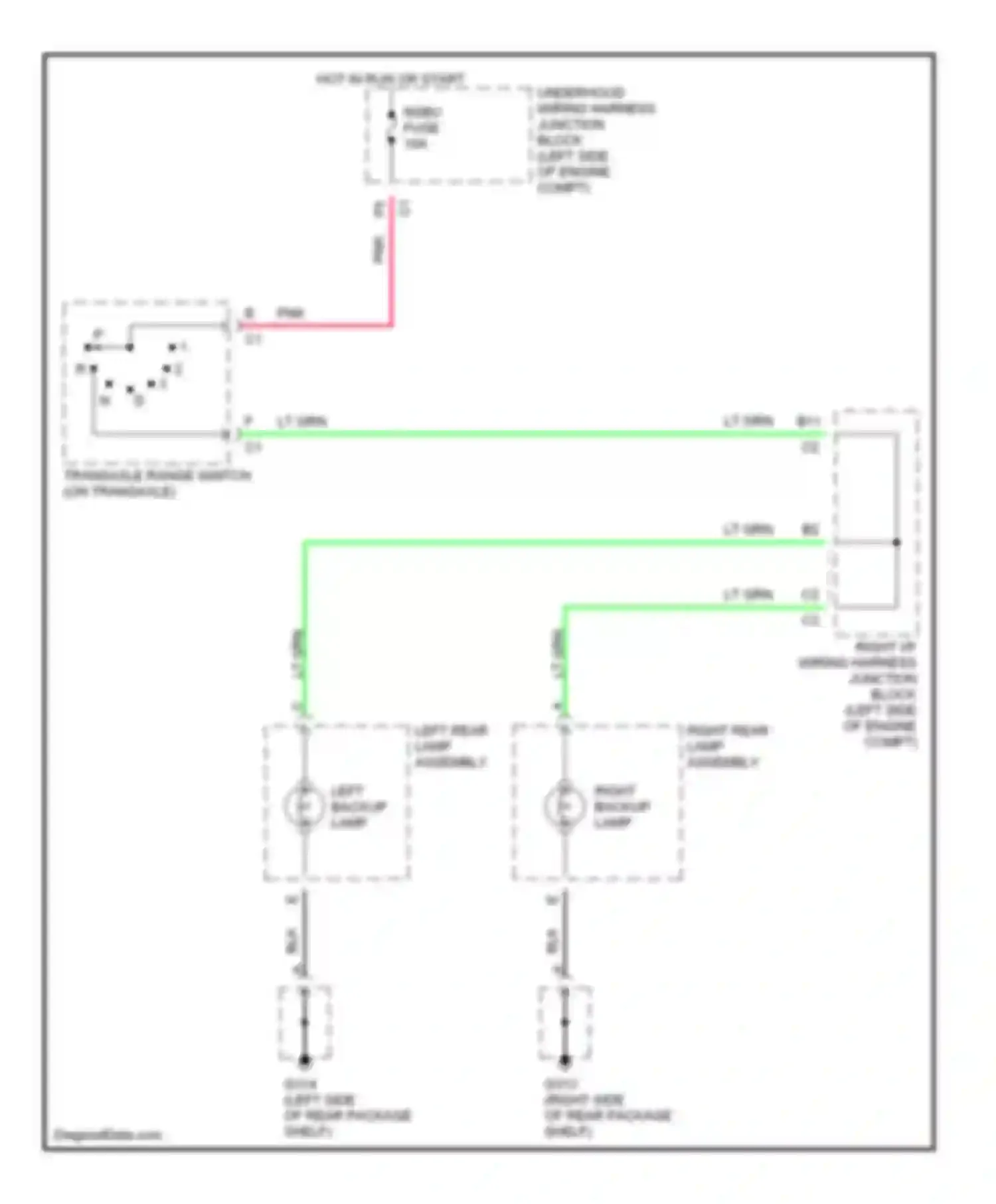

Backup lamps circuit
BLK WIRE
HOT IN RUN OR START
LEFT BACKUP LAMP
LEFT REAR LAMP ASSEMBLY
LT GRN WIRE
NSBU FUSE
PNK WIRE
RIGHT BACKUP LAMP
RIGHT I/P WIRING HARNESS JUNCTION BLOCK (LEFT SIDE OF ENGINE COMPT)
RIGHT REAR LAMP ASSEMBLY
TRANSAXLE RANGE SWITCH (ON TRANSAXLE)
UNDERHOOD WIRING HARNESS JUNCTION BLOCK (LEFT SIDE OF ENGINE COMPT)
