Chevrolet Malibu V (1996–2000) wiring diagrams

List of systems:

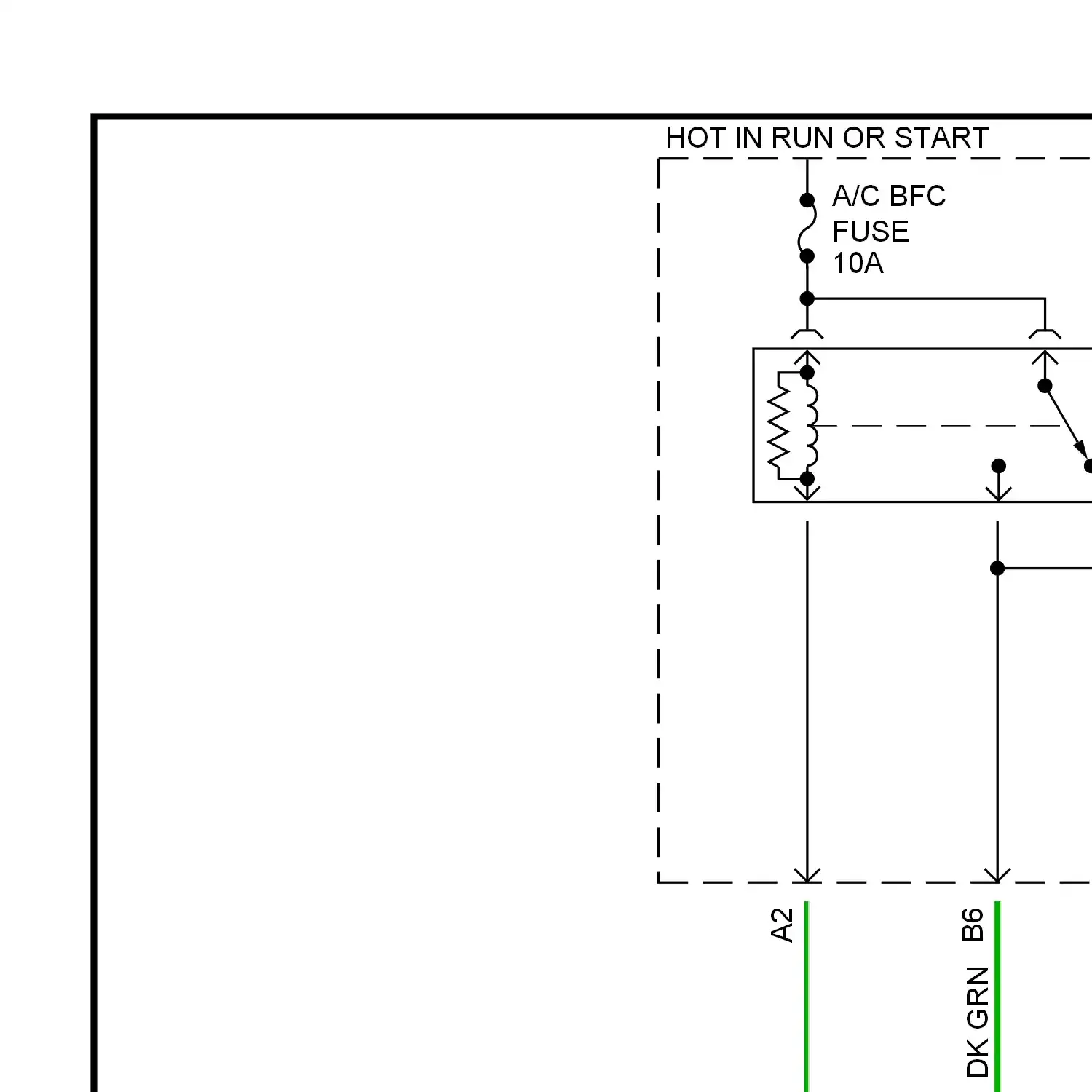

A/c circuit Compressor circuit

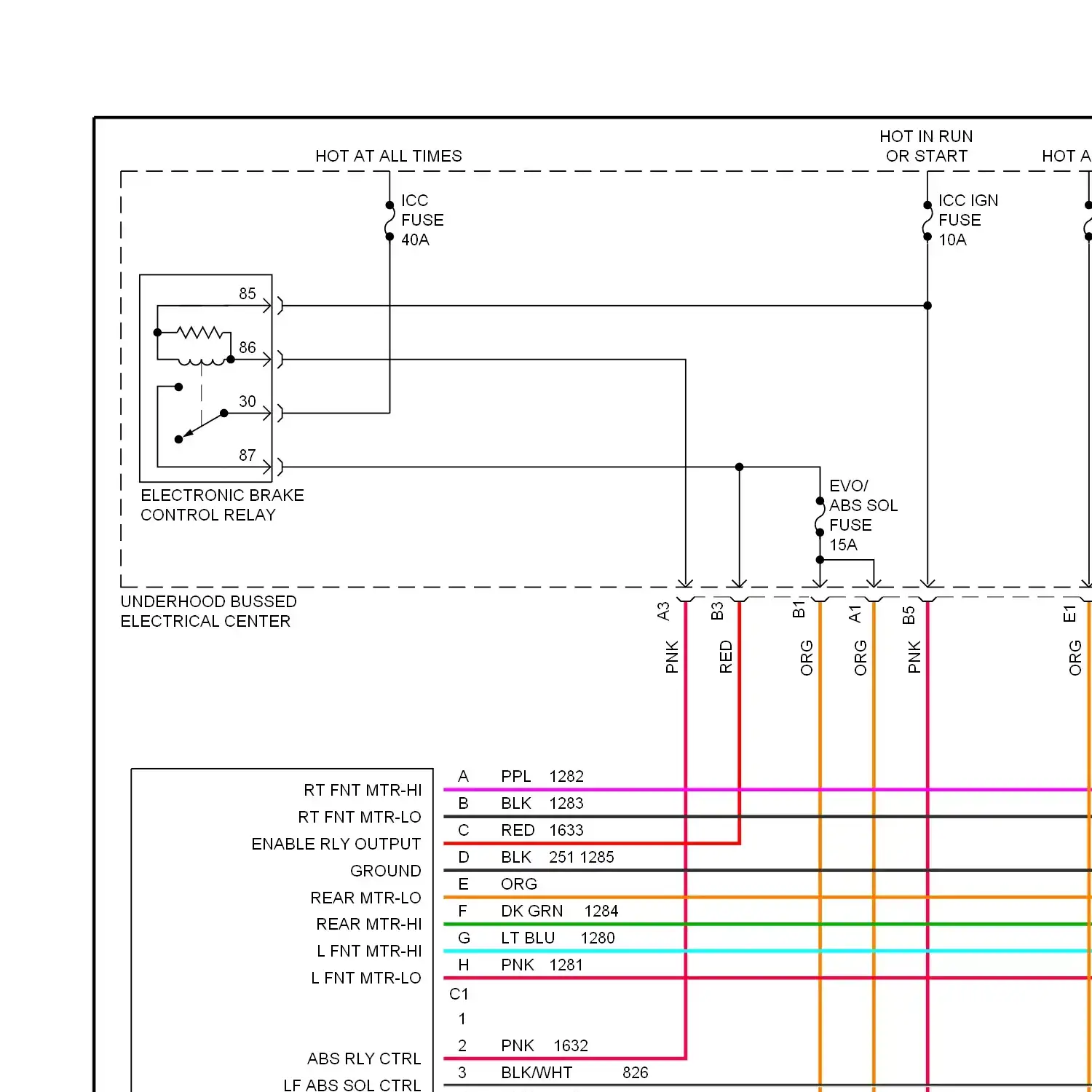

Anti-lock brake circuits

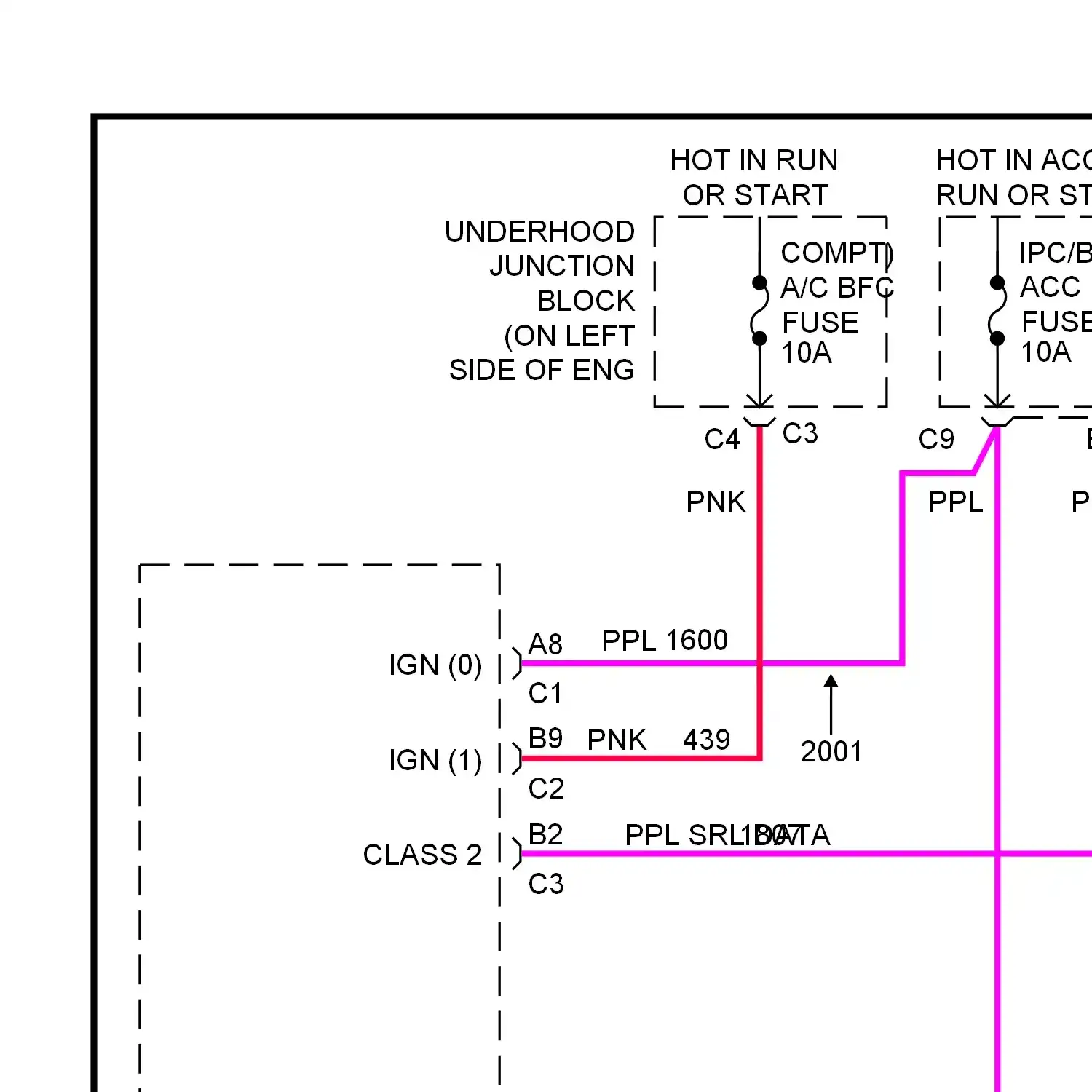

Anti-theft circuit

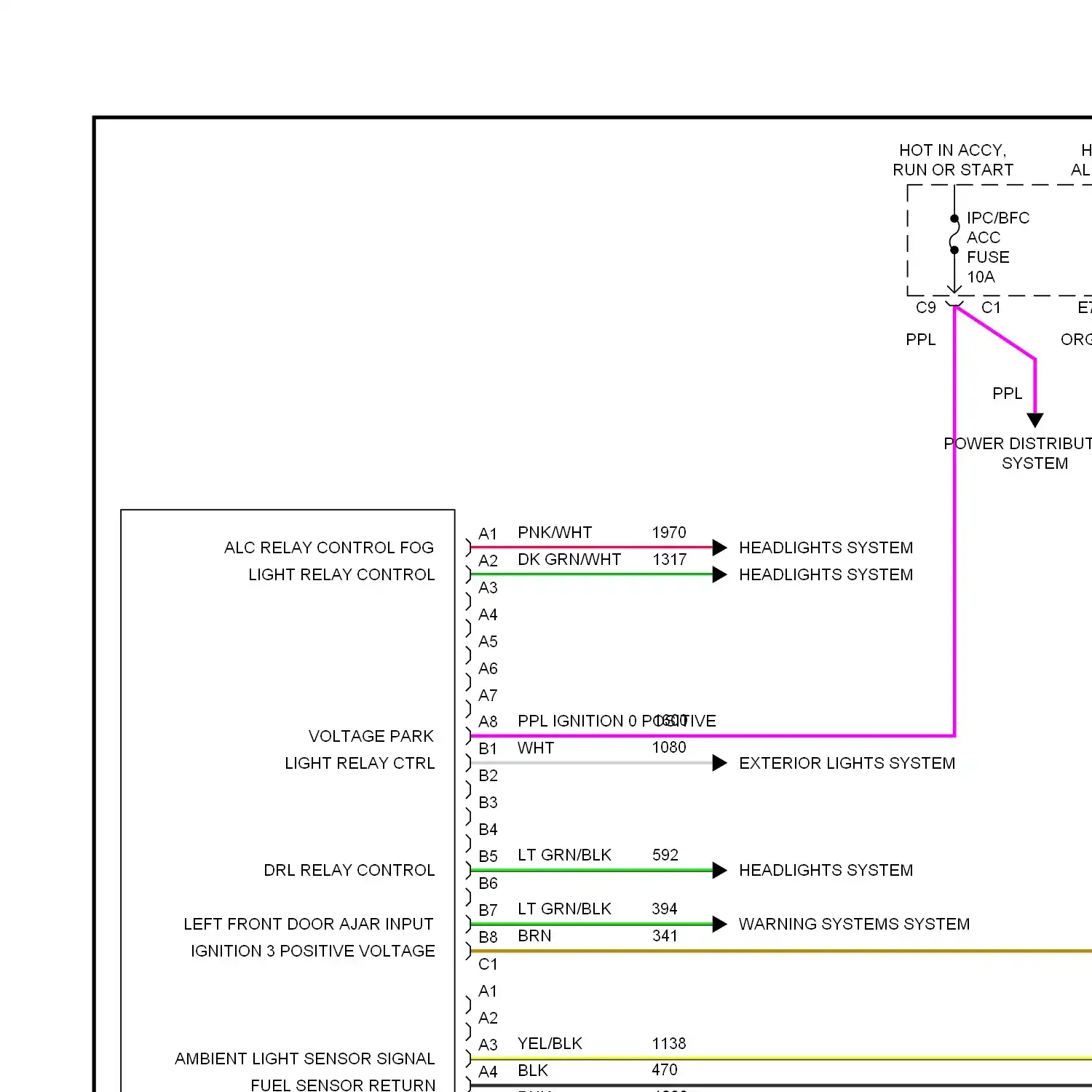

Body computer circuits

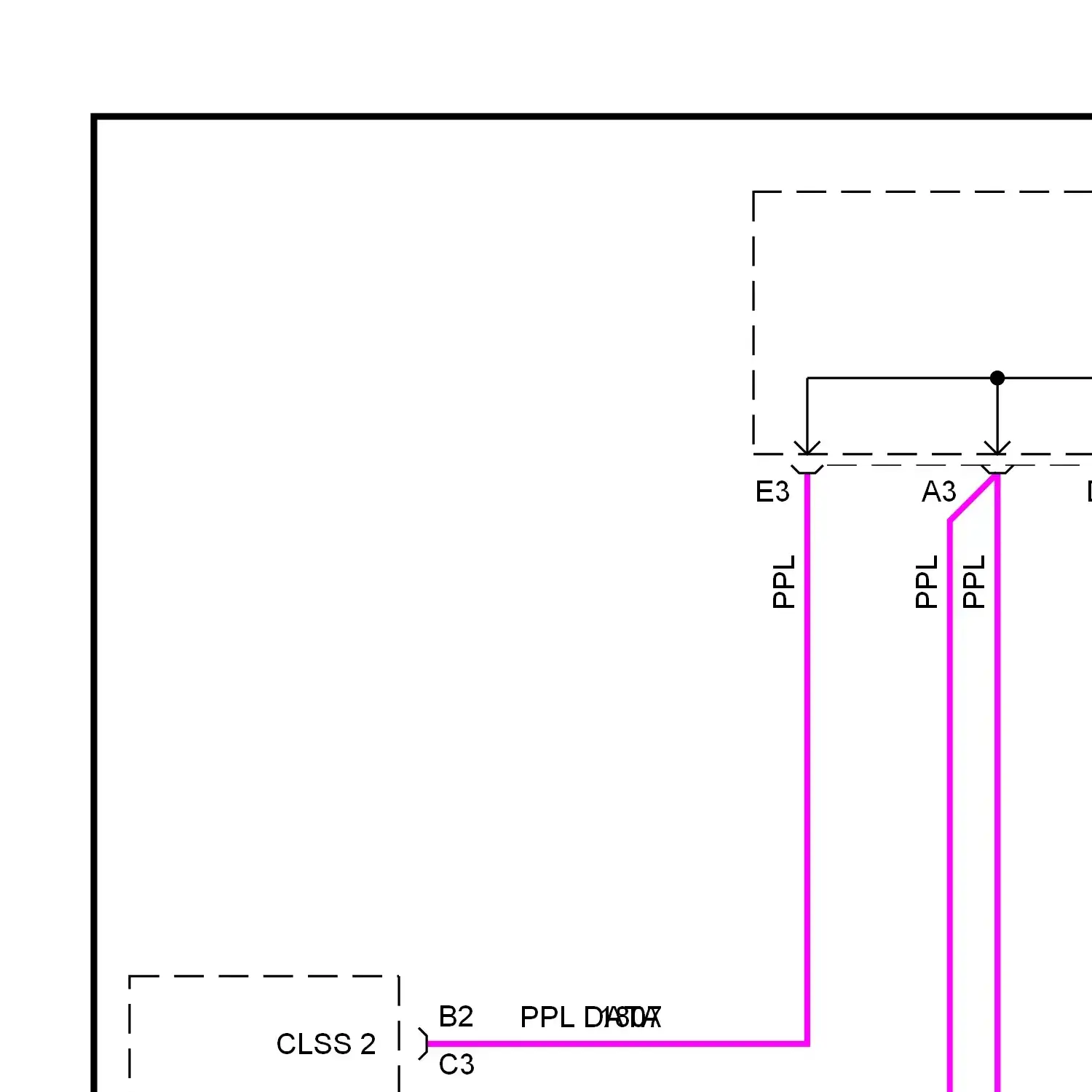

Computer data lines

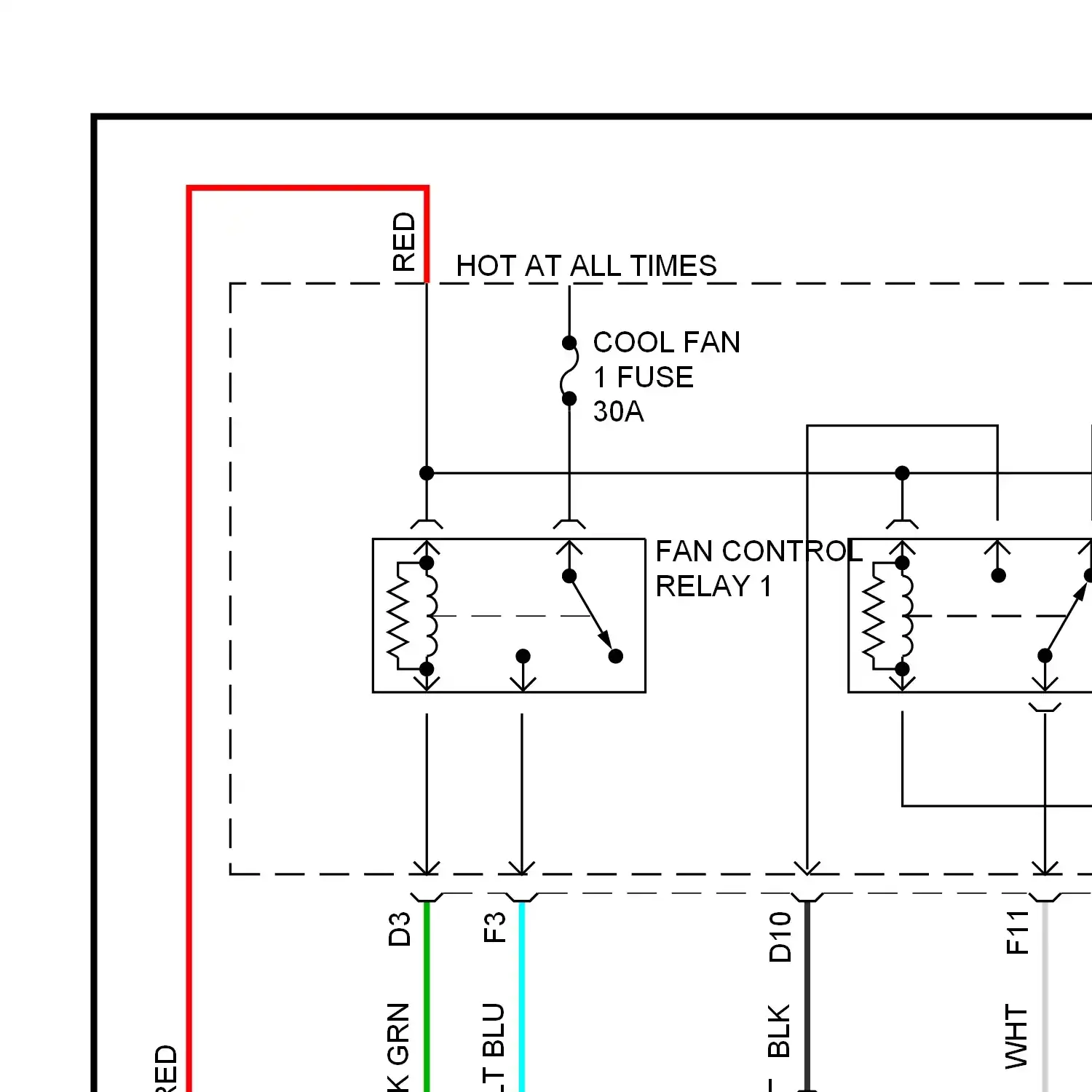

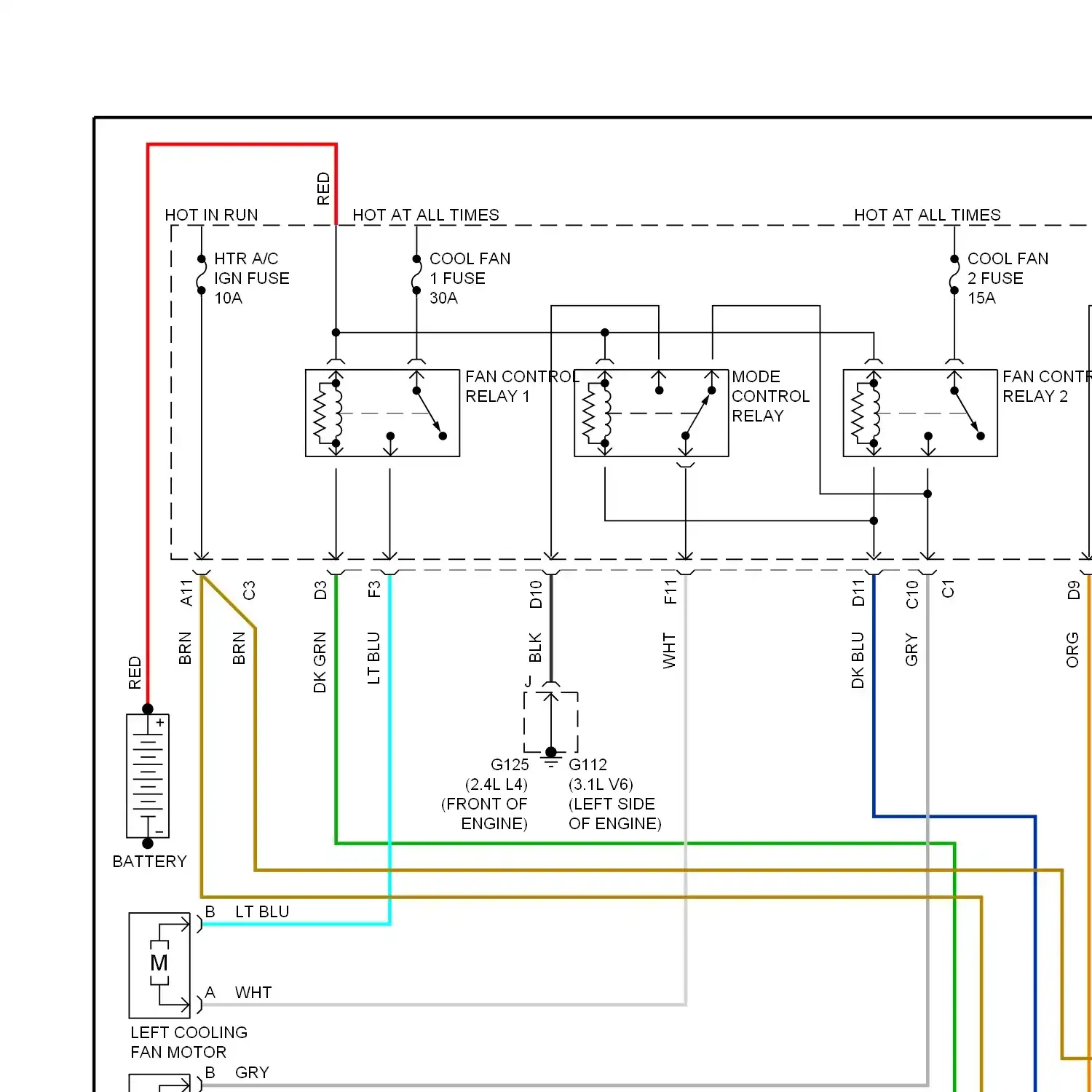

Cooling fan circuit

Cruise control circuit

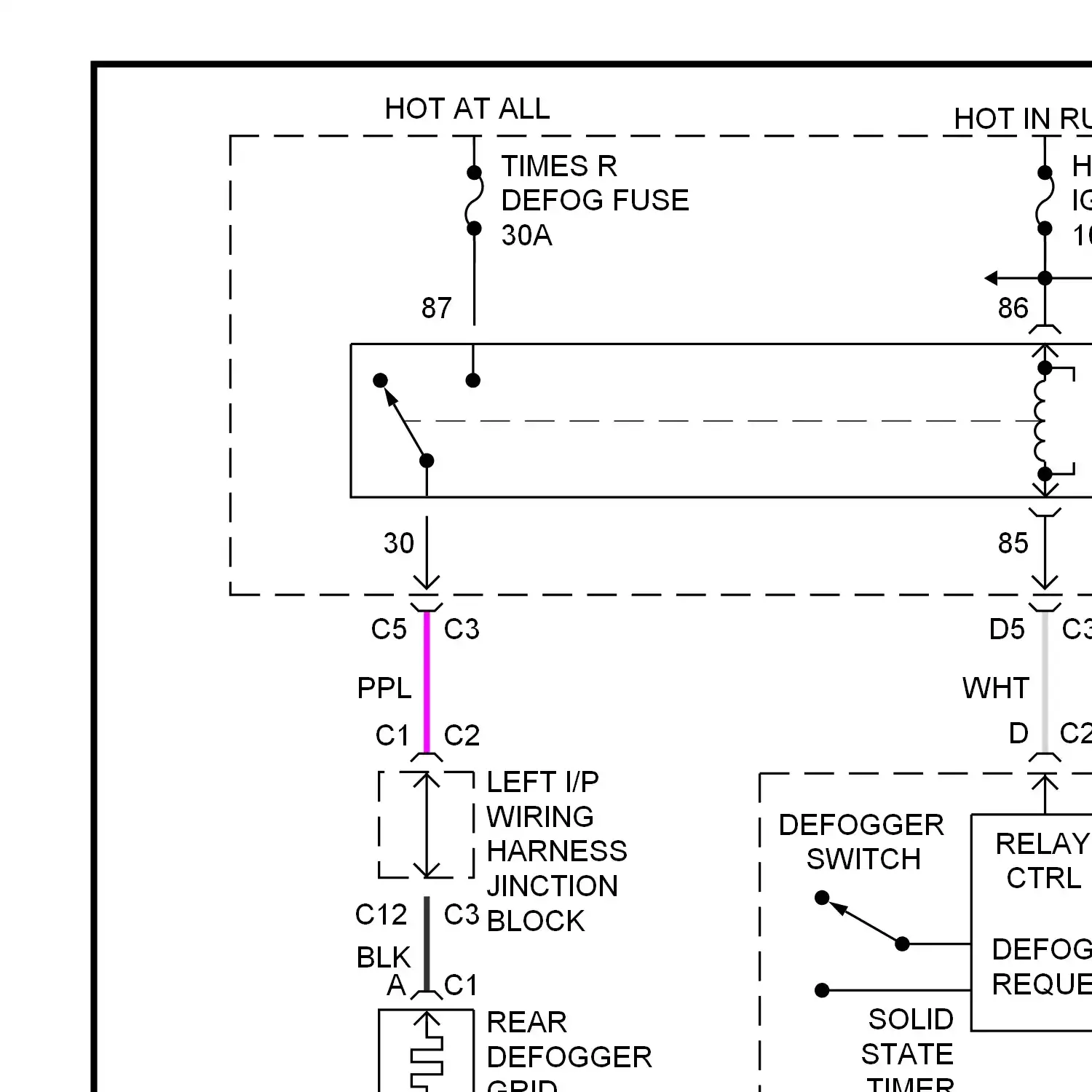

Defogger circuit

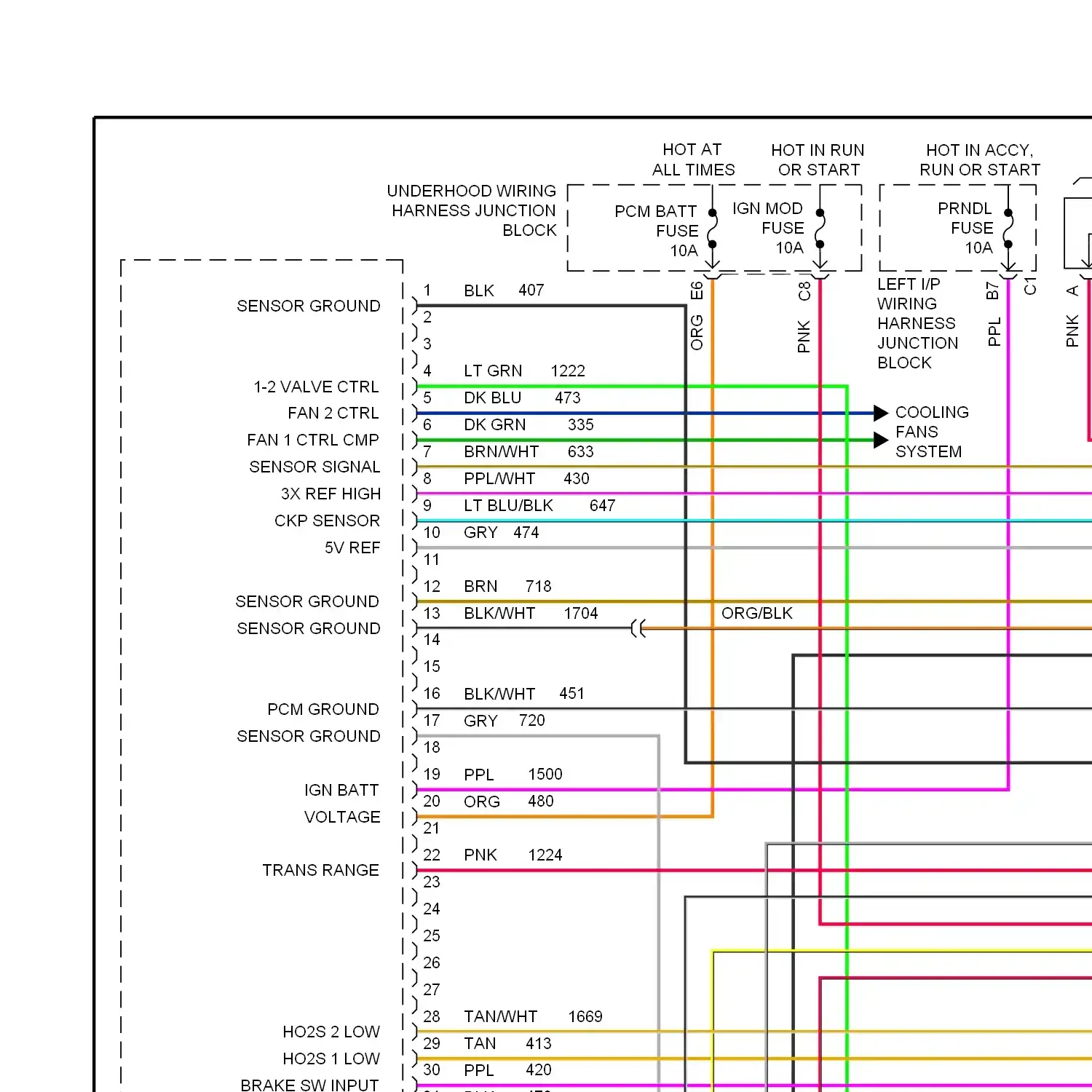

Wiring diagram engine performance 2.4l (vin t)s

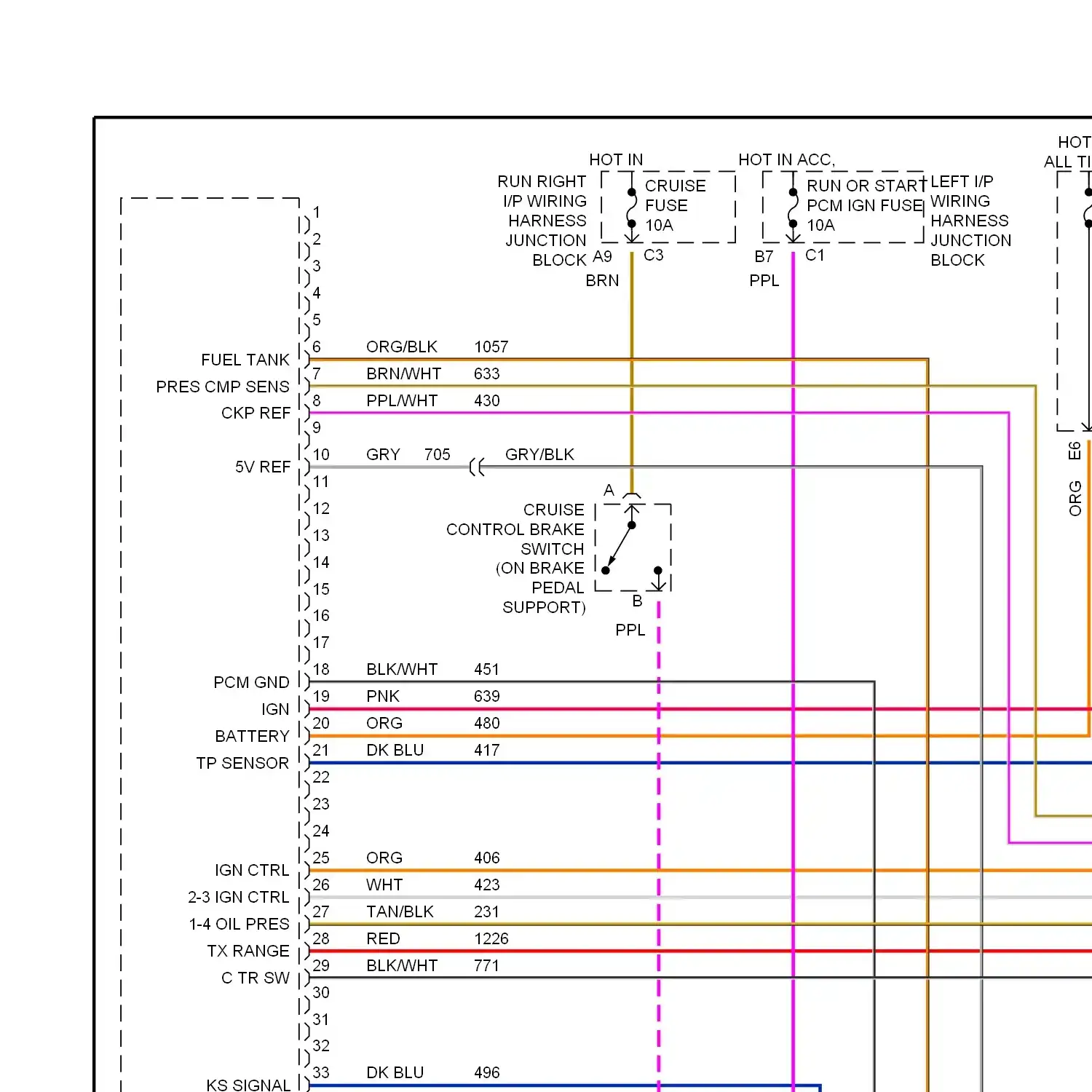

Wiring diagram engine performance 3.1l (vin m)s

Backup lamps circuit Exterior lamps circuit

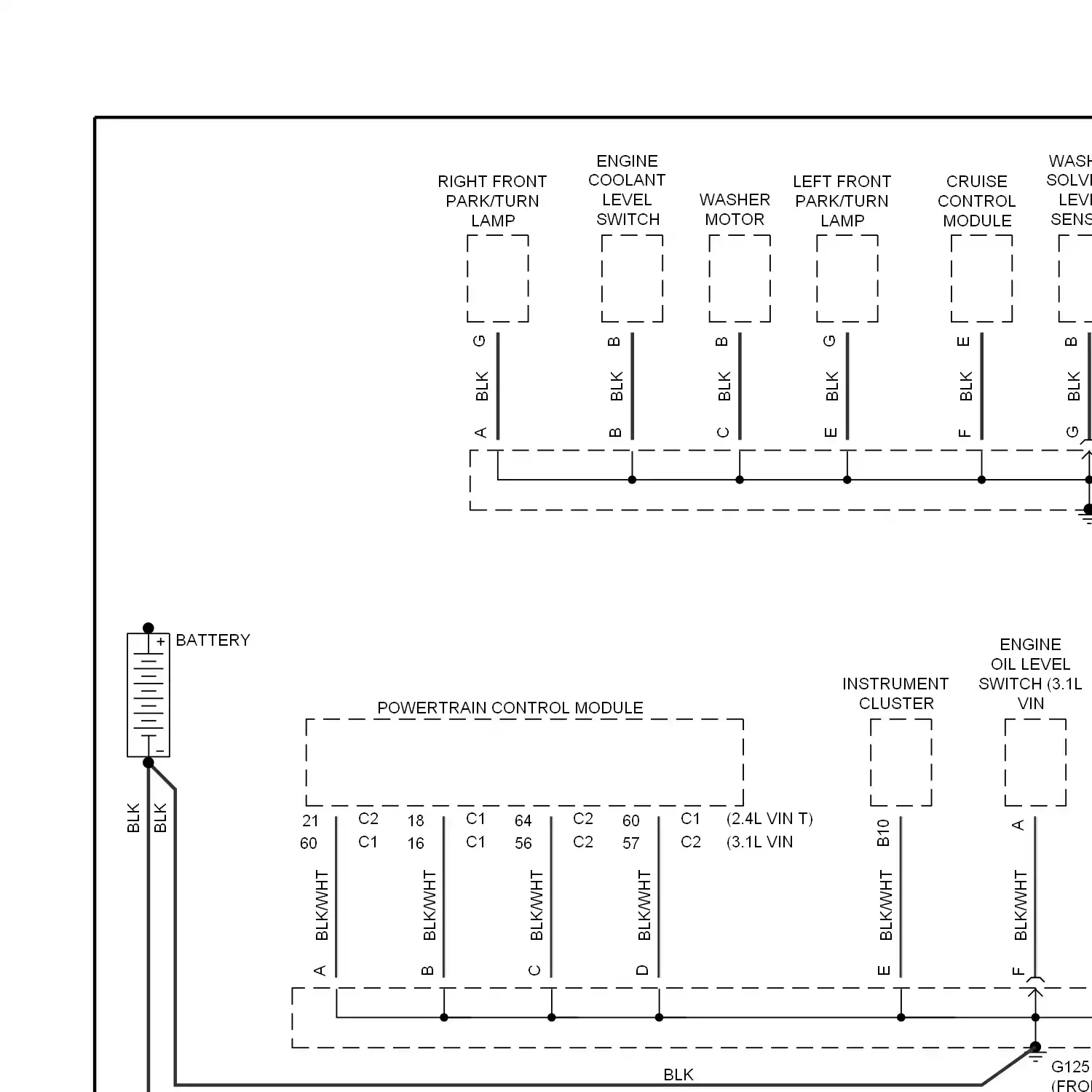

Ground distribution circuit

Headlamps/fog lamps circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Power distribution circuit

Power door lock circuit

Power mirror circuit

6-way power seat circuit

Power top/sunroof circuits

Power window circuit

Radio circuits

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraint circuit

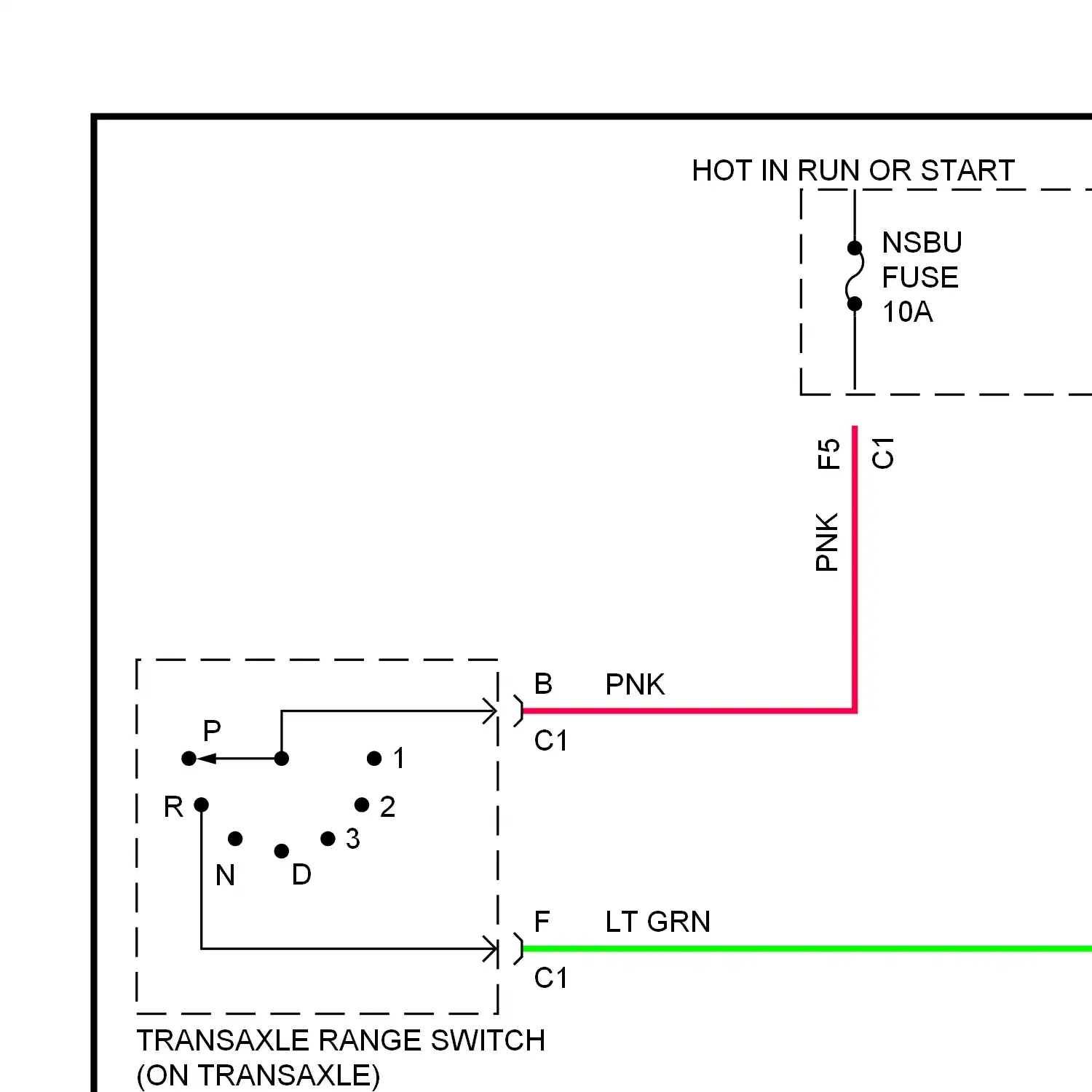

2.4l (vin t), transmission circuit, 4t40-e

3.1l (vin m), transmission circuit, 4t40-e

Trunk release circuit

Warning system circuits

Wiper/washer circuit
