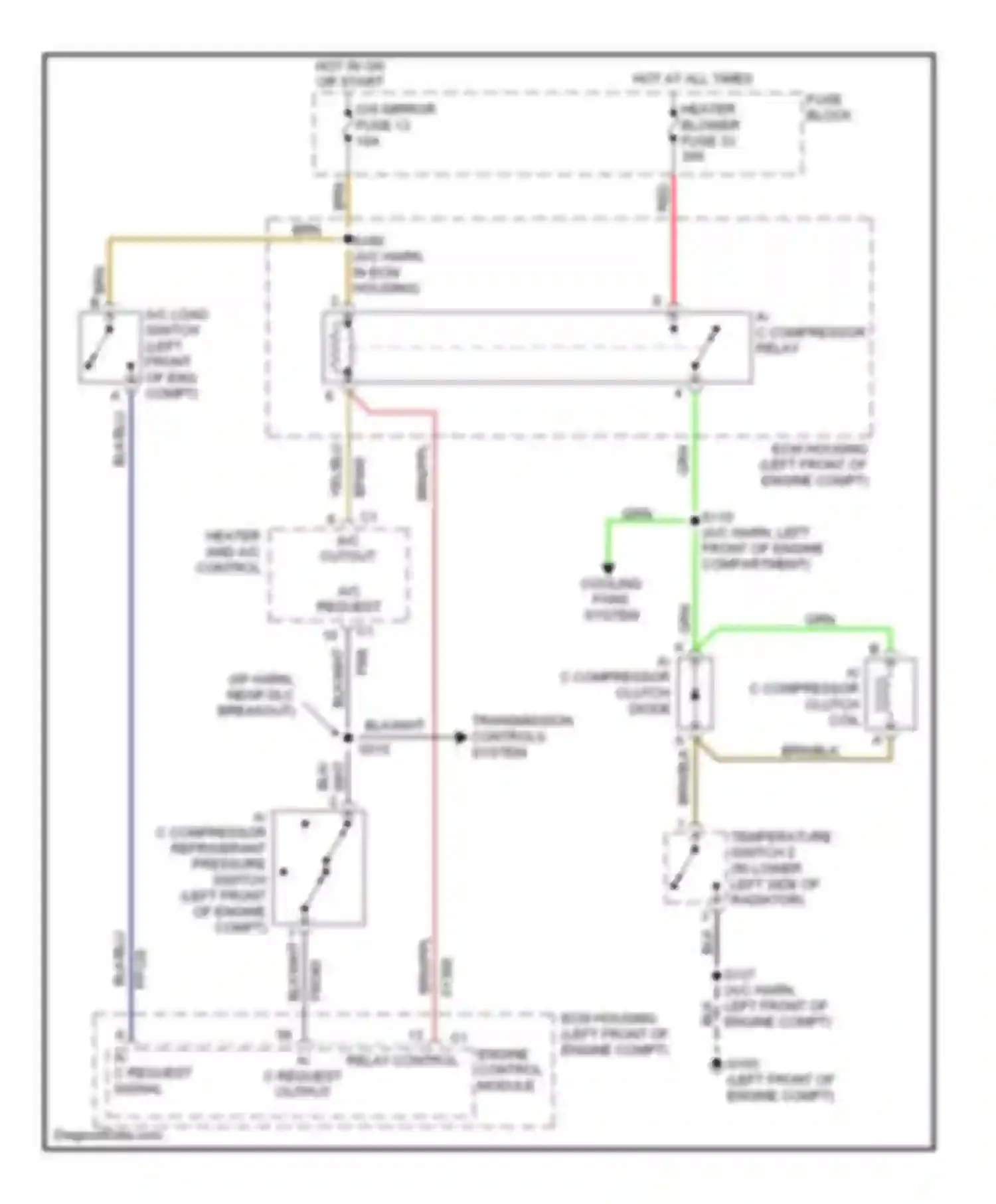

Wiring diagram: Air conditioning — Compressor circuit Cadillac Catera I

Components on these wiring diagrams

Click a component to highlight it on every diagram it appears on.

• A/C Compressor Clutch Coil
• A/C Compressor Clutch Diode
• A/C Compressor Refrigerant Pressure Switch
• A/C Compressor Relay
• A/C Cutout
• A/C Load Switch
• A/C Request
• A/C Request Output
• A/C — Request Signal
• ECM Housing
• Engine Control Module Relay Control
• Heater And A/C Control
• Heater Blower Fuse 33
• O/S Mirror Fuse 13
• Temperature Switch 2
