BMW X6 G06 (2019–2023) wiring diagrams

List of systems:

Automatic a/c circuit, w/o rear automatic climate control Automatic a/c circuit, w/ rear automatic climate control Independent heating circuit

Anti-lock brakes circuit

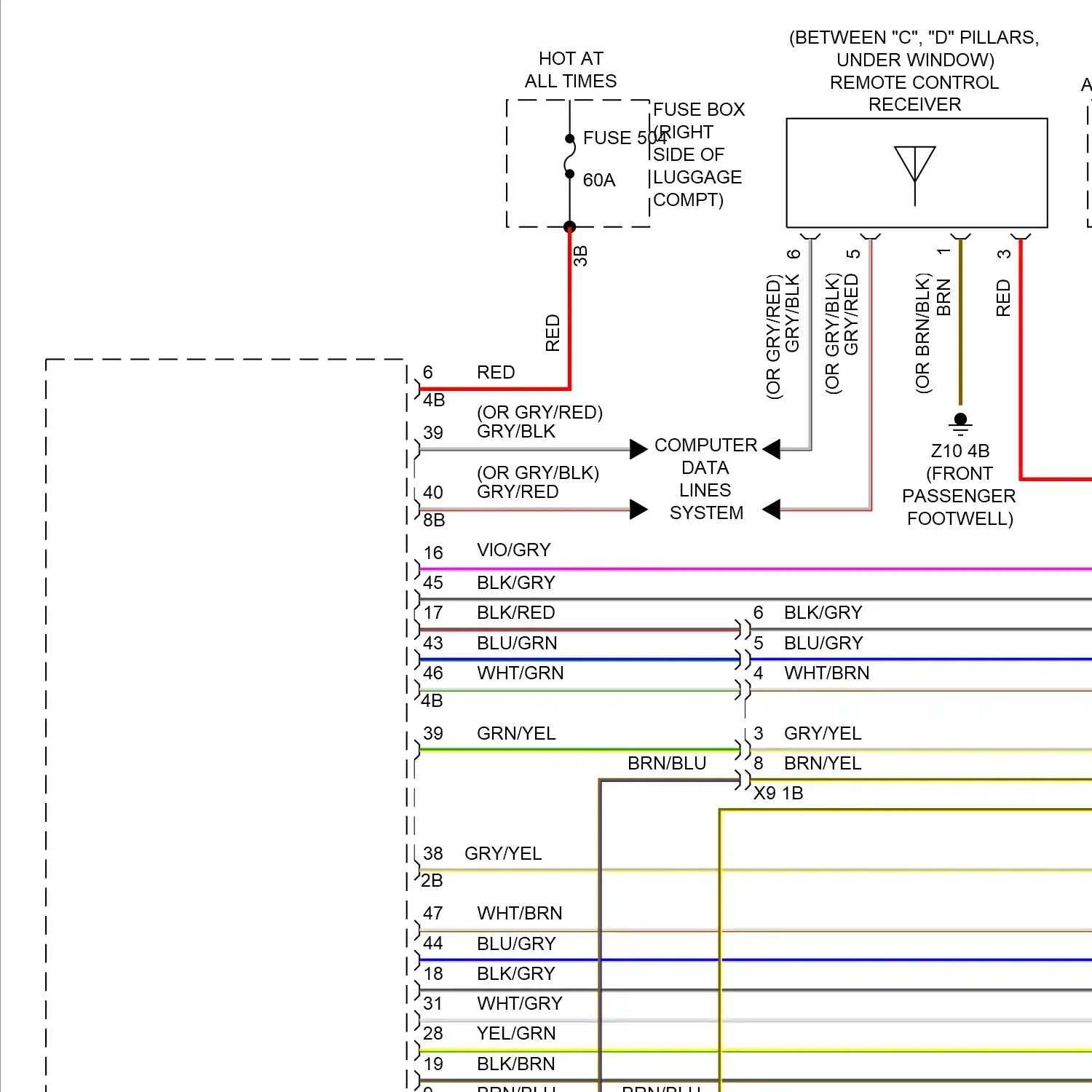

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

Data link connector circuit High/low bus circuit

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

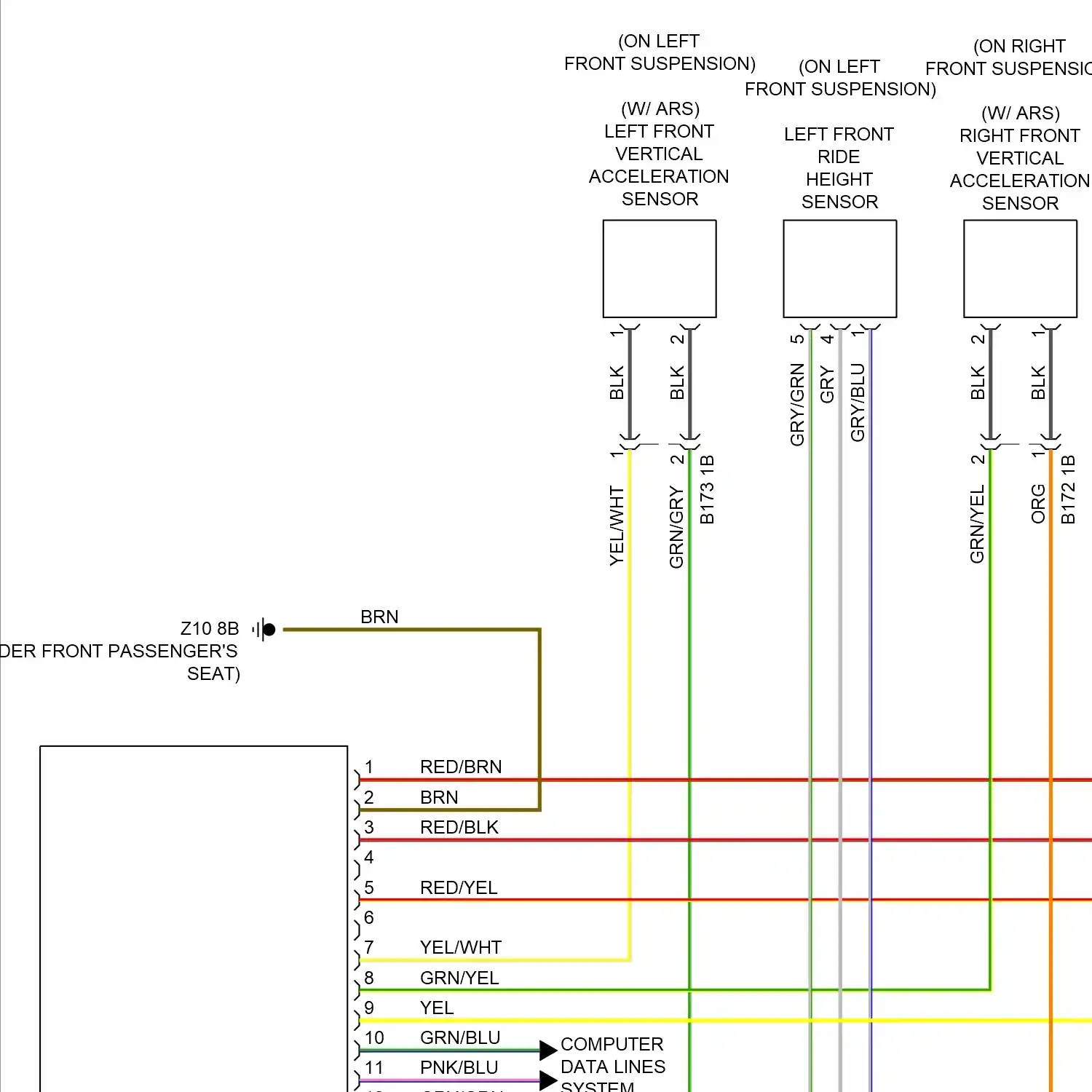

Dynamic drive suspension circuit Electric active roll stabilization circuit

Wiring diagram engine performance 3.0l turbo

Wiring diagram engine performance 4.4l turbo

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit

Horn circuit

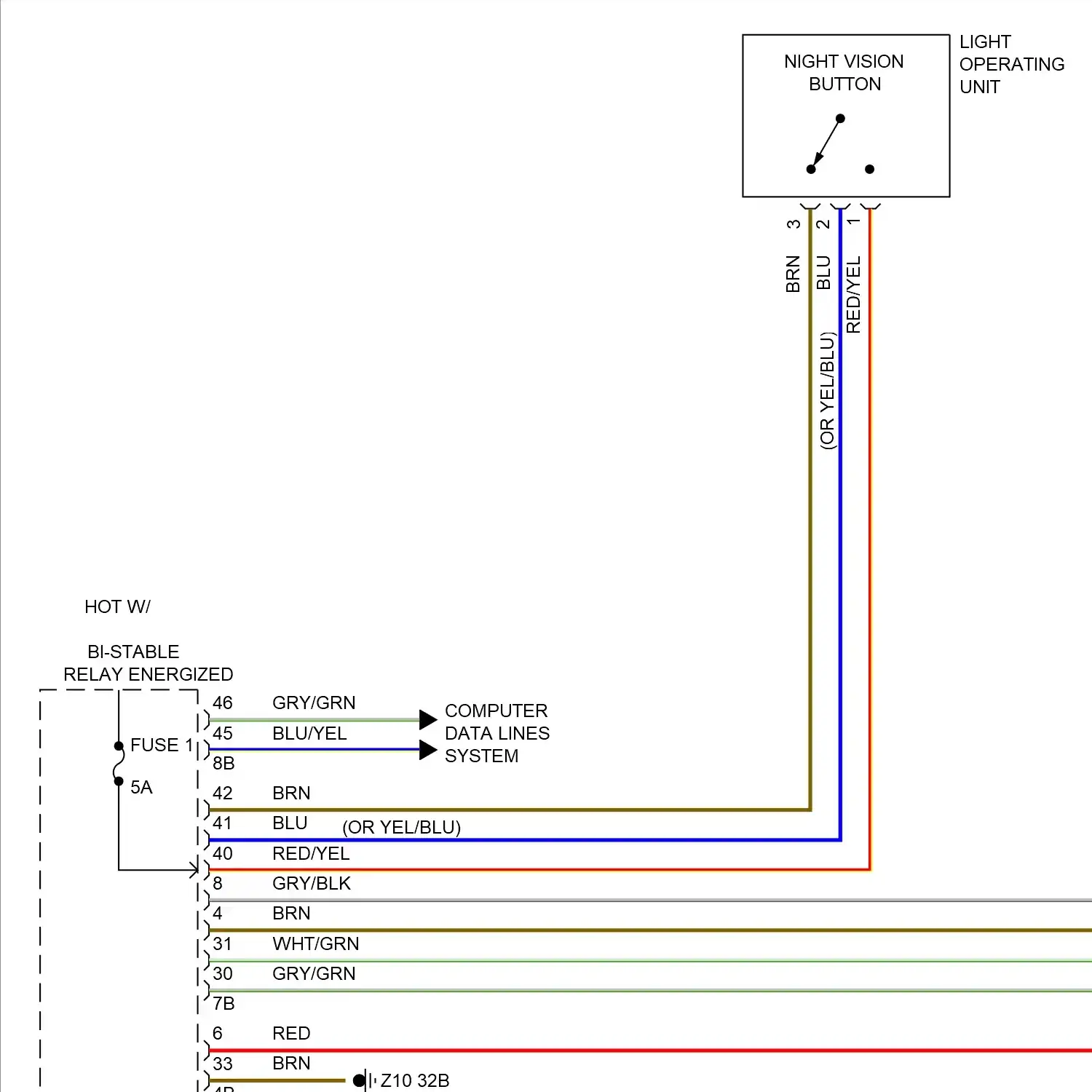

Electronic night vision circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit Passenger"s memory seat circuit Steering column memory circuit

All around vision camera circuit Blind spot monitoring circuit, w/ front & rear radar sensors Blind spot monitoring circuit, w/ rear radar sensors Driver camera circuit Lane departure warning circuit Navigation circuit, base w/ receiver audio module Navigation circuit, high level w/ receiver audio module Navigation circuit, mid level w/ receiver audio module Parking assistant circuit Rear camera circuit

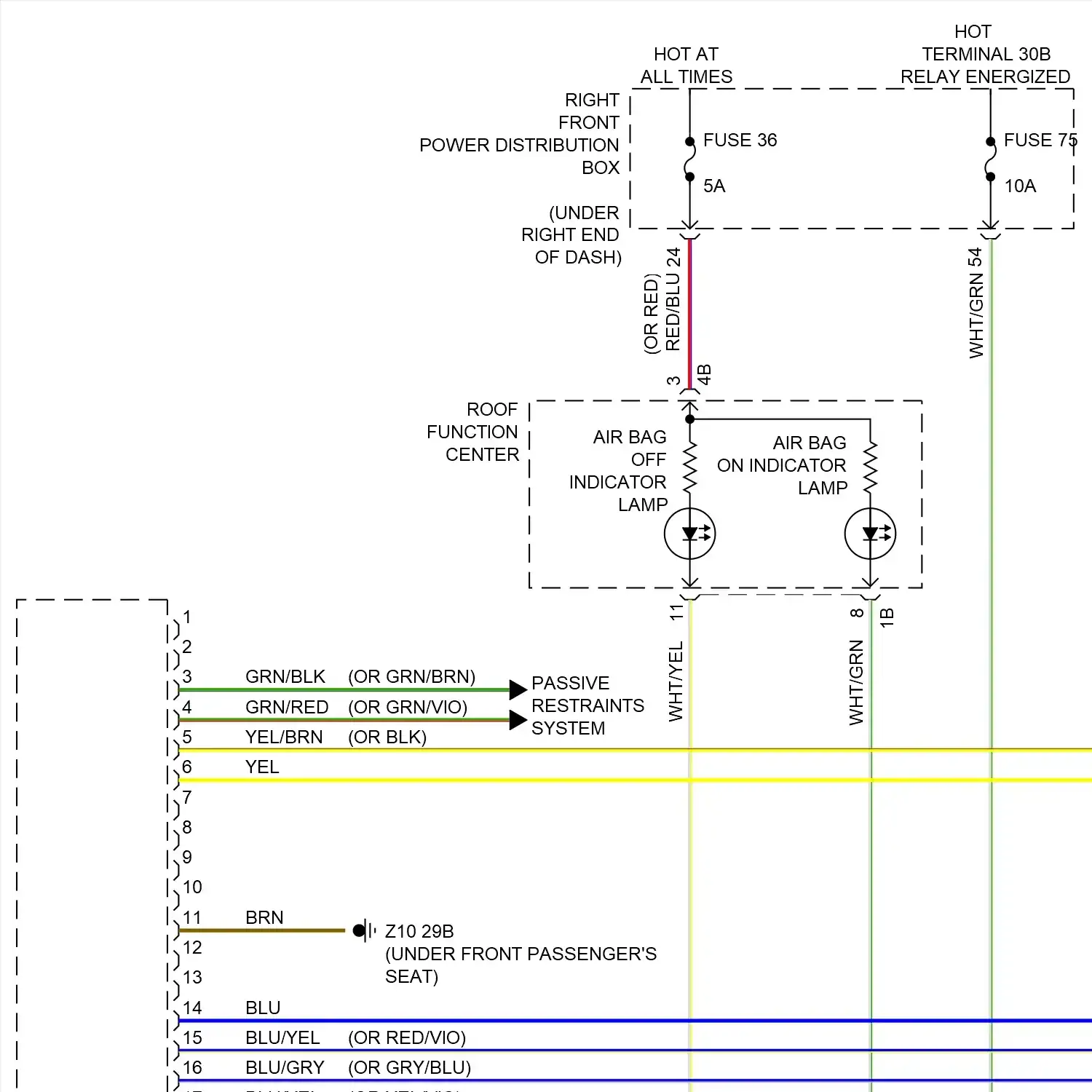

Passive restraints circuit

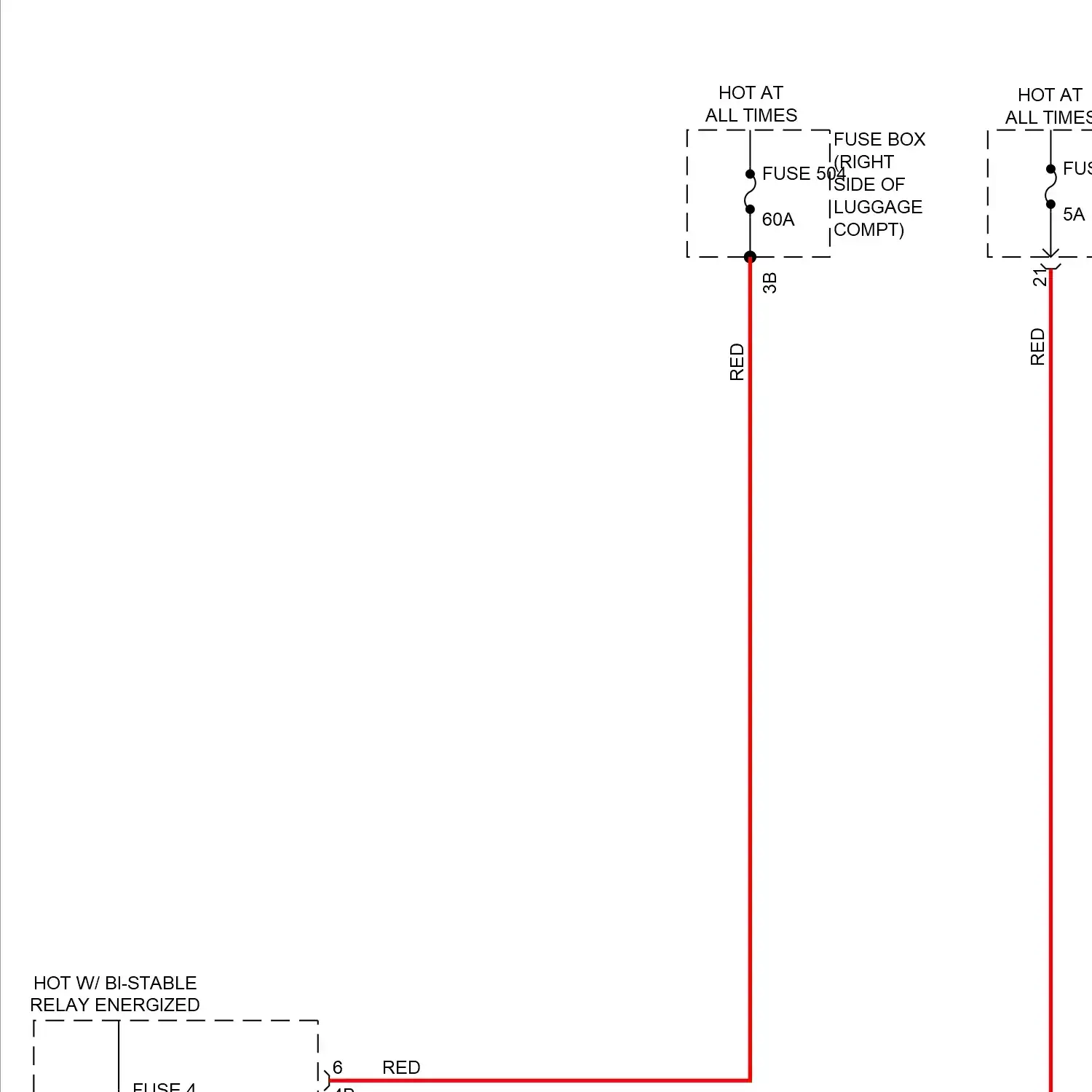

Power distribution circuit

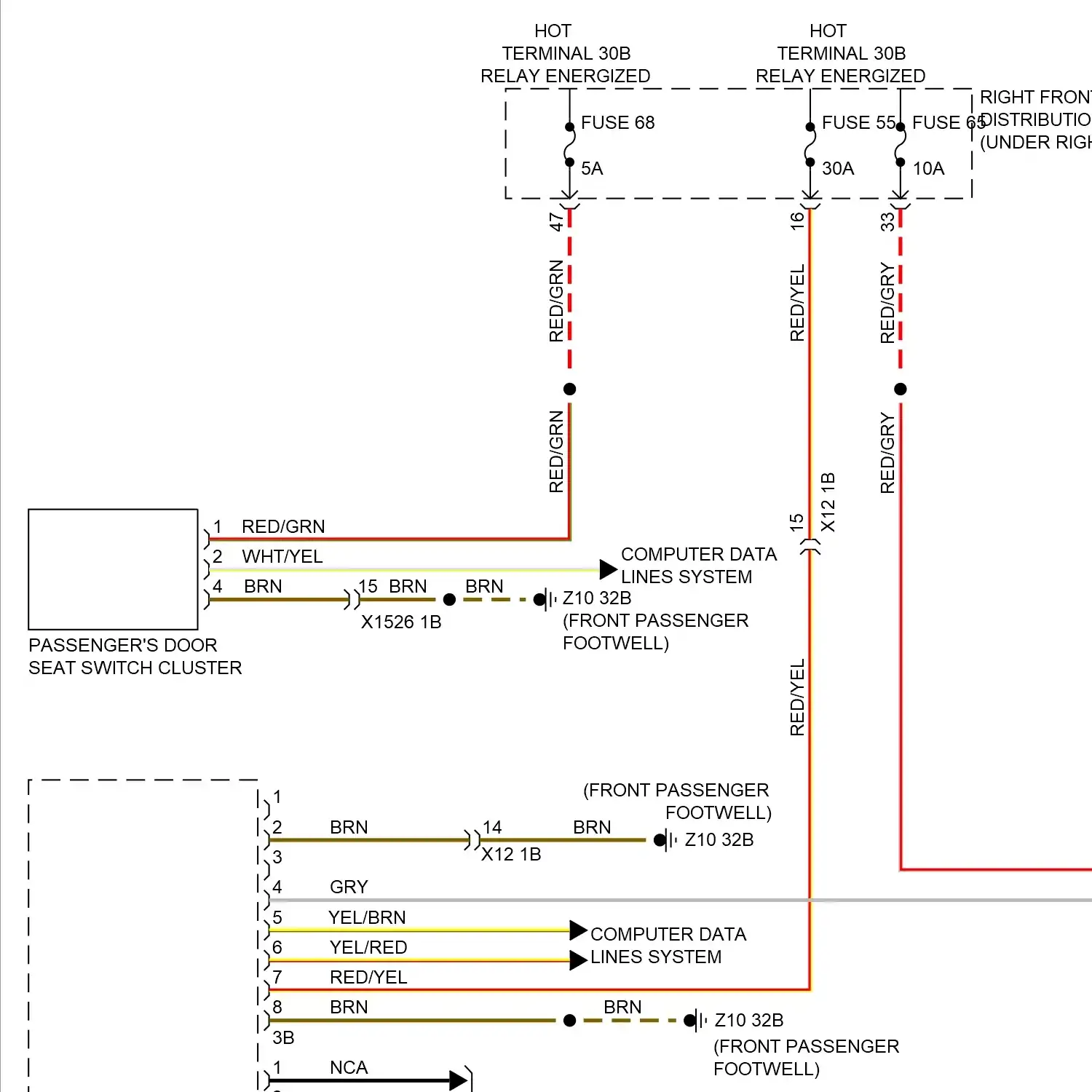

Power door locks circuit

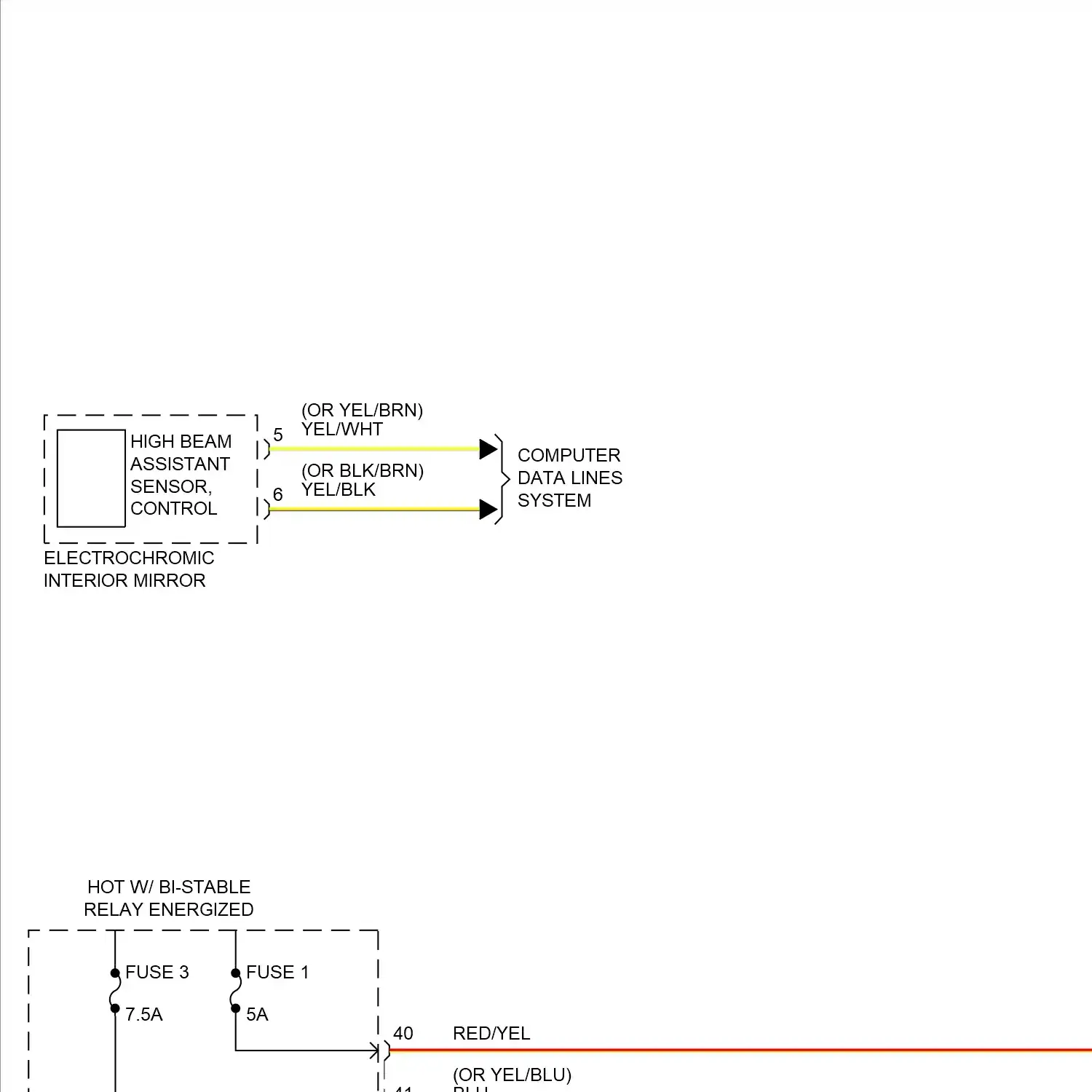

Electrochromic mirror circuit Power mirrors circuit

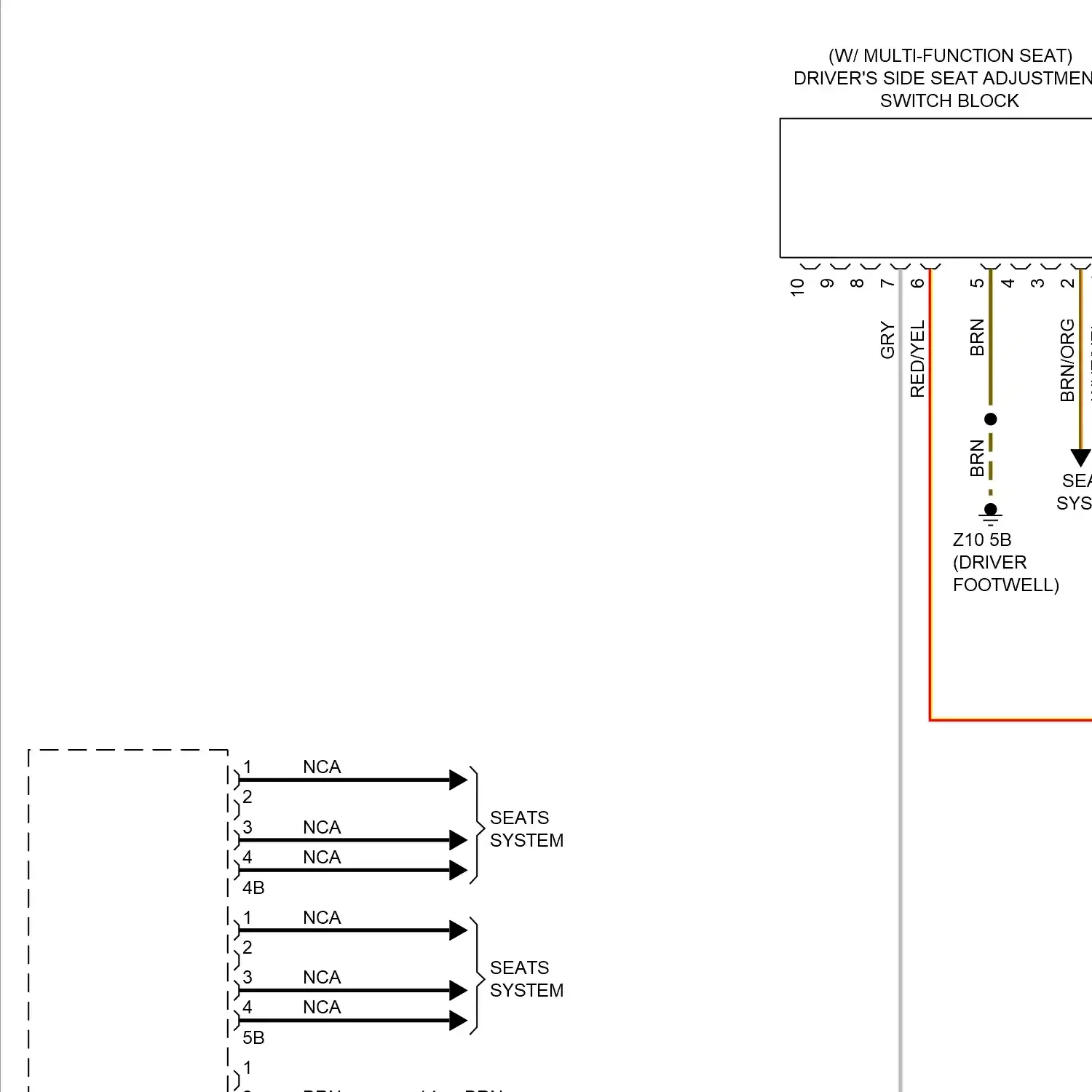

Driver power seat circuit Front armrest heating circuit Front heated seats circuit, w/ memory Front heated seats circuit, w/o memory Heated steering wheel circuit Lumbar circuit Passenger power seat circuit Pneumatics seat circuit Rear heated seats circuit Seat ventilation circuit Sport seats circuit

Power top/sunroof circuit

Power windows circuit

Rear seat entertainment circuit Receiver audio module circuit, base Receiver audio module circuit, high level Receiver audio module circuit, mid level

Shift interlock circuit

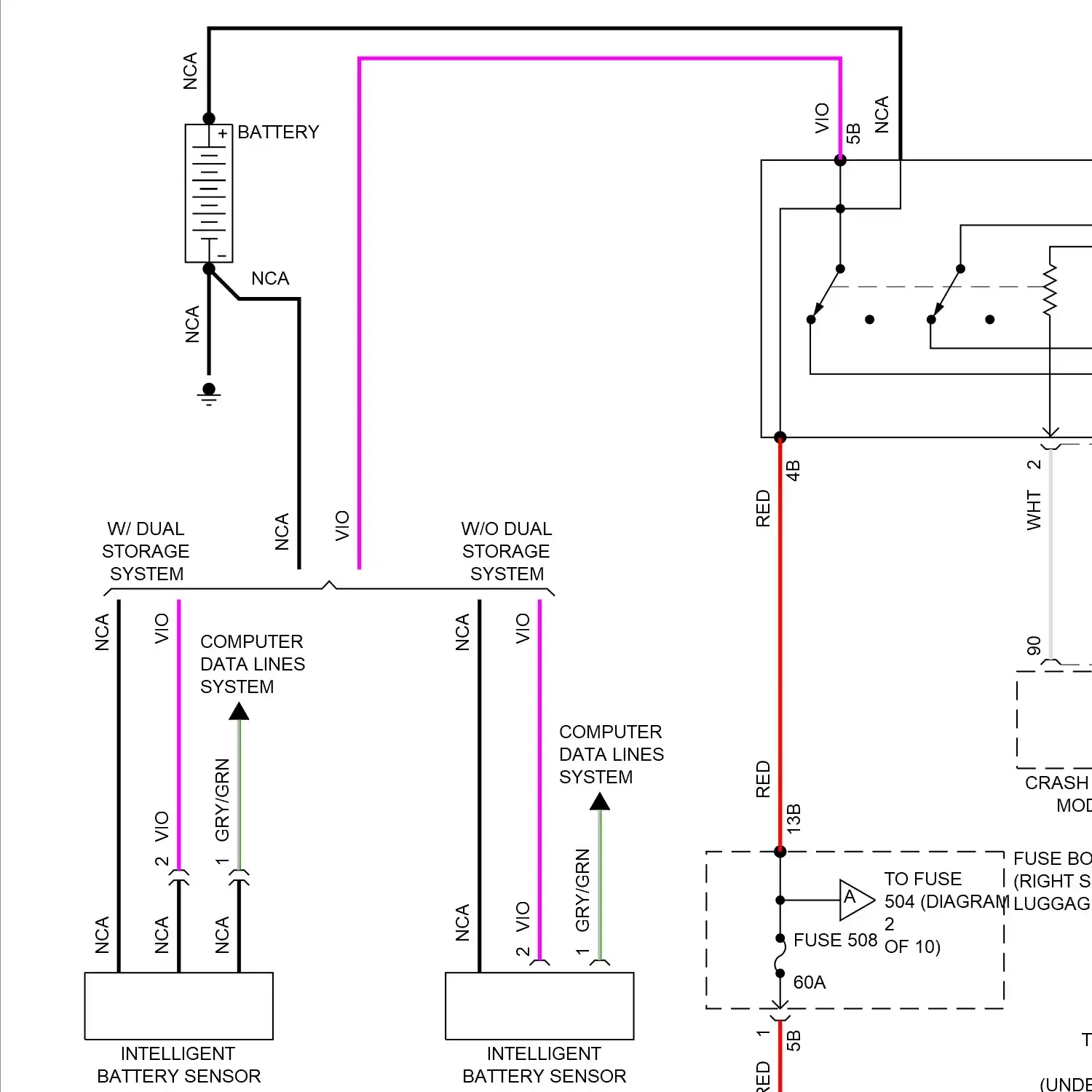

Charging circuit, w/ dual storage system Charging circuit, w/o dual storage system Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit Rear axle circuit

Anti-slip rails control circuit Contact-free tailgate opening circuit Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit
