Wiring Diagrams for BMW i3 I01 (2013-2017)

Automatic a/c circuit Heat pump circuit

Anti-lock brakes circuit

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance electric

Backup lamps circuit Exterior lamps circuit

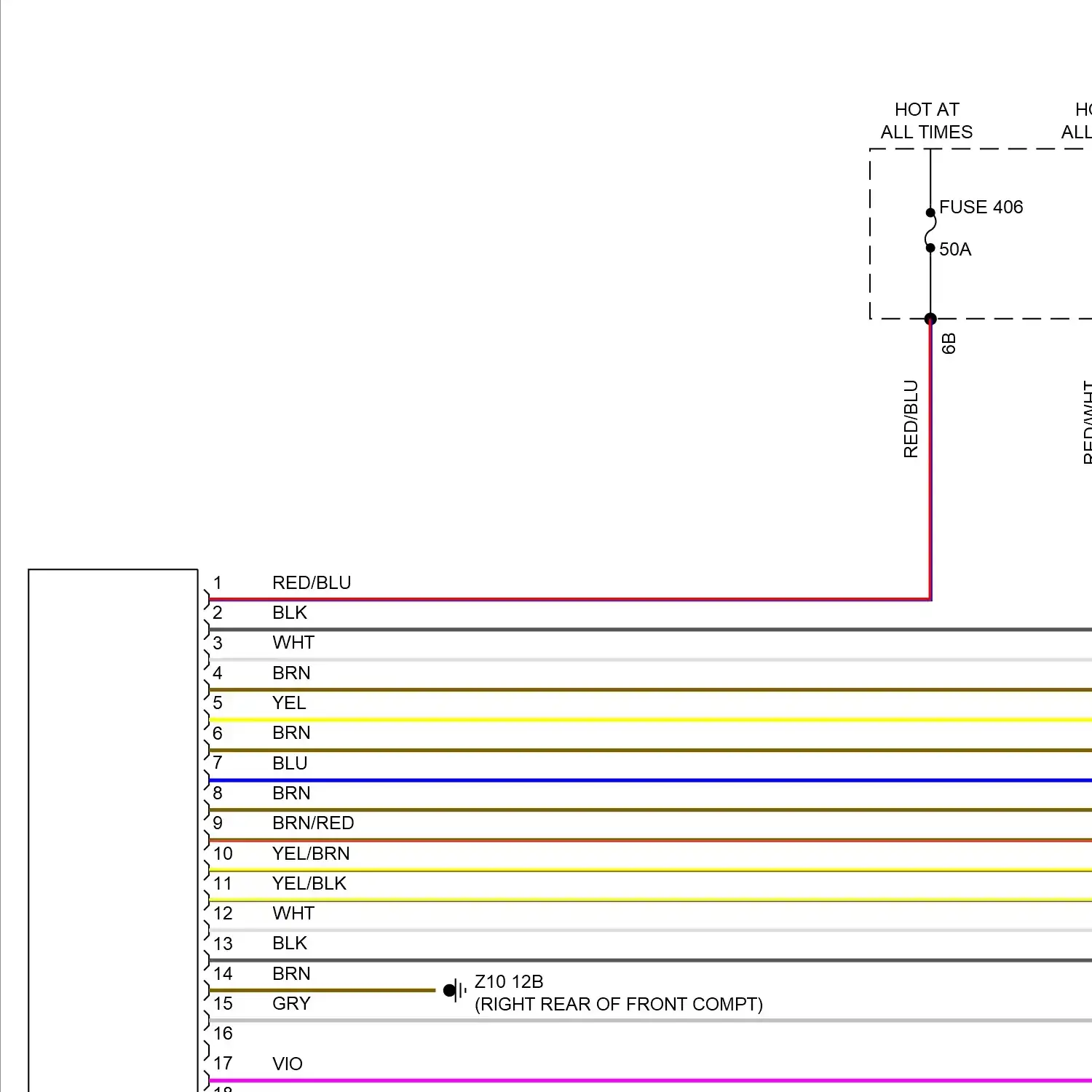

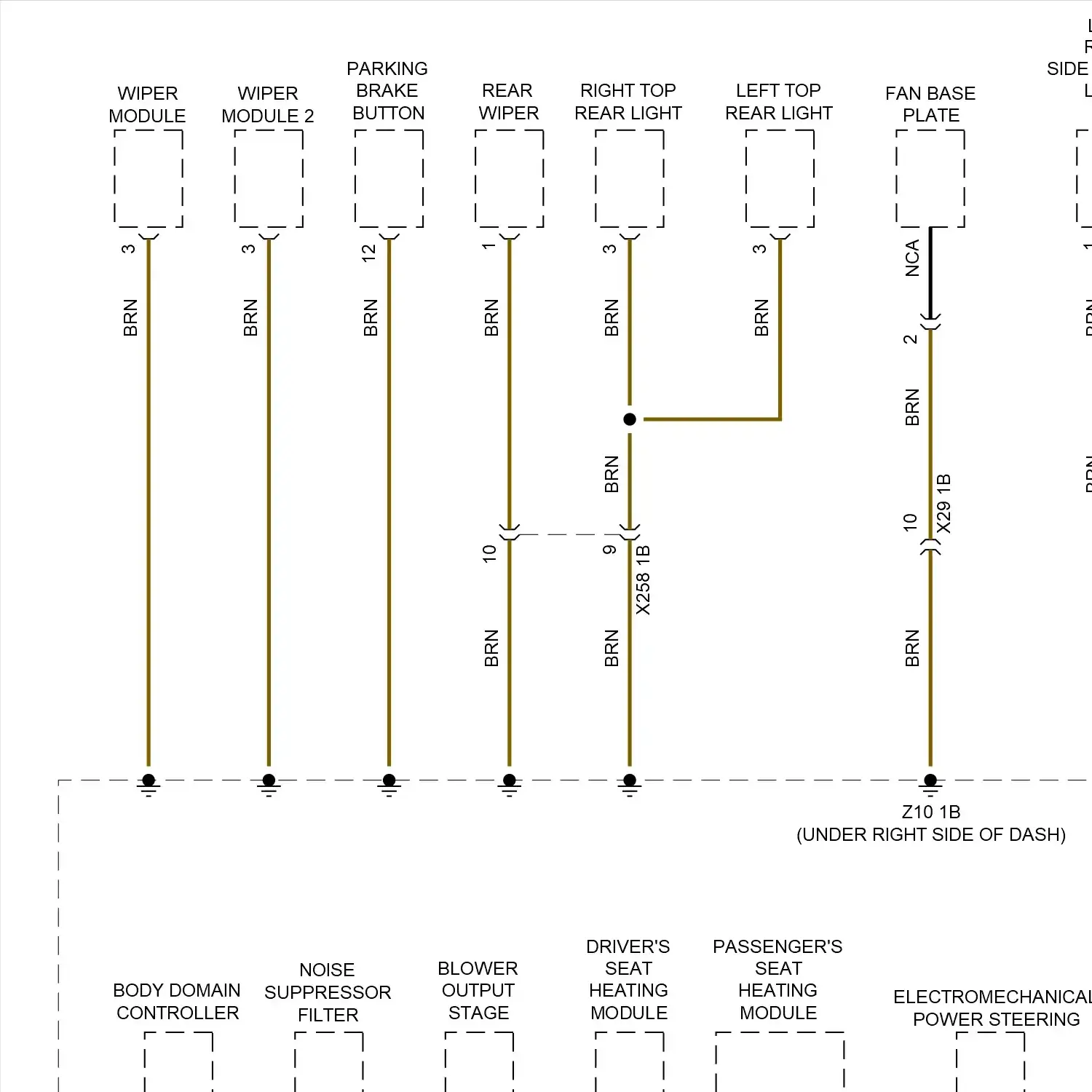

Ground distribution circuit

Headlights circuit, w/ led headlamps Headlights circuit, w/o led headlamps

Horn circuit

Instrument cluster circuit

Interior lights circuit

Lane departure warning circuit Navigation circuit, w/ hifi radio Navigation circuit, w/o hifi radio Parking assistant circuit Rear camera circuit

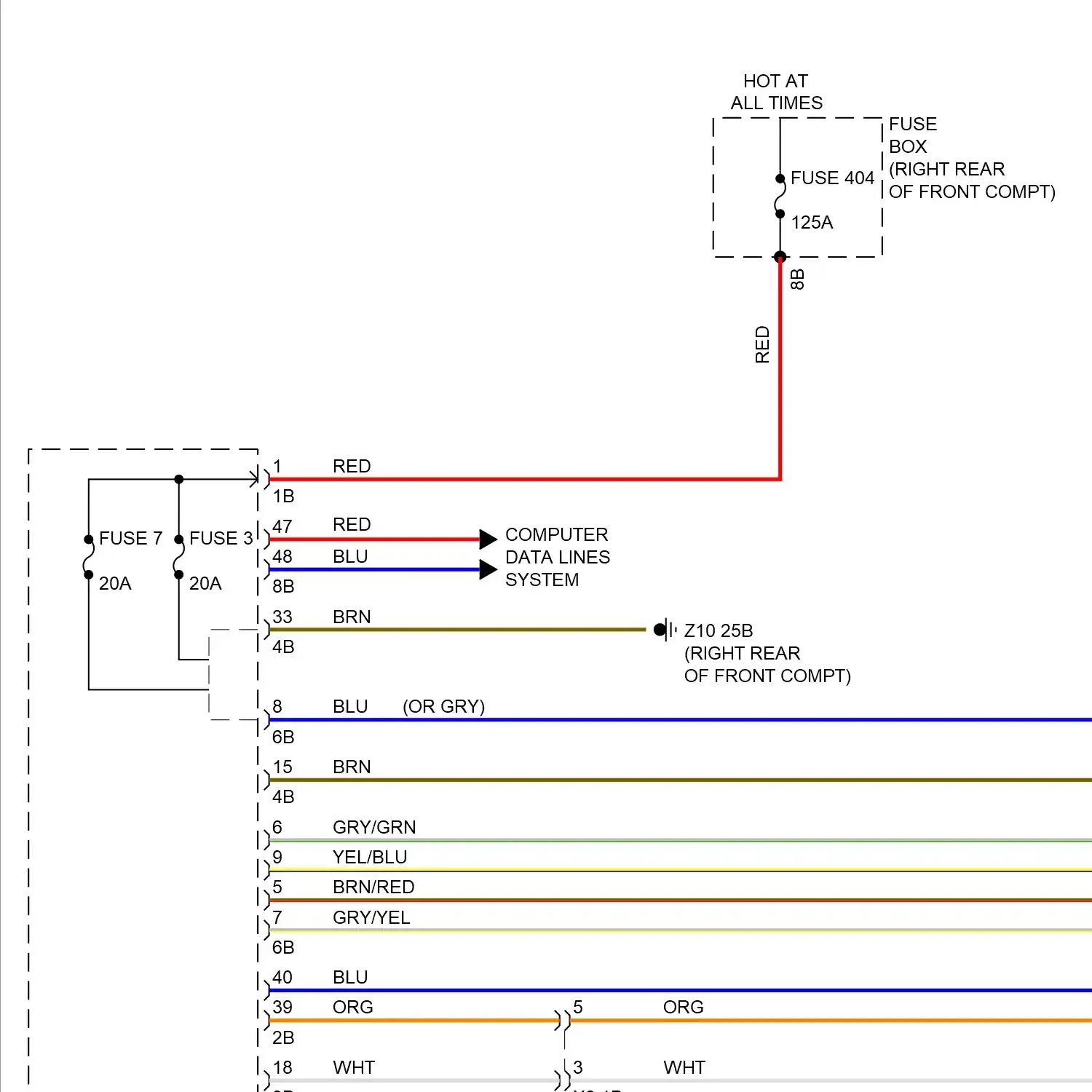

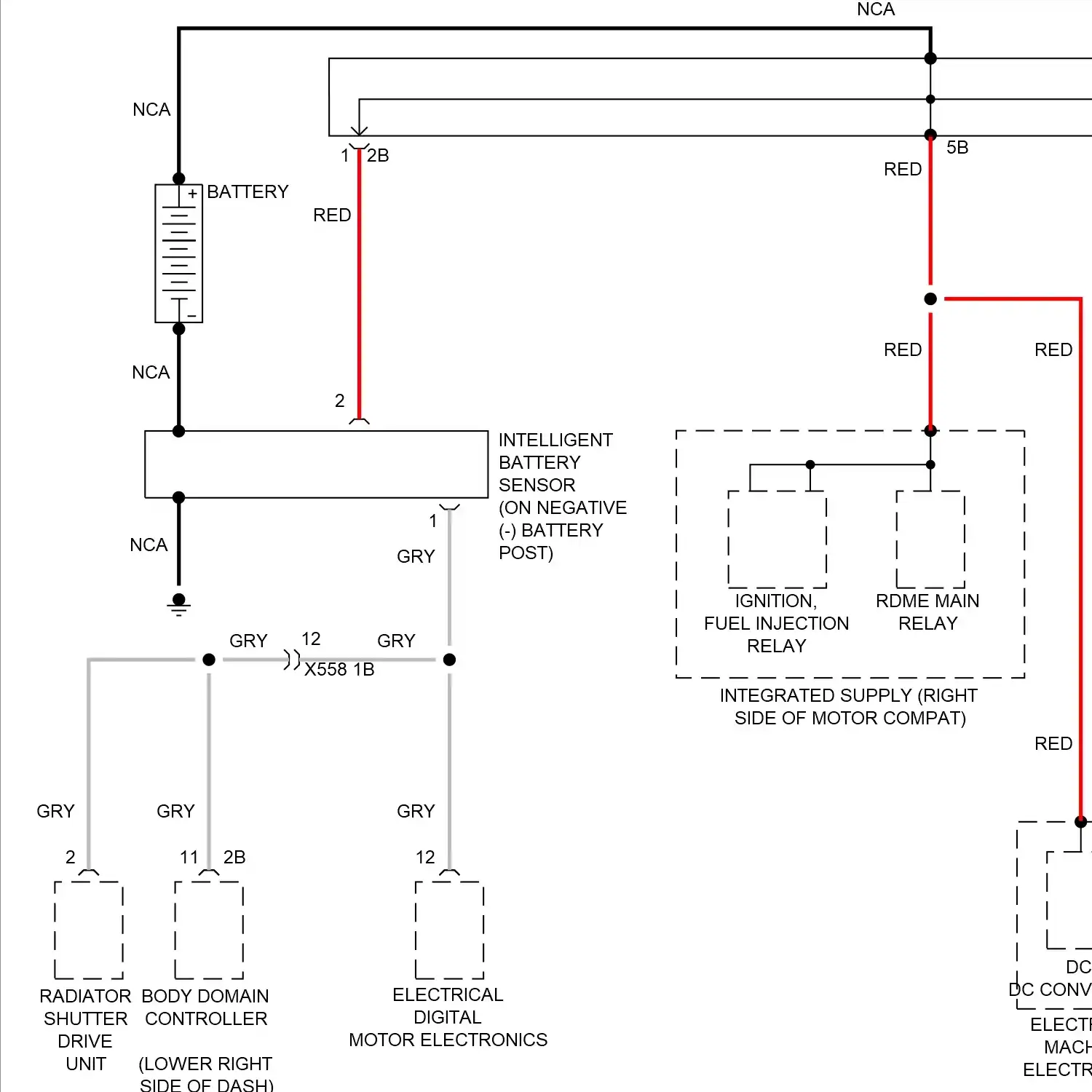

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit, w/ lin bus function Power mirrors circuit, w/o lin bus function

Power seats circuit

Power top/sunroof circuit

Power windows circuit

Base radio circuit Hifi radio circuit

Shift interlock circuit

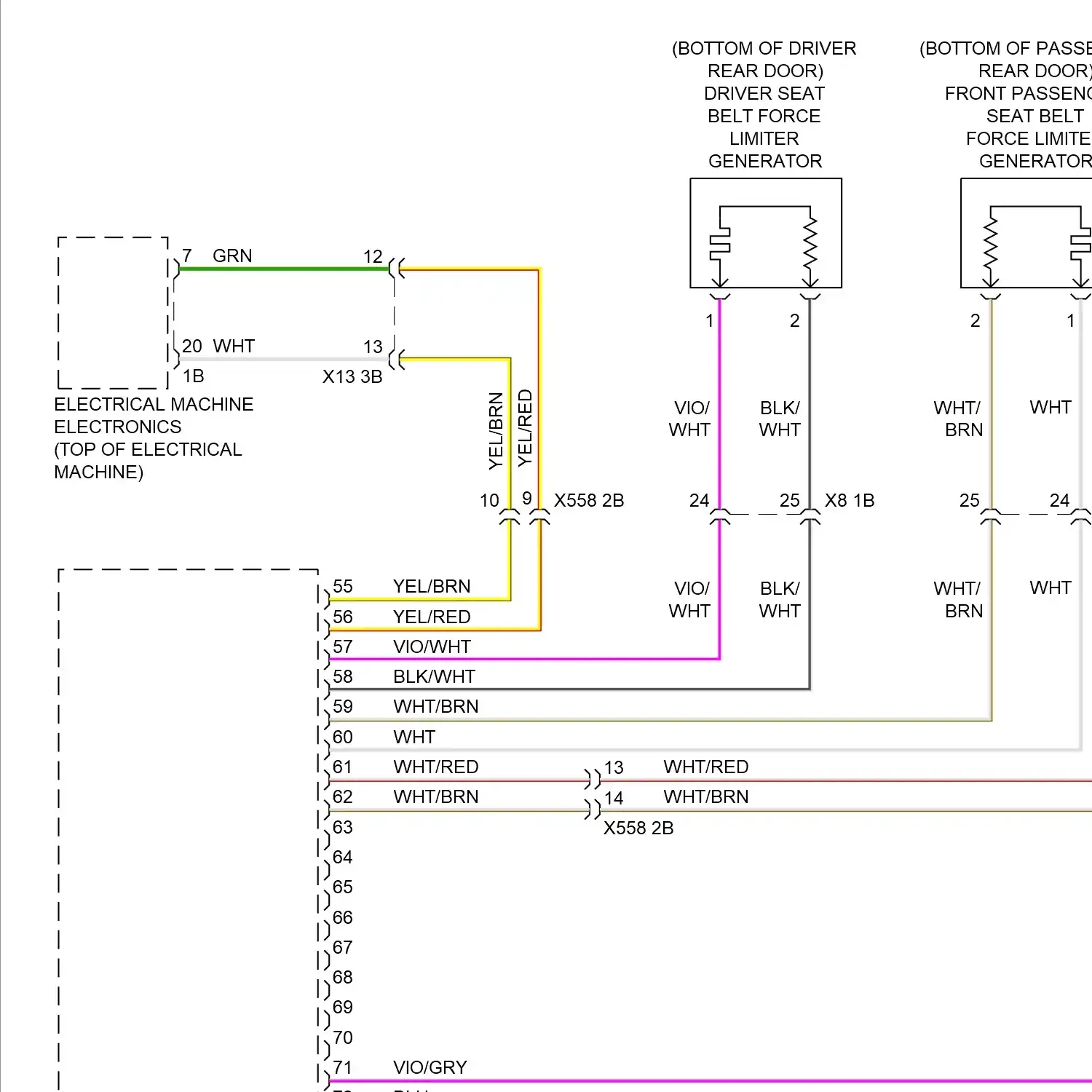

Supplemental restraints circuit

Transmission circuit

Trunk release circuit

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, CRUISE CONTROL, EXTERIOR LIGHTS SYSTEMS BATTERY MANAGEMENT ELECTRONICS BOOT LID/ TAILGATE LOCK BOOT LID/TAILGATE LOCK DRIVER DOOR LOCK DRIVER SEAT BELT FORCE LIMITER GENERATOR DRIVER'S DOOR LOCK FRONT PASSENGER DOOR LOCK FRONT PASSENGER SEAT BELT FORCE LIMITER GENERATOR HIFI AMPLIFIER IGN COIL 1 ACTIVATION IGN COIL 2 ACTIVATION IGN COIL SPLY IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 LEFT WASHER NOZZLE HEATING PARKING LOCK GND PARKING LOCK MODULE PASSENGER'S DOOR LOCK RIGHT WASHER NOZZLE HEATING SAFETY BATTERY TERMINAL SAFETY BATTERY TERMINAL GENERATOR SAFETY TERMINAL BATTERY TERMINATING RESISTOR VEHICLE SOUND GENERATOR

AIR DISTRIBUTION FLAP MOTOR ELECTRICAL DIGITAL MOTOR ELECTRONICS ENGINE COMPARTMENT ELECTRIC FAN ENGINE COMPARTMENT LID CENTRAL LOCKING DRIVE FOOTWELL FLAP MOTOR FRESH AIR/RECIRCULATED FLAP MOTOR HEADLIGHT BEAM THROW ADJUSTMENT ELECTRIC MOTOR RANGE EXTENDER DIGITAL ENGINE ELECTRONICS TOP OF ENGINE)

ANTENNA MULTIPLEXER BLUETOOTH ANTENNA DRIVER'S SIDE EXTERNAL ANTENNA PASSENGER SIDE EXTERNAL ANTENNA W/ ANTENNA MULTIPLEXER W/O ANTENNA MULTIPLEXER

BONNET BUTTON BOOT LID BUTTON EXTERIOR BUTTON SIG DRIVER'S DOOR CENTRAL LOCKING BUTTON DTC BUTTON SIG FRONT PASSENGER DOOR CENTRAL LOCKING BUTTON HORN BUTTON INTERIOR REAR LID BUTTON OUTER TAILGATE PUSH BUTTON PARKING BRAKE BUTTON REFUELLING BUTTON

CAMERA-BASED DRIVER ASSISTANCE SYSTEM CAMERA-BASED DRIVER ASSISTANCE SYSTEMS CAMERA-BASED DRIVER SUPPORT SYSTEMS CAMERA HEATING LANE DEPARTURE WARNING CAMERA REVERSING CAMERA

CHARGING LIGHTING SOCKET CHARGING SOCKET CENTRAL LOCKING DRIVE CHARGING SOCKET COVER CENTRAL LOCKING DRIVE FRONT HIGH-VOLTAGE CHARGING SOCKET HIGH VOLTAGE SAFETY CONNECTOR REAR HIGH-VOLTAGE CHARGING SOCKET

CENTER CONSOLE OPERATING UNIT DRIVER ASSISTANCE SYSTEMS OPERATING UNIT W/ HAZARD WARNING SWITCH HEAD UNIT HIGH-VOLTAGE BATTERY UNIT HYBRID PRESSURE REFUELING ELECTRONIC CONTROL UNIT HYBRID PRESSURE REFUELLING ELECTRONIC CONTROL UNIT INSTRUMENT CLUSTER CONTROL UNIT LIGHT OPERATING UNIT RADIATOR SHUTTER DRIVE UNIT

FUSE 1 FUSE 3 FUSE 4 FUSE 5 FUSE 7 FUSE 9 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 32 FUSE 34 FUSE 35 FUSE 37 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 47 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 57 FUSE 58 FUSE 60 FUSE 61 FUSE 63 FUSE 65 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 72 FUSE 73 FUSE 74 FUSE 76 FUSE 77 FUSE 78 FUSE 79 FUSE 80 FUSE 81 FUSE 82 FUSE 83 FUSE 84 FUSE 112 FUSE 113 FUSE 114 FUSE 115 FUSE 116 FUSE 121 FUSE 122 FUSE 123 FUSE 124 FUSE 125 FUSE 126 FUSE 127 FUSE 128 FUSE 130 FUSE 131 FUSE 132 FUSE 400 FUSE 401 FUSE 402 FUSE 403 FUSE 404 FUSE 406 FUSE BOX HOT AT ALL TIMES FUSE BOX

LEFT HEADLIGHT LEFT HIGH BEAM HEADLIGHT LEFT LOW BEAM HEADLIGHT RIGHT HEADLIGHT RIGHT HIGH BEAM HEADLIGHT RIGHT LOW BEAM HEADLIGHT

AUDIO MODE/ HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL DRIVER SEAT HEATING MODULE DRIVER'S SEAT BACKREST HEATING ELEMENT DRIVER'S SEAT CUSHION HEATING ELEMENT DRIVER'S SEAT HEATING MODULE ELECTRIC AUXILIARY HEATER FRONT PASSENGER'S SEAT BACKREST HEATING ELEMENT FRONT PASSENGER'S SEAT CUSHION HEATING ELEMENT FRONT PASSENGER'S SEAT HEATING MODULE HEATER ELEMENT HEATING/ AIR CONDITIONING SYSTEM HEATING/AIR CONDITIONING SYSTEM MIRROR HEATER PASSENGER'S SEAT HEATING MODULE

AIR BAG INDICATOR LAMP AUXILIARY TURN INDICATOR LIGHT

DAYTIME DRIVING LIGHTS ELECTRONICS DAYTIME DRIVING LIGHTS LED MODULE LEFT LICENSE PLATE LAMP LIGHTS) RIGHT LICENSE PLATE LAMP SIDE LIGHTS/ DAYTIME DRIVING LIGHTS W/ REAR LIGHTS W/O REAR LIGHTS

ACT ELEC COOL PUMP AUXILIARY WATER PUMP ELECTRIC COOLANT PUMP ELECTRIC FUEL PUMP ELECTRIC VACUUM PUMP HEAT PUMP CONTROLLER WINDSCREEN WASHER PUMP, REAR WASHER PUMP

BI-STABLE RELAY ELECTRIC FAN 2 CUTOFF RELAY ELECTRIC FAN 2 CUTOUT RELAY ELECTRIC FAN CUTOFF RELAY ELECTRIC FAN CUTOUT RELAY FUEL PUMP RELAY HEATED REAR WINDOW RELAY HORN RELAY HOT W/ BI-STABLE RELAY ENERGIZED IGNITION, FUEL INJECTION RELAY RDME MAIN RELAY RELAY ENERGIZED

AUC SENSOR BRAKE VACUUM PRESSURE SENSOR COOLANT TEMPERATURE SENSOR CRANKSHAFT SENSOR DRIVER SEAT POSITION SENSOR DRIVER'S SIDE B-PILLAR AIR BAG SENSOR DRIVER'S SIDE DOOR AIR BAG SENSOR DRIVER'S SIDE FRONT AIR BAG SENSOR ENGINE COMPARTMENT 2 TEMPERATURE SENSOR ENGINE COMPARTMENT TEMPERATURE SENSOR ENGINE COMPARTMENT TEMPERATURE SENSOR 2 EVAPORATOR TEMPERATURE SENSOR FOOTWELL TEMPERATURE SENSOR FRONT PASSENGER SEAT POSITION SENSOR FUEL FILLER FLAP SENSOR FUEL LEVEL SENSOR FUEL TANK PRESSURE SENSOR HEAT PUMP CIRCUIT TEMPERATURE SENSOR HEAT PUMP CIRCUIT TEMPERATURE SENSOR 2 HEAT PUMP CIRCUIT TEMPERATURE SENSOR 3 INTAKE AIR TEMPERATURE/ INTAKE MANIFOLD PRESSURE SENSOR INTAKE CAMSHAFT SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR CYLINDER 1, 2 LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT LEVEL SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR LEVEL SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR WHEEL SPEED SENSOR OUTSIDE TEMPERATURE SENSOR OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER PASSENGER'S SIDE B-PILLAR AIR BAG SENSOR PASSENGER'S SIDE DOOR AIR BAG SENSOR PASSENGER'S SIDE FRONT AIR BAG SENSOR RAIN/ LIGHT/ SOLAR/ CONDENSATION SENSOR RAIN/DRIVING LIGHTS/ CONDENSATION /SOLAR SENSOR RAIN/LIGHT/ SOLAR CONDENSATION SENSOR RAIN/LIGHT/ SOLAR/CONDENSATION SENSOR REFRIGERANT PRESSURE SENSOR REFRIGERANT PRESSURE SENSOR 2 RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR WHEEL SPEED SENSOR ROTOR POSITION SENSOR SIREN W/ TILT ALARM SENSOR STEERING TORQUE SENSOR TEMPERATURE SENSOR TEMPERATURE SENSOR 2 VENTILATION TEMPERATURE SENSOR WASHER FLUID LEVEL SENSOR

FRONT CENTER MID-RANGE SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID-RANGE SPEAKER RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID-RANGE SPEAKER

BONNET CONTACT SWITCH BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH DRIVER ASSISTANCE SYSTEM OPERATING FACILITY W/ HAZARD WARNING SWITCH DRIVER ASSISTANCE SYSTEM OPERATING FACILITY WITH HAZARD WARNING SWITCH DRIVER'S DOOR SWITCH BLOCK GEAR SELECTOR SWITCH GLOVE COMPARTMENT LIGHT SWITCH LEFT MULTI- FUNCTION STEERING WHEEL SWITCH BLOCK OIL PRESSURE SWITCH PASSENGER'S DOOR POWER WINDOW SWITCH RETAINING HOOK SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH BLOCK STEERING COLUMN SWITCH CLUSTER

FUEL TANK NON-RETURN VALVE HEAT PUMP CIRCUIT EXPANSION VALVE HEAT PUMP CIRCUIT EXPANSION VALVE 2 HEAT PUMP CIRCUIT EXPANSION VALVE 3 HEAT PUMP CIRCUIT SHUTOFF VALVE HEAT PUMP CIRCUIT SHUTOFF VALVE 2 HEAT PUMP CIRCUIT SHUTOFF VALVE 3 HEAT PUMP CIRCUIT SHUTOFF VALVE 4 PASSENGER COMPARTMENT REFRIGERANT SHUTOFF VALVE REFRIGERANT SHUTOFF VALVE REFRIGERATOR SHUTOFF VALVE TANK ISOLATION VALVE TANK VENT VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE ORG/YEL WIRE PNK WIRE PNK/BLU WIRE PNK/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

A/C CHARGING ACCEL PEDAL GND ACCEL PEDAL SIG ACCEL PEDAL SPLY ACCELERATOR PEDAL MODULE ACCUMULATOR MANAGEMENT ELECTRONICS ACT CUT-OUT RLY ACT CUT-OUT RLY 2 ACT ELEC VACUM PMP ACT PRKING LCK ACT SW CONTACT ADJUSTING DRIVE AIR CONDITIONING SYSTEM AMBIENT LIGHT ANTI-THEFT ALARM SYSTEM IND ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM AUX-IN CONNECTION AUXILIARY BRAKE LIGHT AUXILIARY TURN IND LIGHT BASE PLATE BASE PLATE FAN BLOWER OUTPUT STAGE BODY DOMAIN CONTROLLER BRAKE LT SW SIG BRK VACUUM PRE SENS BUMPER AERIAL CELL BLOCK 1 CELL BLOCK 2 CELL BLOCK 3 CELL BLOCK 4 CELL BLOCK 5 CELL BLOCK 6 CELL BLOCK 7 CELL BLOCK 8 CELL SUPERVISION CIRCUIT 1 CELL SUPERVISION CIRCUIT 2 CELL SUPERVISION CIRCUIT 3 CELL SUPERVISION CIRCUIT 4 CELL SUPERVISION CIRCUIT 5 CELL SUPERVISION CIRCUIT 6 CELL SUPERVISION CIRCUIT 7 CELL SUPERVISION CIRCUIT 8 CENTER CONSOLE CONTROL PANEL CENTER LIGHTING OF DASHBOARD CENTRAL INFORMATION DISPLAY CENTRAL LOCKING DRIVE RETAINING HOOK CENTRE CONSOLE CONTROL PANEL CHARGING INTERFACE MODULE CHARGING STATUS DISPLAY CHRGING INTERFAC SIG CID LIGHTING COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONVENIENCE CHARGING ELECTRONICS COOL TEMP SENS SIG COOLANT TEMP SENS CRANKSHFT SENS GND CRANKSHFT SENS SIG CRANKSHFT SENS SPLY CRASH SAFETY MODULE CRASH SIG CRUISE CONTROL SYSTEM CUT-OUT RLY 2 SIG D/C CHARGING DATA LINES DC/DC CONVERTER DC/DC CONVERTER ELECTRICAL MACHINE ELECTRONICS DEFOGGER SYSTEM DIAGNOSIS PLUG DIVERSITY AERIAL DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DRIVER AIR BAG INFLATOR ASSEMBLY DRIVER EXTERIOR MIRROR DRIVER OUTER DOOR HANDLE ELECTRONIC MODULE DRIVER POWER WINDOW DRIVE DRIVER RETRACTOR TENSIONER DRIVER'S AIR BAG INFLATOR ASSEMBLIES DRIVER'S DOOR ENTRANCE LIGHT DRIVER'S DOOR INNER DOOR HANDLE LIGHTING DRIVER'S DOOR POCKET LIGHTING DRIVER'S EXTERIOR MIRROR DRIVER'S KNEE AIR BAG INFLATOR ASSEMBLY DRIVER'S SEAT BELT BUCKLE CONTACT DYNAMIC STABILITY CONTROL ELEC THROTTLE ACT ELEC THROTTLE ACT GND ELEC THROTTLE ACT SIG ELEC THROTTLE ACT SPLY ELEC THROTTLE SIG ELECT THROTTLE ACT ELECT THROTTLE SIG ELECTRIC FAN ELECTRIC FAN SIG ELECTRIC MACHINE ELECTRICAL AIR CONDITIONING COMPRESSOR ELECTRICAL MACHINE ELECTRONICS ELECTROCHROMIC INTERIOR REAR VIEW MIRROR ELECTROCHROMIC INTERIOR REARVIEW MIRROR ELECTROCHROMIC POWER STEERING ELECTROMECHANICAL POWER STEERING EXCEPT REX EXT CONDUCTOR FAN BASE PLATE FLEXRAY BUS SIG FRONT CENTER CONSOLE INTERIOR AERIAL FRONT CENTER TWEETER FRONT PASSENGER EXTERIOR MIRROR FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER SEAT OCCUPANCY DETECTION FRONT PASSENGER'S EXTERIOR MIRROR FUEL FILLER FLAP SERVO DRIVE FUEL INJ 1 ACTIVATION FUEL INJ 1 SPLY FUEL INJ 2 ACTIVATION FUEL INJ 2 SPLY FUEL INJECTOR CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL PMP RLY ACT GLOVE COMPARTMENT LIGHT GND INTAKE CAMSHFT SENS HALL SENS SIG HEADLIGHTS SYSTEM HI VOLT LOOP SIG HI VOLT PHASE U HI VOLT PHASE V HI VOLT PHASE W HIGH BEAM HORNS SYSTEM HOT AT ALL TIMES HOT W/ HOT W/ TERMINAL ID READER IGNITION COILS SUPPRESSION CAPACITOR INFOTAINMENT FAN INSTRUMENT CLUSTER SYSTEM INTAKE CAM SENS SIG INTAKE CAMSHFT SENS SIG INTEGRATED ACT SPLY INTEGRATED SUPPLY MODULE INTERIOR LIGHT) INTKE AIR TEMP GND INTKE AIR TEMP SIG INTKE AIR TEMP SPLY K-CAN BUS SIG LED ACTIVATION LEFT BOTTOM REAR LIGHT LEFT FRONT ELECTRONIC WHEEL MODULE LEFT FRONT ELECTRONICS LIGHT LEFT FRONT FOOTWELL LIGHT LEFT FRONT HANDLE LIGHTING LEFT FRONT TWEETER LEFT FRONT VANITY MIRROR LIGHT LEFT FRONT WOOFER LEFT HEAD AIR BAG INFLATOR ASSEMBLY LEFT LICENSE PLATE LIGHT LEFT PARKING BRAKE DRIVE LEFT REAR BOTTOM DOOR CONTACT LEFT REAR BOTTOM LIGHT LEFT REAR DOOR PULL HANDLE LIGHT LEFT REAR DOOR PULL HANDLE LIGHTING LEFT REAR ELECTRONIC WHEEL MODULE LEFT REAR SIDE MARKER LIGHT LEFT REAR TOP DOOR CONTACT LEFT REAR TWEETER LEFT TOP REAR LIGHT LIGHTING CENTER OF DASHBOARD LIN BUS SIG LINES SYSTEM LOCATOR LIGHTING LOW BEAM LOW BEAM HEADLIGHTS LUGGAGE COMPARTMENT AERIAL LUGGAGE COMPARTMENT LIGHT MICROPHONE 2 + MIRROR FOLD- IN DRIVE MIRRORS SYSTEM MIXING FLAP DRIVE NAVIGATION SYSTEM NEU CONDUCTOR NOISE SUPPRESSOR FILTER OIL PRESS SW SIG OPTIONAL EQUIPMENT SYSTEM OXY SEN AFT CAT CON GND OXY SENS AFT CATLY OXY SENS AFT SIG OXY SENS BFR CAT CONV OXY SENS GND OXY SENS SIG OXYGEN SENS SIG PARK SIG PARKING LCK SIG PARKING MANEUVERING ASSISTANT PASSENGER OUTER DOOR HANDLE ELECTRONIC MODULE PASSENGER POWER WINDOW DRIVE PASSENGER SIDE AIR BAG INFLATOR ASSEMBLY PASSENGER'S AIR BAG INFLATOR ASSEMBLIES PASSENGER'S DOOR ENTRANCE LIGHT PASSENGER'S DOOR INNER DOOR HANDLE LIGHTING PASSENGER'S DOOR POCKET LIGHTING PASSENGER'S KNEE AIR BAG INFLATOR ASSEMBLY PASSENGER'S SEAT BELT BUCKLE CONTACT POWER DISTRIBUTION BOX LIFE MODULE POWER DISTRIBUTION SYSTEM POWER SUPPLY POWER WINDOWS SYSTEM PT-CAN BUS SIG PT-CAN BUS SIGNAL PWM BFI RANGE EXTENDER ELECTRICAL MACHINE ELECTRONICS RANGE EXTENDER ELECTRICAL MACHINE ELECTRONS REAR CENTER CONSOLE INTERIOR AERIAL REAR FOG REAR FOG LIGHT REAR INTERIOR LIGHT REAR SPOILER AERIAL REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER REJECTOR CIRCUIT REAR WINDOW DEFOGGER REJECTOR CIRCUIT 2 REAR WIPER REMOTE CONTROL RECEIVER RIGHT BOTTOM REAR LIGHT RIGHT FRONT ELECTRONIC WHEEL MODULE RIGHT FRONT ELECTRONICS LIGHT RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT HANDLE LIGHTING RIGHT FRONT TWEETER RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONT WOOFER RIGHT HEAD AIR BAG INFLATOR ASSEMBLY RIGHT PARKING BRAKE DRIVE RIGHT REAR BOTTOM DOOR CONTACT RIGHT REAR BOTTOM LIGHT RIGHT REAR DOOR PULL HANDLE LIGHTING RIGHT REAR ELECTRONIC WHEEL MODULE RIGHT REAR SIDE MARKER LIGHT RIGHT REAR TOP DOOR CONTACT RIGHT REAR TWEETER RIGHT TOP REAR LIGHT RING AERIAL ROOF AERIAL ROOF FUNCTION CENTER ROTOR POSI SENS GND ROTOR POSI SENS SPLY SAFETY BOX SENS GND SIDE MARKER LIGHT SIG CHARGE SOLID STATE SOUND SYSTEMS SPLY TERMINAL 15 SPLY TERMINAL 30 START STOP SUPPLEMENTAL RESTRAINTS SYSTEM SW CONT ACTIVATION SWIVEL MODULE TAILGATE HINGE MICROSWITCH TANK VENT VLV ACT TANK VENT VLV SPLY TELEMATIC COMMUNICATION BOX TEMP SENS GND TEMP SENS SIG TERM 15 WAKE UP SIG TERM 30 PWR SPLY TERM SPLY 15 TERM SPLY 30 TOP LEFT REAR DOOR CONTACT TOUCH BOX TOUCH DETECTION ELECTRONICS TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIG USB CONNECTION W/ HIGH VERSION W/ LED W/ LIN BUS FUNCTION W/ NOISE SUPPRESSOR FILTER W/O NOISE SUPPRESSOR FILTER W/ QUICK CHARGING FUNCTION W/O QUICK CHARGING FUNCTION W/ TELEMATICS W/O COMFORT LOADING W/ COMFORT LOADING W/O LED W/O TELEMATICS WAKE UP SIG WAKE UP SIG, TERM 15 WIPER MODULE WIPER MODULE 2 WIPER/WASHER SYSTEM WLAN AERIAL
