Computer data lines — High/low bus circuit BMW 7 series G70

1 system 14 wiring diagrams 1653 components
All systems — 36 systems

Computer data lines

# High/low bus circuit

# High/low bus circuit (1 of 14)

Computer data lines — High/low bus circuit — High/low bus circuit (1 of 14). BMW 7 series G70 (2022-2024)
Components on the diagram

    # High/low bus circuit (2 of 14)

    Computer data lines — High/low bus circuit — High/low bus circuit (2 of 14). BMW 7 series G70 (2022-2024)
    Components on the diagram

      # High/low bus circuit (3 of 14)

      Computer data lines — High/low bus circuit — High/low bus circuit (3 of 14). BMW 7 series G70 (2022-2024)
      Components on the diagram

        # High/low bus circuit (4 of 14)

        Computer data lines — High/low bus circuit — High/low bus circuit (4 of 14). BMW 7 series G70 (2022-2024)
        Components on the diagram

          # High/low bus circuit (5 of 14)

          Computer data lines — High/low bus circuit — High/low bus circuit (5 of 14). BMW 7 series G70 (2022-2024)
          Components on the diagram

            # High/low bus circuit (6 of 14)

            Computer data lines — High/low bus circuit — High/low bus circuit (6 of 14). BMW 7 series G70 (2022-2024)
            Components on the diagram

              # High/low bus circuit (7 of 14)

              Computer data lines — High/low bus circuit — High/low bus circuit (7 of 14). BMW 7 series G70 (2022-2024)
              Components on the diagram

                # High/low bus circuit (8 of 14)

                Computer data lines — High/low bus circuit — High/low bus circuit (8 of 14). BMW 7 series G70 (2022-2024)
                Components on the diagram

                  # High/low bus circuit (9 of 14)

                  Computer data lines — High/low bus circuit — High/low bus circuit (9 of 14). BMW 7 series G70 (2022-2024)
                  Components on the diagram

                    # High/low bus circuit (10 of 14)

                    Computer data lines — High/low bus circuit — High/low bus circuit (10 of 14). BMW 7 series G70 (2022-2024)
                    Components on the diagram

                      # High/low bus circuit (11 of 14)

                      Computer data lines — High/low bus circuit — High/low bus circuit (11 of 14). BMW 7 series G70 (2022-2024)
                      Components on the diagram

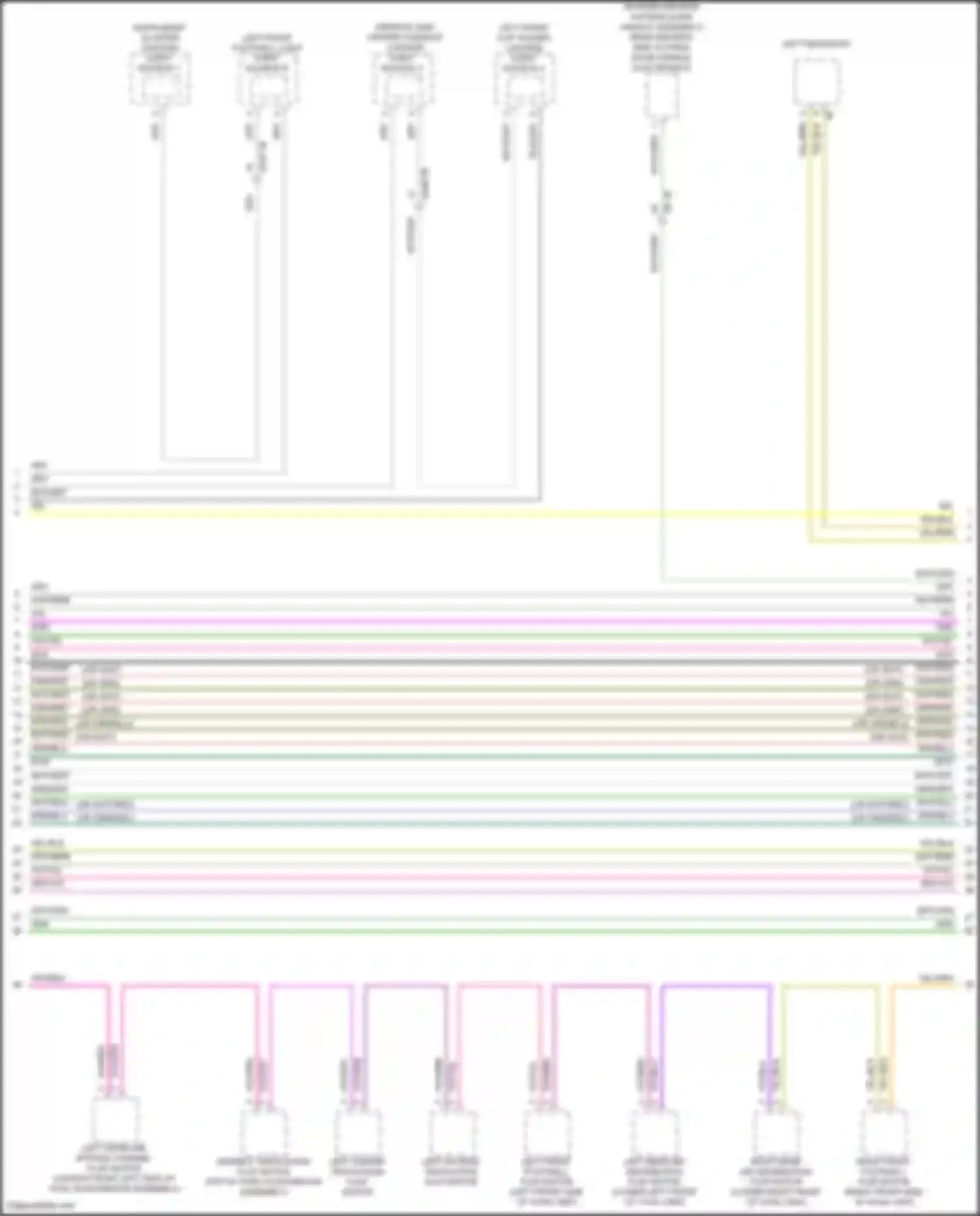

                        # High/low bus circuit (12 of 14)

                        Computer data lines — High/low bus circuit — High/low bus circuit (12 of 14). BMW 7 series G70 (2022-2024)
                        Components on the diagram

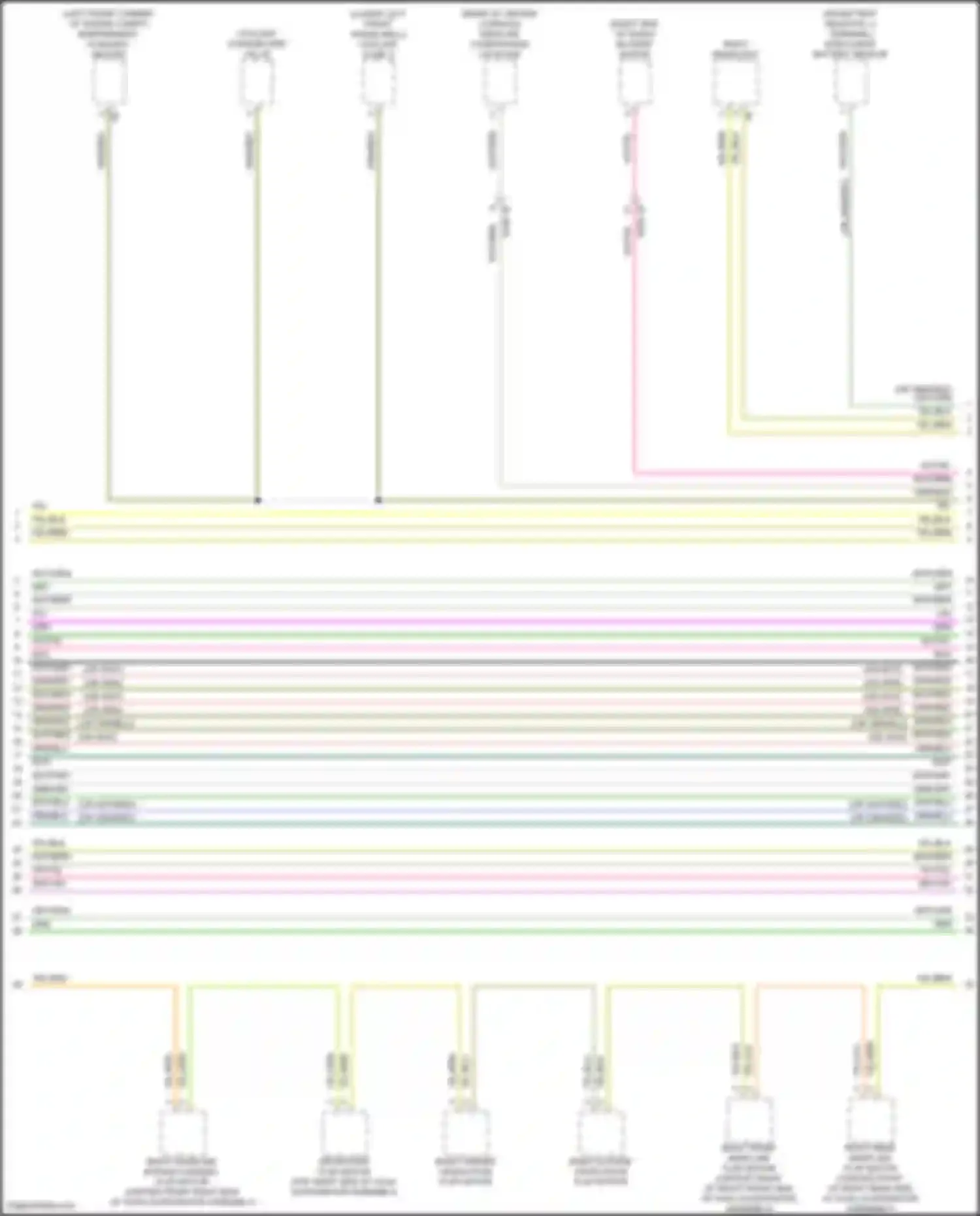

                          # High/low bus circuit (13 of 14)

                          Computer data lines — High/low bus circuit — High/low bus circuit (13 of 14). BMW 7 series G70 (2022-2024)
                          Components on the diagram

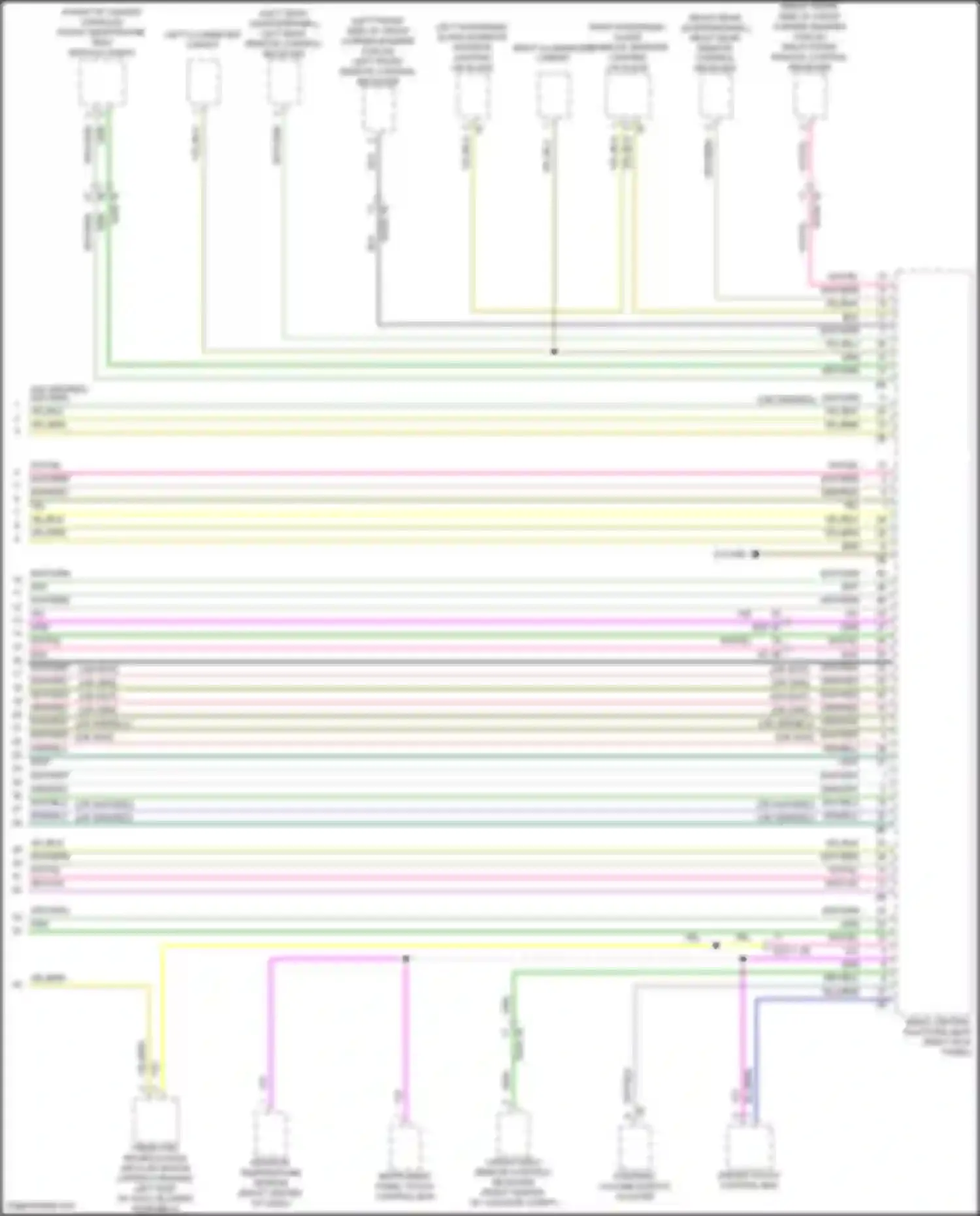

                            # High/low bus circuit (14 of 14)

                            Computer data lines — High/low bus circuit — High/low bus circuit (14 of 14). BMW 7 series G70 (2022-2024)
                            Components on the diagram

                              Components on these wiring diagrams 217

                              Click a component to highlight it on every diagram it appears on.
