Wiring Diagrams for BMW 7 series G11/G12 (2015-2019)

Active bodyworks circuit

Automatic a/c circuit, w/o rear automatic climate control Automatic a/c circuit, w/ rear automatic climate control Cool box circuit Independent heating circuit Rear heater & a/c circuit

Anti-lock brakes circuit

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

Data link connector circuit High/low bus circuit

Cooling fan circuit

Cruise control circuit

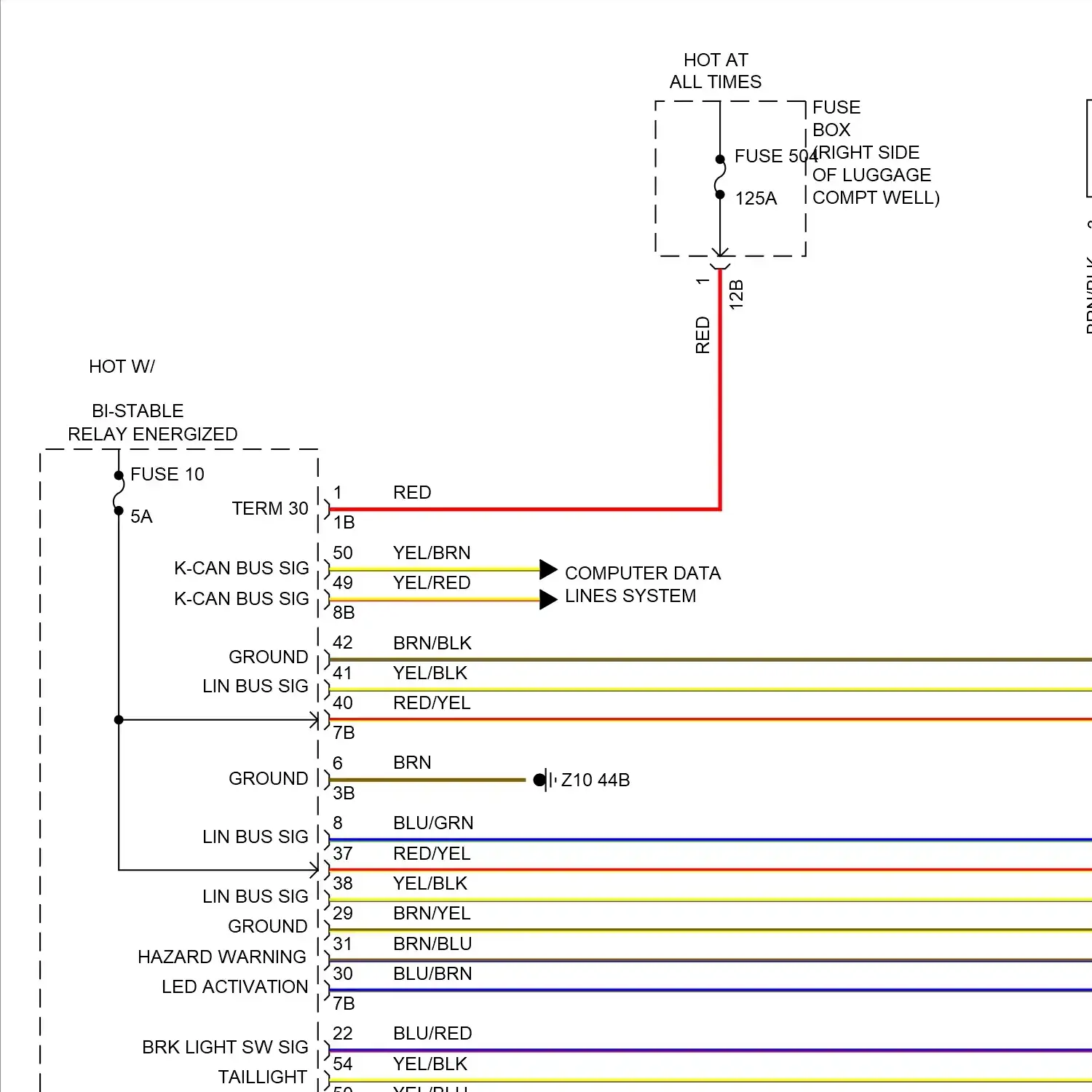

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

Dynamic drive suspension circuit Electric active roll stabilization circuit

Wiring diagram engine performance 3.0l turbo

Wiring diagram engine performance 4.4l turbo

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

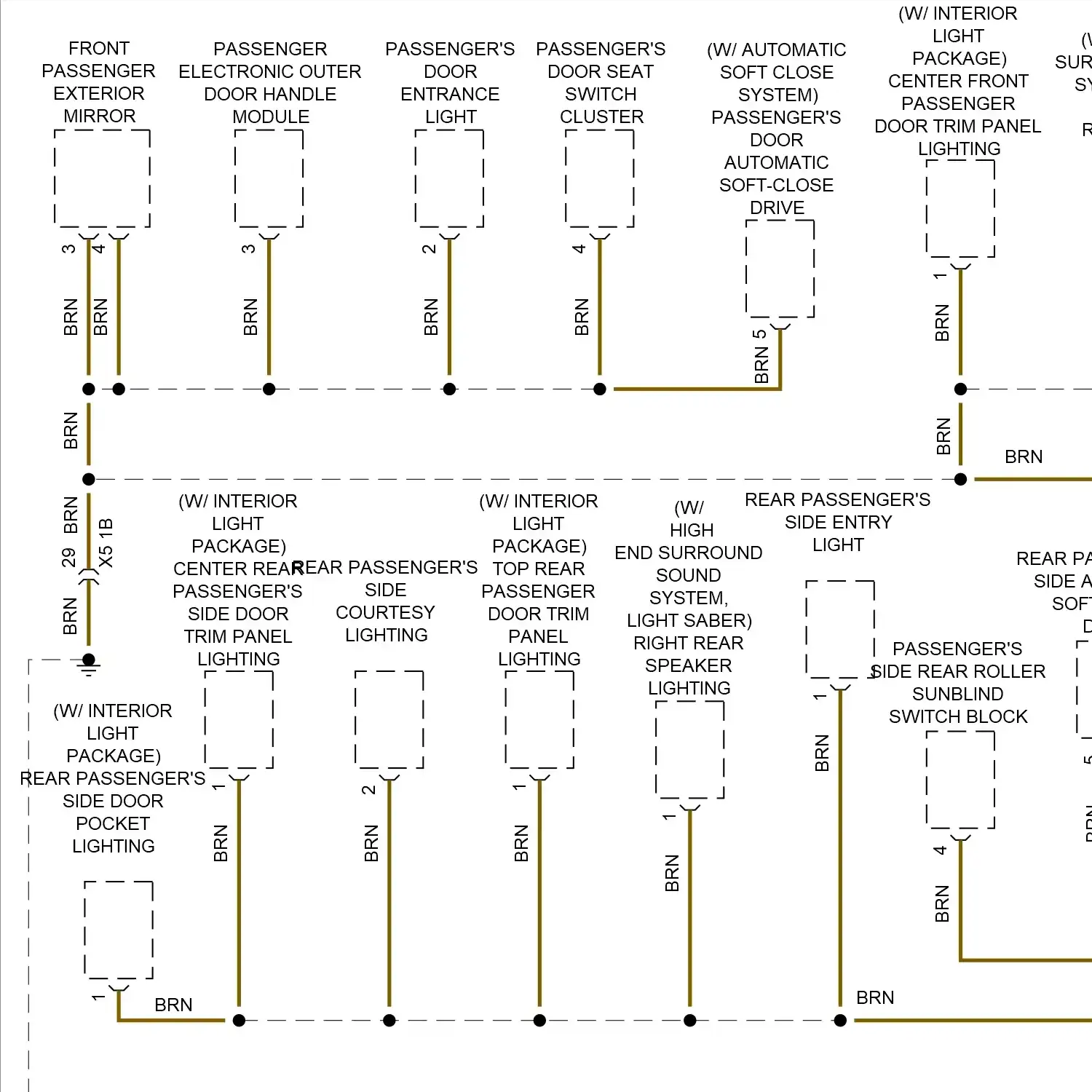

Ground distribution circuit

Headlights circuit

Horn circuit

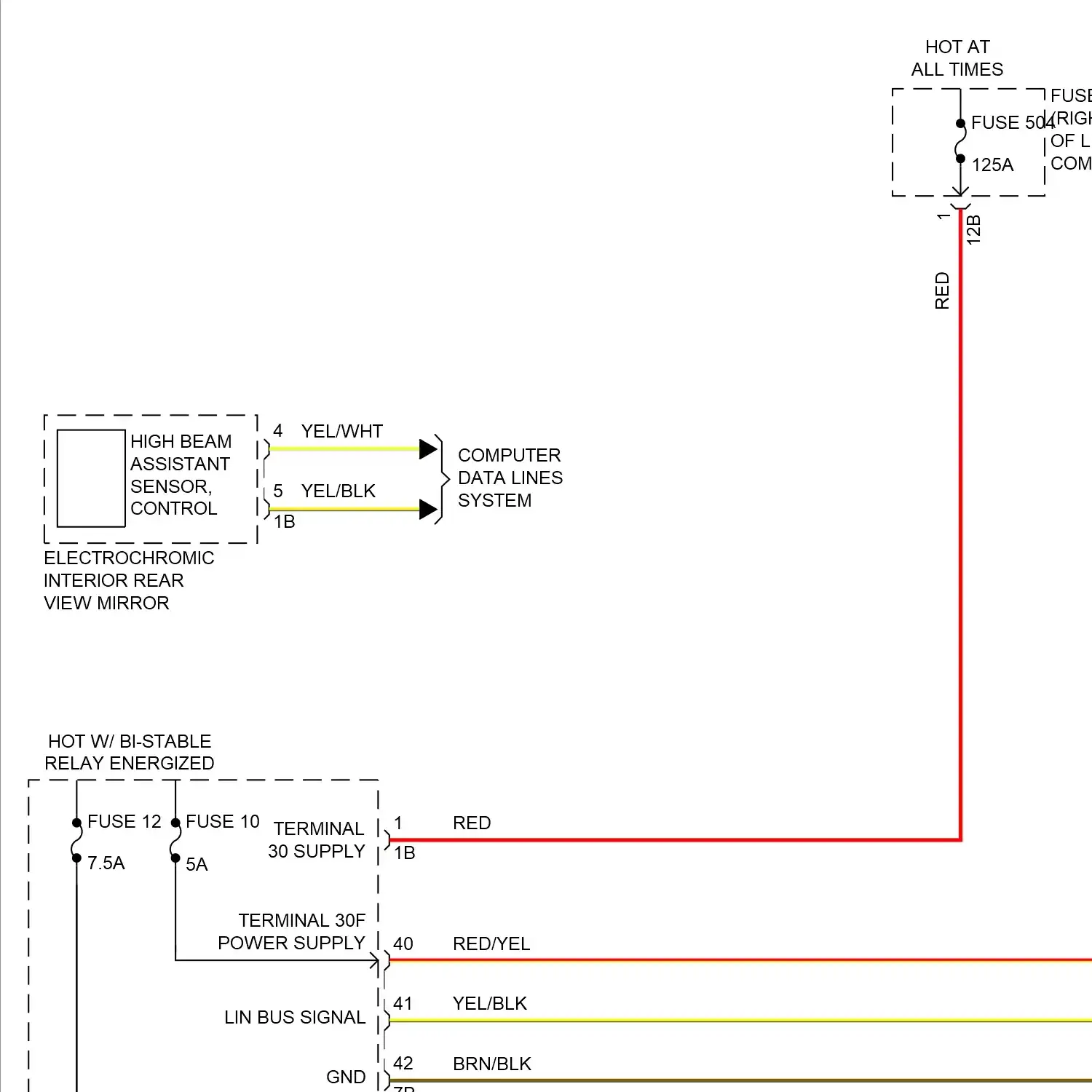

Electronic night vision circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Left memory rear seat circuit Memory mirrors circuit Passenger"s memory seat circuit Right memory rear seat circuit Steering column memory circuit

All around vision camera circuit Lane departure warning circuit, w/ camera Lane departure warning circuit, w/o camera w/ front & rear lane change sensors Lane departure warning circuit, w/o camera w/ rear lane change sensors Navigation circuit, w/ active sound design Navigation circuit, w/o active sound design Parking assistant circuit Rear camera circuit

Passive restraints circuit

Power distribution circuit

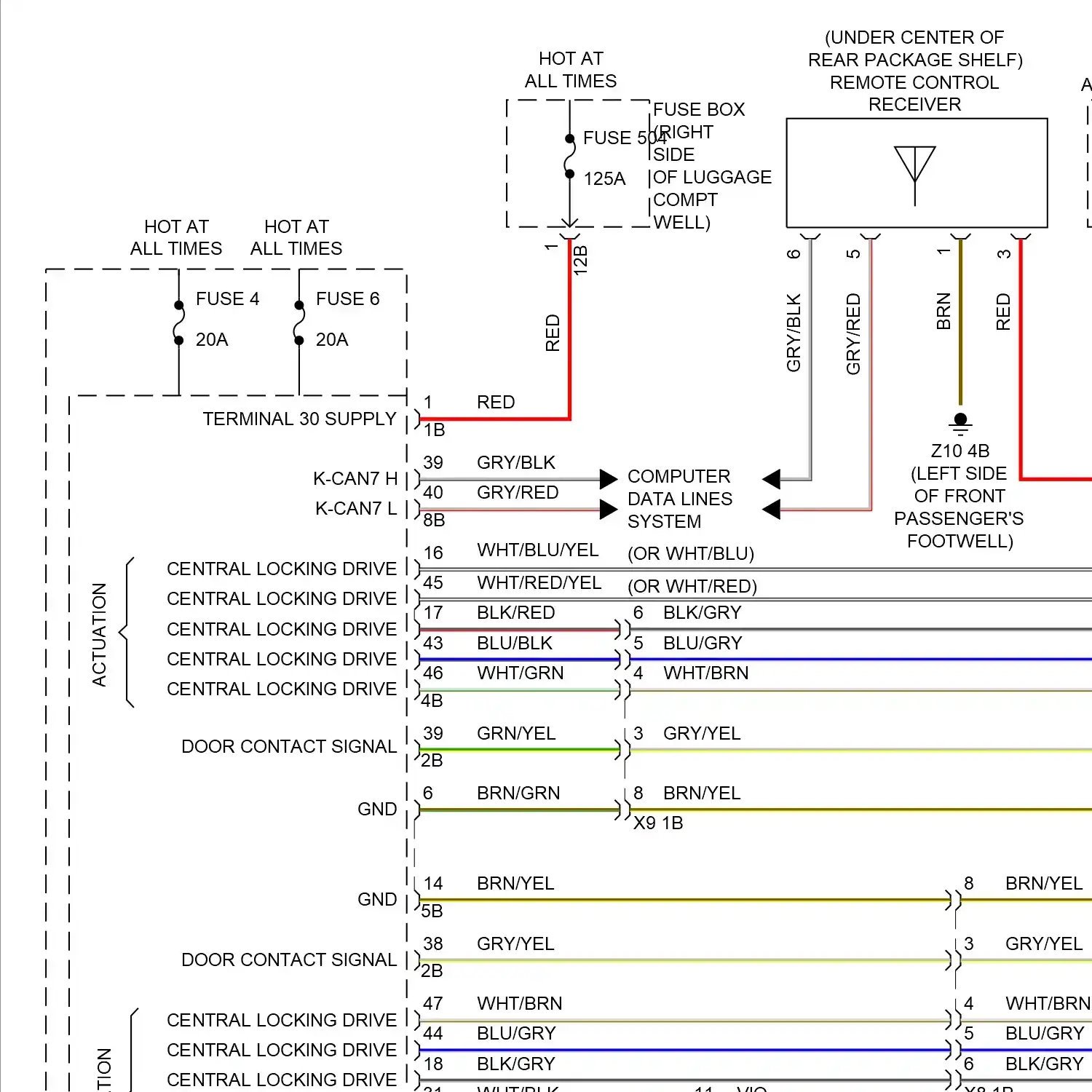

Power door locks circuit

Power mirrors circuit

Front armrest heating circuit Front heated seats circuit Front lumbar circuit Front seat ventilation circuit Heated steering wheel circuit Pneumatics seat circuit, w/o rear pneumatics seats Pneumatics seat circuit, w/ rear pneumatics seats Rear armrest heating circuit Rear heated seats circuit, w/ memory Rear heated seats circuit, w/o memory Rear lumbar circuit Rear seat ventilation circuit

Panoramic roof circuit Sunroof circuit

Power windows circuit Roller sun blind circuit

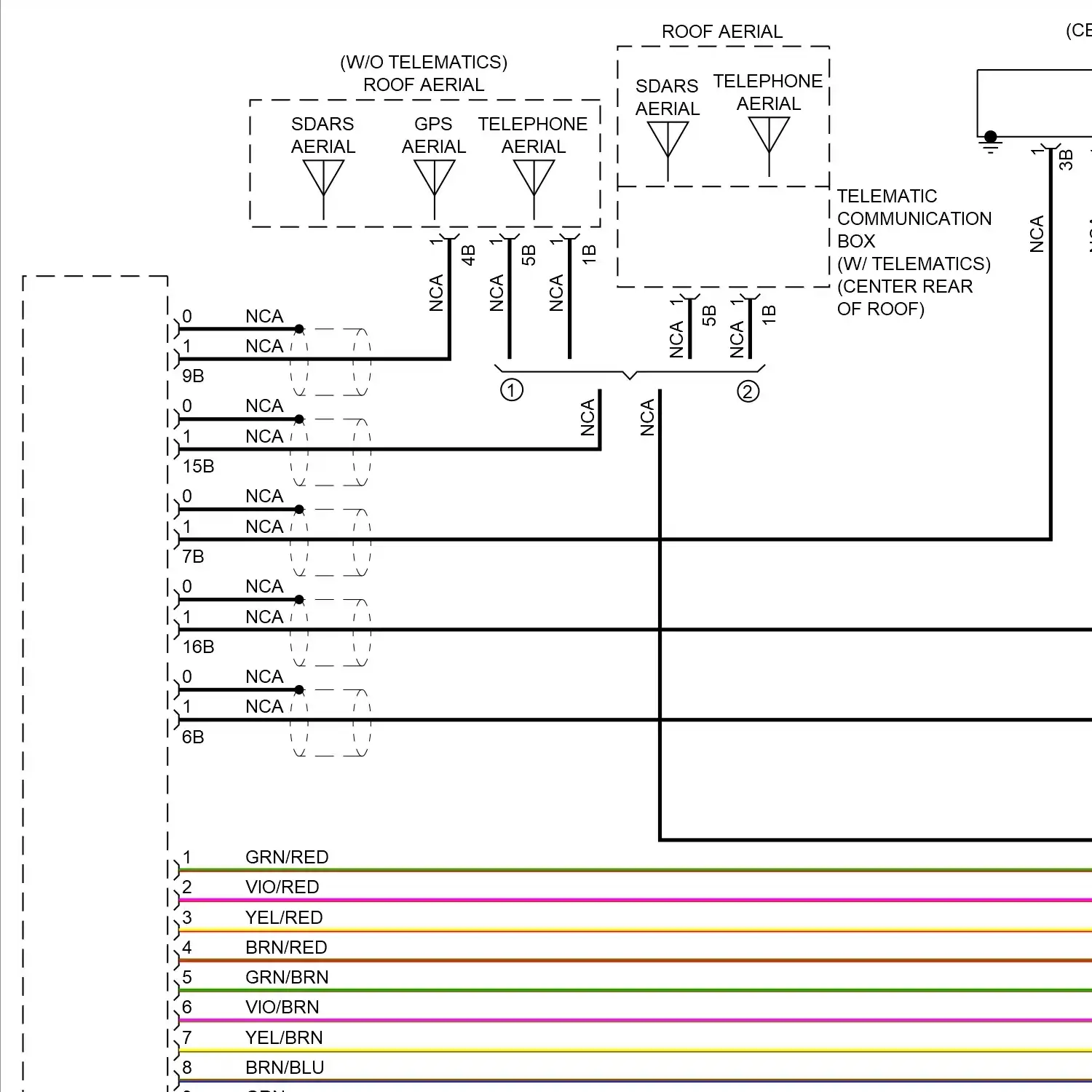

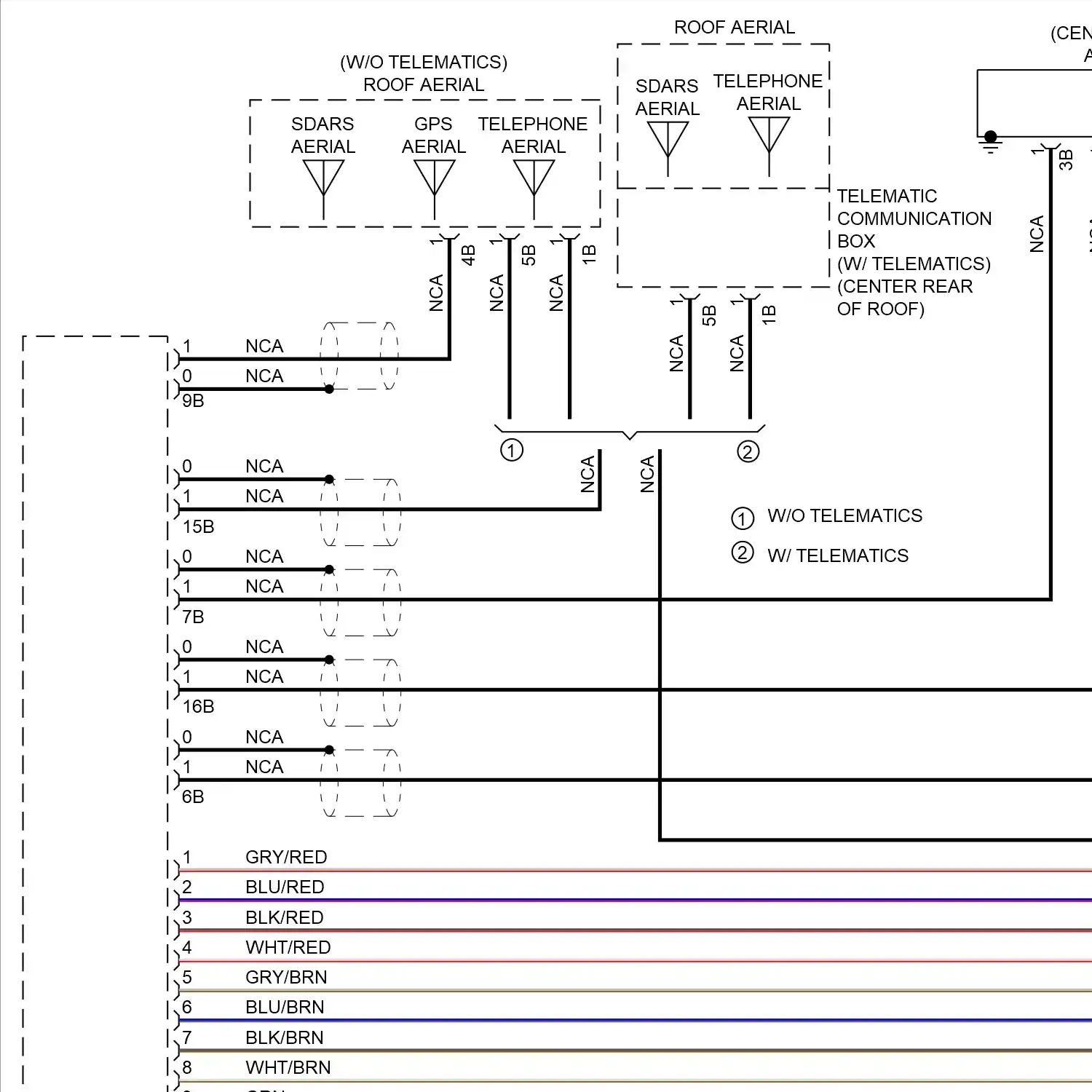

Hifi radio circuit, w/ active sound design Hifi radio circuit, w/o active sound design Most data bus circuit Rear seat entertainment circuit Top hifi radio circuit, except premium Top hifi radio circuit, premium Video system circuit

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit Rear axle circuit

Contact-free tailgate opening circuit Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM AUXILIARY BATTERY AUXILIARY BATTERY CHARGING CONTROLLER AUXILIARY BATTERY SAFETY BATTERY GAS GENERATOR BOOT LID/ TAILGATE LOCK BOOT LID/TAILGATE LOCK CENTER WASHER NOZZLE HEATER CONTACT LOCK SIGNAL DRIVER ACTIVE HEAD RESTRAINT GAS GENERATOR DRIVER KNEE AIR BAG GAS GENERATOR DRIVER SIDE AIR BAG GAS GENERATOR DRIVER'S DOOR LOCK FRONT PASSENGER ACTIVE HEAD RESTRAINT GAS GENERATOR FRONT PASSENGER DOOR LOCK FRONT PASSENGER KNEE AIR BAG GAS GENERATOR FRONT PASSENGER SIDE AIR BAG GAS GENERATOR HIFI AMPLIFIER HIGH RANGE HORN IGNITION COIL CYLINDER 1 IGNITION COIL CYLINDER 2 IGNITION COIL CYLINDER 3 IGNITION COIL CYLINDER 4 IGNITION COIL CYLINDER 5 IGNITION COIL CYLINDER 6 IGNITION COIL CYLINDER 7 IGNITION COIL, CYLINDER 8 LEFT FRONT BELT FORCE LIMITER GAS GENERATOR LEFT FRONT VALVE COIL LEFT HEAD AIR BAG GAS GENERATOR LEFT REAR VALVE COIL LEFT ROOF OUTLET NOZZLE LEFT WASHER NOZZLE HEATER LOW RANGE HORN PREMIUM TOP HIFI AMPLIFIER REAR DRIVERS SIDE DOOR LOCK REAR PASSENGER'S SIDE DOOR LOCK RIGHT FRONT BELT FORCE LIMITER GAS GENERATOR RIGHT FRONT VALVE COIL RIGHT HEAD AIR BAG GAS GENERATOR RIGHT REAR VALVE COIL RIGHT ROOF OUTLET NOZZLE RIGHT WASHER NOZZLE HEATER STARTER ACTIVATION TOP HIFI AMPLIFIER TV AERIAL AMPLIFIER 3 VEHICLE SOUND GENERATOR WIRELESS CHARGING ODDMENTS TRAY AERIAL AMPLIFIER

(RIGHT FRONT OF ENGINE ACTUATOR MOTOR BLOWER MOTOR OUTPUT STAGE BLOWER MOTOR W/ OUTPUT STAGE DEFROSTER FLAP MOTOR DIGITAL MOTOR ELECTRONICS DIGITAL MOTOR ELECTRONICS 2 ELECTROMOTIVE THROTTLE ACTUATOR ELECTROMOTIVE THROTTLE ACTUATOR 2 ENGINE COMPARTMENT POWER DISTRIBUTION BOX ENGINE CONTROLS SYSTEM ENGINE VENTILATION HEATING EXHAUST VANOS SOLENOID ACTUATOR FRESH AIR FLAP MOTOR FRESH AIR/RECIRCULATED AIR FLAP MOTOR INDIRECT VENTILATION FLAP MOTOR INTAKE VANOS SOLENOID ACTUATOR LEFT FRONT FOOTWELL FLAP MOTOR LEFT FRONT PEDESTRIAN GUARD ACTUATOR LEFT FRONT STRATIFICATION FLAP MOTOR LEFT REAR AIR CONDITIONING SYSTEM AIR VENTILATION FLAP MOTOR LEFT REAR AIR CONDITIONING SYSTEM MIXING AIR FLAP MOTOR LEFT REAR AIR DISTRIBUTION FLAP MOTOR LEFT REAR PEDESTRIAN GUARD ACTUATOR LEFT VENTILATION FLAP MOTOR LOWER RIGHT FRONT OF ENGINE) REAR AIR CONDITIONING SYSTEM BLOWER MOTOR REAR COMPARTMENT BLOWER MOTOR REAR COMPARTMENT FAN MOTOR OUTPUT STAGE REAR COMPARTMENT FLAP MOTOR RECIRCULATED AIR FLAP MOTOR RIGHT FRONT FOOTWELL FLAP MOTOR RIGHT FRONT PEDESTRIAN GUARD ACTUATOR RIGHT FRONT STRATIFICATION FLAP MOTOR RIGHT REAR AIR CONDITIONING SYSTEM AIR VENTILATION FLAP MOTOR RIGHT REAR AIR CONDITIONING SYSTEM MIXING AIR FLAP MOTOR RIGHT REAR AIR DISTRIBUTION FLAP MOTOR RIGHT REAR PEDESTRIAN GUARD ACTUATOR RIGHT VENTILATION FLAP MOTOR STEERING COLUMN INCLINATION MOTOR STEERING COLUMN LENGTHWISE ADJUSTMENT MOTOR VALVETRONIC ACTUATOR MOTOR VALVETRONIC ACTUATOR MOTOR 2 VIBRATION ACTUATOR

DRIVER DOOR CENTRAL LOCKING BUTTON DRIVER'S DOOR CENTRAL LOCKING BUTTON DTC BUTTON FRONT PASSENGER DOOR CENTRAL LOCKING BUTTON FRONT PASSENGER'S DOOR CENTRAL LOCKING BUTTON FULLY AUTOMATIC TOWING HITCH BUTTON HILL DESCENT CONTROL BUTTON HORN BUTTON INTERIOR LIGHT BUTTON INTERIOR LIGHT LOCATOR LIGHTING BUTTON INTERIOR LIGHTING BUTTON INTERIOR REAR LID BUTTON LEFT READING LIGHT BUTTON LEFT READING LIGHT LOCATOR LIGHTING BUTTON LICENCE PLATE LIGHT W/ REAR LID BUTTON LICENSE PLATE LIGHT W/ REAR LID BUTTON PARKING ASSISTANCE BUTTON PARKING BRAKE BUTTON READING LIGHT BUTTON READING LIGHT LOCATOR LIGHTING BUTTON REAR LID BUTTON REAR LID BUTTON ON INSIDE OF REAR LID REAR WINDOW HEATING BUTTON RIGHT READING LIGHT BUTTON RIGHT READING LIGHT LOCATOR LIGHTING BUTTON SELF- LEVELING SUSPENSION BUTTON START-STOP BUTTON

ALL ROUND VISION CAMERA BASIC EXTENDED W/ REVERSING CAMERA W/O REVERSING CAMERA CAMERA-BASED DRIVER ASSISTANCE SYSTEMS CAMERA-BASED DRIVER SUPPORT SYSTEMS CAMERA HEATING DATA LINE W/ OMNIDIRECTIONAL CAMERA ETHERNET DATA LINE EXTERIOR MIRROR CAMERA FRONT CAMERA GESTURE RECOGNITION CAMERA NIGHT VISION CAMERA REVERSING CAMERA W/ ALL ROUND VISION CAMERA W/ OMNIDIRECTIONAL CAMERA ETHERNET DATA LINE

DIAGNOSIS SOCKET TRAILER SOCKET TRAILER SOCKET SWITCH

PRESSURISED FUEL TANK CONTROL MODULE PRESSURIZED FUEL TANK CONTROL MODULE

DRIVER'S SEAT ANGLE ADJUSTMENT DRIVE UNIT DRIVER'S SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE UNIT DRIVER'S SEAT HEIGHT ADJUSTMENT DRIVE UNIT HEAD UNIT HEADLIGHT BEAM HEIGHT CONTROL DRIVE UNIT HEADLIGHT RANGE CONTROL DRIVE UNIT INSTRUMENT CLUSTER CONTROL UNIT LIGHT OPERATING UNIT POWER CONTROL UNIT SCR CONTROL UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 37 FUSE 39 FUSE 41 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 58 FUSE 60 FUSE 61 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 80 FUSE 83 FUSE 90 FUSE 91 FUSE 92 FUSE 93 FUSE 111 FUSE 112 FUSE 113 FUSE 118 FUSE 119 FUSE 201 FUSE 203 FUSE 204 FUSE 206 FUSE 208 FUSE 209 FUSE 210 FUSE 212 FUSE 214 FUSE 215 FUSE 216 FUSE 217 FUSE 218 FUSE 220 FUSE 223 FUSE 224 FUSE 225 FUSE 226 FUSE 230 FUSE 231 FUSE 232 FUSE 235 FUSE 240 FUSE 244 FUSE 249 FUSE 251 FUSE 252 FUSE 254 FUSE 255 FUSE 256 FUSE 257 FUSE 258 FUSE 262 FUSE 263 FUSE 264 FUSE 269 FUSE 271 FUSE 273 FUSE 276 FUSE 277 FUSE 279 FUSE 282 FUSE 284 FUSE 289 FUSE 400 FUSE 401 FUSE 402 FUSE 404 FUSE 406 FUSE 407 FUSE 408 FUSE 409 FUSE 500 FUSE 501 FUSE 502 FUSE 504 FUSE 505 FUSE 506 FUSE 508 FUSE 509 FUSE 510 FUSE 514 FUSE BOX FUSE BOX 2 FUSE BOX 3

ACTIVATION WASHER PUMP FOR HEADLIGHT WASHER SYSTEM HEADLIGHT CLEANING SYSTEM WASHER PUMP HIGH BEAM HEADLIGHT LEFT HEADLIGHT LOW BEAM HEADLIGHT RIGHT HEADLIGHT

AUDIO MODE/ HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL AUDIO MODE/HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL CONTROL PANEL FOR AUDIO MODE/HEATING, AIR CONDITIONING SYSTEM DRIVER'S DOOR ARMREST HEATING DRIVER'S SEAT BACKREST HEATING DRIVER'S SEAT SURFACE HEATING DRIVER'S SIDE ARMREST HEATING CONTROL ELECTRONICS DRIVER'S SIDE CONTROL ELECTRONICS ARMREST HEATING DRIVER'S SIDE CONTROL ELECTRONICS FOR ARMREST HEATING DRIVER'S SIDE MIDDLE CONSOLE ARMREST HEATING DRV SEAT BACKREST HEATING DRV SEAT BACKREST HEATING ACT DRV SEAT BACKREST HEATING GND FRONT ELECTRIC AUXILIARY HEATER FRONT PASSENGER'S DOOR ARMREST HEATING FRONT PASSENGER'S SEAT BACKREST HEATING FRONT PASSENGER'S SIDE ARMREST HEATING CONTROL ELECTRONICS FRONT PASSENGER'S SIDE CONTROL ELECTRONICS ARMREST HEATING FRONT PASSENGER'S SIDE CONTROL ELECTRONICS FOR ARMREST HEATING FRONT PASSENGER'S SIDE MIDDLE CONSOLE ARMREST HEATING FRT PASS SEAT BACKREST HEATING FRT PASS SEAT BACKREST HEATING GND FRT PASS SEAT SURFACE HEATING FRT PASS SEAT SURFACE HEATING GND FUEL FILTER HEATING HEATING, AIR CONDITIONING SYSTEM AUDIO MODE CONTROL PANEL HEATING, AIR CONDITIONING SYSTEM CONTROL PANEL AUDIO MODE HEATING/ AIR CONDITIONING SYSTEM HEATING/AIR CONDITIONING SYSTEM INDEPENDENT AUXILIARY HEATER MIRROR HEATING PASS SEAT BACKREST HEATING ACT REAR DRIVER'S SIDE ARMREST HEATING CONTROL ELECTRONICS REAR DRIVER'S SIDE CONTROL ELECTRONICS ARMREST HEATING REAR DRIVER'S SIDE CONTROL ELECTRONICS FOR ARMREST HEATING REAR DRIVER'S SIDE DOOR ARMREST HEATING REAR DRIVER'S SIDE MIDDLE CONSOLE ARMREST HEATING REAR DRIVER'S SIDE SEAT BACKREST HEATING REAR DRIVER'S SIDE SEAT CUSHION HEATING REAR DRIVER'S SIDE SEAT HEATING MODULE REAR FRONT PASSENGER'S SIDE DOOR ARMREST HEATING REAR FRONT PASSENGER'S SIDE MIDDLE CONSOLE ARMREST HEATING REAR PASSENGER'S SIDE ARMREST HEATING CONTROL ELECTRONICS REAR PASSENGER'S SIDE CONTROL ELECTRONICS ARMREST HEATING REAR PASSENGER'S SIDE CONTROL ELECTRONICS FOR ARMREST HEATING REAR PASSENGER'S SIDE SEAT BACKREST HEATING REAR PASSENGER'S SIDE SEAT CUSHION HEATING REAR PASSENGER'S SIDE SEAT HEATING MODULE SEAT BACKREST HEATING SEAT BACKREST HEATING GND SEAT SURFACE HEATING STEERING WHEEL HEATER TEMP SENS SIG PASS SEAT CUSHION HEATING ACT TEMP SENS SIG PASS SEAT HEATING GND PASS SEAT BACKREST HEATING WATER JET HEATER ACTUATION

AIR BAG OFF INDICATOR LAMP AIR BAG ON INDICATOR LAMP BRAKE LIGHT/ TURN INDICATOR DIRECTION INDICATOR FLASHING INDICATOR LAMP ACTIVATION

DOOR LOCKS, ANTI-THEFT SYSTEM, EXTERIOR LIGHTS SYSTEMS FLASHING IND LAMP FOG LIGHTS ACTIVATION INNER SIDE LIGHTS/ DAYTIME DRIVING LIGHTS INNER SIDE LIGHTS/DAYTIME DRIVING LIGHTS OUTER SIDE LIGHTS/ DAYTIME DRIVING LIGHTS OUTER SIDE LIGHTS/DAYTIME DRIVING LIGHTS SIDE LIGHTS/ DAYTIME DRIVING LIGHT SIDE LIGHTS/ DAYTIME DRIVING LIGHTS

ACT SEAT PNEUMATICS MODULE PUMP SPLY SEAT PNEUMATICS MODULE PUMP ACTIVATION AUXILIARY WATER PUMP ACTIVATION WINDSCREEN WASHER PUMP AUXILIARY WATER PUMP CHARGE AIR COOLER COOLANT PUMP COOLANT PUMP SHIFT ELEMENT DRIVER'S SEAT PNEUMATIC PUMP ELECTRIC FUEL PUMP CONTROL ELECTRONICS FRONT PASSENGER SEAT PNEUMATIC PUMP FRONT PASSENGER'S SEAT PNEUMATIC PUMP GND ACT SEAT PNEUMATICS MODULE PUMP INDEPENDENT HEATER CIRCULATION PUMP INDEPENDENT HEATING FUEL METERING PUMP LEFT FRONT SEAT PNEUMATICS MODULE PUMP LEFT REAR SEAT PNEUMATICS MODULE PUMP LF PUMP ACT LF PUMP SPLY LR ACT PUMP REAR DRIVER'S SIDE LUMBAR SUPPORT PUMP REAR PASSENGER'S SIDE LUMBAR SUPPORT PUMP RF PUMP ACT RF PUMP SPLY RIGHT FRONT SEAT PNEUMATICS MODULE PUMP RIGHT REAR SEAT PNEUMATICS MODULE PUMP RR ACT PUMP RR PUMP SPLY SPLY SEAT PNEUMATICS MODULE PUMP TURBOCHARGER COOLANT PUMP WINDSCREEN WASHER PUMP

BI-STABLE RELAY COMPRESSOR RELAY CUT-OFF RELAY DME MAIN RELAY ELECTRIC FAN CUT OUT RELAY HORN RELAY HOT W/ BI-STABLE RELAY ENERGIZED HOT W/ DME MAIN RELAY ENERGIZED HOT W/ POWER SUPPLY SENSORS/ ACTUATORS RELAY ENERGIZED HOT W/ VALVETRONIC RELAY ENERGIZED IGNITION, FUEL INJECTION RELAY IGNITION, FUEL INJECTION RELAY 2 POWER SUPPLY SENSORS/ ACTUATORS RELAY POWER SUPPLY SENSORS/ACTUATORS RELAY REAR WINDOW HEATING RELAY RELAY ENERGIZED VALVETRONIC RELAY

AUC SENSOR AUC SENSOR SIG AUTOMATIC LUGGAGE COMPARTMENT LID ACTUATION ACOUSTIC SENSOR CHARGE AIR TEMPERATURE/ INTAKE MANIFOLD PRESSURE SENSOR CHARGING PRESSURE SENSOR CHARGING PRESSURE SENSOR 2 COMPRESSOR TEMPERATURE SENSOR CONTACT-FREE TAILGATE OPENING LOWER SENSOR CONTACT-FREE TAILGATE OPENING UPPER SENSOR COOLANT LEVEL SENSOR COOLANT TEMPERATURE SENSOR CRANKSHAFT SENSOR CYLINDER HEAD TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL PRESSURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAPORATOR TEMPERATURE SENSOR EXHAUST CAMSHAFT SENSOR EXHAUST CAMSHAFT SENSOR 2 FRONT PASSENGER SEAT OCCUPANCY DETECTION SEAT SURFACE HEATING/SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 HALL SENSOR SIGNAL HIGH BEAM ASSISTANT SENSOR, CONTROL INLET CAMSHAFT SENSOR 2 INTAKE AIR TEMPERATURE SENSOR INTAKE AIR TEMPERATURE/ INTAKE MANIFOLD PRESSURE SENSOR INTAKE AIR TEMPERATURE/ INTAKE MANIFOLD PRESSURE SENSOR 2 INTAKE CAMSHAFT SENSOR INTELLIGENT BATTERY SENSOR KNOCK SENSOR KNOCK SENSOR 1 KNOCK SENSOR 3 KNOCK SENSOR 4 KNOCK SENSOR #2 LEFT "B" PILLAR AIR BAG SENSOR LEFT FOOTWELL TEMPERATURE SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT DOOR AIR BAG SENSOR LEFT FRONT LEVEL SENSOR LEFT FRONT OUTER ULTRASONIC SENSOR LEFT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR LEFT FRONT VENTILATION TEMPERATURE SENSOR LEFT FRONT VERTICAL-ACCELERATION SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT PEDESTRIAN SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR COMPARTMENT FOOTWELL TEMPERATURE SENSOR LEFT REAR LEVEL SENSOR LEFT REAR OUTER ULTRASONIC SENSOR LEFT REAR SIDE ULTRASONIC SENSOR LEFT REAR VERTICAL ACCELERATION SENSOR LEFT REAR WHEEL SPEED SENSOR MEMORY FUNCTION HALL SENSOR OIL LEVEL SENSOR OUTSIDE TEMPERATURE SENSOR OUTSIDE TEMPERATURE SENSOR SIG OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR AFTER CATALYTIC CONVERTER 2 OXYGEN SENSOR BEFORE CATALYTIC CONVERTER OXYGEN SENSOR BEFORE CATALYTIC CONVERTER 2 POSITION SENSOR PRESSURE SENSOR SIG RADIATOR OUTLET TEMPERATURE SENSOR RAIL PRESSURE SENSOR RAIL PRESSURE SENSOR 2 RAIN/LIGHT/ SOLAR CONDENSATION SENSOR RAIN/LIGHT/SOLAR CONDENSATION SENSOR REAR EVAPORATOR TEMPERATURE SENSOR REFRIGERANT PRESSURE SENSOR REFRIGERANT PRESSURE SENSOR SUPPLY RIGHT "B" PILLAR AIR BAG SENSOR RIGHT FOOTWELL TEMPERATURE SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT DOOR AIR BAG SENSOR RIGHT FRONT LEVEL SENSOR RIGHT FRONT OUTER ULTRASONIC SENSOR RIGHT FRONT SIDE PARKING MANEUVERING ASSISTANT ULTRASONIC SENSOR RIGHT FRONT VENTILATION TEMPERATURE SENSOR RIGHT FRONT VERTICAL-ACCELERATION SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT PEDESTRIAN SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR COMPARTMENT FOOTWELL TEMPERATURE SENSOR RIGHT REAR LEVEL SENSOR RIGHT REAR OUTER ULTRASONIC SENSOR RIGHT REAR SIDE ULTRASONIC SENSOR RIGHT REAR VERTICAL ACCELERATION SENSOR RIGHT REAR WHEEL SPEED SENSOR ROTOR POSITION SENSOR SENSOR GROUND SENSOR SIG SIREN W/ TILT ALARM SENSOR STEERING TORQUE SENSOR TEMP SENSOR SIG FRT PASS SEAT HEATING GND TOUCH DETECTION SENSOR VENTURI NOZZLE PRESSURE SENSOR WASHER FLUID LEVEL SENSOR

EMERGENCY SPEAKER FRONT CENTER MID-RANGE SPEAKER INSTRUMENT PANEL SPEAKER LIGHTING LEFT FRONT MID- RANGE SPEAKER LIGHTING LEFT FRONT MID-RANGE SPEAKER LEFT REAR MID- RANGE SPEAKER 2 LEFT REAR MID-RANGE SPEAKER LEFT REAR SPEAKER LIGHTING RIGHT FRONT MID- RANGE SPEAKER LIGHTING RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR MID- RANGE SPEAKER 2 RIGHT REAR MID-RANGE SPEAKER RIGHT REAR SPEAKER LIGHTING

BONNET CONTACT SWITCH BRAKE FLUID LEVEL SWITCH BRAKE LIGHT SWITCH BRAKE LIGHT SWITCH SIGNAL CENTRAL LOCKING DRIVE ACTUATION SWITCH SIG DRIVE EXPERIENCE SWITCH DRIVER ASSISTANCE SYSTEM OPERATING FACILITY W/ HAZARD WARNING SWITCH DRIVER'S DOOR SEAT SWITCH CLUSTER DRIVER'S DOOR SWITCH BLOCK DRIVER'S SIDE REAR POWER WINDOW SWITCH DRIVER'S SIDE REAR ROLLER SUNBLIND SWITCH BLOCK DRIVER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK FRONT PASSENGER SIDE SEAT ADJUSTMENT SWITCH BLOCK FRONT PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH BLOCK GEAR SELECTOR SWITCH GLOVE COMPARTMENT LIGHT SWITCH HAZARD WARNING LIGHT SWITCH SIG HOTEL POSITION SWITCH INTERIOR LIGHTING SWITCH SIG LEFT FRONT VANITY MIRROR SWITCH LEFT MULTI- FUNCTION STEERING WHEEL SWITCH BLOCK LEFT REAR SEAT HEATING SWITCH PASSENGER'S DOOR POWER WINDOW SWITCH PASSENGER'S DOOR SEAT SWITCH CLUSTER PASSENGER'S SIDE REAR POWER WINDOW SWITCH PASSENGER'S SIDE REAR ROLLER SUNBLIND SWITCH BLOCK PRESSURE SWITCH REAR CONSOLE CAPTAIN'S CHAIR SWITCH LIGHTING 2 REAR DRIVER'S SIDE DOOR SEAT SWITCH CLUSTER REAR DRIVER'S SIDE SEAT ADJUSTMENT SWITCH CLUSTER REAR DRIVER'S SIDE SEAT HEATING SWITCH REAR PASSENGER SIDE SEAT ADJUSTMENT SWITCH CLUSTER REAR PASSENGER'S SIDE DOOR SEAT SWITCH CLUSTER REAR PASSENGER'S SIDE SEAT ADJUSTMENT SWITCH CLUSTER REAR PASSENGER'S SIDE SEAT HEATING SWITCH RIGHT FRONT VANITY MIRROR SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH BLOCK RIGHT REAR SEAT HEATING SWITCH SLIDE/TILT SUNROOF SWITCH STEERING COLUMN SWITCH CLUSTER STEERING WHEEL HEATER, STEERING COLUMN ADJUSTMENT SWITCH SWITCH SIG SWITCH SIGNAL SWITCH SIGNAL SHIFT PADDLES

CONTROL VALVE CONTROL VALVE ACTUATION DISCHARGE VALVE DRIVER LUMBAR SUPPORT VALVE BLOCK DRIVER'S LUMBAR SUPPORT VALVE BLOCK ELECTRICAL WASTEGATE VALVE ELECTRICAL WASTEGATE VALVE 2 EXHAUST VANOS SOLENOID VALVE EXHAUST VANOS SOLENOID VALVE 2 FRONT PASSENGER LUMBAR SUPPORT VALVE BLOCK FRONT PASSENGER'S LUMBAR SUPPORT VALVE BLOCK FRONT REFRIGERANT SHUT-OFF VALVE FRONT REFRIGERANT SHUTOFF VALVE FUEL TANK VENT VALVE 2 INDEPENDENT HEATING COOLANT CHANGEOVER VALVE INLET VANOS SOLENOID VALVE INTAKE VANOS SOLENOID VALVE 2 LEFT REAR SOLENOID VALVE OIL PRESSURE CONTROL VALVE QUANTITY CONTROL VALVE QUANTITY CONTROL VALVE 2 REAR DRIVER'S SIDE LUMBAR SUPPORT VALVE BLOCK REAR PASSENGER'S SIDE LUMBAR SUPPORT VALVE BLOCK REAR REFRIGERANT SHUT-OFF VALVE REAR REFRIGERANT SHUTOFF VALVE RIGHT FRONT SOLENOID VALVE RIGHT REAR SOLENOID VALVE TANK VENT VALVE

(OR GRN/GRY WIRE (OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRN/YEL WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/VIO/WHT WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/BLU/YEL WIRE BRN/GRN WIRE BRN/GRN/YEL WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE FLEXRAY BUS SIG PNK FLEXRAY BUS SIG WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLK/YEL WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/BRN/YEL WIRE GRY/GRN WIRE GRY/RED WIRE GRY/RED/YEL WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PNK/RED WIRE PNK/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BLU/YEL WIRE RED/BRN WIRE RED/GRN WIRE RED/GRN/YEL WIRE RED/GRY WIRE RED/VIO WIRE RED/VIO/YEL WIRE RED/WHT WIRE RED/WHT/YEL WIRE RED/YEL WIRE VIO WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/WHT/YEL WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BLU/YEL WIRE WHT/BRN WIRE WHT/BRN/YEL WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/RED/YEL WIRE WHT/VIO WIRE WHT/VIO/YEL WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

3.0L TURBO 3.0L TURBO 4.4L TURBO 4.4L TURBO 12 V CONNECTION 2 12 V CONNECTION 3 12 V CONNECTION 4 12-V STEERING 24-V STEERING (RIGHT SIDE OF TRANSMISSION A/C COMPRESSOR ACCELERATOR PEDAL MODULE ACTIVATION FANFARES ACTIVE BODYWORKS SYSTEM ACTIVE CRUISE CONTROL ACTIVE SOUND DESIGN ADJUSTMENT DRIVE AERIAL DIVERSITY AERIAL SIG AERIAL SIGNAL AIR CONDITIONING SYSTEM AIR FRESHENER AIR SUPPLY SYSTEM ALARM SYSTEM AMBIENT LIGHT ANGLE ACT ANTI- THEFT ALARM LED ANTI-THEFT ALARM SYSTEM LED ANTI-THEFT SYSTEM ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS AUTOMATIC AIR CONDITIONING CIRCUIT AUTOMATIC REAR AIR CONDITIONING AUTOMATIC REAR AIR CONDITIONING OPERATING FACILITY AUTOMATIC TOWING HITCH AUXILIARY BRAKE LIGHT BACK ANGLE ACT BACK FAN ACT BACK FAN GND BACK HEAD ACT BACK WIDTH ACT BACKREST ANGLE HEADREST HEIGHT ADJ RESTRAINT FOLDING ADJ BACKREST FAN ACT BACKREST FAN GND BACKREST FAN VOLT SPLY BACKREST GND BACKREST ACT BACKREST HEAD ACT BACKREST HEAD ADJ MONITOR ANGLE ADJ BACKREST WIDTH ADJ FOOTREST ANGLE ADJ BACKUP LAMPS CIRCUIT BASE PLATE BLUETOOTH AERIAL BODY DOMAIN CONTROLLER BOOT LID AUTOMATIC SOFT-CLOSE DRIVE BOOT LID CONT BOOT LID CONTACT SIG BOOT LID/ TAILGATE LUGGAGE COMPARTMENT LIGHT BOOT LID/TAILGATE LUGGAGE COMPARTMENT LIGHT BOTTOM CENTER INSTRUMENT PANEL LIGHTING BOTTOM DRIVER'S SIDE INSTRUMENT PANEL LIGHTING BOTTOM FRONT PASSENGER'S SIDE INSTRUMENT PANEL LIGHTING BOTTOM RADIATOR BLIND DRIVE BRAKE LIGHT ACTIVATION BRK LIGHT BRK LIGHT SW SIG BUMPER AERIAL BUS SIG BUS SIGNAL DIAGNOSIS CAN BUS SIG CAN L CAN TERMINATOR 2 CAN TERMINATOR 3 CAN TERMINATOR 4 CAN TERMINATOR 5 CAN TERMINATOR 6 CAN TERMINATOR 9 CAPACITOR BOX CEN LK DRV CENTER CONSOLE CONTROL PANEL CENTER DRIVER'S DOOR TRIM PANEL LIGHTING CENTER DRIVER'S SIDE REAR DOOR TRIM PANEL LIGHTING CENTER FRONT PASSENGER DOOR TRIM PANEL LIGHTING CENTER FRONT PASSENGER'S DOOR TRIM PANEL LIGHTING CENTER REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING CENTER REAR PASSENGER'S SIDE DOOR TRIM PANEL LIGHTING CENTRAL INFORMATION DISPLAY CENTRAL LOCKING DRIVE CENTRAL LOCKING DRIVE ACTUATION CHARACTERISTIC MAP THERMOSTAT CHARGING CIRCUIT COMPRESSION STAGE COMPRESSOR) COMPUTER DATA COMPUTER DATA LINES SYSTEM CONT LK SIG CONTACT FREE TAILGATE OPENING EVALUATION ELECTRONICS COOLER BOX COOLING FANS SYSTEM COOLING FANS, STARTING/CHARGING SYSTEMS CORNERING LIGHT COURTESY LIGHTING ACTIVATION CRASH SAFETY MODULE DATA BUS - DATA LINE DC/DC - DEPTH ACT DOOR CONTACT SIG DOOR CONTACT SIGNAL DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER ELECTRONIC OUTER DOOR HANDLE MODULE DRIVER EXTERIOR MIRROR DRIVER RETRACTOR TENSIONER DRIVER SIDE INSTRUMENT PANEL LIGHTING DRIVER'S AIR BAG GAS GENERATORS DRIVER'S DOOR AUTOMATIC SOFT-CLOSE DRIVE DRIVER'S DOOR ENTRANCE LIGHT DRIVER'S DOOR POCKET LIGHTING DRIVER'S DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DRIVER'S SEAT BACKREST ANGLE ADJUSTMENT DRIVE DRIVER'S SEAT BACKREST FAN 1 DRIVER'S SEAT BACKREST FAN 2 DRIVER'S SEAT BACKREST FAN 3 DRIVER'S SEAT BACKREST FAN 4 DRIVER'S SEAT BACKREST HEAD ADJUSTMENT DRIVE DRIVER'S SEAT BACKREST REAR PANEL LIGHTING DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT DRIVE DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT DRIVE 2 DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT CUSHION FAN 1 DRIVER'S SEAT CUSHION FAN 2 DRIVER'S SEAT CUSHION FAN 3 DRIVER'S SEAT CUSHION FAN 4 DRIVER'S SEAT DEPTH ADJUSTMENT DRIVE DRIVER'S SEAT HEADREST HEIGHT ADJUSTMENT DRIVE DRIVER'S SEAT MODULE DRIVER'S SIDE INSTRUMENT PANEL LIGHTING DRIVER'S SIDE REAR ENTRY LIGHT DRIVER'S SIDE REAR OUTER DOOR HANDLE ELECTRONIC MODULE DRIVER'S SIDE REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS DRIVER'S SIDE REAR ROLLER SUNBLIND DRIVE DRV FAN ACT 1 DRV FAN ACT 4 DRV FAN GND 1 DRV FAN GND 4 DRV FAN SIG 1 DRV FAN SIG 4 DRV SEAT CUSHION ACT DRV SEAT CUSHION GND DRV SEAT SURFACE ACT DRV SEAT SURFACE GND DYNAMIC BRAKE LIGHT DYNAMIC STABILITY CONTROL EARLY PRODUCTION ELECTRIC FAN ELECTRIC STEERING COLUMN ADJUSTMENT ELECTRICAL EXHAUST FLAP ELECTRICAL EXHAUST FLAP 2 ELECTRO- MECHANICAL POWER STEERING ELECTROCHROMIC INTERIOR REAR VIEW MIRROR ELECTROCHROMIC MIRROR ELECTROMECHANICAL POWER STEERING ELECTRONIC NIGHT VISION MODULE ELECTRONIC POWER STEERING SYSTEM ELECTRONIC STEERING WHEEL MODULE ELECTRONIC SUSPENSION SYSTEM ELECTRONIC TRANSMISSION CONTROL ELECTRONICS JUNCTION BOX EMITTER 2 ETHERNET DATA LINE EXCEPT PREMIUM EXTENDED EQUIPMENT FAN 2 FLEXRAY BUS SIG FLEXRAY TERMINATION FOOTREST ANGLE ADJUSTMENT DRIVE FOR/BACK ACT FRONT CENTER ARMREST LIGHT FRONT CENTER CONSOLE INTERIOR AERIAL FRONT CENTER TWEETER FRONT CENTER VENTILATION GRILLE FRONT CIGARETTE LIGHTER 12 V CONNECTION FRONT ELECTRIC ACTIVE ROLL STABILIZATION FRONT ELECTRONIC ACTIVE ROLL STABILIZATION FRONT PASSENGER AIR BAG GAS GENERATORS FRONT PASSENGER DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS FRONT PASSENGER EXTERIOR MIRROR FRONT PASSENGER MIRROR FRONT PASSENGER RETRACTOR TENSIONER FRONT PASSENGER SEAT ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST ANGLE ADJUSTMENT DRIVE FRONT PASSENGER SEAT BACKREST REAR PANEL LIGHTING FRONT PASSENGER SEAT FORWARD/BACKWARD SEAT ADJUSTMENT FRONT PASSENGER SEAT HEIGHT ADJUSTMENT DRIVE FRONT PASSENGER SEAT MODULE FRONT PASSENGER SEAT OCCUPANCY DETECTION EVALUATION ELECTRONICS FRONT PASSENGER'S DOOR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS FRONT PASSENGER'S SEAT BELT BUCKLE CONTACT FRONT PASSENGER'S SEAT MODULE FRONT POWER DISTRIBUTION BOX FUEL FILLER FLAP CENTRAL LOCKING DRIVE FULLY AUTOMATIC TOWING HITCH DRIVE GLOVE COMPARTMENT LIGHT GPS AERIAL HALL SENS GND HALL SENS GND BACKREST HEAD ADJ MONITOR ANGLE ADJ HALL SENS SIG HAZARD WARNING SW HEAD RESTRAINT FOLDING ADJUSTMENT DRIVE HEAD-UP DISPLAY HEADLIGHTS SYSTEM HEADREST ACT HEADREST HEIGHT ACT HEAT MANAGEMENT MODULE HEIGHT ACT HORNS SYSTEM HOT AT ALL TIMES HOT FILM AIR MASS METER HOT W/ HOT W/ TERMINAL HOT-FILM AIR MASS METER 2 INFOTAINMENT FAN INNER LEFT TAILLIGHT INNER RIGHT TAILLIGHT INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INT LT ACT INTEGRATED SUPPLY MODULE INTERIOR LIGHT ACTIVATION INTERIOR LIGHT) INTERIOR LIGHTING JUMP START TERMINAL POINT JUNCTION BOX ELECTRONICS K CAN BUS K LIN 16 K-CAN 2-H K-CAN 2-L K-CAN BUS SIG K-CAN BUS SIGNAL LAN BUS SIG LANE CHANGE WARNING IND LANE CHANGE WARNING IND DRIVER EXTERIOR MIRROR LANE CHANGE WARNING IND FRONT PASSENGER EXTERIOR MIRROR LANE CHANGE WARNING LED LASER HIGH WAY LIGHT LATE PRODUCTION LATE PRODUCTION EARLY PRODUCTION LED ACTIVATION LED ANTI-THEFT LEFT "B" PILLAR VENTILATION GRILLE LEFT "C" PILLAR) LEFT ACTIVATION ILLUMINATED CARPET LEFT CONTACT PIN LEFT EXTERIOR AERIAL LEFT FOG LIGHT LEFT FRONT ELECTRONIC WHEEL MODULE LEFT FRONT ENTRANCE LIGHT LEFT FRONT FOOTWELL LIGHT LEFT FRONT GLASS SUNROOF LIGHTING LEFT FRONT LANE CHANGE WARNING SLAVE LEFT FRONT LIGHTING TWEETER LEFT FRONT MIXING FLAP DRIVE LEFT FRONT POWER DISTRIBUTION BOX LEFT FRONT REAR GLASS SUNROOF LIGHTING LEFT FRONT SEAT INFLATOR MODULE LEFT FRONT TWEETER LEFT FRONT TWEETER LIGHTING LEFT FRONT VANITY MIRROR LIGHT LEFT FRONT VENTILATION GRILLE LEFT FRONT WOOFER LEFT FRONTAL LIGHT ELECTRONICS LEFT ILLUMINATED CARPET LEFT INNER TAIL- LIGHT LEFT INNER TAILLIGHT LEFT LUGGAGE COMPARTMENT AERIAL LEFT MAP READING LIGHT LEFT OUTER TAIL LIGHT LEFT OUTER TAILLIGHT LEFT PARKING BRAKE DRIVE LEFT REAR AIR CONDITIONING CONTROL PANEL LEFT REAR ELECTRONIC WHEEL MODULE LEFT REAR ENTRANCE LIGHT LEFT REAR FRONT GLASS SUNROOF LIGHTING LEFT REAR GLASS SUNROOF LIGHTING LEFT REAR INTERIOR LIGHT LEFT REAR LANE CHANGE WARNING SLAVE LEFT REAR MIXING FLAP DRIVE LEFT REAR RETRACTOR TENSIONER LEFT REAR SEAT INFLATOR MODULE LEFT REAR SLAVE LANE CHANGE WARNING LEFT REAR TWEETER LEFT REAR TWEETER 2 LEFT REAR VANITY MIRROR LIGHT LEFT REVERSIBLE ELECTROMOTIVE AUTOMATIC REEL LEFT SHIFT PADDLE LEFT SIDE READING LIGHT LEFT TAILLIGHT LEFT TURN SIG LIGHT LH SIG STRATIFICATION ADJUSTER LICENSE PLATE LIGHT LICENSE PLATE LIGHT ACTIVATION LIGHT EFFECT MANAGER LIGHT SOURCE 1 LIGHT SOURCE 2 LIGHT SOURCE 3 LIGHT SOURCE 4 LIGHT SOURCE 5 LIGHT SOURCE 6 LIGHT SOURCE 7 LIGHT SOURCE 8 LIGHT SOURCE 9 LIGHT SOURCE 11 LIGHT SOURCE 16 LIN 6 LIN BUS SIG LIN BUS SIGNAL LIN POWER DISTRIBUTION BOX LINES SYSTEM LOCATOR LIGHT AND AMBIENT LIGHT LOCATOR LIGHTING LOCATOR LT LOCATOR LT, AMBIENT LT LUGGAGE COMPARTMENT AERIAL LUGGAGE COMPARTMENT LIGHT MAGNETIC CLUTCH MAGNETIC CLUTCH ACTUATION MICROPHONE 2 + MIRROR ELECTRONICS MIRROR ELECTRONICS DRIVER EXTERIOR MIRROR MIRROR FOLD- IN DRIVE MIXING AIR CONTROL SPLY MIXING AIR CONTROL SUPPLY MONITOR ANGLE ADJUSTMENT DRIVE MOST DATA BUS CIRCUIT NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NFC READER NFC READER AERIAL NOISE SUPPRESSOR FILTER OPTIONAL EXTRA SYSTEM PANORAMA ROOF ROLLER BLIND DRIVE PANORAMA ROOF ROLLER BLIND DRIVE 2 PARKING ASSISTANT PASS FAN ACT 1 PASS FAN ACT 4 PASS FAN GND 1 PASS FAN GND 4 PASS FAN SIG 1 PASS FAN SIG 4 PASS SEAT BACKREST GND PASS SEAT CUSHION GND PASSENGER ELECTRONIC OUTER DOOR HANDLE MODULE PASSENGER SEAT BACKREST WIDTH ADJUSTMENT DRIVE 2 PASSENGER'S DOOR AUTOMATIC SOFT-CLOSE DRIVE PASSENGER'S DOOR ENTRANCE LIGHT PASSENGER'S DOOR POCKET LIGHTING PASSENGER'S SEAT BACKREST FAN 1 PASSENGER'S SEAT BACKREST FAN 2 PASSENGER'S SEAT BACKREST FAN 3 PASSENGER'S SEAT BACKREST FAN 4 PASSENGER'S SEAT BACKREST HEAD ADJUSTMENT DRIVE PASSENGER'S SEAT BACKREST WIDTH ADJUSTMENT DRIVE PASSENGER'S SEAT CUSHION FAN 1 PASSENGER'S SEAT CUSHION FAN 2 PASSENGER'S SEAT CUSHION FAN 3 PASSENGER'S SEAT CUSHION FAN 4 PASSENGER'S SEAT DEPTH ADJUSTMENT DRIVE PASSENGER'S SEAT HEADREST HEIGHT ADJUSTMENT DRIVE PASSENGER'S SIDE REAR LIGHT SABER PASSENGER'S SIDE REAR POWER DRIVE W/ CONTROL ELECTRONICS PASSENGER'S SIDE REAR POWER WINDOW DRIVE W/ CONTROL ELECTRONICS PASSENGER'S SIDE REAR ROLLER SUNBLIND DRIVE PASSIVE RESTRAINTS SYSTEM POWER DISTRIBUTION SYSTEM POWER SUPPLY POWER WINDOWS CIRCUIT PREMIUM EXCEPT PREMIUM PS CAN-H PS CAN-L PT CAN H PT CAN L PT-CAN BUS SIG PWR SPLY READING LIGHT REAR AIR CONDITIONING SYSTEM BLOWER OUTPUT STAGE REAR AXLE KING PIN INCLINATION CONTROL REAR BASE PLATE REAR BASE PLATE 2 REAR BUMPER AERIAL REAR BUMPER AERIAL 2 REAR CENTER ARMREST LIGHT REAR CENTER CONSOLE INTERIOR AERIAL REAR CENTER SEAT BELT BUCKLE CONTACT REAR CIGARETTE LIGHTER 12 V CONNECTION REAR COMPARTMENT REAR COMPARTMENT AIR CONDITIONING SYSTEM REAR COMPARTMENT MONITOR REAR COMPARTMENT MONITOR 2 REAR COMPARTMENT VENTILATION GRILLE REAR CONSOLE CAPTAIN'S CHAIR LIGHTING REAR CONSOLE CAPTAIN'S CHAIR LIGHTING 2 REAR DRIVER'S SIDE AUTOMATIC SOFT-CLOSE DRIVE REAR DRIVER'S SIDE BACKREST ANGLE ADJUSTMENT DRIVE REAR DRIVER'S SIDE BACKREST HEAD ADJUSTMENT DRIVE REAR DRIVER'S SIDE COURTESY LIGHTING REAR DRIVER'S SIDE DOOR POCKET LIGHTING REAR DRIVER'S SIDE ELECTRONIC OUTER DOOR HANDLE MODULE REAR DRIVER'S SIDE ENTRY LIGHT REAR DRIVER'S SIDE FOOTWELL LIGHT REAR DRIVER'S SIDE HEADREST HEIGHT ADJUSTMENT DRIVE REAR DRIVER'S SIDE LIGHT SABER REAR DRIVER'S SIDE OUTER DOOR HANDLE ELECTRONIC MODULE REAR DRIVER'S SIDE SEAT BACKREST FAN REAR DRIVER'S SIDE SEAT BELT BUCKLE CONTACT REAR DRIVER'S SIDE SEAT CUSHION FAN REAR DRIVER'S SIDE SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE REAR DRIVER'S SIDE SEAT MODULE REAR DRIVER'S SIDE SEAT TILT ADJUSTMENT DRIVE REAR ELECTRIC ACTIVE ROLL STABILIZATION REAR ELECTRONIC ACTIVE ROLL STABILIZATION REAR FOG LIGHT REAR FOG LIGHT ACTIVATION REAR INTERIOR LIGHT REAR PASSENGER SIDE COURTESY LIGHTING REAR PASSENGER'S SIDE AUTOMATIC SOFT-CLOSE DRIVE REAR PASSENGER'S SIDE BACKREST ANGLE ADJUSTMENT DRIVE REAR PASSENGER'S SIDE BACKREST HEAD ADJUSTMENT DRIVE REAR PASSENGER'S SIDE COURTESY LIGHTING REAR PASSENGER'S SIDE DOOR POCKET LIGHTING REAR PASSENGER'S SIDE ELECTRONIC OUTER DOOR HANDLE MODULE REAR PASSENGER'S SIDE ENTRY LIGHT REAR PASSENGER'S SIDE FOOTWELL LIGHT REAR PASSENGER'S SIDE HEADREST HEIGHT ADJUSTMENT DRIVE REAR PASSENGER'S SIDE LIGHT SABER REAR PASSENGER'S SIDE OUTER DOOR HANDLE ELECTRONIC MODULE REAR PASSENGER'S SIDE SEAT BACKREST FAN REAR PASSENGER'S SIDE SEAT BELT BUCKLE CONTACT REAR PASSENGER'S SIDE SEAT CUSHION FAN REAR PASSENGER'S SIDE SEAT FORWARD/ BACKWARD ADJUSTMENT DRIVE REAR PASSENGER'S SIDE SEAT MODULE REAR PASSENGER'S SIDE SEAT TILT ADJUSTMENT DRIVE REAR POWER DISTRIBUTION BOX REAR SEAT ENTERTAINMENT REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER REJECTOR CIRCUIT 2 REAR WINDOW ROLLER SUNBLIND DRIVE REAR-WINDOW AERIAL REBOUND STAGE REMOTE CONTROL RECEIVER REV LIGHT ACTIVATION REVERSING LIGHT REVERSING LIGHT ACTIVATION RH SIG STRATIFICATION ADJUSTER RH TURN SIG LIGHT RIGHT "B" PILLAR VENTILATION GRILLE RIGHT ACTIVATION ILLUMINATED CARPET RIGHT CONTACT PIN RIGHT END OF DASH) RIGHT EXTERIOR AERIAL RIGHT FOG LIGHT RIGHT FRONT ELECTRONIC WHEEL MODULE RIGHT FRONT ENTRANCE LIGHT RIGHT FRONT FOOTWELL LIGHT RIGHT FRONT GLASS SUNROOF LIGHTING RIGHT FRONT LANE CHANGE WARNING SLAVE RIGHT FRONT MIXING FLAP DRIVE RIGHT FRONT POWER DISTRIBUTION RIGHT FRONT POWER DISTRIBUTION BOX RIGHT FRONT REAR GLASS SUNROOF LIGHTING RIGHT FRONT SEAT INFLATOR MODULE RIGHT FRONT TWEETER RIGHT FRONT TWEETER LIGHTING RIGHT FRONT VANITY MIRROR LIGHT RIGHT FRONT VENTILATION GRILLE RIGHT FRONT WOOFER RIGHT FRONTAL LIGHT ELECTRONICS RIGHT ILLUMINATED CARPET RIGHT INNER TAIL LIGHT RIGHT INNER TAILLIGHT RIGHT MAP READING LIGHT RIGHT OUTER TAIL LIGHT RIGHT OUTER TAILLIGHT RIGHT PARKING BRAKE DRIVE RIGHT READING LIGHT RIGHT REAR COMPARTMENT AIR CONDITIONING CONTROL PANEL RIGHT REAR ELECTRONIC WHEEL MODULE RIGHT REAR ENTRANCE LIGHT RIGHT REAR FRONT GLASS SUNROOF LIGHTING RIGHT REAR GLASS SUNROOF LIGHTING RIGHT REAR INTERIOR LIGHT RIGHT REAR LANE CHANGE WARNING MASTER RIGHT REAR LID LIFT DRIVE RIGHT REAR MASTER LANE CHANGE WARNING RIGHT REAR MIXING FLAP DRIVE RIGHT REAR RETRACTOR TENSIONER RIGHT REAR SEAT INFLATOR MODULE RIGHT REAR TWEETER RIGHT REAR TWEETER 2 RIGHT REAR VANITY MIRROR LIGHT RIGHT REVERSIBLE ELECTROMOTIVE AUTOMATIC REEL RIGHT SHIFT PADDLE RIGHT SIDE OF RADIATOR) RIGHT TURN SIGNAL LIGHT ACTUATION ROOF AERIAL ROOF FUNCTION CENTER SDARS AERIAL SEAT ADJUSTMENT SW SEAT ADJUSTMENT SW BLOCK SEAT ADJUSTMENT SW BLOCK SHIELD SEAT BACKREST ACT SEAT BACKREST GND SEAT BACKREST) SEAT CUSHION ACT SEAT CUSHION GND SEAT FAN ACT SEAT FAN GND SEAT FAN VOLT SPLY SEAT GND SEAT SURFACE ACT SEAT SURFACE GND SEAT SW GND SEAT SW SPLY SEATS SYSTEM SENS GND SIDE MARKER LIGHT SIDE REPEATER SIDE REPEATER IND SOUND SYSTEMS SOUND, NAVIGATION SYSTEMS SOURCE 4 SOURCE 5 SOURCE 6 SOURCE 7 SOURCE 8 SOURCE 10 SOURCE 12 SOURCE 13 SOURCE 14 SOURCE 15 SOURCE 17 SOURCE 18 SOURCE 19 SOURCE 20 SOURCE 21 SOURCE 22 SOURCE 23 SOURCE 24 SPARK PLUG SPLY SIG STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM SUNROOF SHADE DRIVE SW SIG SW SIGNAL SWIVEL MODULE TAIL LIGHT ACTIVATION TAIL LIGHT/ SIDE MARKER LIGHT TAIL- LIGHT TAILGATE FUNCTION MODULE TELEMATIC COMMUNICATION BOX TELEPHONE AERIAL TEMP SENS SIG TEMP SENS SIG SEAT BACKREST GND TERM 30 TERM 30 SPLY TERMINAL 15 SUPPLY TERMINAL 30 SPLY TERMINAL 30 SUPPLY TILT ACT TOP CENTER DASH BOARD LIGHTING TOP CENTER DASHBOARD LIGHTING TOP DRIVER'S DOOR TRIM PANEL LIGHTING TOP FRONT PASSENGER DOOR TRIM PANEL LIGHTING TOP FRONT PASSENGER'S SIDE INSTRUMENT PANEL LIGHTING TOP RADIATOR BLIND DRIVE TOP REAR DRIVER'S SIDE DOOR TRIM PANEL LIGHTING TOP REAR PASSENGER DOOR TRIM PANEL LIGHTING TOP REAR PASSENGER'S DOOR TRIM PANEL LIGHTING TOUCH COMMAND TOUCH COMMAND SNAP-IN ADAPTER TOUCH COMMAND TOUCH COMMAND SNAP-IN ADAPTER TOUCH DETECTION ELECTRONICS TOWING HITCH TRAILER MODULE TRANSFER BOX TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM USB CONNECTION 2 USB PORT USB- HUB VERTICAL DYNAMICS PLATFORM VIDEO MODULE VOLT SPLY W/ ACTIVE STEERING W/ ADAPTIVE HEADLIGHTS W/ AUTOMATIC SOFT CLOSE SYSTEM W/ AUTOMATIC SOFT CLOSE SYSTEM W/O AUTOMATIC SOFT CLOSE SYSTEM W/ CAPTAIN'S CHAIR W/O CAPTAIN'S CHAIR W/ FAN 850W/1000W W/ FAN 400W/600W 3.0L TURBO 4.4L TURBO W/ INTERIOR LIGHT PACKAGE W/ INTERIOR LIGHT PACKAGE W/O INTERIOR LIGHT PACKAGE W/ MULTI- FUNCTION SEAT W/ MULTI-FUNCTION SEAT W/O MULTI-FUNCTION SEAT W/ OPTIONAL EQUIPMENT SYSTEM W/ OPTIONAL EXTRAS W/O OPTIONAL EXTRAS W/ PANORAMIC ROOF W/ PANORAMIC ROOF, ELECTRIC ROLLER SUNBLINDS W/ REAR AIR CONDITIONER W/ REAR COMFORT SEAT W/ REAR CONSOLE W/O REAR CONSOLE W/ REAR SEAT ENTERTAINMENT W/ REMOTE-CONTROLLED PARKING AERIAL SIG W/ TELEMATICS W/ TOUCH COMMAND W/ USB HUB W/ WIRELESS CHARGING ODDMENTS TRAY W/O 4-ZONE AIR CONDITIONING W/O INTERIOR LIGHT PACKAGE W/O LASER LED W/O MULTI- FUNCTION SEAT W/O MULTI-FUNCTION SEAT W/ MULTI-FUNCTION SEAT W/O OPTIONAL EQUIPMENT SYSTEM W/O OPTIONAL EQUIPMENT SYSTEM FLEXRAY TERMINATION W/O OPTIONAL EQUIPMENT SYSTEM FLEXRAY TERMINATION FLEXRAY BUS SIG W/O PANORAMIC ROOF W/O PANORAMIC ROOF, ELECTRIC ROLLER SUNBLINDS W/O REAR COMFORT SEAT W/O REAR COMPARTMENT AUTOMATIC CLIMATE CONTROL W/O REAR SEAT PNEUMATICS MODULES W/ REAR SEAT PNEUMATICS MODULES W/O REMOTE CONTROLLED PARKING W/O REMOTE CONTROLLED PARKING W/ REMOTE CONTROLLED PARKING W/O REMOTE PARKING AERIAL SIG W/O REMOTE PARKING AERIAL SIG W/ REMOTE-CONTROLLED PARKING AERIAL SIG W/O TELEMATICS W/O USB HUB W/O WIRELESS CHARGING ODDMENTS TRAY WAKE UP SIG WAKE-UP SIG ETHERNET DATA LINE WAVE TRAP WIPER MODULE WIPER/WASHER SYSTEM WIRELESS CHARGING ODDMENTS TRAY WLAN AERIAL WLAN HOTSPOT, TELEMATICS, GPS AERIAL
