BMW 6 series F06/F13/F12 facelift (2015-2018) wind deflector release power unit Wiring diagram
This page shows the only wiring diagram for the component.wind deflector release power unit, which is found in the car BMW 6 series F06/F13/F12 facelift (2015-2018). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

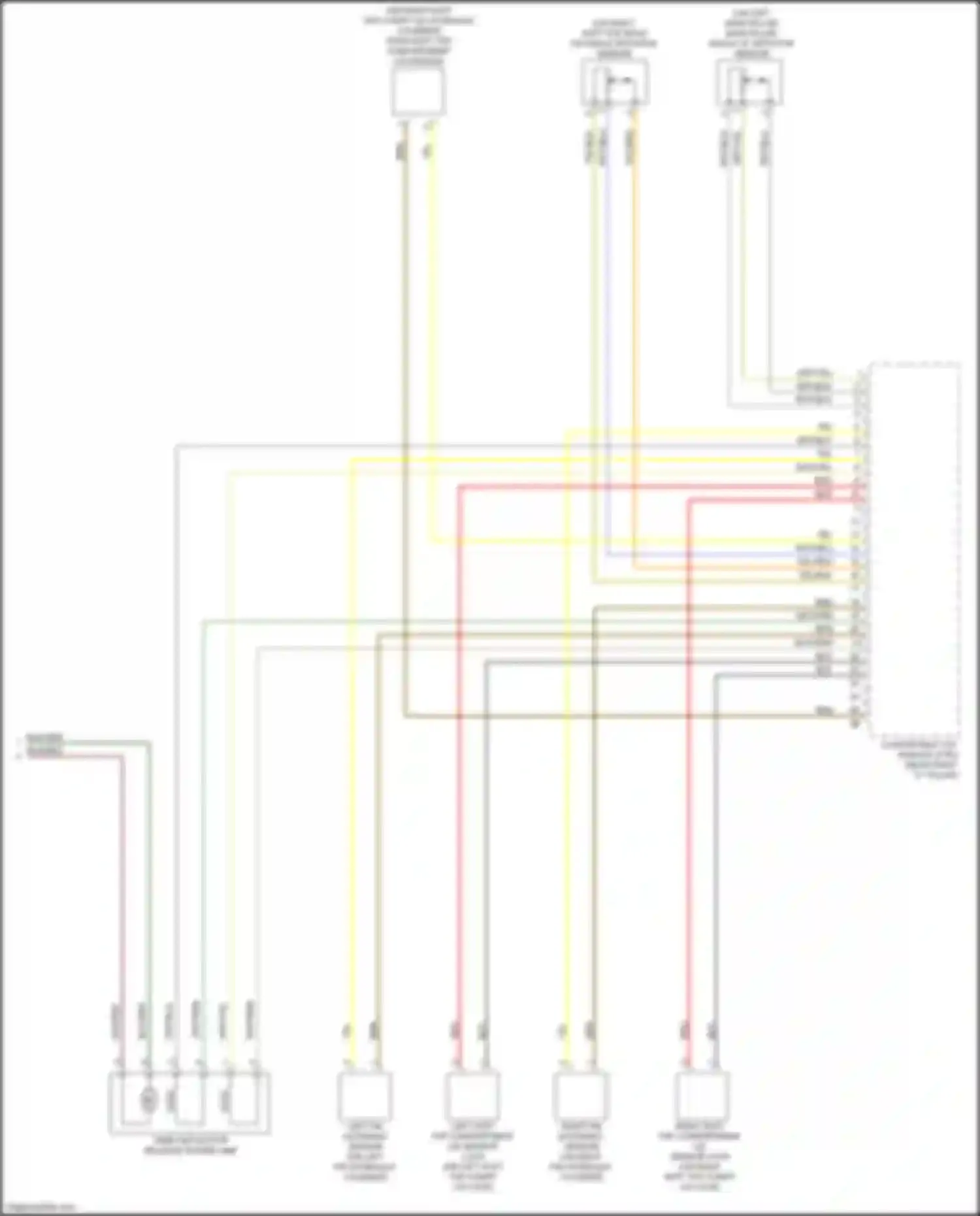

Wiring diagram wind deflector release power unit (1 of 1)
BLK WIRE
BLK/GRN WIRE
BLK/RED WIRE
BRN WIRE
CONVERTIBLE TOP MODULE (CTM)
FIN ANGLE ROTATION SENSOR
GRY/BLK WIRE
GRY/GRN WIRE
GRY/YEL WIRE
LEFT FIN EXTENDED SENSOR
LEFT SOFT TOP COMPARTMENT LID SENSOR LOCK
MAIN PILLAR ANGLE OF ROTATION SENSOR
OPEN SOFT TOP COMPARTMENT LID SENSOR
RED WIRE
RIGHT FIN EXTENDED SENSOR
RIGHT SOFT TOP COMPARTMENT LID SENSOR LOCK
WHT/BLK WIRE
WHT/BLU WIRE
WHT/BRN WIRE
WHT/YEL WIRE
WIND DEFLECTOR RELEASE POWER UNIT
YEL WIRE
YEL/BLK WIRE
YEL/RED WIRE
Go to component -> Convertible top circuit (2 of 2) -> WIND DEFLECTOR RELEASE POWER UNIT
