BMW 6 series GT G32 (2017–2020) wiring diagrams

List of systems:

Active bodyworks circuit

Automatic a/c circuit, w/o rear automatic climate control Automatic a/c circuit, w/ rear automatic climate control Independent heating circuit

Anti-lock brakes circuit

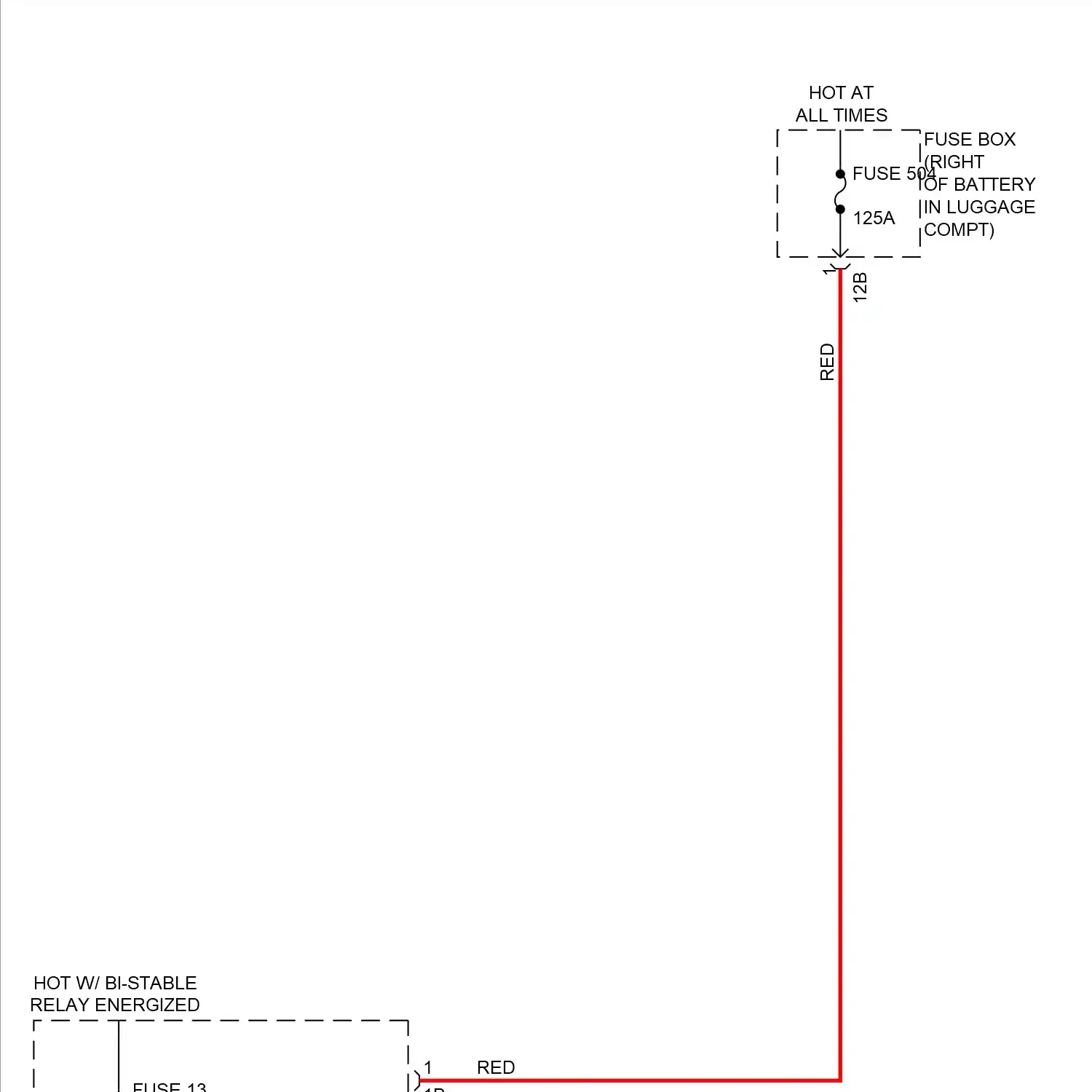

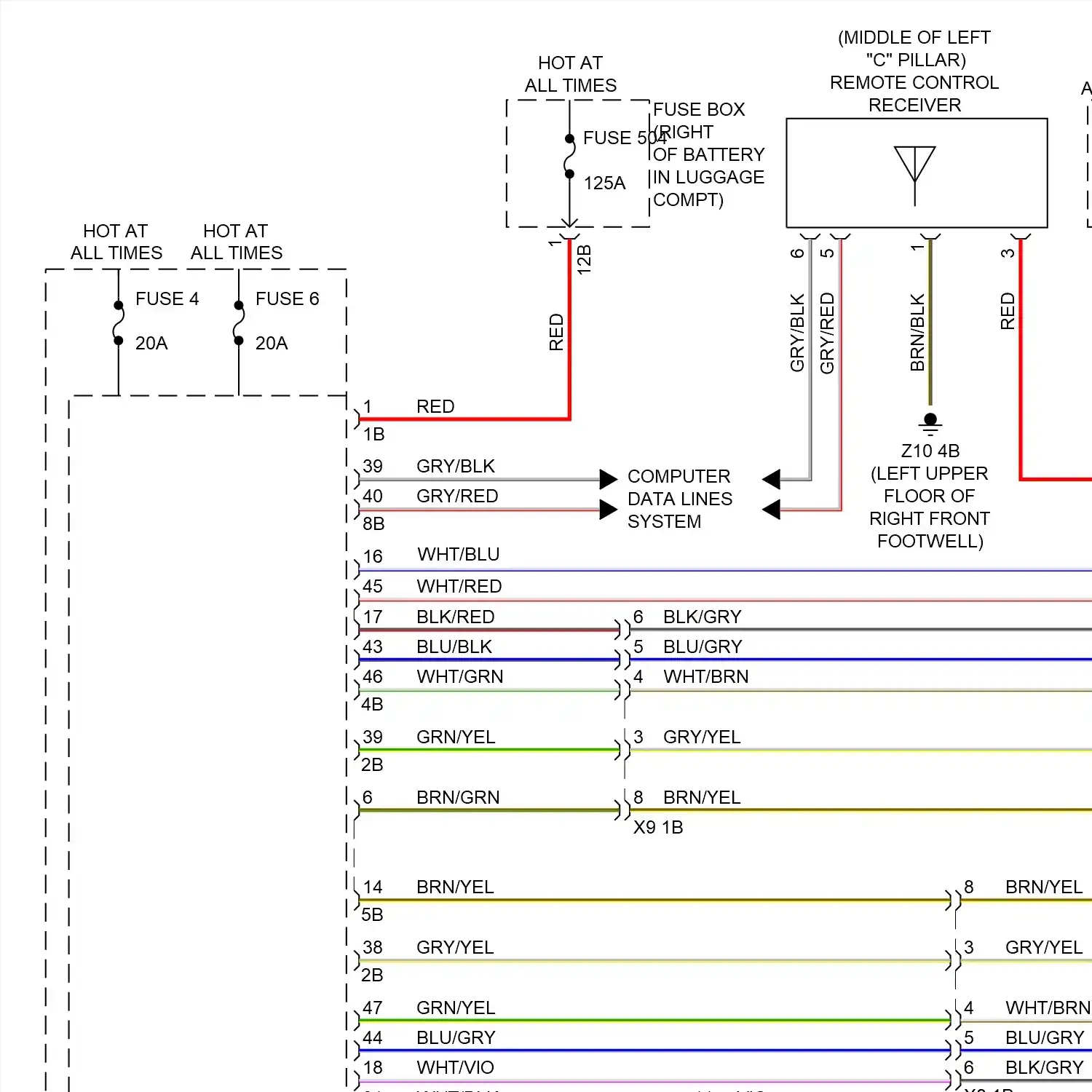

Access/start circuit Anti-theft & central locking circuit

Body control modules circuit

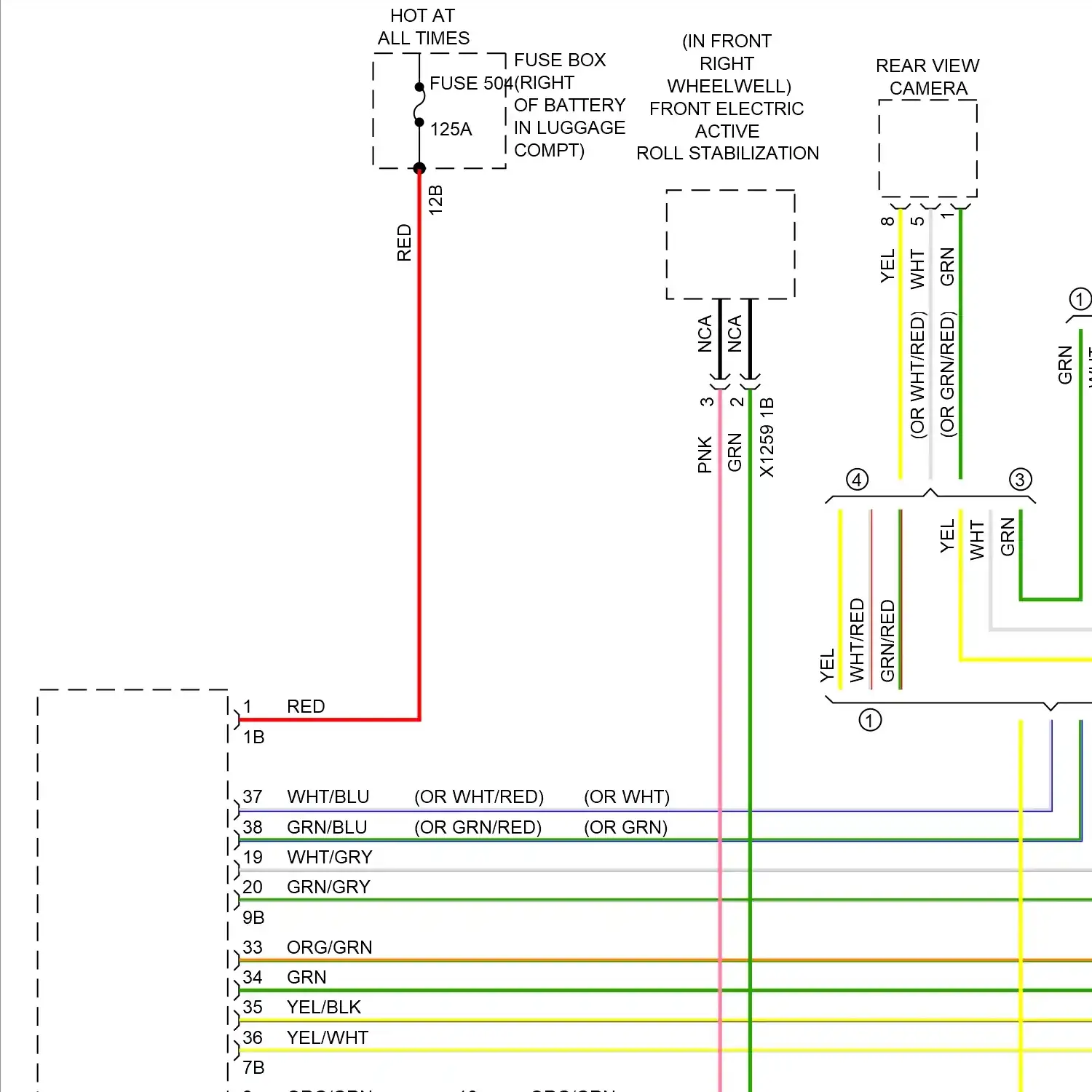

Data link connector circuit High/low bus circuit

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

Dynamic drive suspension circuit, basic Dynamic drive suspension circuit, high Electric active roll stabilization circuit

Wiring diagram engine performance 3.0l turbo

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

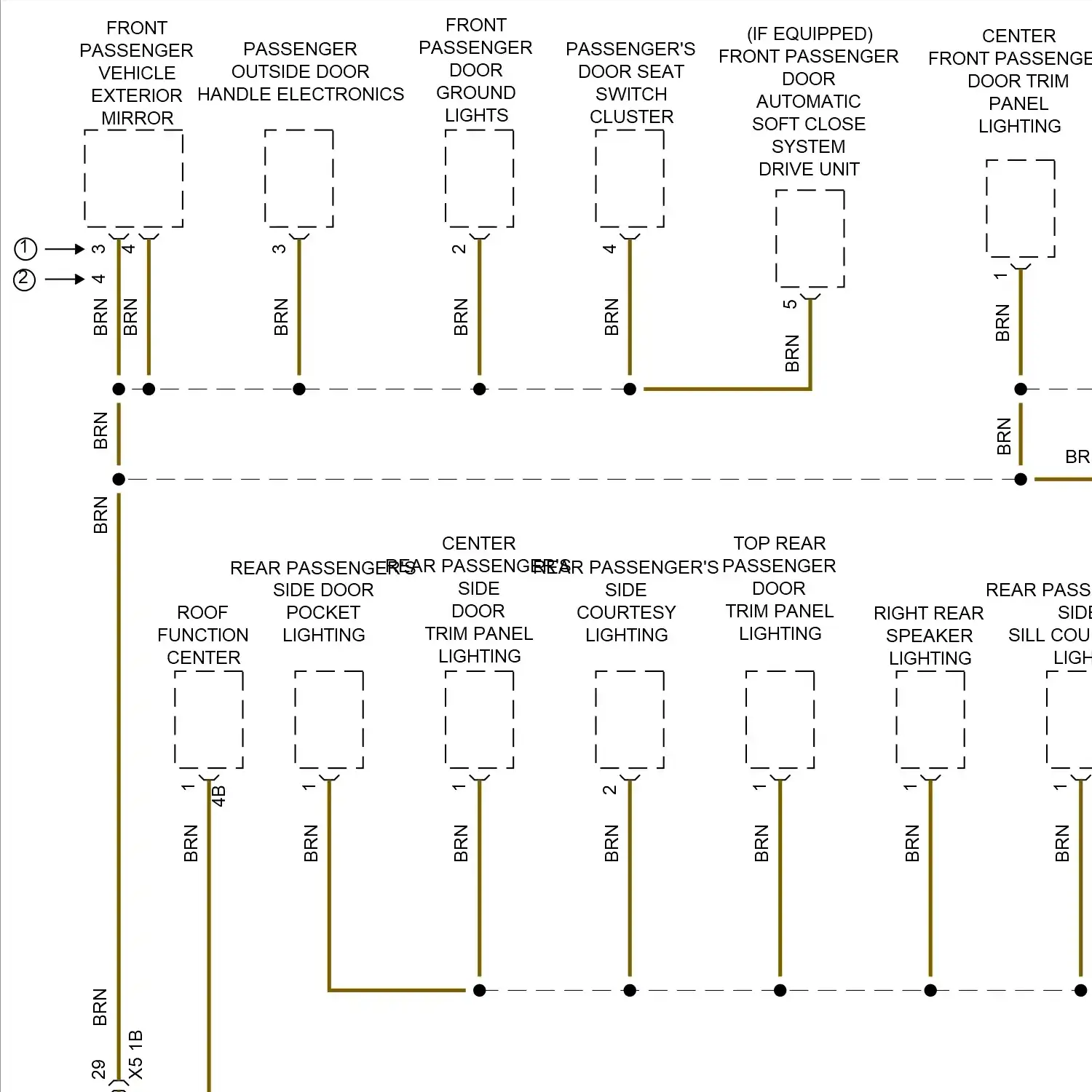

Ground distribution circuit

Headlights circuit

Horn circuit

Electronic night vision circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

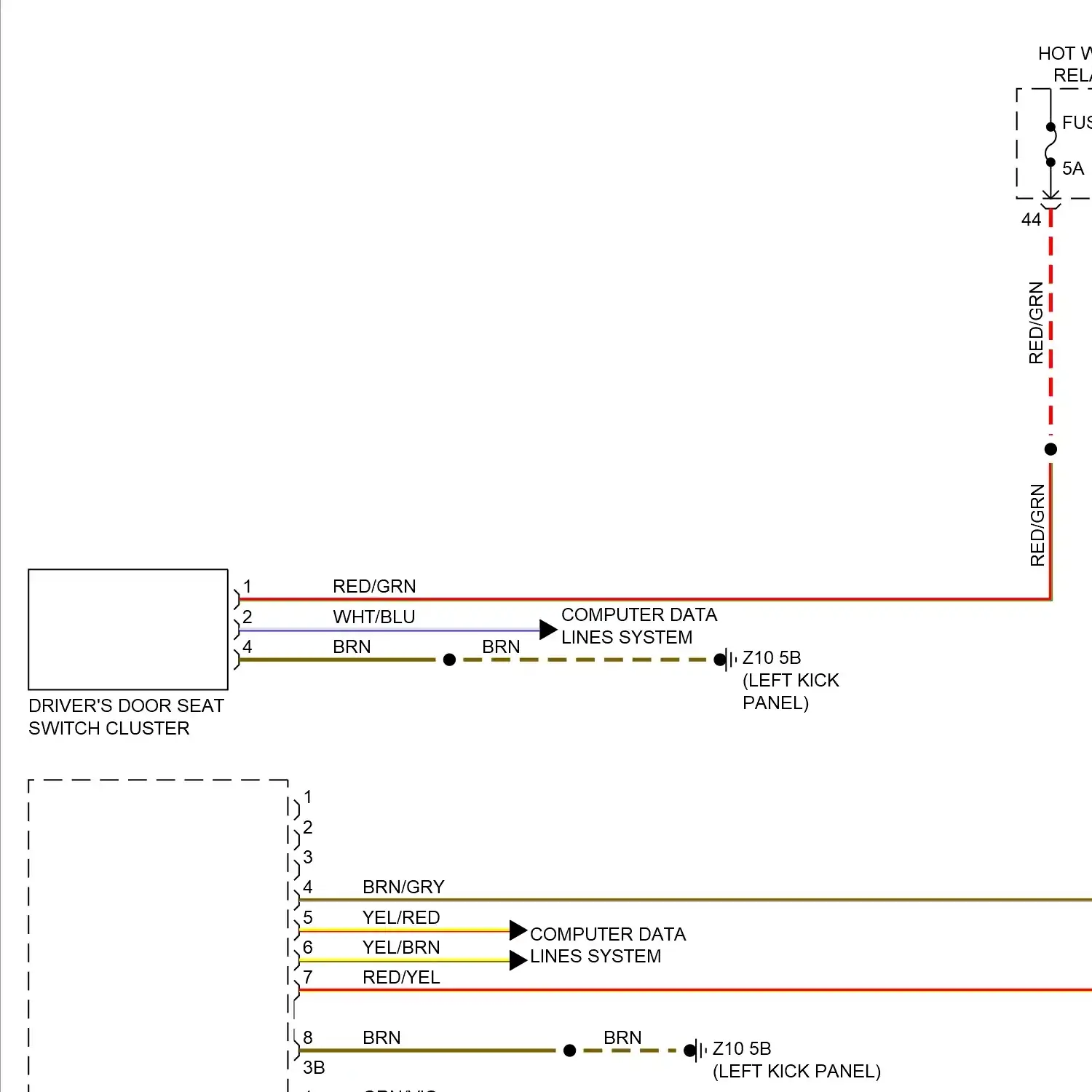

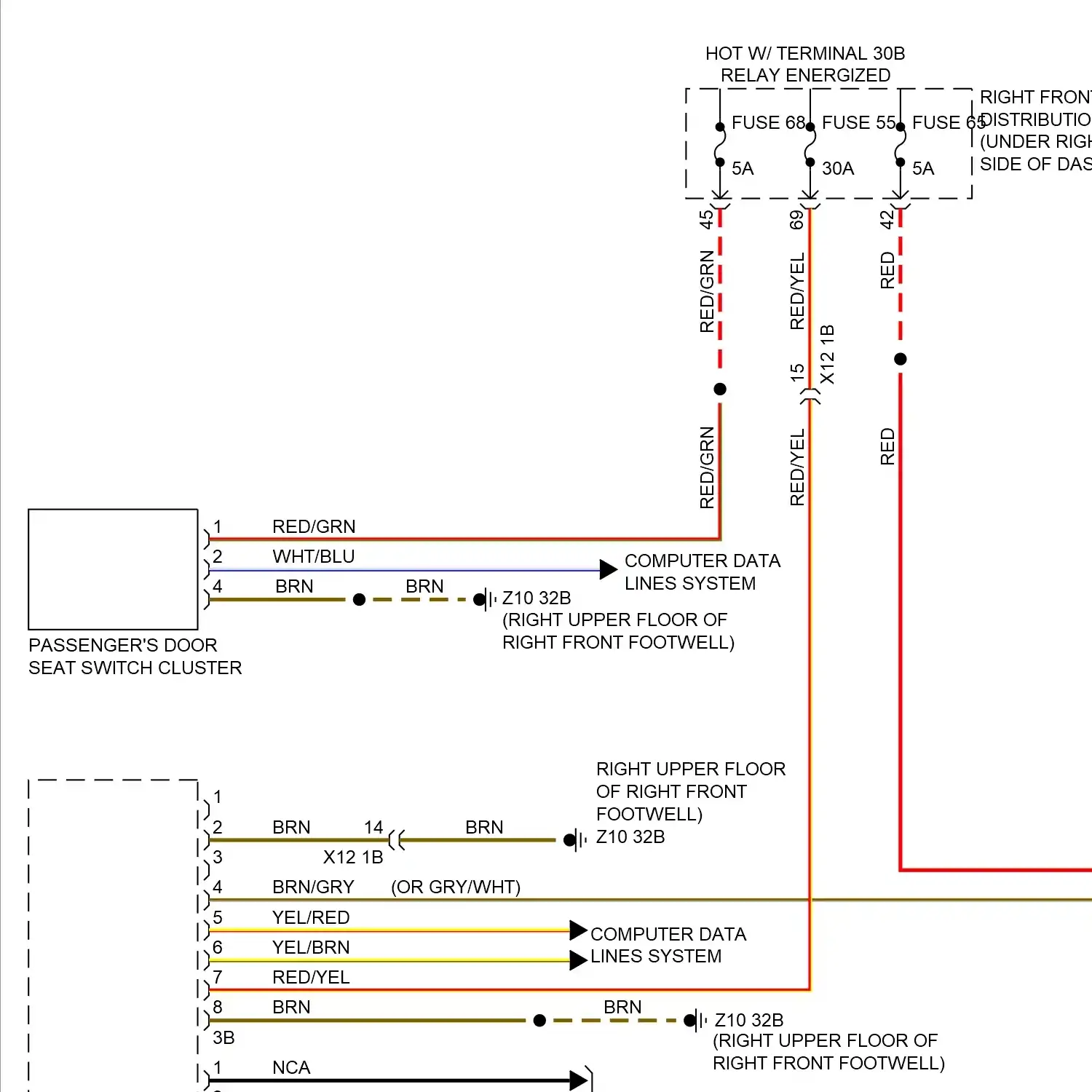

Driver"s memory seat circuit Memory mirrors circuit, w/ lin bus function Memory mirrors circuit, w/o lin bus function Passenger"s memory seat circuit Steering column memory circuit

All around vision camera circuit Blind spot monitoring circuit, w/ front & rear radar sensors Blind spot monitoring circuit, w/ rear radar sensors Driver camera circuit Lane departure warning circuit, w/ camera Lane departure warning circuit, w/o camera w/ front & rear lane change sensors Lane departure warning circuit, w/o camera w/ rear lane change sensors Navigation circuit, base w/ receiver audio module Navigation circuit, high level w/ receiver audio module Navigation circuit, mid level w/ receiver audio module Navigation circuit, w/ hifi radio & active sound design Navigation circuit, w/ hifi radio w/o active sound design Navigation circuit, w/o hifi radio & active sound design Navigation circuit, w/o hifi radio w/ active sound design Parking assistant circuit Rear camera circuit

Passive restraints circuit

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Front heated seats circuit, w/ memory Front heated seats circuit, w/o memory Front lumbar circuit Front seat ventilation circuit Heated steering wheel circuit Passenger power seat circuit Pneumatics seat circuit Rear heated seats circuit Sport seats circuit

Power top/sunroof circuit

Power windows circuit Roller sun blind circuit

Base radio circuit, w/ active sound design Base radio circuit, w/o active sound design Hifi radio circuit, w/ active sound design Hifi radio circuit, w/o active sound design Most data bus circuit Rear seat entertainment circuit Receiver audio module circuit, base Receiver audio module circuit, high level Receiver audio module circuit, mid level Top hifi radio circuit, except premium Top hifi radio circuit, premium Video system circuit

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit Rear axle circuit

Contact-free tailgate opening circuit Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit
