Wiring diagrams for BMW 1 series E81/E82/E87/E88 facelift (2007-2011)

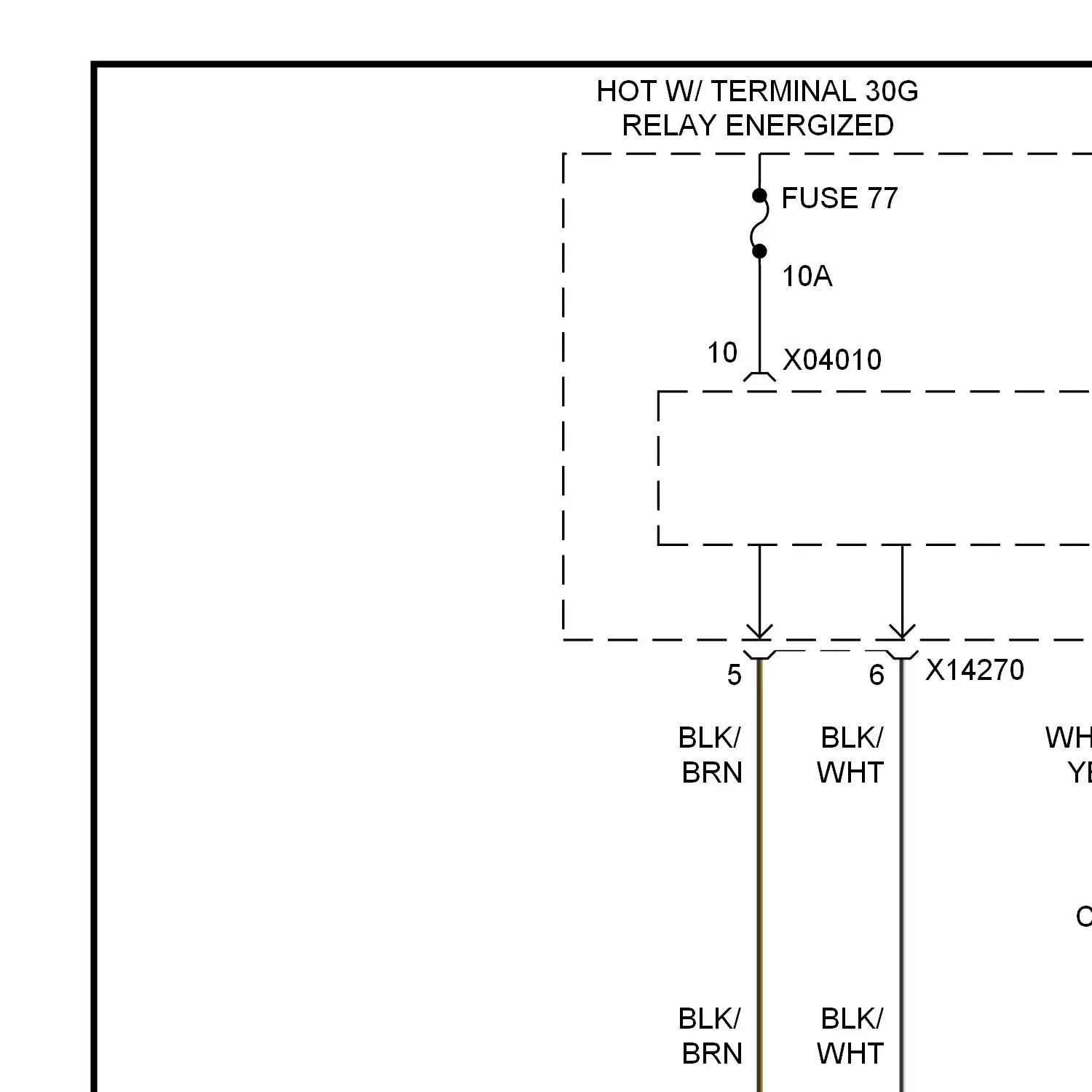

Automatic a/c circuit

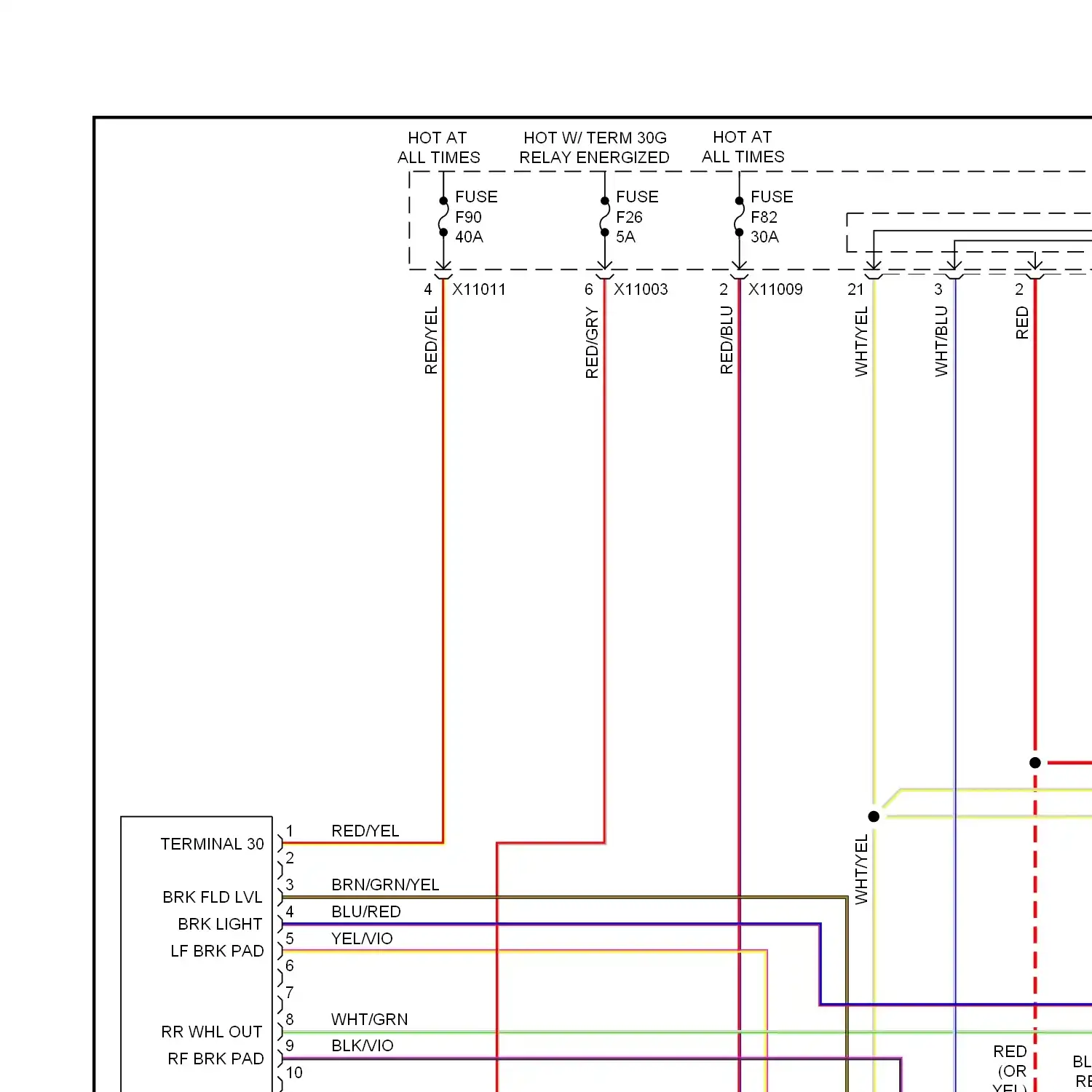

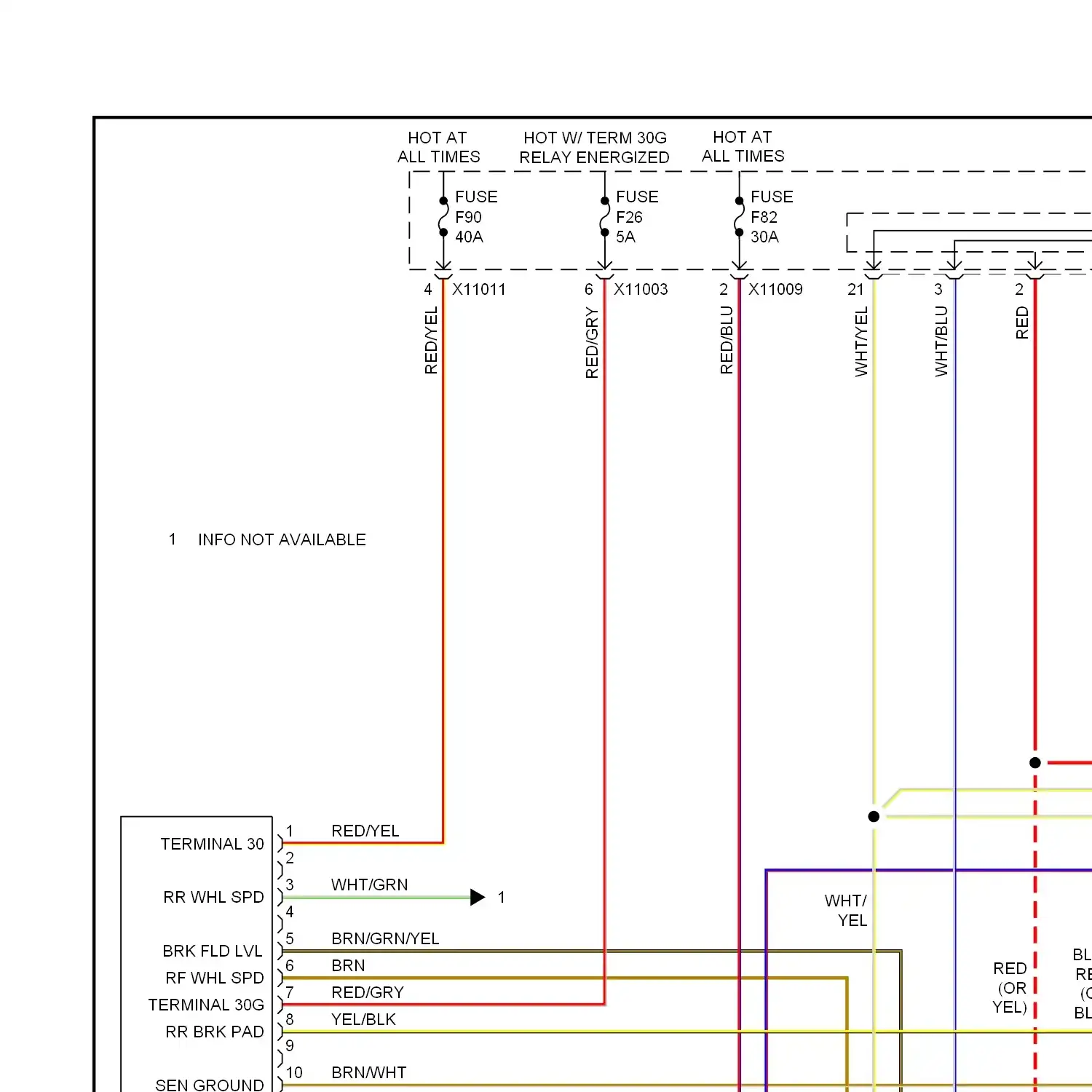

Anti-lock brakes circuit, with bosch dsc Anti-lock brakes circuit, without bosch dsc

Access/start circuit Anti-theft circuit

Body control modules circuit

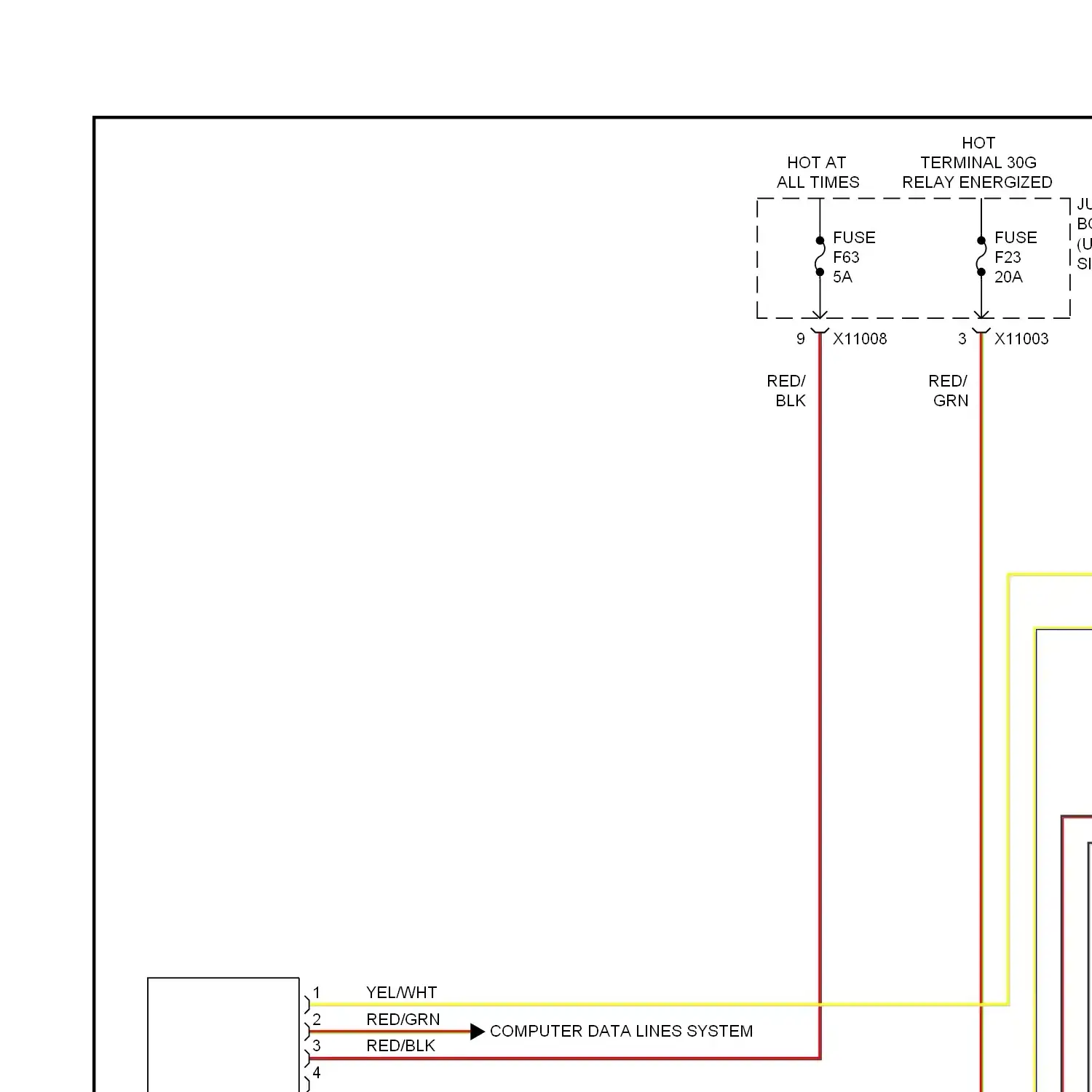

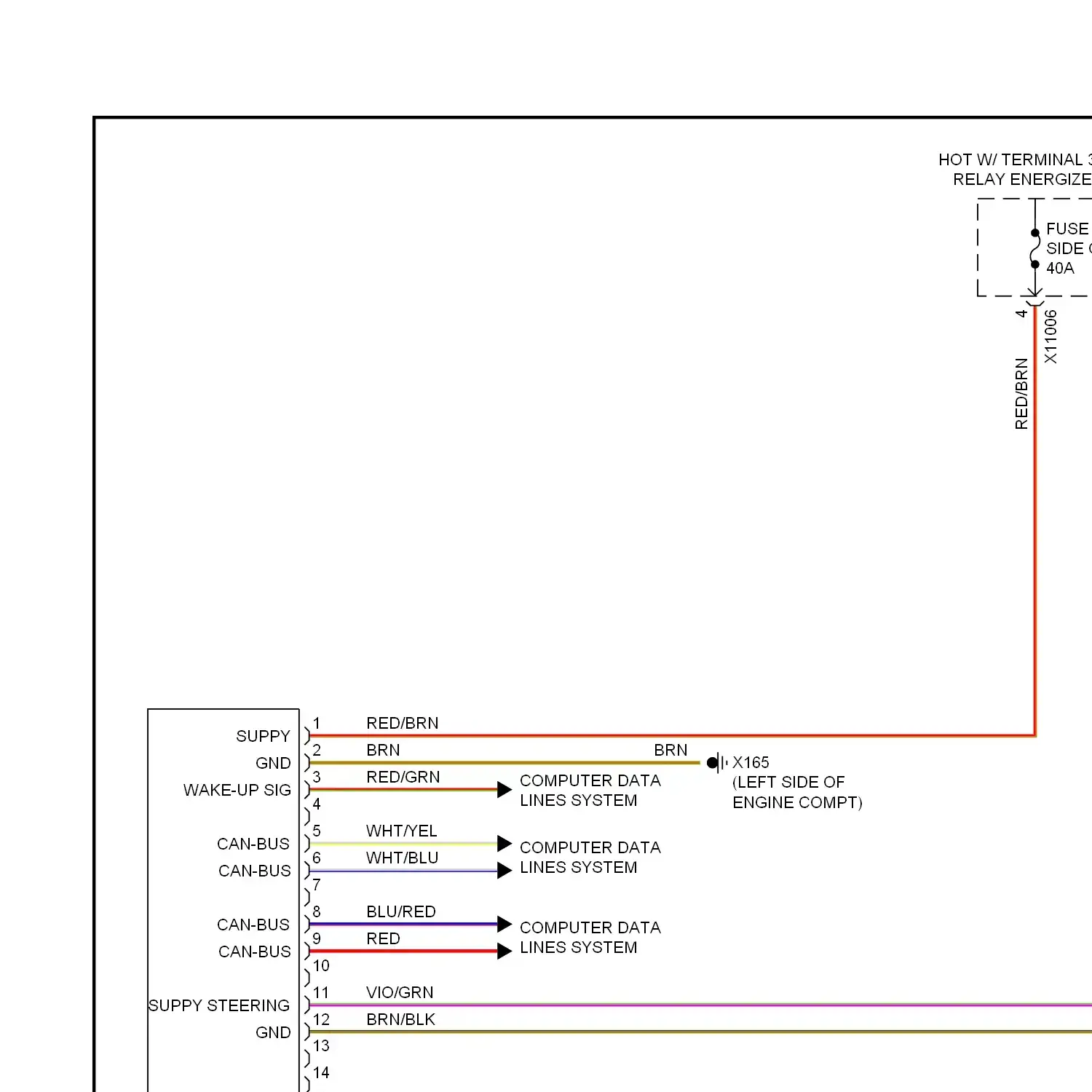

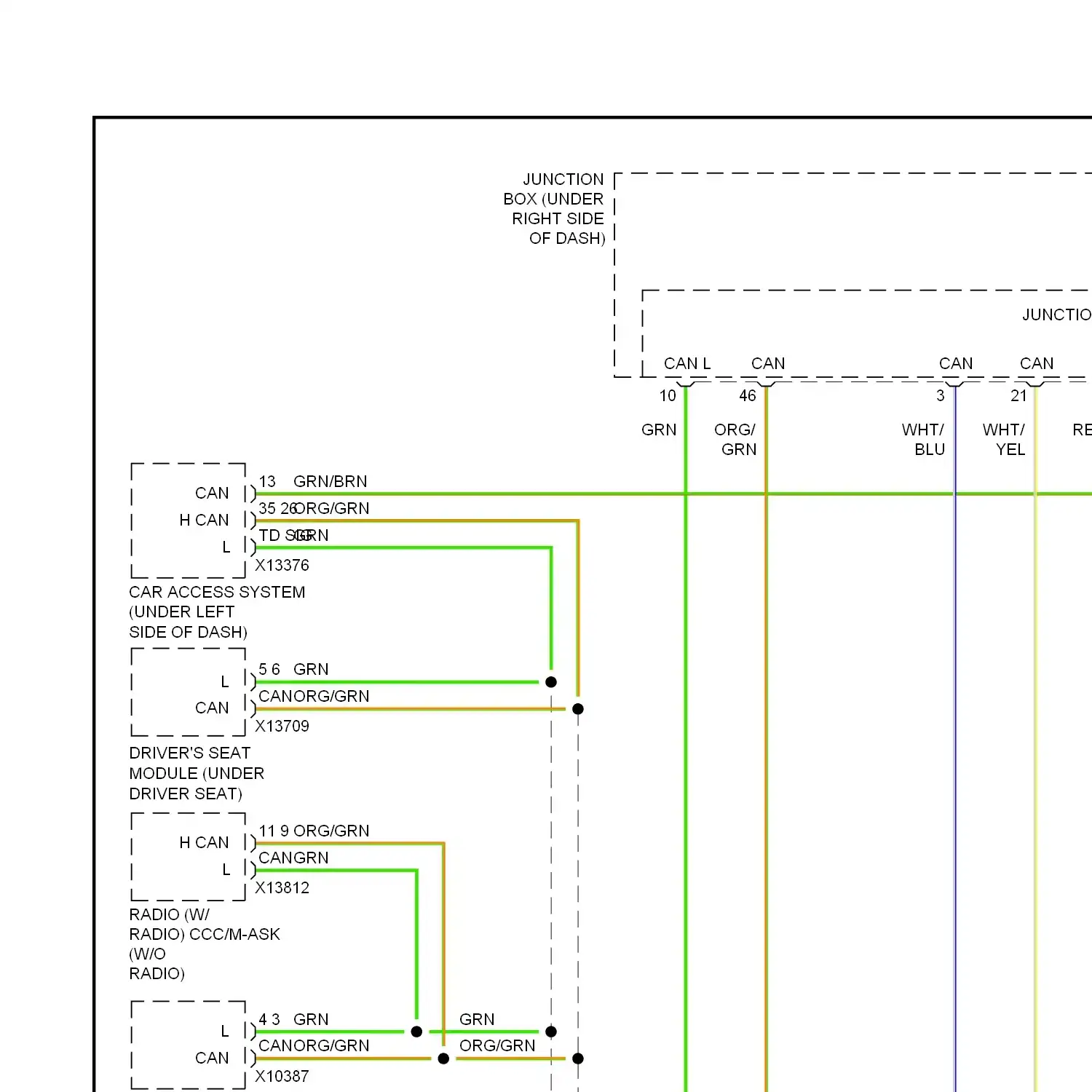

Computer data lines circuit

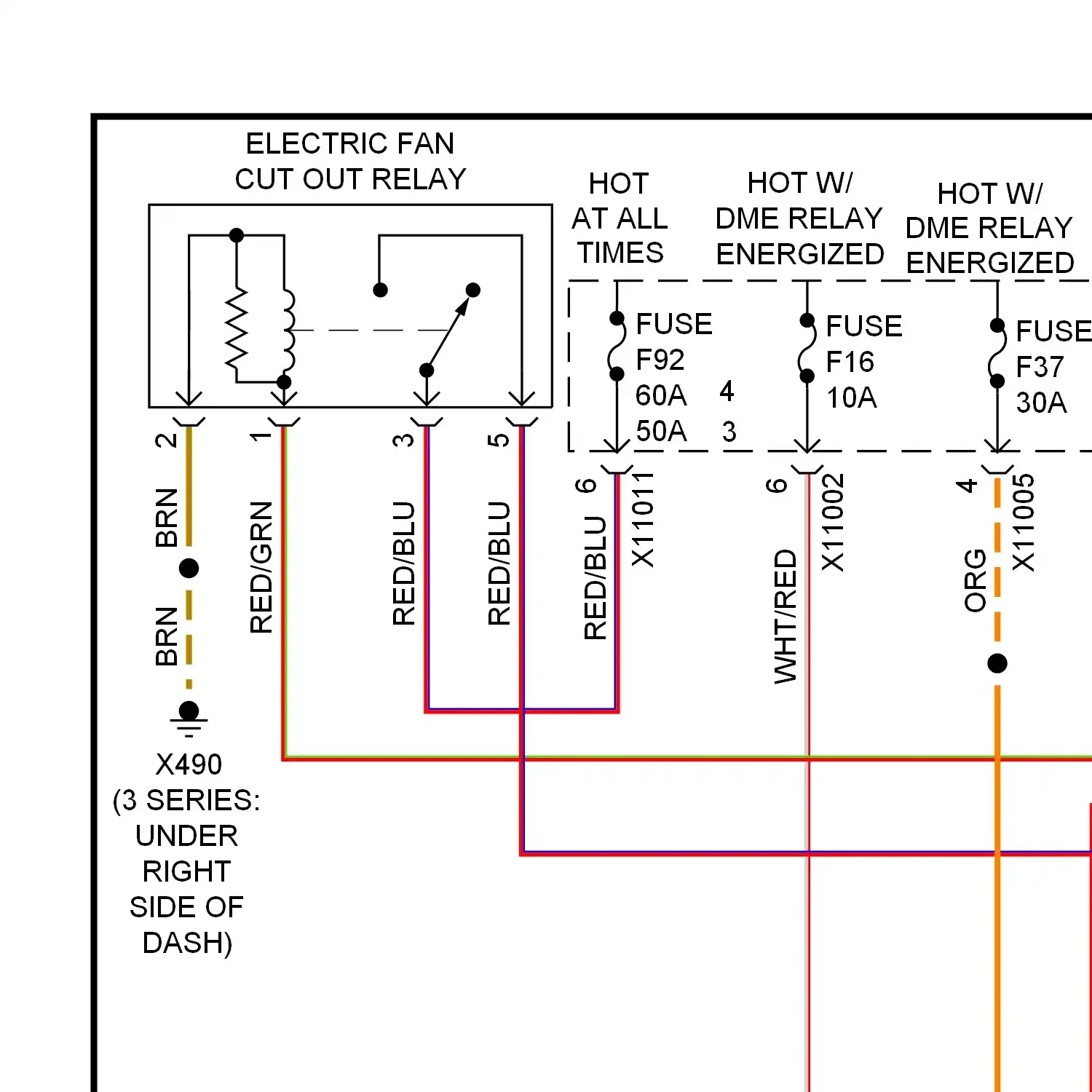

Cooling fan circuit

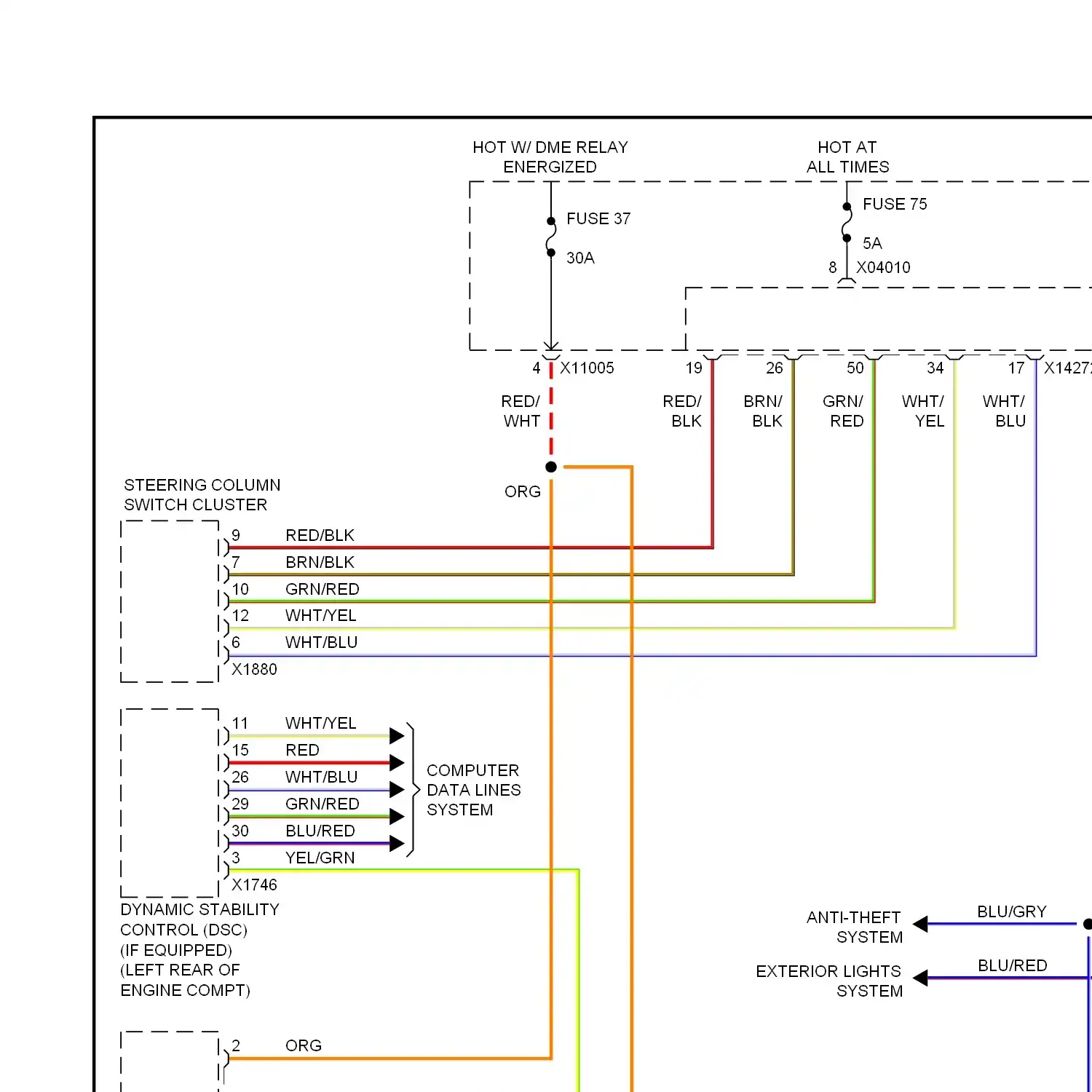

Cruise control circuit

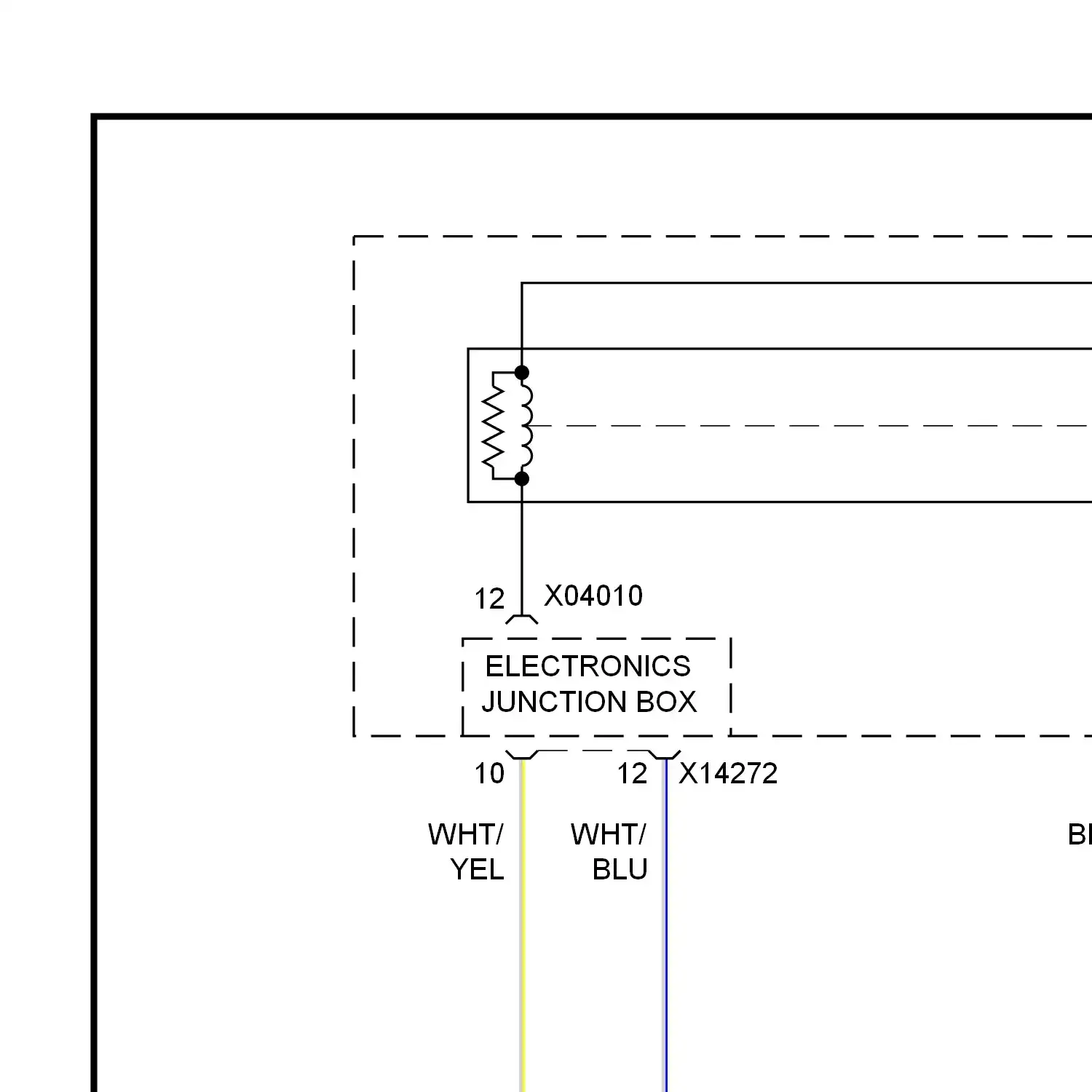

Defoggers circuit

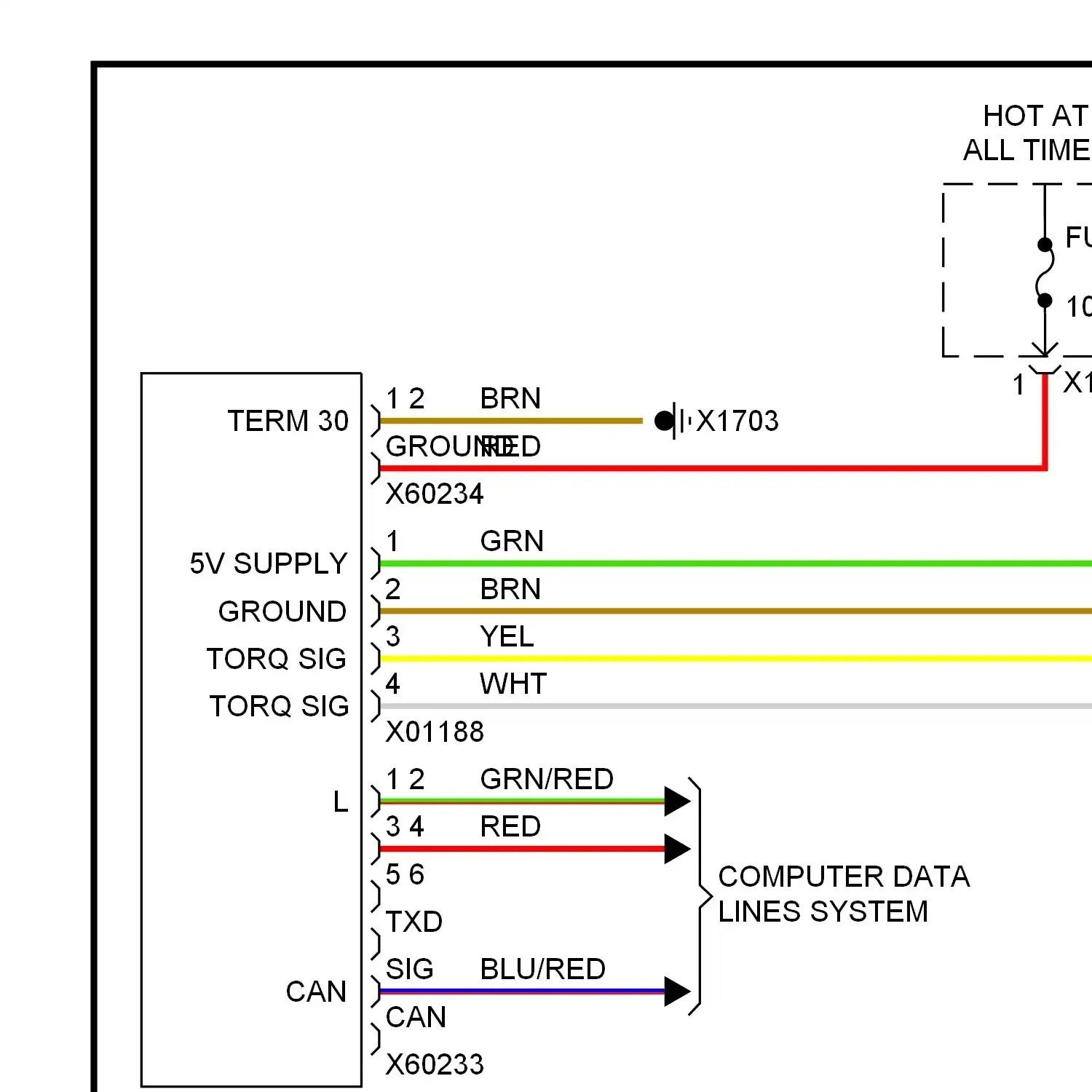

Active power steering circuit Electronic power steering circuit Power steering circuit

Electronic suspension circuit

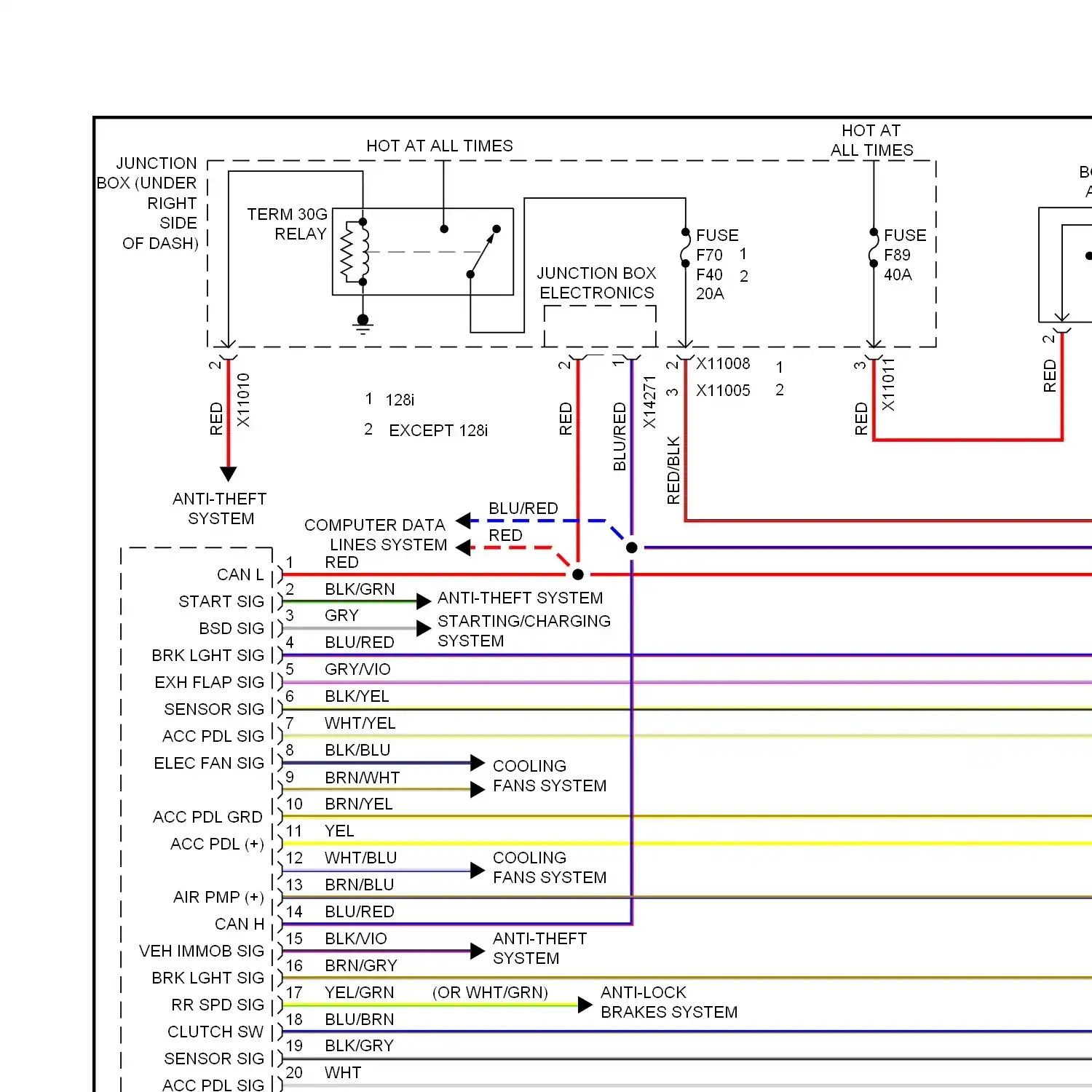

Wiring diagram engine performance 3.0l

Wiring diagram engine performance 3.0l twin turbo

Backup lamps circuit Exterior lamps & trailer connector circuit

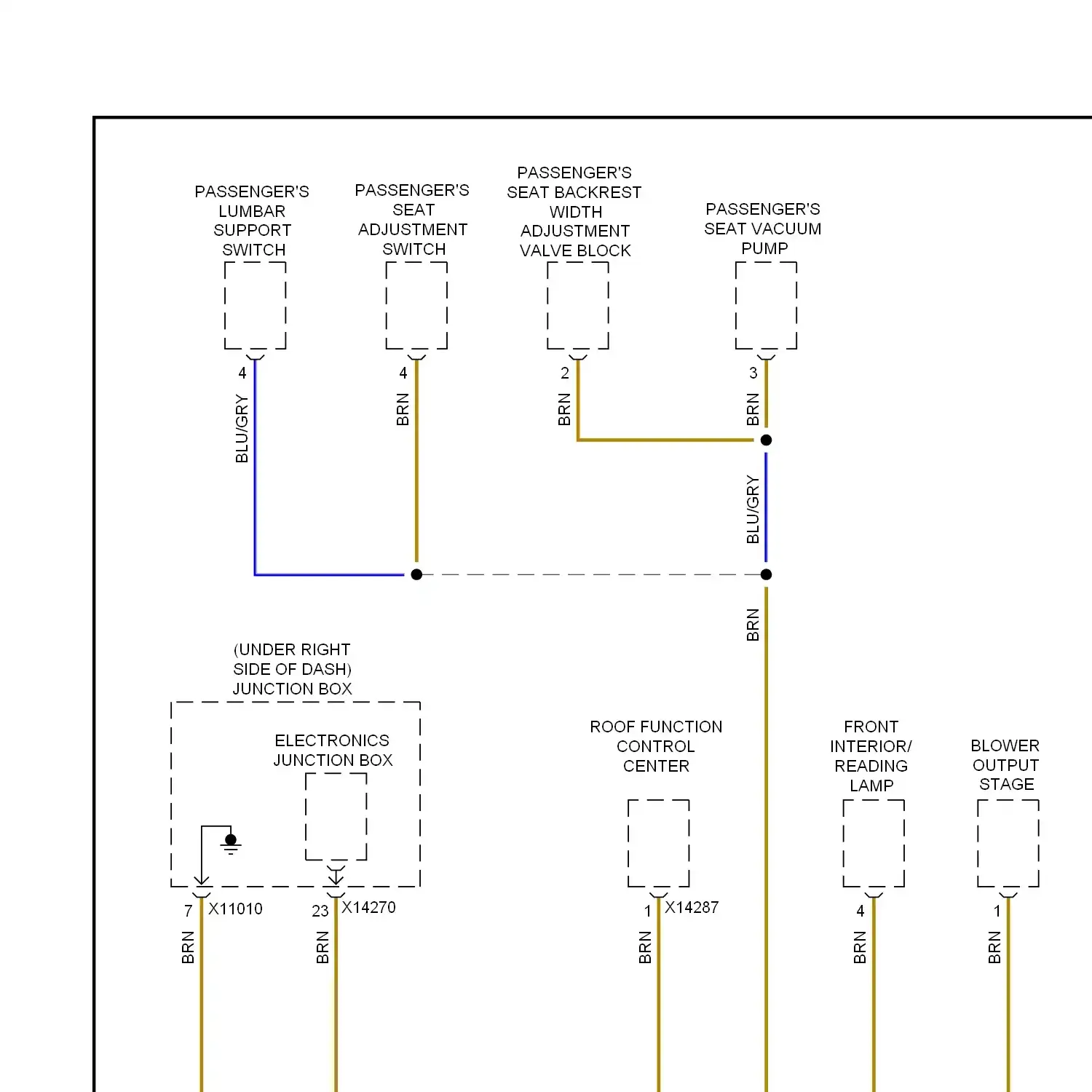

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit, without xenon lamps Headlamps circuit, with xenon lamps

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit, without roof function center Courtesy lamps circuit, with roof function center Instrument illumination circuit

Driver"s memory seat circuit Passenger"s memory seat circuit Steering column memory circuit

Navigation circuit, convertible with car information computer, base radio Navigation circuit, convertible with car information computer, hifi radio Navigation circuit, convertible with car information computer, top hifi radio Navigation circuit, convertible without car information computer, base radio Navigation circuit, convertible without car information computer, hifi radio Navigation circuit, convertible without car information computer, top hifi radio Navigation circuit, except convertible with car information computer, base radio Navigation circuit, except convertible with car information computer, hifi radio Navigation circuit, except convertible with car information computer, top hifi radio Navigation circuit, except convertible without car information computer, base radio Navigation circuit, except convertible without car information computer, hifi radio Navigation circuit, except convertible without car information computer, top hifi radio Parking assistant circuit

Power distribution circuit

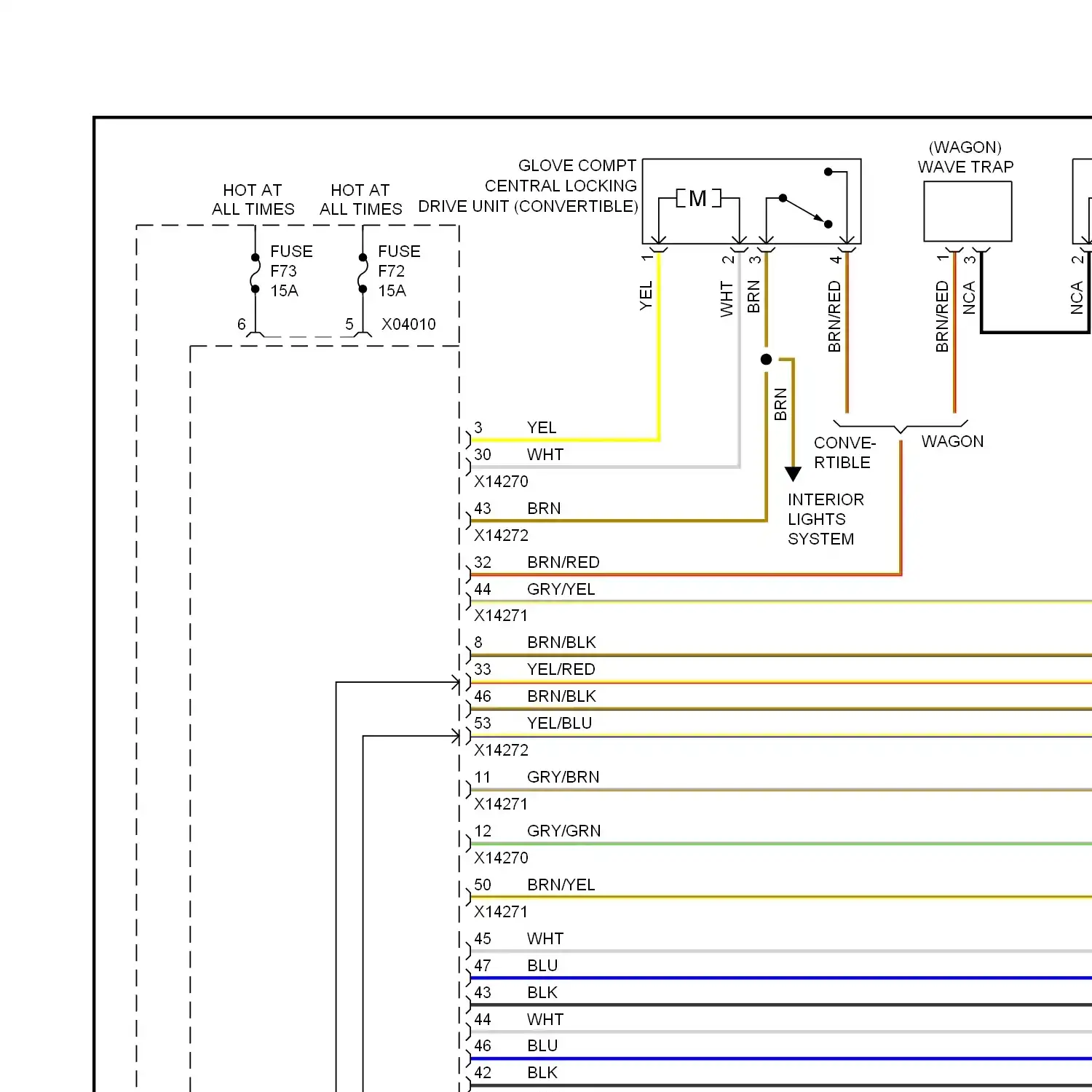

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit, with heated mirrors Power mirrors circuit, without heated mirrors

Heated seats circuit Lumbar circuit Sport seats circuit

Convertible top circuit Sunroof circuit

Power windows circuit

Radio circuit, convertible with base radio Radio circuit, convertible with car information computer, base radio Radio circuit, convertible with car information computer, hifi radio Radio circuit, convertible with car information computer, top hifi radio Radio circuit, convertible with hifi radio Radio circuit, convertible without car information computer, base radio Radio circuit, convertible without car information computer, hifi radio Radio circuit, convertible without car information computer, top hifi radio Radio circuit, except convertible with base radio Radio circuit, except convertible with car information computer, base radio Radio circuit, except convertible with car information computer, hifi radio Radio circuit, except convertible with car information computer, top hifi radio Radio circuit, except convertible with hifi radio Radio circuit, except convertible without car information computer, base radio Radio circuit, except convertible without car information computer, hifi radio Radio circuit, except convertible without car information computer, top hifi radio

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit

Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit

AMPLIFIER TCU ANTI-LOCK BRAKES SYSTEM DRIVER'S DOOR SYSTEM LOCK DRIVER'S SEAT BELT TENSIONER GENERATOR ELECTRIC STEERING LOCK IGNITION COIL 1 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 IGNITION IGNITION COIL 1 COIL 2 IGNITION IGNITION COIL 3 COIL 2 LEFT HEATED WASHER NOZZLE LEFT RIGHT HEATED HEATED WASHER WASHER NOZZLE NOZZLE LEFT TRUNK LID RESISTOR PASSENGER'S DOOR SYSTEM LOCK PASSENGER'S SEAT BELT TENSIONER GENERATOR REAR DRIVER'S SIDE SYSTEM LOCK REAR PASSENGER'S SIDE SYSTEM LOCK RIGHT HEATED WASHER NOZZLE RIGHT HORN RIGHT LEFT HORN HORN RIGHT TRUNK LID RESISTOR SAFETY BATTERY TERMINAL GENERATOR SHIFT LOCK SELECTOR LEVER LOCK TELEPHONE TRANSCEIVER TELEPHONE TRANSCEIVER (CENTER OF

(RIGHT SIDE OF ENGINE ELECTRIC THROTTLE ACTUATOR ENGINE BREATHER HEATER 2 ENGINE BREATHER HEATER 3 ENGINE BREATHER HEATER 4 ENGINE COMPT) LEFT RELEASE FUEL FILLER ROLLER COVER FLAP CENTER LOCKING DRIVER MOTOR LEFT RELEASE ROLLER COVER MOTOR LEFT SEAT BELT POSITIONER MOTOR RIGHT SEAT BELT POSITIONER MOTOR TOP OF ENGINE) VENTILATION FLAP MOTOR VERTICAL AIM CONTROL MOTOR WIPER MOTOR

ANTENNA DIVERSITY CENTRAL INFORMATION DISPLAY ROOF ANTENNA FM ANTENNA 1 FM ANTENNA 2 FM ANTENNA 3 FM ANTENNA 4 FM FM ANTENNA 2 ANTENNA 4 FRONT INNER ANTENNA CENTER CONSOLE LEFT SIDE SECTION ANTENNA LEFT SIDE SECTION ANTENNA AMPLIFIER ON LEFT IN BUMPER TV ANTENNA ON RIGHT IN BUMPER TV ANTENNA REAR INNER ANTENNA LUGGAGE COMPARTMENT REAR INTERIOR ANTENNA CENTER CONSOLE REAR WINDOW ANTENNA AMPLIFIER RIGHT SIDE SECTION ANTENNA AMPLIFIER ROOF ANTENNA ROOF ANTENNA 2 W/ ANTENNA DIVERSITY W/O ANTENNA DIVERSITY

LEFT REAR WINDOW REGULATOR MOTOR REAR WINDOW BUTTON RIGHT REAR WINDOW REGULATOR MOTOR START-STOP BUTTON STOP BUTTON TRUNK LID BUTTON

AV SOCKET LUGGAGE COMPARTMENT RIGHT SOCKET TAIL LIGHT OUTLET LUGGAGE COMPARTMENT SOCKET OUTLET MOST-BUS CONNECTOR OBDII SOCKET REAR CENTER CONSOLE CHARGING SOCKET TELEPHONE RETROFIT PACKAGES CONNECTOR TRAILER SOCKET TRAILER SOCKET W/ HIFI W/ TOP HIFI

DIGITAL DIESEL ELECTRONIC CONTROL MODULE DME CONTROL MODULE DME CONTROL MODULE FUSE 09 ELECTRIC FUEL PUMP DME CONTROL MODULE INDEPENDENT/ AUXILIARY HEATING CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE MULTIPLE RESTRAINT SYSTEM CONTROL MODULE REAR INTERMITTENT WIPE/WASH CONTROL MODULE TRANSFER BOX CONTROL MODULE TRANSMISSION CONTROL MODULE

CENTER LOCKING DRIVE UNIT GLOVE COMPT DIGITAL MOTOR ELECTRONICS CONTROL UNIT DME CONTROL UNIT JUNCTION BOX ECU LIGHT SWITCH UNIT MULTIPLE RESTRAINT SYSTEM CONTROL UNIT RADIATOR SHUTTER DRIVE UNIT SLIDE/TILT SUNROOF DRIVE UNIT TRANSMISSION CONTROL UNIT UNIT) WIND SCREEN COWL PANEL LATCH INCREMENTAL TRANSDUCER DRIVE UNIT

ENGINE ELECTRONIC FUSE CARRIER FUSE 05 FUSE 010 ENGINE ELECTRONICS FUSE CARRIER FUSE 2 FUSE 3 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 12 FUSE 14 FUSE 14 FUSE FUSE 15 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 21 FUSE 65 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 32 FUSE 35 FUSE 37 FUSE 40 FUSE 41 FUSE 42 FUSE 44 FUSE 45 FUSE 45 SIDE OF DASH) FUSE 47 FUSE 49 FUSE 46 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 57 FUSE 59 FUSE 61 FUSE 62 FUSE 63 FUSE 65 FUSE 66 FUSE 67 FUSE 68 FUSE 70 FUSE 74 FUSE 74 FUSE 56 FUSE 75 FUSE 76 FUSE 77 FUSE 81 FUSE 82 FUSE 81 FUSE 86 FUSE 84 FUSE 85 FUSE 86 FUSE 31 FUSE 88 FUSE 92 FUSE FUSE 88 FUSE 89 FUSE 102 FUSE 104 FUSE 105 FUSE FUSE FUSE FUSE 33 FUSE FUSE 78 FUSE 80 FUSE 72 FUSE 73 FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE HOT AT ALL TIMES ENGINE ELECTRONICS FUSE CARRIER HOT AT ALL TIMES FUSE HOT AT ALL TIMES FUSE 41 HOT AT ALL TIMES FUSE 86 HOT AT ALL TIMES JUNCTION BOX FUSE OR RUN FUSE REAR FUSE TO FUSE

HEADLIGHT WASHER PUMP LEFT HEADLIGHT RIGHT HEADLIGHT

CRANKSHAFT BREATHER HEATING 1 CRANKSHAFT BREATHER HEATING 2 DRIVER'S SEAT HEATING MODULE ELECTRONIC AUXILIARY HEATER FRONT DRIVER'S SEAT PASSENGER HEATING SEAT BELT MODULE POSITIONER CONTROLLER FUEL HEATER HEATING, A/C SYSTEM HEATING/AIR CONDITIONING SYSTEM INDEPENDENT HEATING CIRCUIT PASSENGER'S SEAT CUSHION HEATING PASSENGER'S SEAT HEATING PASSENGER'S SEAT HEATING MODULE

DIRECTION INDICATOR/ HIGH BEAM HEADLIGHT SWITCH GEAR INDICATOR LIGHT GEAR INDICATOR LIGHTING LEFT FRONT DIRECTION INDICATOR LEFT FRONT DIRECTION INDICATOR LIGHT REPEATER RIGHT FRONT DIRECTION INDICATOR LIGHT REPEATER RIGHT FRONT DIRECTION INDICATOR REPEATER LIGHT

EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM FRONT INTERIOR/ READING LAMP HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM DOOR LOCKS SYSTEM INTERIOR LIGHTS TOP LIGHTS W/ 3 DOOR W/O XENON LIGHTS W/ 3 DOOR, XENON LIGHTS

DRIVER'S SEAT VACUUM PUMP ELECTRONIC COOLANT PUMP PASSENGER'S SEAT VACUUM PUMP REAR WINDOW WASHER PUMP SECONDARY AIR PUMP WIND- SHIELD WASHER PUMP WINDSHIELD WASHER PUMP

BISTABLE RELAY CONVERTIBLE TOP RELAY 1 CONVERTIBLE TOP RELAY 2 DME RELAY ELECTRIC FAN CUT OUT RELAY ELECTRIC VACUUM PUMP RELAY ELECTRO- CHROMIC ELECTRIC INTERIOR REAR VACUUM VIEW MIRROR PUMP RELAY FUEL INJECTORS RELAY FUEL INJECTORS RELAY ENGINE BREATHER HEATING RELAY FUEL PUMP RELAY FUEL PUMP RELAY (EXCEPT HEADLIGHT WASHER FUSE 4 RELAY HEADLIGHT WASHER RELAY HORN RELAY HOT W/ BISTABLE RELAY ENERGIZED HOT W/ DME RELAY ENERGIZED HOT W/ TERMINAL 15 15 RELAY ENERGIZED HOT W/ TERMINAL 15 RELAY ENERGIZED REAR WINDOW DEFROSTER RELAY REAR WIPE RELAY RELAY ENERGIZED RELAY ENERGIZED FUSE RELAY ENERGIZED FUSE 77 TERMINAL 15 RELAY WIPER RELAY 1 WIPER RELAY 2

AUC SENSOR BATTERY SENSOR BRAKE VACUUM SENSOR CLAMPING BRACKET ERECTED HALL SENSOR CLAMPING BRACKET TAKEN DOWN HALL SENSOR CONVERTIBLE TOP COMPARTMENT LID LOCKED HALL SENSOR CONVERTIBLE TOP LID OPEN HALL SENSOR COWL PANEL LOCKED HALL SENSOR DRIVER'S DOOR MICROWAVE SENSOR ENGINE COOLANT TEMPERATURE SENSOR INTAKE AIR TEMPERATURE SENSOR INTAKE TEMPERATURE BOOST PRESSURE SENSOR LEAK DIAG SIG LEAK DIAG SIG LEAK DIAG SIG SENSOR SOG SENSOR SIG SENSOR SIG LEAK DIAG SIG SENSOR GRD SENSOR GRD SENSOR SIG SENSOR SIG LEFT "B" PILLAR AIR BAG SENSOR LEFT FRONT ACCELERATION SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT ULTRASONIC SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR MICROWAVE SENSOR LEFT REAR ULTRASONIC SENSOR LOCKOUT SIREN, TILT ALARM CIRCUIT FOR SENSOR REAR WINDOW DEFROSTER MAIN PILLAR ERECTED HALL SENSOR MAIN PILLAR TAKEN DOWN HALL SENSOR NEUTRAL SENSOR OIL CONDITION SENSOR OXYGEN SENSOR 1 BEHIND CATALYTIC OXYGEN SENSOR 2 BEHIND CATALYTIC PASSENGER'S DOOR MICROWAVE SENSOR RADIATOR OUTLET TEMPERATURE SENSOR RIGHT "B" PILLAR AIR BAG SENSOR RIGHT FRONT ACCELERATION SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT ULTRASONIC SENSOR RIGHT REAR ACCELERATION SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR MICROWAVE SENSOR RIGHT REAR ULTRASONIC SENSOR SENSOR 1 GRD SENSOR 2 GRD BSD SIG SENSOR 1 SIG SENSOR 2 SIG OIL SW SIG WASTE VAL 2 SENSOR GRD SENSOR GRD SENSOR GRD SENSOR SIG SENSOR SIG SENSOR SIG SIREN, ALARM SENSOR SIREN, TILT ALARM SENSOR TENSIONING BAR EXTENDED HALL SENSOR W/ INTAKE AIR TEMPERATURE SENSOR W/O INTAKE AIR TEMPERATURE SENSOR

CENTER SPEAKER LEFT FRONT MID-RANGE SPEAKER LEFT REAR HI-RANGE SPEAKER LEFT REAR LEFT REAR HI-RANGE DOOR SPEAKER MID-RANGE SPEAKER LEFT REAR LEFT SIDE HI-RANGE TRIM PANEL SPEAKER MID-RANGE SPEAKER LEFT REAR MID- RANGE SPEAKER LEFT SUB- WOOFER LEFT REAR MID-RANGE SPEAKER LEFT SIDE TRIM PANEL MID-RANGE SPEAKER LEFT SUBWOOFER RIGHT FRONT MID-RANGE SPEAKER RIGHT REAR DOOR MID-RANGE SPEAKER RIGHT REAR HI-RANGE SPEAKER RIGHT REAR MID-RANGE SPEAKER RIGHT SIDE TRIM PANEL MID-RANGE SPEAKER RIGHT SUBWOOFER

BRAKE FLUID COOLANT LEVEL LEVEL SWITCH SWITCH BRAKE LIGHT SWITCH CENTER CONSOLE SWITCH CENTER CENTER CONSOLE SWITCH CLUSTER CLUTCH SWITCH MODULE CONVERTIBLE TOP COMPARTMENT FLOOR SWITCH COOLANT LEVEL SWITCH (RIGHT SIDE OF ENGINE DRIVER'S BACKREST REST SWITCH DRIVER'S LUMBAR SUPPORT SWITCH DRIVER'S SEAT ADJUSTMENT SWITCH DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT SWITCH DRIVER'S SIDE EASY ENTRY SWITCH DRIVER'S SWITCH CLUSTER HAZARD WARNING SWITCH HOOD CONTACT SWITCH HORN SWITCH HOTEL SWITCH LEFT FRONT MAKE UP MIRROR SWITCH LEFT MULTI- FUNCTION STEERING WHEEL SWITCH BLOCK LEFT REAR LID LOCK SWITCH LEFT ROCKER SWITCH LIGHT SWITCH PARKING BRAKE WARNING SWITCH PASSENGER AIR BAG DEACTIVATION SWITCH PASSENGER'S DOOR POWER WINDOW SWITCH PASSENGER'S LUMBAR SUPPORT SWITCH PASSENGER'S POWER WINDOW SWITCH PASSENGER'S SEAT ADJUSTMENT SWITCH PASSENGER'S SEAT BACKREST ADJUSTMENT SWITCH PASSENGER'S SEAT BACKREST WIDTH ADJUSTMENT SWITCH PASSENGER'S SIDE EASY ENTRY SWITCH REAR CAR LID ACCESS RELEASE SYSTEM SWITCH REAR DRIVER'S SIDE POWER WINDOW SWITCH REAR PASSENGER'S SIDE POWER WINDOW SWITCH REVERSING LIGHT SWITCH RIGHT FRONT MAKE UP MIRROR SWITCH RIGHT MULTI-FUNCTION STEERING WHEEL SWITCH BLOCK RIGHT REAR LID LOCK SWITCH RIGHT ROCKER SWITCH STEERING COIL SWITCH CLUSTER STEERING COLUMN SWITCH CENTER STEERING COLUMN SWITCH CLUSTER STEPTRONIC SWITCH WASHER FLUID LEVEL SWITCH

A/C COMPRESSOR CONTROL VALVE CONVERTIBLE TOP DRIVE VALVE 1 CONVERTIBLE TOP DRIVE VALVE 2 CONVERTIBLE TOP DRIVE VALVE 3 DRIVER'S LUMBAR SUPPORT VALVE BLOCK DRIVER'S SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK FUEL TANK VENT VALVE LEFT FRONT DAMPER VALVE LEFT REAR DAMPER VALVE PASSENGER'S LUMBAR SUPPORT VALVE BLOCK PASSENGER'S SEAT BACKREST ADJUSTMENT VALVE BLOCK PASSENGER'S SEAT BACKREST WIDTH ADJUSTMENT VALVE BLOCK RADIATOR SHUTTER SOLENOID REFRIGERANT COMPRESSOR CONTROL VALVE RIGHT FRONT DAMPER VALVE RIGHT REAR DAMPER VALVE SERVOTRONIC VALVE VOLUME CONTROL VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/RED/WHT WIRE BLK/RED/YEL WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/ WHT WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/BRN/YEL WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/VIO/YEL WIRE BLU/WHT WIRE BLU/WHT/YEL WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLK/WHT WIRE BRN/BLK/YEL WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRN/YEL WIRE BRN/GRY WIRE BRN/GRY/WHT WIRE BRN/GRY/YEL WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/GRN WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/WHT/YEL WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1 2 3 4 5 6 7 8 9 10 11 12 GND 1 2 3 4 5 6 7 8 9 10 11 12 GND CAN BUS SIG CAN BUS SIG 1 2 3 4 5 6 IGN 1 SIG IGN 2 SIG IGN 3 SIG IGN 4 SIG IGN 5 SIG IGN 6 SIG 1 2 3 4 5 6 STEERING SIG STEERING SIG STEERING SIG 1 2 3 4 5 6 TERM 30 TERM 87 GROUND GROUND GROUND GROUND 1 2 3 4 5 6 TERM 30 TERM 87 TERM 87 GROUND GROUND GROUND 1 2 3 4 5 6 TERM 87 TERM 87 VAR GEAR SIG VAR GEAR SIG VAR GEAR SIG VAR GEAR SIG 1 2 3 4 5 6 TXD SIG CAN L 1 2 CAN L CAN H 1 2 GROUND TERM 30 1 14 8 9 6 19 CAN LOW CAN HI ELEC FAN 1 14 21 16 4 CAN L CAN H TD SIG BRAKE LIGHT BRAKE LIGHT 1 SERIES 3 SERIES 1-SERIES 2 1 CAN L CAN H 2 3 4 ELECTRIC FAN 400 WATT ELECTRIC FAN 600 WATT 2 3 CAN H CAN L 2 8 CAN L CAN H 2 15 CAN L CAN H 3 4 CAN H CAN L 3 SERIES W/ CONVERTIBLE 3 SERIES W/ COUPE 3 SERIES W/O CONVERTIBLE, 1 SERIES 3-SERIES, CONVERTIBLE 3-SERIES, COUPE 4 3 CAN L CAN H 4 17 26 SENS SIG SENS GND BSD SIG 4 17 26 SENS SIG SENS GRD BSD SIG 5 6 CAN H CAN L 5 6 CAN L CAN H 6 2 CAN H CAN L 6 5 CAN L CAN H 6 7 CAN H CAN L 8 9 5 6 CAN H CAN L CAN H CAN L 8 9 6 19 1 14 ELEC FAN ?? SENS SIG SENS SIG CAN LOW CAN HIGH 9 16 CAN H CAN L 11 9 CAN H CAN L 13 35 26 TD SIG CAN H CAN L 18 2 CAN L CAN H 45 46 44 43 CAN L CAN H CAN H CAN L (3 SERIES: UNDER RIGHT (EXCEPT (OR ACTIVE BODYWORKS SYSTEM ACTIVE CRUISE CONTROL ACTIVE DRIVER'S STEERING SEAT MODULE ACTIVE STEERING AF INTERFERENCE SUPPRESSOR FILTER AIR BAG SIG - AIR BAG SIG + AIR CONDITIONING SYSTEM ANTI- THEFT ALARM LED ANTI-THEFT SYSTEM ANTI-THEFT SYSTEM STARTING/CHARGING SYSTEM AUXILIARY BRAKE LIGHT B+ POTENTIAL DISTRIBUTOR BACKUP LAMPS CIRCUIT BLOWER OUTPUT STAGE BLOWER SIG SENS GRD BRK FLD LVL BRK LIGHT LF BRK PAD BRK FLD LVL RF WHL SPD BRK SENS BSD SIG CAN H CAN L CAN H CAN L CAN-BUS CAN-BUS CAN-L CAN-H CAR ACCESS SYSTEM CAR FOOTWELL ACCESS MODULE SYSTEM CAR INFORMATION COMPUTER CAR INFORMATION COMPUTER CIC CCC/ M-ASK CCC/M-ASK CD CHANGER CENTER BRAKE LIGHT BI-XENON ACTIVATION CENTER ROOF FUNCTION CONTROL CENTRAL INFORMATION DISPLAY CENTRAL LOCKING DRIVE FUEL FILLER FLAP CHARGING SYSTEM STARTING/ COMFORT ACCESS CONTROLLED MODULE COMFORT DRIVER'S SIDE OUTER ACCESS DOOR HANDLE CONTROL ELECTRONIC MODULE MODULE COMPT) COMPUTER DATA LINE SYSTEM COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM ANTI-THEFT SYSTEM COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM COND WHL SPD F-CAN-LOW DSC SENS CONVE- RTIBLE CONVERTIBLE TOP DRIVE CONVERTIBLE TOP MODULE COOLING FANS SYSTEM COUPE CONVERTIBLE COUPE, WAGON COUPE, WAGON CONVERTIBLE CRASH SAFETY MODULE CRASH SIG CRUISE CONTROL SYSTEM CYL CYL 4-6 1-3 DC/DC CONVERTER DIGITAL TUNER US DISA CONTROLLER DISA SIG DME RLY DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM DRIER'S SIDE FOOTWELL LIGHT DRIVER SEAT BELT POSITIONER CONTROLLER DRIVER SIDE AIR BAG INFLATOR ASSEMBLY DRIVER'S AIR BAG INFLATOR ASSEMBLIES DRIVER'S DOOR ENTRANCE LIGHT DRIVER'S SEAT BELT BUCKLE CONTACT DRIVER'S SEAT BELT POSITIONER CONTROLLER DRIVER'S SIDE FOOTWELL LIGHT DRIVER'S SIDE OUTER DOOR HANDLE ELECTRONIC MODULE DRIVER'S SIDE OUTER DRIVER'S DOOR HANDLE DOOR ELECTRONIC ENTRANCE MODULE LIGHT DRIVER'S SIDE OUTSIDE MIRROR DRV SEAT SENS PASS SEAT SENS E-BOX SIG ECO VLV SIG SOL VLV EDC ELECTRONIC DAMPER CONTROL EJECT BOX EJECT TCU BOX ELECTRIC FAN ELECTROCHROMIC INTERIOR REAR VIEW MIRROR ELECTRONICS JUCNTION BOX ELECTRONICS JUNCTION BOX ENG HEAT RLY EXCEPT CONVERTIBLE EXCEPT CONVERTIBLE CONVERTIBLE F-CAN HIGH RF WHL OUT FBD RECEIVER FOOTWELL MODULE FOOTWELL TRAILER MODULE MODULE FRONT CIGAR LIGHTER FRONT INTERIOR LIGHT FRONT INTERIOR/ READING LIGHT FRONT PASSENGER'S SEAT BELT POSITIONER CONTROLLER FUEL TANK LEAKAGE DIAGNOSTIC MODULE FUEL TANK SIG GLOVE COMPARTMENT LIGHT GROUND F-CAN-LOW GROUND TORQ SIG TORQ SIG GROUND TRANSDUCER 2 TRANSDUCER 2 TRANSDUCER 1 HAZARD FLASHER SW SIG HAZARD SW SIG HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM HEIGHT CTRL SIG HOT AT ALL TIMES HOT IN HOT IN ON OR START HOT W/ HOT W/ TERM HOT W/ TERMINAL INSTRUMENT CLUSTER CCC/M CONTROL ASK MODULE INTERFERENCE SUPPRESSION CAPACITOR FOR IGNITION COILS INTERIOR MOVEMENT DETECTOR JUNCTION BOX JUNCTION BOX (UNDER RIGHT JUNCTION BOX ELECTRONICS L B PILLAR SENS L B PILLAR SENS L B PILLAR SENS LEFT FOG LIGHT LEFT FRONT ELECTRONIC WHEEL MODULE LEFT FRONT MAKE- UP MIRROR LIGHT LEFT FRONT TWEETER LEFT HEAD AIR BAG INFLATOR ASSEMBLY LEFT LICENSE PLATE LIGHT LEFT REAR ELECTRONIC WHEEL MODULE LEFT RIGHT LICENSE LICENSE PLATE PLATE LIGHT LIGHT LEFT SUB- WOOFER LEFT TAILLIGHT LF AUX DIR IND LIGHT LR DIR IND SIG UNLOCK CEN LOCKING SIG REVERSE LGHT SIG LF WHL OUT PT CAN LOW GROUND LF WHL SPD LF WHL SPD GROUND LICENSE PLATE LIGHT PARKING LIGHT SIG BRAKE/REAR FOG LIGHT LIN BUS SIG LIN BUS SIG LOCKING COWL PANEL DRIVE LONGITUDINAL DYNAMICS MANAGEMENT LOW BEAM SIG LR WHL SPD LR WHL SPD PARKING BRK DSC SENS RR BRK PAD LUGGAGE WELL B+ TERMINAL POINT MAP READING LIGHT MIRRORS SYSTEM POWER WINDOWS SYSTEM MIXING AIR CONTROL OCCUPANCY SIG PARKING BRAKE PASSENGER SEAT BELT POSITIONER CONTROLLER PASSENGER SIDE AIR BAG INFLATOR ASSEMBLY PASSENGER'S AIR BAG INFLATOR ASSEMBLIES PASSENGER'S DOOR ENTRANCE LIGHT PASSENGER'S SEAT BELT BUCKLE CONTACT PASSENGER'S SEAT MODULE PASSENGER'S SIDE FOOTWELL LIGHT PASSENGER'S SIDE OUTER DOOR HANDLE ELECTRONIC MODULE PASSENGER'S SIDE OUTSIDE MIRROR POWER DISTRIBUTION SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS SYSTEM HEADLIGHTS SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM PWR WINDOW SW SIG PWR WINDOW SW SIG R B PILLAR SIG R B PILLAR SIG R B PILLAR SIG R B PILLAR SIG REAR COMPT) REAR DRIVER'S SIDE DOOR ENTRANCE LIGHT REAR DRIVER'S SIDE DOOR LIGHT REAR FENDER AERIAL REAR FOG LIGHT SIG FOG LIGHT SIG HIGH BEAM SW SIG REAR INTERIOR LIGHT REAR PASSENGER'S SIDE DOOR ENTRANCE LIGHT REAR WINDOW DEFROSTER REAR WINDOW DEFROSTER LOCKOUT CIRCUIT REAR-WINDOW AERIAL REMOTE CONTROL RECEIVER REPEATER LIGHT RF DIR IND SIG PARKING LIGHT SIG CENTRAL LOCKING SIG RF WHL SPD RR WHL SPD LR WHL SPD LF WHL SPD LF WHL SPD RIGHT FOG LIGHT RIGHT FRONT ELECTRONIC WHEEL MODULE RIGHT FRONT MAKE- UP MIRROR LIGHT RIGHT FRONT TWEETER RIGHT HEAD AIR BAG INFLATOR ASSEMBLY RIGHT LICENSE PLATE LIGHT RIGHT LUGGAGE COMPARTMENT LIGHT RIGHT REAR ELECTRONIC WHEEL MODULE RIGHT SUB- WOOFER RIGHT TAILLIGHT ROLLOVER PROTECTION CONTROLLER ROOF FUNCTION CONTROL CENTER RR BRK PAD RR WHL OUT RF BRK PAD RR WHL SPD RR WHL SPD RR WHL SPD SATELLITE RECEIVER SEAT OCCUPANCY RECOGNITION SEN GROUND SENS GND SENS SIG SENS SIG SENS SIG SENS SPLY SIDE OF DASH) SIDE-IN COMPARTMENT SIG CAN-BUS SIG CAN-BUS SIGNAL SIGNAL SLIDE-IN COMPARTMENT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING GEAR SUPPY STEERING GND SW LIGHTING SIG TCU 1 2 TD SIG CAN H CAN L TELE SIG LID CONTACT REAR LID SIG TELEPHONE RETROFIT PACKEGES TERM 15 SIG TERM 15 SIG TERM R SIG TERM R SIG TERM R TERM R SIG TERMINAL 15 COND WEL SPD PT CAN HIGH GROUND TERMINAL 15 PT CAN HIGH TERMINAL 30 TERMINAL 30 DRI CLOSE PWR WIND MTR DRI OPEN PWR WIND MTR HI BEAM SIG TERMINAL 30 FOG LIGHT SIG HI BEAM SIG TERMINAL 30 RF WHL SPD RF WHL SPD TERMINAL 30 SIG LIN BUS K-BUS SIGNAL K-BUS SIGNAL GROUND 23 45 46 47 TERMINAL POINT TERMINAL R GROUND FRT PASS SIG L B PILLAR SENS THROTTLE GRD THROTTLE SIG TOWING HITCH INTERLCK SENS GROUND TERM 15 SIG TERM 15 SIG TOWING HITCH RELEASE TRAILER MODULE TRANS SIG TRANSDUCER 1 TRANSDUCER GND TRANSDUCER GND TRANSMISSION CONTROL TRANSMISSIONS SYSTEM TRUNK LID CENTRAL LOCKING DRIVE TRUNK, TAILGATE, FUEL DOORS SYSTEM USB PORT USB- HUB VIDEO MODULE EJECT BOX VOL CNTRL W/ ACTIVE STEERING W/ AWD W/O AWD W/ CIC W/O BOSCH W/ BOSCH W/O CIC W/O NAVIGATION W/O RADIO WASTE VAL 1 WHEEL SPD, SIG LF WHEEL SPD, SIG RF
