Headlights
# Headlights circuit, w/o matrix beam
# Headlights circuit, w/o matrix beam (1 of 2)
Components on the diagram

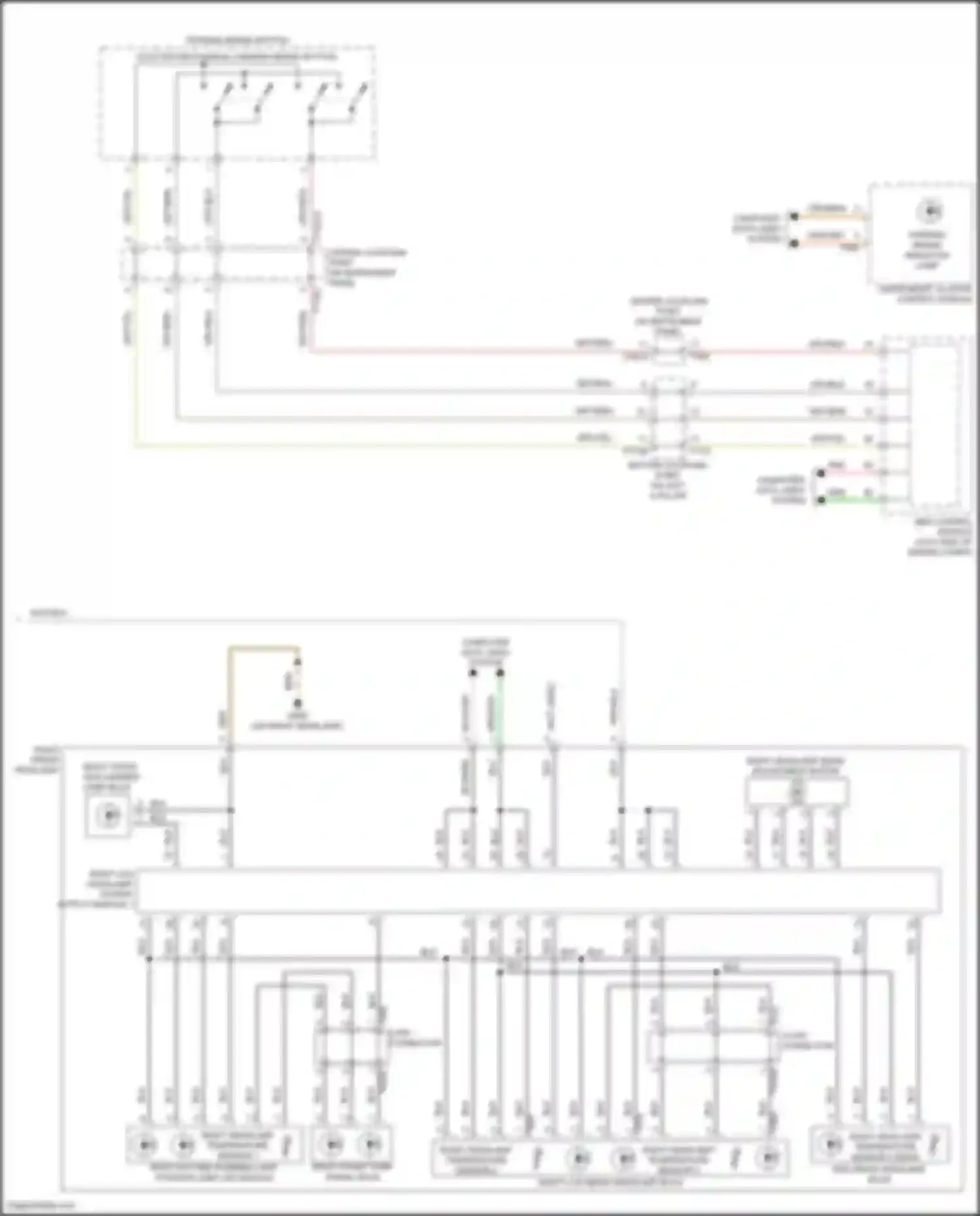

# Headlights circuit, w/o matrix beam (2 of 2)
Components on the diagram
Components on these wiring diagrams 48
Click a component to highlight it on every diagram it appears on.
