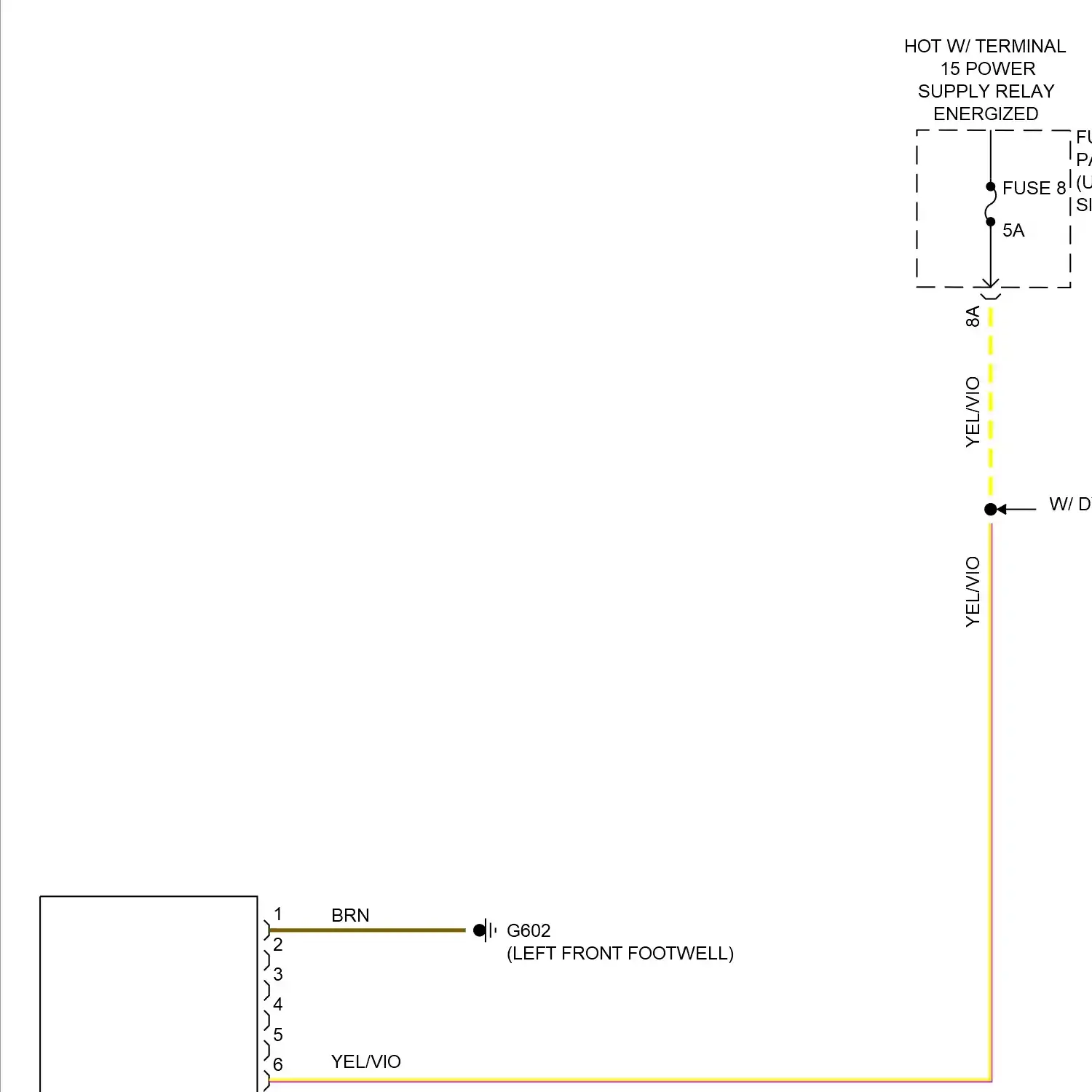

Wiring diagrams for Audi SQ8 I (2019-2023)

Active bodyworks circuit

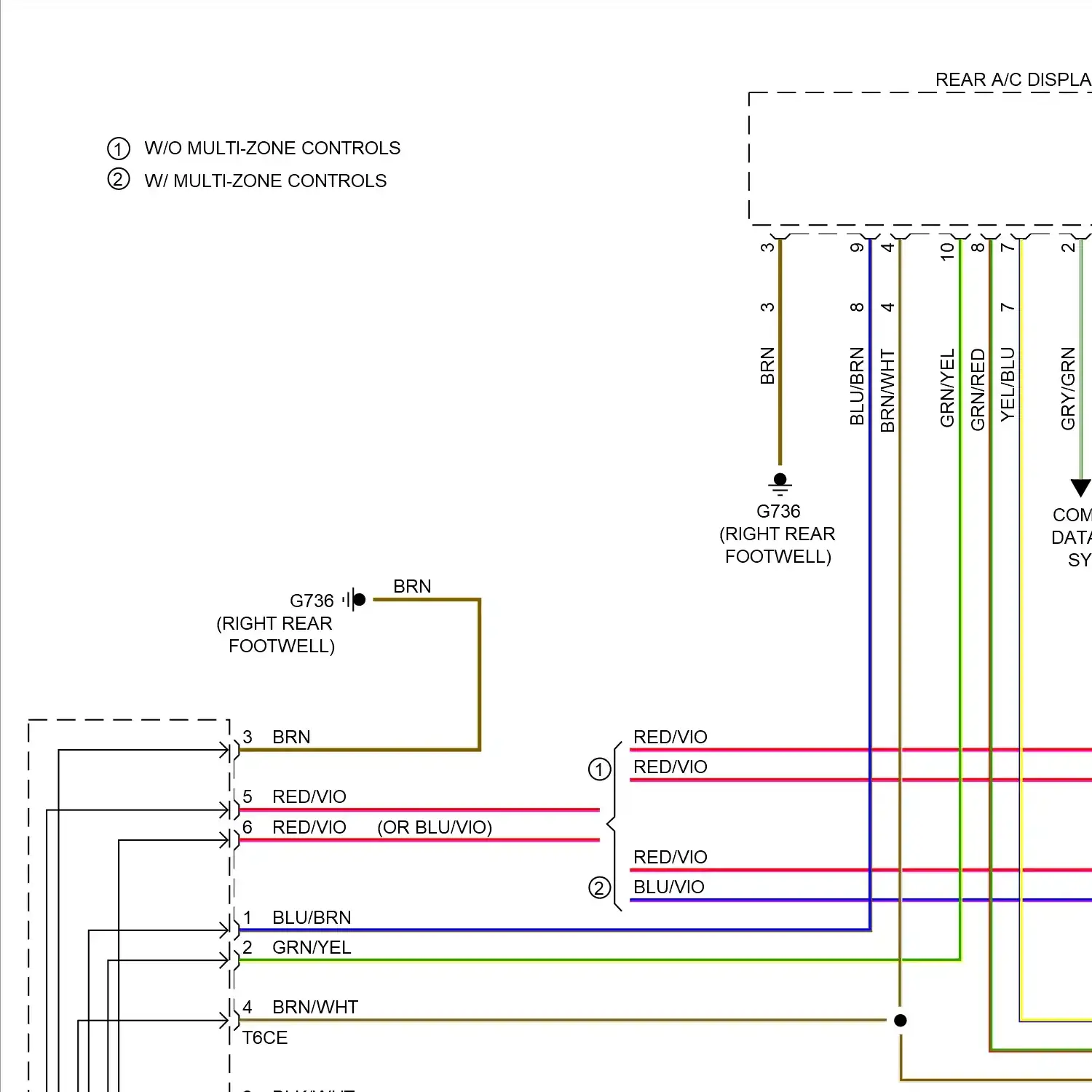

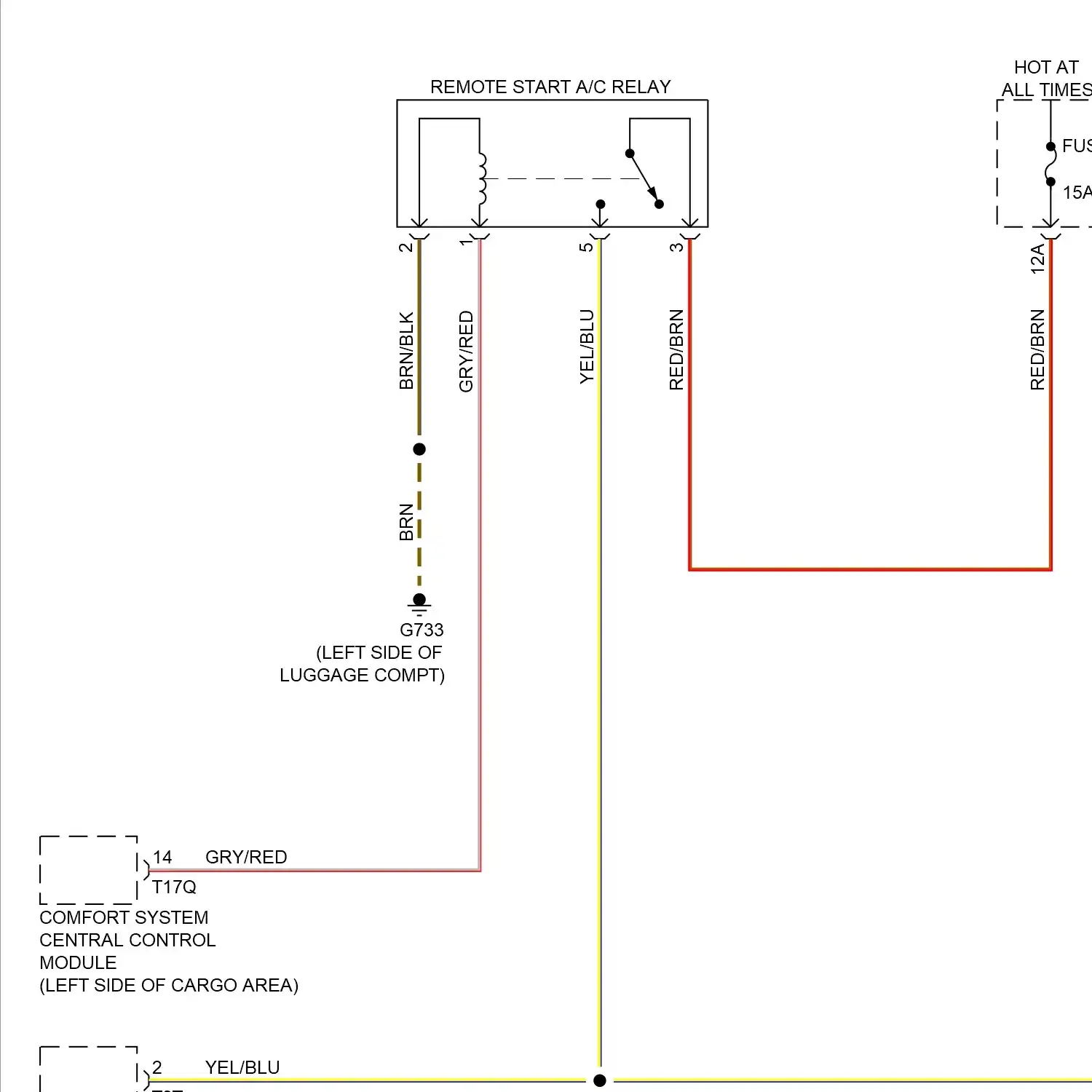

Automatic a/c circuit, w/ climatronic & rear control w/o multi-zone & impact pressure control Automatic a/c circuit, w/ climatronic & rear control w/o multi-zone w/ impact pressure control Automatic a/c circuit, w/ climatronic w/ multi-zone controls Automatic a/c circuit, w/ climatronic w/o multi-zone controls & rear controls Automatic a/c circuit, w/o climatronic

Anti-lock brakes circuit

Access/start circuit Forced entry circuit

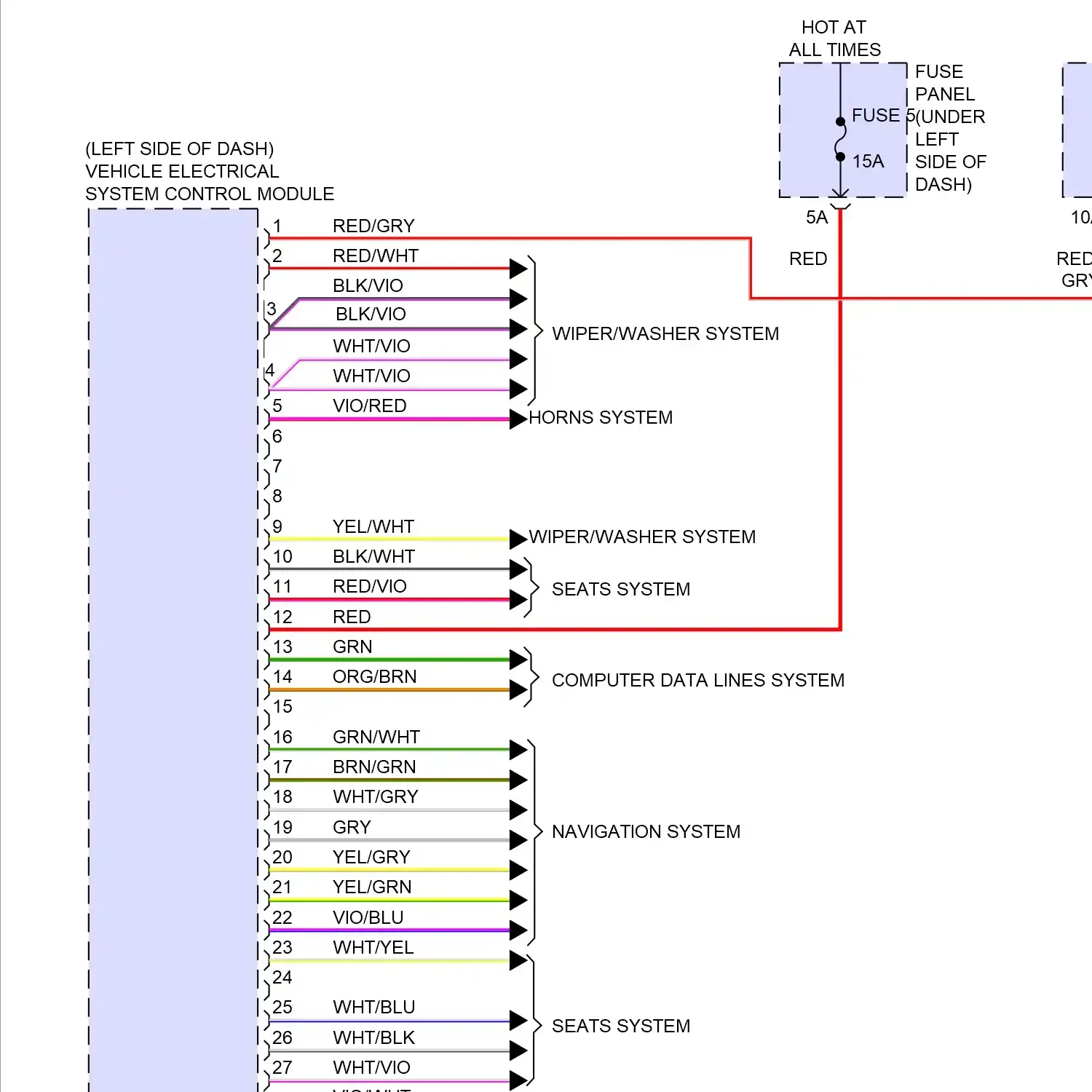

Comfort system central control module circuit Steering column electronic systems control module circuit Vehicle electrical system control module circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Heated windshield circuit Rear defogger & heated mirrors circuit

Electromechanical power steering circuit Rear axle steering circuit

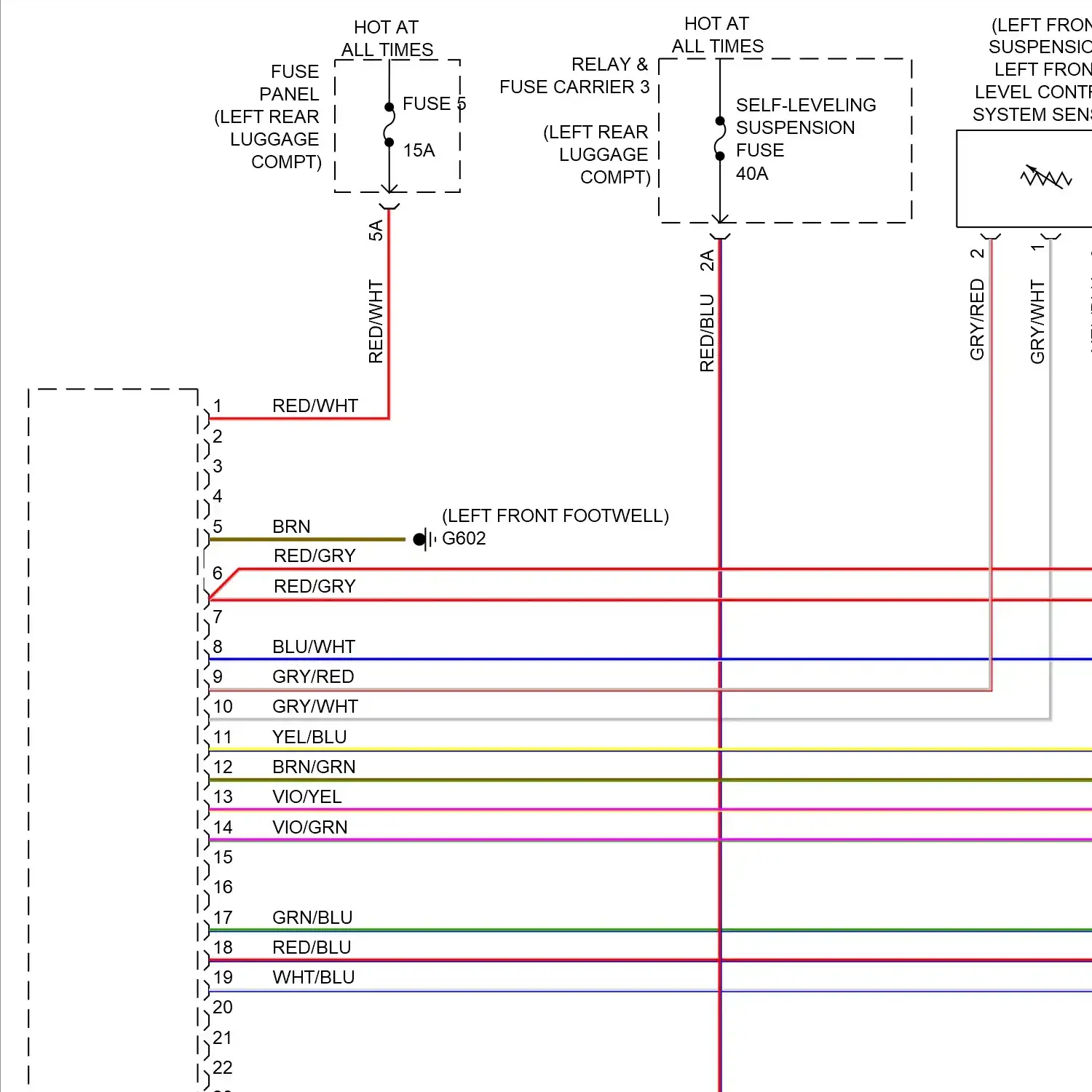

Automatic sway bar circuit Level control circuit

Wiring diagram engine performance 4.0l turbo hybrid

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit, w/ matrix beam Headlights circuit, w/o matrix beam

Horn circuit

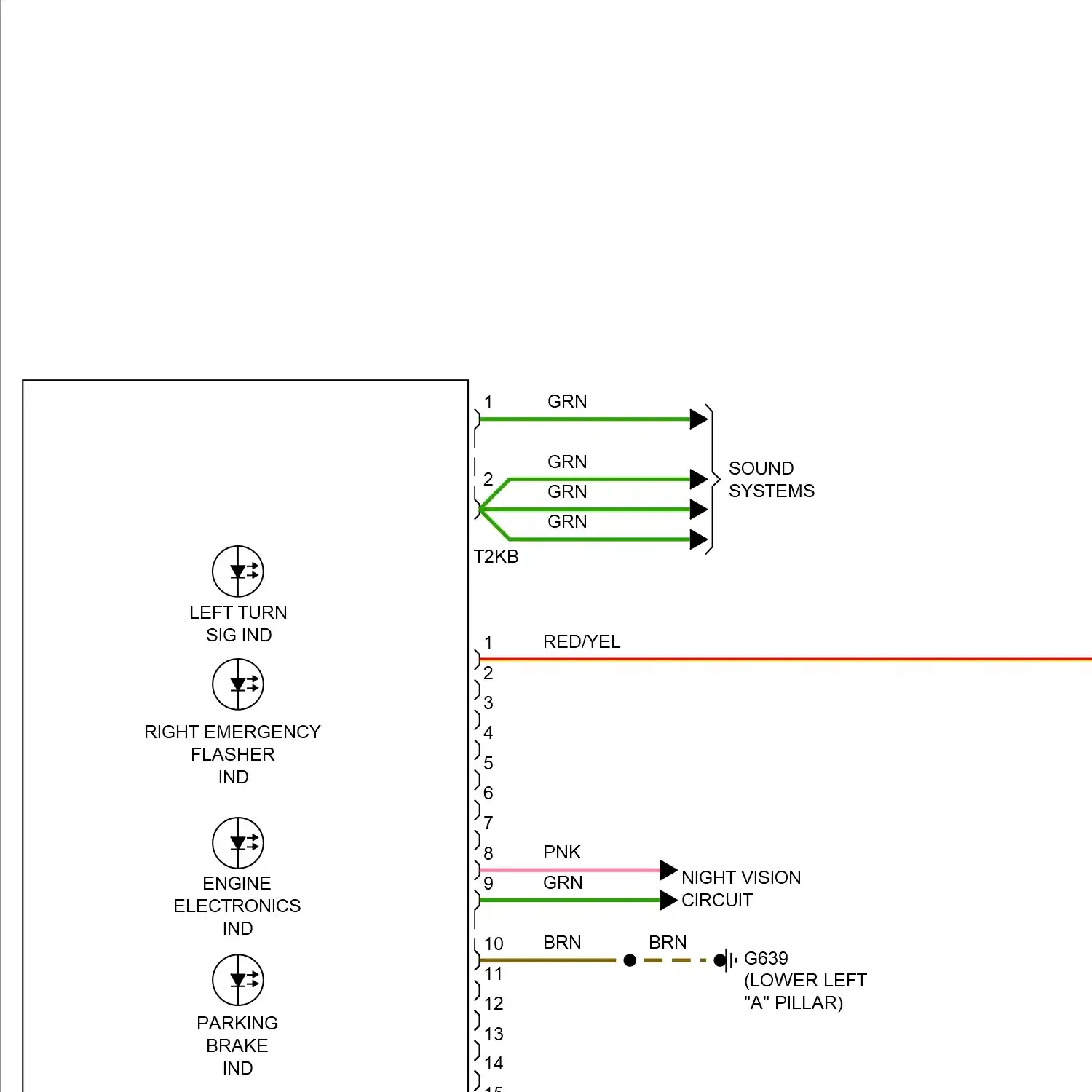

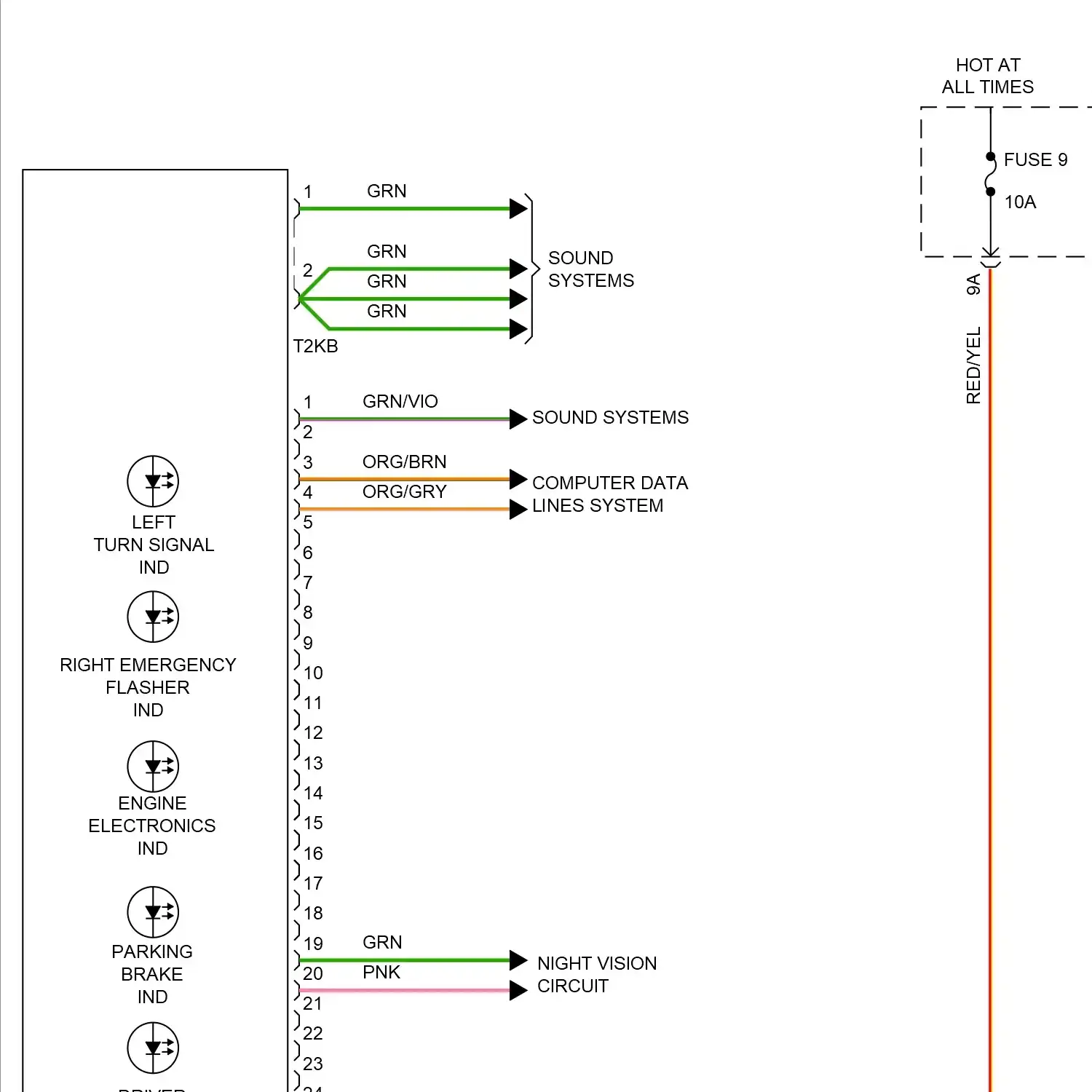

Instrument cluster circuit, w/ fpk active info display Instrument cluster circuit, w/o fpk active info display Night vision circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit, w/ comfort seats Driver"s memory seat circuit, w/ sport seats Driver"s memory seat circuit, w/ standard seats Memory mirrors circuit Passenger"s memory seat circuit, w/ comfort seats Passenger"s memory seat circuit, w/ sport seats Passenger"s memory seat circuit, w/ standard seats Steering column memory circuit

Emergency call circuit, w/ connect plus Emergency call circuit, w/o connect plus Lane change assistance circuit Lane departure warning circuit Navigation circuit, w/ amplifier & high end sound Navigation circuit, w/ amplifier w/o high end sound Navigation circuit, w/o amplifier Object detection circuit Parking assistant circuit, w/o parallel parking Parking assistant circuit, w/ parallel parking & driver assistance Parking assistant circuit, w/ parallel parking w/o driver assistance Peripheral camera circuit Rear camera circuit

Power distribution circuit

Power door locks circuit

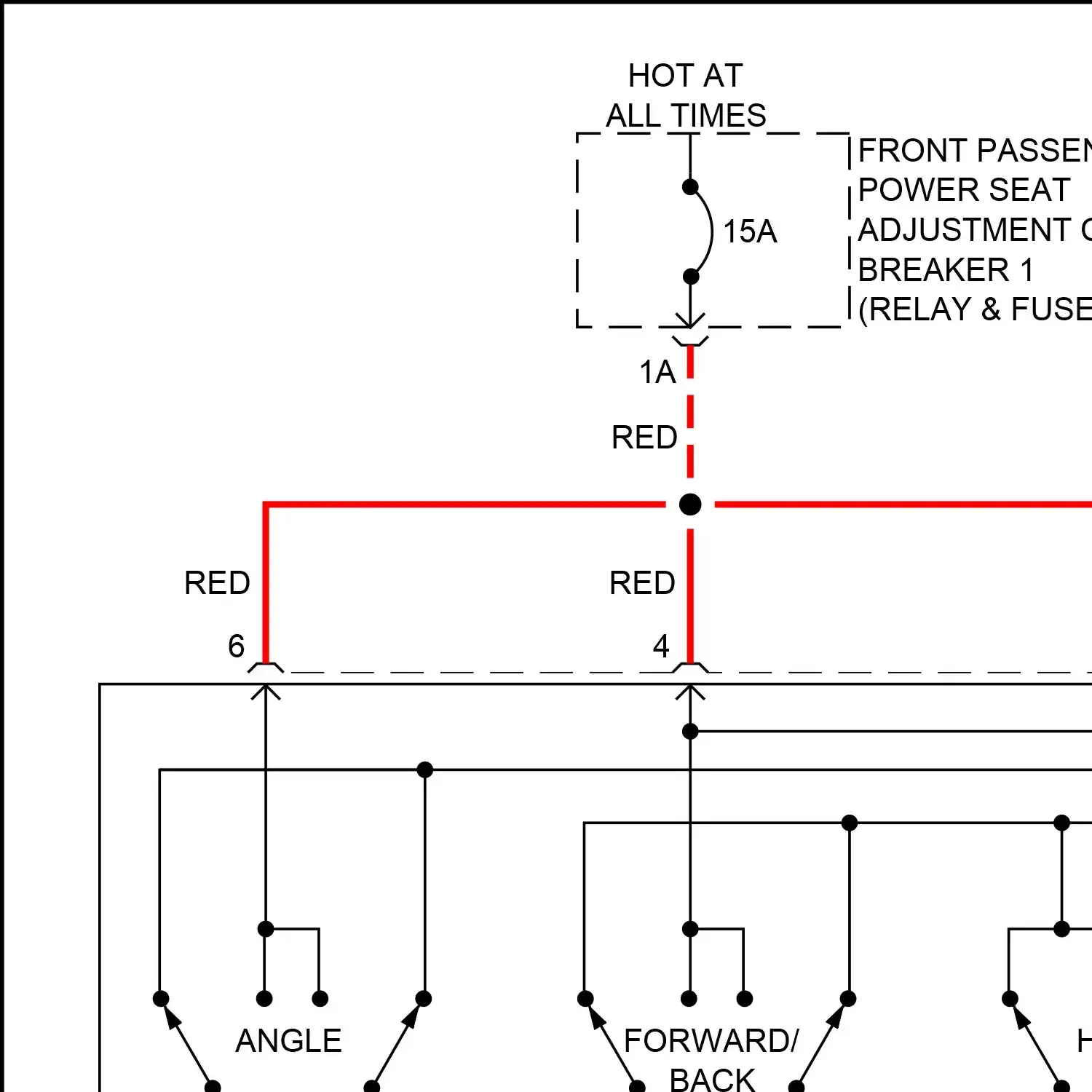

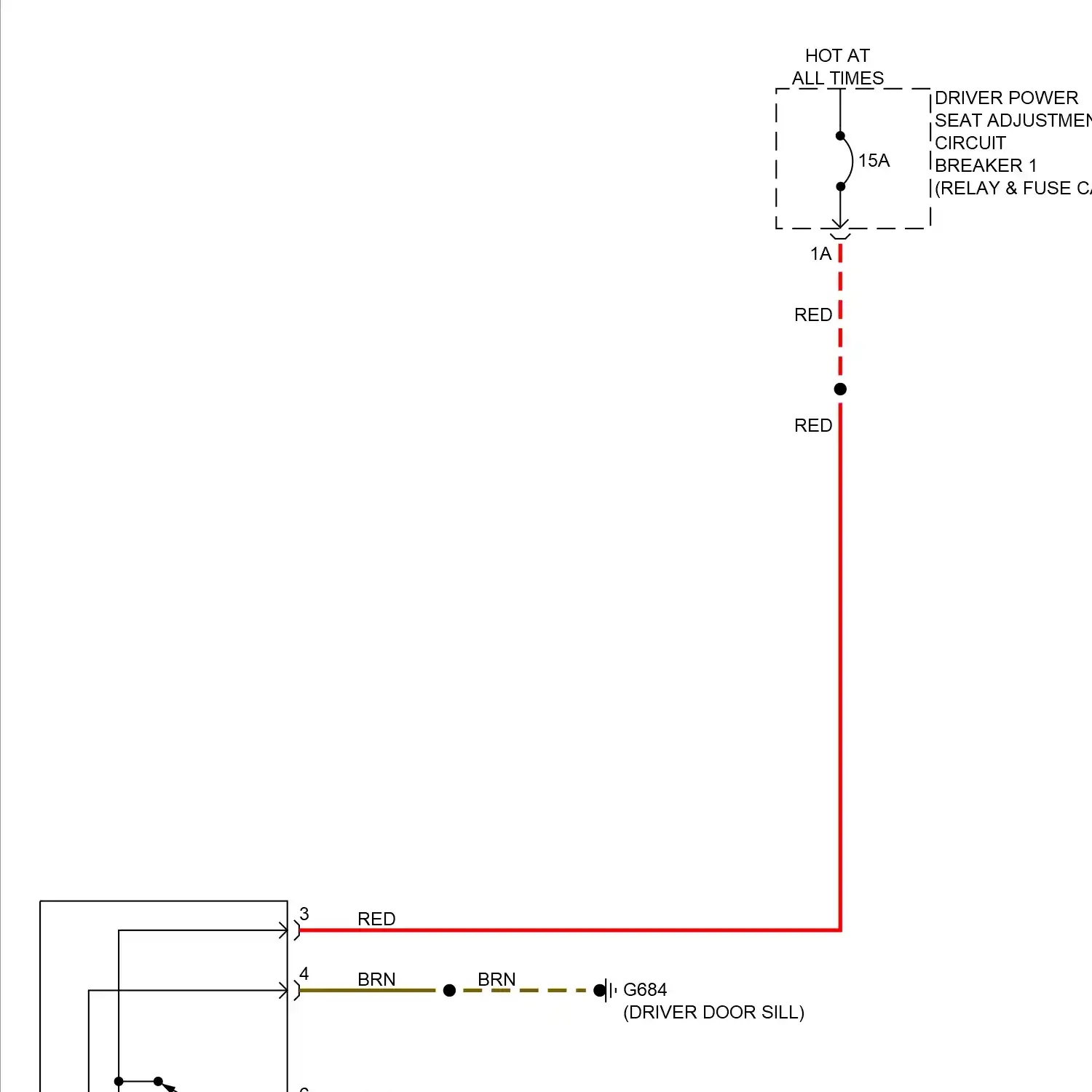

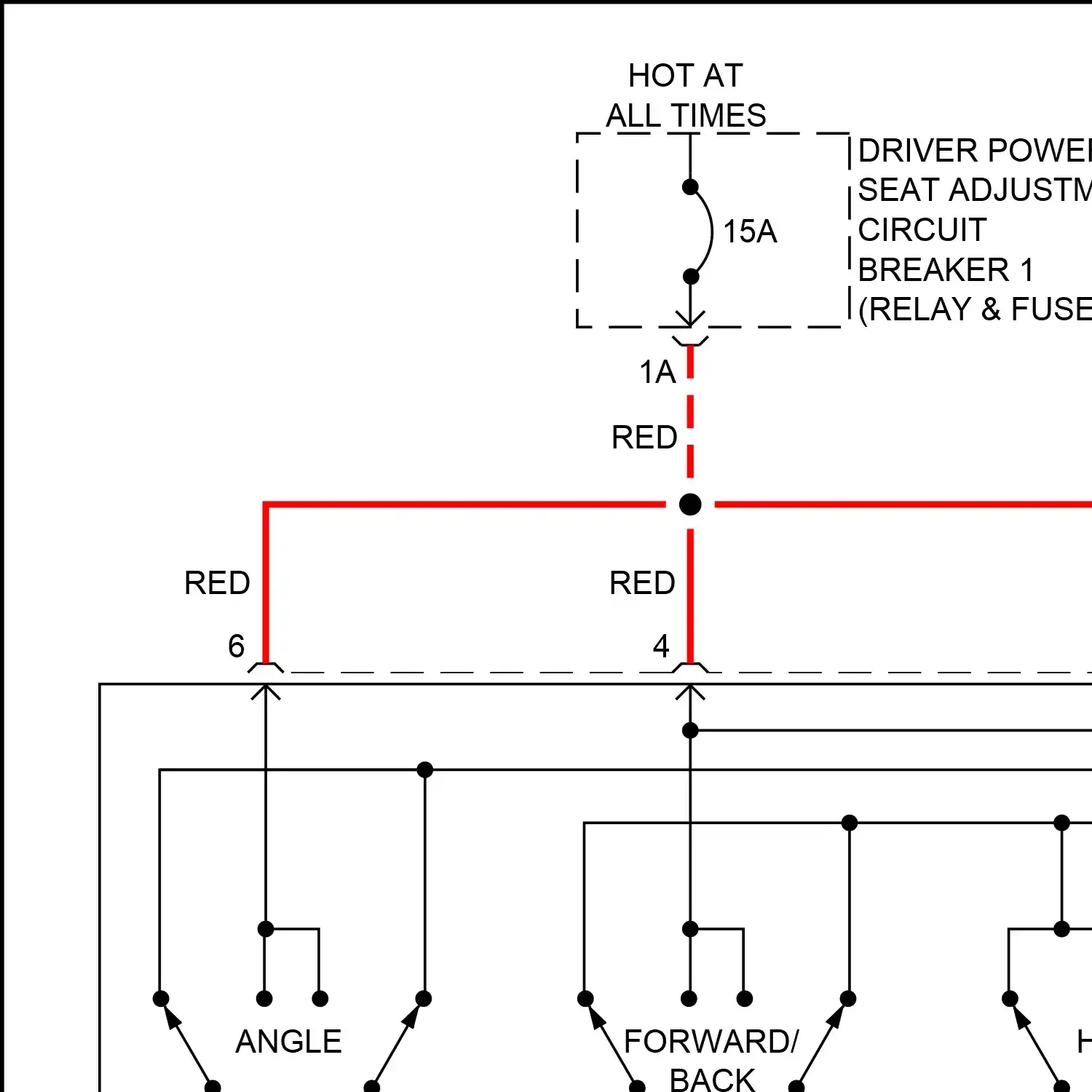

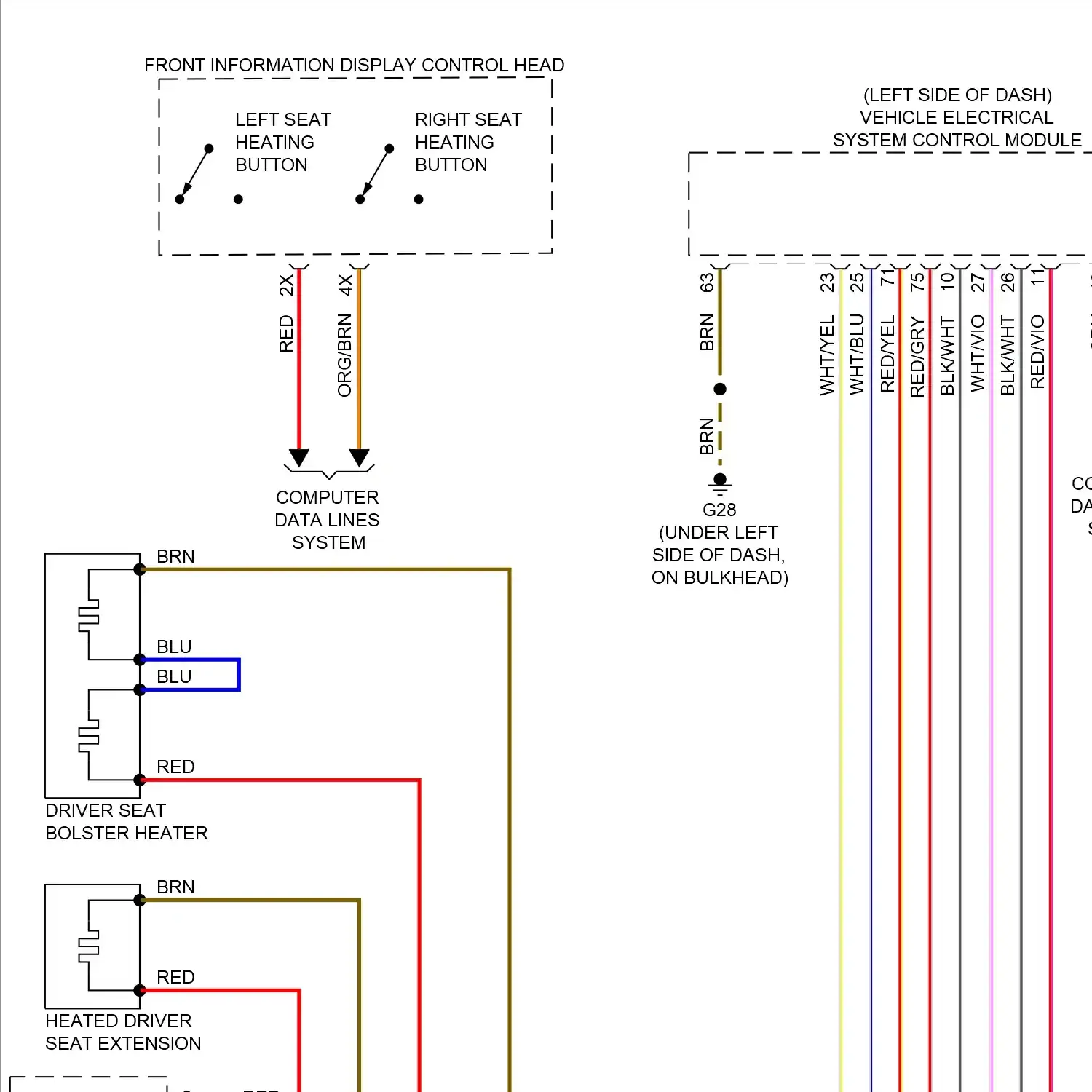

Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Lumbar circuit Passenger power seat circuit Rear heated seats circuit Seat ventilation circuit

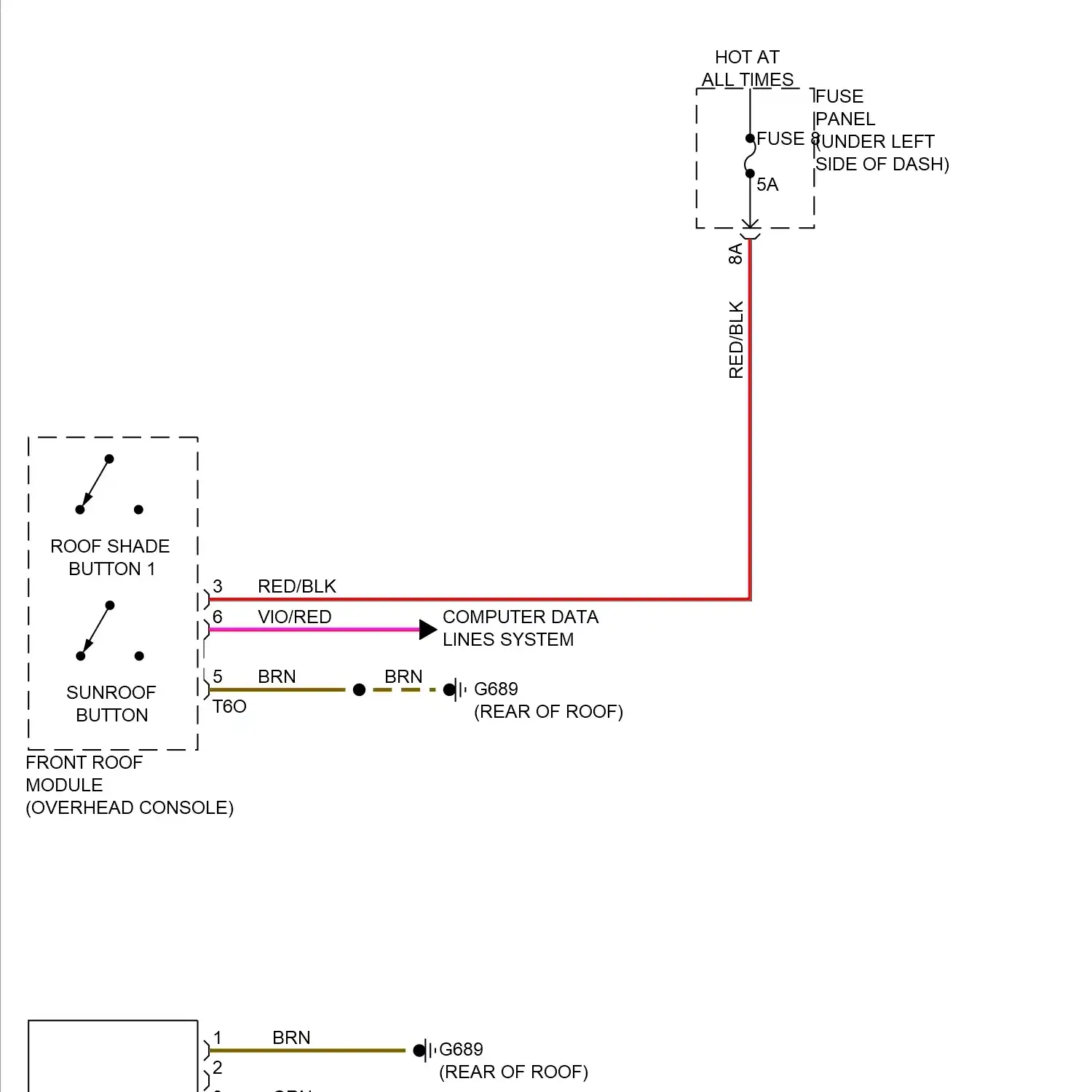

Power top/sunroof circuit

Power windows circuit

Most data bus circuit Radio circuit, w/ amplifier & high end sound Radio circuit, w/ amplifier w/o high end sound Radio circuit, w/o amplifier Tv tuner circuit

Park brake release circuit Shift interlock circuit Steering column circuit

Charging circuit Starting circuit

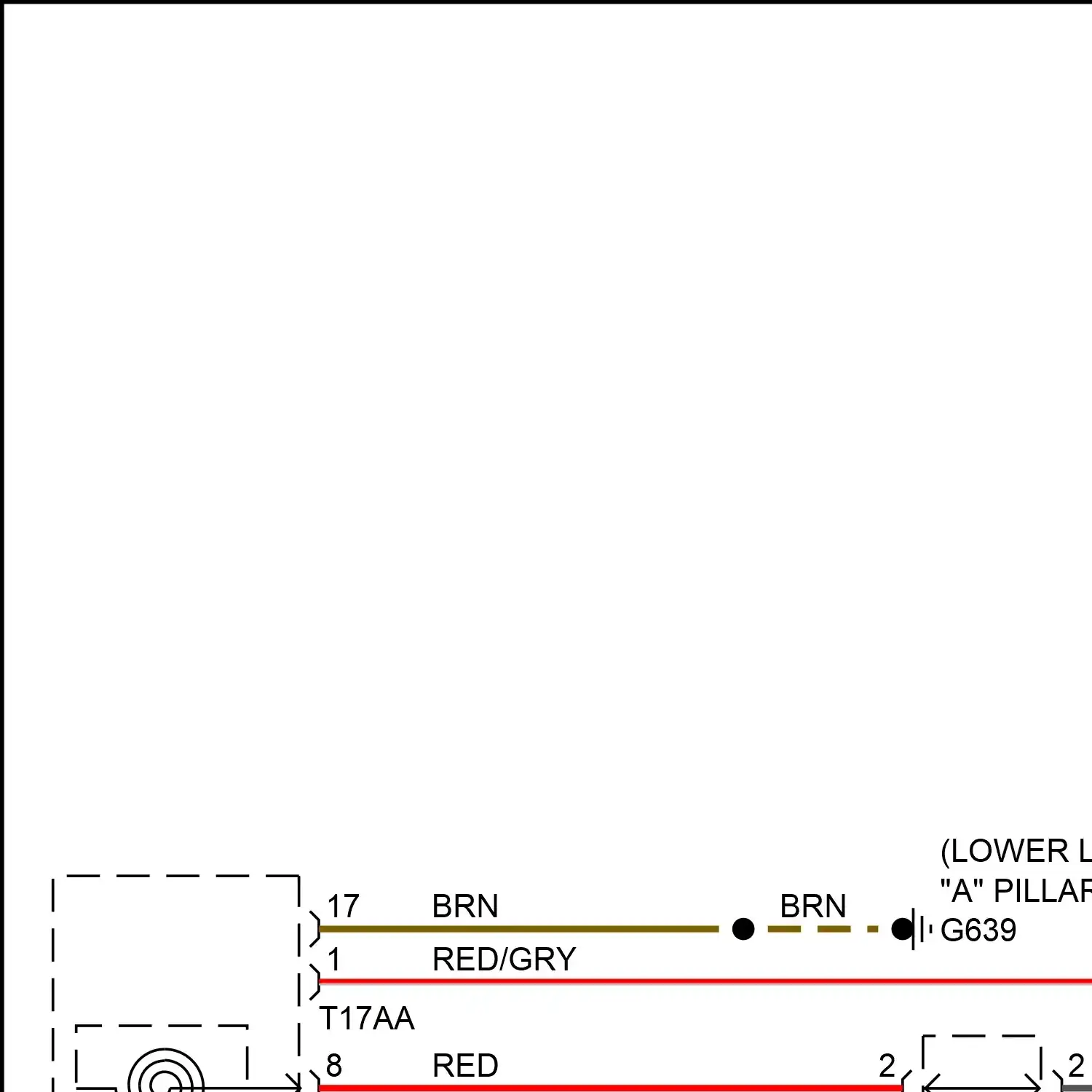

Supplemental restraints circuit

A/t circuit Awd circuit

Trunk & fuel door release circuit

Brake wear sensor circuit Chime circuit Tire pressure monitoring circuit

Jet heater circuit Wiper/washer circuit

ALARM HORN ANTI-LOCK BRAKES SYSTEM BATTERY INTERRUPT IGNITER CELLULAR TELEPHONE AMPLIFIER CENTER WASHER NOZZLE HEATER CRANKCASE VENTILATION THERMAL RESISTOR 2 DRIVER SIDE WINDSHIELD WIPER ARM THERMAL RESISTOR 1 DRIVER SIDE WINDSHIELD WIPER THERMAL RESISTOR 1 FRONT PASSENGER SIDE WINDSHIELD WIPER THERMAL RESISTOR 1 HIGH TONE HORN HIGH-VOLTAGE BATTERY REGULATION COUPLING POINT 1 IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 W/ POWER OUTPUT STAGE IGNITION COIL 6 W/ POWER OUTPUT STAGE IGNITION COIL 7 W/ POWER OUTPUT STAGE IGNITION COIL 8 W/ POWER OUTPUT STAGE LEFT WASHER NOZZLE HEATER LOW TONE HORN PARKING LOCK IND LAMP RIGHT WASHER NOZZLE HEATER SIGNAL HORN ACTIVATION

(RIGHT SIDE OF ENGINE ACTIVE ACCELERATOR PEDAL MOTOR ADJUSTMENT MOTOR ADJUSTMENT MOTOR 2 ASSEMBLY MOUNT ACTUATOR 1 ASSEMBLY MOUNT ACTUATOR 2 BLOWER MOTOR BOTTOM LEFT COUPLING POINT ON ENGINE CYLINDER 2 EXHAUST CAM ACTUATOR 1 CYLINDER 2 INTAKE CAM ACTUATOR 1 CYLINDER 3 EXHAUST CAM ACTUATOR 1 CYLINDER 3 INTAKE CAM ACTUATOR 1 CYLINDER 5 EXHAUST CAM ACTUATOR 1 CYLINDER 5 INTAKE CAM ACTUATOR 1 CYLINDER 8 EXHAUST CAM ACTUATOR 1 CYLINDER 8 INTAKE CAM ACTUATOR 1 DECOUPLER ACTUATOR DEFROSTER DOOR MOTOR DRIVER BACKREST ADJUSTMENT MOTOR DRIVER DOOR CENTRAL LOCKING SAFE MOTOR DRIVER DOOR CLOSING AID MOTOR DRIVER SEAT ANGLE ADJUSTMENT MOTOR DRIVER SEAT DEPTH ADJUSTMENT MOTOR DRIVER SEAT FORWARD/ BACK ADJUSTMENT MOTOR DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR DRIVER SEAT HEIGHT ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR DRIVER SIDE CENTRAL LOCKING MOTOR DRIVER SIDE REAR CENTRAL LOCKING SYSTEM MOTOR DRIVER SIDE REAR CHILD SAFETY LOCK MOTOR DRIVER SIDE REAR DOOR CENTRAL LOCKING SAFE MOTOR DRIVER SIDE REAR DOOR CLOSING AID MOTOR DRIVER SIDE REAR SIDE SHADE MOTOR ELECTRO- MECHANICAL POWER STEERING MOTOR ENGINE CONTROLS SYSTEM ENGINE ELECTRONICS IND ENGINE PRE-WIRING COUPLING POINT 1 ENGINE PRE-WIRING COUPLING POINT 2 FOLDING MOTOR FRESH AIR DOOR MOTOR FRONT PASSENGER BACKREST ADJUSTMENT MOTOR FRONT PASSENGER CENTRAL LOCKING SAFE MOTOR FRONT PASSENGER CLOSING AID MOTOR FRONT PASSENGER LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR FRONT PASSENGER SEAT ANGLE ADJUSTMENT MOTOR FRONT PASSENGER SEAT BACKREST ADJUSTMENT MOTOR FRONT PASSENGER SEAT DEPTH ADJUSTMENT MOTOR FRONT PASSENGER SEAT FORWARD/ BACK ADJUSTMENT MOTOR FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT MOTOR FRONT PASSENGER SEAT HEIGHT ADJUSTMENT MOTOR FRONT PASSENGER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR FRONT PASSENGER SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR FRONT PASSENGER SIDE CENTRAL LOCKING MOTOR FUEL FILLER DOOR LOCK MOTOR LEFT B-PILLAR/ FOOTWELL SHUT-OFF DOOR MOTOR LEFT CENTER VENT MOTOR LEFT COUPLING POINT IN ENGINE/ MOTOR COMPARTMENT LEFT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT LEFT COUPLING POINT IN ENGINE/MOTOR COMPT LEFT FOOTWELL DOOR MOTOR LEFT FOOTWELL TEMPERATURE CONTROL DOOR MOTOR LEFT FRONT SUSPENSION STABILIZATION ACTUATOR LEFT FRONT TREBLE SPEAKER, MOTOR LEFT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR LEFT PARKING BRAKE MOTOR LEFT REAR AIR DISTRIBUTION MOTOR LEFT REAR AIR DOOR MOTOR LEFT REAR SUSPENSION STABILIZATION ACTUATOR LEFT REAR TEMPERATURE CONTROL DOOR MOTOR LEFT REAR UPPER BODY VENT ADJUSTMENT MOTOR LEFT SIDE VENT ADJUSTMENT MOTOR LEFT TEMPERATURE CONTROL DOOR MOTOR LEVEL CONTROL SYSTEM COMPRESSOR MOTOR MAP CONTROLLED ENGINE COOLING THERMOSTAT MOTOR 2 PASSENGER SIDE REAR CENTRAL LOCKING SYSTEM MOTOR PASSENGER SIDE REAR CHILD SAFETY LOCK MOTOR PASSENGER SIDE REAR DOOR CENTRAL LOCKING SAFE MOTOR PASSENGER SIDE REAR DOOR CLOSING AID MOTOR PASSENGER SIDE REAR SIDE SHADE MOTOR REAR AIR DISTRIBUTION DOOR MOTOR REAR AIR QUANTITY MOTOR REAR LID CENTRAL LOCKING SYSTEM MOTOR REAR LID CLOSING AID MOTOR REAR LID MOTOR 1 REAR LID MOTOR 2 REAR OF ENGINE COMPT) REAR RECIRCULATION DOOR MOTOR REAR TEMPERATURE CONTROL DOOR MOTOR REAR WINDOW WIPER MOTOR RECIRCULATION DOOR MOTOR RECUPERATION BRAKE PRESSURE RESERVOIR MOTOR RIGHT B-PILLAR/ FOOTWELL SHUT-OFF DOOR MOTOR RIGHT CENTER VENT MOTOR RIGHT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT RIGHT FOOTWELL DOOR MOTOR RIGHT FOOTWELL TEMPERATURE CONTROL DOOR MOTOR RIGHT FRONT TREBLE SPEAKER, MOTOR RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR RIGHT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR RIGHT PARKING BRAKE MOTOR RIGHT REAR AIR DISTRIBUTION MOTOR RIGHT REAR AIR DOOR MOTOR RIGHT REAR TEMPERATURE CONTROL DOOR MOTOR RIGHT REAR UPPER BODY VENT ADJUSTMENT MOTOR RIGHT SIDE VENT ADJUSTMENT MOTOR RIGHT TEMPERATURE CONTROL DOOR MOTOR STEERING COLUMN FORWARD/BACK ADJUSTMENT MOTOR STEERING COLUMN VERTICAL ADJUSTMENT MOTOR STRUCTURE BORNE SOUND ACTUATOR SUNROOF SHADE MOTOR TOP OF ENGINE) TRANSVERSE SELECTOR LEVER LOCK MOTOR WINDSHIELD WIPER MOTOR

ANTENNA AMPLIFIER BLUETOOTH ANTENNA EMERGENCY CALL MODULE ANTENNA EMERGENCY CALL MODULE ANTENNA 2 EMERGENCY CALL MODULE ANTENNA 3 FRONT ACCESS/START AUTHORIZATION ANTENNA GPS ANTENNA GPS ANTENNA SPLITTER LEFT ACCESS/START AUTHORIZATION ANTENNA LUGGAGE COMPARTMENT ACCESS/START SYSTEM ANTENNA NEAR FIELD COMMUNICATION ANTENNA NEAR FIELD COMMUNICATION ANTENNA 2 RADIO ANTENNA 2 RIGHT ACCESS/START AUTHORIZATION ANTENNA ROOF ANTENNA SATELLITE TUNER ANTENNA TV ANTENNA 1 VEHICLE INTERIOR ACCESS/START SYSTEM ANTENNA 1 WIRELESS DATA TRANSFER ANTENNA WIRELESS DATA TRANSFER ANTENNA 2

ACCESS/START AUTHORIZATION BUTTON ASR/ESP BUTTON AUTO HOLD BUTTON AUTOMATIC HIGH BEAM BUTTON AUTOMATIC INTERIOR LIGHT SWITCH BUTTON CHILD SAFETY LOCK BUTTON DEFROST BUTTON DRIVER INTERIOR LOCKING BUTTON DRIVER INTERIOR LOCKING BUTTON DRIVER INTERIOR LOCKING INDICATOR LAMP DRIVER POWER WINDOW BUTTON DRIVER SEAT MEMORY BUTTON DRIVER SIDE REAR INTERIOR LOCKING BUTTON DRIVER SIDE REAR POWER WINDOW BUTTON DRIVER SIDE REAR WINDOW REGULATOR MOTOR DRIVER WINDOW REGULATOR MOTOR DRIVING PROFILE SELECTION BUTTON DRIVING PROFILE SELECTION BUTTON 2 ELECTRO- MECHANICAL PARKING BRAKE BUTTON EMERGENCY CALL BUTTON EMERGENCY FLASHER BUTTON EVAP CANISTER PURGE REGULATOR VALVE 1 EVAP CANISTER PURGE REGULATOR VALVE 2 FOG LAMP BUTTON FRONT PASSENGER INTERIOR LOCKING BUTTON FRONT PASSENGER POWER WINDOW BUTTON FRONT PASSENGER SEAT ANGLE ADJUSTMENT BUTTON FRONT PASSENGER SEAT MEMORY BUTTON FRONT PASSENGER WINDOW REGULATOR MOTOR FUEL FILLER DOOR RELEASE BUTTON GENERATOR, VOLTAGE REGULATOR LEFT CHILD SAFETY LOCK BUTTON LEFT FRONT READING LAMP BUTTON LEFT SEAT HEATING BUTTON LOAD LEVEL BUTTON LUGGAGE COMPARTMENT REAR LID LOCK BUTTON MEMORY SEAT POSITION 1 BUTTON MEMORY SEAT POSITION 2 BUTTON MEMORY SEAT POSITIONS 1, 2 BUTTON PARALLEL PARKING ASSISTANCE BUTTON PARKING AID BUTTON PARKING BRAKE BUTTON PARKING LOCK BUTTON PASSENGER SIDE REAR INTERIOR LOCKING BUTTON PASSENGER SIDE REAR POWER WINDOW BUTTON PASSENGER SIDE REAR WINDOW REGULATOR MOTOR POWER PIVOTING TRAILER HITCH BUTTON PUSH BUTTON PUSH BUTTON ILLUMINATION BULB REAR FOG LAMP BUTTON REAR LID HANDLE RELEASE BUTTON REAR LID LOCK BUTTON LUGGAGE COMPARTMENT REAR LID CONTROL HEAD REAR LID LOCKING MECHANISM BUTTON REAR LID REMOTE RELEASE BUTTON REAR READING LAMP FRONT BUTTON REAR WINDOW DEFOGGER BUTTON REGULATOR VALVE RIGHT CHILD SAFETY LOCK BUTTON RIGHT FRONT READING LAMP BUTTON RIGHT SEAT HEATING BUTTON ROAD SIDE ASSISTANCE BUTTON ROOF SHADE BUTTON 1 SELECTOR LEVER RELEASE BUTTON SELECTOR LEVER RELEASE BUTTON, PARKING LOCK BUTTON STEERING WHEEL HEATING BUTTON SUNROOF BUTTON TIPTRONIC DOWNSHIFT BUTTON TIPTRONIC UPSHIFT BUTTON WASTEGATE BYPASS REGULATOR VALVE WASTEGATE BYPASS REGULATOR VALVE 2 WINDOW SHADE, SUNROOF BUTTON

DRIVER ASSISTANCE SYSTEM FRONT CAMERA DRIVER ASSISTANCE SYSTEMS FRONT CAMERA FRONT PERIPHERAL CAMERA LEFT PERIPHERAL CAMERA NIGHT VISION SYSTEM CAMERA REAR CAMERA CIRCUIT REAR PERIPHERAL CAMERA REAR VIEW CAMERA RIGHT PERIPHERAL CAMERA

4-PIN CONNECTOR 12 V SOCKET 3 12-PIN CONNECTOR SOCKET ILLUMINATION BULB TRAILER SOCKET

ABS CONTROL MODULE ABS CONTROL MODULE FUSE 1 ABS CONTROL MODULE FUSE 2 ADAPTIVE CRUISE CONTROL MODULE AIR BAG CONTROL MODULE ANDROID OPERATING SYSTEM CONTROL MODULE ASSEMBLY MOUNT CONTROL MODULE AUTOMATIC HIGH BEAM ASSIST CONTROL MODULE AUTOMATIC TRANSMISSION CONTROL MODULE FUSE AUTOMATIC TRANSMISSION CONTROL MODULE FUSE 2 AUXILIARY HEATER CONTROL MODULE BATTERY MONITORING CONTROL MODULE BRAKE BOOSTER CONTROL MODULE BRAKE PRESSURE RESERVOIR CONTROL MODULE CLOSE RANGE COMMUNICATION CONTROL MODULE 2 COMFORT SYSTEM CENTRAL CONTROL MODULE DIFFERENTIAL LOCK CONTROL MODULE DIGITAL SOUND SYSTEM CONTROL MODULE DRIVER ASSISTANCE SYSTEM CONTROL MODULE DRIVER ASSISTANCE SYSTEMS CONTROL MODULE DRIVER DOOR CONTROL MODULE DRIVER SEAT ADJUSTMENT CONTROL MODULE DRIVER SIDE REAR DOOR CONTROL MODULE DRIVETRAIN CONTROL MODULE ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE ENGINE/ MOTOR CONTROL MODULE ENGINE/MOTOR CONTROL MODULE FRAGRANCE DIFFUSER SYSTEM CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE FRESH AIR BLOWER FRESH AIR BLOWER CONTROL MODULE FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER MEMORY SEAT CONTROL MODULE FUEL PUMP CONTROL MODULE GARAGE DOOR OPENER CONTROL MODULE HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED INFORMATION ELECTRONICS CONTROL MODULE 1 INSTRUMENT CLUSTER CONTROL MODULE IONIZER CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE 2 LASER DISTANCE REGULATION CONTROL MODULE LEFT FRONT SEAT BELT TENSIONER CONTROL MODULE LEFT REAR SEAT BELT TENSIONER CONTROL MODULE MEMORY SEAT/ STEERING COLUMN ADJUSTMENT CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED MULTI-FUNCTION STEERING WHEEL CONTROL MODULE NEAR FIELD COMMUNICATION CONTROL MODULE NEAR FIELD COMMUNICATION CONTROL MODULE 2 NIGHT VISION SYSTEM CONTROL MODULE PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE PASSENGER SIDE REAR DOOR CONTROL MODULE POWER ADJUSTABLE STEERING COLUMN CONTROL MODULE POWER REAR LID OPENING CONTROL MODULE POWER STEERING CONTROL MODULE RADIATOR FAN CONTROL MODULE RADIATOR FAN CONTROL MODULE 2 REAR AXLE STEERING CONTROL MODULE REAR FRESH AIR BLOWER CONTROL MODULE REAR LID CONTROL MODULE REAR VIEW CAMERA SYSTEM CONTROL MODULE REAR VIEW CAMERA SYSTEM CONTROL MODULE SHIELD REDUCING AGENT METERING SYSTEM CONTROL MODULE RIGHT FRONT SEAT BELT TENSIONER CONTROL MODULE RIGHT REAR SEAT BELT TENSIONER CONTROL MODULE ROOF ANTENNA CONTROL MODULE ROOF ELECTRONICS CONTROL MODULE SPIRAL SPRING STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE STRUCTURE BORNE SOUND CONTROL MODULE SUNROOF CONTROL MODULE SWAY STABILIZATION CONTROL MODULE SWAY STABILIZATION CONTROL MODULE 2 THROTTLE VALVE CONTROL MODULE THROTTLE VALVE CONTROL MODULE 2 TIRE PRESSURE MONITORING CONTROL MODULE TOWING RECOGNITION CONTROL MODULE TRANSMISSION CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE W/ STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE WINDSHIELD DEFOGGER CONTROL MODULE WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE WINDSHIELD WASHER PUMP CONTROL MODULE WIPER MOTOR CONTROL MODULE

DISPLAY UNIT DRIVER DOOR LOCK UNIT DRIVER SIDE REAR DOOR LOCK UNIT DRIVING, CONVENIENCE FUNCTIONS CONTROL UNIT 1 EXHAUST DOOR CONTROL UNIT EXHAUST DOOR CONTROL UNIT 2 FRAGRANCE DIFFUSER SYSTEM FUNCTIONAL UNIT FRONT PASSENGER AIR BAG UNIT FRONT PASSENGER DOOR LOCK UNIT FRONT ROOF MODULE MICROPHONE UNIT FUEL DELIVERY UNIT FUEL DELIVERY UNIT COUPLING POINT HYBRID BATTERY UNIT LUGGAGE COMPARTMENT COVER DRIVE UNIT MICROPHONE UNIT PASSENGER SIDE REAR DOOR LOCK UNIT REAR LID LOCK UNIT RELEASE VALVE IGNITER FRONT PASSENGER AIR BAG UNIT

DIGITAL SOUND SYSTEM FUSE ENGINE ELECTRONICS FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE PANEL A FUSE PANEL B FUSE PANEL C FUSE PANEL D FUSE PANEL E FUSE PANEL F FUSE PANEL G FUSE PANEL H FUSE PANEL J FUSE PANEL K GLOW PLUG FUSE 2 RADIATOR FAN FUSE RADIATOR FAN SECOND SPEED FUSE REAR WINDOW DEFOGGER FUSE SECONDARY AIR INJECTION PUMP FUSE SELF-LEVELING SUSPENSION FUSE WIRE JUNCTION 2 FUSE 1

AUXILIARY HEATER HEATING ELEMENT DRIVER SEAT BOLSTER HEATER DRIVER SEAT HEATING ELEMENT FRONT HEATING, AIR CONDITIONING COUPLING POINT FRONT PASSENGER SEAT BLOSTER HEATER FRONT PASSENGER SEAT BOLSTER HEATER FRONT PASSENGER SEAT HEATING ELEMENT LEFT REAR BACKREST HEATING ELEMENT LEFT REAR BENCH SEAT HEATING ELEMENT PARKING HEATER RADIO RECEIVER POSITIVE CRANKCASE VENTILATION HEATING ELEMENT REAR HEATING, AIR CONDITIONING COUPLING POINT RIGHT REAR BACKREST HEATING ELEMENT RIGHT REAR BENCH SEAT HEATING ELEMENT

AUTO HOLD INDICATOR LAMP CENTRAL LOCKING SAFE INDICATOR LAMP CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP DRIVER SIDE MEMORY SEAT INDICATOR LAMP ELECTRO-MECHANICAL PARKING BRAKE INDICATOR LAMP EMERGENCY FLASHER INDICATOR LAMP ENGINE ELECTRONICS INDICATOR FOG LAMP INDICATOR LAMP FRONT PASSENGER AIR BAG DISABLED INDICATOR LAMP FRONT PASSENGER SIDE MEMORY SEAT INDICATOR LAMP INDICATOR LAMP LEFT CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP LEFT REAR INTERIOR LOCKING INDICATOR LAMP LEFT TURN SIGNAL INDICATOR PARALLEL PARKING ASSISTANCE INDICATOR LAMP PARKING AID INDICATOR LAMP PARKING BRAKE INDICATOR PARKING BRAKE INDICATOR LAMP REAR FOG LAMP INDICATOR LAMP RIGHT CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP RIGHT EMERGENCY FLASHER INDICATOR RIGHT REAR INTERIOR LOCKING INDICATOR LAMP TRAILER HITCH INDICATOR LAMP

CENTER BRAKE LAMP BULB CENTER INSTRUMENT PANEL VENT ILLUMINATION BULB CENTER TAIL LAMP CIGARETTE LIGHTER ILLUMINATION BULB DRIVER EXIT WARNING LAMP DRIVER SIDE DOOR AMBIENT LIGHTING LAMP DRIVER SIDE ENTRY LAMP DRIVER SIDE EXTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE REAR ENTRY LAMP DRIVER SIDE REAR EXIT WARNING LAMP DRIVER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP DRIVER SIDE REAR INTERIOR DOOR HANDLE ILLUMINATION BULB DRIVER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP DRIVER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP DRIVER VANITY MIRROR LAMP FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 1 FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 2 FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 3 FRONT CENTER CONSOLE AMBIENT LIGHTING BULB 4 FRONT PASSENGER EXIT WARNING LAMP FRONT PASSENGER EXTERIOR DOOR HANDLE ILLUMINATION LAMP FRONT PASSENGER SIDE DOOR CONTOUR ILLUMINATION LAMP FRONT PASSENGER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP FRONT PASSENGER VANITY MIRROR LAMP GLOVE COMPARTMENT LAMP HIGH-MOUNTED BRAKE LAMP BULB ILLUMINATION BULB INSTRUMENT PANEL AMBIENT LIGHTING LAMP 1 INSTRUMENT PANEL AMBIENT LIGHTING LAMP 2 INSTRUMENT PANEL AMBIENT LIGHTING LAMP 3 LANE CHANGE ASSISTANCE WARNING LAMP LEFT BACKUP LAMP BULB LEFT BRAKE LAMP BULB LEFT BRAKE LAMP BULB 2 LEFT CENTER SIDE MARKER LAMP BULB LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE LEFT FRONT DOOR AMBIENT LIGHTING BULB 1 LEFT FRONT DOOR CONTOUR ILLUMINATION LAMP LEFT FRONT FOOTWELL ILLUMINATION BULB LEFT FRONT READING LAMP LEFT FRONT SIDE MARKER LAMP BULB LEFT FRONT TURN SIGNAL BULB LEFT HIGH BEAM HEADLAMP BULB LEFT INSTRUMENT PANEL VENT ILLUMINATION BULB LEFT LICENSE PLATE LAMP LEFT LOW BEAM HEADLAMP BULB LEFT LUGGAGE COMPARTMENT LAMP LEFT REAR AIR VENT ILLUMINATION BULB LEFT REAR DOOR AMBIENT LIGHTING BULB 1 LEFT REAR DOOR CONTOUR ILLUMINATION LAMP LEFT REAR FOOTWELL LAMP LEFT REAR READING LAMP LEFT REAR SIDE MARKER LAMP BULB LEFT REAR TURN SIGNAL BULB LEFT REAR TURN SIGNAL BULB 2 LEFT TAIL LAMP LEFT TAIL LAMP BULB LEFT TAIL LAMP BULB 2 PASSENGER SIDE DOOR AMBIENT LIGHTING LAMP PASSENGER SIDE ENTRY LAMP PASSENGER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP PASSENGER SIDE REAR ENTRY LAMP PASSENGER SIDE REAR EXIT WARNING LAMP PASSENGER SIDE REAR EXTERIOR DOOR HANDLE ILLUMINATION LAMP PASSENGER SIDE REAR INTERIOR DOOR HANDLE ILLUMINATION BULB PASSENGER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP REAR CENTER AIR VENT ILLUMINATION BULB REAR LID LAMP REAR LID LAMP 2 RIGHT BACKUP LAMP BULB RIGHT BRAKE LAMP BULB RIGHT BRAKE LAMP BULB 2 RIGHT CENTER SIDE MARKER LAMP BULB RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE RIGHT FOOTWELL LAMP RIGHT FRONT DOOR AMBIENT LIGHTING BULB 1 RIGHT FRONT DOOR CONTOUR ILLUMINATION LAMP RIGHT FRONT FOOTWELL ILLUMINATION BULB RIGHT FRONT READING LAMP RIGHT FRONT SIDE MARKER LAMP BULB RIGHT FRONT TURN SIGNAL BULB RIGHT HIGH BEAM HEADLAMP BULB RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB RIGHT LICENSE PLATE LAMP RIGHT LOW BEAM HEADLAMP BULB RIGHT LUGGAGE COMPARTMENT LAMP RIGHT REAR AIR VENT ILLUMINATION BULB RIGHT REAR DOOR AMBIENT LIGHTING BULB 1 RIGHT REAR DOOR CONTOUR ILLUMINATION LAMP RIGHT REAR FOOTWELL LAMP RIGHT REAR READING LAMP RIGHT REAR SIDE MARKER LAMP BULB RIGHT REAR TURN SIGNAL BULB RIGHT REAR TURN SIGNAL BULB 2 RIGHT TAIL LAMP RIGHT TAIL LAMP BULB RIGHT TAIL LAMP BULB 2 TURN SIGNAL BULB WARNING LAMP

ABS HYDRAULIC PUMP AFTER-RUN COOLANT PUMP ALL WHEEL DRIVE PUMP COOLANT RECIRCULATION PUMP HEADLAMP WASHER SYSTEM PUMP HEATER SUPPORT PUMP REAR WINDOW WASHER PUMP THERMAL MANAGEMENT COOLANT PUMP 2 THERMAL MANAGEMENT COOLANT PUMP 4 TRANSFER FUEL PUMP TRANSMISSION FLUID AUXILIARY HYDRAULIC PUMP 1 TRANSMISSION FLUID COOLING PUMP WINDSHIELD WASHER PUMP

ENGINE COMPONENT POWER SUPPLY RELAY HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED POWER SUPPLY RELAY ENERGIZED REAR WINDOW DEFOGGER RELAY RELAY & FUSE CARRIER 1 RELAY & FUSE CARRIER 2 RELAY & FUSE PANEL 2 RELAY & FUSE PANEL 3 REMOTE START A/C RELAY STARTER RELAY 1 STARTER RELAY 2 TERMINAL 15 POWER SUPPLY RELAY THERMAL MANAGEMENT COOLANT PUMP RELAY

A/C SYSTEM PARTICULATE MATTER CONCENTRATION SENSOR ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR 2 ADAPTIVE CRUISE CONTROL RADAR SENSOR HEATING ELEMENT AIR QUALITY SENSOR ANTI-THEFT ALARM SYSTEM SENSOR ASSEMBLY MOUNT SENSOR 1 ASSEMBLY MOUNT SENSOR 2 BRAKE PEDAL POSITION SENSOR BRAKE PEDAL POSITION SENSOR 2 CAMSHAFT POSITION SENSOR CAMSHAFT POSITION SENSOR 2 CAMSHAFT POSITION SENSOR 3 CAMSHAFT POSITION SENSOR 4 CHARGE AIR PRESSURE SENSOR CHARGE-AIR PRESSURE SENSOR 2 DRIVER ACTIVITY SENSOR DRIVER FRONT AIR BAG CRASH SENSOR DRIVER SEAT POSITION SENSOR DRIVER SIDE REAR SEAT OCCUPANT DETECTION SENSOR DRIVER SIDE REAR SEAT TEMPERATURE SENSOR DRIVER SIDE REAR THORAX AIR BAG CRASH SENSOR DRIVER THORAX AIR BAG CRASH SENSOR ENGINE COOLANT LEVEL SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ON ENGINE ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET ENGINE COVER TEMPERATURE SENSOR ENGINE SPEED SENSOR ENGINE TEMPERATURE SENSOR EVAPORATOR VENT TEMPERATURE SENSOR EXTERIOR AIR QUALITY, HUMIDITY SENSOR FRONT PASSENGER LUMBAR SUPPORT FORWARD/BACK ADJUSTMENT SENSOR FRONT PASSENGER LUMBAR SUPPORT HEIGHT ADJUSTMENT SENSOR FRONT PASSENGER SEAT HEATING ELEMENT/PASSENGER SEAT OCCUPANT DETECTION SENSOR FRONT PASSENGER SEAT POSITION SENSOR FRONT PASSENGER THORAX AIR BAG CRASH SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR 2 HEATED OXYGEN SENSOR HEATED STEERING WHEEL SENSOR HEATER OXYGEN SENSOR 2 HIGH PRESSURE SENSOR HORIZONTAL POSITION SENSOR HUMIDITY SENSOR HUMIDITY SENSOR IN FRESH AIR INTAKE DUCT INSTRUMENT PANEL TEMPERATURE SENSOR INTERIOR MONITORING SENSOR KNOCK SENSOR 1 KNOCK SENSOR 3 KNOCK SENSOR 4 KNOCK SENSOR #2 LEFT CENTER VENT POSITION SENSOR LEFT FOOTWELL VENT TEMPERATURE SENSOR LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT EXTERIOR DOOR HANDLE TOUCH SENSOR LEFT FRONT LEVEL CONTROL SYSTEM SENSOR LEFT FRONT OBJECT DETECTION RADAR SENSOR CONTROL MODULE LEFT FRONT PARALLEL PARKING ASSISTANCE SENSOR LEFT FRONT PARKING AID SENSOR LEFT FRONT SEAT BACKREST TEMPERATURE SENSOR LEFT FRONT SEAT TEMPERATURE SENSOR LEFT FRONT TIRE PRESSURE MONITORING SENSOR, ANTENNA LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR LEFT HEADLAMP TEMPERATURE SENSOR 1 LEFT HEADLAMP TEMPERATURE SENSOR 2 LEFT HEADLAMP TEMPERATURE SENSOR 3 LEFT HEADLAMP TEMPERATURE SENSOR 4 LEFT HEADLAMP TEMPERATURE SENSOR 4 LEFT HIGH BEAM HEADLAMP BULB LEFT HEADLAMP TEMPERATURE SENSOR 5 LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR BRAKE PAD WEAR SENSOR LEFT REAR CENTER PARKING AID SENSOR LEFT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR LEFT REAR FOOTWELL VENT TEMPERATURE SENSOR LEFT REAR LEVEL CONTROL SYSTEM SENSOR LEFT REAR PARALLEL PARKING ASSISTANCE SENSOR LEFT REAR PARKING AID SENSOR LEFT REAR SEAT BACKREST TEMPERATURE SENSOR LEFT REAR TIRE PRESSURE MONITORING SENSOR, ANTENNA LEFT REAR UPPER BODY VENT POSITION SENSOR LEFT REAR UPPER BODY VENT TEMPERATURE SENSOR LEFT REAR WINDOW BREAKAGE SENSOR LEVEL CONTROL PRESSURE SENSOR LIGHT RECOGNITION SENSOR LOW FUEL OIL PRESSURE SENSOR LUMBAR SUPPORT FORWARD/BACK ADJUSTMENT SENSOR LUMBAR SUPPORT HEIGHT ADJUSTMENT SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR 2 OIL LEVEL THERMAL SENSOR OIL PRESSURE SENSOR OIL PRESSURE/ TEMPERATURE SENSOR OIL PRESSURE/ TEMPERATURE SENSOR 2 OIL TEMPERATURE SENSOR OUTSIDE AIR TEMPERATURE SENSOR OXYGEN SENSOR 1 AFTER CATALYTIC CONVERTER OXYGEN SENSOR 2 AFTER CATALYTIC CONVERTER OXYGEN SENSOR 2 BEFORE CATALYTIC CONVERTER OXYGEN SENSOR 2 HEATER OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR HEATER PARKING LOCK SENSOR PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR PARTICULATE FILTER DIFFERENTIAL PRESSURE SENSOR 2 PASSENGER SIDE FRONT AIR BAG CRASH SENSOR PASSENGER SIDE REAR SEAT OCCUPANT DETECTION SENSOR PASSENGER SIDE REAR SEAT TEMPERATURE SENSOR PASSENGER SIDE REAR THORAX AIR BAG CRASH SENSOR POWER REAR LID OPENING SENSOR POWER REAR LID OPENING SENSOR 2 RAIN/LIGHT RECOGNITION SENSOR REAR AXLE STEERING SENSOR 1, REAR AXLE STEERING SENSOR 2 REAR CENTER SEAT OCCUPANT DETECTION SENSOR REAR LID MOTOR 1 SENSOR REAR LID MOTOR 1 SENSOR 2 REAR LID MOTOR 2 SENSOR REAR LID MOTOR 2 SENSOR 2 REAR UPPER BODY VENT TEMPERATURE SENSOR REAR WINDOW BREAKAGE SENSOR RIGHT CENTER VENT POSITION SENSOR RIGHT FOOTWELL VENT TEMPERATURE SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT FRONT BRAKE PAD WEAR SENSOR RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT EXTERIOR DOOR HANDLE TOUCH SENSOR RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR RIGHT FRONT OBJECT DETECTION RADAR SENSOR CONTROL MODULE RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT FRONT SEAT TEMPERATURE SENSOR RIGHT FRONT TIRE PRESSURE MONITORING SENSOR, ANTENNA RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR RIGHT HEADLAMP TEMPERATURE SENSOR 1 RIGHT HEADLAMP TEMPERATURE SENSOR 2 RIGHT HEADLAMP TEMPERATURE SENSOR 3 RIGHT HEADLAMP TEMPERATURE SENSOR 4 RIGHT HEADLAMP TEMPERATURE SENSOR 4 RIGHT HIGH BEAM HEADLAMP BULB RIGHT HEADLAMP TEMPERATURE SENSOR 5 RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR EXTERIOR DOOR HANDLE TOUCH SENSOR RIGHT REAR FOOTWELL VENT TEMPERATURE SENSOR RIGHT REAR LEVEL CONTROL SYSTEM SENSOR RIGHT REAR PARALLEL PARKING ASSISTANCE SENSOR RIGHT REAR PARKING AID SENSOR RIGHT REAR SEAT BACKREST TEMPERATURE SENSOR RIGHT REAR TIRE PRESSURE MONITORING SENSOR, ANTENNA RIGHT REAR UPPER BODY VENT POSITION SENSOR RIGHT REAR UPPER BODY VENT TEMPERATURE SENSOR RIGHT REAR WINDOW BREAKAGE SENSOR RIGHT SIDE VENT POSITION SENSOR ROOF RACK RECOGNITION SENSOR SELECTOR LEVER POSITION SENSOR SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE SENSOR TEMPERATURE BACKREST RIGHT FRONT SEAT STEERING ANGLE SENSOR STEERING COLUMN AXIAL ADJUSTMENT SENSOR STEERING COLUMN VERTICAL ADJUSTMENT SENSOR STEERING RACK POSITION SENSOR STEERING TORQUE SENSOR TANK VENTILATION PRESSURE SENSOR 1 TANK VENTILATION PRESSURE SENSOR 2 TEMPERATURE SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SPEED SENSOR TRANSMISSION OUTPUT SPEED SENSOR TRANSVERSE SELECTOR LEVER LOCK SENSOR VEHICLE INCLINATION SENSOR VERTICAL POSITION SENSOR WINDOW DEFOGGER FRONT SENSOR SYSTEM WINDSHIELD WASHER FLUID LEVEL SENSOR

CENTER SPEAKER CENTER SPEAKER 2 DRIVER SIDE DOOR SPEAKER TRIM LAMP DUAL SUBWOOFER SPEAKER 1 DUAL SUBWOOFER SPEAKER 2 EMERGENCY CALL MODULE SPEAKER LEFT EFFECTS SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT DOOR SPEAKER LEFT FRONT MIDRANGE SPEAKER LEFT FRONT SPEAKER LEFT FRONT TREBLE SPEAKER LEFT FRONT TREBLE SPEAKER 2 LEFT REAR BASS SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR MIDRANGE SPEAKER LEFT REAR MIDRANGE SPEAKER 2 LEFT REAR SPEAKER LEFT REAR TREBLE SPEAKER LEFT REAR TREBLE SPEAKER 2 PASSENGER SIDE DOOR SPEAKER TRIM LAMP RIGHT EFFECTS SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT FRONT MIDRANGE SPEAKER RIGHT FRONT SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT FRONT TREBLE SPEAKER +2 RIGHT REAR BASS SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR MIDRANGE SPEAKER RIGHT REAR MIDRANGE SPEAKER 2 RIGHT REAR SPEAKER RIGHT REAR TREBLE SPEAKER RIGHT REAR TREBLE SPEAKER 2 TREBLE SPEAKER

BRAKE FLUID LEVEL WARNING SWITCH BRAKE LAMP SWITCH BRAKE PEDAL SWITCH CENTER CONSOLE SWITCH MODULE 1 CENTER INSTRUMENT PANEL SWITCH MODULE CENTER SECOND ROW SEAT BELT SWITCH CONTACT SWITCH CRUISE CONTROL SWITCH DRIVER BACKREST ADJUSTMENT SWITCH DRIVER DOOR CONTACT SWITCH DRIVER DOOR EMERGENCY UNLOCK SWITCH DRIVER LOCK CYLINDER CONTACT SWITCH DRIVER SEAT ANGLE ADJUSTMENT SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT FORWARD/BACK ADJUSTMENT SWITCH DRIVER SEAT HEIGHT ADJUSTMENT SWITCH DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER SEAT SWITCH MODULE DRIVER SIDE EXTERIOR DOOR HANDLE SWITCH DRIVER SIDE INTERIOR DOOR HANDLE SWITCH DRIVER SIDE REAR CHILD SAFETY LOCK CONTACT SWITCH DRIVER SIDE REAR DOOR CONTACT SWITCH DRIVER SIDE REAR DOOR EMERGENCY UNLOCK SWITCH DRIVER SIDE REAR EXTERIOR DOOR HANDLE SWITCH DRIVER SIDE REAR INTERIOR DOOR HANDLE SWITCH DRIVER SIDE SECOND ROW SEAT BELT SWITCH DRIVER VANITY MIRROR LAMP CONTACT SWITCH DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 1 DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 2 DRIVING DYNAMICS REGULATION SWITCH VALVE 1 DRIVING DYNAMICS REGULATION SWITCH VALVE 2 ENGINE HOOD CONTACT SWITCH FRONT PASSENGER DOOR CONTACT SWITCH FRONT PASSENGER DOOR EMERGENCY UNLOCK SWITCH FRONT PASSENGER DOOR POWER WINDOW SWITCH FRONT PASSENGER SEAT BACKREST ADJUSTMENT SWITCH FRONT PASSENGER SEAT BELT SWITCH FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT SWITCH FRONT PASSENGER SEAT HEIGHT ADJUSTMENT SWITCH FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH FRONT PASSENGER SEAT SWITCH MODULE FRONT PASSENGER SIDE EXTERIOR DOOR HANDLE SWITCH FRONT PASSENGER SIDE INTERIOR DOOR HANDLE SWITCH FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH GLOVE COMPARTMENT LAMP SWITCH HEADLAMP SWITCH ILLUMINATION BULB HOOD CONTACT SWITCH 2 LEFT REAR READING LAMP SWITCH LIGHT SWITCH LOCK PAWL CONTACT SWITCH MECHANICAL COOLANT PUMP SWITCH VALVE MIRROR ADJUSTER SWITCH MIRROR SELECTOR SWITCH OIL PRESSURE SWITCH PASSENGER SIDE REAR CHILD SAFETY LOCK CONTACT SWITCH PASSENGER SIDE REAR DOOR CONTACT SWITCH PASSENGER SIDE REAR DOOR EMERGENCY UNLOCK SWITCH PASSENGER SIDE REAR EXTERIOR DOOR HANDLE SWITCH PASSENGER SIDE REAR INTERIOR DOOR HANDLE SWITCH PASSENGER SIDE SECOND ROW SEAT BELT SWITCH REAR LID CONTACT SWITCH RIGHT REAR READING LAMP SWITCH ROTARY LIGHT SWITCH STEERING COLUMN ADJUSTMENT SWITCH TURN SIGNAL SWITCH WINDSHIELD WIPER INTERMITTENT MODE SWITCH WINDSHIELD WIPER SWITCH

ACCUMULATOR SOLENOID AIR SPRING QUICK FILL VALVE ALL WHEEL DRIVE CLUTCH VALVE ALL WHEEL DRIVE CLUTCH VALVE 2 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 1 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 2 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 3 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 4 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 5 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 6 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 7 BANK 1 RECIRCULATION VALVE BANK 2 RECIRCULATION VALVE CAMSHAFT ADJUSTMENT VALVE 1 CAMSHAFT ADJUSTMENT VALVE 2 COOLANT CHANGE-OVER VALVE 1 COOLANT CHANGE-OVER VALVE 2 COOLANT CHANGE-OVER VALVE 3 COOLANT SHUT-OFF VALVE CRANKCASE VENTILATION VALVE DRIVER AIR BAG RELEASE VALVE IGNITER DRIVER SEAT VALVE BLOCK 1 DRIVER SEAT VALVE BLOCK 2 EXHAUST CAMSHAFT ADJUSTMENT VALVE 1 EXHAUST CAMSHAFT ADJUSTMENT VALVE 2 FUEL METERING VALVE FUEL METERING VALVE 2 LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT FRONT DAMPING ADJUSTMENT VALVE LEFT FRONT SUSPENSION STRUT VALVE LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE LEFT REAR DAMPING ADJUSTMENT VALVE LEFT REAR SUSPENSION STRUT VALVE LEVEL CONTROL ACCUMULATOR VALVE LEVEL CONTROL SYSTEM SOLENOID OIL PRESSURE REGULATION VALVE PARKING LOCK SOLENOID PISTON COOLING NOZZLE CONTROL VALVE REFRIGERANT EXPANSION VALVE 2 REFRIGERANT SHUT-OFF VALVE RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT FRONT DAMPING ADJUSTMENT VALVE RIGHT FRONT SUSPENSION STRUT VALVE RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE RIGHT REAR DAMPING ADJUSTMENT VALVE RIGHT REAR SUSPENSION STRUT VALVE SHIFT LOCK SOLENOID SOLENOID VALVE 1 TRANSMISSION COOLANT VALVE TRANSMISSION FLUID COOLING VALVE TRANSMISSION MOUNT VALVE 1 TRANSMISSION MOUNT VALVE 2

(OR RED/ WIRE BLK WIRE BLK) RED/BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE RED WIRE RED) WHT/GRY WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE TERMINAL 30 WIRE JUNCTION TERMINAL 40 WIRE JUNCTION TERMINAL 40 WIRE JUNCTION 2 VIO WIRE VIO) RED/VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE W/ WIRE JUNCTION W/ WIRE JUNCTION 3 WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE WIRE JUNCTION WIRE JUNCTION 2 WIRE JUNCTION 3 YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

3.0L TURBO HYBRID 3.0L TURBO HYBRID 4.0L TURBO HYBRID 4.0L TURBO 4.0L TURBO HYBRID (OR A/C CLUTCH ACCELERATOR PEDAL MODULE AIR CONDITIONING SYSTEM ANTI-THEFT SYSTEM ASSISTANCE) AUTO- HOLD AUTOMATIC DIMMING EXTERIOR REAR VIEW MIRROR AUTOMATIC TRANSMISSION COUPLING POINT BOTTOM CENTER COUPLING POINT IN INTERIOR BOTTOM COUPLING POINT IN INTERIOR BOTTOM COUPLING POINT ON LEFT A-PILLAR BOTTOM COUPLING POINT ON RIGHT A-PILLAR BRAKE BOOSTER BRAKE SYSTEM PRESSURE RESERVOIR CENTER CONSOLE CENTER COUPLING POINT IN INTERIOR CENTER COUPLING POINT ON INSTRUMENT PANEL CENTER COUPLING POINT ON LEFT A-PILLAR CENTER INSTRUMENT PANEL COUPLING POINT CHARGING CIRCUIT CIGARETTE LIGHTER COMPUTER DATA COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM NAVIGATION SYSTEM COOLING FANS SYSTEM COUPLING POINT 2 IN LEFT FRONT DOOR COUPLING POINT 2 IN RIGHT FRONT DOOR COUPLING POINT IN LEFT FRONT DOOR COUPLING POINT IN LEFT REAR DOOR COUPLING POINT IN LEFT REAR SEAT COUPLING POINT IN RIGHT FRONT DOOR COUPLING POINT IN RIGHT REAR DOOR COUPLING POINT IN RIGHT REAR SEAT COUPLING POINT IN THE LEFT FRONT DOOR COUPLING POINT IN THE LEFT REAR DOOR COUPLING POINT IN THE RIGHT FRONT DOOR COUPLING POINT IN THE RIGHT REAR DOOR COUPLING POINT ON LEFT FRONT BUMPER COUPLING POINT ON LEFT REAR BUMPER COUPLING POINT ON RIGHT FRONT BUMPER COUPLING POINT ON RIGHT REAR BUMPER COUPLING SECTION IN LEFT FRONT SEAT COUPLING STATION IN LEFT FRONT SEAT COUPLING STATION IN RIGHT FRONT SEAT COURTESY LAMPS CIRCUIT CRUISE CONTROL SYSTEM CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR CYLINDER 5 FUEL INJECTOR CYLINDER 6 FUEL INJECTOR CYLINDER 7 FUEL INJECTOR CYLINDER 8 FUEL INJECTOR DATA BUS ON BOARD DIAGNOSTIC INTERFACE DATA LINES DEFOGGER SYSTEM DIAGNOSTIC CONNECTION DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DRIVER AIR BAG IGNITER DRIVER ASSISTANCE SYSTEM IND DRIVER BELT FORCE LIMITER DRIVER DOOR POWER WINDOW CONTROL HEAD DRIVER EXTERIOR REAR VIEW MIRROR DRIVER HEAD CURTAIN AIR BAG IGNITER DRIVER MULTI-CONTOUR SEAT COMPRESSOR DRIVER POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 DRIVER SEAT ADJUSTMENT CONTROL HEAD DRIVER SEAT BACKREST COUPLING POINT DRIVER SEAT BACKREST FAN DRIVER SEAT BELT TENSIONER IGNITER 1 DRIVER SEAT BELT TENSIONER IGNITER 2 DRIVER SEAT COUPLING POINT DRIVER SEAT CUSHION FAN DRIVER SEAT LUMBAR SUPPORT DRIVER SEAT MEMORY SETTINGS CONTROL HEAD DRIVER SIDE HEATED SEAT DRIVER SIDE IONIZER DRIVER SIDE REAR DOOR CONTROL HEAD DRIVER SIDE REAR SEAT BELT TENSIONER IGNITER DRIVER SIDE REAR THORAX AIR BAG IGNITER DRIVER THORAX AIR BAG IGNITER DRIVER VOLUME CONTROL DVD PLAYER EARLY PRODUCTION ELECTRIC DRIVE POWER, CONTROL ELECTRONICS ELECTRO- MECHANICAL ELECTRO-MECHANICAL BRAKE BOOSTER COUPLING POINT ELECTROMECHANICAL BRAKE BOOSTER COUPLING POINT ELECTRONIC POWER STEERING SYSTEM EXTERIOR LAMPS CIRCUIT EXTERIOR REAR VIEW MIRROR ADJUSTER FORWARD /BACK FRONT INFORMATION DISPLAY CONTROL HEAD FRONT INFORMATION DISPLAY CONTROL HEAD 2 FRONT PARKING AID WARNING BUZZER FRONT PASSENGER BELT FORCE LIMITER FRONT PASSENGER EXTERIOR REAR VIEW MIRROR FRONT PASSENGER HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD FRONT PASSENGER SEAT BACKREST COUPLING POINT FRONT PASSENGER SEAT BACKREST FAN 1 FRONT PASSENGER SEAT BELT TENSIONER IGNITER 1 FRONT PASSENGER SEAT BELT TENSIONER IGNITER 2 FRONT PASSENGER SEAT COUPLING POINT FRONT PASSENGER SEAT CUSHION FAN 1 FRONT PASSENGER SEAT LUMBAR SUPPORT FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD FRONT PASSENGER SIDE INSTRUMENT PANEL AMBIENT LIGHTING EMBLEM FRONT PASSENGER SIDE IONIZER FRONT PASSENGER THORAX AIR BAG IGNITER FRONT ROOF MODULE FUEL TANK LEAK DETECTION MODULE GROUND DISTRIBUTION SYSTEM HEADLIGHTS SYSTEM HEATED DRIVER SEAT EXTENSION HEATED FRONT PASSENGER SEAT EXTENSION HEATED STEERING WHEEL HORNS SYSTEM HOT AT ALL TIMES HOT W/ HOT W/ TERMINAL 15 IGNITER 1 IGNITER 2 INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INTERIOR MICROPHONE INTERIOR REAR VIEW MIRROR LANE CHANGE LATE PRODUCTION LEFT "C" PILLAR) LEFT COUPLING POINT ON INSTRUMENT PANEL LEFT COUPLING POINT ON REAR LID LEFT COUPLING POINT ON ROOF LEFT FRONT BUMPER COUPLING POINT LEFT FRONT DOOR COUPLING POINT LEFT FRONT DOOR COUPLING POINT 2 LEFT FRONT HEADLAMP LEFT FRONT MICROPHONE LEFT FRONT SEAT BACKREST FAN 1 LEFT FRONT SEAT BELT LEFT FRONT SEAT CUSHION FAN 1 LEFT FRONT SEAT HEATED BACKREST LEFT HEADLAMP FAN LEFT LED HEADLAMP POWER OUTPUT MODULE 1 LEFT MULTI-FUNCTION BUTTONS ON STEERING WHEEL LEFT MULTI-FUNCTION BUTTONS STEERING WHEEL LEFT MULTI-FUNCTION STEERING WHEEL LEFT REAR DOOR COUPLING POINT LEFT REAR SEAT COUPLING POINT LEFT REAR SEAT COUPLING STATION LEFT TURN SIG IND LEFT TURN SIGNAL IND LEVEL CONTROL CIRCUIT LEVEL CONTROL SYSTEM COMPRESSOR ELECTRONICS LINES SYSTEM LOADING SILL LOWERING, TRAILER HITCH CONTROL HEAD MOBILE DEVICE CHARGER 1 MOST DATA BUS CIRCUIT NAVIGATION SYSTEM NIGHT VISION CIRCUIT NOT USED OVERHEAD CONSOLE PARKING BRAKE PARKING BRAKE IND. PASSENGER SIDE REAR DOOR CONTROL HEAD PASSENGER SIDE REAR SEAT BELT TENSIONER IGNITER PASSENGER SIDE REAR THORAX AIR BAG IGNITER POWER DISTRIBUTION SYSTEM RADIATOR FAN RADIATOR FAN 2 REAR A/C DISPLAY CONTROL HEAD REAR FRESH AIR BLOWER REAR LID CLOSING AID REAR LID CONTROL HEAD REAR LID COUPLING POINT REAR LID WARNING BUZZER REAR VIEW REAR WINDOW REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER SUPPRESSOR REAR WINDOW DEFOGGER SUPPRESSOR 2 RIGHT EMERGENCY FLASHER IND RIGHT FRONT DOOR COUPLING POINT RIGHT FRONT DOOR COUPLING POINT 2 RIGHT FRONT HEADLAMP RIGHT FRONT MICROPHONE RIGHT FRONT SEAT BACKREST FAN 1 RIGHT FRONT SEAT BELT RIGHT FRONT SEAT CUSHION FAN 1 RIGHT FRONT SEAT HEATED BACKREST RIGHT HEADLAMP FAN RIGHT LED HEADLAMP POWER OUTPUT MODULE 1 RIGHT MULTI-FUNCTION BUTTONS ON STEERING WHEEL RIGHT REAR DOOR COUPLING POINT RIGHT REAR FOOTWELL RIGHT REAR SEAT COUPLING POINT RIGHT REAR SEAT COUPLING STATION ROOF COUPLING POINT SEATS SYSTEM SELECTOR LEVER SELECTOR LEVER TRANSMISSION RANGE DISPLAY SOUND SYSTEMS SPIRAL SPRING STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM THERMAL MANAGEMENT COOLANT MODULE TO SPARK PLUG 1 TO SPARK PLUG 2 TO SPARK PLUG 3 TO SPARK PLUG 4 TO SPARK PLUG 5 TO SPARK PLUG 6 TO SPARK PLUG 7 TO SPARK PLUG 8 TO VEHICLE ELECTRICAL SYSTEM TOP OF TRANSMISSION) TRAILER CIRCUIT BREAKER TRAILER HITCH TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM DOOR LOCKS SYSTEM, ANTI-THEFT SYSTEMS TV TUNER USB CONNECTION 1 USB DISTRIBUTOR W/ 48 VOLTS SYSTEM W/ ACCESS/ START AUTHORIZATION SYSTEM W/ ACTIVE INFO DISPLAY W/ ADAPTIVE CRUISE CONTROL W/ AMBIENT LIGHTING W/ AUXILIARY LAMPS W/ BANG, OLUFSEN SOUND W/ BANG, OLUFSEN SOUND SYSTEM W/ CLIMATRONIC W/ COMFORT SEATS W/ DIGITAL RADIO W/ DOOR CLOSING AID W/ DRIVER ASSISTANCE SYSTEM W/ DYNAMIC SWAY STABILIZATION W/ FPK ACTIVE INFO DISPLAY W/ HEATED STEERING WHEEL W/ INTERIOR MONITORING, TOWING PREVENTION W/ LANE CHANGE ASSISTANCE W/ MASSAGE W/ MULTI-ZONE CONTROLS W/ PASSENGER OCCUPANT DETECTION SYSTEM W/O PASSENGER OCCUPANT DETECTION SYSTEM W/ POWER REAR WINDOW SHADE W/ REAR AXLE STEERING W/ REVERSIBLE SEAT BELT TENSIONERS W/O REVERSIBLE SEAT BELT TENSIONERS W/ SAFE FUNCTION W/ SEAT DEPTH ADJUSTMENT W/ SPEED LIMITER W/ TELEPHONE CHARGING STATION W/ TV TUNER W/O TV TUNER W/ VEHICLE POSITIONING SYSTEM W/ WINDSHIELD PROJECTION W/O 48 VOLTS SYSTEM W/O ACCESS/ START AUTHORIZATION SYSTEM W/O ACTIVE INFO DISPLAY W/O ADAPTIVE CRUISE CONTROL W/O AUXILIARY LAMPS W/O BANG, OLUFSEN SOUND SYSTEM W/O CLIMATRONIC W/O COMFORT SEATS W/O DIGITAL RADIO W/O DRIVER ASSISTANCE SYSTEM W/O ELECTRIC REAR WINDOW SHADE W/O ELECTRIC REAR WINDOW SHADE W/ POWER REAR WINDOW SHADE W/O FPK ACTIVE INFO DISPLAY W/O FPK ACTIVE INFO DISPLAY W/ FPK ACTIVE INFO DISPLAY W/O LANE CHANGE ASSISTANCE W/O REAR AXLE STEERING W/O SEAT DEPTH ADJUSTMENT W/O SPEED LIMITER W/O TELEPHONE CHARGING STATION W/O TV TUNER W/O WINDSHIELD PROJECTION WINDSHIELD DEFOGGER WIPER/WASHER SYSTEM
