Navigation
# Navigation circuit

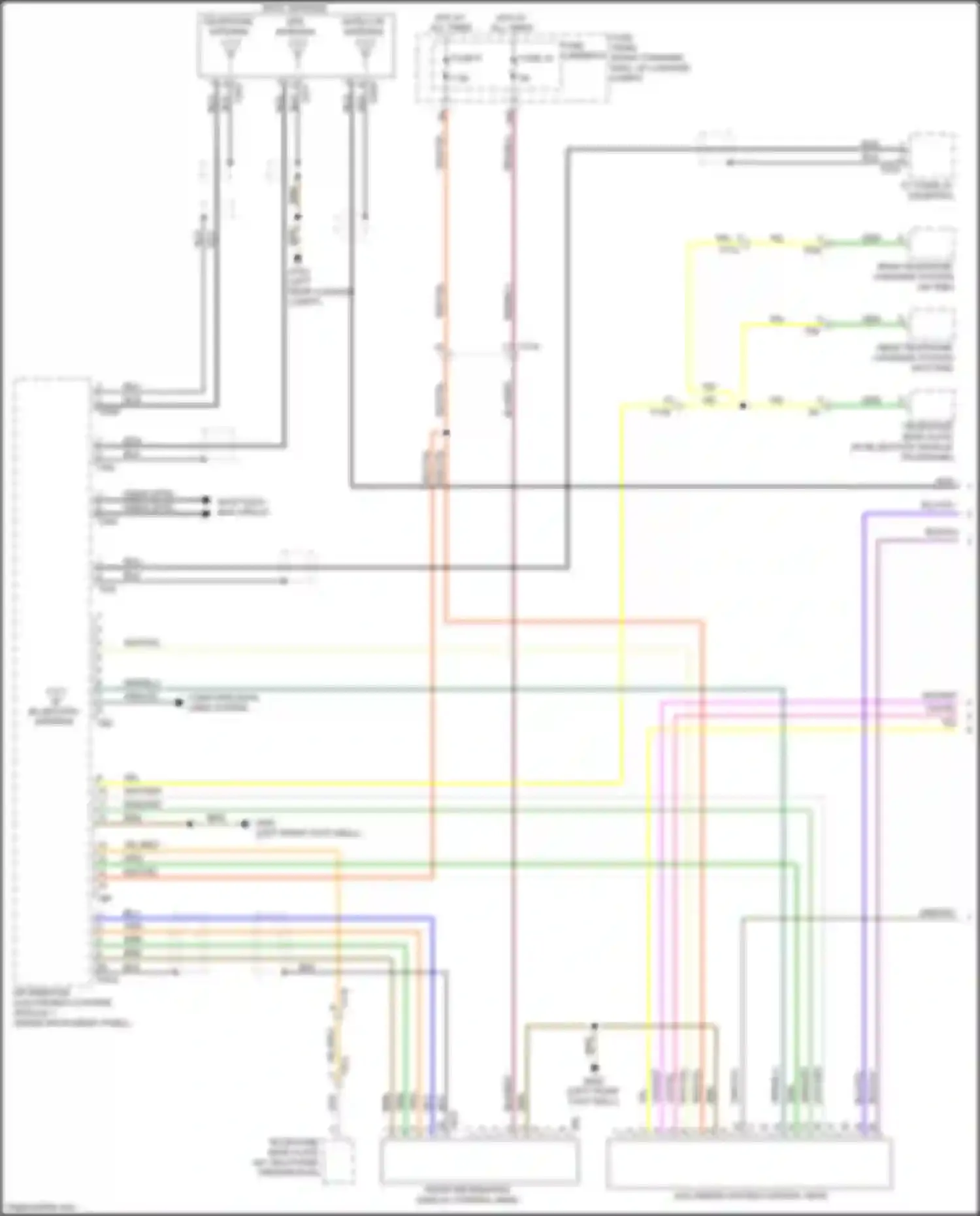

# Navigation circuit (1 of 2)
Components on the diagram

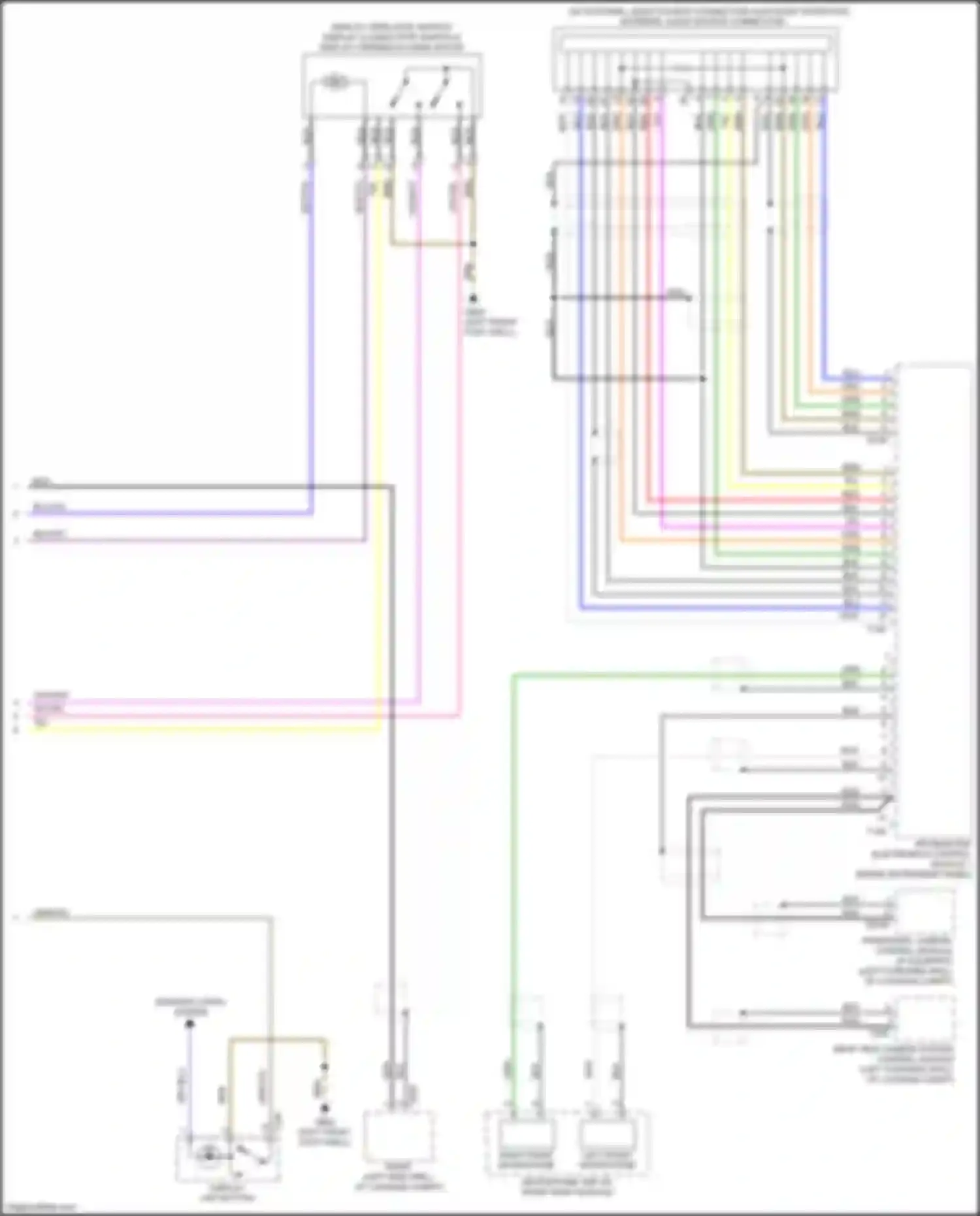

# Navigation circuit (2 of 2)
Components on the diagram
Components on these wiring diagrams 18
Click a component to highlight it on every diagram it appears on.
