Wiring diagram: Electronic power steering — Active steering control module circuit Audi RS7 I facelift
All systems
- Active bodyworks
- Air conditioning 4
- Anti-lock brakes
- Anti-theft
- Body control modules 3
- Computer data lines
- Cooling fan
- Cruise control
- Defoggers
- Electronic power steering 2
- Electronic suspension
- Engine performance 4.0l turbo
- Exterior lights 2
- Ground distribution
- Headlights 3
- Horn
- Instrument cluster 2
- Interior lights 2
- Memory systems 3
- Navigation 10
- Power distribution
- Power door locks
- Power mirrors
- Power seats 7
- Power top/sunroof
- Power windows
- Radio 7
- Shift interlock 3
- Starting/charging 2
- Supplemental restraints
- Transmission 2
- Trunk, tailgate, fuel door
- Warning systems 2
- Wiper/washer 2

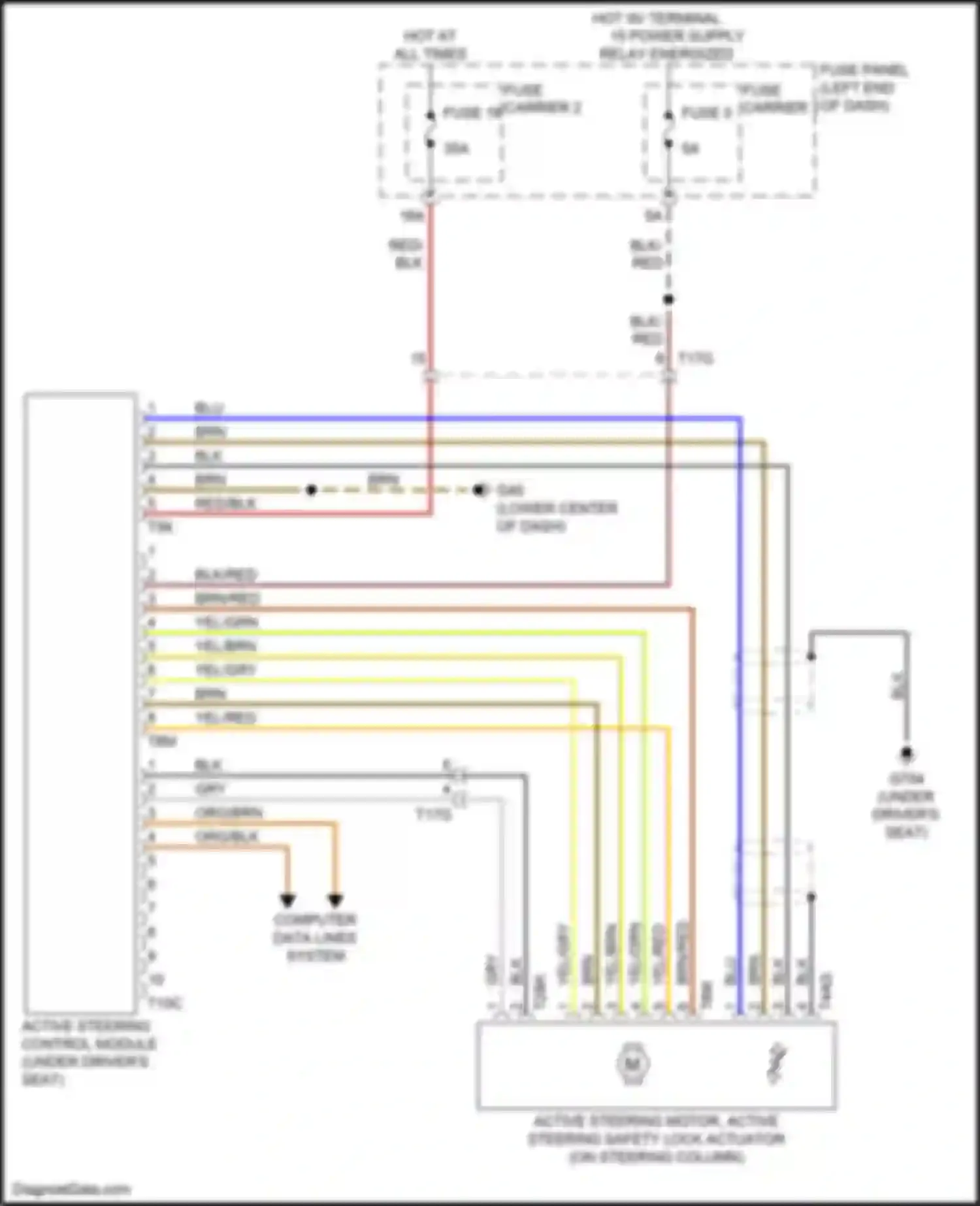

Active steering control module circuit — Electronic power steering Audi RS7 I facelift
