Audi A8 D5 (2017-2022) brn Wiring diagrams
This page contains all the electrical diagrams for the component. brn, in which he is found in the car Audi A8 D5 (2017-2022). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
brn wiring diagram (131 of 235)
BLK WIRE
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
FUSE 7
FUSE PANEL C
HOT AT ALL TIMES
INSTRUMENT CLUSTER CONTROL MODULE
LEFT FRONT BRAKE PAD WEAR SENSOR
LEFT REAR BRAKE PAD WEAR SENSOR
ORG/BRN WIRE
RED WIRE
RED/VIO WIRE
RIGHT FRONT BRAKE PAD WEAR SENSOR
RIGHT REAR BRAKE PAD WEAR SENSOR
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
YEL WIRE
Go to component -> Brake wear sensor circuit -> BRN WIRE
brn wiring diagram (132 of 235)
AIR BAG CONTROL MODULE
BLU WIRE
BLU/RED WIRE
BLU/YEL WIRE
BRAKE FLUID LEVEL WARNING SWITCH
BRN WIRE
BRN/BLU WIRE
BRN/YEL WIRE
COMPUTER DATA LINES SYSTEM
DRIVER DOOR CONTACT SWITCH
DRIVER DOOR CONTROL MODULE
DRIVER DOOR LOCK UNIT
DRIVER SEAT BELT SWITCH
FRONT PASSENGER SEAT BELT SWITCH
FUSE 10
FUSE 9
FUSE PANEL B
FUSE PANEL F
GRN WIRE
GRN/RED WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
INSTRUMENT CLUSTER CONTROL MODULE
INSTRUMENT CLUSTER SYSTEM
LEFT FRONT SEAT COUPLING STATION
ORG/BRN WIRE
PNK WIRE
RED WIRE
RED/YEL WIRE
RIGHT FRONT SEAT COUPLING STATION
SUPPLEMENTAL RESTRAINTS SYSTEM
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
Go to component -> Buzzer circuit -> BRN WIRE
brn wiring diagram (133 of 235)
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLU WIRE
BLU/GRN WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BRN WIRE
BRN/BLU WIRE
BRN/GRN WIRE
BRN/RED WIRE
COMPUTER DATA LINES SYSTEM
COUPLING POINT ON LEFT FRONT BUMPER
ENGINE SPEED SENSOR
ENGINE/MOTOR CONTROL MODULE
EPC THROTTLE DRIVE
EPC THROTTLE DRIVE ANGLE SENSOR 1
EPC THROTTLE DRIVE ANGLE SENSOR 2
FUSE 14
FUSE 8
FUSE 9
FUSE PANEL A
FUSE PANEL D
GRN/GRY WIRE
GRN/VIO WIRE
GRY/YEL WIRE
HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED
HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED
INSTRUMENT CLUSTER CONTROL MODULE
ORG/BRN WIRE
RED/YEL WIRE
THROTTLE VALVE CONTROL MODULE (TOP FRONT OF ENGINE)
WHT/RED WIRE
YEL/BLU WIRE
Go to component -> Cruise control circuit (1 of 2) -> BRN WIRE
brn wiring diagram (134 of 235)
ABS CONTROL MODULE
ACCELERATOR PEDAL MODULE (AT ACCELERATOR PEDAL)
ACCELERATOR PEDAL POSITION SENSOR
ACCELERATOR PEDAL POSITION SENSOR 2
ACTIVE ACCELERATOR PEDAL MOTOR
ADAPTIVE CRUISE CONTROL MODULE
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLU/GRN WIRE
BOTTOM COUPLING POINT ON LEFT A-PILLAR
BRAKE LAMP SWITCH
BRAKE PEDAL POSITION SENSOR
BRAKE PEDAL SWITCH
BRN WIRE
BRN/BLU WIRE
BRN/RED WIRE
COMFORT SYSTEM CENTRAL CONTROL MODULE
COMPUTER DATA LINES SYSTEM
CRUISE CONTROL SWITCH
FUSE 12
FUSE 5
FUSE PANEL A
FUSE PANEL F
GRN WIRE
GRN/VIO WIRE
HOT AT ALL TIMES
HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED
LASER DISTANCE REGULATION CONTROL MODULE
PNK WIRE
RED/GRY WIRE
STEERING COLUMN ELECTRONICS CONTROL MODULE
TRANSMISSION CONTROL MODULE (IN BOTTOM OF TRANSMISSION)
TRANSMISSION INPUT SPEED SENSOR
TRANSMISSION OUTPUT SPEED SENSOR
VIO/RED WIRE
VIO/WHT WIRE
YEL/BLU WIRE
Go to component -> Cruise control circuit (2 of 2) -> BRN WIRE
brn wiring diagram (135 of 235)
BRN WIRE
BRN/WHT WIRE
BRN/YEL WIRE
COUPLING POINT IN RIGHT REAR SEAT
COUPLING STATION IN RIGHT FRONT SEAT
DRIVER SEAT BACKREST BLOWER FAN
DRIVER SIDE REAR SEAT ADJUSTMENT CONTROL MODULE
DRIVER SIDE REAR THORAX AIR BAG IGNITER
FROM RIGHT REAR CENTER ARMREST HEATING ELEMENT (DIAGRAM 5 OF 12)
FRONT PASSENGER ACTIVE HEAD RESTRAINT IGNITER
FRONT PASSENGER AMBIENT LIGHTING FIBER OPTIC CABLE
FRONT PASSENGER MEMORY SEAT CONTROL MODULE
FRONT PASSENGER SEAT ADJUSTMENT CONTROL HEAD
FRONT PASSENGER SEAT BACKREST COUPLING POINT
FRONT PASSENGER SEAT COUPLING POINT
FRONT PASSENGER SEAT CUSHION BLOWER FAN
FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH
HEATING ELEMENT CONTROL MODULE 1
HEATING ELEMENT CONTROL MODULE 2
HEATING ELEMENT CONTROL MODULE 3
LEFT REAR SEAT COUPLING STATION
PASSENGER SIDE REAR SEAT ADJUSTMENT CONTROL MODULE
PASSENGER SIDE REAR THORAX AIR BAG IGNITER
PASSENGER SIDE SECOND ROW SEAT BELT SWITCH
RIGHT FOOTWELL LAMP
RIGHT FRONT CENTER ARMREST HEATING ELEMENT
RIGHT FRONT SEAT COUPLING STATION
RIGHT REAR BACKREST FAN 1
RIGHT REAR BACKREST HEATING ELEMENT
RIGHT REAR BENCH SEAT HEATING ELEMENT
RIGHT REAR FOOTWELL HEATER
RIGHT REAR SEAT BACKREST BOLSTER HEATING ELEMENT
RIGHT REAR SEAT BOLSTER HEATER
RIGHT REAR SEAT COUPLING STATION
RIGHT REAR SEAT CUSHION FAN 1
TO FRONT PASSENGER SEAT COUPLING POINT (DIAGRAM 11 OF 12)
TO RIGHT REAR DOOR COUPLING POINT (DIAGRAM 9 OF 12)
VIO WIRE
W/ AMBIENT LIGHTING
W/O SEAT VENTILATION W/ SEAT VENTILATION W/ LONG REAR CENTER CONSOLE
WHT WIRE
WHT/BRN WIRE
Go to component -> Ground distribution circuit (10 of 12) -> BRN WIRE
brn wiring diagram (136 of 235)
AUTOMATIC TRANSMISSION COUPLING POINT
BRN WIRE
BRN/WHT WIRE
BRN/YEL WIRE
COUPLING POINT IN LEFT REAR SEAT
DRIVER ACTIVE HEAD RESTRAINT IGNITER
DRIVER AMBIENT LIGHTING FIBER OPTIC CABLE
DRIVER ASSISTANCE SYSTEMS CONTROL MODULE
DRIVER SEAT ADJUSTMENT CONTROL HEAD
DRIVER SEAT BACKREST BLOWER FAN
DRIVER SEAT BACKREST COUPLING POINT
DRIVER SEAT BELT SWITCH
DRIVER SEAT COUPLING POINT
DRIVER SEAT CUSHION BLOWER FAN
DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH
DRIVER SIDE FRONT CENTER AIR BAG IGNITER OCCUPANT CONTACT PROTECTION
DRIVER SIDE REAR SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP
DRIVER SIDE REAR THORAX AIR BAG IGNITER
DRIVER SIDE SECOND ROW SEAT BELT SWITCH
DRIVER SIDE SILL PANEL STRIP AMBIENT LIGHTING LAMP
DRIVER THORAX AIR BAG IGNITER
HEATING ELEMENT CONTROL MODULE 1
LEFT FOOTWELL LAMP
LEFT FRONT SEAT COUPLING STATION
LEFT REAR AIR VENT ILLUMINATION BULB
LEFT REAR BACKREST HEATING ELEMENT
LEFT REAR BENCH SEAT HEATING ELEMENT
LEFT REAR INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE
LEFT REAR SEAT COUPLING STATION
MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE
TO LEFT REAR DOOR COUPLING POINT (DIAGRAM 8 OF 12)
TRANSMISSION CONTROL MODULE
TRANSMISSION FLUID COOLER COUPLING POINT
W/ AMBIENT LIGHTING
W/ AUXILIARY LAMPS
W/O SEAT VENTILATION W/ SEAT VENTILATION
WHT WIRE
WHT/BRN WIRE
Go to component -> Ground distribution circuit (7 of 12) -> BRN WIRE

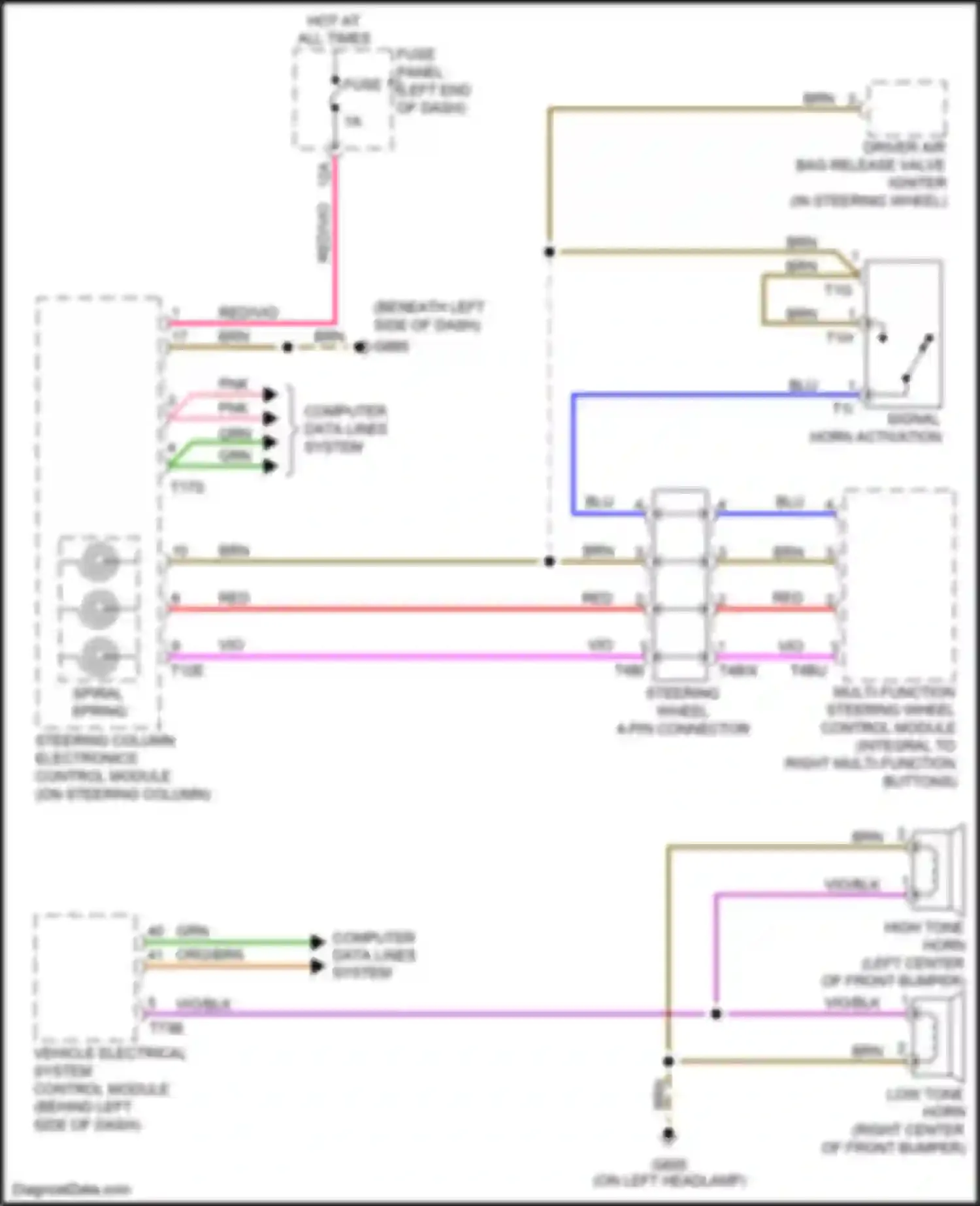

brn wiring diagram (137 of 235)
BLU WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
DRIVER AIR BAG RELEASE VALVE IGNITER
FUSE 12
FUSE PANEL F
GRN WIRE
HIGH TONE HORN
HOT AT ALL TIMES
LOW TONE HORN
MULTI-FUNCTION STEERING WHEEL CONTROL MODULE
ORG/BRN WIRE
PNK WIRE
RED WIRE
RED/VIO WIRE
SIGNAL HORN ACTIVATION
SPIRAL SPRING
STEERING COLUMN ELECTRONICS CONTROL MODULE
STEERING WHEEL 4-PIN CONNECTOR
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
VIO WIRE
VIO/BLK WIRE
Go to component -> Horn circuit -> BRN WIRE
brn wiring diagram (138 of 235)
ABS CONTROL MODULE
AUTO- HOLD
BRN WIRE
BRN/BLK WIRE
BRN/WHT WIRE
BULB
BUTTON
COMPUTER DATA LINES SYSTEM
ELECTRO- MECHANICAL
FUSE 11
FUSE 4
FUSE 6
FUSE PANEL B
FUSE PANEL E
GRN WIRE
GRN/RED WIRE
GRN/VIO WIRE
GRY/BLK WIRE
GRY/BRN WIRE
GRY/RED WIRE
GRY/YEL WIRE
HOT AT ALL TIMES
ILLUMINATION
INDICATOR LAMP
LEFT PARKING BRAKE MOTOR
ORG/BRN WIRE
PARKING BRAKE
PARKING BRAKE BUTTON (UNDER FRONT CENTER CONSOLE)
PNK WIRE
PUSH BUTTON
RED/BLK WIRE
RED/BRN WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT PARKING BRAKE MOTOR
VEHICLE ELECTRICAL SYSTEM CONTROL MODULE
VIO/BLK WIRE
WHT WIRE
Go to component -> Park brake release circuit -> BRN WIRE
brn wiring diagram (139 of 235)
ABS CONTROL MODULE
BLK/BLU WIRE
BLU WIRE
BRAKE LAMP SWITCH
BRAKE PEDAL POSITION SENSOR
BRN WIRE
CENTER COUPLING POINT IN INTERIOR
COMFORT SYSTEM CENTRAL CONTROL MODULE
COMPUTER DATA LINES
COMPUTER DATA LINES SYSTEM
D/S
ENGINE/MOTOR CONTROL MODULE
FUSE 5
FUSE 9
FUSE PANEL A
FUSE PANEL M
GRN WIRE
HOT AT ALL TIMES
HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED
INSTRUMENT CLUSTER CONTROL MODULE
NCA WIRE
ORG/BRN WIRE
PARKING LOCK BUTTON
PARKING LOCK IND LAMP
PNK WIRE
RED WIRE
SELECTOR LEVER
SELECTOR LEVER POSITION SENSOR
SELECTOR LEVER RELEASE BUTTON
SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE
SELECTOR LEVER TRANSMISSION RANGE DISPLAY
SHIFT LOCK SOLENOID
SYSTEM
TRANSMISSION CONTROL MODULE
TRANSVERSE SELECTOR LEVER LOCK MOTOR
TRANSVERSE SELECTOR LEVER LOCK SENSOR
VIO/RED WIRE
VIO/WHT WIRE
Go to component -> Shift interlock circuit -> BRN WIRE
