Audi A8 D2 facelift (1999–2002) wiring diagrams

List of systems:

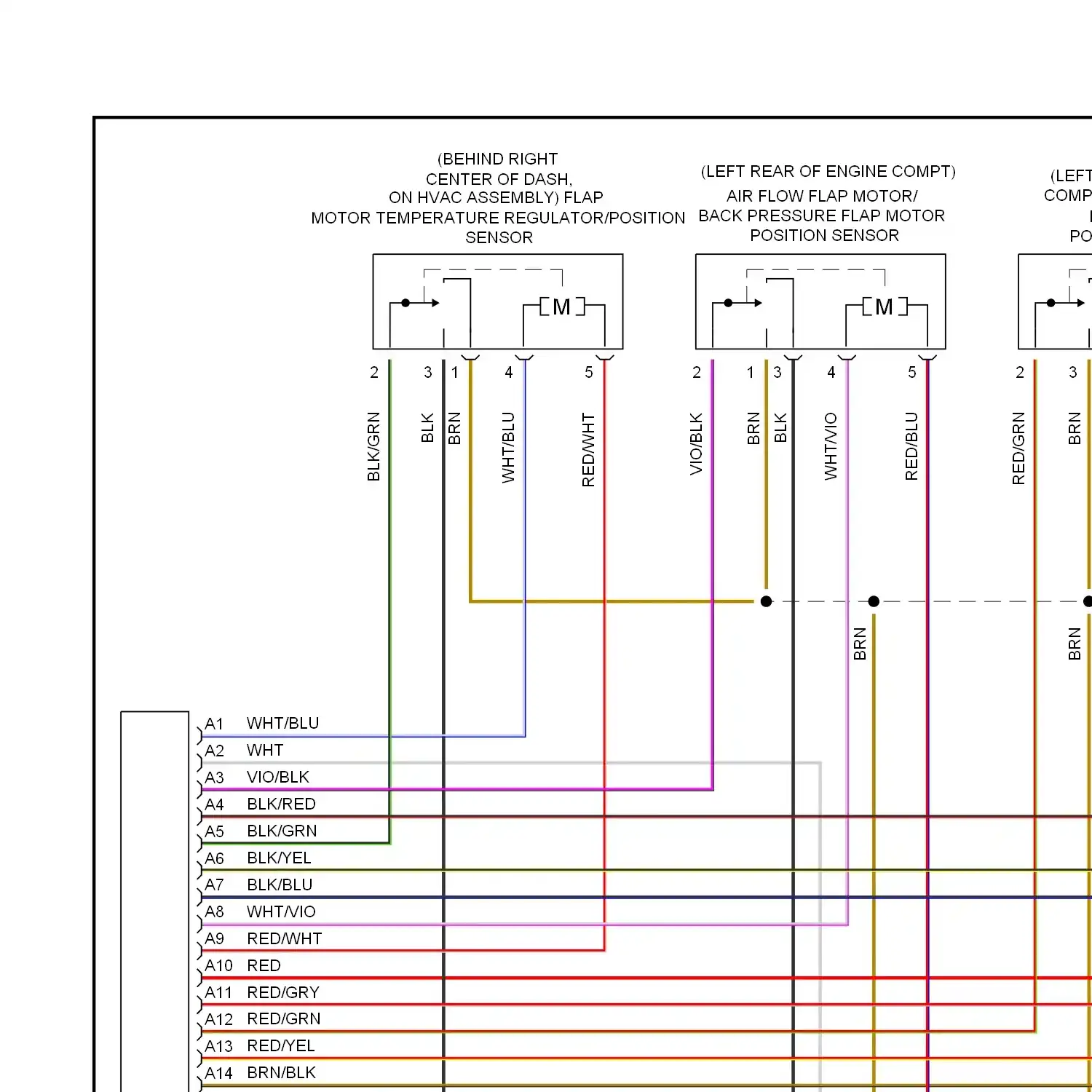

Automatic a/c circuit

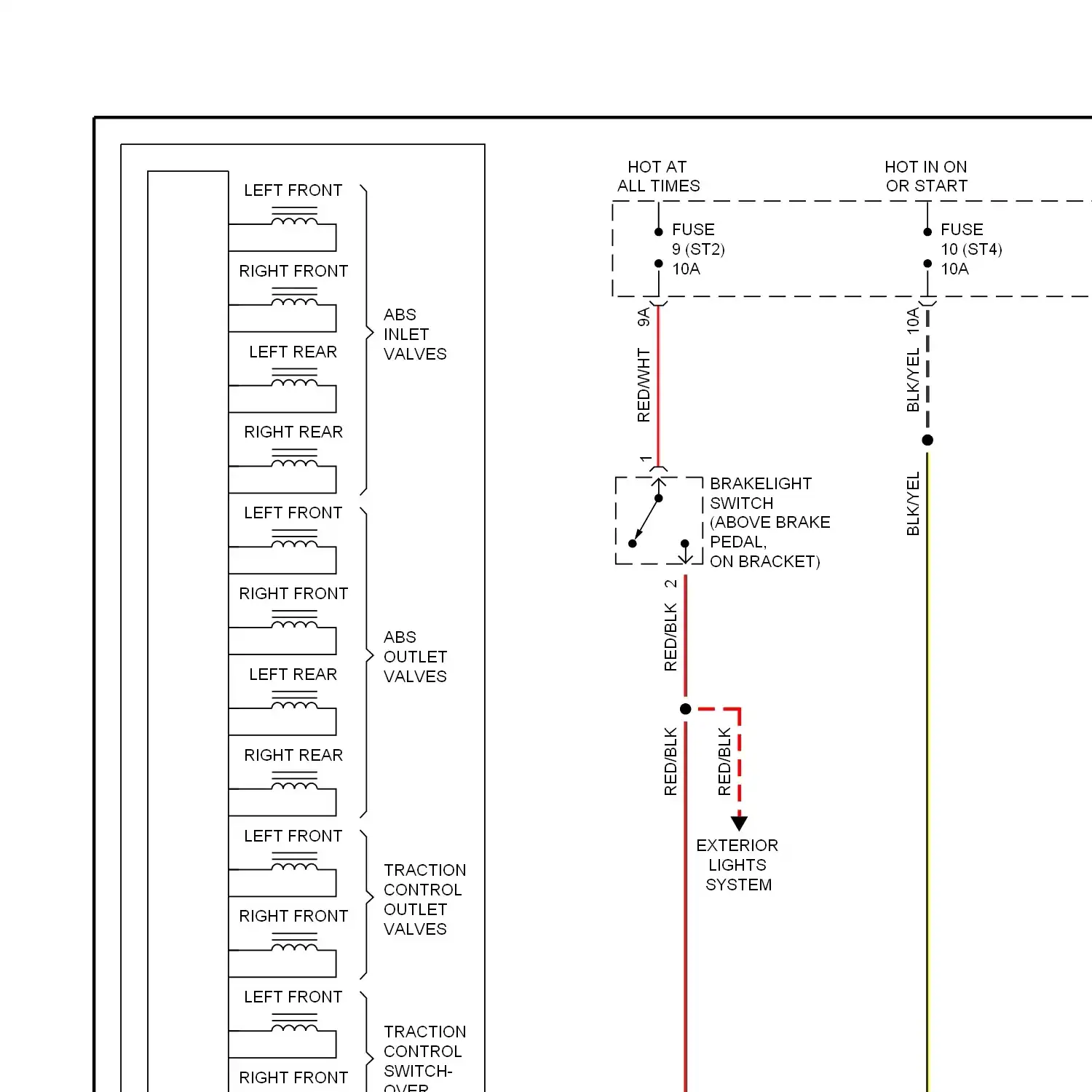

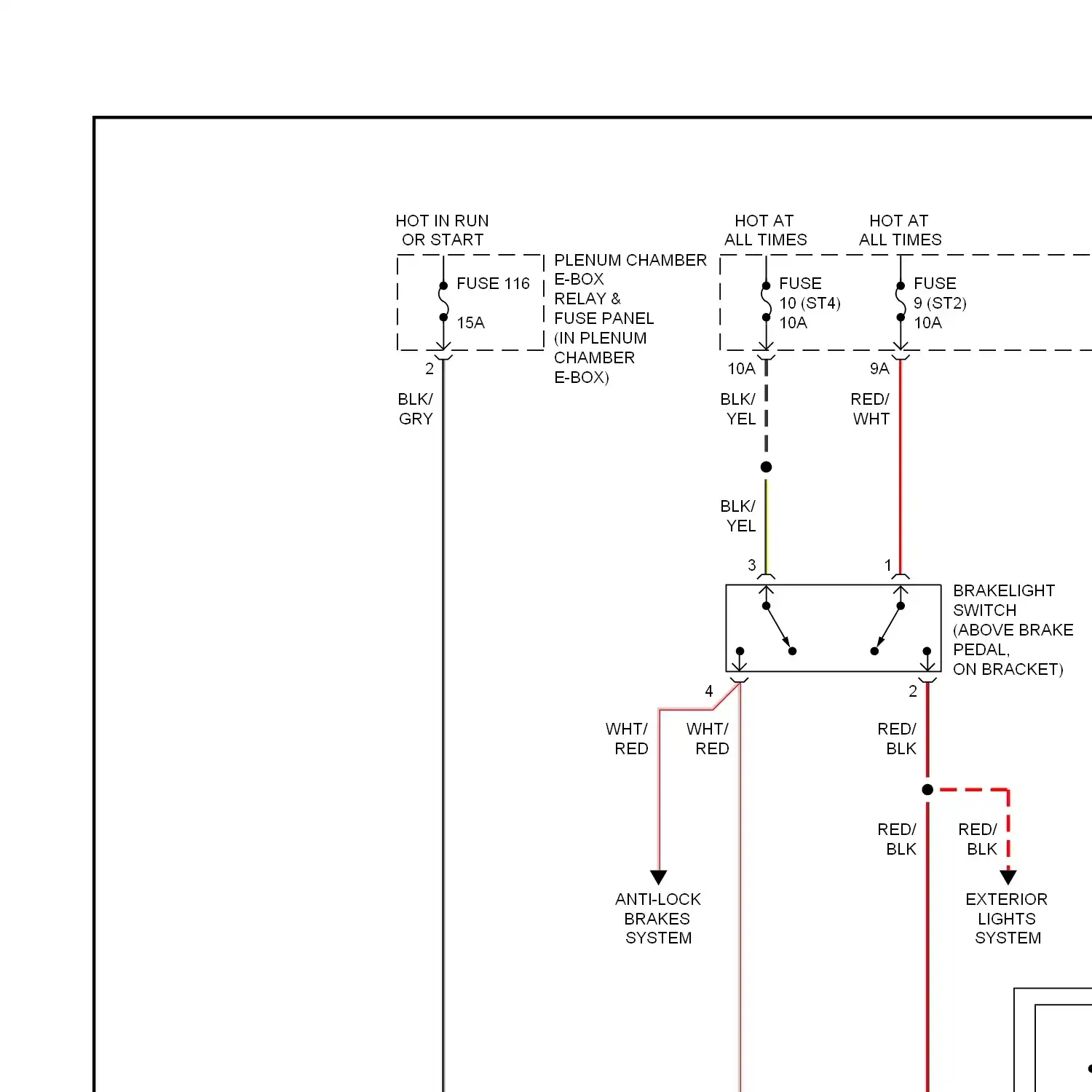

Anti-lock brakes circuit, without traction control Anti-lock brakes circuit, with traction control

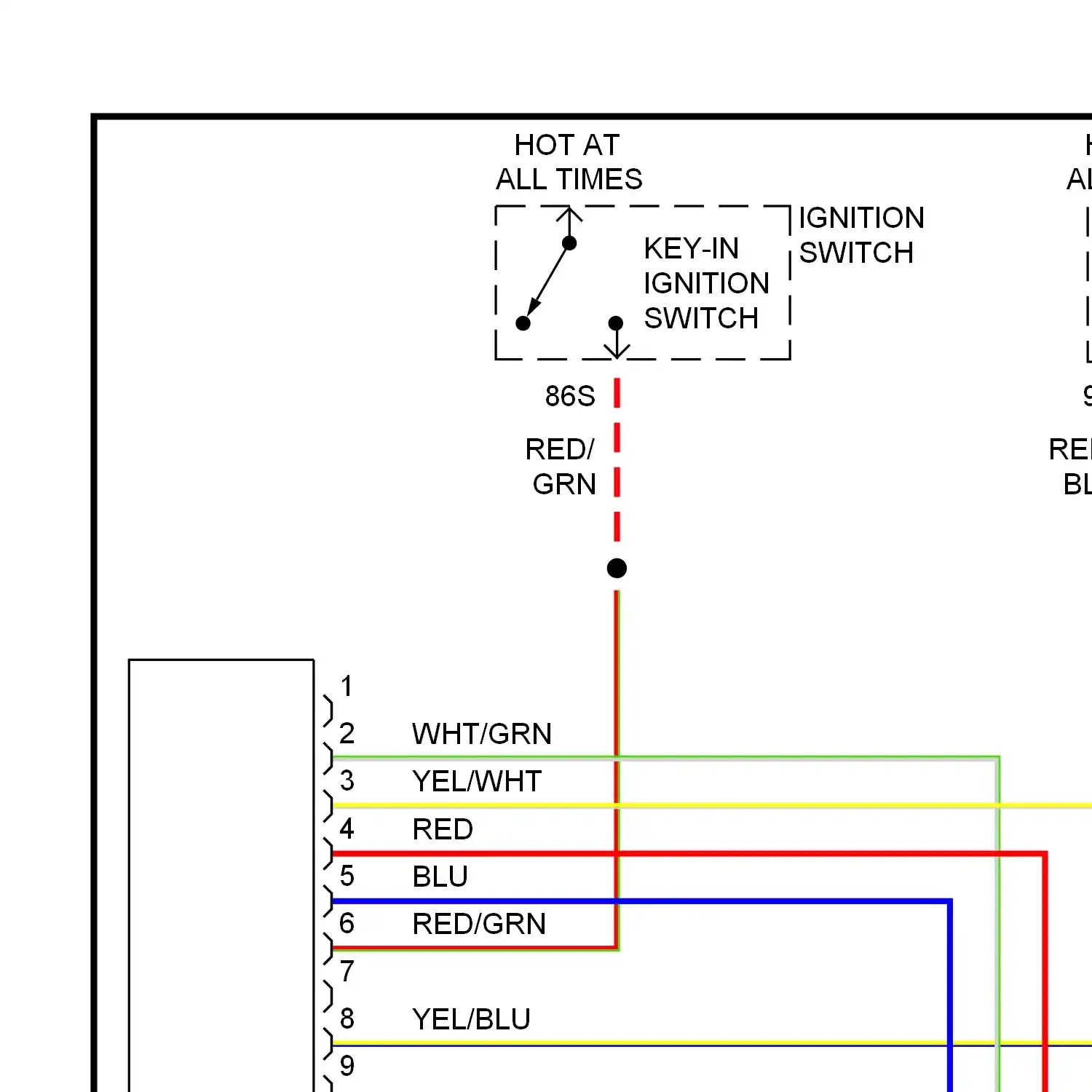

Power door locks circuit

Computer data lines circuit

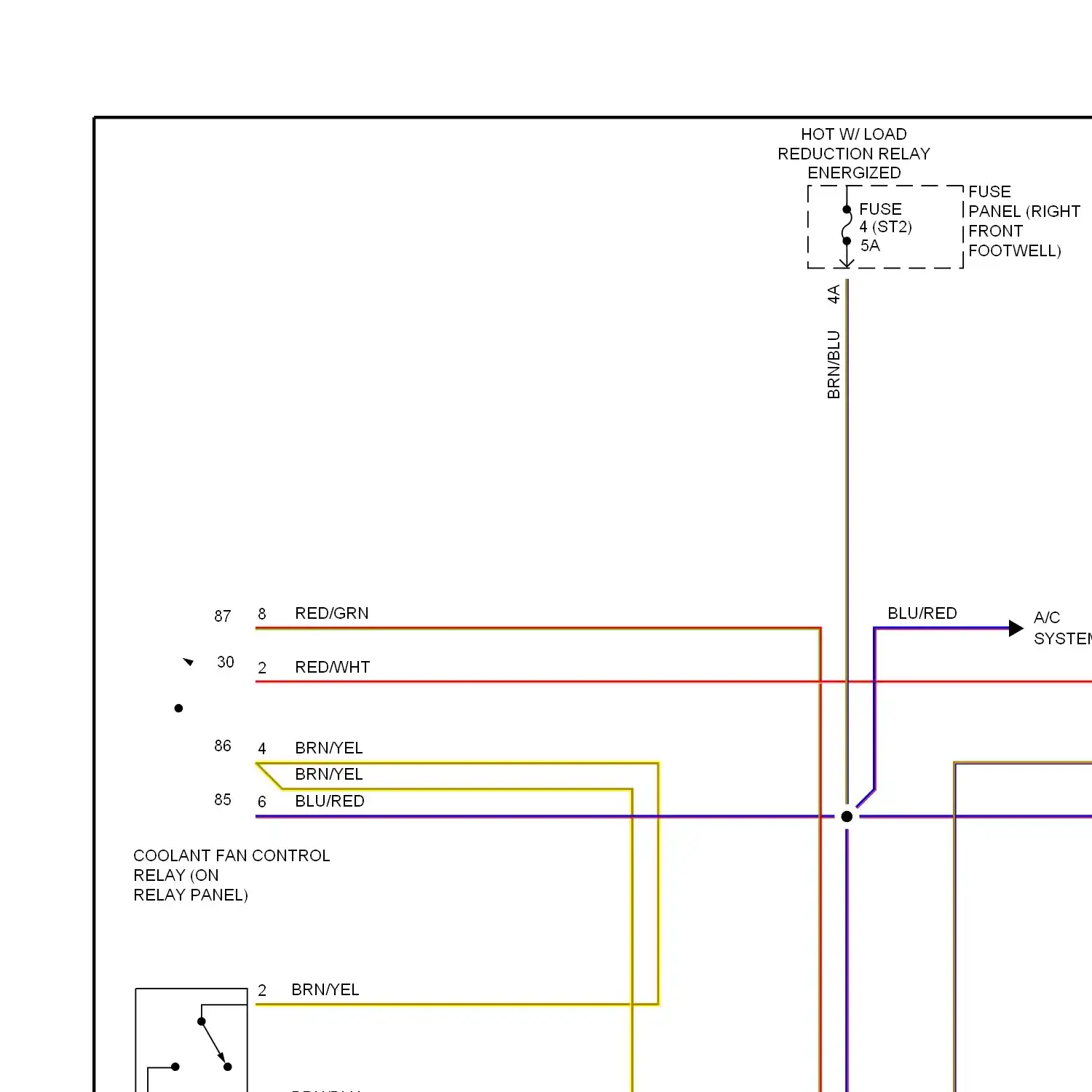

Cooling fan circuit

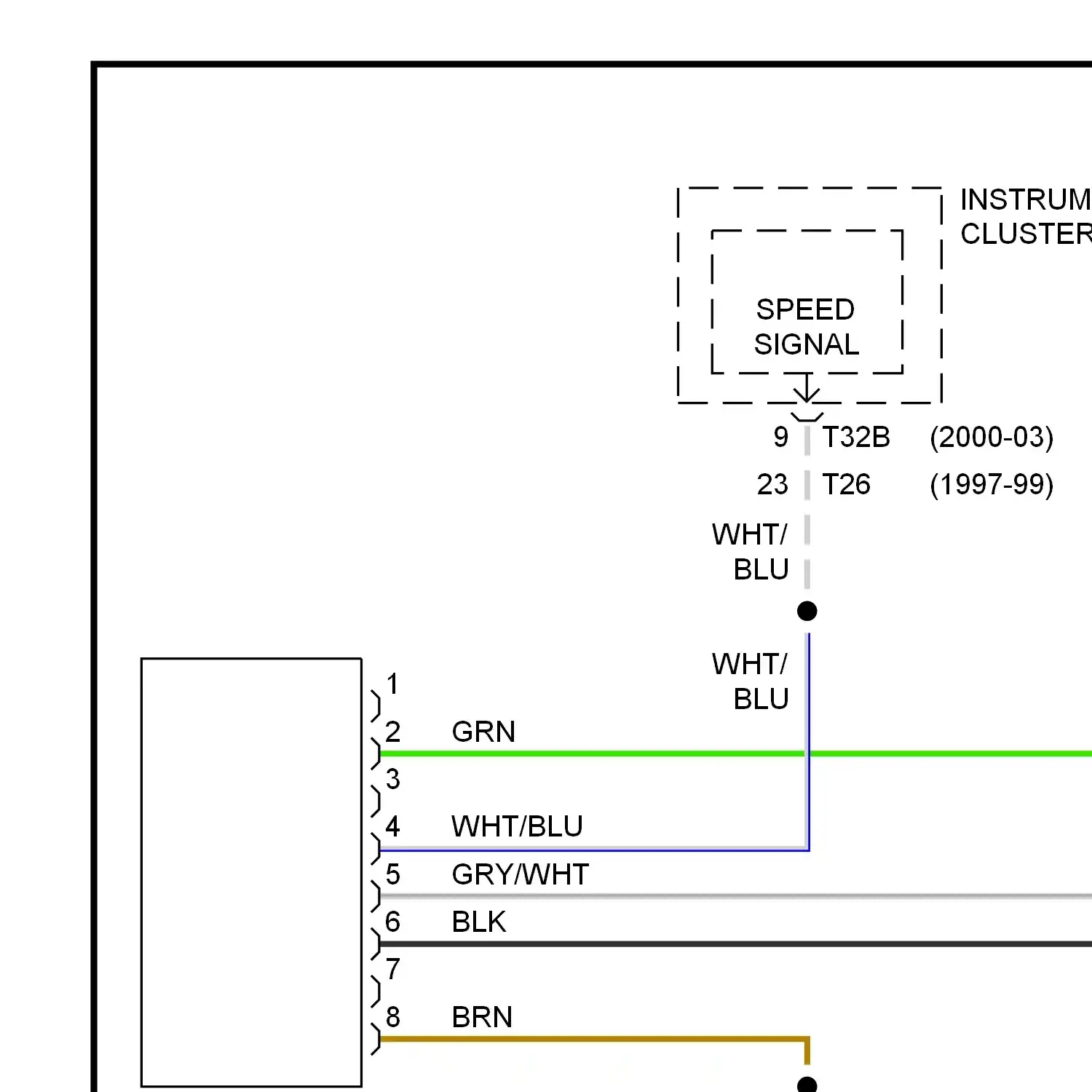

Cruise control circuit

Defoggers circuit

Electronic power steering circuit Power steering column circuit

Wiring diagram engine performance 4.2l

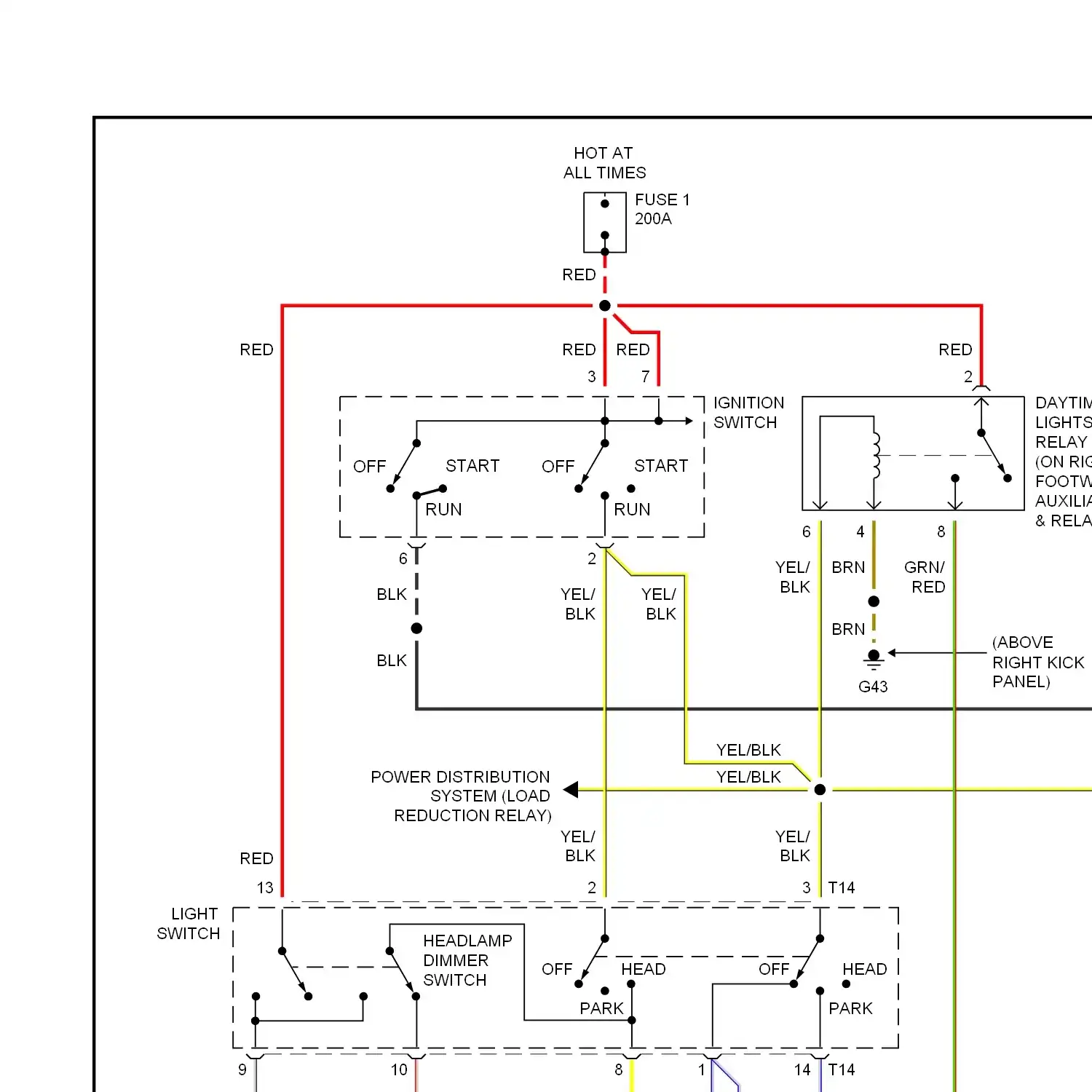

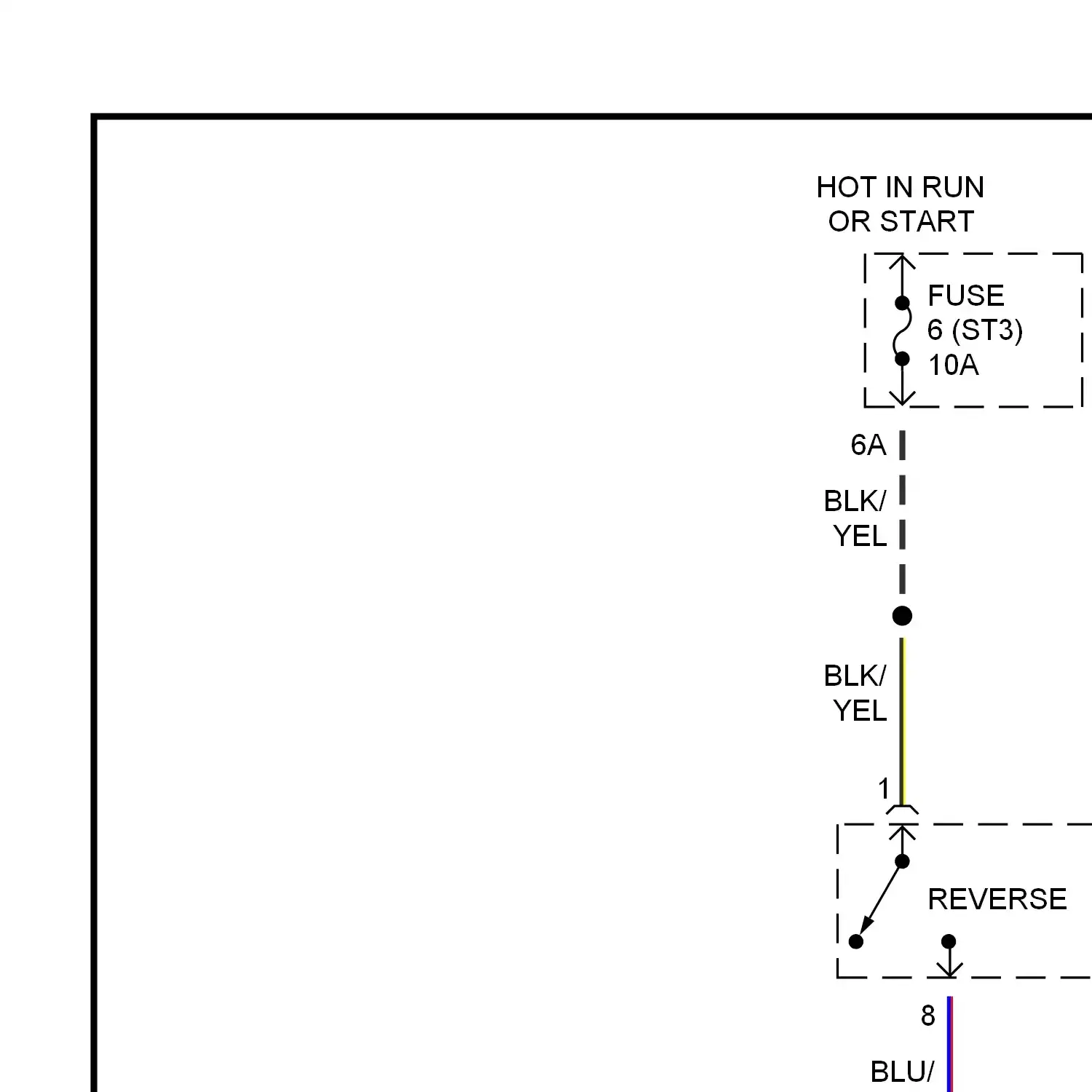

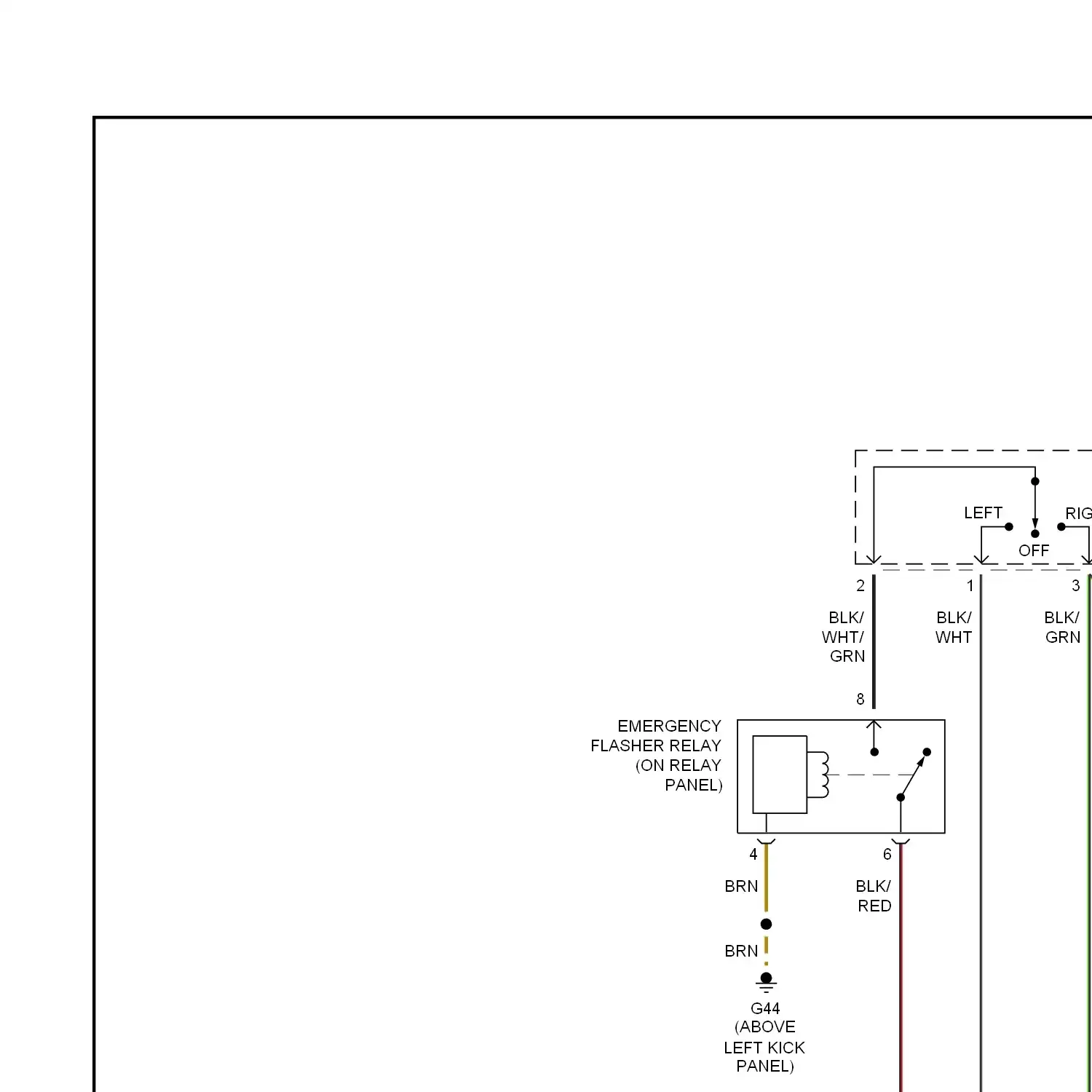

Back-up lamps circuit Exterior lamps circuit, with drl Exterior lamps circuit, without drl

Ground distribution circuit

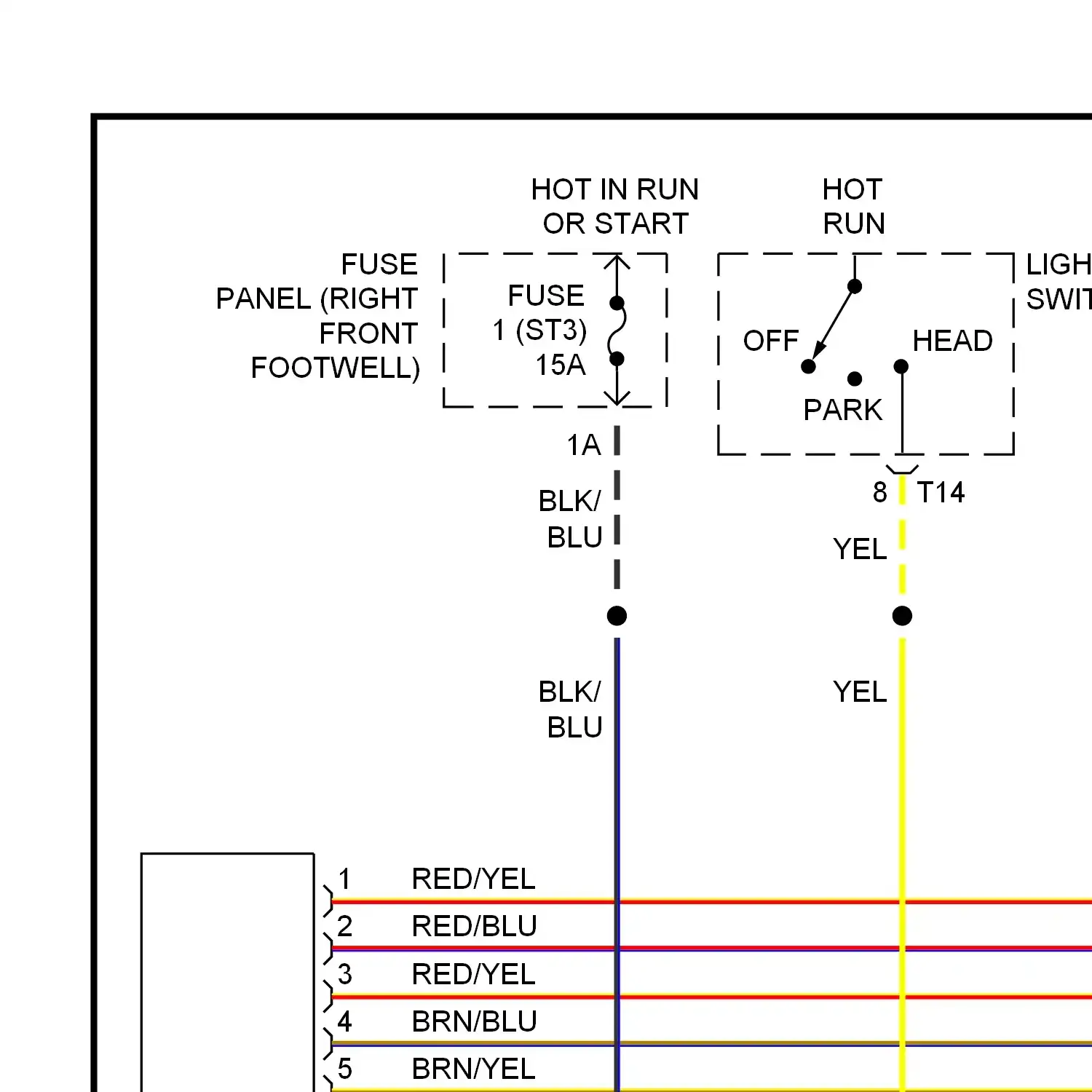

Headlamp beam adjustment circuit Headlamps & fog lamps circuit, with drl Headlamps & fog lamps circuit, without drl

Horn circuit, without telematics

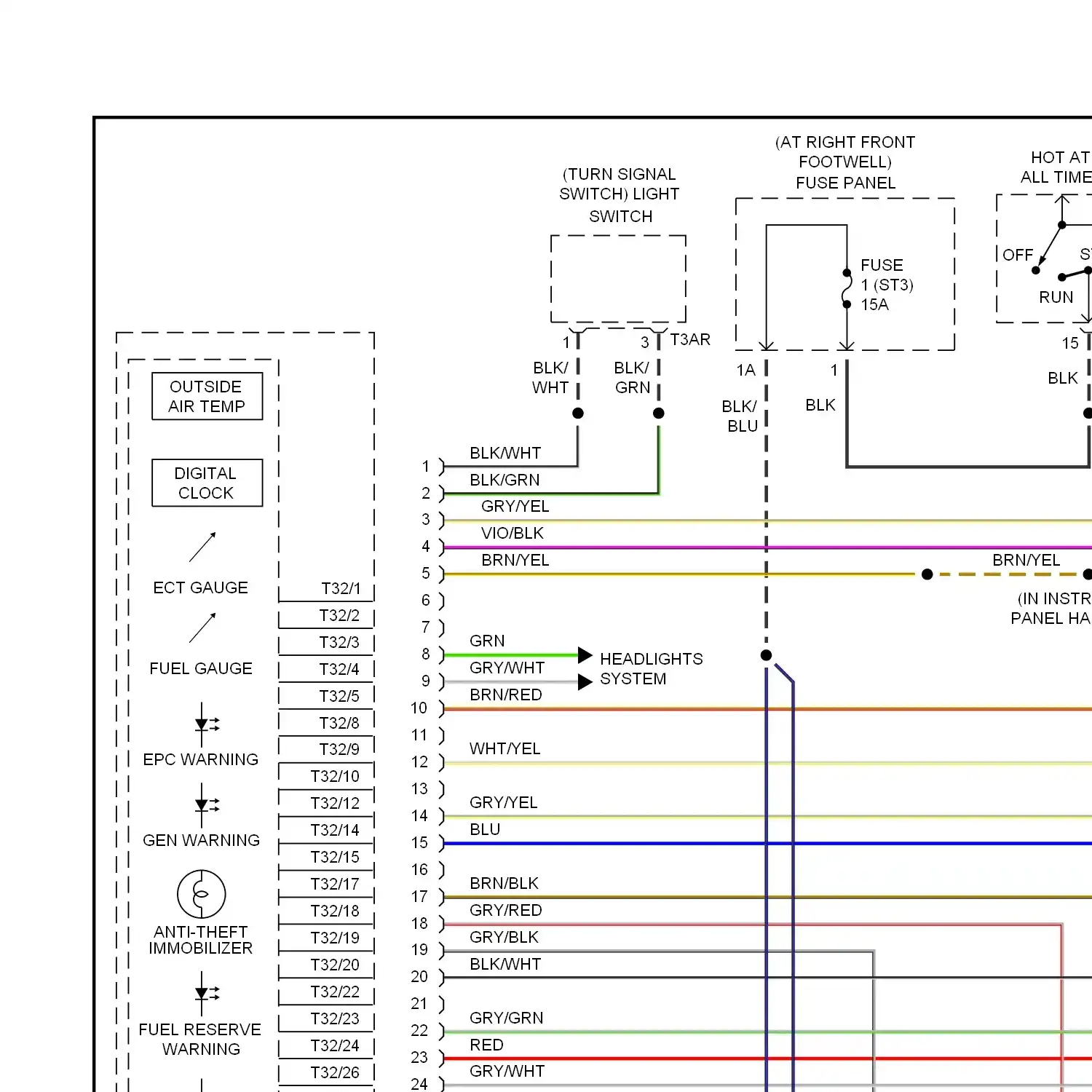

Instrument cluster circuit

Interior lights circuit

Driver"s memory seat circuit Memory mirrors circuit

Navigation circuit

Power antenna circuit

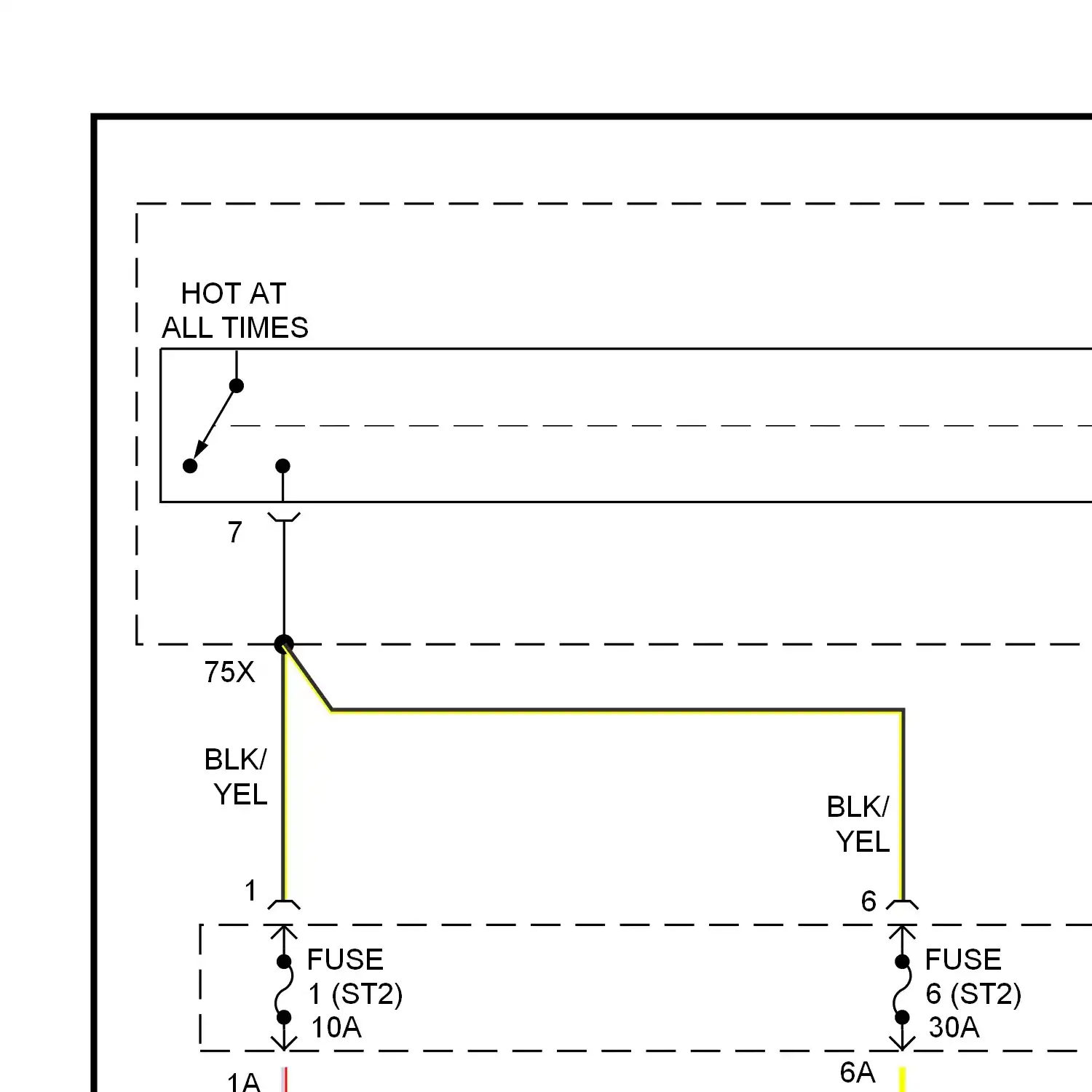

Power distribution circuit

Automatic day/night mirror circuit Fold-back mirrors circuit

Driver"s lumbar circuit Front seat heater circuit Heated steering wheel circuit Passenger seat circuit Rear heated seats circuit Rear lumbar circuit Rear power headrest circuit

Sunroof circuit

Power windows circuit Rear window sun shade circuit

Radio circuit

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit

Trunk release circuit

Wiper/washer circuit
