Audi A6 C8 (2018-2023) brn Wiring diagrams

BLK WIRE BLK/VIO WIRE BLU WIRE BRN WIRE CENTER COUPLING POINT ON INSTRUMENT PANEL COMPUTER DATA LINES SYSTEM EMERGENCY CALL MODULE ANTENNA 2 EMERGENCY CALL MODULE SPEAKER EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE FUSE 7 FUSE PANEL M GPS ANTENNA GRN WIRE GRY/YEL WIRE HOT AT ALL TIMES NCA WIRE ORG/BRN WIRE ORG/VIO WIRE PNK WIRE RED/GRY WIRE RIGHT REAR BUMPER EMERGENCY CALL MODULE ANTENNA ROOF ANTENNA SUPPLEMENTAL RESTRAINTS SYSTEM VEHICLE INTERIOR COMMUNICATION ANTENNA VIO/GRY WIRE W/ VEHICLE POSITIONING SYSTEM, W/O NAVIGATION SYSTEM WHT WIRE YEL WIRE

BLK WIRE BRN WIRE COMPUTER DATA LINES SYSTEM FRONT ROOF MODULE MICROPHONE UNIT FUSE 2 FUSE PANEL G GRN WIRE HOT AT ALL TIMES INFORMATION ELECTRONICS CONTROL MODULE 1 NCA WIRE ORG/BRN WIRE RED WIRE RED/YEL WIRE RIGHT FRONT MICROPHONE RIGHT REAR BUMPER LTE ANTENNA 2 VIO/GRY WIRE W/ MOBILE ONLINE SERVICES WHT WIRE

BLK/WHT WIRE BLU WIRE BRN WIRE COMPUTER DATA LINES SYSTEM DISPLAY UNIT DRIVER DOOR CONTROL MODULE DRIVER EXTERIOR REAR VIEW MIRROR FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER EXTERIOR REAR VIEW MIRROR FUSE 4 FUSE PANEL M GRN WIRE GRN/WHT WIRE GRY WIRE HOT AT ALL TIMES INSTRUMENT CLUSTER CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE 2 LANE CHANGE ASSISTANCE INDICATOR LAMP LANE CHANGE ASSISTANCE WARNING LAMP ORG/BRN WIRE PNK WIRE PNK/WHT WIRE

BLK WIRE BLK/YEL WIRE BRN WIRE DRIVER ASSISTANCE SYSTEMS CONTROL MODULE DRIVER ASSISTANCE SYSTEMS FRONT CAMERA FUSE 11 FUSE PANEL E HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED NCA WIRE RED WIRE RED/WHT WIRE RED/YEL WIRE WINDOW DEFOGGER FOR FRONT SENSOR SYSTEM YEL WIRE

ANTENNA ANTENNA AMPLIFIER (RIGHT "C" PILLAR) BLK WIRE BLK/GRY WIRE BLU/GRY WIRE BOTTOM COUPLING POINT ON LEFT A-PILLAR BRN WIRE CELLULAR TELEPHONE AMPLIFIER CENTER COUPLING POINT ON INSTRUMENT PANEL CENTER SPEAKER CENTER SPEAKER 2 COMPUTER DATA LINES SYSTEM DRIVER VOLUME CONTROL FUSE 6 FUSE PANEL F GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE HOT AT ALL TIMES INFORMATION ELECTRONICS CONTROL MODULE 1 (RIGHT SIDE OF DASH) MOST DATA BUS CIRCUIT NCA WIRE ORG/BRN WIRE RED WIRE RED/BLU WIRE RED/GRN WIRE SOUND SYSTEMS VIO WIRE WHT/BLU WIRE WHT/GRN WIRE

ACCESS START AUTHORIZATION BUTTON AUDIO MUSIC INTERFACE BLK WIRE BLU WIRE BLU/GRN WIRE BOTTOM COUPLING POINT ON LEFT A-PILLAR BOTTOM COUPLING POINT ON RIGHT A-PILLAR BRN WIRE CENTER COUPLING POINT ON INSTRUMENT PANEL DATA BUS ON BOARD DIAGNOSTIC INTERFACE (W/ VEHICLE EMERGENCY SYSTEM) FRONT ROOF MODULE MICROPHONE UNIT FUSE 2 FUSE 3 FUSE PANEL G GRN WIRE GRY/GRN WIRE HOT AT ALL TIMES LEFT FRONT MICROPHONE NCA WIRE ORG/ WIRE RED/BLK WIRE RED/YEL WIRE RIGHT FRONT MICROPHONE USB CONNECTION 1 USB DISTRIBUTOR (REAR OF CENTER CONSOLE) W/ EXTERNAL AUDIO SOURCE CONNECTION YEL/GRN WIRE

BLK/BRN WIRE BRN WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/WHT WIRE CENTER CONSOLE SWITCH MODULE 1 COMPUTER DATA LINES SYSTEM FRONT PARKING AID WARNING BUZZER FUSE 2 FUSE 5 FUSE PANEL E FUSE PANEL F GRN WIRE GRN/BLK WIRE GRN/VIO WIRE GRY WIRE GRY/BLU WIRE GRY/RED WIRE HOT AT ALL TIMES HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED LEFT FRONT BUMPER COUPLING POINT LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT PARKING AID SENSOR LEFT REAR BUMPER COUPLING POINT LEFT REAR CENTER PARKING AID SENSOR LEFT REAR PARKING AID SENSOR ORG/BRN WIRE PARKING AID BUTTON PARKING AID INDICATOR LAMP RED/BLU WIRE RED/YEL WIRE RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR PARKING AID SENSOR VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/BLU WIRE WHT/GRY WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE

BLK WIRE BLK/BRN WIRE BLK/YEL WIRE BLU WIRE BOTTOM COUPLING POINT ON LEFT A-PILLAR BRN WIRE BRN/GRN WIRE CENTER COUPLING POINT ON INSTRUMENT PANEL COMPUTER DATA LINES SYSTEM FUSE 5 FUSE PANEL F GRN WIRE GRN/BLK WIRE GRN/VIO WIRE GRY/BLU WIRE GRY/RED WIRE HOT AT ALL TIMES INFORMATION ELECTRONICS CONTROL MODULE 1 LEFT REAR BUMPER COUPLING POINT LEFT REAR CENTER PARKING AID SENSOR LEFT REAR PARALLEL PARKING ASSISTANCE SENSOR LEFT REAR PARKING AID SENSOR ORG/ WIRE PARALLEL PARKING ASSISTANCE BUTTON PARALLEL PARKING ASSISTANCE INDICATOR LAMP PARKING AID BUTTON PARKING AID INDICATOR LAMP RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR PARALLEL PARKING ASSISTANCE SENSOR RIGHT REAR PARKING AID SENSOR VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/BLU WIRE WHT/BLK WIRE WHT/GRN WIRE YEL/GRY WIRE YEL/RED WIRE

BLK WIRE BLK/BRN WIRE BLK/YEL WIRE BRN WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM FRONT PARKING AID WARNING BUZZER FUSE 2 FUSE PANEL E GRN WIRE GRN/BLK WIRE GRN/VIO WIRE GRY WIRE GRY/BLU WIRE HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED LEFT FRONT BUMPER COUPLING POINT LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT PARALLEL PARKING ASSISTANCE SENSOR LEFT FRONT PARKING AID SENSOR ORG/BRN WIRE RED/BLU WIRE RED/YEL WIRE RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR RIGHT FRONT PARKING AID SENSOR VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/BLU WIRE WHT/GRN WIRE WHT/GRY WIRE YEL WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE

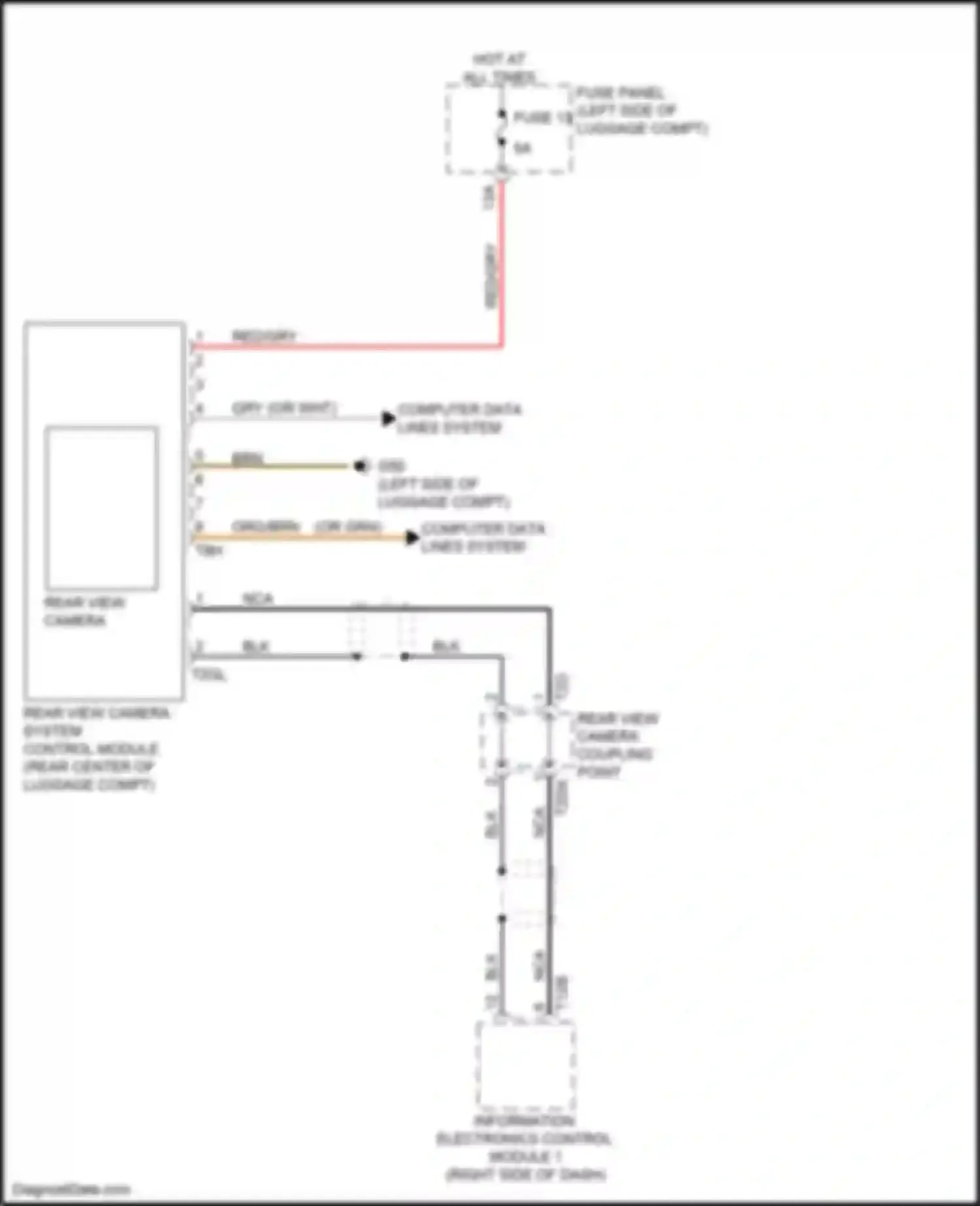

BLK WIRE BRN WIRE COMPUTER DATA LINES SYSTEM FUSE 13 FUSE PANEL M GRY WIRE HOT AT ALL TIMES INFORMATION ELECTRONICS CONTROL MODULE 1 NCA WIRE ORG/BRN WIRE REAR VIEW CAMERA REAR VIEW CAMERA COUPLING POINT REAR VIEW CAMERA SYSTEM CONTROL MODULE RED/GRY WIRE
