Wiring diagram: Headlights — Headlights circuit, without hid with cornering headlights Audi A6 C7
All systems
- Air conditioning 4
- Anti-lock brakes
- Anti-theft
- Body control modules 3
- Computer data lines
- Cooling fan
- Cruise control
- Defoggers
- Electronic power steering 3
- Electronic suspension
- Engine performance 2.0l turbo
- Engine performance 3.0l sc
- Exterior lights 3
- Ground distribution
- Headlights 4
- Horn
- Instrument cluster
- Interior lights 2
- Memory systems 3
- Navigation 6
- Power distribution
- Power door locks
- Power mirrors
- Power seats 7
- Power top/sunroof
- Power windows 2
- Radio 9
- Shift interlock 3
- Starting/charging 2
- Supplemental restraints
- Transmission 3
- Trunk, tailgate, fuel door
- Warning systems
- Wiper/washer 2

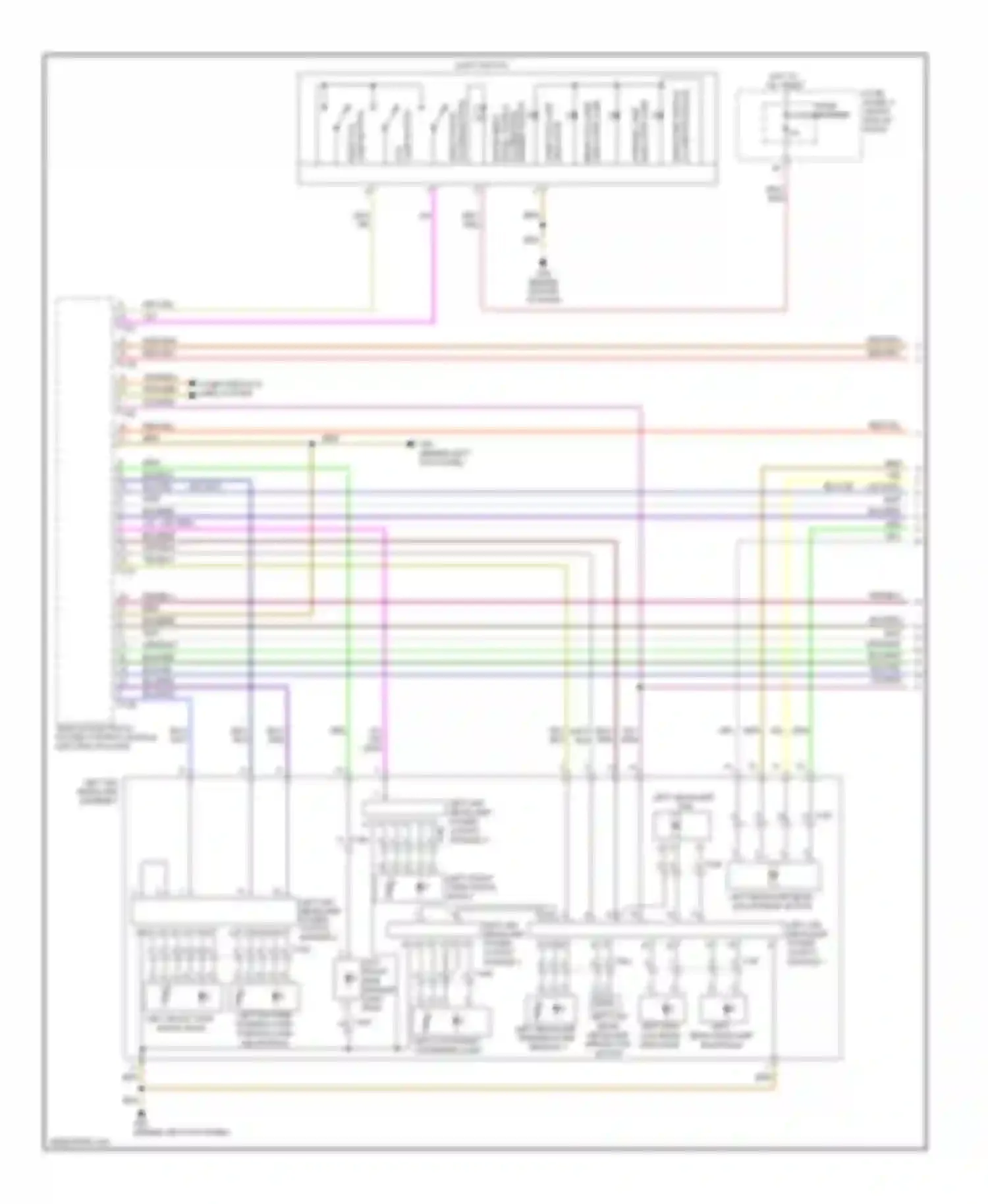

Headlights circuit, without hid with cornering headlights (1 of 2) Audi A6 C7
Components on the diagram

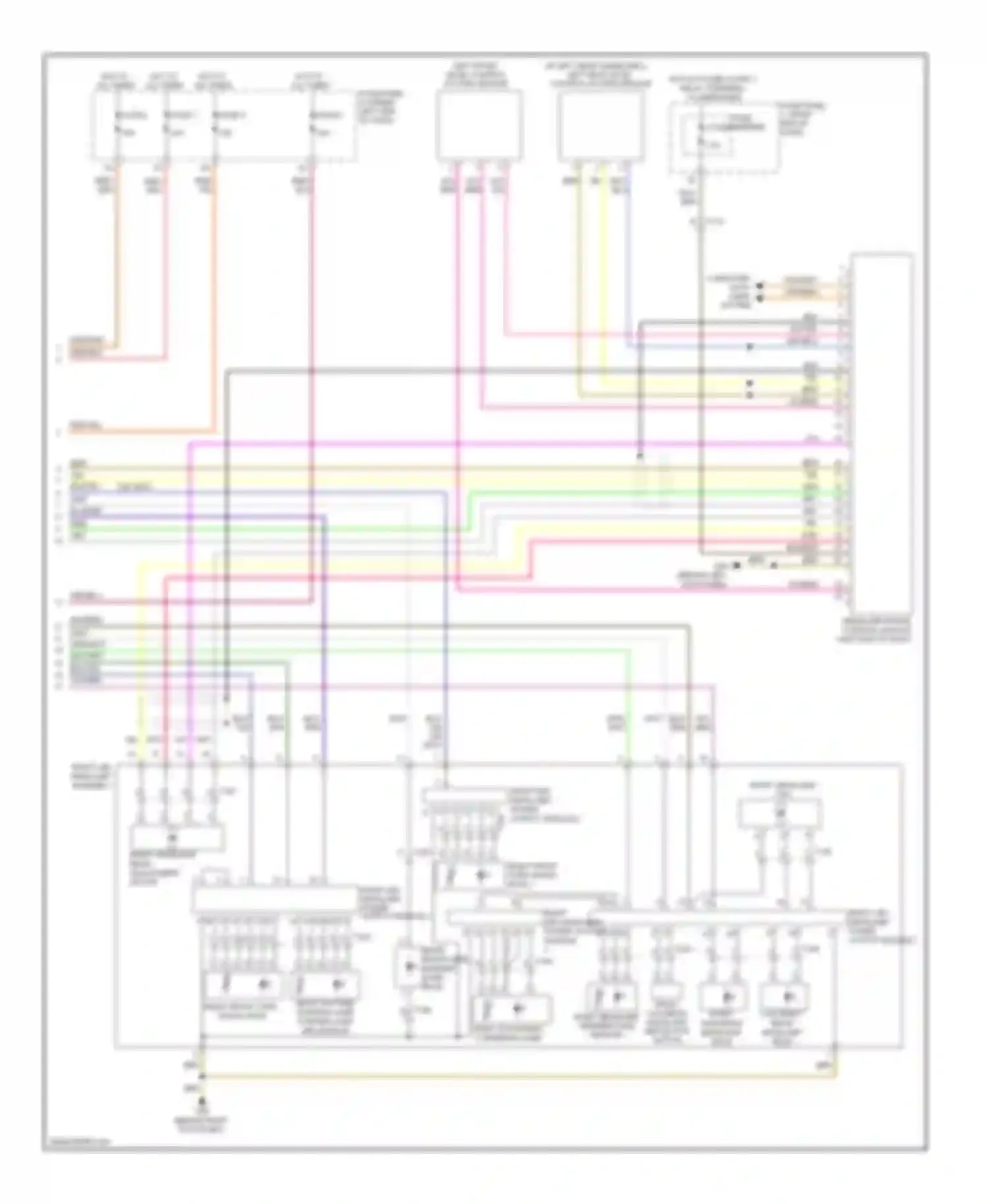

Headlights circuit, without hid with cornering headlights (2 of 2) Audi A6 C7
Components on the diagram
Components on these wiring diagrams
Click a component to highlight it on every diagram it appears on.
