Audi A6 C5 (1997–2001) wiring diagrams

List of systems:

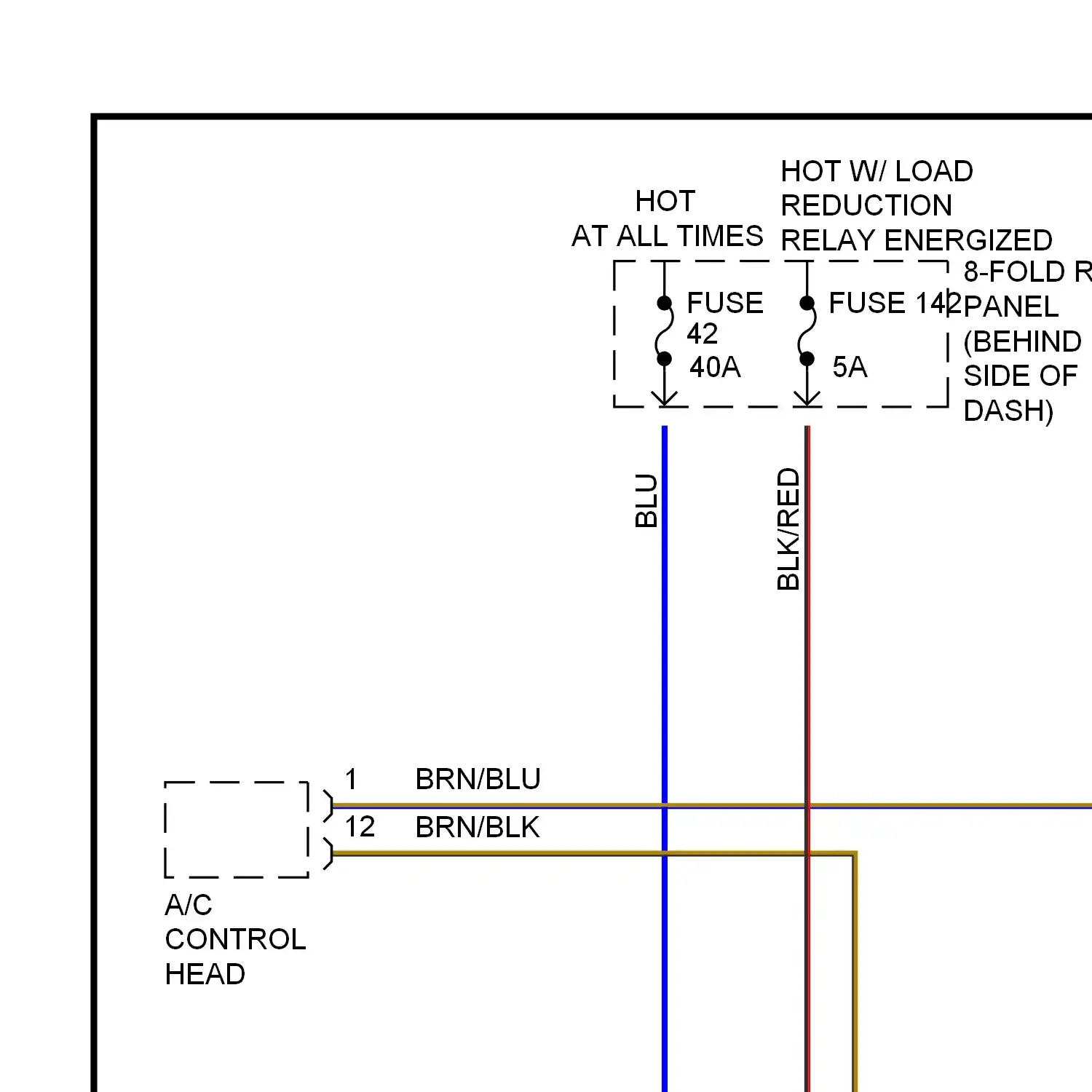

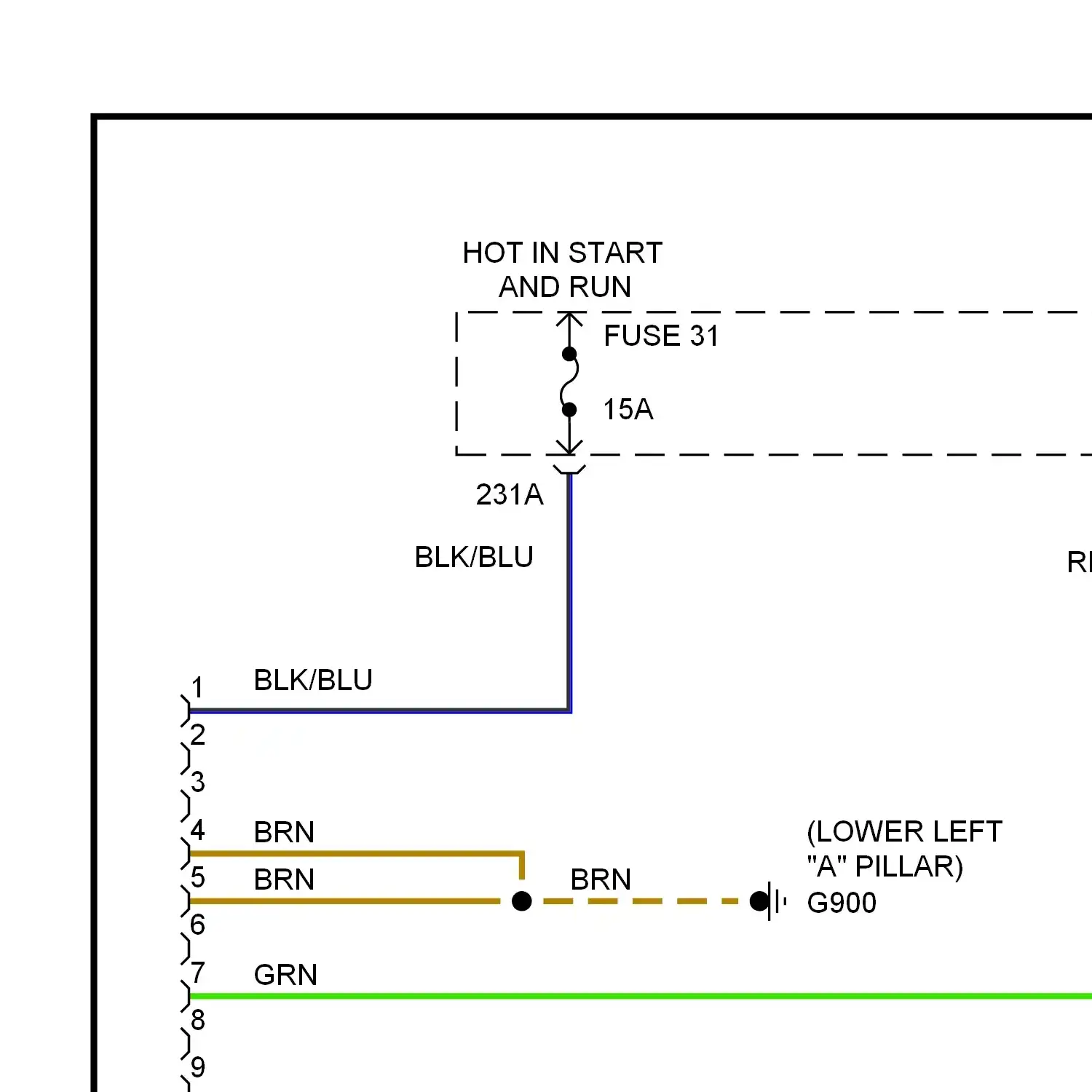

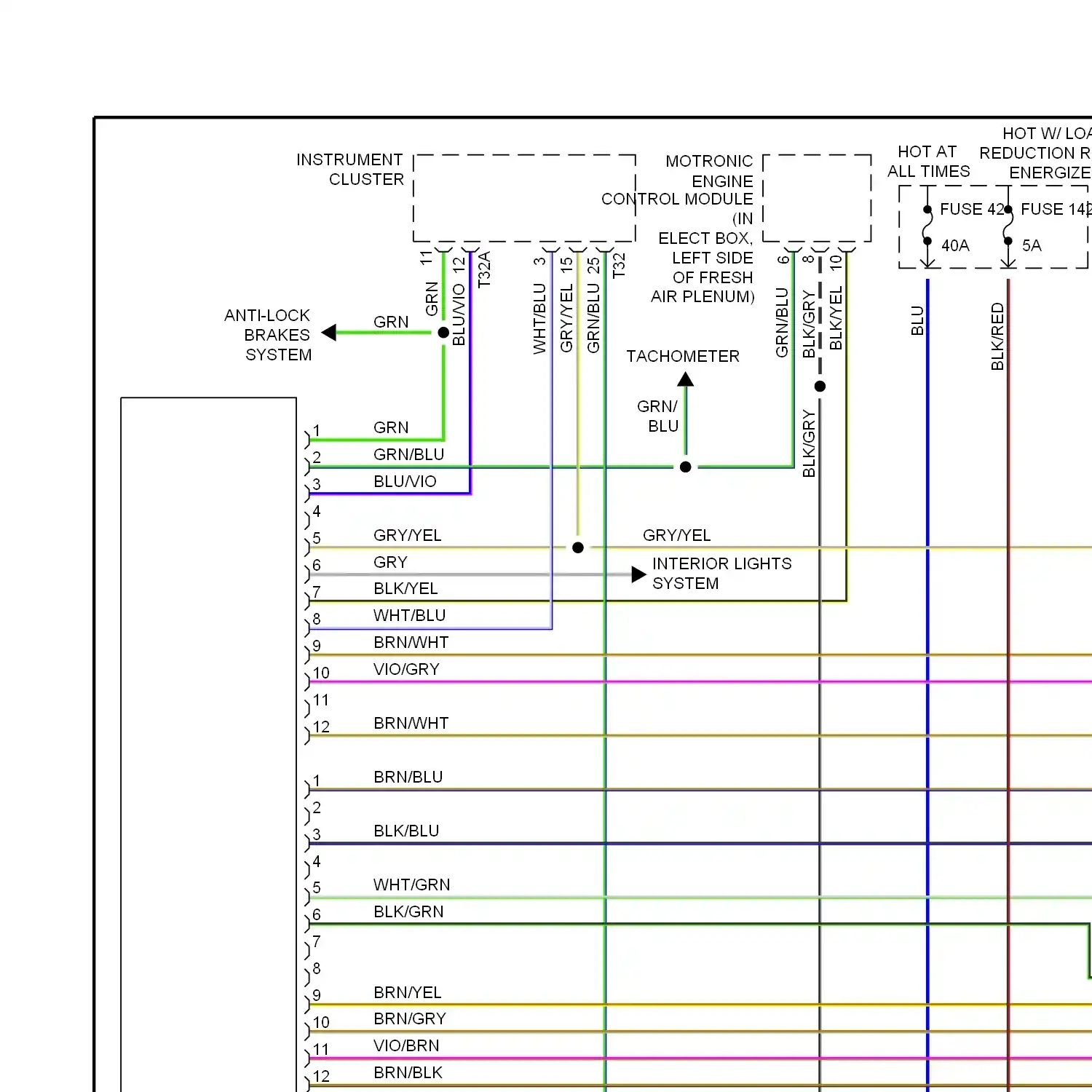

Automatic a/c circuit

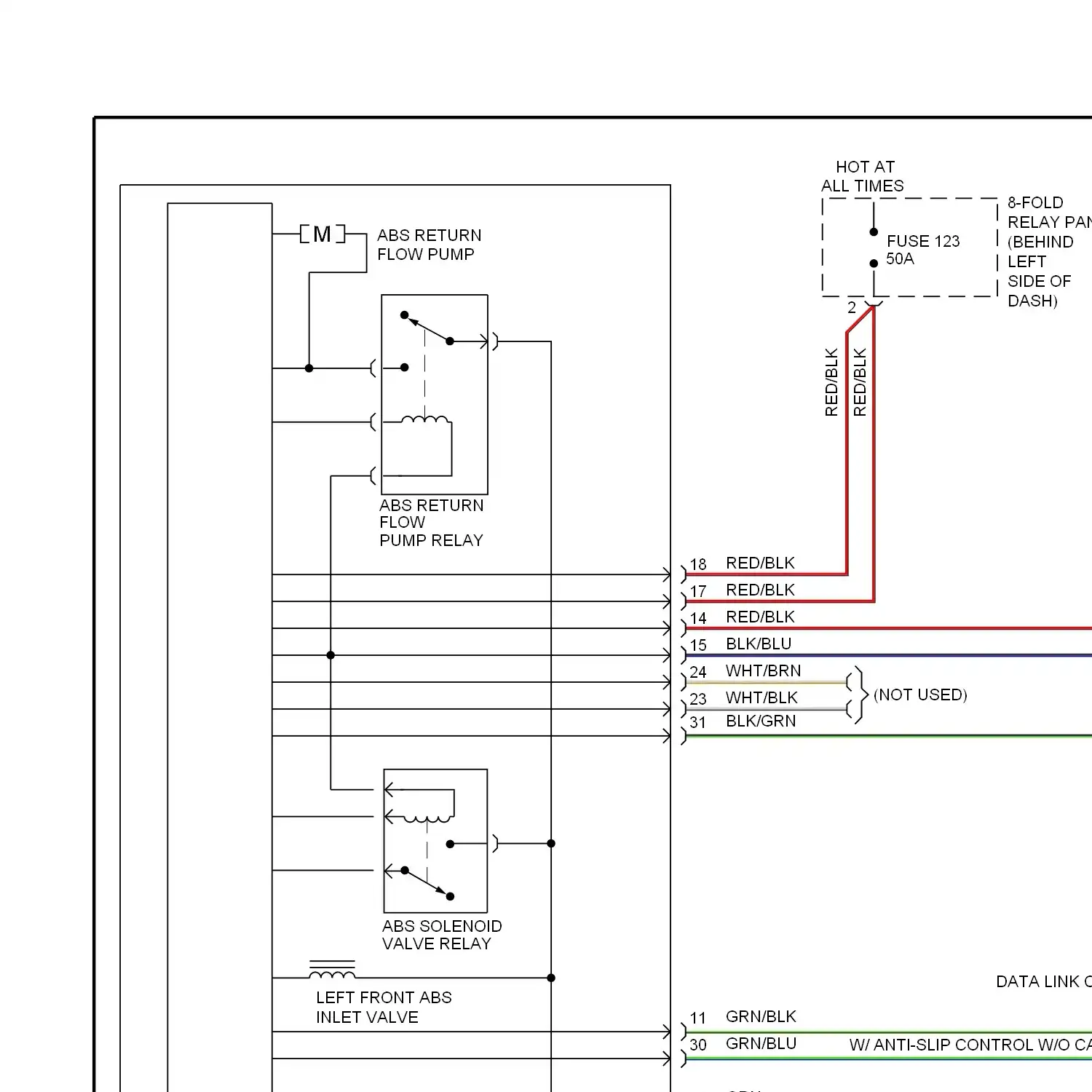

Anti-lock brakes circuit

Anti-theft circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Defoggers circuit

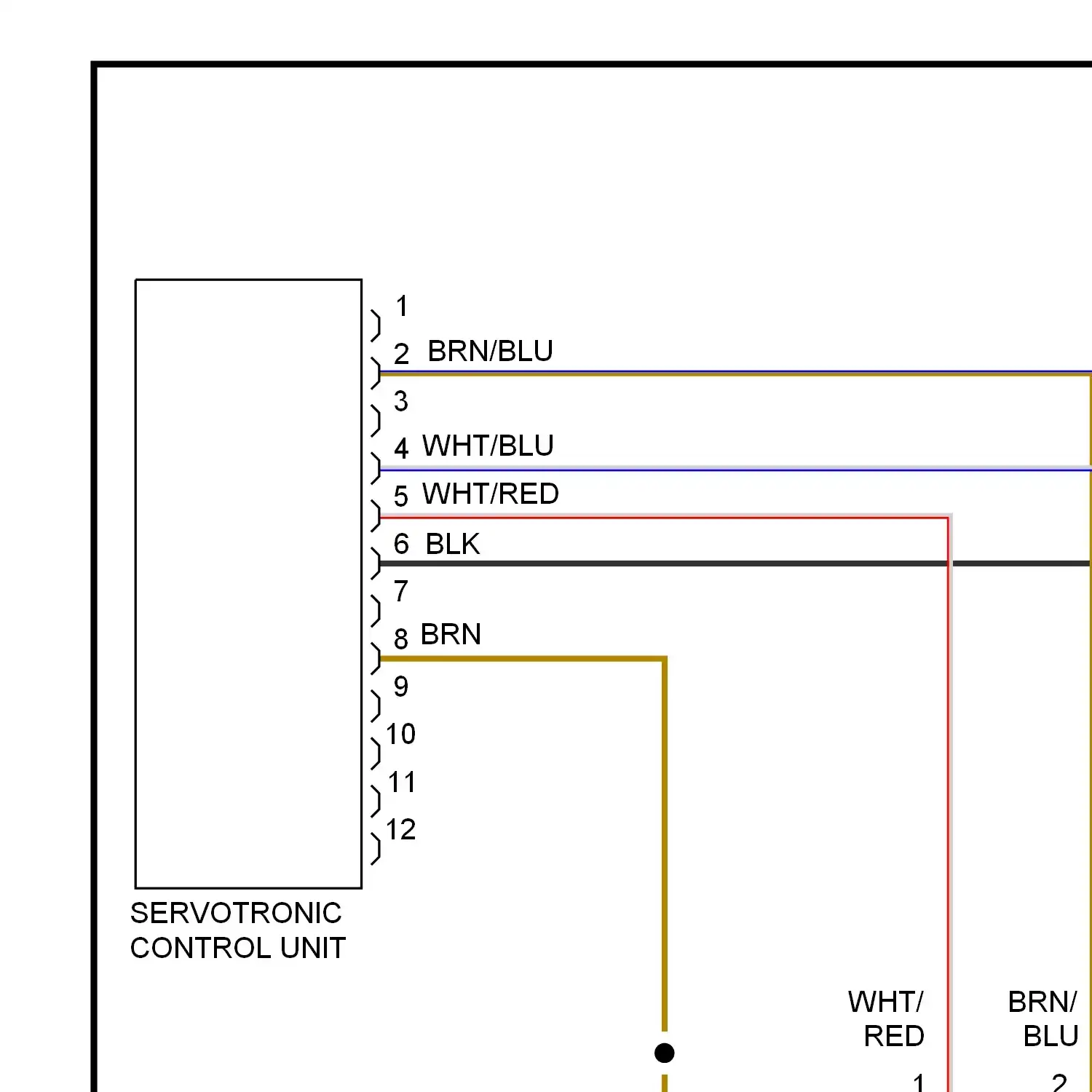

Electronic power steering circuit

Wiring diagram engine performance 2.8l

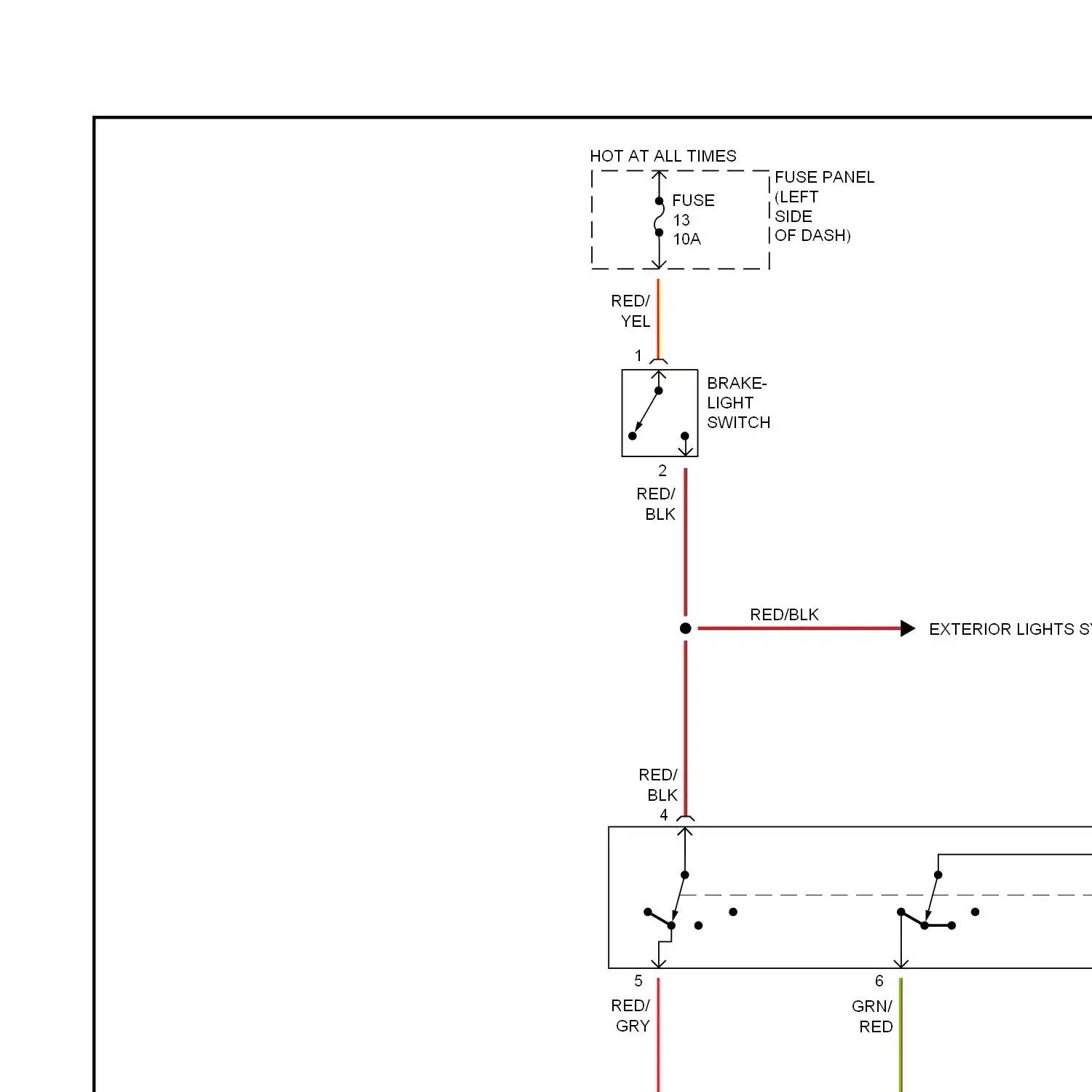

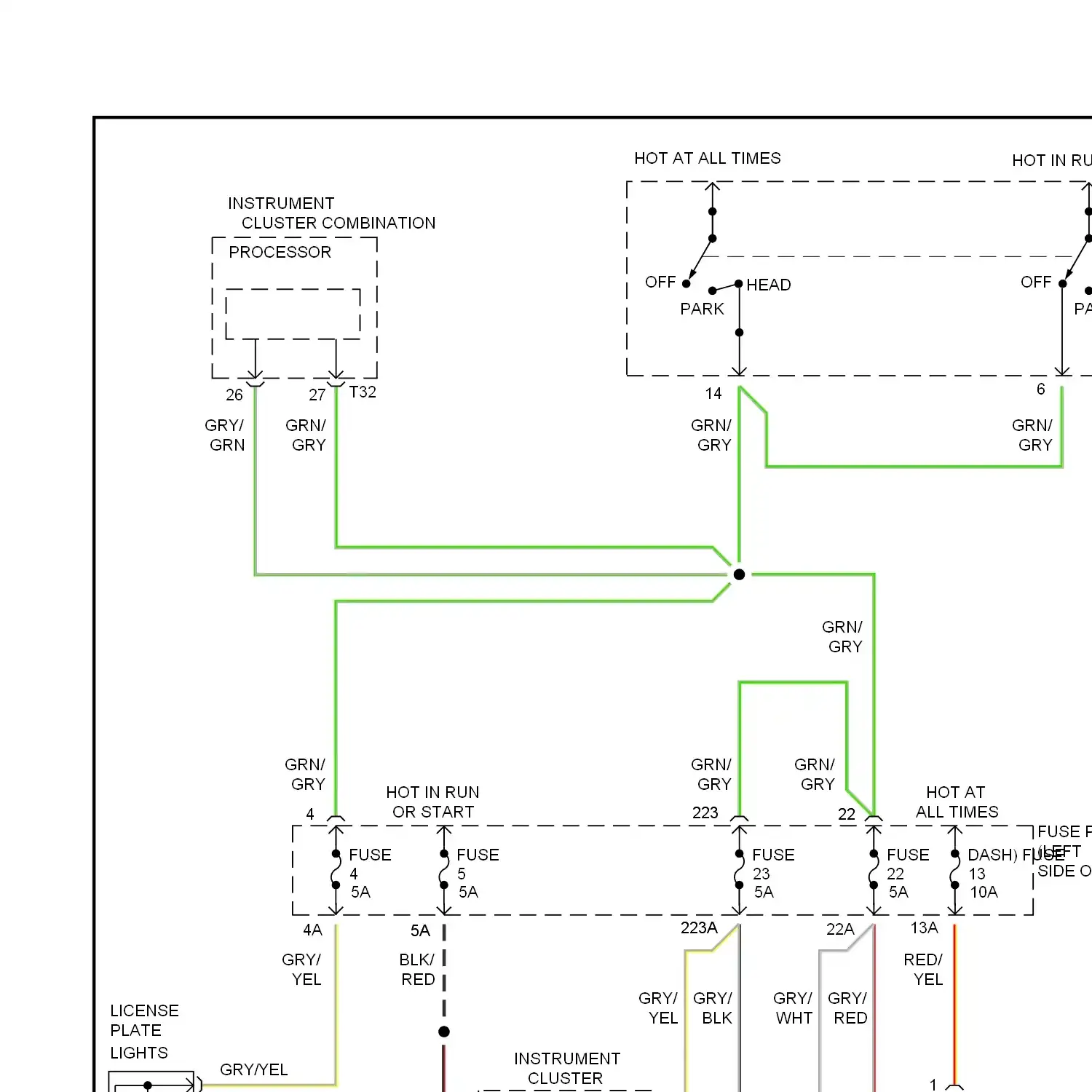

Back-up lamps circuit Exterior lamps circuit, with drl Exterior lamps circuit, without drl

Ground distribution circuit

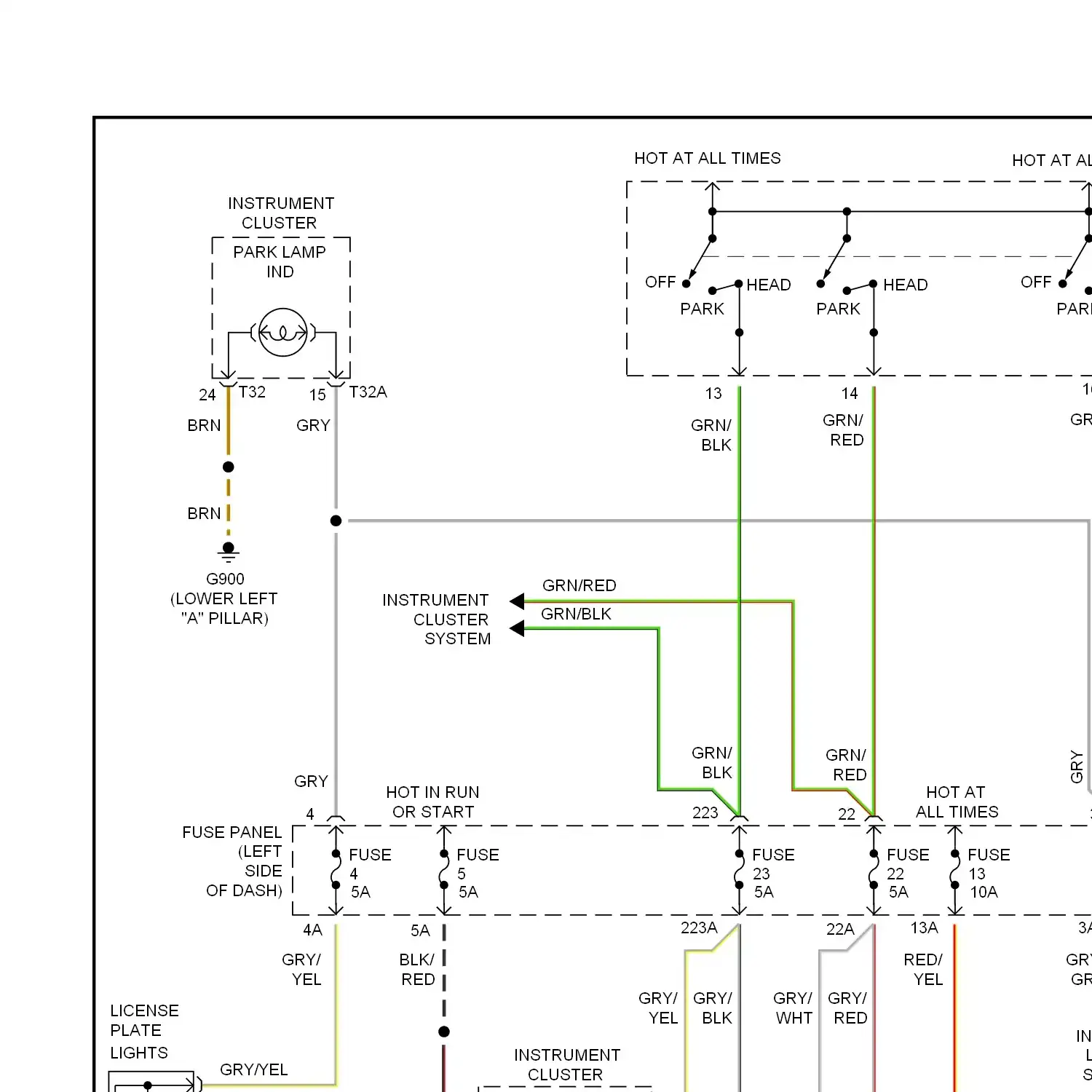

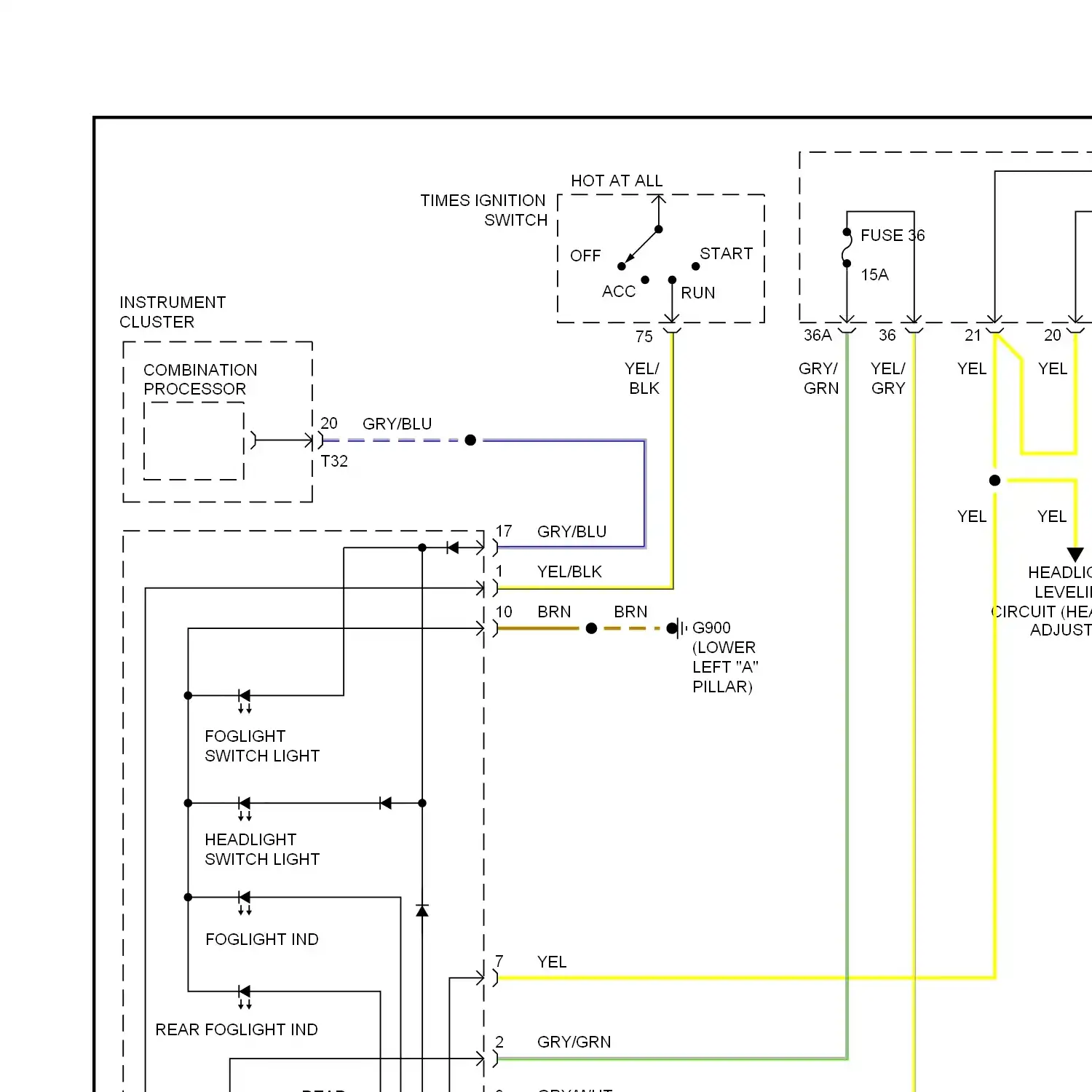

Headlamps & fog lamps circuit, with drl Headlamps & fog lamps circuit, without drl

Horn circuit

Auto check system circuit Instrument cluster circuit

Interior lights circuit

Memory mirrors circuit Memory seat circuit

Power antenna circuit

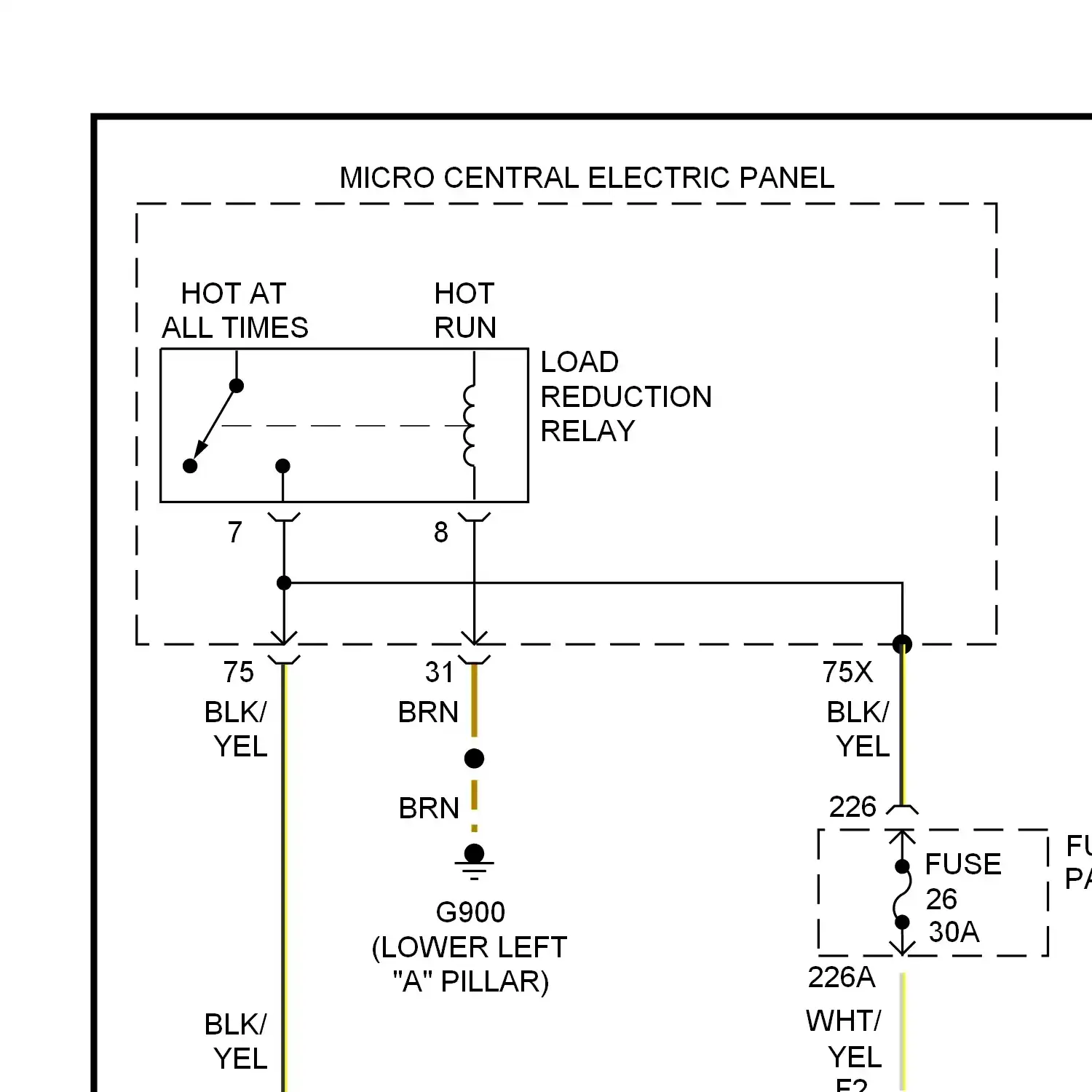

Power distribution circuit

Power door locks circuit

Heated seats circuit Passenger power seat circuit

Power top/sunroof circuit

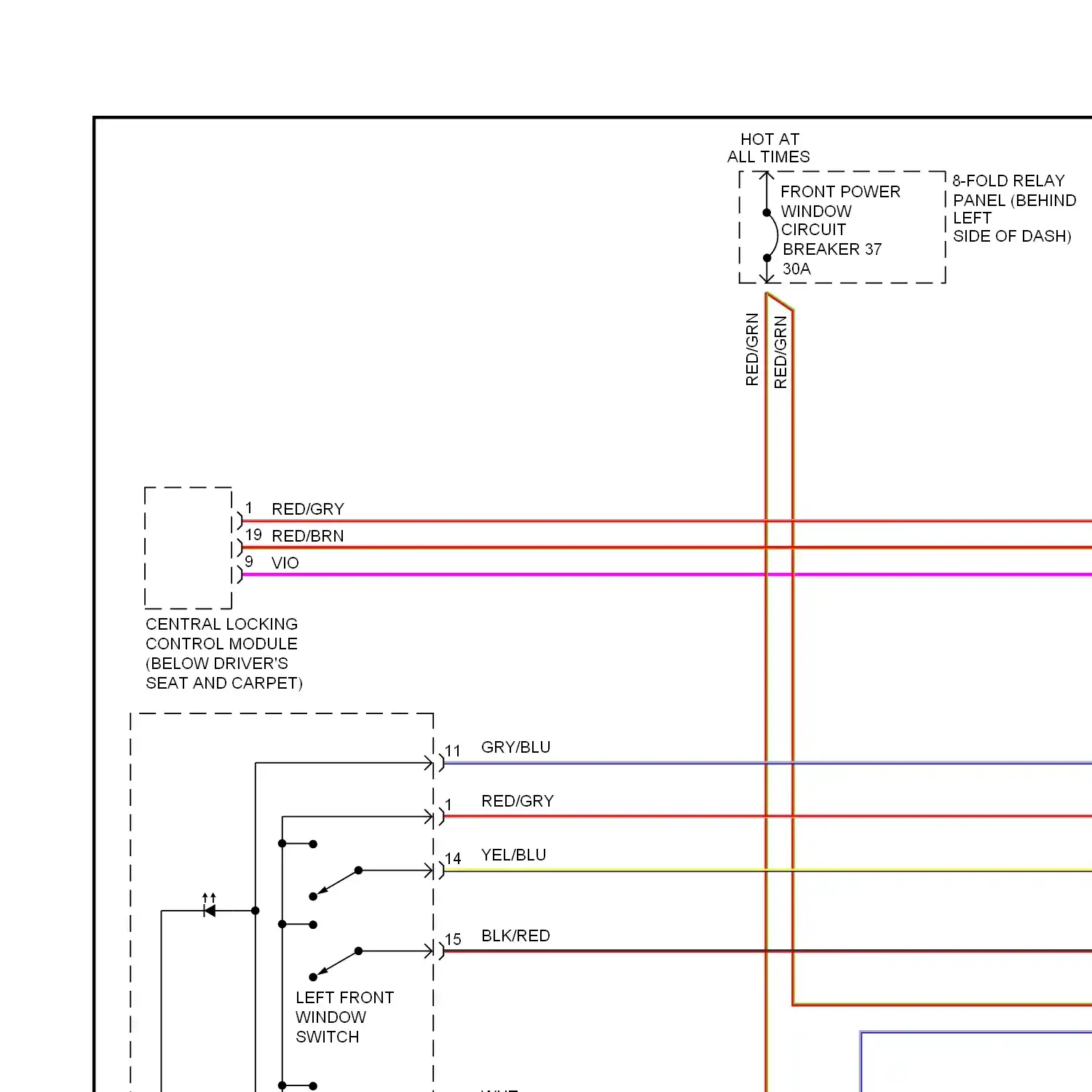

Power windows circuit

Am/fm stereo circuit, base radio without cd changer Am/fm stereo circuit, bose, bose without cd changer With cd changer circuit, base radio with cd changer With cd changer circuit, bose, bose with cd changer

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

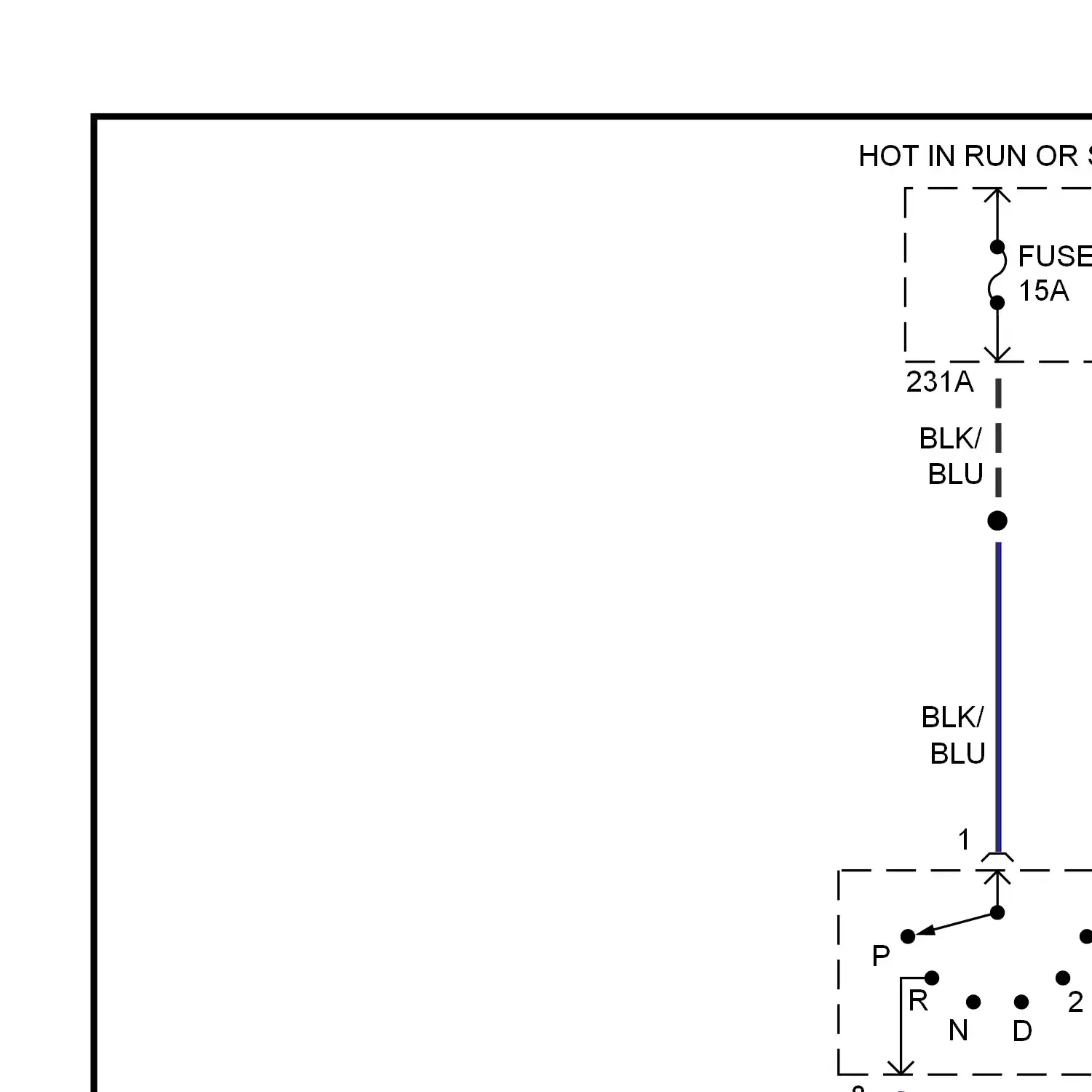

A/t circuit

Trunk release circuit

Warning systems circuit

Wiper/washer circuit
