Wiring Diagrams for Audi A3 8P facelift (2004-2008)

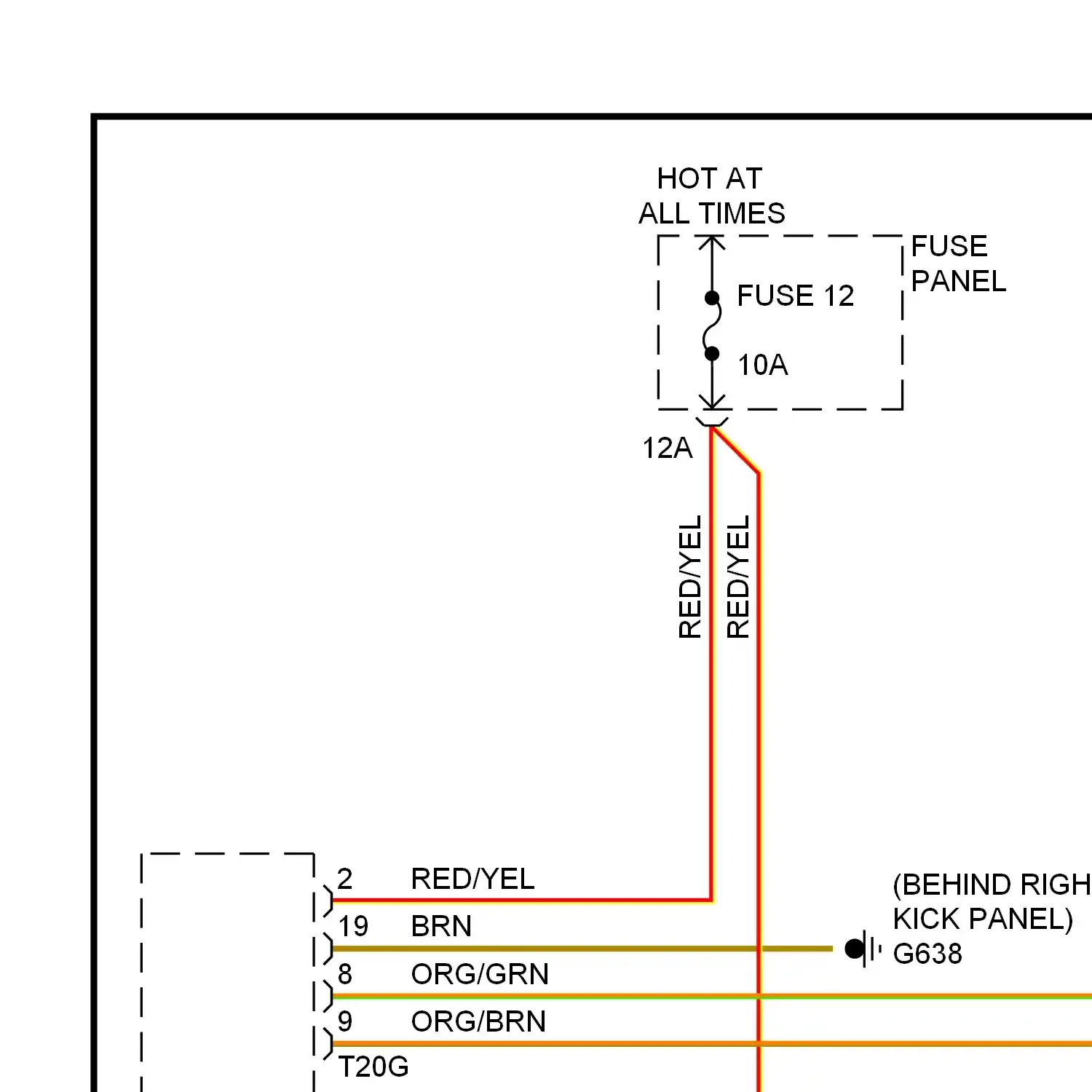

Automatic a/c circuit

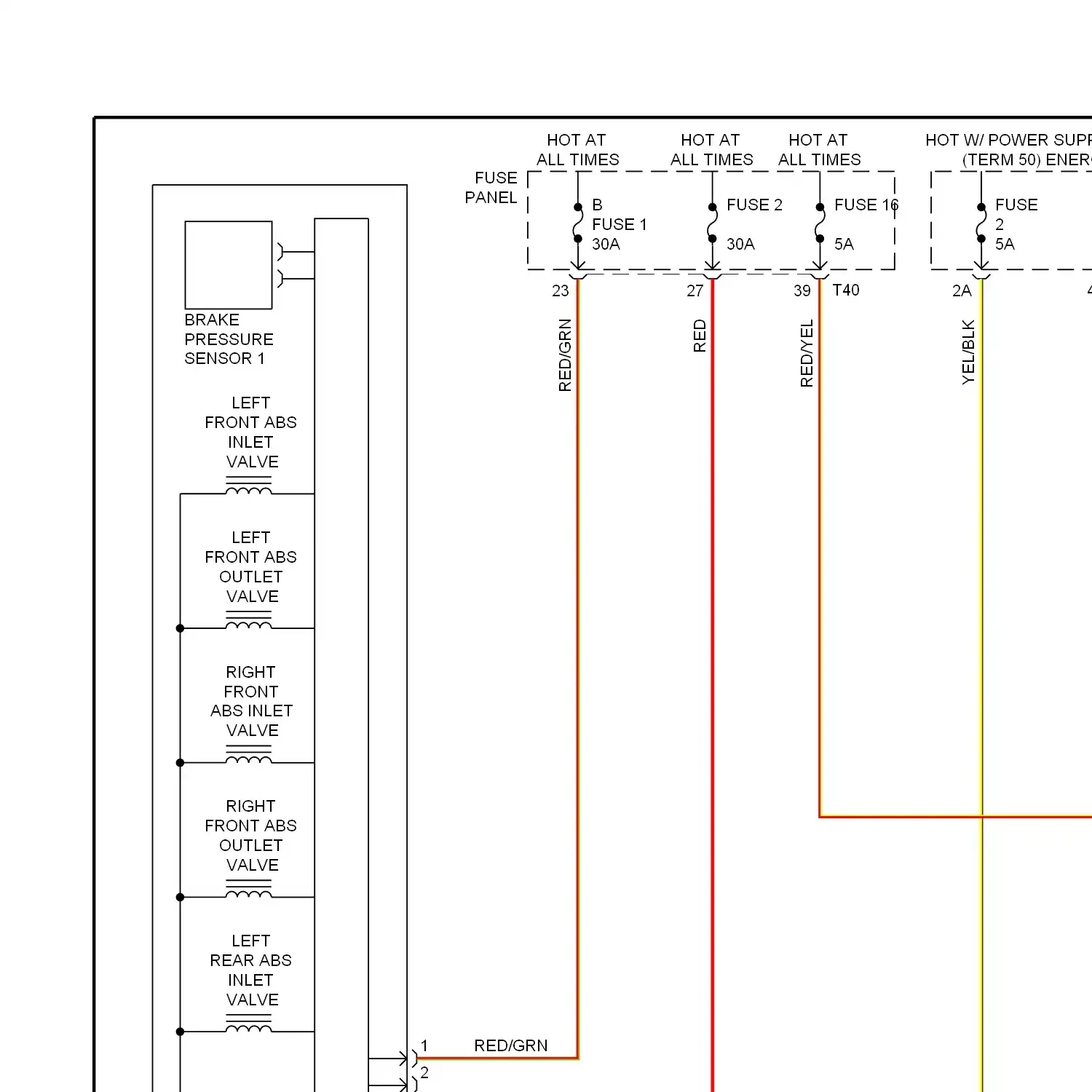

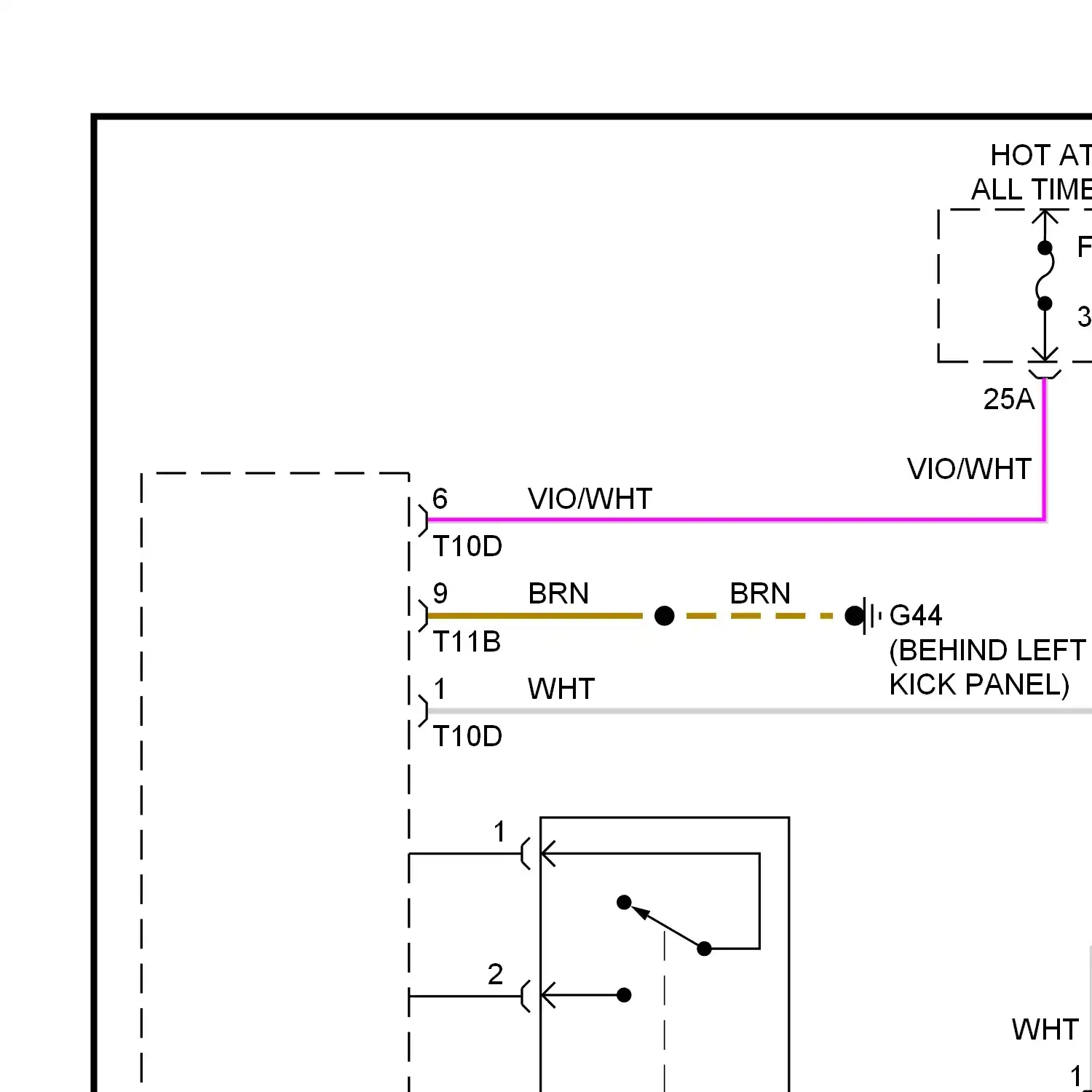

Anti-lock brakes circuit

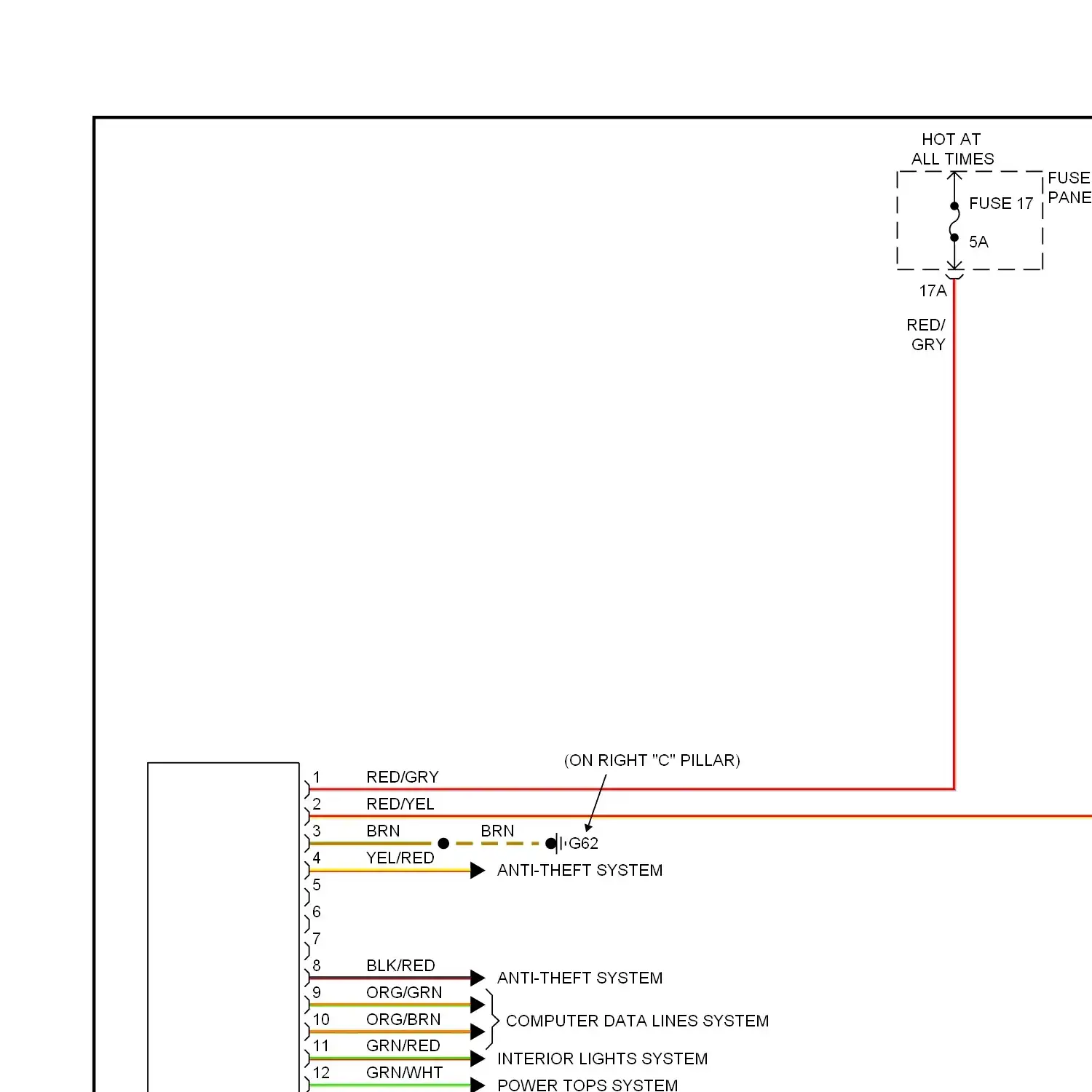

Anti-theft circuit

Body computer module circuit Steering column electronic systems control module circuit

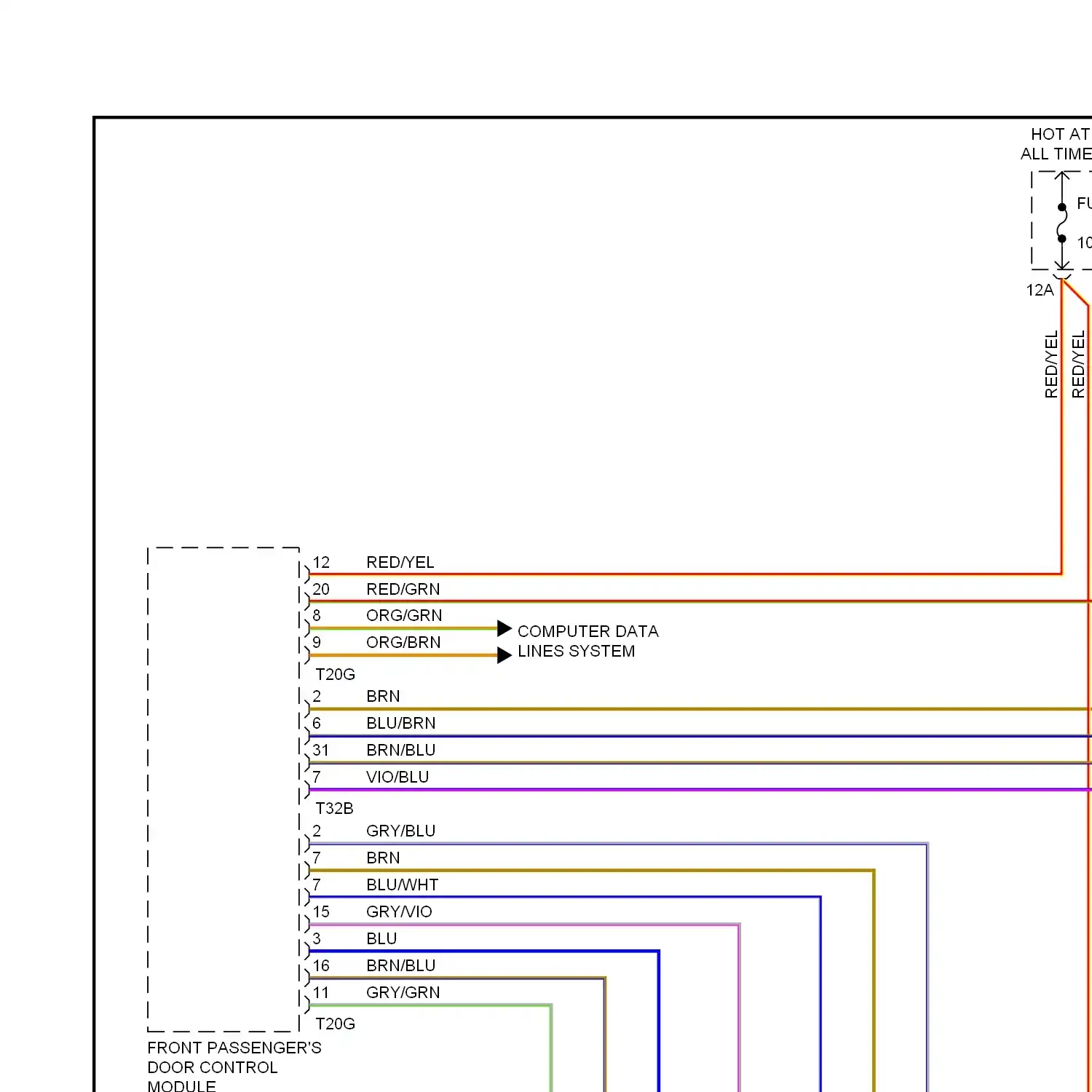

Computer data lines circuit

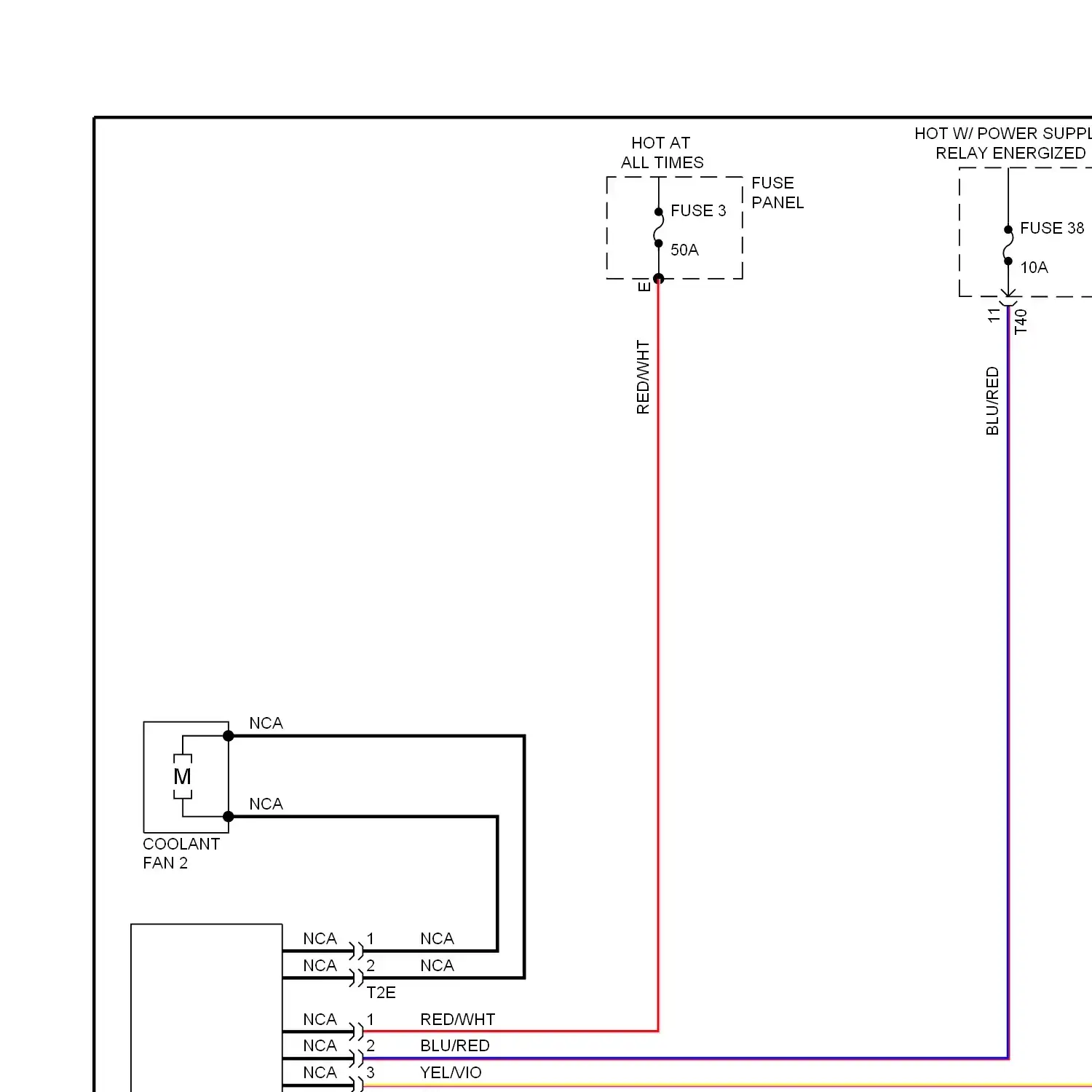

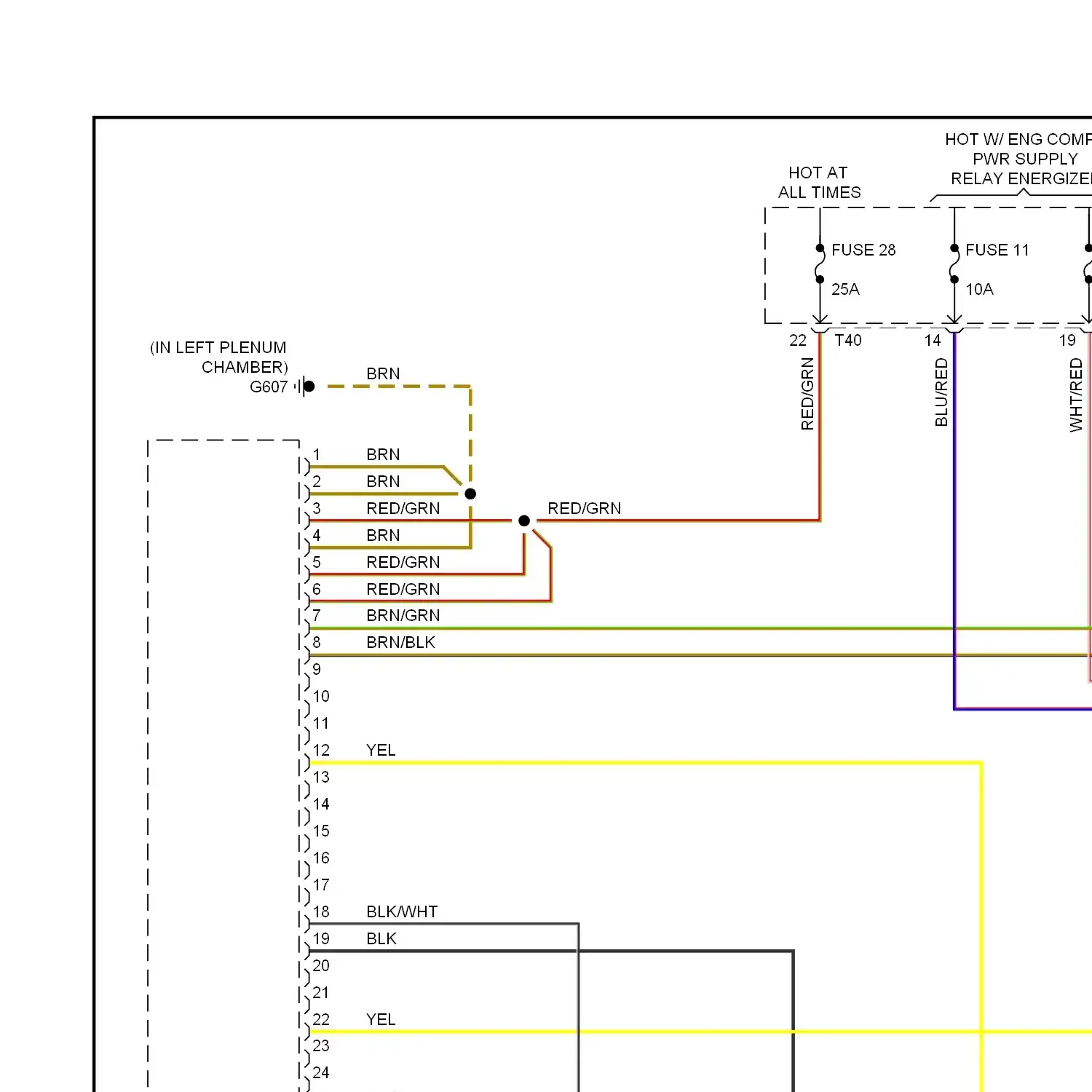

Cooling fan circuit

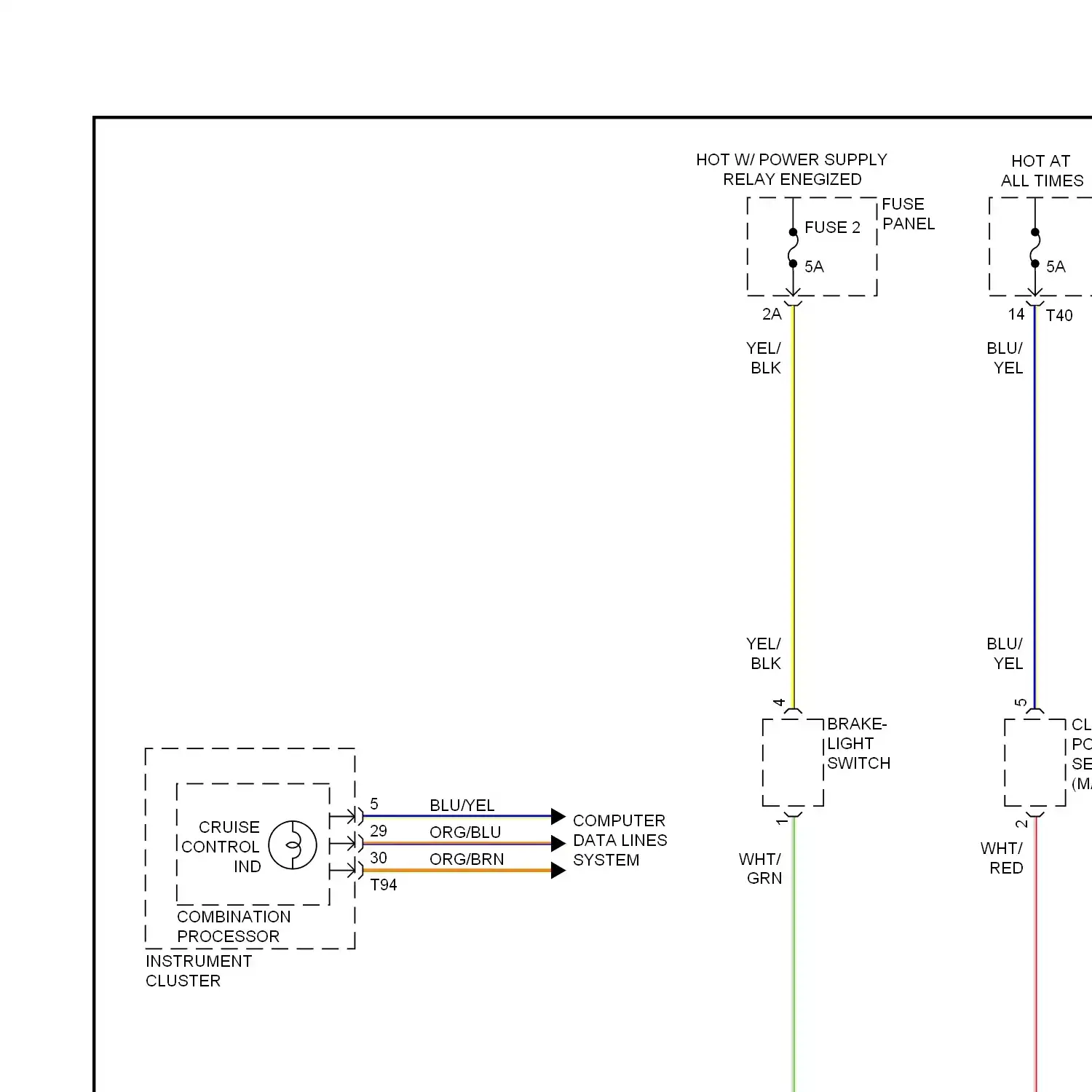

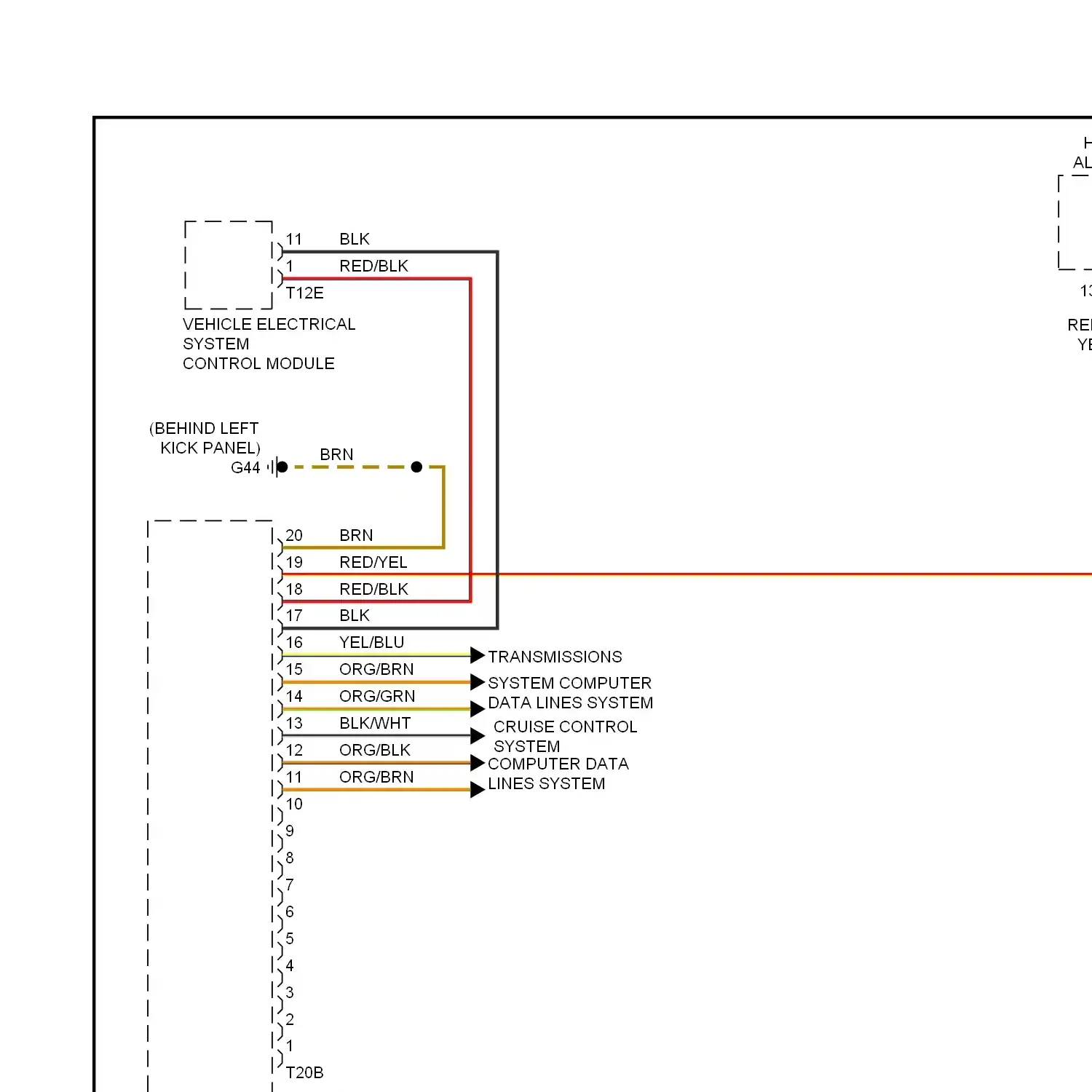

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Wiring diagram engine performance 2.0l turbo

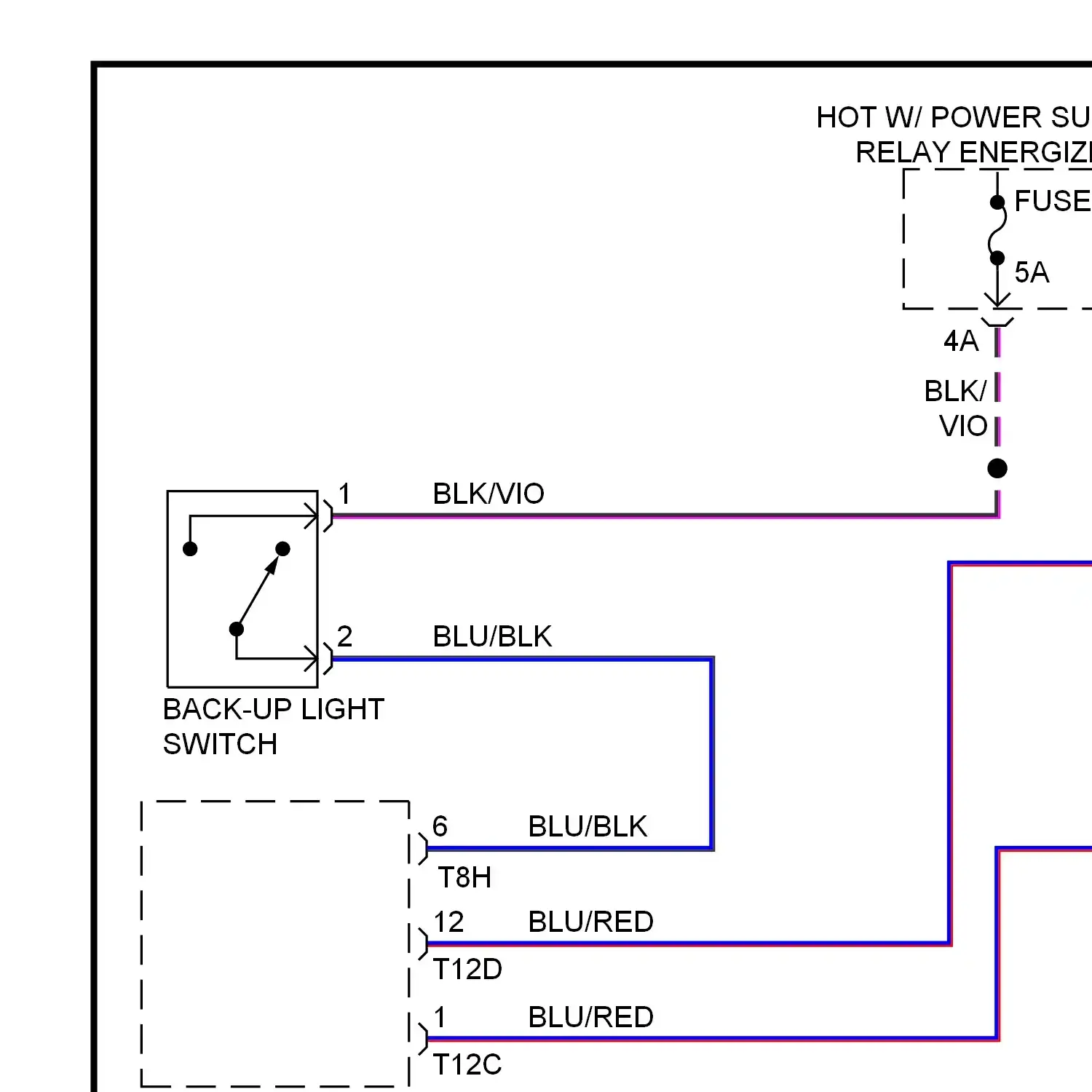

Back-up lamps circuit Exterior lamps circuit

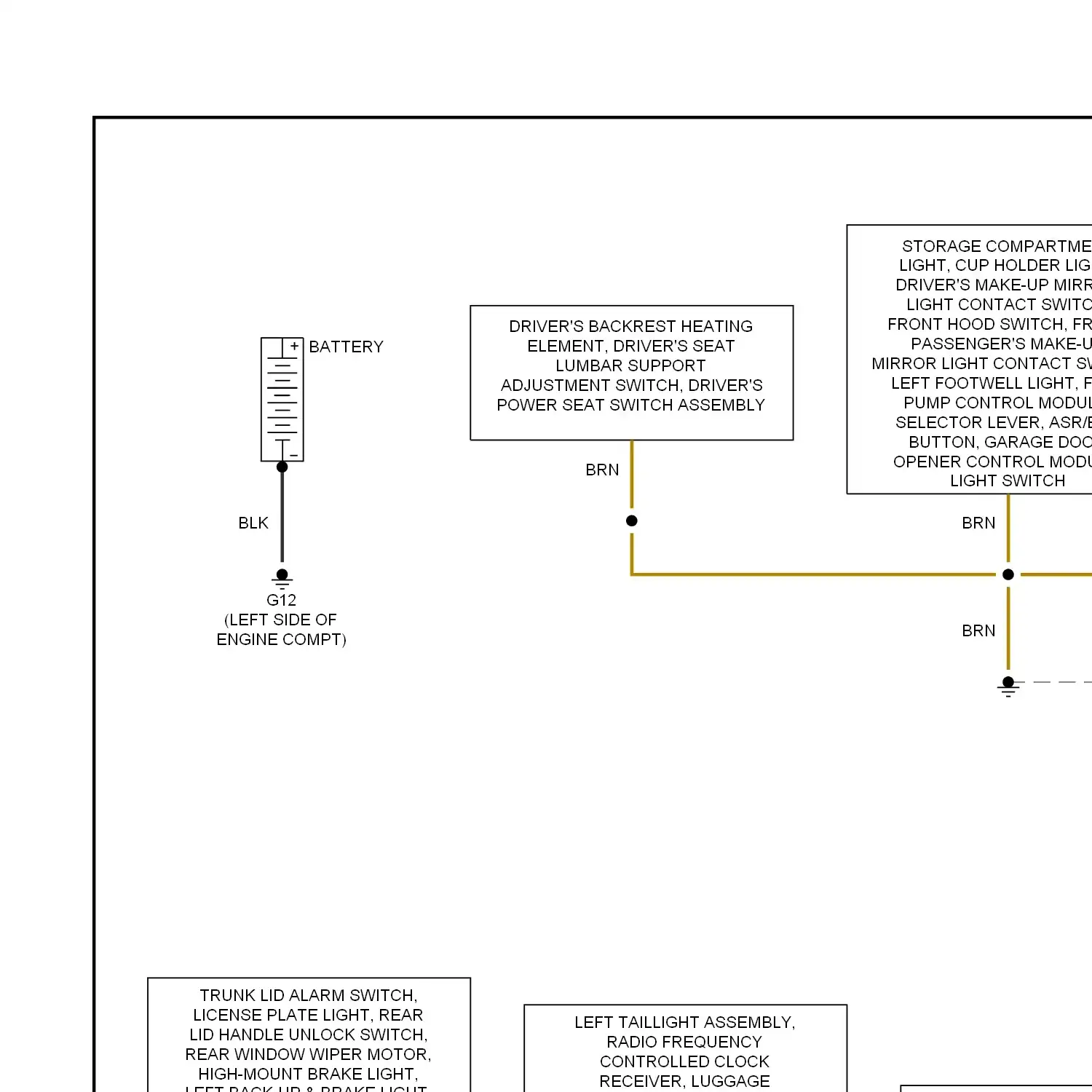

Ground distribution circuit

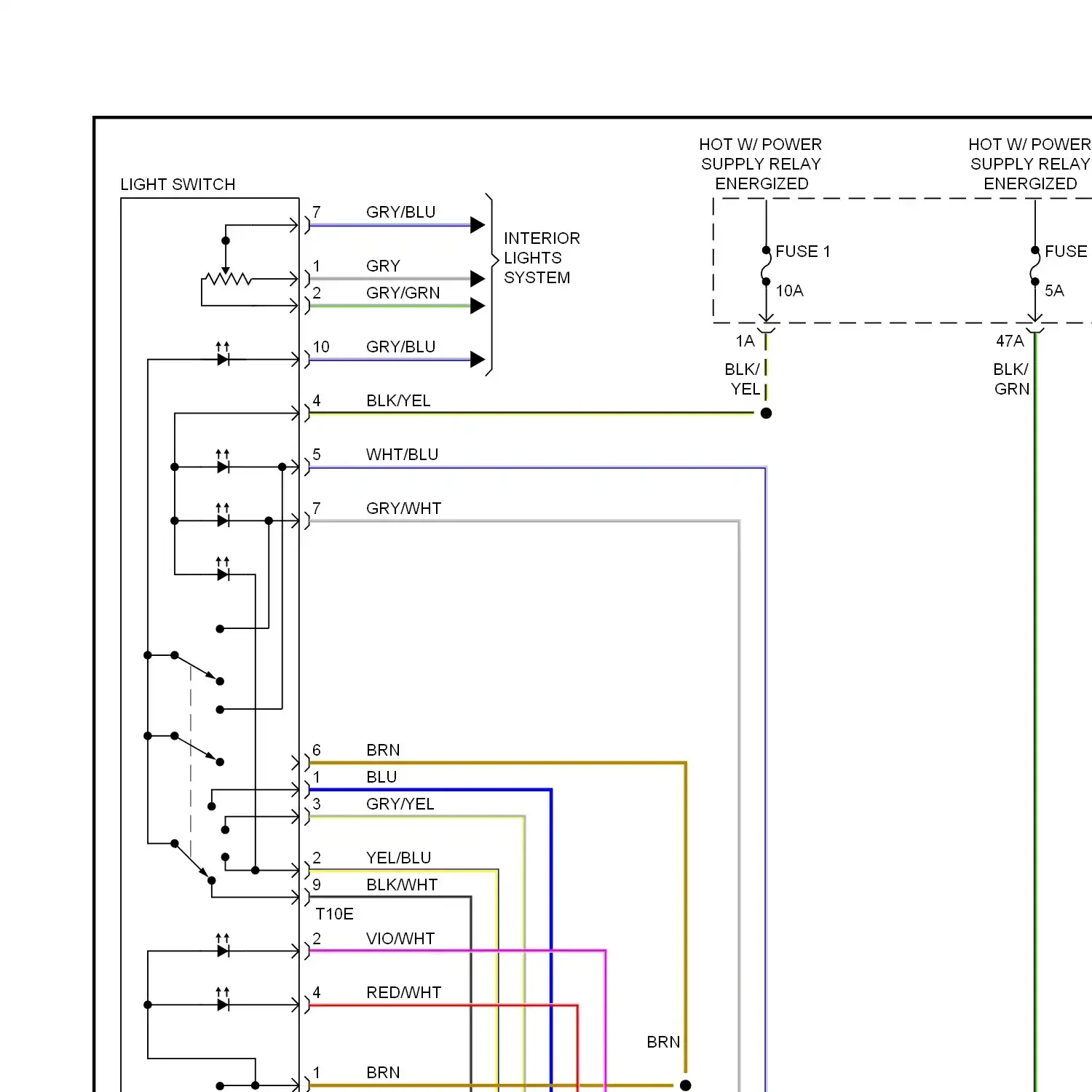

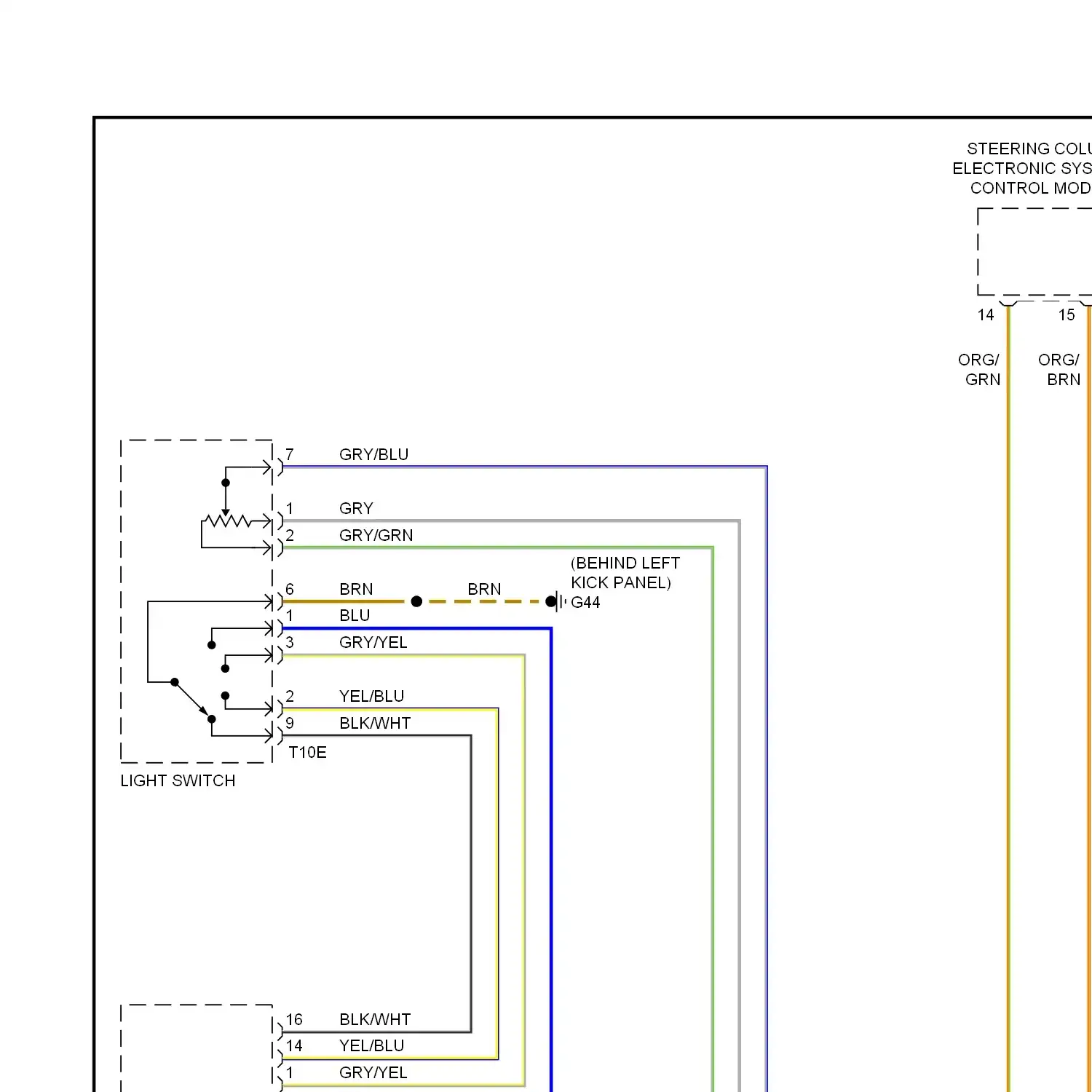

Headlights circuit, with bi-xenon lamps Headlights circuit, without bi-xenon lamps Headlights circuit, with standard headlights

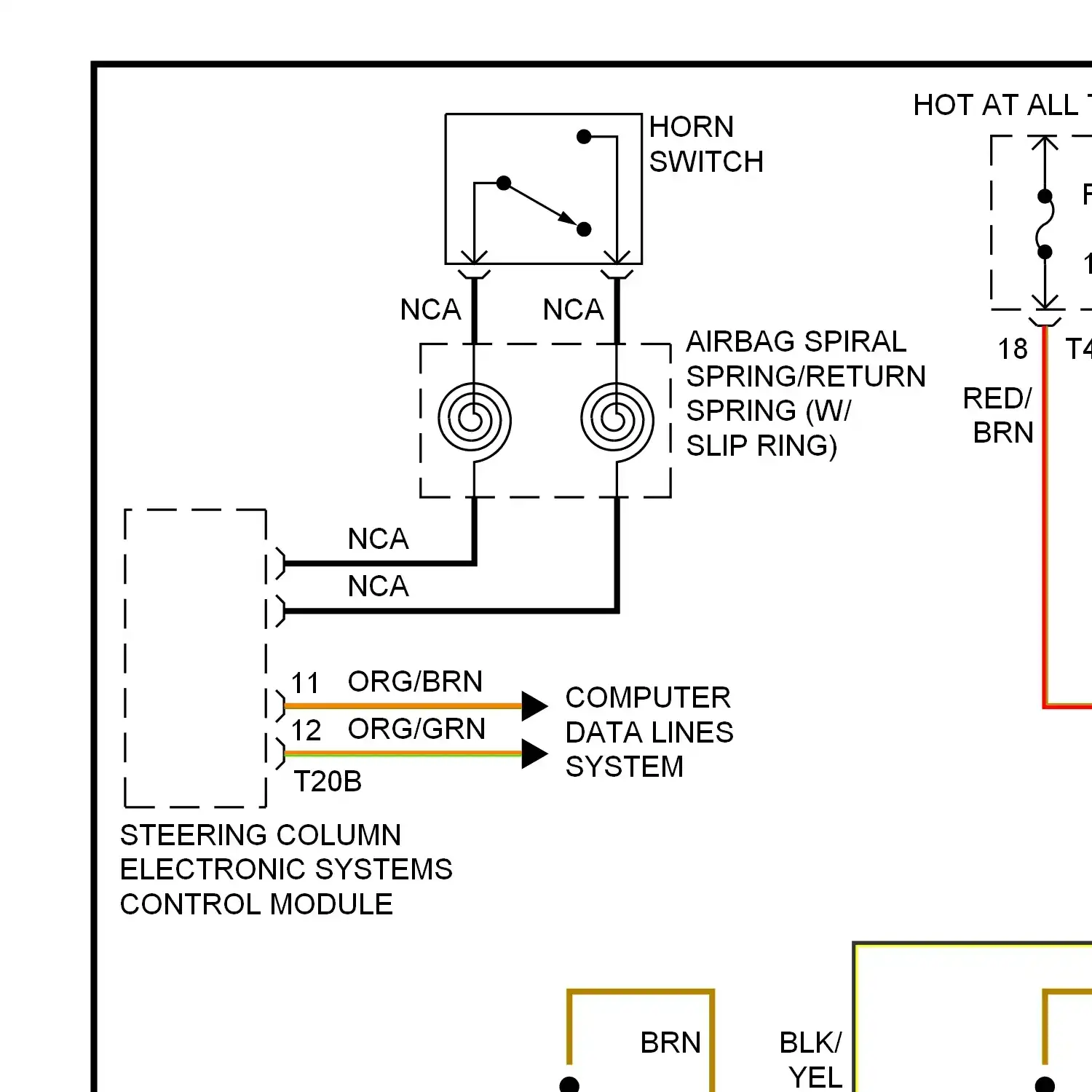

Horn circuit

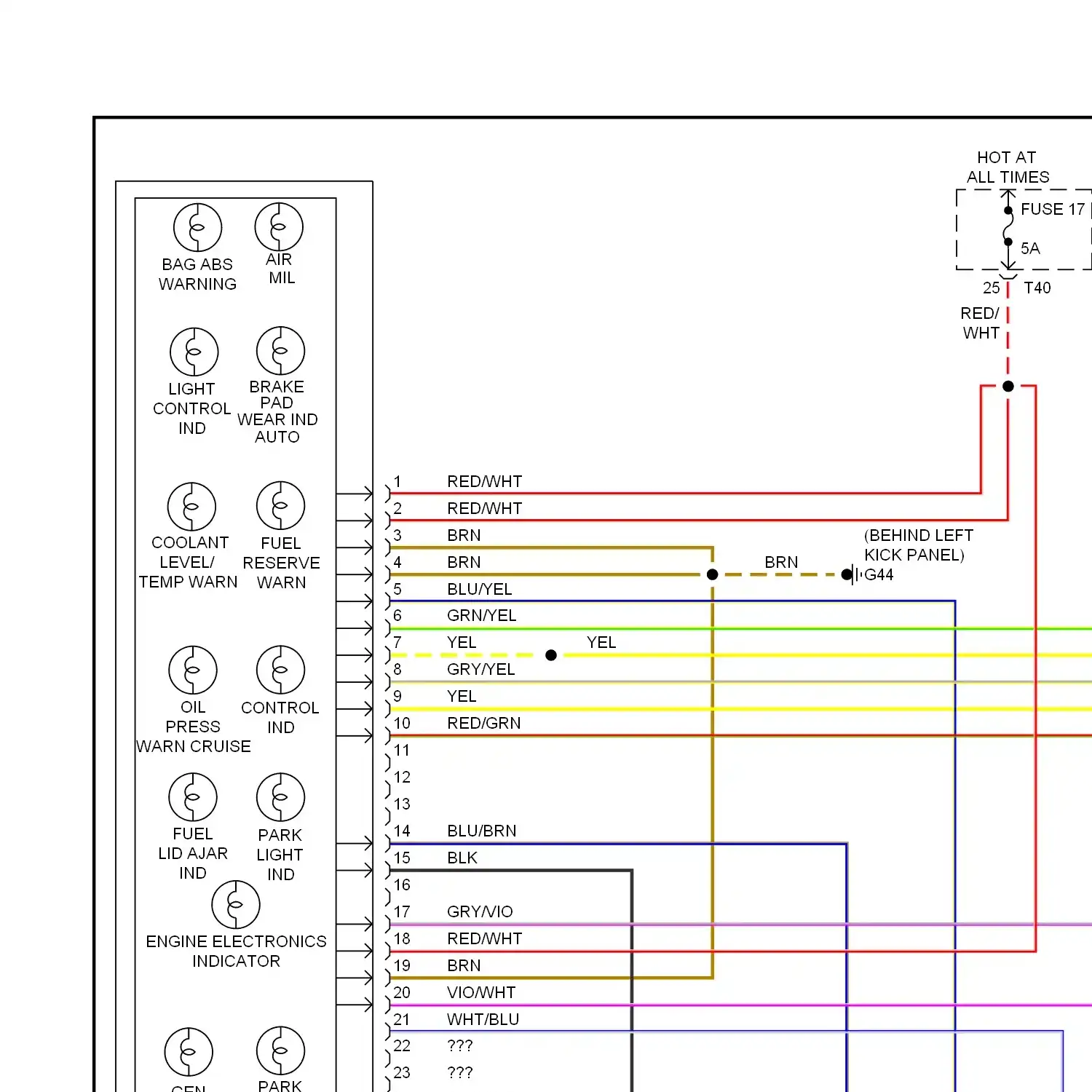

Instrument cluster circuit

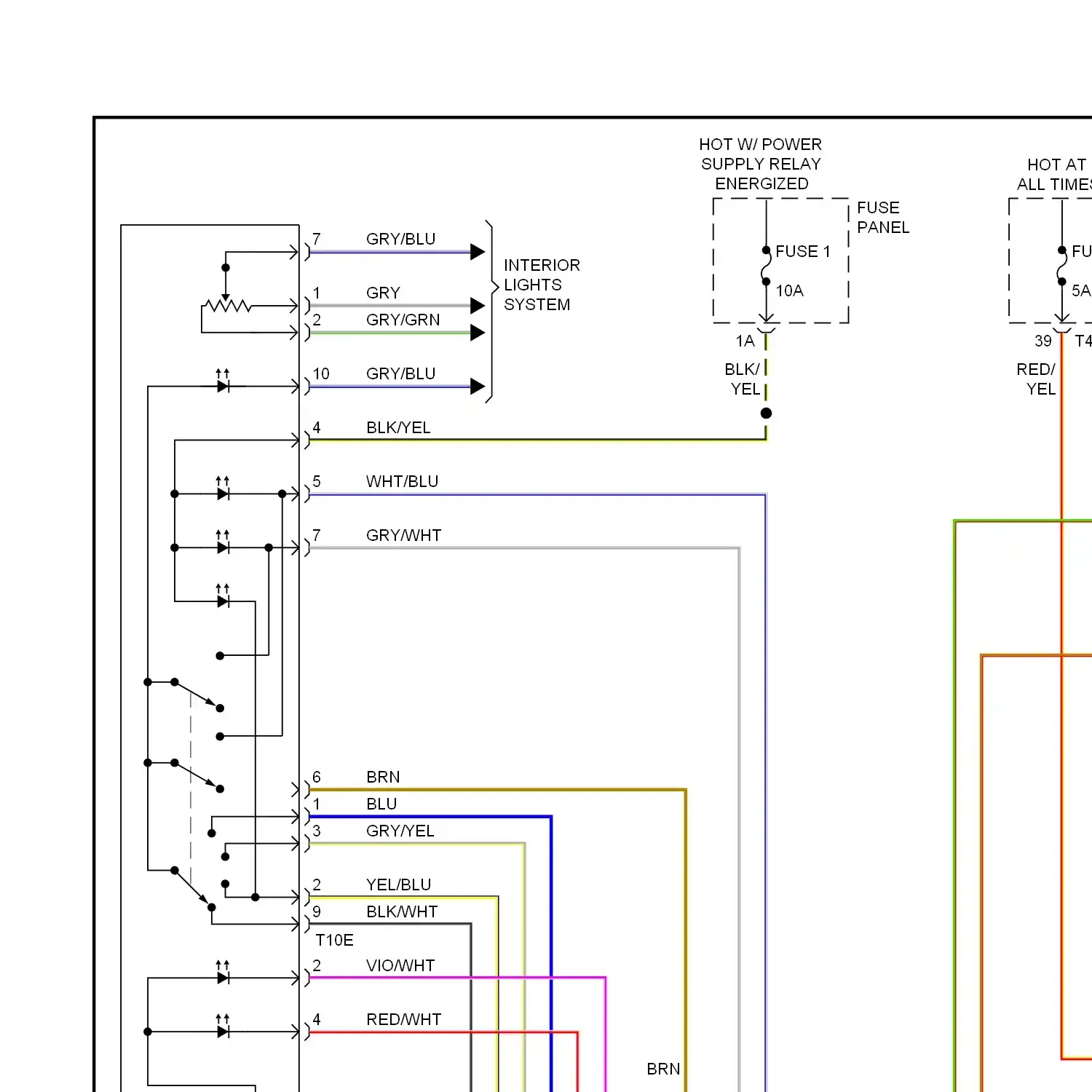

Courtesy lamps circuit Instrument illumination circuit

Navigation circuit, without rns-e with amplifier Navigation circuit, without rns-e with bose Navigation circuit, with rns-e with amplifier Navigation circuit, with rns-e with bose

Power distribution circuit

Power door locks circuit

Automatic day/night mirror circuit Power mirrors circuit

Heated seats circuit Lumbar circuit Power seats circuit

Sunroof circuit

Power windows circuit

Bose radio circuit Radio circuit, with amplifier Radio circuit, without amplifier Radio/navigation circuit, without rns-e with amplifier Radio/navigation circuit, without rns-e with bose Radio/navigation circuit, with rns-e with amplifier Radio/navigation circuit, with rns-e with bose

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit

Trunk & fuel door release circuit

Jet heater circuit Wiper/washer circuit

ALARM HORN AMPLIFIER OR AMPLIFIER/ WOOFER AMPLIFIER/ WOOFER AMPLIFIER/WOOFER, INSIDE MICROPHONE SHIELD ANTI-THEFT IMMOBILIZER READING COIL DF GENERATOR IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 LEFT WASHER NOZZLE LOW TONE HORN RIGHT WASHER NOZZLE SATELLITE RADIO TELEPHONE TRANSCEIVER SIGNAL HORN ACTIVATION TELEPHONE TRANSCEIVER W/ BATTERY IN LUGGAGE COMPT

DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTING MOTOR DRIVER SEAT LUMBAR SUPPORT HEIGHT ADJUSTING MOTOR DRIVER'S SEAT FORE/AFT ADJUSTMENT MOTOR DRIVER'S SEAT HEIGHT ADJUSTMENT MOTOR DRIVER'S SEAT INCLINATION ADJUSTMENT MOTOR DRIVER'S SEAT SEATBACK ADJUSTMENT MOTOR DYNAMIC CORNERING LIGHT MOTOR ENGINE CONTROLS SYSTEM POWER DISTRIBUTION SYSTEM FUEL TANK LID UNLOCK MOTOR HEADLAMP BEAM ADJUSTMENT MOTOR HEADLIGHTS SYSTEM ENGINE CONTROLS SYSTEM TRANSMISSIONS SYSTEM LEFT TEMPERATURE FLAP POTENTIOMETER/ ACTUATOR OIL PRESS MOTOR OIL PRESSURE ACTUATOR PASSENGER SEAT LUMBAR SUPPORT CURVATURE ADJUSTING MOTOR PASSENGER SEAT LUMBAR SUPPORT HEIGHT ADJUSTING MOTOR PASSENGER'S SEAT FORE/AFT ADJUSTMENT MOTOR PASSENGER'S SEAT HEIGHT ADJUSTMENT MOTOR PASSENGER'S SEAT INCLINATION ADJUSTMENT MOTOR PASSENGER'S SEAT SEATBACK ADJUSTMENT MOTOR REAR WINDOW WIPER MOTOR REAR WINDOW WIPER MOTOR RIGHT HEADLAMP POWER OUTPUT STAGE RIGHT TEMPERATURE FLAP POTENTIOMETER/ ACTUATOR W/ BATTERY IN ENGINE COMPT

AMPLIFIER ANTENNA LEFT ANTENNA MODULE REAR WINDOW DEFOGGER W/ WINDOW ANTENNA WINDSHEILD ANTENNA SUPPRESSION FILTER WINDSHIELD ANTENNA SUPPPRESSION FILTER WINDSHIELD ANTENNA SUPPRESSION FILTER

A/C COMPRESSOR REGULATOR VALVE ASR/ESP BUTTON DRIVER DOOR WINDOW REGULATOR SWITCHES DRIVER'S WINDOW REGULATOR MOTOR EVAPORATIVE EMISSION CANISTER PURGE REGULATOR VALVE FRONT PASSENGER'S WINDOW REGULATOR MOTOR FUEL PRESSURE REGULATOR VALVE LEFT FRONT WINDOW REGULATOR SWITCH LEFT PASSENGER'S REAR REGULATOR MOTOR LEFT REAR WINDOW REGULATOR SWITCH PASSENGER DOOR WINDOW REGULATOR SWITCH REAR WINDOW REGULATOR SWITCH RIGHT FRONT WINDOW REGULATOR SWITCH RIGHT REAR WINDOW REGULATOR MOTOR RIGHT REAR WINDOW REGULATOR SWITCH TIPTRONIC DOWNSHIFT BUTTON TIPTRONIC UPSHIFT BUTTON WASTEGATE BYPASS REGULATOR VALVE

DATA LINK CONNECTOR

ABS CONTROL MODULE AIRBAG CONTROL MODULE ALARM HORN INCLINATION/ ANTI-THEFT CONTROL MODULE AUXILIARY AIR HEATER CONTROL MODULE AUXILIARY HEATER CONTROL MODULE AWD CONTROL MODULE BRAKE LIGHT SWITCH ABS CONTROL MODULE CAMSHAFT ADJUSTMENT VALVE 1 COOLANT FAN CONTROL MODULE CLIMATRONIC CONTROL MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE COOLANT FAN CONTROL CONTROL MODULE DATA BUS ON BOARD DIAGNOSTIC INTERFACE ABS CONTROL MODULE DRIVER'S DOOR CONTROL MODULE DRIVER'S DOOR CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE ENGINE CONTROL MODULE ESP CONTROL MODULE FRONT PASSENGER'S AIRBAG DISABLED INDICATOR LIGHT AIRBAG CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE, RIGHT REAR DOOR CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL PUMP CONTROL MODULE FRESH AIR BLOWER GARAGE DOOR OPENER CONTROL MODULE HEADLAMP RANGE CONTROL MODULE INCLINATION/ANTI-THEFT CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE LEFT REAR DOOR CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY MOTRONIC ENGINE CONTROL MODULE, AFTER-RUN COOLANT PUMP NAVIGATION CONTROL DISPLAY CONTROL MODULE NAVIGATION CONTROL MODULE NAVIGATION CONTROL MODULE OPERATING ELECTRONICS PARKING AID CONTROL MODULE PASSENGER'S DOOR CONTROL MODULE POWER STEERING CONTROL MODULE POWER SUNROOF CONTROL MODULE RIGHT REAR DOOR CONTROL MODULE RIGHT REAR DOOR CONTROL MODULE LEFT REAR DOOR CONTROL MODULE SEAT OCCUPIED RECOGNITION CONTROL MODULE SOCKET, RIGHT TAILLIGHT ASSEMBLY, COMFORT SYSTEM CENTRAL CONTROL MODULE STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE THROTTLE VALVE CONTROL MODULE TOWING RECOGNITION CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE WIPER MOTOR CONTROL MODULE

DRIVER'S DOOR CENTRAL LOCKING LOCK UNIT FRONT PASSENGER'S DOOR CENTRAL LOCKING LOCK UNIT LEFT REAR DOOR CENTRAL LOCKING LOCK UNIT RIGHT REAR DOOR CENTRAL LOCKING LOCK UNIT STEERING WHEEL CONTROL UNIT

FUSE 1 FUSE 2 FUSE 2 FUSE 4 FUSE 3 FUSE 3 FUSE 4 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 9 FUSE 9 FUSE 6 FUSE 10 FUSE 10 10 FUSE 11 FUSE 12 FUSE 12 FUSE 11 FUSE 13 FUSE 13 FUSE 2 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 20 FUSE 18 FUSE 22 FUSE 23 FUSE 24 FUSE 23 FUSE 24 FUSE 23 FUSE 38 30 FUSE 25 FUSE 26 FUSE 27 FUSE 27 FUSE 22 FUSE 28 FUSE 29 FUSE 29 10 FUSE 29 FUSE 15 FUSE 31 FUSE 32 FUSE 33 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 38 FUSE 29 FUSE 40 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 42 FUSE 11 FUSE 42 FUSE 28 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 52 FUSE 52 FUSE 3 FUSE 47 FUSE 53 FUSE 53 FUSE FUSE 1 FUSE HOLDER FUSE 13 FUSE PANEL FUSE PANEL A FUSE PANEL B FUSE PANEL B FUSE 1 FUSE PANEL B FUSE 13 FUSE PANEL C FUSE PANEL C FUSE 3 FUSE PANEL C FUSE 6 FUSE PANEL C FUSE 18 FUSE PANEL C FUSE 22 SAFETY FUSE 1

HEADLIGHT WASHER PUMP LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

DRIVER'S BACKREST HEATING ELEMENT DRIVER'S SEAT HEATER PASSENGER'S BACKREST HEATING ELEMENT PASSENGER'S SEAT HEATER

AIRBAG MALFUNCTION INDICATOR ENGINE ELECTRONICS INDICATOR FRONT PASSENGER'S AIRBAG DISABLE INDICATOR LAMP

BRAKE PAD WEAR IND ASR/ESP CONTROL LAMP DAYTIME RUNNING LIGHT LAMP EXTERIOR LIGHTS SYSTEM HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS, MIRRORS SYSTEM HIGH INTENSITY GAS DISCHARGE LAMP INTERIOR LIGHTS SYSTEM DOOR LOCKS, TRUNK, TAILGATE, FUEL DOORS SYSTEM INTERIOR LIGHTS SYSTEM POWER TOPS SYSTEM INTERIOR LIGHTS, DOOR LOCKS, POWER WINDOWS SYSTEM INTERIOR LIGHTS, DOOR LOCKS,, MIRRORS SYSTEM INTERIOR LIGHTS, MIRRORS, POWER WINDOWS SYSTEM LEFT FRONT FOG LAMP LEFT PARKING LAMP LEFT SIDE TURN SIGNAL LAMP LICENSE PLATE LIGHTS RIGHT FRONT FOG LAMP RIGHT FRONT FOG LAMP LEFT FRONT FOG LAMP RIGHT PARKING SIDE MARKER LAMP RIGHT SIDE TURN SIGNAL LAMP

ABS HYDRAULIC PUMP AFTER-RUN COOLANT PUMP FUEL GAUGE SENDER, TRANSFER FUEL PUMP HALDEX CLUTCH PUMP WINDSHIELD, REAR WINDOW WASHER PUMP

COOLANT CIRCULATION PUMP RELAY ECM POWER SUPPLY RELAY ENGINE COMPONENT POWER SUPPLY RELAY ENGINE COMPT POWER SUPPLY RELAY FUSE/ RELAY CARRIER FUSE/ RELAY PANEL HEADLAMP WASHER RELAY HEADLIGHT WASHER RELAY HORN RELAY HOT W/ ECM RELAY ENERGIZED HOT W/ ENG COMPT PWR SUPPLY RELAY ENERGIZED HOT W/ POWER SUPPLY RELAY ENEGIZED HOT W/ POWER SUPPLY RELAY ENERGIZED HOT W/ PWR SUPPLY RELAY ENERGIZED REAR WINDOW DEFOGGER RELAY

AIR QUALITY SENSOR BACK PRESSURE FLAP MOTOR, POSITION SENSOR BRAKE PRESSURE SENSOR 1 CAMSHAFT POSITION SENSOR CENTER FLAP MOTOR, POSITION SENSOR CHARGE AIR PRESSURE SENSOR CLUTCH POSITION SENSOR DEFROSTER FLAP MOTOR, POSITION SENSOR DRIVER'S FRONT AIR- BAG CRASH SENSOR DRIVER'S SIDE AIR- BAG CRASH SENSOR ENGINE SPEED SENSOR EVAPORATOR VENT TEMPERATURE SENSOR FRESH AIR INTAKE DUCT TEMPERATURE SENSOR FRONT PASSENGER'S FRONT AIRBAG CRASH SENSOR FRONT PASSENGER'S SIDE AIRBAG CRASH SENSOR FUEL LEVEL SENSOR 2 FUEL PRESSURE SENSOR FUEL PUMP CONTROL MODULE, INSTRUMENT CLUSTER CONTROL MODULE, FUEL LEVEL SENSOR 2 HEATED OXYGEN SENSOR HEATED SEAT TEMP SENSOR HIGH PRESSURE SENSOR HYD TEMP SENSOR HYDRAULIC TEMPERATURE SENSOR INTAKE AIR TEMPERATURE SENSOR 2 INTAKE MANIFOLD RUNNER POSITION SENSOR LEFT FOOTWELL VENT TEMPERATURE SENSOR LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT LEVEL CONTROL SYSTEM SENSOR LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR LEVEL CONTROL SYSTEM SENSOR LEFT REAR SIDE AIR- BAG CRASH SENSOR LEFT VENT TEMPERATURE SENSOR LIGHT RECOGNITION SENSOR LOW FUEL PRESSURE SENSOR MASS AIR FLOW SENSOR OIL LEVEL THERMAL SENSOR OUTSIDE AIR TEMPERATURE SENSOR OXYGEN SENSOR RAIN/LIGHT RECOGNITION SENSOR REAR WINDOW GLASS BREAKAGE SENSOR RECIRCULATION FLAP MOTOR, POSITION SENSOR RIGHT FOOTWELL VENT TEMPERATURE SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR SIDE AIR BAG CRASH SENSOR RIGHT VENT TEMPERATURE SENSOR SEAT OCCUPIED RECOGNITION BELT FORCE SENSOR SEAT OCCUPIED RECOGNITION PRESSURE SENSOR STEERING ANGLE SENSOR SUNLIGHT PHOTO SENSOR SWIVEL MODULE POSITION SENSOR

CENTER MID/HIGH RANGE LOUD SPEAKER LEFT FRONT MID-BASS SPEAKER LEFT FRONT TREBLE SPEAKER LEFT REAR MIDRANGE SPEAKER LEFT REAR TREBLE SPEAKER RIGHT FRONT MID-BASS SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR MIDRANGE SPEAKER RIGHT REAR TREBLE SPEAKER

BACK-UP LIGHT SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LIGHT SWITCH CRUISE CONTROL SWITCH DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER'S DOOR POWER WINDOW MASTER SWITCH DRIVER'S INTERIOR LOCKING SWITCH DRIVER'S POWER SEAT SWITCH DRIVER'S POWER SEAT SWITCH ASSEMBLY DRIVER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER'S SIDE OUTSIDE MIRROR ADJUSTMENT SWITCH ASSEMBLY DRIVING DYNAMIC REGULATION HIGH PRESSURE SWITCH VALVE 1 DRIVING DYNAMIC REGULATION HIGH PRESSURE SWITCH VALVE 2 DRIVING DYNAMIC REGULATION SWITCH VALVE 1 DRIVING DYNAMIC REGULATION SWITCH VALVE 2 EMERGENCY FLASHER SWITCH ENGINE COOLANT LEVEL WARNING SWITCH FRONT HOOD SWITCH FRONT PASSENGER'S INTERIOR LOCKING SWITCH FRONT PASSENGER'S POWER SEAT SWITCH ASSEMBLY FRONT PASSENGER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH GLOVE COMPARTMENT LIGHT SWITCH HORN SWITCH IGNITION/STARTER SWITCH LEFT MAKE-UP MIRROR SWITCH LEFT REAR WINDOW SWITCH LEFT SAFETY BELT SWITCH LIGHT SWITCH MIRROR ADJUSTMENT SWITCH MIRROR SELECTOR SWITCH OIL PRESSURE SWITCH PARKING BRAKE CONTACT SWITCH PASSENGER COMPARTMENT MONITORING SWITCH PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH PASSENGER'S COMPARTENT MONITORING SWITCH PASSENGER'S POWER SEAT SWITCH PASSENGER'S SIDE OUTSIDE MIRROR ADJUSTMENT SWITCH ASSEMBLY REAR LID HANDLE UNLOCK SWITCH REAR/CENTER CENTRAL LOCKING SWITCH REAR/CENTER HANDLE UNLOCK SWITCH RIGHT MAKE-UP MIRROR SWITCH RIGHT REAR WINDOW SWITCH SHIFT LOCK SOLENOID, SELECTOR LEVER PARK POSITION LOCK SWITCH SUNROOF SWITCH TRUNK LID ALARM SWITCH TURN SIGNAL SWITCH WINDSHIELD WASHER FLUID LEVEL SWITCH WINDSHIELD WASHER FLUID LEVEL WARNING SWITCH WINDSHIELD WIPER/ WASHER SWITCH WINDSHIELD WIPER/WASHER SWITCH

CAMSHAFT ADJUSTMENT VALVE 1 EVAPORATIVE EMISSION CANISTER PURGE REGUALTOR VALVE LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE TURBOCHARGER RECIRCULATING VALVE

BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/RED WIRE ORG/VIO WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/PPL WIRE YEL/RED WIRE YEL/VIO WIRE

23 1 W/ WOOFER W/O WOOFER 66 67 68 69 70 71 72 73 PPL (OR (OR (OR ABS WARNING IND ADJUSTMENT MOTORS AIR BAG ABS WARNING MIL AIR CONDITIONING SYSTEM AIRBAG CONTRL MODULE ANTI-THEFT SYSTEM ANTI-THEFT SYSTEM DOOR LOCKS SYSTEM ANTI-THEFT SYSTEM ASHTRAY LIGHT ASR/ ESP IND HIGH BEAM IND AUTOMATIC DAY/NIGHT DEFOGGER AUTOMATIC DAY/NIGHT INTERIOR MIRROR B+ D+ BASS LOUDSPEAKER BRAKE PAD WEAR IND AUTO LIGHT CONTROL IND CAN-L CAN-H CD CHANGER CENTER MID/HIGH RANGE LOUDSPEAKER CIGARETTE LIGHTER CLIMATRONIC CONTROL MDULE CLUTCH POSITION SESNOR COMBINATION PROCESSOR COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COOLANT FAN 2 COOLANT FUEL RESERVE WARN LEVEL/ TEMP WARN COOLING FANS SYSTEM CRUISE CONTROL IND CRUISE CONTROL SYSTEM CUP HOLDER ILLUMINATION DATA BUS ON BOARD DIAGNOSTIC INTERFACE DEFOGGER AUTOMATIC DAY/NIGHT DEFOGGER SYSTEM DEFOGGERS SYSTEM DIGITAL CLOCK DIRECT SHIFT GEARBOX MECHATRONIC DOOR LOCKS SYSTEM DOOR LOCKS, TRUNK, TAILGATE, FUEL DOORS SYSTEM DRIVER SIDE DOOR OPENER LIGHT DRIVER'S AIR BAG IGNITER DRIVER'S AIR BAG IGNITER 2 DRIVER'S AIRBAG IGNITER DRIVER'S AIRBAG IGNITER 2 DRIVER'S HEAD CURTAIN AIRBAG IGNITER DRIVER'S SAFETY BELT TENSIONER IGNITER 1 DRIVER'S SIDE AIRBAG IGNITER DRIVER'S SIDE OUTSIDE MIRROR FOLD- AWAY FRESH AIR BLOWER FRONT INTERIOR LIGHT FRONT INTERIOR LIGHT ASSEMBLY FRONT PASSENGER'S AIRBAG IGNITER FRONT PASSENGER'S HEAD CURTAIN AIRBAG IGNITER FRONT PASSENGER'S SAFETY BELT TENSIONER IGNITER 1 FRONT PASSENGER'S SIDE AIRBAG IGNITER FUEL INJECTORS FUEL LID AJAR IND PARK LIGHT IND GARAGE DOOR OPENER CONTROL HEAD GARAGE DOOR OPENER CONTROL HEAD AUTOMATIC DAY/NIGHT INTERIOR MIRROR GLOVE COMPARTMENT LIGHT HEADLAMP POWER OUTPUT STAGE HEADLIGHTS SYSTEM HEATED REAR WINDOW HIGH LOW HIGH MOUNT BRAKE LIGHT HIGH TURN HORNS SYSTEM HOT AT ALL TIMES IGNITER 1 IGNITER 2 IGNITION GROUND BRAKE SW ILLUM ILLUM ILLUMINATION FOR SELECTOR LEVER SCALE INSIDE MICROPHONE INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM LEFT FOOTWELL LIGHT LEFT FRONT MAP/ READING LIGHT LEFT HEADLAMP POWER OUTPUT STAGE LEFT MAKE-UP MIRROR LIGHT LEFT MULTI-FUNCTION BUTTONS LEFT REAR DOOR OPENER LIGHT LEFT TAILLAMP ASSEMBLY 1 LEFT TAILLAMP ASSEMBLY 2 LEFT TURN IND RIGHT TURN IND LUGGAGE COMPARTMENT LIGHT LUMBAR CURV- ATURE LUMBAR HEIGHT OIL PRESS WARN CRUISE CONTROL IND OPEN TRUNK IND DOOR AJAR IND PARK BRAKE GEN WARN PASSENGER SIDE DOOR OPENER LIGHT PASSENGER'S SIDE OUTSIDE MIRROR POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM RADIO FREQUENCY CONTROLLED CLOCK RECEIVER REAR COURTESY LIGHT REAR INTERIOR LIGHT ASSEMBLY REVERSE STOP RIGHT FOOTWELL LIGHT RIGHT FRONT MAP/ READING LIGHT RIGHT HEADLAMP POWER OUTPUT STAGE RIGHT MAKE-UP MIRROR LIGHT RIGHT MULTI-FUNCTION BUTTONS RIGHT REAR DOOR OPENER LIGHT RIGHT TAILLAMP ASSEMBLY 1 RIGHT TAILLAMP ASSEMBLY 2 SATELLITE RADIO SEAT HEATERS SEATS SYSTEM SELECTOR LEVER SHORTING CONTACT SIDE BOLSTER HEATERS SOLID STATE SOUND, NAVIGATION SYSTEM SPEEDOMETER ECT GAUGE SPIRAL SPRING STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATE SOLID STOP STOP STOP TURN STOP STORAGE COMPARTMENT ILLUMINATION SUPPLEMENTAL RESTRAINTS SYSTEM TACHOMETER FUEL GAUGE TO SPARK PLUG TRANSMISSIONS SYSTEM COMPUTER DATA LINES SYSTEM W/ DYNAMIC CORNERING HEADLIGHTS W/ RADIO OR NAVIGATION W/ SATELLITE RADIO W/O DYNAMIC CORNERING HEADLIGHTS W/O RADIO OR NAVIGATION W/O SATELLITE RADIO WARNING BUZZER WIPER/WASHER SYSTEM
