Wiring Diagrams for Volvo S80 I facelift (2003-2006)

Automatic a/c circuit

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit

Central electronic module circuit Rear electronic module circuit

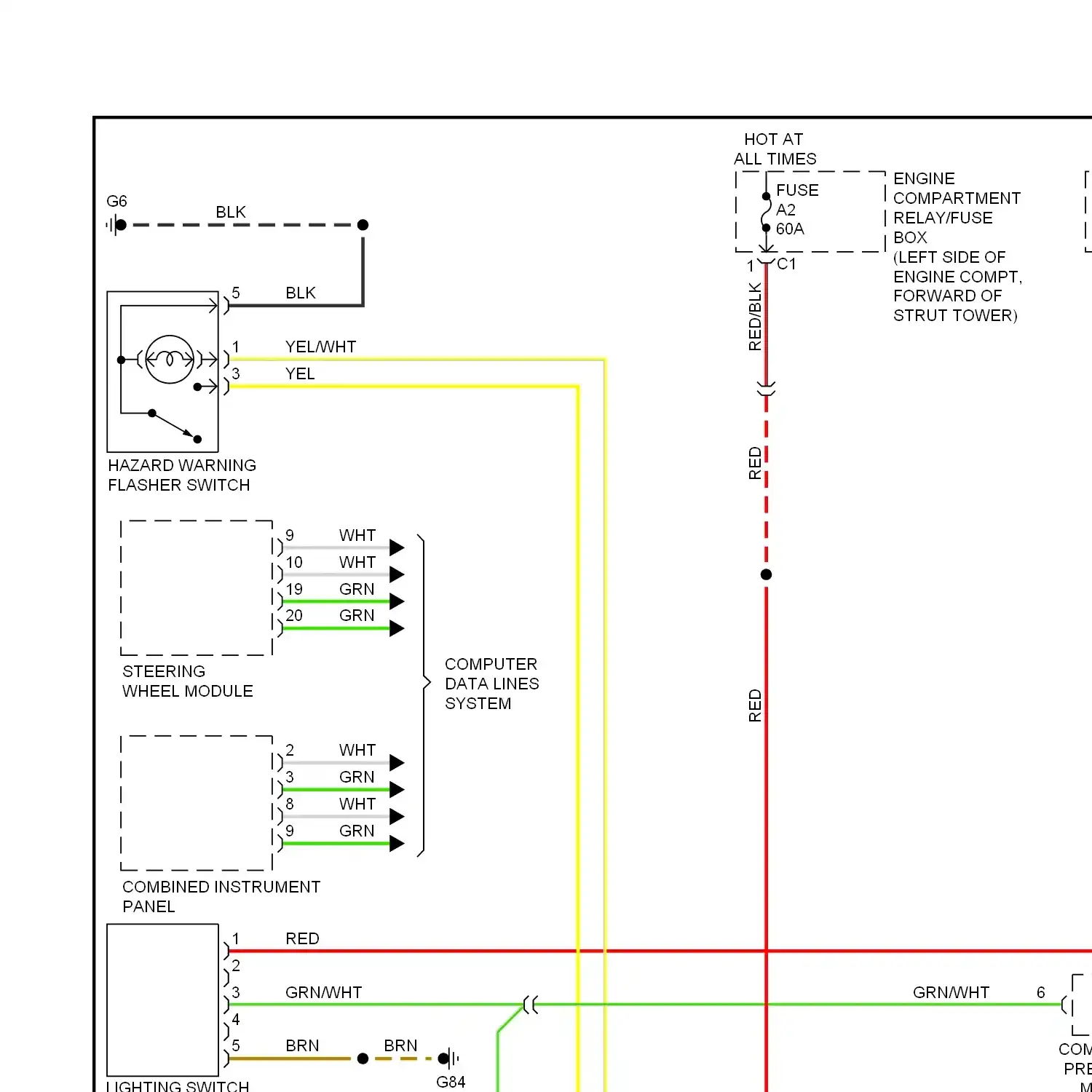

Computer data lines circuit

Cooling fan circuit

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

Electronic suspension circuit

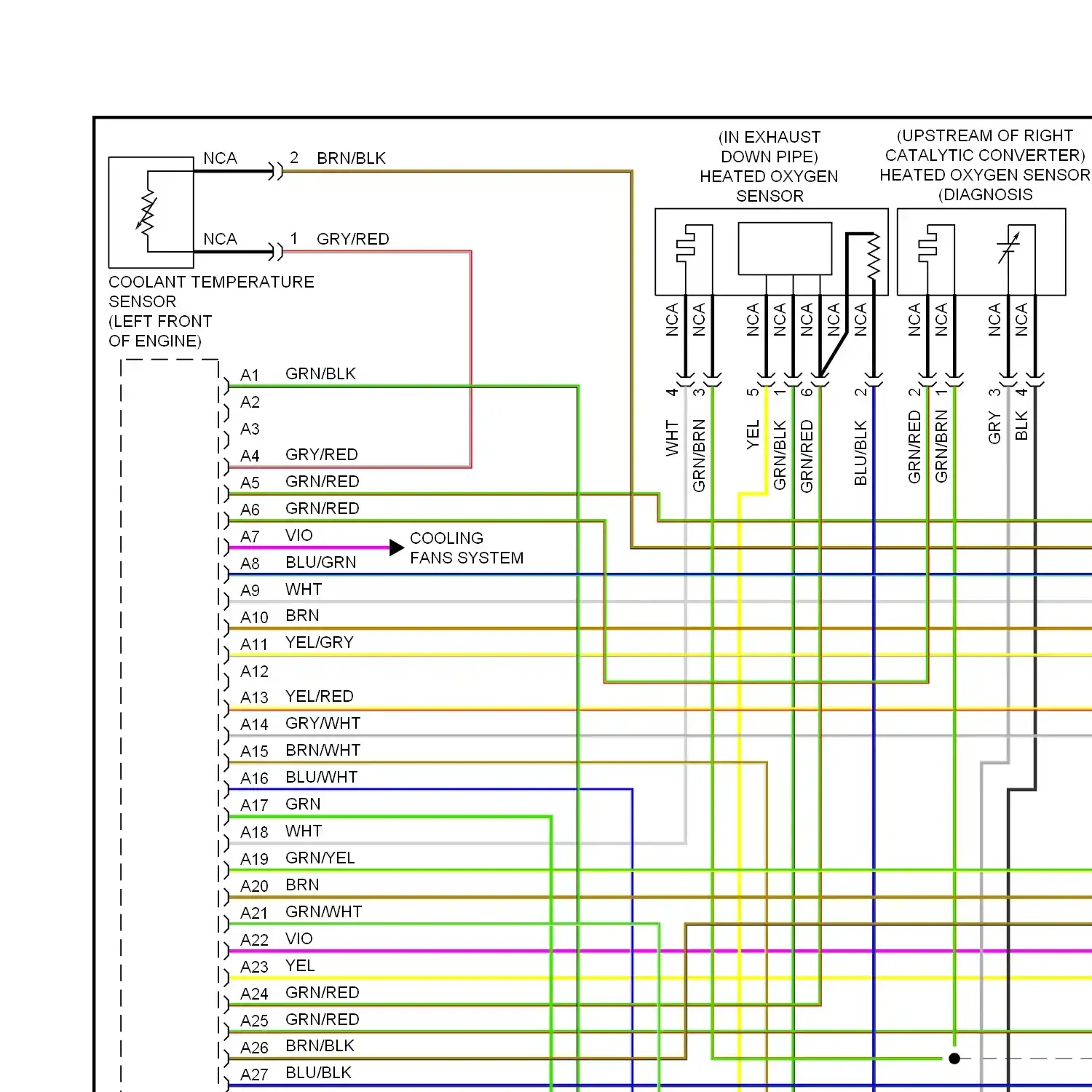

Wiring diagram engine performance 2.5l turbo

Wiring diagram engine performance 2.9l

Wiring diagram engine performance 2.9l turbo

Back-up lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit, without xenon lamps Headlights circuit, with xenon lamps

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit

Navigation circuit Parking assistant circuit

Power distribution circuit

Power door locks circuit

Driver power seat circuit Heated seats circuit Passenger"s power seat circuit Rear head restraint circuit

Sunroof circuit

Power windows circuit

Radio circuit, with amplifier Radio circuit, without amplifier

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

Transmission circuit, 4t65ev Transmission circuit, aw55-50

Warning systems circuit

Headlamp wiper/washer circuit Wiper/washer circuit

AIR PREHEATING PTC RESISTOR ALARM SIREN HORN 1 HORN 1 HORN 2 HORN 2 IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 SCM ALARM SIREN SPARK PLUG, IGNITION COIL

ABS PUMP MOTOR BACKREST MOTOR DEFROSTER DAMPER MOTOR DRIVER'S SEAT FORWARD/REARWARD MOTOR DRIVER'S SEAT FRONT EDGE UP/DOWN MOTOR DRIVER'S SEAT LUMBAR SUPPORT MOTOR DRIVER'S SEAT REAR EDGE UP/DOWN MOTOR ELECTRIC COOLING FAN MOTOR ENGINE COMPARTMENT COOLING FAN ELECTRICS BOX ENGINE CONTROLS SYSTEM ENGINE THROTTLE BODY FORE/AFT MOTOR FRONT EDGE UP/DOWN MOTOR FUEL FILLER FLAP LOCKING MOTOR LEFT FRONT POWER WINDOW MOTOR LEFT HEADLIGHT LEVEL ADJUSTMENT MOTOR LEFT HEADLIGHT WIPER MOTOR LEFT REAR POWER WINDOW MOTOR LEFT SIDE TEMPERATURE DAMPER MOTOR LEFT/ RIGHT HEADLIGHT WIPER MOTOR, LEFT/RIGHT BEAM ADJUSTMENT ACTUATOR PASSENGER COMPARTMENT FAN MOTOR REAR EDGE UP/DOWN MOTOR RECIRCULATION DAMPER MOTOR RIGHT FRONT POWER WINDOW MOTOR RIGHT HEADLIGHT LEVEL ADJUSTMENT MOTOR RIGHT HEADLIGHT WIPER MOTOR RIGHT REAR POWER WINDOW MOTOR RIGHT SIDE TEMPERATURE DAMPER MOTOR STARTER MOTOR SUN-ROOF MOTOR VENTILATION/FLOOR DAMPER MOTOR WINDSHIELD WIPER MOTOR

ANTENNA RING/ IGNITION LIGHTING BUMPER ANTENNA BUMPER ANTENNA AMPLIFIER LEFT WINDOW ANTENNA AMPLIFIER RIGHT WINDOW ANTENNA AMPLIFIER RTI GPS ANTENNA WINDOW ANTENNA

DATA LINK CONNECTOR TOW HITCH CONNECTOR

ABS CONTROL MODULE AUXILIARY BRAKE LIGHT SUNROOF CONTROL MODULE BRAKE CONTROL MODULE CD CHANGER, RTI CD-ROM PLAYER, RTI CONTROL MODULE, PAGER ALARM CENTRAL ELECTRONIC CONTROL MODULE CLIMATE CONTROL MODULE COOLING FAN CONTROL MODULE DOME LIGHT CONTROL MODULE ELECTRIC COOLING FAN CONTROL MODULE ELECTRONIC POWER STEERING CONTROL MODULE ENGINE CONTROL MODULE ENGINE CONTROL MODULE ENGINE CONTROL MODULE ENGINE COOLING FAN CONTROL MODULE FAN CONTROL MODULE FUEL PUMP CONTROL MODULE LEFT FRONT DOOR CONTROL MODULE LIGHT CONTROL MODULE SWITCH RIGHT FRONT DOOR CONTROL MODULE RTI CONTROL MODULE RTI SYSTEM CONTROL MODULE SUN ROOF CONTROL MODULE SUNROOF CONTROL MODULE SUSPENSION CONTROL MODULE TRANSMISSION CONTROL MODULE UPPER ELECTRONIC MODULE FAN CONTROL MODULE

LEFT FRONT DOOR LOCK UNIT LEFT REAR DOOR LOCK UNIT LEFT/RIGHT REAR DOOR LOCK UNIT, FUEL FILTER/ FLAP LOCKING UNLOCKING RELAY RIGHT FRONT DOOR LOCK UNIT RIGHT REAR DOOR LOCK UNIT RIGHT REAR DOOR LOCK UNIT RIGHT REAR COURTESY LIGHTING SUPPLEMENTAL RESTRAINT SYSTEM CONTROLS UNIT TRUNK LID LOCK UNIT

BATTERY FUSE BOX FUSE 4 FUSE 5 FUSE 8 FUSE 11 FUSE 5 FUSE 8 FUSE 11 FUSE 6 FUSE 4 FUSE 6 FUSE 8 FUSE 11 FUSE 12 FUSE 23 FUSE 24 FUSE 26 FUSE 32 FUSE 33 FUSE 33 FUSE 32 FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE FUSE HOT AT ALL TIMES FUSE HOT AT ALL TIMES FUSE FUSE HOT AT ALL TIMES PASSENGER COMPARTMENT FUSE BOX PASSENGER COMPARTMENT FUSE BOX PASSENGER COMPARTMENT FUSE BOX FUSE TO FUSE

BACKREST HEATER LEFT SEAT HEATER LEFT SEAT HEATER RIGHT SEAT HEATER MIRROR HEATING ELEMENT RIGHT SEAT HEATER SEAT HEATER

BACK-UP LIGHTS CIRCUIT LEFT FRONT LAMP HOUSING LEFT TAIL LIGHT LAMP HOUSING LEFT TURN SIGNAL LAMP SHUNT POSITION/PARKING LIGHTS SHUNT REAR READING LIGHTS RIGHT FRONT LAMP HOUSING RIGHT TAIL LIGHT LAMP HOUSING RIGHT TURN SIGNAL LAMP SHUNT

FEED PUMP FUEL PUMP VACUUM PUMP WINDSHIELD WASHER PUMP

15-FEED OVERLOAD RELAY A/C RELAY ACCESSORY AUXILIARY LIGHT RELAY AUTOMATIC TRANSMISSION EXTENDED XFEED RELAY AUTOMATIC TRANSMISSION X-SUPPLY OVERLOAD RELAY AUTOMATIC TRANSMISSION, EXTENDED X FEED RELAY BRAKE LIGHT RELAY CARGO COMPARTMENT RELAY/FUSE BOX CENTRAL ELECTRONIC MODULE FUEL PUMP RELAY CLIMATE CONTROL SYSTEM RELAY DRL RELAY ENGINE COMPARTMENT FUSE/RELAY BOX ENGINE COMPARTMENT RELAY/FUSE BOX ENGINE CONTROL SYSTEM MAIN RELAY ENGINE MANAGEMENT SYSTEM MAIN RELAY EXTENDED X-FEED RELAY FOGLIGHT TRAILER RELAY FRONT FOGLIGHT RELAY FRONT FOGLIGHTS RELAY FUEL FILLER FLAP LOCKING RELAY FUEL FILLER FLAP UNLOCKING RELAY FUEL LEAKAGE CONTROL RELAY FUEL PUMP RELAY FUEL SYSTEM RELAY HEATED REAR WINDOW RELAY HIGH BEAM RELAY HORN RELAY HOT W/ 15 FEED REAR ACCESSORY RELAY ENERGIZED HOT W/ 15-FEED OVERLOAD RELAY ENERGIZED HOT W/ OVERLOAD 15-SUPPLY RELAY ENERGIZED HOT W/ OVERLOAD X-SUPPLY RELAY ENERGIZED HOT W/ REAR ACCESSORY RELAY ENERGIZED HOT W/ X-SUPPLY OVERLOAD RELAY ENERGIZED HOT WITH 15 FEED OVERLOAD RELAY ENERGIZED INTERMITTENT WINDSHIELD WIPER RELAY LEFT REAR POWER WINDOW DOWN RELAY LEFT REAR POWER WINDOW UP RELAY LEFT REAR UNLOCKING RELAY LOW BEAM RELAY LOW/HIGH SPEED WINDSHIELD WIPER RELAY OVERLOAD RELAY 15-FEED OVERLOAD RELAY X FEED PARKING LIGHT RELAY POSITION/ PARKING LIGHT RELAY POSITION/PARKING LIGHTS RELAY RADIO, RTI DISPLAY RADIO FRONT FOG LIGHT RELAY REAR ACCESSORY 15 FEED RELAY REAR ADJUSTABLE HEAD RESTRAINT RELAY REAR ADJUSTABLE HEAD RESTRAINT RELAY TRUNK LID OPENING RELAY REAR DOOR POWER WINDOW CHILD LOCK RELAY REAR DOORS DEADLOCK POSITION RELAY REAR DOORS DEADLOCK RELAY REAR DOORS POWER WINDOW CHILD LOCK RELAY REAR DOORS POWER WINDOW CHILDLOCK RELAY REAR DOORS/ FILLER FLAP LOCKING RELAY REAR ELECTRONIC MODULE BRAKE LIGHT RELAY REAR FOGLIGHT RELAY REAR FOLDING HEAD RESTRAINT RELAY REAR POWER WINDOW/POWER CHILD LOCK RELAY REVERSE LIGHT RELAY REVERSING LIGHT RELAY RIGHT REAR POWER WINDOW DOWN RELAY RIGHT REAR POWER WINDOW UP RELAY RIGHT REAR UNLOCKING RELAY STARTER MOTOR RELAY SUSPENSION MODULE RELAY TRAILER FOGLIGHT RELAY TRUNK LID/ OPENING RELAY TRUNK LID/ TAILGATE OPENING RELAY WINDSHIELD WASHER MOTOR RELAY X-FEED OVERLOAD RELAY

A/C PRESSURE SENSOR ACCELERATOR PEDAL SENSOR BRAKE FLUID LEVEL SENSOR BRAKE PEDAL SENSOR COOLANT LEVEL SENSOR COOLANT TEMPERATURE SENSOR DSTC SENSOR MODULE ENGINE CONTROL MODULE, FUEL INJECTORS, MASS AIRFLOW SENSOR EVAPORATOR TEMPERATURE SENSOR HEATED OXYGEN SENSOR, ENGINE CONTROL MODULE IMPULSE SENSOR INPUT SPEED SENSOR (LEFT REAR LEFT FRONT ABS SENSOR LEFT FRONT ABS SPEED SENSOR LEFT HAND FRONT SIDE IMPACT SENSOR LEFT HAND REAR SIDE IMPACT SENSOR LEFT PUMP FUEL LEVEL SENSOR MICROWAVE SENSOR ALARM OIL PRESSURE SENSOR OUTSIDE TEMPERATURE SENSOR OUTSIDE TEMPERATURE SENSOR RIGHT POWER DOOR MIRROR PRESSURE, TEMPERATURE SENSOR RAIN SENSOR RIGHT FRONT ABS SENSOR RIGHT FRONT ABS SPEED SENSOR RIGHT HAND FRONT SIDE IMPACT SENSOR RIGHT HAND REAR SIDE IMPACT SENSOR RIGHT PUMP FUEL LEVEL SENSOR RIGHT REAR FOUR-C SHOCK ABSORBER ACCELERATION SENSOR (IN LEFT FRONT STEERING ANGLE SENSOR CONTROL MODULE STEERING ANGLE SENSOR MODULE STEERING WHEEL ANGLE SENSOR CONTROL MODULE SUN SENSOR/ ELECTRONIC IMMOBILIZER ALARM INDICATOR TEMPERATURE SENSOR VEHICLE INCLINATION SENSOR WASHER FLUID LEVEL SENSOR

CENTER DASH BOARD SPEAKER LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR SHELF SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR SHELF SPEAKER

ANTENNA RING/ IGNITION SWITCH LIGHTING ANTENNA RING/IGNITION SWITCH LIGHT AUDIO MOBILE PHONE SWITCH AUDIO/MOBILE PHONE SWITCH AUXILIARY LIGHT SWITCH BACKREST SWITCH BRAKE LIGHT SWITCH COURTESY LIGHT SWITCH MODULE CRUISE CONTROL SWITCH CRUISE CONTROL SWITCH AUDIO/MOBILE PHONE SWITCH DRIVER'S SIDE POWER SEAT SWITCH FOLDING DOOR MIRRORS SWITCH FORE/AFT SWITCH FORW FORWARD/ REARWARD SWITCH FORW LUMBAR SWITCH FRONT EDGE UP/DOWN SWITCH GEAR SELECTOR MODULE SWITCH HAZARD WARNING FLASHER SWITCH HEATED REAR WINDOW/ DOOR MIRRORS SWITCH HEATED REAR WINDOW/DOOR MIRRORS SWITCH HORN SWITCH HOT AT ALL TIMES IGNITION SWITCH IGNITION SWITCH KEY-IN IGNITION SWITCH LEFT FRONT HEATED SEAT SWITCH LEFT HEATED SEAT SWITCH LEFT REAR DOOR POWER WINDOW SWITCH LEFT REAR POWER WINDOW SWITCH LEFT SEAT BELT LAP SWITCH LEFT SEAT BELT LATCH SWITCH LIGHT SWITCH MODULE LIGHTING SWITCH MODULE PARKING BRAKE SWITCH POWER CHILD LOCK SWITCH POWER SUN ROOF SWITCH REAR ADJUSTABLE HEAD RESTRAINT SWITCH REAR EDGE UP/DOWN SWITCH REDUCED ALARM SWITCH RETRACTABLE DOOR MIRRORS SWITCH RIGHT FRONT HEATED SEAT SWITCH RIGHT HEATED SEAT SWITCH RIGHT REAR DOOR POWER WINDOW SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SEAT BELT LATCH SWITCH RIGHT SEAT BELT LAP SWITCH RTI SWITCH SPIN CONTROL SWITCH SWITCH REDUCED ALARM SWS CRUISE CONTROL SWITCH TRUNK HANDLE SWITCH TRUNK LID HANDLE SWITCH TRUNK LID PRIVATE LOCK SWITCH TRUNK LID/ TAILGATE PRIVATE LOCK SWITCH UP FRONT EDGE UP/DOWN SWITCH UP REAR EDGE UP/DOWN SWITCH

AUTOMATIC TRANSMISSION SOLENOID CANISTER SHUT-OFF VALVE LEFT REAR HEAD RESTRAINT SOLENOID RIGHT REAR HEAD RESTRAINT SOLENOID SHIFT LOCK SOLENOID (IN FLOOR

BLK WIRE BLK/YEL WIRE BLU WIRE BLU/ YEL WIRE BLU/BLK OR BRN/RED WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/ORG WIRE BLU/PNK WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/PNK WIRE BRN/RED WIRE BRN/WHT WIRE GRN OR NCA WIRE GRN WIRE GRN/ WHT WIRE GRN/ YEL WIRE GRN/BLK WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/GRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/WHT WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/WHT WIRE PNK 1 4 WIRE PNK 18 19 20 21 WIRE PNK PNK 1 2 3 WIRE PNK PNK SOLID STATE WIRE PNK PNK WIRE PNK WIRE PNK/WHT WIRE RED WIRE RED/BLK OR VIO WIRE RED/BLK WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE VIO OR RED/BLK WIRE VIO WIRE VIO/WHT WIRE WHT OR NCA WIRE WHT WIRE WHT/BLK WIRE WHT/BRN WIRE YEL WIRE YEL/BLK WIRE YEL/BRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1 2 3 4 5 6 7 8 9 10 11 12 CONN A 1 2 CONN A 2 3 4 -LF 2.4L 2.5L, 2.3L, 2.9L 2.4L 5 6 7 8 9 SOLID STATE 5 CYL. 6 15/20 6 CONN B 6- CYL 8 7 6 CL 8 9 10 -LR 11 15/23 12 CONN B 12 CONN B -RR RADIO 15 11 SOLID STATE 30 P 31 P 31 S +ANT +CS -CS 31 A/C COMPRESSOR CLUTCH A/C SYSTEM ACCESSORY ELECTRONIC MODULE TOWING BRACKET WIRING AIR CONDITIONING SYSTEM ALL OTHER MODELS ANTI-THEFT SYSTEM AUTOMATIC TRANSMISSION PROGRAM SELECTOR AUTOMATIC TRANSMISSION SOLENOIDS AUXILIARY BRAKE LIGHT B/U FOG TURN STOP PARK BELOW DRIVERS SEAT, AT KICK PANEL) BODY COMPUTER SYSTEM (CENTRAL ELECTRONIC BODY COMPUTER SYSTEM (REAR ELECTRONIC BRAKE FLUID LEVEL MONITOR BRAKE LIGHT CONTACT BRAKE LIGHT SHUNT CARGO COMPARTMENT CARGO COMPARTMENT OUTLET CD CHANGER CEM LOW BEAM SHUNT CENTER REAR SEAT BELT TENSIONER IGNITER CENTRAL ELECTRONIC MODULE CLOCK- SPRING COMBINED INSTRUMENT PANEL COMBUSTION PREHEATER MODULE COMPUTER DATA LINES SYSTEM CONN A CONN B CONSOLE, AT BASE OF GEAR SELECTOR LEVER) CONTACT REEL COOLANT LEVEL MONITOR COOLING FANS SYSTEM COURTESY LIGHTING COURTESY RIGHT REAR LIGHTING DEFOGGER SYSTEM DOOR LOCKS SYSTEM DRIVER INFORMATION MODULE DRIVER SIDE AIR BAG IGNITER DRIVER SIDE AIR BAG IGNITER STEP 2 DRIVER'S SIDE POWER SEAT MODULE ELECTRONIC POWER STEERING ELECTRONIC POWER STEERING SYSTEM ELECTRONIC SUSPENSION SYSTEM ELECTRONIC THROTTLE MODULE FOG TURN STOP FOGLIGHT SHUNT FOLD-BACK FORE/ BACK FRONT 12 VOLT OUTLET FRONT ASHTRAY LIGHTING FUEL INJECTORS GEAR POSITION CONTACT GEAR SHIFT POSITION SWITCHES GEAR SHIFT SELECTOR MODULE GLOVE COMPARTMENT LIGHT GLOVE COMPARTMENT LIGHTING HEADLIGHTS SYSTEM HEATED REAR WINDOW HOOD ALARM CONTACT HORNS SYSTEM HOT AT ALL TIMES HOT IN ON OR START IGNITION COILS INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT PANEL JUMP START TERMINAL KEY IN KEY UNLOCK LEFT CARGO COMPARTMENT LIGHTING LEFT DOOR MIRROR LIGHT LEFT FRONT BELT TENSIONER IGNITER LEFT FRONT COURTESY LIGHTING LEFT FRONT FOGLIGHT LEFT FRONT FOGLIGHT RIGHT FRONT FOGLIGHT LEFT FRONT PARKING LIGHT LEFT FRONT SIDE AIR BAG IGNITER LEFT FRONT SIDE MARKER LIGHT LEFT FRONT TWEETER LEFT HAND INFLATABLE CURTAIN IGNITER LEFT LOW BEAM RIGHT LOW BEAM LEFT HIGH BEAM RIGHT HIGH BEAM LEFT POWER DOOR MIRROR LEFT REAR BELT TENSIONER IGNITER LEFT REAR COURTESY LIGHTING LEFT REVERSING LIGHT LEFT SIDE CARGO COM- PARTMENT LIGHT LEFT TAILLIGHT HOUSING FOG- LIGHT LEFT TAILLIGHT HOUSING FOG- LIGHT FOG- LIGHT LEFT TURN SIGNAL SHUNT LEFT VANITY MIRROR LIGHT LEFT VANITY MIRROR LIGHTING LF+ LICENSE PLATE LIGHT LICENSE PLATE LIGHTING LO HI LOW BEAM SHUNT M/T A/T MEM X MEM Y MOBILE PHONE MOBILE TELEPHONE NAVIGATION SYSTEM NON TURBO NOT USED OF TRANS) PARK TURN PARKING ASSISTANCE MODULE PARKING LIGHT REM SHUNT PASSENGER SIDE AIR BAG IGNITER PASSENGER SIDE AIR BAG STAGE 2 IGNITER PASSENGER SIDE POWER SEAT MODULE POSITION 1 POSITION 2 POSITION 3 POSITION/ PARKING LAMPS SHUNT POSITION/ PARKING/ TAIL LAMPS SHUNT POWER DISTRIBUTION SYSTEM POWER PASSENGER SEAT MODULE POWER SEAT SYSTEM POWER WINDOWS SYSTEM REAR 12 VOLT OUTLET REAR ADJUSTABLE HEAD RESTRAINT REAR CIGA- RETTE LIGHTER 12 VOLT OUTLET REAR CIGARETTE LIGHTER REAR ELECTRONIC MODULE REAR READING LIGHT REVERSING LIGHT CONTACT, RF+ RIGHT CARGO COMPARTMENT LIGHTING RIGHT DOOR MIRROR LIGHT RIGHT DOOR POWER MIRROR RIGHT FRONT RIGHT FRONT COURTESY LIGHTING RIGHT FRONT FOGLIGHT RIGHT FRONT SEAT BELT TENSIONER IGNITER RIGHT FRONT SIDE AIR BAG IGNITER RIGHT FRONT SIDE MARKER LIGHT RIGHT FRONT TWEETER RIGHT HAND INFLATABLE CURTAIN IGNITER RIGHT POWER DOOR MIRROR RIGHT REAR BELT TENSIONER IGNITER RIGHT REVERSING LIGHT RIGHT SEAT WARMER RIGHT SIDE CARGO COM- PARTMENT LIGHT RIGHT TAILLIGHT HOUSING RIGHT TAILLIGHT HOUSING FOG- LIGHT RIGHT TURN SIGNAL SHUNT RIGHT VANITY MIRROR LIGHT RIGHT VANITY MIRROR LIGHTING RTI DISPLAY SEATS SYSTEM SHOCK TOWER) SLS+ SLT- SLU+ SOLID STATE SOLID STATE 3 5 5 SPARK PLUGS STARTING/ CHARGING SYSTEM STEERING WHEEL MODULE STOP LOGIC SUPPLEMENTAL RESTRAINT SYSTEM TAILLIGHTS SHUNT TOWING BRACKET WIRING TRANSMISSION SYSTEM TURN PARK TV RECEIVER UP AFT UP DOWN W/ TELEPHONE W/O AWD W/O TELEPHONE W/O TURBO TURBO WARNING SYSTEMS WASHER FLUID LEVEL MONITOR WIPER/ WASHER SYSTEM X-DIRECTION Y-DIRECTION
