Volvo C70 II (2005-2009) right front auxiliary light Wiring diagram
This page shows the only wiring diagram for the component.right front auxiliary light, which is found in the car Volvo C70 II (2005-2009). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

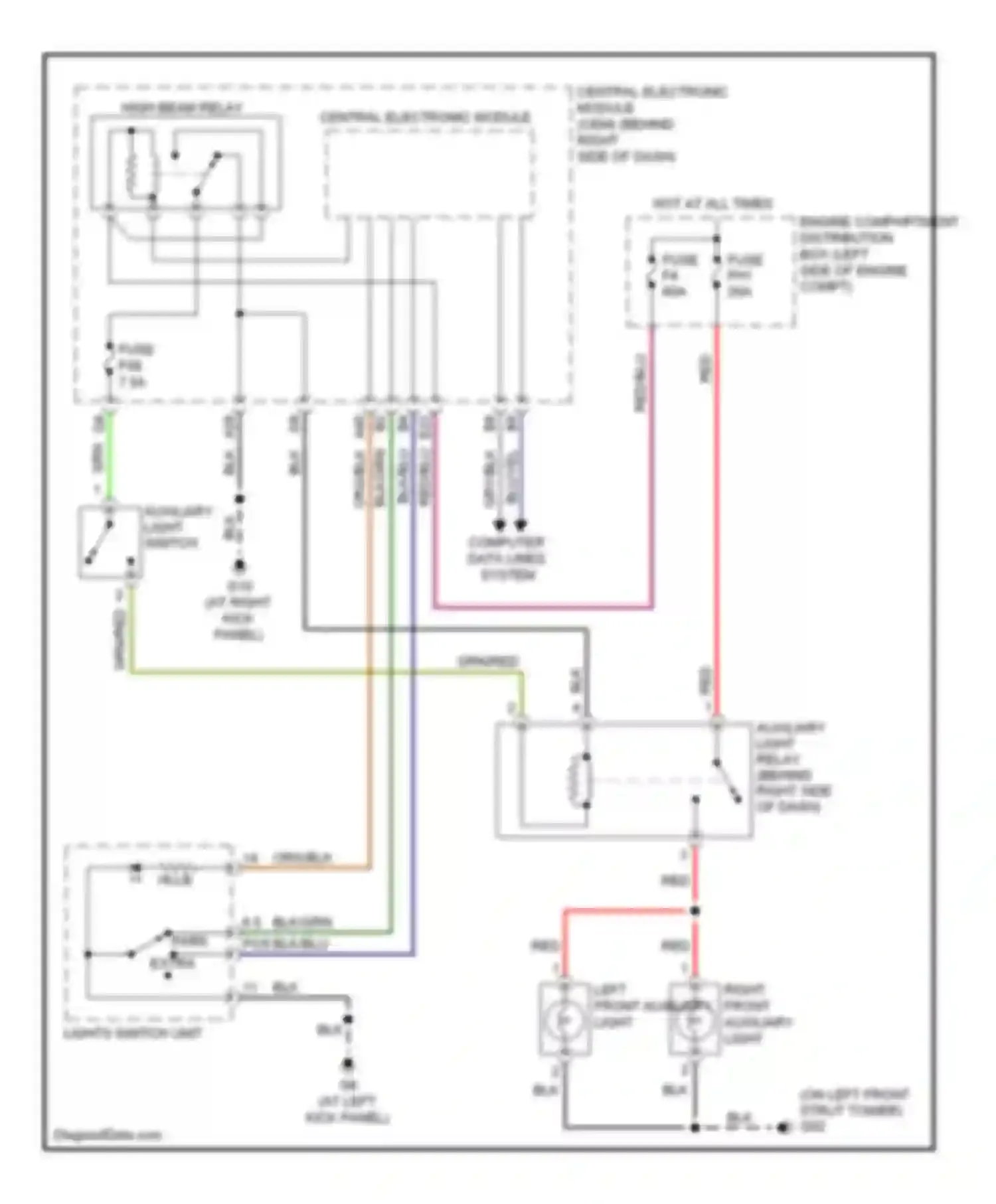

Wiring diagram right front auxiliary light (1 of 1)
6 5 POS PARK EXTRA
AUXILIARY LIGHT RELAY (BEHIND RIGHT SIDE OF DASH)
AUXILIARY LIGHT SWITCH
BLK WIRE
BLK/BLU WIRE
BLK/GRN WIRE
BLU/YEL WIRE
CENTRAL ELECTRONIC MODULE
CENTRAL ELECTRONIC MODULE (CEM) (BEHIND RIGHT SIDE OF DASH)
COMPUTER DATA LINES SYSTEM
ENGINE COMPARTMENT DISTRIBUTION BOX (LEFT SIDE OF ENGINE COMPT)
FUSE
FUSE FUSE
GRN WIRE
GRN/RED WIRE
GRY/BLK WIRE
HIGH BEAM RELAY
HLLB
HOT AT ALL TIMES
LEFT FRONT AUXILIARY LIGHT
LIGHTS SWITCH UNIT
ORG/BLK WIRE
RED WIRE
RED/BLU WIRE
RIGHT FRONT AUXILIARY LIGHT
Go to component -> Auxiliary exterior lighting circuit -> RIGHT FRONT AUXILIARY LIGHT
