Volvo C40 I (2021-2024) yel/org Wiring diagrams

18 94/303 8 94/303 94/350 94/514 BLK/YEL WIRE BLU/GRN WIRE BRAKE FLUID LEVEL SENSOR BRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM ENGINE FUSE BOX FUSE 2 FUSE 39 GRN WIRE GRN/YEL WIRE GRY/ORG WIRE GRY/YEL WIRE HOT AT ALL TIMES LEFT REAR PARKING BRAKE CALIPER MOTOR MAIN BATTERY FUSE BOX N/A ORG/GRN WIRE ORG/GRY WIRE RED WIRE RED/WHT WIRE RIGHT FRONT WHEEL SPEED SENSOR RIGHT REAR PARKING BRAKE CALIPER MOTOR RIGHT REAR WHEEL SPEED SENSOR TRANSMISSIONS SYSTEM VIO/ORG WIRE WHT WIRE YEL/ORG WIRE YEL/WHT WIRE

94/301 A/C COOLANT TEMPERATURE SENSOR BATTERY HEAT EXCHANGER SENSOR BLK WIRE BLK/BRN WIRE BLK/WHT WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE BRN/RED WIRE COMPRESSOR INLET SENSOR COMPRESSOR OUTLET SENSOR COMPUTER DATA LINES SYSTEM ENGINE CONTROL MODULE (ECM) GRN/GRY WIRE GRN/VIO WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE HIGH VOLTAGE BATTERY COOLING EXTERNAL TEMPERATURE SENSOR NCA WIRE OHX OUTLET SENSOR ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/GRY WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE RADIATOR COOLING FAN RED WIRE VIO/BLK WIRE VIO/BRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE WATER COOLED CONDENSER OUTLET SENSOR YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE

AIR CONDITIONING SYSTEM BLK/VIO WIRE BLU/GRY WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/VIO WIRE BRN/YEL WIRE CENTRAL ELECTRONIC MODULE (CEM) CENTRAL FUSE BOX COMPUTER DATA LINES SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS ENGINE CONTROLS SYSTEM EXTERIOR LIGHTS, AIR CONDITIONING SYSTEMS FUSE 2 FUSE 3 GRN WIRE GRY WIRE GRY/BLK WIRE GRY/ORG WIRE GRY/VIO WIRE GRY/YEL WIRE HEADLIGHTS SYSTEM HORNS SYSTEM HOT AT ALL TIMES NAVIGATION SYSTEM POWER DISTRIBUTION SYSTEM RED WIRE RED/YEL WIRE SUPPLEMENTAL RESTRAINTS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TRUNK, TAILGATE, FUEL DOORS, INTERIOR LIGHTS SYSTEMS VIO WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/WHT WIRE WHT/GRN WIRE WHT/ORG WIRE YEL WIRE YEL/ORG WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

AIR CONDITIONING SYSTEM ANTI-LOCK BRAKES SYSTEM BLU WIRE BLU/GRN WIRE BLU/GRY WIRE BRN WIRE BRN/BLU WIRE BRN/GRY WIRE BRN/YEL WIRE CENTRAL ELECTRONIC MODULE (CEM) COMPUTER DATA LINES SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS ENGINE CONTROLS SYSTEM ENGINE FUSE BOX FUSE 16 GRN WIRE GRN/BLU WIRE GRY/VIO WIRE HEADLIGHTS SYSTEM HORNS SYSTEM HOT W/ IGNITION 15 RELAY ENERGIZED INSTRUMENT CLUSTER SYSTEM ORG/ WIRE POWER DISTRIBUTION SYSTEM STARTING/CHARGING SYSTEM VIO/GRN WIRE VIO/WHT WIRE WHT WIRE WHT/GRN WIRE WHT/ORG WIRE WIPER/WASHER SYSTEM WIPER/WASHER, HEADLIGHTS, MIRRORS SYSTEMS YEL WIRE YEL/ORG WIRE YEL/VIO WIRE

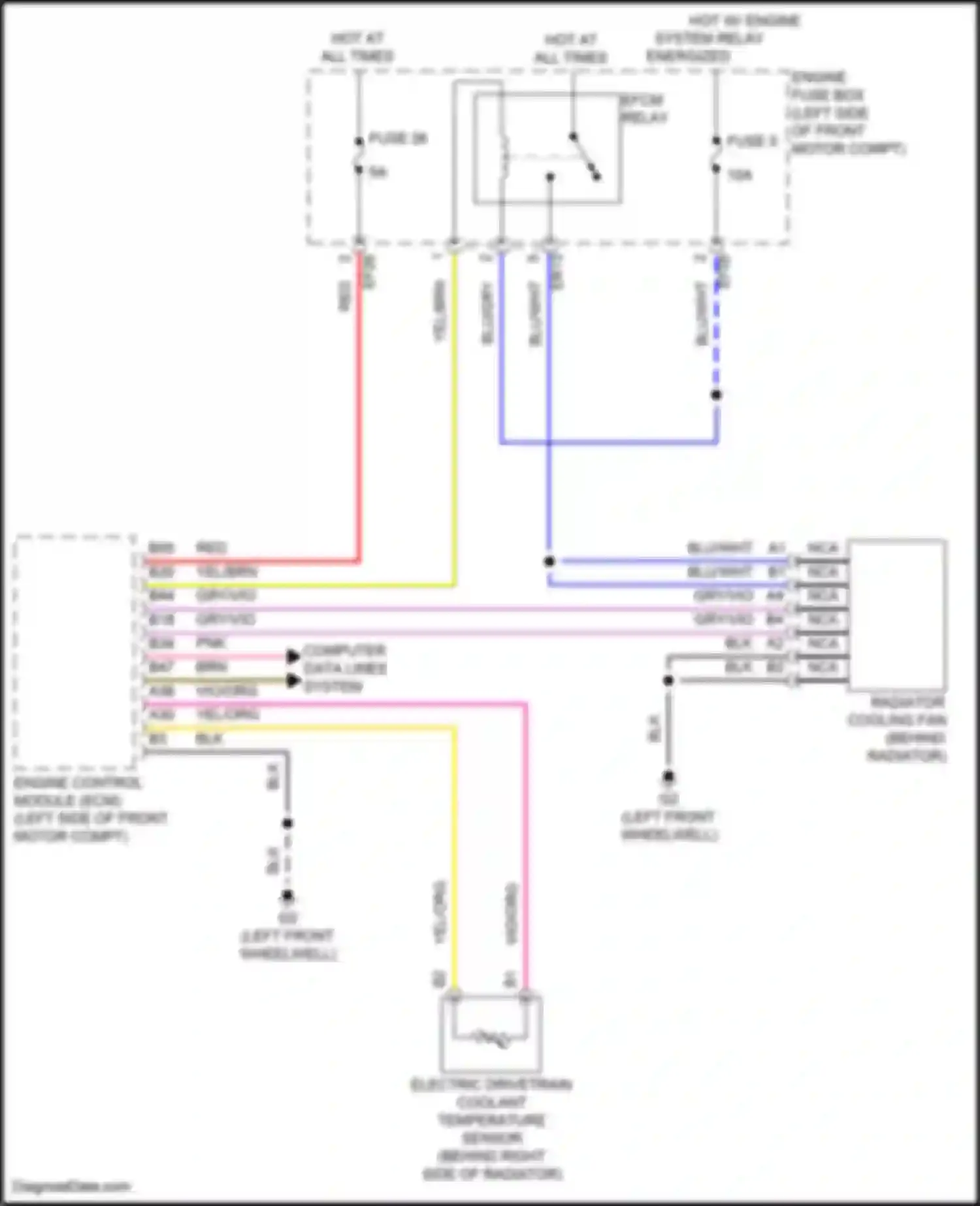

BLK WIRE BLU/GRY WIRE BLU/WHT WIRE BRN WIRE COMPUTER DATA LINES SYSTEM EFCM RELAY ELECTRIC DRIVETRAIN COOLANT TEMPERATURE SENSOR ENGINE CONTROL MODULE (ECM) ENGINE FUSE BOX FUSE 26 FUSE 5 GRY/VIO WIRE HOT AT ALL TIMES HOT W/ ENGINE SYSTEM RELAY ENERGIZED NCA WIRE PNK WIRE RADIATOR COOLING FAN RED WIRE VIO/ORG WIRE YEL/BRN WIRE YEL/ORG WIRE

94/303 94/403 94/404 94/414 94/541 94/601-1 94/604 BLK WIRE BLK/VIO WIRE BRAKE PEDAL SWITCH (TOP OF PEDAL ASSEMBLY) BRN/GRY WIRE BRN/PNK WIRE BRN/YEL WIRE CENTRAL ELECTRONIC MODULE (CEM) CENTRAL FUSE BOX COMPUTER DATA LINES SYSTEM ENGINE FUSE BOX FUSE 12 FUSE 19 FUSE 2 FUSE 22 GRN WIRE GRY/VIO WIRE HOT AT ALL TIMES HOT W/ IGNITION 15 RELAY ENERGIZED LEFT REAR FOG LIGHT LEFT TRUNK LID TAIL LIGHT N/A REAR LAMPS RELAY RED WIRE RIGHT REAR FOG LIGHT RIGHT TRUNK LID TAIL LIGHT TELEMATICS, CONNECTIVITY ANTENNA MODULE (TCAM) VIO/GRN WIRE VIO/WHT WIRE WHT WIRE WHT/GRN WIRE YEL/ORG WIRE

94/303 94/404 94/604 BLK WIRE BLK/WHT WIRE BLK/YEL WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/PNK WIRE BRN/WHT WIRE BRN/YEL WIRE CENTER CONSOLE SWITCH MODULE (CCSM) CENTRAL FUSE BOX COMPUTER DATA LINES SYSTEM DRIVER DOOR MODULE (DDM) FUSE 23 FUSE 41 FUSE 42 GRY/VIO WIRE HIGH-MOUNTED BRAKE LIGHT HOT AT ALL TIMES HOT AT ALL TIMES ENGINE FUSE BOX LEFT EXTERNAL MIRROR GLASS LEFT FRONT OUTER DOOR HANDLE LEFT REAR DOOR MODULE (RDM) LEFT REAR OUTER DOOR HANDLE LEFT REAR TAIL LIGHT LICENSE PLATE UNIT NCA WIRE PASSENGER DOOR MODULE (PDM) RED WIRE RED/BLK WIRE RED/WHT WIRE RIGHT EXTERNAL MIRROR GLASS RIGHT FRONT OUTER DOOR HANDLE RIGHT REAR DOOR MODULE (RDM) RIGHT REAR OUTER DOOR HANDLE RIGHT REAR TAIL LIGHT STEERING WHEEL MODULE (SWM) TRAILER MODULE (TRM) VIO WIRE VIO/GRN WIRE VIO/WHT WIRE WHT WIRE WHT/GRN WIRE YEL/ORG WIRE

94/403 94/414 94/434 94/503 94/504 94/509 94/510 BATTERY BACKED-UP SOUNDER (BBS) BLK WIRE BLK/VIO WIRE BLK/YEL WIRE BLU WIRE BRN/GRY WIRE BRN/VIO WIRE BRN/YEL WIRE CENTRAL ELECTRONIC MODULE (CEM) ENGINE FUSE BOX FUSE 30 GRN WIRE GRY WIRE GRY/VIO WIRE HOOD LATCH HOT AT ALL TIMES INTERIOR MOTION SENSOR (IMS) LEFT FRONT KEYLESS VEHICLE ANTENNA LUGGAGE COMPARTMENT KEYLESS VEHICLE ANTENNA NCA WIRE PASSENGER COMPARTMENT KEYLESS VEHICLE ANTENNA RED WIRE RED/WHT WIRE RED/YEL WIRE RIGHT FRONT KEYLESS VEHICLE ANTENNA RIGHT REAR OUTER DOOR HANDLE STEERING WHEEL MODULE (SWM) SUN SENSOR TELEMATICS, CONNECTIVITY ANTENNA MODULE (TCAM) VIO WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/WHT WIRE WHT/GRN WIRE WHT/ORG WIRE YEL WIRE YEL/BLK WIRE YEL/ORG WIRE YEL/VIO WIRE YEL/WHT WIRE

94/404 94/504 94/510 BLK WIRE BLK/GRN WIRE BLK/WHT WIRE BRN WIRE BRN/BLU WIRE BRN/GRY WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE CENTER CONSOLE SWITCH MODULE (CCSM) GRN/YEL WIRE GRY/ORG WIRE GRY/VIO WIRE ORG/BLK WIRE PASSENGER DOOR MODULE (PDM) RED WIRE RIGHT EXTERNAL MIRROR GLASS RIGHT FRONT CENTRAL LOCKING SWITCH RIGHT FRONT DOOR LATCH RIGHT FRONT OUTER DOOR HANDLE RIGHT REAR CENTRAL LOCKING SWITCH RIGHT REAR DOOR LATCH RIGHT REAR DOOR MODULE (RDM) VIO WIRE VIO/GRN WIRE VIO/ORG WIRE WHT/GRN WIRE YEL WIRE YEL/ORG WIRE

94/301 94/303 94/330 94/433 94/434 BLK WIRE BLK/VIO WIRE BLK/WHT WIRE BLU WIRE BLU/GRN WIRE BRAKE PEDAL SWITCH BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE CENTRAL ELECTRONIC MODULE (CEM) CENTRAL FUSE BOX COMPARTMENT COOLANT PUMP COMPUTER DATA LINES SYSTEM ELECTRIC DRIVETRAIN COOLANT PUMP ELECTRONIC GEAR SELECTOR MODULE (EGSM) ENGINE FUSE BOX FUSE 22 FUSE 24 FUSE 81 GRN WIRE GRY/VIO WIRE HIGH VOLTAGE BATTERY COOLANT FLUID PUMP HOT AT ALL TIMES HOT W/ BATTERY SAVER RELAY ENERGIZED VIO/WHT WIRE WHT WIRE YEL/ORG WIRE YEL/VIO WIRE
