Wiring Diagrams for Volkswagen Touareg I facelift (2006-2010)

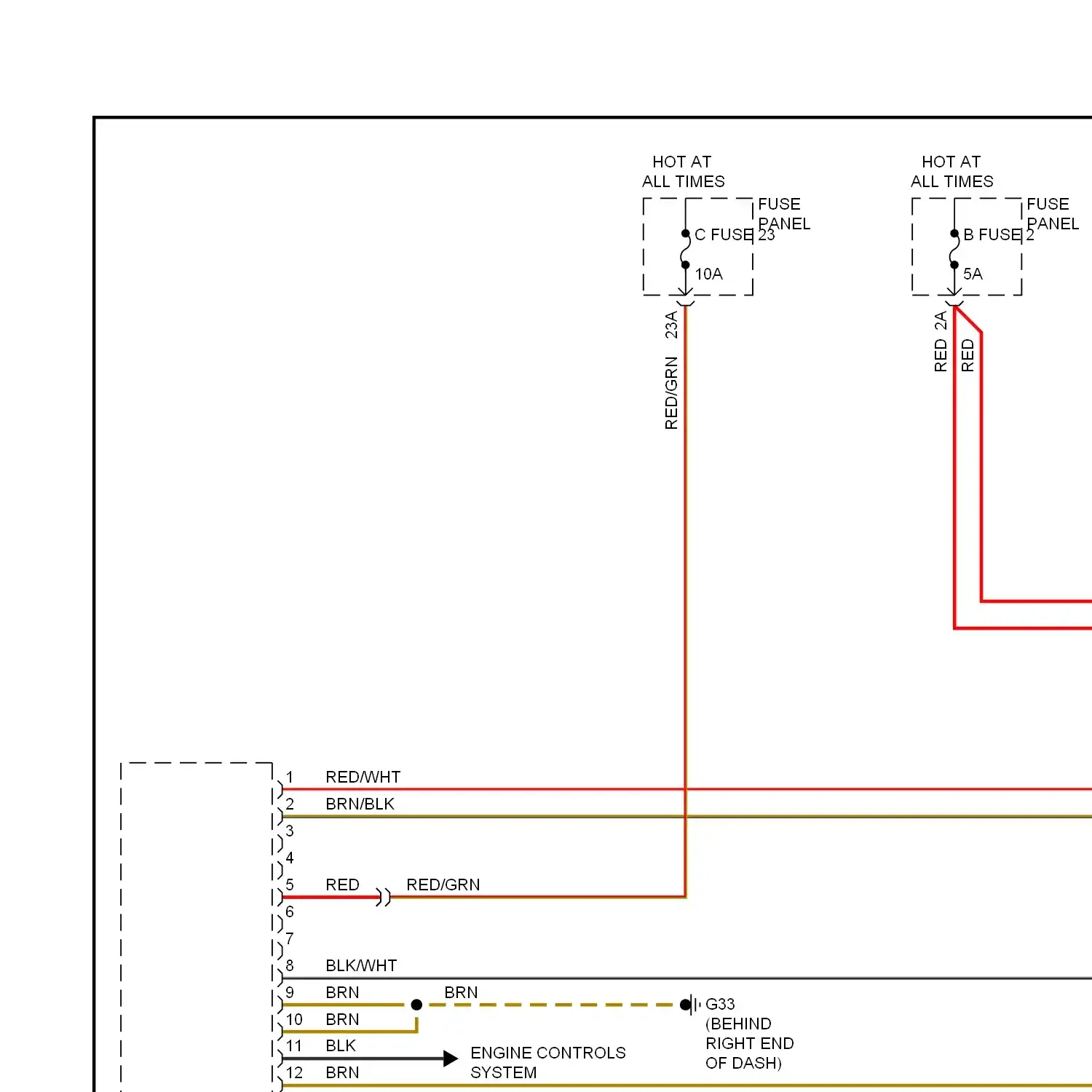

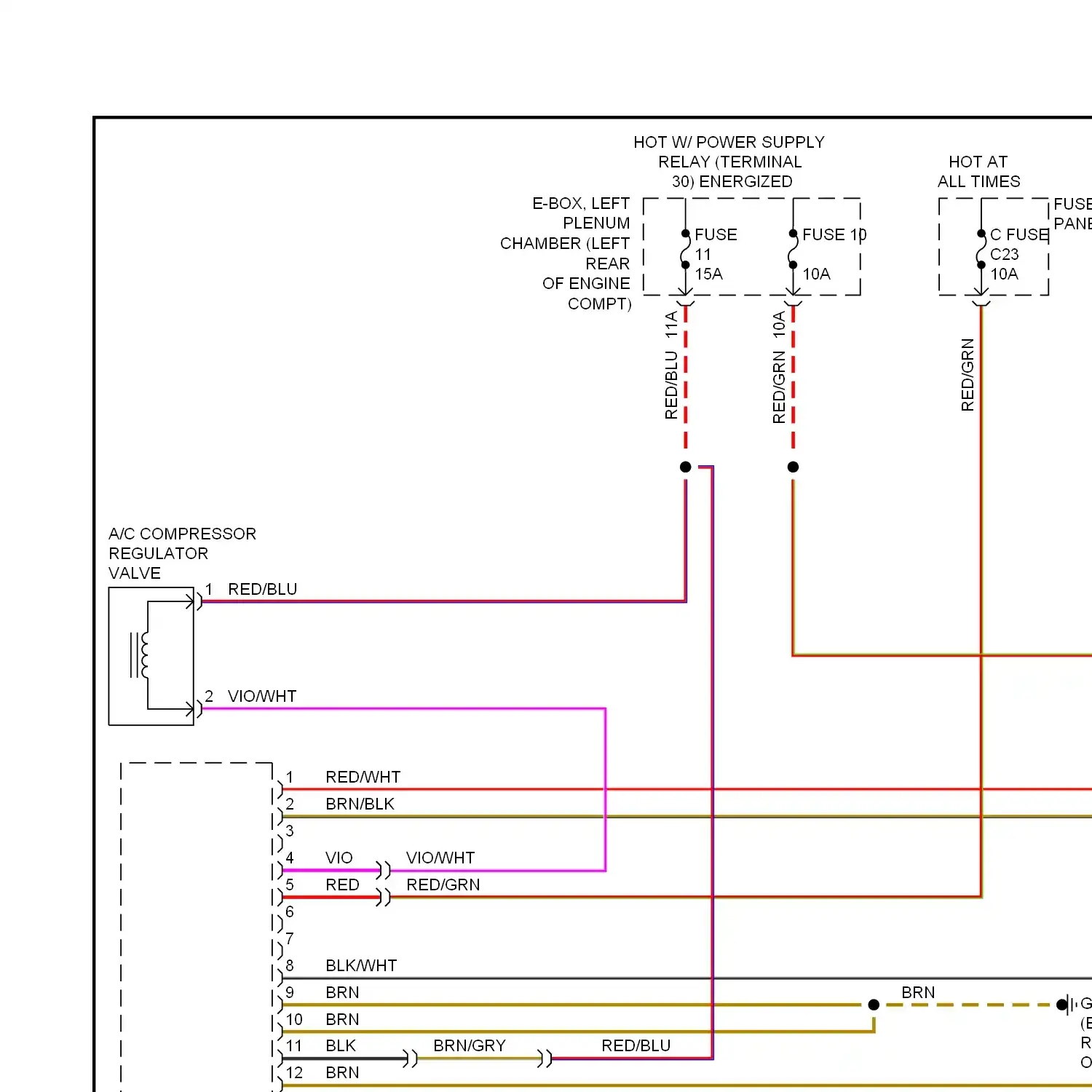

3.6l, automatic a/c circuit, dual a/c circuit 3.6l, automatic a/c circuit, four zone a/c circuit

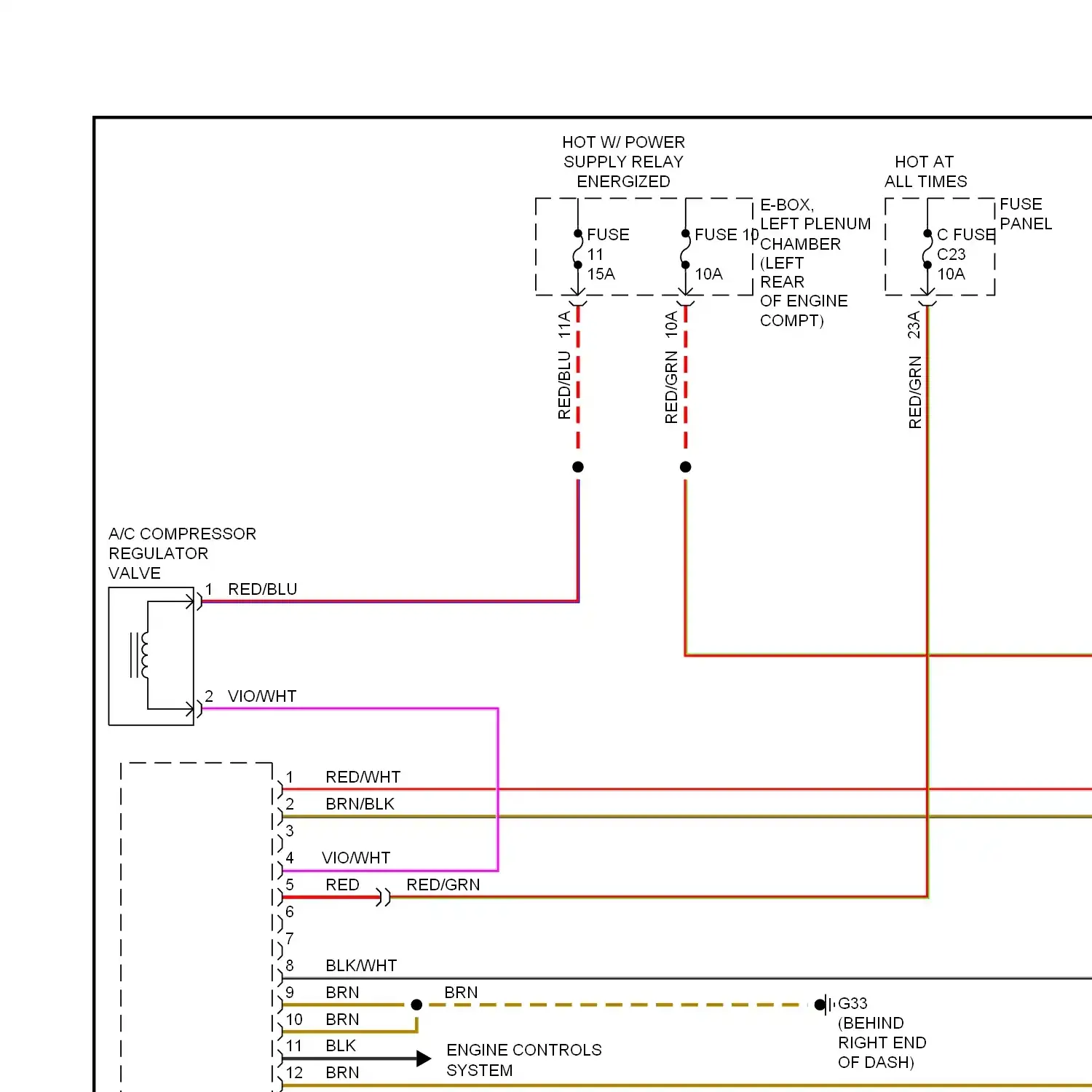

4.2l, automatic a/c circuit, dual a/c circuit 4.2l, automatic a/c circuit, four zone a/c circuit

5.0l turbo diesel, automatic a/c circuit, dual a/c circuit 5.0l turbo diesel, automatic a/c circuit, four zone a/c circuit

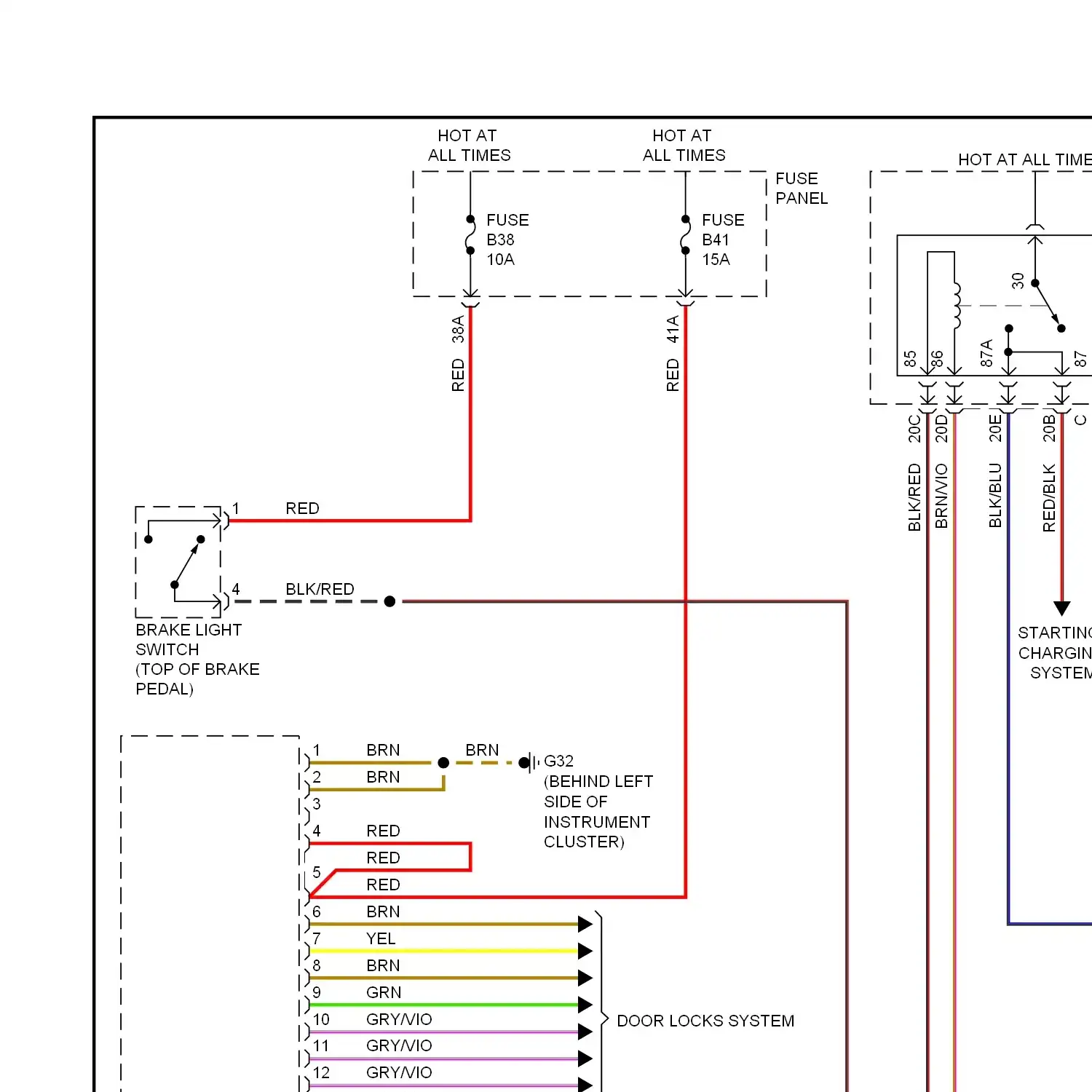

Anti-lock brakes circuit

Access/start circuit Forced entry circuit

Steering column electronic systems control module circuit Vehicle electrical system control module circuit

Computer data lines circuit

3.6l, cooling fan circuit

4.2l, cooling fan circuit

5.0l turbo diesel, cooling fan circuit

3.6l, cruise control circuit

4.2l, cruise control circuit

5.0l turbo diesel, cruise control circuit

Defoggers circuit

Electronic power steering circuit Power tilt steering column circuit

Level control circuit Stabilizer circuit

Wiring diagram engine performance 3.6l

Wiring diagram engine performance 4.2l

Wiring diagram engine performance 5.0l turbo diesel

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit, with high intensity gas discharge headlights Headlamps circuit, without high intensity gas discharge headlights

Horn circuit

Electronic compass circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory driver"s seat & power steering column circuit Passenger"s memory seat circuit

Lane departure warning circuit Navigation circuit, rns2 with 10-channel Navigation circuit, rns2 with 10 passive speakers Navigation circuit, rns2 with 8-channel Navigation circuit, rns with 10 channel Navigation circuit, rns with 10 passive speakers Navigation circuit, rns with 8 channel Parking assistant circuit Rear camera circuit

Power distribution circuit

Door lock circuit Spare wheel power lock circuit

Automatic day/night mirror circuit Power mirror circuit

Heated seats circuit, front seats Heated seats circuit, rear seats Power seat circuit

Power top/sunroof circuit

Power windows circuit Tailgate power window circuit

Radio circuit, delta system with 10 channel Radio circuit, delta system with 10 passive speakers Radio circuit, delta system with 8 channel Radio/navigation circuit, rns2 with 10-channel Radio/navigation circuit, rns2 with 10 passive speakers Radio/navigation circuit, rns2 with 8-channel Radio/navigation circuit, rns with 10 channel Radio/navigation circuit, rns with 10 passive speakers Radio/navigation circuit, rns with 8 channel

Shift interlock circuit

3.6l, charging circuit 3.6l, starting circuit

4.2l, charging circuit 4.2l, starting circuit

5.0l turbo diesel, charging circuit 5.0l turbo diesel, starting circuit

Supplemental restraints circuit

A/t circuit Differential lock circuit

Trunk & fuel door release circuit

Warning systems circuit

Headlamp washer circuit Jet heater circuit Wiper/washer circuit

ALARM HORN ANTI-LOCK BRAKES SYSTEM COMPUTER DATA LINES SYSTEM AUXILIARY BATTERY BRAKE PRESSURE RELEASE SOLENOID, BRAKE PRESSURE MAGNETIC COIL DIFFERENTIAL LOCK IND DIGITAL AMPLIFIER SATELLITE RADIO TUNER DOOR LOCK CIRCUIT HORN SIGNAL HORN SIGNAL ACTIVATION IGNITION COIL 1 IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 IGNITION COIL 5 W/ POWER OUTPUT W/ POWER OUTPUT STAGE STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 W/ POWER OUTPUT STAGE IGNITION COIL 6 W/ POWER OUTPUT STAGE IGNITION COIL 7 W/ POWER OUTPUT STAGE IGNITION COIL 8 W/ POWER OUTPUT STAGE INTERIOR LIGHT DELAY BLOCKING DIODE LEFT WASHER NOZZLE HEATER LOW TONE HORN RIGHT WASHER NOZZLE HEATER SIGNAL HORN ACTIVATION W/ AUXILIARY BATTERY W/ SINGLE BATTERY

ADJUSTMENT MOTOR CLOSING ASSIST MOTOR DIFFERENT- IAL MOTOR DIFFERENTIAL LOCK MOTOR, LOCK POSITION SENSORS DRIVER'S SEAT BACK ADJUSTMENT MOTOR DRIVER'S SEAT FORE/AFT ADJUSTMENT MOTOR DRIVER'S SEAT HEIGHT ADJUSTMENT MOTOR DRIVER'S SEAT INCLINATION ADJUSTMENT MOTOR DRIVER'S SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR DRIVER'S SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR ENGINE COMPARTMENT LIGHT ENGINE CONTROLS SYSTEM ENGINE CONTROLS SYSTEM COMPUTER DATA LINES SYSTEM FOLD-IN MIRROR MOTOR FRONT PASSENGER'S SEAT FORE/AFT ADJUSTMENT MOTOR FRONT PASSENGER'S SEAT INCLINATION ADJUSTMENT MOTOR FUEL TANK LID UNLOCK MOTOR HEADLAMP BEAM ADJUSTMENT MOTOR HEADLIGHT BEAM ADJUSTING MOTOR INTAKE FLAP MOTOR INTAKE FLAP MOTOR 2 LEFT TEMPERATURE FLAP ACTUATOR/ POTENTIOMETER LEVEL CONTROL SYSTEM COMPRESSOR MOTOR MAP CONTROLLED ENGINE COOLING THERMOSTAT OF ENGINE COMPT) PASSENGER'S SEAT BACK ADJUSTMENT MOTOR REAR LID HYDRAULIC MOTOR REAR LID UNLOCK MOTOR REAR WINDOW WIPER MOTOR RECEIVER ENGINE COOLANT HEATING RF RECEIVER SPARE WHEEL LOCKING MOTOR STEERING COLUMN ADJUSTMENT AXIAL MOTOR STEERING COLUMN ADJUSTMENT VERTICAL MOTOR STEERING COLUMN LOCK ACTUATOR SUNROOF MOTOR VARIABLE INTAKE MANIFOLD RUNNER MOTOR WINDOW MOTOR WINDSHIELD WIPER MOTOR

ANTENNA AMPLIFIER CENTRAL LOCKING, ANTI-THEFT ALARM SYSTEM ANTENNA DIGITAL RADIO ANTENNA INTERIOR ACCESS/START AUTHORIZATION ANTENNA 1 INTERIOR ACCESS/START AUTHORIZATION ANTENNA 2 LUGGAGE COMPARTMENT ACCESS/START AUTHORIZATION ANTENNA REAR BUMPER ACCESS/START AUTHORIZATION ANTENNA REAR WINDOW ANTENNA REAR WINDOW ANTENNA 2 SATELLITE TUNER ANTENNA

A/C COMPRESSOR REGULATOR VALVE ACCESS/START AUTHORIZATION BUTTON ADVANCE BUTTON ASR/ESP BUTTON AUTOMATIC DISTANCE CONTROL BUTTON BACKREST ADJUSTMENT BUTTON BELT HEIGHT ADJUSTMENT BUTTON BOARD COMPUTER RESET BUTTON CONNECTION BUTTON CRUISE CONTROL SET BUTTON DAMPING ADJUSTMENT BUTTON, OFF-ROAD OPERATION SWITCH DRIVER ASSITANCE SYSTEMS BUTTON DRIVER MEMORY SEAT BUTTON DRIVER'S INTERIOR LOCKING BUTTON DRIVER'S INTERIOR LOCKING BUTTON, PUSH BUTTON LIGHT DRIVER'S OUTSIDE DOOR HANDLE CENTRAL LOCKING BUTTON FORE/AFT SEAT ADJUSTMENT BUTTON FRONT INTERIOR LAMP BUTTON FRONT PASSENGER'S INTERIOR LOCKING BUTTON FRONT PASSENGER'S OUTSIDE DOOR HANDLE CENTRAL LOCKING BUTTON FRONT SEAT HEIGHT ADJUSTMENT BUTTON FUEL FILLER/ REAR LID REMOTE UNLOCKING BUTTON FUEL FILLER/REAR LID REMOTE UNLOCKING BUTTON FUEL PRESSURE REGULATOR VALVE GLOVE COMPARTMENT BUTTON HIGH-MOUNT REAR WINDOW BRAKE OPENING LIGHT BUTTON HORN SIGNAL ACTIVATION LEFT MULTI- FUNCTION BUTTON INCREASE SPEED BUTTON INCREASE VOLUME BUTTON LEFT CHILD SAFETY BUTTON LEFT REAR INTERIOR LOCKING BUTTON LEFT REAR OUTSIDE DOOR HANDLE CENTRAL LOCKING BUTTON LUMBAR SUPPORT HEIGHT&FORE/AFT ADJUSTMENT BUTTON LUMBAR SUPPORT HEIGHT/ FORE/AFT ADJUSTMENT BUTTON MENU SELECTION RETURN BUTTON MENU SELECTION- ADVANCE BUTTON MUTE SWITCH BUTTON PARKING AID BUTTON PASSENGER DOOR WINDOW REGULATOR SWITCH PASSENGER'S INTERIOR LOCKING BUTTON, PUSH BUTTON LIGHT PUSH BUTTON LIGHT REAR SEAT HEIGHT ADJUSTMENT BUTTON REAR WINDOW OPENING BUTTON REDUCE SPEED BUTTON REDUCE VOLUME BUTTON RIGHT CHILD SAFETY BUTTON RIGHT MULTI-FUNCTION BUTTON RIGHT REAR INTERIOR LOCKING BUTTON RIGHT REAR INTERIOR LOCKING BUTTON, LAMP RIGHT REAR OUTSIDE DOOR HANDLE CENTRAL LOCKING BUTTON SEAT POSITION MEMORY BUTTON SPARE SPARE TIRE WHEEL UNLOCK LOCKING BUTTON MOTOR SUNROOF SUNROOF REGULATOR BUTTON SWITCH BUTTON TELEPHONE CONNECTION BUTTON TEMPORARY CRUISE CONTROL SWITCH-OFF BUTTON VALET LOCK BUTTON VOLUME BUTTON WINDSHIELD WIPER INTERMITTENT REGULATOR

REAR VIEW CAMERA W/ REAR VIEW CAMERA W/ SDARS TUNER W/O SDARS TUNER W/ REAR VIEW CAMERA W/O REAR VIEW CAMERA

CONVERTER W/ SOCKET INSTRUMENT CLUSTER CONVERTOR W/ SOCKET DATA LINK CONNECTOR EXTERNAL AUDIO SOURCE CONNECTOR EXTERNAL AUDIO SOURCE CONNECTOR SHIELD REAR CIGARETTE LIGHTER LIGHT SOCKET SOCKET 2 SOCKET 4 SOCKET 4 SOCKET 3 TRAILER SOCKET W/ EXTERNAL AUDIO SOURCE CONNECTOR

ABS CONTROL MODULE ACCESS/START CONTROL MODULE AIR BAG CONTROL MODULE ANTENNA SELECTION CONTROL MODULE AUTOMATIC GLOW TIME CONTROL MODULE BRAKE INSTRUMENT LIGHT CLUSTER SWITCH CONTROL MODULE CLIMATRONIC CONTROL MODULE CLIMATRONIC CONTROL MODULE AFTER-RUN COOLANT PUMP COMFORT SYSTEM CENTER CONTROL MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE (RIGHT REAR CONTROL MODULE COOLANT COOLANT FAN FAN CONTROL CONTROL MODULE 2 MODULE COOLANT FAN CONTROL MODULE COOLANT FAN CONTROL MODULE 2 DIFFERENTIAL CONTROL MODULE DIFFERENTIAL LOCK CONTROL MODULE DRIVER SIDE DOOR CONTROL MODULE DRIVER'S DOOR CONTROL MODULE DRIVER'S SEAT ADJUSTMENT CONTROL MODULE ENGINE CONTROL MODULE FRONT HEATED SEAT CONTROL MODULE FRONT HEATED SEATS CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE FRONT PASSENGER'S SIDE DOOR CONTROL MODULE FRONT RIGHT PASSENGER REAR DOOR DOOR CONTROL CONTROL MODULE MODULE FRONT TIRE PRESSURE INTERIOR MONITORING LIGHT CONTROL MODULE ASSEMBLY FUEL PUMP CONTROL MODULE GARAGE DOOR OPENER CONTROL MODULE GLOW/ TIME CONTROL MODULE 2 GLOW/TIME CONTROL MODULE 2 HEADLAMP RANGE/ CORNERING LAMP CONTROL MODULE HEADLAMP RANGE/CORNERING LAMP CONTROL MODULE HEADLIGHT RANGE CONTROL MODULE HEATED REAR SEATS CONTROL MODULE HEATER CONTROL MODULE HIGH INTENSITY GAS DISCHARGE LAMP CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE 2 LEFT REAR DOOR CONTROL MODULE LEVEL CONTROL SYSTEM CONTROL MODULE MEMORY SEAT/ STEERING COLUMN ADJUSTMENT CONTROL MODULE MEMORY SEAT/ STEERING COLUMN CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE MULTI-FUNCTION STEERING WHEEL CONTROL MODULE OPERATING ELECTRONICS, TELEPHONE CONTROL MODULE PARKING AID CONTROL MODULE PASSENGER SIDE DOOR CONTROL MODULE PASSENGER'S MEMORY SEAT CONTROL MODULE PASSENGER'S SIDE DOOR CONTROL MODULE POWER SUNROOF CONTROL MODULE RADIO/ NAVIGATION DISPLAY CONTROL MODULE RADIO/NAVIGATION DISPLAY CONTROL MODULE REAR HEATED SEAT CONTROL MODULE REAR HEATED SEATS CONTROL MODULE REAR LID CONTROL MODULE REAR VIEW CAMERA SYSTEM CONTROL MODULE REAR VIEW TV CAMERA TUNER SYSTEM CONTROL MODULE RIGHT REAR DOOR CONTROL MODULE ROOF VEHICLE DISPLAY POSITION UNIT RECOGNITION CONTROL MODULE SEAT OCCUPIED RECOGNITION CONTROL MODULE SERVOTRONIC CONTROL MODULE STABILIZER DECOUPLING CONTROL MODULE STABILIZER DECOUPLING CONTROL MODULE, BUTTON STEERING COLUMN ELECTRONIC SYSTEM CONTROL MODULE STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE STEERING COLUMN/ BELT HEIGHT ADJUSTMENT CONTROL MODULE STEERING COLUMN/ SAFETY BELT HEIGHT ADJUSTMENT CONTROL MODULE STEERING COLUMN/SAFETY BELT HEIGHT ADJUSTMENT CONTROL MODULE THROTTLE VALVE CONTROL MODULE TIRE PRESSURE MONITORING CONTROL MODULE TOWING RECOGNITION CONTROL MODULE TRANSMISSION CONTROL MODULE TV, RADIO, NAVIGATION DISPLAY CONTROL MODULE TV/RADIO/NAVIGATION DISPLAY CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VEHICLE ELECTRICAL SYSTEMS CONTROL MODULE VEHICLE ELECTRONICS SYSTEM CONTROL MODULE VEHICLE POSITION RECOGNITION CONTROL MODULE W/ ACCESS/ START CONTROL MODULE W/ ACCESS/ START CONTROL MODULE W/O ACCESS/ START CONTROL MODULE W/ ACCESS/START CONTROL MODULE W/O ACCESS/ START CONTROL MODULE WIPER MOTOR CONTROL MODULE

DRIVER SIDE CENTRAL LOCKING LOCK UNIT LEFT REAR CENTRAL LOCKING LOCK UNIT PASSENGER SIDE CENTRAL LOCKING LOCK UNIT REAR LID LOCK UNIT REAR WINDOW LOCK UNIT/ REAR LID REMOTE LOCK KEY SWITCH RIGHT REAR CENTRAL LOCKING LOCK UNIT ROOF DISPLAY UNIT STABILIZER HYDRAULIC CONTROL UNIT TRANSFER CASE OPERATING UNIT

AUXILIARY BATTERY FUSE 65 FUSE 1 FUSE 2 FUSE 2 FUSE 1 FUSE 3 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 10 FUSE 12 FUSE 11 FUSE 11 FUSE 10 FUSE 12 FUSE 12 FUSE 10 FUSE 13 FUSE 14 FUSE 14 FUSE 18 FUSE 15 FUSE 15 FUSE 16 FUSE 16 FUSE 16 FUSE 15 FUSE 17 FUSE 18 FUSE 22 FUSE 23 FUSE 29 FUSE 31 FUSE 32 FUSE 35 FUSE 36 FUSE 44 FUSE 40 FUSE 44 FUSE 47 FUSE 49 FUSE 51 FUSE 52 FUSE 53 FUSE 56 FUSE 51 FUSE 57 FUSE 57 FUSE 7 FUSE FUSE FUSE FUSE FUSE FUSE PANEL FUSE PANEL B FUSE PANEL C FUSE PANEL D FUSE PANEL FUSE HOT AT ALL TIMES FUSE HOT AT ALL TIMES FUSE FUSE PANEL B HOT AT ALL TIMES FUSE FUSE PANEL C HOT AT ALL TIMES FUSE PANEL HOT AT ALL TIMES FUSE PANEL B HOT AT ALL TIMES FUSE PANEL B FUSE HOT AT ALL TIMES FUSE PANEL B FUSE 2 HOT AT ALL TIMES FUSE PANEL B FUSE 11 HOT AT ALL TIMES FUSE PANEL B FUSE 15 HOT AT ALL TIMES FUSE PANEL B FUSE 42 HOT AT ALL TIMES FUSE PANEL B FUSE 56 HOT AT ALL TIMES FUSE PANEL B FUSE FUSE HOT AT ALL TIMES FUSE PANEL C HOT AT ALL TIMES FUSE PANEL C FUSE HOT AT ALL TIMES FUSE PANEL C FUSE 23 HOT AT ALL TIMES FUSE PANEL C FUSE 24 HOT AT ALL TIMES FUSE PANEL C FUSE 25 HOT AT ALL TIMES FUSE PANEL C FUSE 56 HOT AT ALL TIMES FUSE PANEL FUSE HOT AT ALL TIMES FUSE PANEL FUSE 2 HOT AT ALL TIMES FUSE PANEL FUSE 56 HOT AT RUN AND START FUSE TO FUSE

HEADLIGHT REFLECTOR ADJUSTMENT SOLENOID HEADLIGHT WASHER PUMP LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

DRIVER'S BACKREST HEATING ELEMENT DRIVER'S SEAT SIDE BOLSTER HEATER FRONT PASSENGER'S BACKREST HEATING ELEMENT FRONT PASSENGER'S SEAT SIDE BOLSTER HEATER LEFT REAR BACKREST HEATING ELEMENT OUTSIDE MIRROR HEATER POSITIVE CRANKCASE VENTILATION HEATING ELEMENT RIGHT REAR BACKREST HEATING ELEMENT W/ AUXILIARY HEATER W/ W/O AUXILIARY AUXILIARY HEATER HEATER W/O AUXILIARY HEATER

DRIVER'S INTERIOR LOCKING SAFE INDICATOR LAMP EMERGENCY FLASHER SYSTEM INDICATOR LIGHT FRONT PASSENGER AIR BAG DISABLED INDICATOR FRONT PASSENGER'S CENTRAL LOCKING SAFE INDICATOR LAMP GARAGE DOOR OPENER INDICATOR LAMP

ANTI-THEFT SYSTEM SOUND, INTERIOR LIGHTS SYSTEMS BACKUP LIGHTS CIRCUIT EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM HEADLIGHTS SYSTEM HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH INTENSITY GAS DISCHARGE LAMP INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR, EXTERIOR LIGHTS SYSTEMS INTERIOR LIGHTS SYSTEM WIPER/ WASHER SYSTEM INTERIOR LIGHTS, MIRRORS SYSTEMS HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS INTERIOR LIGHTS, SEATS SYSTEMS LAMP ENTRY LEFT PARKING, FRONT TURN SIGNAL LIGHTS REAR LID COURTESY LAMP RIGHT PARKING, FRONT TURN SIGNAL LIGHTS

AFTER-RUN COOLANT PUMP FUEL COOLER PUMP FUEL PUMP HEADLAMP WASHER PUMP METERING PUMP PUMP/INJECTOR VALVES RECIRCULATION PUMP STABILIZER DECOUPLING PUMP

A/C RELAY BATTERY SWITCH- OFF RELAY MAIN BATTERY SWITCH BRAKE BOOSTER RELAY CLOSING ASSIST RELAY COOLANT CIRCULATION PUMP RELAY ENGINE COMPONENT POWER SUPPLY RELAY FUEL AUXILIARY ENGINE PUMP 2 RELAY COOLANT PUMP RELAY FUEL COOLING PUMP RELAY FUSE/ RELAY PANEL HEADLAMP CLEANING SYSTEM RELAY HEADLAMP WASHER RELAY HOT W/ MOTRONIC ECM POWER HOT AT SUPPLY RELAY ENERGIZED ALL TIMES HOT W/ MOTRONIC ECM POWER SUPPLY RELAY 2 ENERGIZED HOT W/ MOTRONIC ECM POWER SUPPLY RELAY ENERGIZED HOT W/ MOTRONIC ECM POWER SUPPLY RELAY ENERGIZED FUSE PANEL A FUSE 12 HOT W/ POWER SUPPLY RELAY 1 ENERGIZED HOT W/ POWER SUPPLY RELAY ENERGIZED HOT W/ POWER SUPPLY RELAY ENERGIZED FUSE 38 FUSE 50 FUSE 38 LEFT HEATED WINDSHIELD RELAY LEFT WINDSHIELD HEATER RELAY LEVEL CONTROL SYSTEM COMPRESSOR RELAY MAIN FUSE/ RELAY BOX MAIN FUSE/ RELAY BOX FUSE MAIN FUSE/RELAY BOX MAIN/FUSE RELAY BOX FUSE PARALLEL BATTERY CONNECTION RELAY POWER SUPPLY RELAY 1 POWER SUPPLY RELAY 2 REAR WINDOW DEFOGGER RELAY RECIRCULATION PUMP RELAY RELAY PANEL RESIDUAL HEAT RELAY RIGHT HEATED WINDSHIELD RELAY RIGHT WINDSHIELD HEATER RELAY SECOND BATTERY CHARGE RELAY SECONDARY AIR INJECTION PUMP RELAY SOCKETS RELAY SOLAR CELL SEPARATION RELAY TRANSPORT MODE RELAY TRANSPORT REAR MODE WINDOW RELAY DEFOGGER RELAY

AIR QUALITY SENSOR ANTI-THEFT ENGINE DISABLE SENSOR AUTOMATIC RAIN/LIGHT DAY/NIGHT INTERIOR RECOGNITION SENSOR MIRROR BACKREST ADJUSTMENT POSITION SENSOR, MOTOR BELT HEIGHT ADJUSTMENT POSITION SENSOR, MOTOR (RIGHT "B" BRAKE BOOSTER PRESSURE SENSOR BRAKE PRESSURE SENSOR 1 CAMSHAFT POSITION SENSOR CAMSHAFT POSITION SENSOR 2 DEACTIVATE VEHICLE INCLINATION SENSOR BUTTON DRIVER'S HEATED SEAT TEMPERATURE SENSOR/ DRIVER'S SEAT HEATING ELEMENT DRIVER'S HEATED SEAT TEMPERATURE SENSOR/ HEATING ELEMENT DRIVER'S LEFT REAR FRONT AIR SIDE AIR BAG CRASH BAG CRASH SENSOR SENSOR DRIVER'S SIDE SIDE AIR BAG CRASH SENSOR ENGINE COOLANT TEMPERATURE SENSOR FOOTWELL FLAP MOTOR, POSITION SENSOR FRONT AXLE STABILIZER DECOUPLING SENSOR FRONT PASSENGER'S HEATED SEAT TEMPERATURE SENSOR, HEATING ELEMENT FRONT SEAT HEIGHT ADJUSTMENT POSITION SENSOR, MOTOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 FUEL PRESSURE SENSOR HEATED OXYGEN SENSOR 2 HEATED STEERING WHEEL SENSOR HIGH PRESSURE SENSOR INTERIOR MONITORING SENSOR LEFT FOOTWELL FLAP MOTOR, POSITION SENSOR LEFT FRONT DEFROST/ UPPER BODY SHUT OFF FLAP MOTOR/ POSITION SENSOR LEFT REAR AIR FLAP POSITION SENSOR, MOTOR LEFT REAR BRAKE PAD WEAR SENSOR LEFT REAR HEATED SEAT TEMPERATURE SENSOR, HEATING ELEMENT LEFT REAR HEATED SEAT TEMPERATURE SENSOR/ LEFT REAR SEAT HEATING ELEMENT LUMBAR SUPPORT FORE/AFT ADJUSTMENT POSITION SENSOR, MOTOR LUMBAR SUPPORT HEIGHT ADJUSTMENT POSITION SENSOR, MOTOR MASS AIR FLOW SENSOR OIL LEVEL INTAKE THERMAL FLAP SENSOR MOTOR OIL LEVEL THERMAL SENSOR OXYGEN SENSOR 2 BEHIND THREE WAY CATALYTIC CONVERTER OXYGEN SENSOR BEHIND THREE WAY CATALYTIC CONVERTER PARTICLE FILTER INTAKE TEMPERATURE SENSOR 2 PASSENGER'S FRONT AIR BAG CRASH SENSOR PASSENGER'S SIDE SIDE AIR BAG CRASH SENSOR PRE-PARTICLE FILTER TEMPERATURE SENSOR RAIN/ LIGHT RECOGNITION SENSOR RAIN/LIGHT RECOGNITION SENSOR REAR AXLE STABILIZER DECOUPLING SENSOR REAR BLOWER REGULATION SENSOR REAR EVAPORATOR TEMPERATURE SENSOR REAR LID HYDRAULIC SENSOR REAR SEAT HEIGHT ADJUSTMENT POSITION SENSOR, MOTOR RECIRCULATION FLAP MOTOR, POSITION SENSOR RIGHT FOOTWELL FLAP MOTOR, POSITION SENSOR RIGHT FRONT DEFROST/ UPPER BODY SHUT OFF FLAP MOTOR/ POSITION SENSOR RIGHT REAR AIR FLAP POSITION SENSOR, MOTOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR HEATED SEAT TEMPERATURE SENSOR, HEATING ELEMENT RIGHT REAR HEATED SEAT TEMPERATURE SENSOR/ RIGHT REAR SEAT HEATING ELEMENT RIGHT REAR SIDE AIR BAG CRASH SENSOR RIGHT REAR TEMPERATURE FLAP POSITION SENSOR, MOTOR RIGHT REAR UPPER BODY VENT POSITION SENSOR, MOTOR SEAT FORE/AFT ADJUSTMENT POSITION SENSOR, MOTOR SEAT OCCUPIED RECOGNITION BELT FORCE SENSOR SEAT OCCUPIED RECOGNITION PRESSURE SENSOR SUNLIGHT PHOTO SENSOR 2 TOP FRONT OF ENGINE FUEL PRESSURE SENSOR TOWING FUEL TANK SENSOR LID UNLOCK CONTROL MOTOR MODULE TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION RPM SENSOR VEHICLE INCLINATION SENSOR VEHICLE STEERING INCLINATION COLUMN SENSOR ELECTRONIC SYSTEMS CONTROL MODULE WINDSHIELD WASHER FLUID LEVEL SENSOR

CENTER MIDRANGE LEFT FRONT SPEAKER BASS SPEAKER CENTER MIDRANGE SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT MIDRANGE SPEAKER LEFT FRONT TREBLE SPEAKER LEFT REAR BASS SPEAKER LEFT REAR LEFT REAR BASS SPEAKER MIDRANGE SPEAKER LEFT REAR MIDRANGE SPEAKER LEFT REAR TREBLE SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT MIDRANGE SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR BASS SPEAKER RIGHT REAR MIDRANGE SPEAKER RIGHT REAR TREBLE SPEAKER

ACCESS/START AUTHORIZATION SWITCH BACKREST ADJUSTMENT SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LIGHT SWITCH BRAKE LIGHT SWITCH (TOP OF BRAKE PEDAL SWITCH CRUISE CONTROL MAIN SWITCH DRIVER SIDE POWER WINDOW SWITCH DRIVER'S HEATED EMERGENCY SEAT FLASHER ADJUSTER SWITCH DRIVER'S SEAT BELT SWITCH DRIVER'S SEAT SWITCH DRIVER'S SIDE DOOR CONTACT SWITCH DRIVER'S SIDE POWER WINDOW SWITCH EMERGENCY FLASHER SWITCH FOG LAMP SWITCH FORE/ AFT SWITCH FORE/AFT ADJUSTMENT SWITCH FRONT HOOD SWITCH FRONT PASSENGER'S SAFETY BELT SWITCH FRONT PASSENGER'S SEAT BELT SWITCH FRONT PASSENGER'S SEAT SWITCH GARAGE DOOR OPENER SWITCH HEADLIGHT DIMMER/ FLASHER SWITCH HEADLIGHT DIMMER/FLASHER SWITCH/PARK LIGHT SWITCH HEADLIGHT SWITCH LIGHTS HEATED SEAT SWITCH ILLUMINATION HEIGHT ADJUSTMENT SWITCH HIGH HOOD TONE ALARM HORN SWITCH HOOD ALARM SWITCH IGNITION SWITCH KEY LOCK SOLENOID INCLINATION ADJUSTMENT SWITCH INSTRUMENT PANEL LIGHT DIMMER SWITCH LEFT FRONT WINDOW SWITCH LEFT MULTI FUNCTION SWITCH LEFT REAR DOOR CONTACT SWITCH LEFT REAR HEATED SEAT REGULATING SWITCH LEFT REAR WINDOW SWITCH LEVEL CONTROL SYSTEM TIPTRONIC CONTROL SWITCH HEAD LIGHT SWITCH LOCK KEY SWITCH LUMBAR SUPPORT FORE/AFT ADJUSTMENT SWITCH LUMBAR SUPPORT HEIGHT SWITCH MAIN BATTERY SWITCH MIRROR ADJUSTMENT SWITCH MIRROR ADJUSTMENT SWITCH LIGHT MIRROR FOLD AWAY SWITCH MIRROR SELECTOR SWITCH MULTI-FUNCTION TRANSMISSION RANGE SWITCH OIL PRESSURE SWITCH OUTSIDE MIRROR HEATER SWITCH OUTSIDE MIRROR HEATING SWITCH PARK LIGHT SWITCH PARKING AID SWITCH PARKING BRAKE CONTACT SWITCH PASSENGER DOOR WINDOW SWITCH PASSENGER SIDE DOOR CONTACT SWITCH POWER MIRROR SWITCH REAR LID HANDLE UNLOCKING SWITCH REAR WINDOW LOCK SWITCH REAR WINDOW UNLOCK SWITCH REAR WINDOW WIPER SWITCH RIGHT FRONT WINDOW SWITCH RIGHT MULTI- FUNCTION SWITCH RIGHT REAR DOOR CONTACT SWITCH RIGHT REAR HEATED SEAT REGULATING SWITCH RIGHT REAR WINDOW SWITCH SELECTOR LEVER PARK POSITION SHIFT LOCK LOCK SWITCH SOLENOID SLOPE ADJUSTMENT SWITCH STEERING COLUMN ADJUSTMENT SWITCH STEERING WHEEL TIPTRONIC SWITCH STORAGE COMPARTMENT ILLUMINATION SWITCH SUNROOF LIGHT SWITCH SUNROOF SWITCH SUNROOF SWITCH ILLUMINATION TIPTRONIC SWITCH TRUNK LID CLOSED POSITION SWITCH TURN SIGNAL SWITCH WINDSHIELD WIPER INTERMITTENT SWITCH WINDSHIELD WIPER SWITCH

CAMSHAFT ADJUSTMENT VALVE 1 DRIVER'S AUTOMATIC SAFETY BELT SOLENOID FRONT PASSENGER'S AUTOMATIC SAFETY BELT SOLENOID LEFT FRONT DAMPENING ADJUSTMENT VALVE LEFT REAR DAMPENING ADJUSTMENT VALVE REFLECTOR ADJUSTMENT SOLENOID RIGHT FRONT DAMPENING ADJUSTMENT VALVE RIGHT REAR DAMPENING ADJUSTMENT VALVE SELECTOR LEVER PARK POSITION SOLENOID SERVOTRONIC SOLENOID VALVE SOLENOID VALVES STABILIZER REAR AXLE DECOUPLING STABILIZER PUMP COUPLING SWITCHING VALVE VACUUM BOOSTER PUMP VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN BLK/ WIRE BRN WIRE BRN YEL/ WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/ORG WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/ORG WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/ORG WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE HOT AT ALL TIMES TERMINAL 30 WIRE JUNCTION NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/RED WIRE ORG/VIO WIRE ORG/YEL WIRE RED WIRE RED YEL/ WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE WIRE JUNCTION YEL BRN/ WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

3.6L 4.2L 5.0L 9 5 10 7 8 6 W/ AIR SUSPENSION W/O AIR SUSPENSION (OR ABS IND. ACTIVE CHILD SAFETY IND AIR BAG MALFUNCTION IND. AIR BAG SPIRAL SPRING/ RETURN SPRING AIR BAG SPIRAL SPRING/RETURN SPRING W/ SLIP RING AIR BAG SPIRAL SPRING/RETURN SPRING W/SLIP RING AIR CONDITIONING SYSTEM AIRBAG MALFUNC IND AIRBAG SPIRAL SPRING/ RETURN SPRING W/ SLIP RING ANTI-THEFT SYSTEM ANTI-THEFT SYSTEM COMPUTER DATA LINES SYSTEM ASHTRAY LIGHT ASR/ESP IND AUTO DAY/ NIGHT AUTOMATIC DAY/ NIGHT INTERIOR MIRROR AUTOMATIC DAY/NIGHT INTERIOR MIRROR AUTOMATIC DAY/NIGHT OUTSIDE MIRROR AUTOMATIC DAY/NIGHT OUTSIDE MIRROR CIRCUIT AUTOMATIC DISTANCE CONTROL GROUND AUTOMATIC LEVEL DAY/NIGHT CONTROL INTERIOR SYSTEM CONTROL MIRROR MODULE BACKUP LIGHT BRAKE BOOSTER BRAKE PEDAL) BRAKE SYSTEM IND BRAKE TAIL BRAKE TAIL TURN CAN BUS ON BOARD DIAGNOSTIC INTERFACE CAN L CAN-H CARGO AREA) CD CHANGER CENTER INSTRU- MENT PANEL VENT ILLUMIN- ATION CENTER INSTRUMENT PANEL VENT ILLUMI- NATION CENTER REAR SEAT OUTLET LIGHTING CIGARETTE LIGHTER COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM COURTESY LAMPS CIRCUIT DATA BUS ON BOARD DIAGNOSTIC INTERFACE DEFOGGER SYSTEM DIFFERENTIAL POSITION, OIL TEMPERATURE SENSORS DIGITAL SATELLITE RADIO TUNER DOOR LOCKS SYSTEM DRIVER SIDE HEATED OUTSIDE MIRROR DRIVER'S AIRBAG IGNITER DRIVER'S AIRBAG IGNITER 2 DRIVER'S DRIVER SIDE INSIDE DOOR DOOR WARNING HANDLE LIGHT ILLUMINATION DRIVER'S EXTERIOR MIRROR DRIVER'S HEAD CURTAIN AIR BAG IGNITER DRIVER'S HEATED SEAT ADJUSTER DRIVER'S POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 DRIVER'S POWER SEAT CIRCUIT BREAKER DRIVER'S SEAT BELT TENSIONER IGNITER 2 DRIVER'S SEAT MEMORY PROGRAM CONTROL DRIVER'S SIDE AIR BAG IGNITER DRIVER'S SIDE AIR BAG IGNITER 2 DRIVER'S SIDE DOOR CONTROL DRIVER'S SIDE POWER MIRROR DRIVER'S SIDE REAR BELT TENSIONER IGNITER E-BOX E-BOX (LEFT E-BOX (LEFT PLENUM EXCEPT 5.0L FRONT CIGARETTE LIGHTER FRONT INTERIOR LIGHT FRONT PARKING AID DISPLAY FRONT PASSENGER HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER'S EXTERIOR MIRROR FRONT PASSENGER'S HEATED SEAT ADJUSTER FRONT PASSENGER'S POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 FRONT PASSENGER'S POWER SEAT CIRCUIT BREAKER FRONT PASSENGER'S SEAT ADJUSTMENT CONTROL HEAD FRONT PASSENGER'S SEAT BELT TENSIONER IGNITER 2 FRONT PASSENGER'S SEAT LUMBAR SUPPORT CURVATURE FRONT PASSENGER'S SEAT LUMBAR SUPPORT HEIGHT FRONT PASSENGER'S SIDE AIR BAG IGNITER 1 FUEL INJECTOR GLOVE COMPARTMENT LIGHT GLOW GLOW GLOW GLOW GLOW PLUG PLUG PLUG PLUG PLUG GLOW GLOW PLUG GLOW GLOW PLUG PLUG PLUG PLUG HEADLAMP POWER OUTPUT STAGE HEADLIGHTS SYSTEM HEATED OXYGEN HEATED REAR WINDOW HEATED STEERING WHEEL HIGH MOUNT BRAKE LIGHT HORNS SYSTEM HOT AT ALL TIMES HOT IN ON OR START HYDRAULIC PRESSURE SENDER 1, 2 ILLUMI- NATION IN DOORS INFO NOT AVAIL INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INTERIOR LIGHT FRONT LANE CHANGE ASSISTANCE IND LEFT FRONT ENTRY LIGHT LEFT FRONT FOG LIGHT LEFT FRONT FOOTWELL ILLUMINATION LEFT FRONT READING LIGHT LEFT HEADLAMP ASSEMBLY LEFT INSTRUMENT PANEL VENT ILLUMINATION LEFT LICENSE PLATE LIGHT LEFT MAKE-UP MIRROR LIGHT LEFT MULTI-FUNCTION BUTTONS LEFT REAR DOOR WARNING LIGHT LEFT REAR ENTRY LIGHT LEFT REAR FOOTWELL LIGHTING LEFT REAR INSIDE DOOR HANDLE ILLUMINATION LEFT REAR READING LIGHT LEFT REAR SEAT OUTLET LIGHTING LEFT REAR TAILLIGHT ASSEMBLY LEFT RIGHT REAR MAKE-UP READING MIRROR LIGHT LIGHT LEFT TAILLAMP ASSEMBLY LEFT TAILLIGHT ASSEMBLY LEVEL CONTROL SYSTEM CONTROL HEAD LEVEL DRIVER CONTROL HEATED SYSTEM SEAT CONTROL ADJUSTER HEAD LUGGAGE COMPARTMENT LIGHT MENU SELECTION ROTARY KNOB MIRROR ADJUSTMENT MOTORS MIRRORS SYSTEM MIRRORS SYSTEM MIRRORS SYSTEM MIRRORS, DEFOGGER SYSTEMS MULTI-FUNCTION IND NAVIGATION SYSTEM OUTLET 2 OUTLET 3 PARKING AID LOUDSPEAKER PARKING BRAKE/ BRAKE PAD WEAR IND PASSENGER SIDE AIR BAG IGNITER 2 PASSENGER SIDE AIRBAG OFF WARNING LIGHT PASSENGER SIDE HEATED OUTSIDE MIRROR PASSENGER'S MAP/ READING LIGHT PASSENGER'S PASSENGER SIDE INSIDE DOOR DOOR WARNING HANDLE LIGHT ILLUMINATION PASSENGER'S SEAT HEIGHT ADJUSTMENT PASSENGER'S SIDE AIR BAG IGNITER PASSENGER'S SIDE AIR BAG IGNITER 2 PASSENGER'S SIDE POWER MIRROR PASSENGER'S SIDE REAR BELT TENSIONER IGNITER PILLAR) POSITION AUTO DAY/ NIGHT POSITION POSITION POWER DISTRIBUTION SYSTEM POWER WINDOWS SYSTEM REAR CIGARETTE LIGHTER REAR FOG TAIL 2 REAR LID REMOTE REAR PARKING AID DISPLAY RIGHT FRONT ENTRY LIGHT RIGHT FRONT FOG LIGHT RIGHT FRONT FOG LIGHT LEFT FRONT FOG LIGHT RIGHT FRONT FOOTWELL ILLUMINATION RIGHT FRONT FOOTWELL ILLUMINATION OUTLET 2 RIGHT HEADLAMP ASSEMBLY RIGHT INSTRU- MENT PANEL VENT ILLUMIN- ATION RIGHT LEFT LICENSE LICENSE PLATE PLATE LIGHT LIGHT RIGHT LICENSE PLATE LIGHT RIGHT MAKE-UP MIRROR LIGHT RIGHT MULTI-FUNCTION BUTTONS RIGHT REAR COMBINATION LIGHT RIGHT REAR DOOR WARNING LIGHT RIGHT REAR ENTRY LIGHT RIGHT REAR FOOTWELL LIGHTING RIGHT REAR INSIDE DOOR HANDLE ILLUMINATION RIGHT REAR READING LIGHT RIGHT REAR SEAT OUTLET LIGHT RIGHT REAR SEAT OUTLET LIGHTING RIGHT REAR TAILLIGHT ASSEMBLY RIGHT TAILLAMP ASSEMBLY RIGHT TAILLIGHT ASSEMBLY ROTARY SELECTION MENU SELECTION- MENU SERVOTRONIC LEFT FRONT FOOTWELL CONTROL ILLUMINATION MODULE SHIFT INTERLOCK SYSTEM SOLID STATE STABILIZER LEFT REAR DECOUPLING COMBINATION CONTROL LIGHT MODULE STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATE SOLID STORAGE COMPARTMENT ILLUMINATION SUPPLEMENTAL RESTRAINTS SYSTEM SUPPRESSOR FILTER TAIL 2 TELEPHONE BASE PLATE TELEPHONE MICROPHONE TIPTRONIC DOWN SHIFT TIRE INFLATION CUT-OFF CONTROL HEAD TO SPARK PLUG TRANSMISSION OUTPUT RPM SENDER TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN PARK TURN SIGNAL TV TUNER W/ ADDITIONAL WATER W/ AIR SUSP W/O AIR SUSP W/ CD CHANGER W/ ELECTRIC TRAILER HITCH PIVOT W/ LEVEL CONTROL SYSTEM W/ MULTI-FUNCTION STEERING WHEEL W/ RADIO/NAVIGATION SYSTEM MIDLINE W/ SDARS TUNER W/ SDARS TUNER W/O SDARS TUNER W/ TIPTRONIC W/O ADDITIONAL WATER W/O ASHTRAY W/O ASHTRAY IN DOORS W/O LEVEL CONTROL SYSTEM W/O MULTI-FUNCTION STEERING WHEEL W/O OUTSIDE SPARE WHEEL W/O RADIO/NAVIGATION SYSTEM MIDLINE W/O SMOKER PACKAGE W/O TRAILER HITCH W/O W/ MEMORY MEMORY WIPER/ WASHER WIPER/WASHER SYSTEM
