Volkswagen Tiguan II facelift (2020-2024) left adaptive cornering lamp motor Wiring diagram
This page shows the only wiring diagram for the component.left adaptive cornering lamp motor, which is found in the car Volkswagen Tiguan II facelift (2020-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

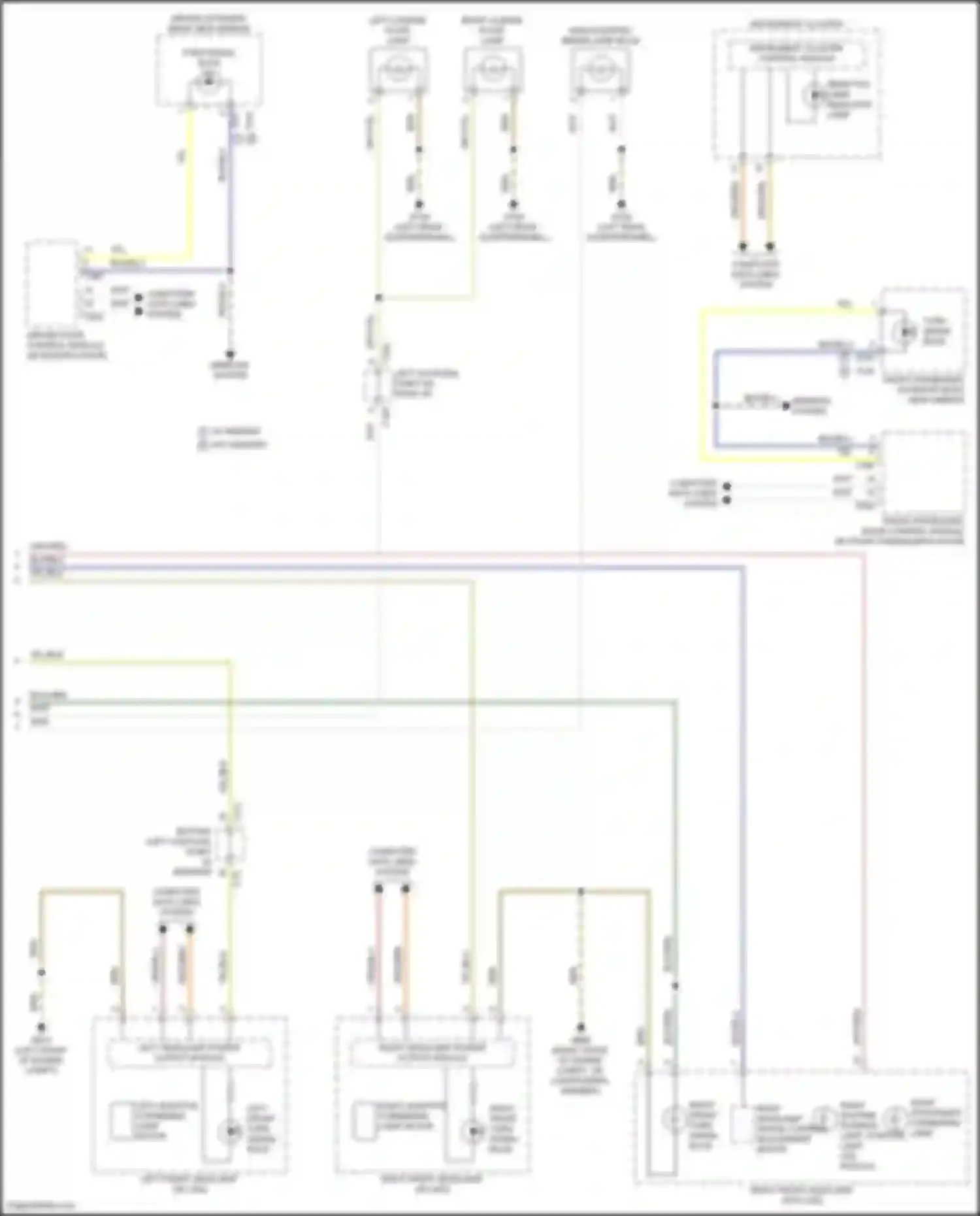

Wiring diagram left adaptive cornering lamp motor (1 of 1)
BLK/BLU WIRE
BLK/GRN WIRE
BOTTOM LEFT COUPLING POINT IN INTERIOR
BRN WIRE
COMPUTER DATA LINES SYSTEM
DRIVER DOOR CONTROL MODULE
DRIVER EXTERIOR REAR VIEW MIRROR
FRONT PASSENGER DOOR CONTROL MODULE
FRONT PASSENGER EXTERIOR REAR VIEW MIRROR
GRY/RED WIRE
GRY/YEL WIRE
HIGH-MOUNTED BRAKE LAMP BULB
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER CONTROL MODULE
LEFT ADAPTIVE CORNERING LAMP MOTOR
LEFT COUPLING POINT ON REAR LID
LEFT FRONT HEADLAMP (W/ LED)
LEFT FRONT TURN SIGNAL BULB
LEFT HEADLAMP POWER OUTPUT MODULE
LEFT LICENSE PLATE LAMP
MIRRORS SYSTEM
ORG/BLU WIRE
ORG/BRN WIRE
ORG/GRN WIRE
REAR FOG LAMP INDICATOR LAMP
RIGHT ADAPTIVE CORNERING LAMP MOTOR
RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE
RIGHT FRONT HEADLAMP (W/ LED)
RIGHT FRONT HEADLAMP (W/O LED)
RIGHT FRONT TURN SIGNAL BULB
RIGHT HEADLAMP POWER OUTPUT MODULE
RIGHT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR
RIGHT LICENSE PLATE LAMP
RIGHT STATIONARY CORNERING LAMP
TURN SIGNAL BULB
W/ MEMORY
W/O MEMORY
WHT WIRE
YEL WIRE
YEL/BLK WIRE
YEL/BLU WIRE
Go to component -> Exterior lamps circuit (5 of 5) -> LEFT ADAPTIVE CORNERING LAMP MOTOR
