Volkswagen Tiguan I facelift (2011-2019) computer data lines system Wiring diagrams

ACCESS/START AUTHORIZATION CONTROL MODULE ANTI-THEFT IMMOBILIZER INDICATOR LAMP ANTI-THEFT IMMOBILIZER READER COIL BLK WIRE BLK/WHT WIRE BLU WIRE BLU/BLK WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM DRIVER'S ACCESS/START SYSTEM ANTENNA, EXTERIOR DOOR HANDLE TOUCH SENSOR ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE ENGINE CONTROL MODULE FRONT PASSENGER ACCESS/START SYSTEM ANTENNA, EXTERIOR DOOR HANDLE TOUCH SENSOR FUSE 23 FUSE 38 FUSE PANEL C GRN/BLU WIRE GRY/BLK WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE HOT AT ALL TIMES IGNITION START BUTTON ILLUMINATION BULB INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE LUGGAGE COMPARTMENT ACCESS/START SYSTEM ANTENNA MULTI-FUNCTION INDICATOR ORG/BRN WIRE ORG/GRN WIRE REAR BUMPER ACCESS/START SYSTEM ANTENNA RED/BLU WIRE RED/WHT WIRE RED/YEL WIRE SHIFT INTERLOCK SYSTEM START SYSTEM BUTTON STEERING COLUMN LOCK ACTUATOR TERMINAL 50 POWER SUPPLY RELAY VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VEHICLE INTERIOR ACCESS/ START SYSTEM ANTENNA 1 VIO WIRE VIO/BLU WIRE W/O START/STOP SYSTEM WHT WIRE WHT/VIO WIRE YEL WIRE YEL/BLK WIRE

AIR BAG CONTROL MODULE BLK WIRE BLK/GRN WIRE BLK/WHT WIRE BLU WIRE BLU/BRN WIRE BRAKE FLUID LEVEL WARNING SWITCH BRAKE PAD WEAR IND BRAKE SYSTEM IND BRN WIRE BRN/WHT WIRE BRN/YEL WIRE COMPUTER DATA LINES SYSTEM DOOR AJAR IND LAMP DRIVER CENTRAL LOCKING LOCK UNIT DRIVER DOOR CONTACT SWITCH DRIVER DOOR CONTROL MODULE DRIVER SEAT BELT SWITCH FRONT PASSENGER CENTRAL LOCKING LOCK UNIT FRONT PASSENGER DOOR CONTACT SWITCH FRONT PASSENGER DOOR CONTROL MODULE FUSE 14 FUSE 9 FUSE PANEL C GRN WIRE HOT W/ TERMINAL 15 POWER SUPPLY RELAY 2 ENERGIZED INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE LEFT FRONT BRAKE PAD WEAR SENSOR NAVIGATION SYSTEM NCA WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE RED WIRE SEAT BELT IND SUPPLEMENTAL RESTRAINTS SYSTEM WARNING BUZZER, TONE WHT WIRE YEL WIRE

ALARM HORN ANTI-THEFT ALARM SYSTEM HORN BLK WIRE BLU/RED WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE COMPUTER DATA LINES SYSTEM ENGINE HOOD CONTACT SWITCH FUEL FILLER DOOR UNLOCK MOTOR FUSE 21 FUSE 22 FUSE PANEL C HEADLIGHTS SYSTEM HORNS SYSTEM HOT AT ALL TIMES INTERIOR MONITORING DEACTIVATION SWITCH (IF EQUIPPED) INTERIOR MONITORING- OFF-INDICATOR LAMP LEFT "C" PILLAR) LUGGAGE COMPARTMENT LAMP SWITCH ORG/BRN WIRE ORG/GRN WIRE PUSH BUTTON ILLUMINATION BULB LAMP REAR LID HANDLE RELEASE BUTTON REAR LID LOCK UNIT REAR LID UNLOCK MOTOR RED/BLU WIRE RED/GRN WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VEHICLE INCLINATION SENSOR/ INTERIOR MONITORING SENSOR VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/WHT WIRE YEL/BLU WIRE

ANTI-THEFT IMMOBILIZER INDICATOR LAMP ANTI-THEFT IMMOBILIZER READER COIL BLK/GRY WIRE BLU WIRE BRN WIRE BRN/GRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM DOOR AJAR INDICATOR LAMP FUSE 47 FUSE PANEL C GRN WIRE GRY WIRE HOOD OPEN INDICATOR LAMP HOT AT ALL TIMES INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE LEFT REAR CENTRAL LOCKING (SAFE) MOTOR LEFT REAR CENTRAL LOCKING LOCK MOTOR LEFT REAR CENTRAL LOCKING LOCK UNIT (REAR OF LEFT REAR DOOR) LEFT REAR DOOR CONTROL MODULE LEFT REAR INTERIOR LOCKING BUTTON PUSH BUTTON ILLUMINATION BULB RED/WHT WIRE RED/YEL WIRE RIGHT REAR CENTRAL LOCKING (SAFE) MOTOR RIGHT REAR CENTRAL LOCKING LOCK MOTOR RIGHT REAR CENTRAL LOCKING LOCK UNIT (REAR OF RIGHT REAR DOOR) RIGHT REAR DOOR CONTROL MODULE RIGHT REAR INTERIOR LOCKING BUTTON VIO WIRE VIO/WHT WIRE WHT WIRE WHT/VIO WIRE YEL WIRE

BLK WIRE BLK/GRN WIRE BLK/WHT WIRE BLU WIRE BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM FOG LAMP SWITCH FUSE 12 FUSE 14 FUSE 23 FUSE 26 FUSE PANEL B FUSE PANEL C GRY WIRE GRY/BLU WIRE GRY/RED WIRE GRY/WHT WIRE GRY/YEL WIRE HEADLAMP DIMMER/ FLASHER SWITCH HIGH BEAM INDICATOR HOT AT ALL TIMES HOT W/ TERMINAL 15 POWER SUPPLY RELAY 2 ENERGIZED INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE LEFT FRONT FOG LAMP BULB LEFT FRONT HEADLAMP LEFT HEADLAMP BEAM ADJUSTMENT MOTOR LEFT HEADLAMP POWER OUTPUT STAGE LEFT HID HEADLAMP BULB LEFT HID HEADLAMP CONTROL MODULE LEFT LOW BEAM HEADLAMP REFLECTOR MOTOR LEFT SWIVEL MODULE POSITION SENSOR LIGHT SWITCH NCA WIRE ORG/ WIRE ORG/BRN WIRE ORG/GRN WIRE REAR FOG LAMP SWITCH RED WIRE RED/BLU WIRE RED/YEL WIRE RIGHT FRONT FOG LAMP BULB STEERING COLUMN ELECTRONICS CONTROL MODULE TURN SIGNAL SWITCH TURN SIGNAL, HEADLAMP DIMMER/ FLASHER SWITCH VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO WIRE WHT WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/WHT WIRE

ABS CONTROL MODULE BLK WIRE BLK/BRN WIRE BLK/GRN WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE COMPUTER DATA LINES SYSTEM ELECTRO- MECHANICAL PARKING BRAKE BUTTON ELECTRO- MECHANICAL PARKING BRAKE CONTROL MODULE FUSE 15 FUSE 16 FUSE 50 FUSE PANEL C GRN WIRE GRY WIRE GRY/RED WIRE HEADLAMP RANGE/ CORNERING LAMP CONTROL MODULE HOT AT ALL TIMES HOT W/ TERMINAL 15 POWER SUPPLY RELAY 2 ENERGIZED LEFT REAR LEVEL CONTROL SYSTEM SENSOR ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRY WIRE RAIN/LIGHT RECOGNITION SENSOR RED WIRE RED/BLU WIRE RED/VIO WIRE RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE RIGHT FRONT HEADLAMP RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR RIGHT HEADLAMP POWER OUTPUT STAGE RIGHT HID HEADLAMP BULB RIGHT HID HEADLAMP CONTROL MODULE RIGHT LOW BEAM HEADLAMP REFLECTOR MOTOR RIGHT SWIVEL MODULE POSITION SENSOR VIO WIRE VIO/GRN WIRE WHT WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/YEL WIRE YEL WIRE YEL/GRN WIRE YEL/WHT WIRE

BLK WIRE BLK/WHT WIRE BLU WIRE BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM FOG LAMP SWITCH FUSE 14 FUSE 23 FUSE 26 FUSE PANEL B FUSE PANEL C GRY WIRE GRY/WHT WIRE GRY/YEL WIRE HOT AT ALL TIMES HOT W/ TERMINAL 15 POWER SUPPLY RELAY 2 ENERGIZED LEFT DAYTIME RUNNING LAMP BULB LEFT FRONT FOG LAMP BULB LEFT FRONT HEADLAMP LEFT HIGH BEAM HEADLAMP BULB LEFT LOW BEAM HEADLAMP BULB LIGHT SWITCH ORG/BRN WIRE ORG/GRN WIRE REAR FOG LAMP SWITCH RED WIRE RED/BLU WIRE RED/YEL WIRE RIGHT DAYTIME RUNNING LAMP BULB RIGHT FRONT FOG LAMP BULB RIGHT FRONT HEADLAMP RIGHT HIGH BEAM HEADLAMP BULB RIGHT LOW BEAM HEADLAMP BULB VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/WHT WIRE

ABS CONTROL MODULE BLU/GRN WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM ELECTRO- MECHANICAL PARKING BRAKE BUTTON ELECTRO- MECHANICAL PARKING BRAKE CONTROL MODULE FUSE 50 FUSE PANEL C HEADLAMP DIMMER/ FLASHER SWITCH HIGH BEAM INDICATOR HOT AT ALL TIMES INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE NCA WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE RAIN/LIGHT RECOGNITION SENSOR RED/BLU WIRE RED/VIO WIRE STEERING COLUMN ELECTRONICS CONTROL MODULE TURN SIGNAL SWITCH TURN SIGNAL, HEADLAMP DIMMER/ FLASHER SWITCH VIO/GRN WIRE WHT/GRN WIRE WHT/YEL WIRE YEL WIRE

AIR BAG SPIRAL SPRING/ RETURN SPRING (W/ SLIP RING) BLK WIRE BLK/WHT WIRE BLU WIRE BRN WIRE BRN/WHT WIRE COMPUTER DATA LINES SYSTEM DUAL TONE HORN RELAY FUSE 11 FUSE 19 FUSE 20 FUSE 25 FUSE 3 FUSE PANEL B FUSE PANEL C HIGH TONE HORN HORN SIGNAL ACTIVATION HOT AT ALL TIMES LOW TONE HORN MULTI-FUNCTION STEERING WHEEL CONTROL MODULE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE RED/BRN WIRE RED/GRN WIRE RED/VIO WIRE RED/YEL WIRE STEERING COLUMN ELECTRONICS CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/WHT WIRE W/ MULTI-FUNCTION STEERING WHEEL CONTROLS W/ START/ STOP SYSTEM W/O MULTI-FUNCTION STEERING WHEEL CONTROLS W/O START STOP SYSTEM YEL/BLU WIRE

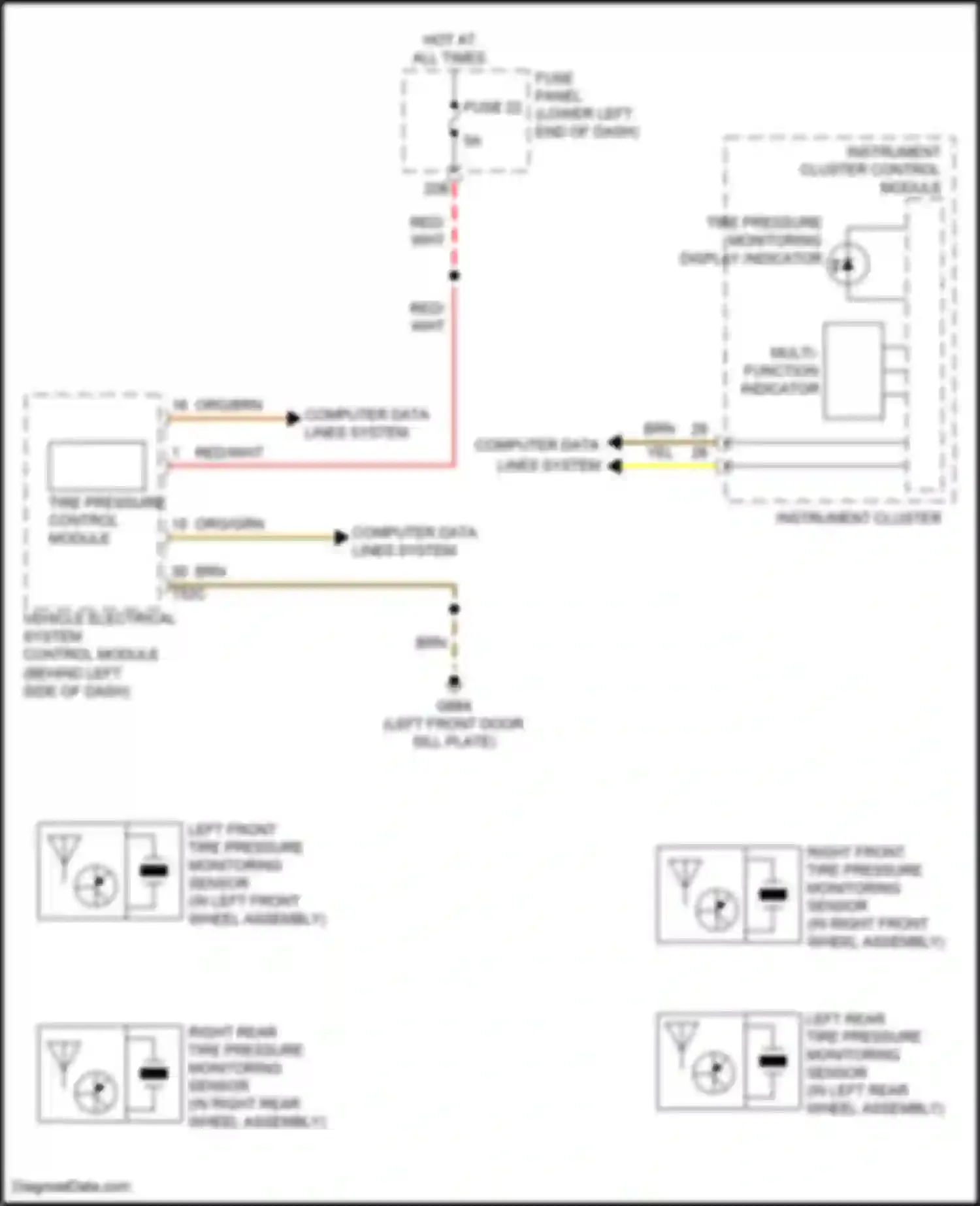

BRN WIRE COMPUTER DATA LINES SYSTEM FUSE 22 FUSE PANEL C HOT AT ALL TIMES INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE LEFT FRONT TIRE PRESSURE MONITORING SENSOR LEFT REAR TIRE PRESSURE MONITORING SENSOR MULTI-FUNCTION INDICATOR ORG/BRN WIRE ORG/GRN WIRE RED WIRE RED/WHT WIRE RIGHT FRONT TIRE PRESSURE MONITORING SENSOR RIGHT REAR TIRE PRESSURE MONITORING SENSOR TIRE PRESSURE CONTROL MODULE TIRE PRESSURE MONITORING DISPLAY INDICATOR VEHICLE ELECTRICAL SYSTEM CONTROL MODULE WHT WIRE YEL WIRE
