Wiring Diagrams for Volkswagen Tiguan I (2007-2011)

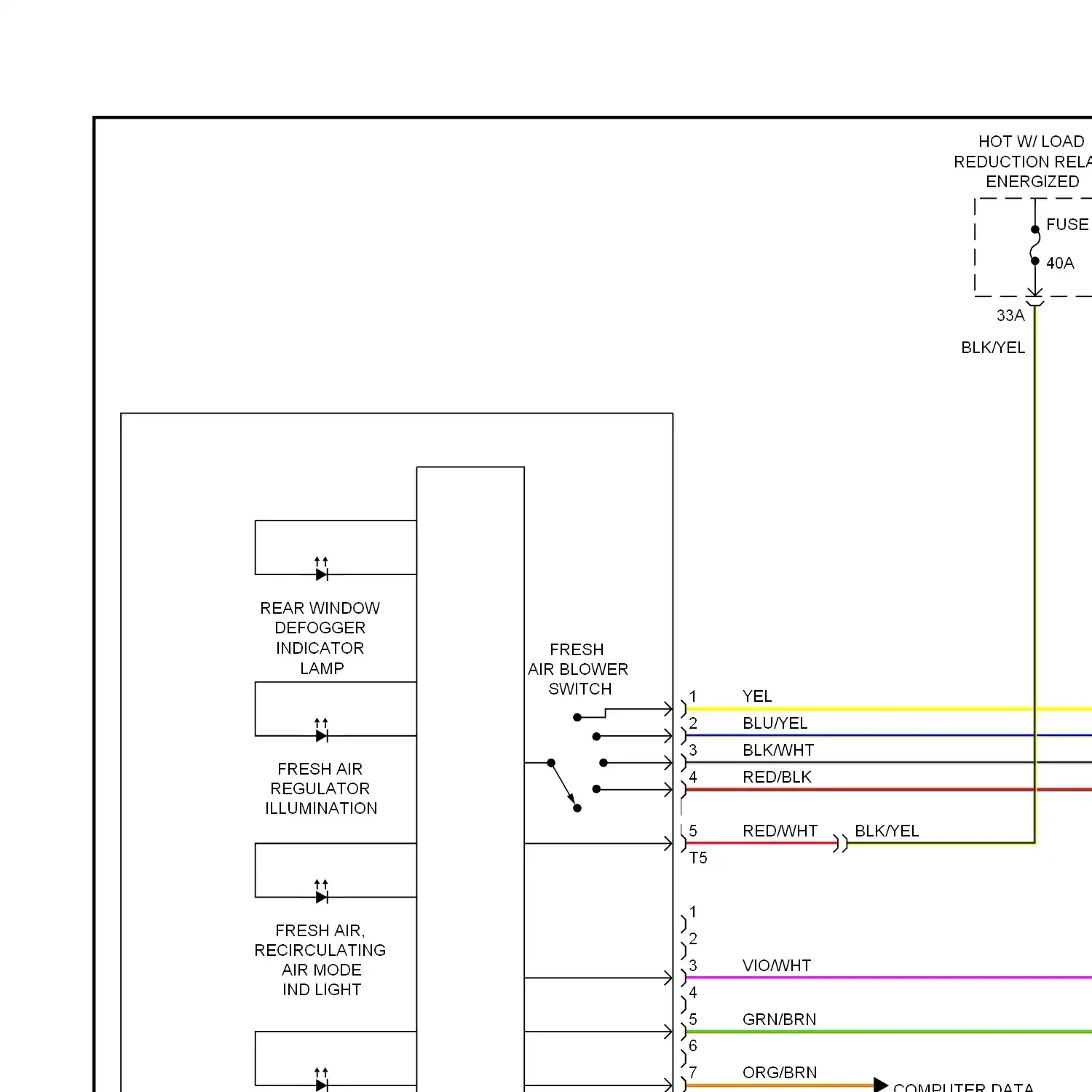

Automatic a/c circuit Auxiliary heater circuit Manual a/c circuit

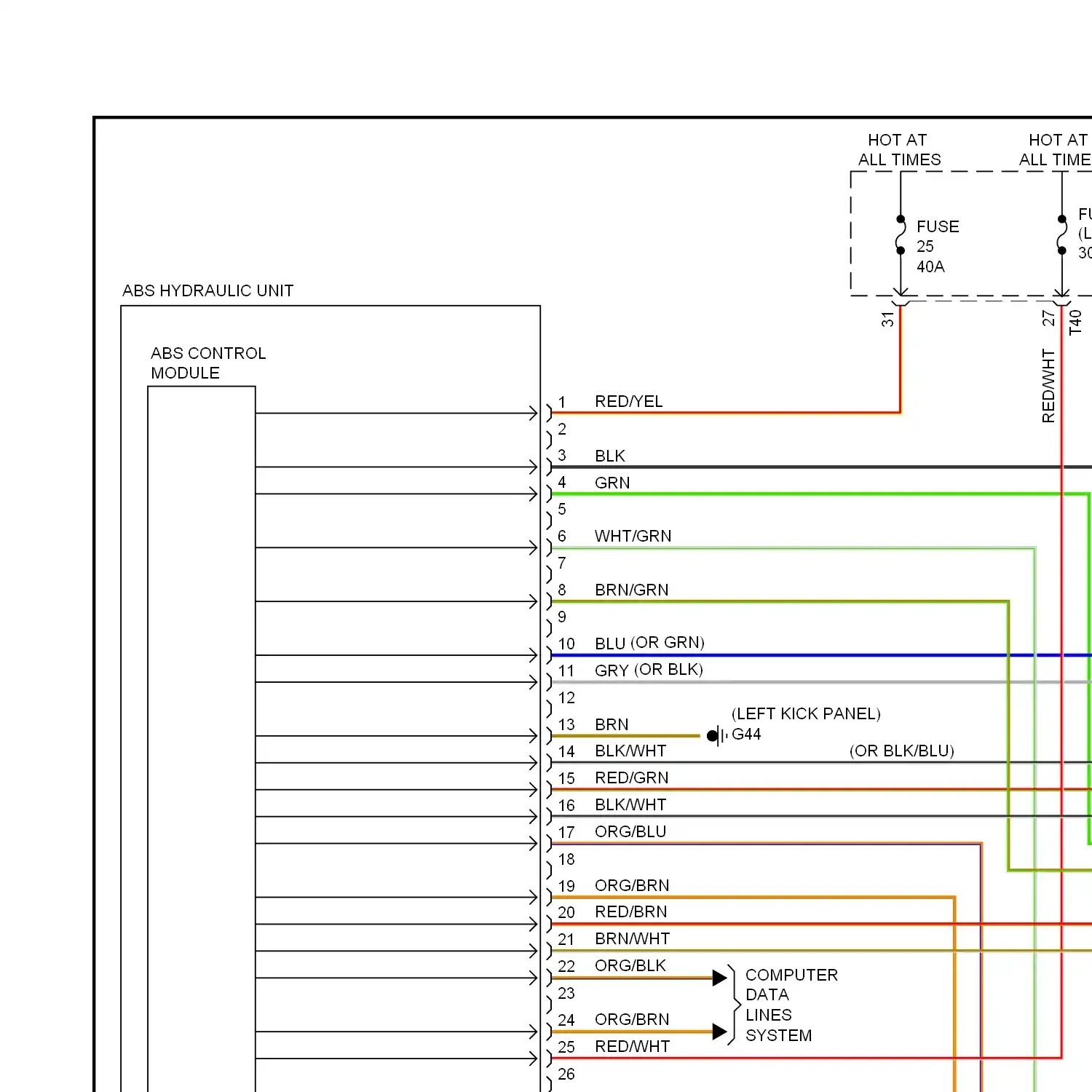

Anti-lock brakes circuit

Anti-theft circuit, early production Anti-theft circuit, late production

Steering column electronic systems control module circuit Vehicle electrical system control module circuit

Computer data lines circuit

Cooling fan circuit

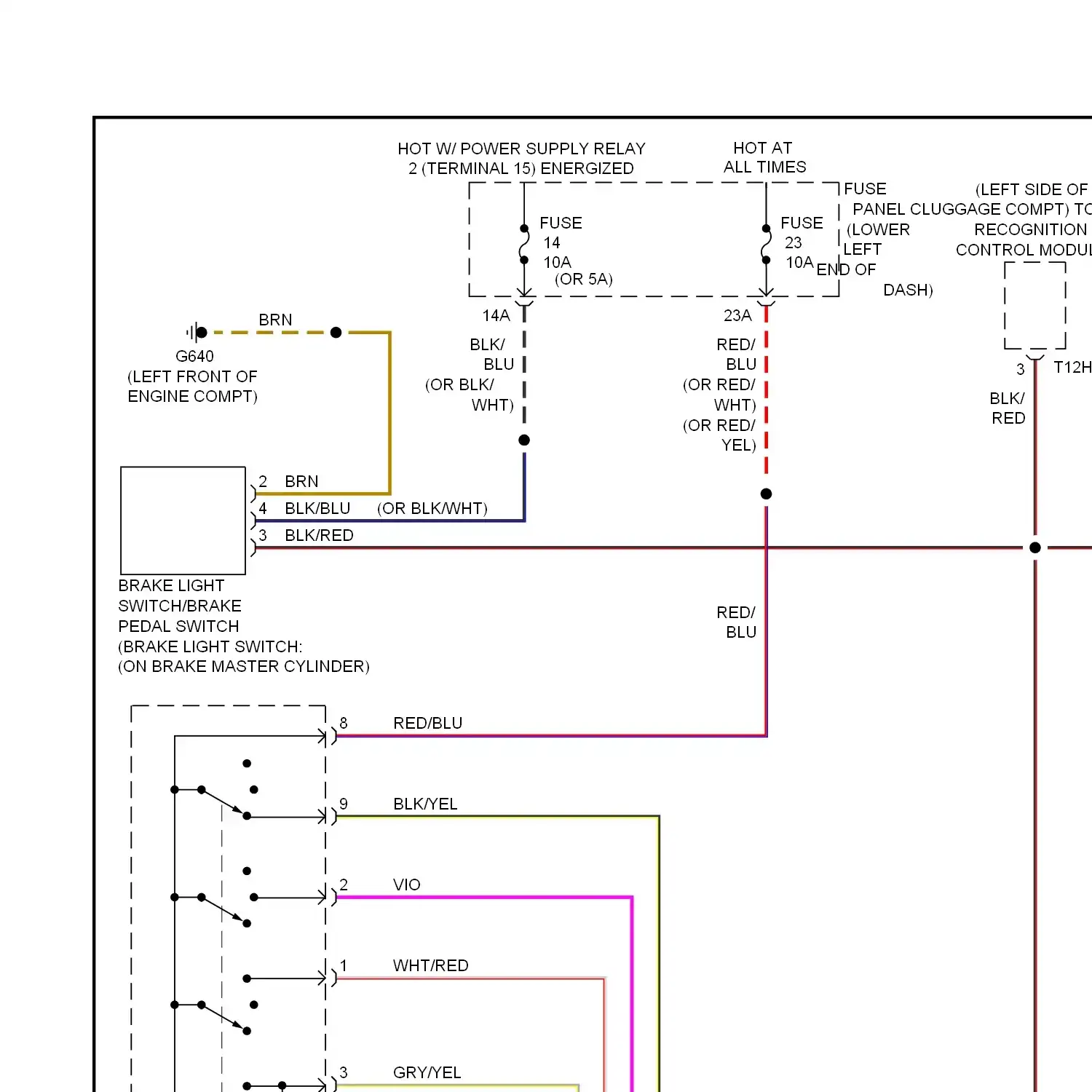

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 2.0l

Backup lamps circuit, a/t Backup lamps circuit, m/t Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit, without xenon lamps Headlights circuit, with xenon lamps

Horn circuit

Electronic compass circuit Instrument cluster circuit

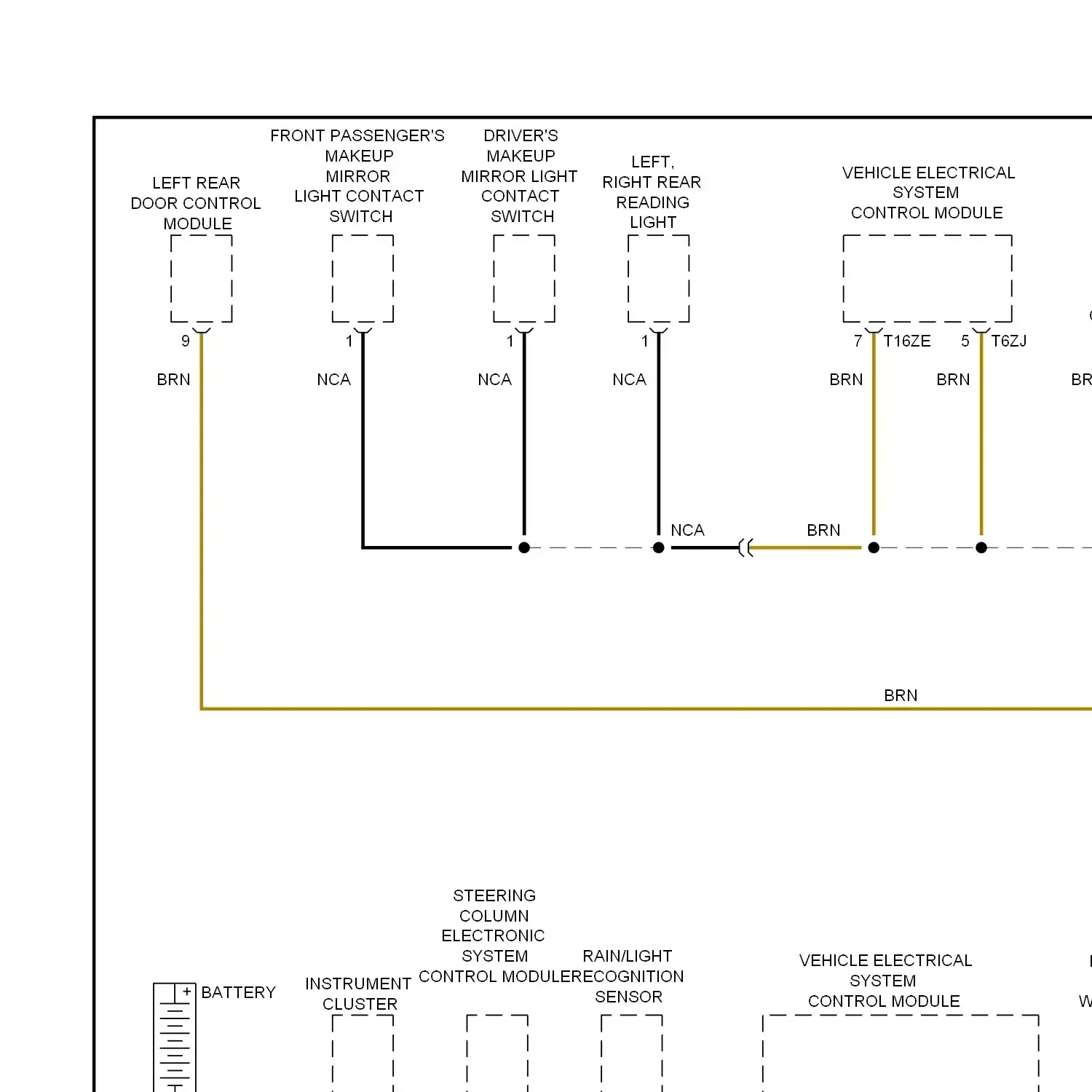

Courtesy lamps circuit Instrument illumination circuit

Memory systems circuit

Navigation circuit, dynaudio Navigation circuit, rns 300 Navigation circuit, rns 500 Navigation circuit, rns 510 early production Navigation circuit, rns 510 late production Parking assistant circuit

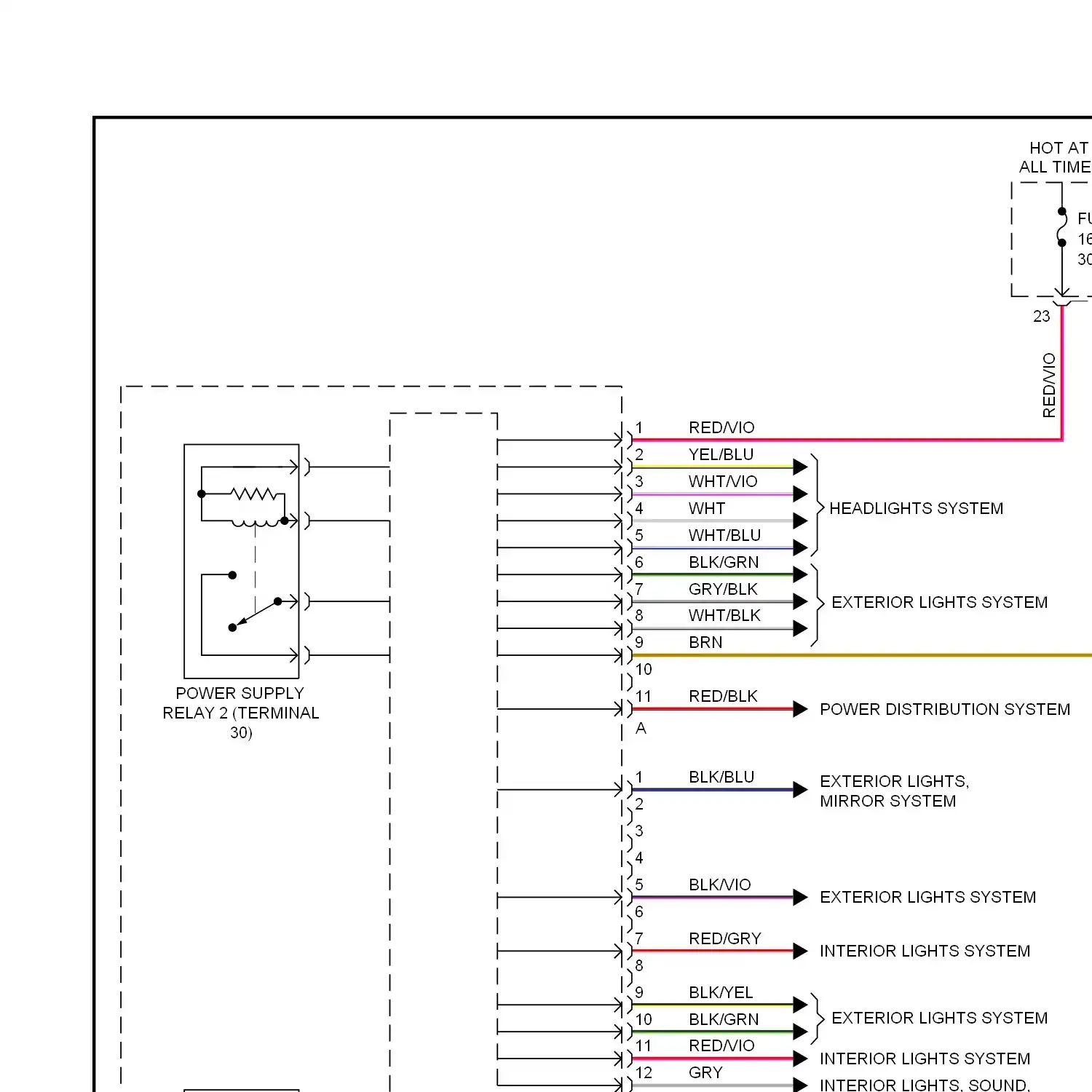

Power distribution circuit

Power door locks circuit, early production Power door locks circuit, late production

Automatic day/night mirror circuit Power mirrors circuit

Heated seats circuit Power seats circuit

Power top/sunroof circuit

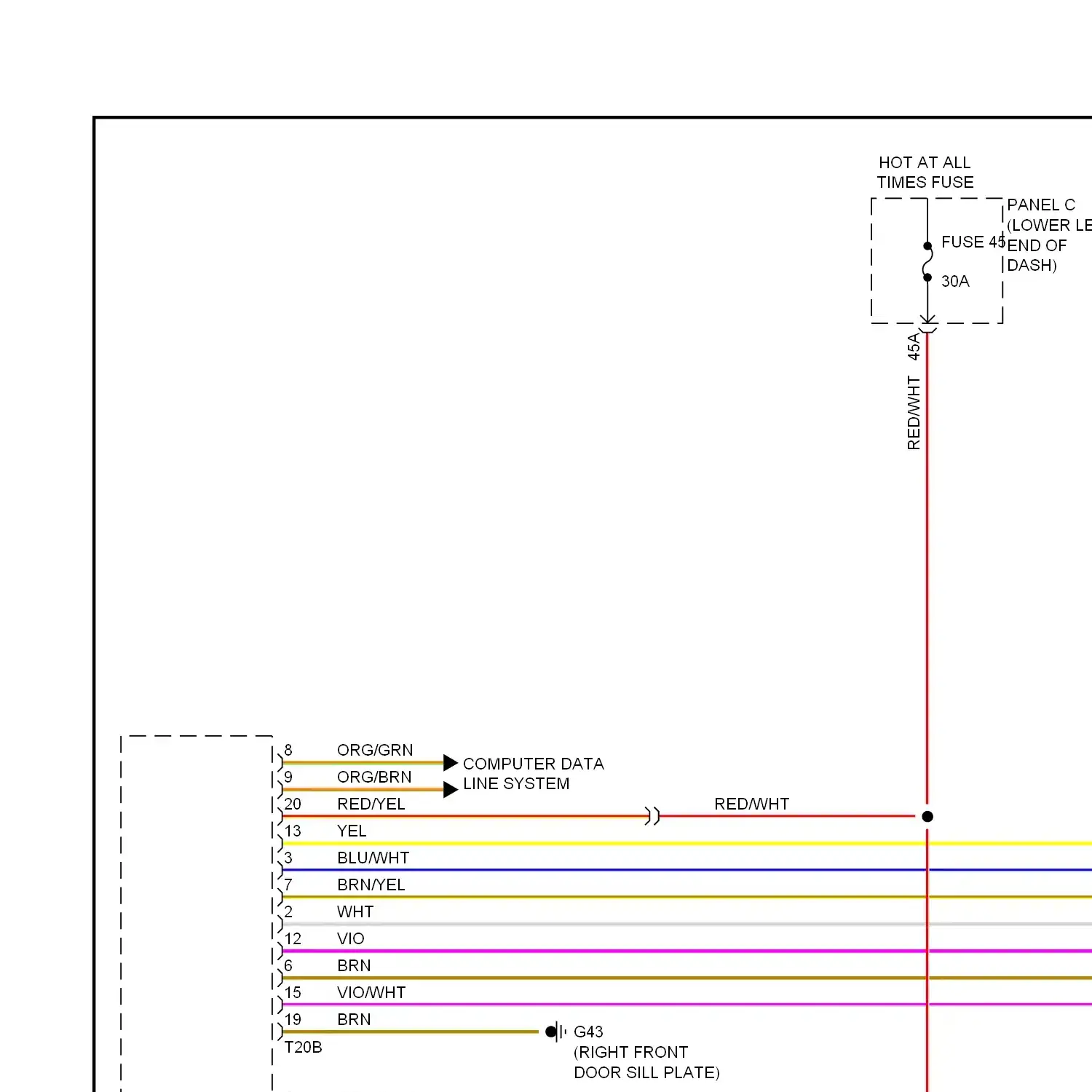

Power windows circuit

Multimedia interface circuit Radio circuit, rcd 200/210 ultra low Radio circuit, rcd 300 Radio circuit, rcd 310 early production Radio circuit, rcd 310 late production Radio circuit, rcd 500/510 & with amplifier Radio circuit, rcd 500/510 & without amplifier Radio circuit, rcd 510 Radio/navigation circuit, dynaudio Radio/navigation circuit, rns 300 Radio/navigation circuit, rns 500 Radio/navigation circuit, rns 510 early production Radio/navigation circuit, rns 510 late production

Electronic parking brake circuit Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit

Trunk & fuel door release circuit

Warning systems circuit

Wiper/washer circuit

ALARM HORN ANTI-LOCK BRAKES SYSTEMS ANTI-THEFT IMMOBILIZER READING COIL AUXILIARY HEATER DIGITAL CONTROL SOUND MODULE SYSTEM AMPLIFIER BLOCKING DIODE DIGITAL SOUND SYSTEM AMPLIFIER GENERATOR WARNING LAMP GENERATOR WARNING LAMP IND HIGH TONE HORN HIGH TUNE HORN IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE LEFT WASHER NOZZLE HEATER LOW TONE HORN LOW TUNE HORN RIGHT WASHER NOZZLE HEATER SIGNAL HORN ACTIVATION

DRIVER'S BACKREST ADJUSTMENT MOTOR DRIVER'S DOOR CENTRAL LOCKING SYSTEM MOTOR DRIVER'S SEAT FORE/AFT ADJUSTMENT MOTOR DRIVER'S SEAT HEIGHT ADJUSTMENT MOTOR DRIVER'S SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR DRIVER'S SEAT LUMBAR SUPPORT HEIGHT ADJUSTMENT MOTOR ELECTRO- MECHANICAL POWER STEERING MOTOR ENGINE COMPT) ENGINE CONTROLS SYSTEM ENGINE COOLANT TEMP FOLD-IN MOTOR FRONT PASSENGER'S DOOR CENTRAL LOCKING SYSTEM MOTOR FUEL TANK LID UNLOCK MOTOR HEADLIGHTS SYSTEM EXTERIOR LIGHTS, ENGINE CONTROLS HEADLIGHTS SYSTEM TRANSMISSIONS SYSTEMS ENGINE CONTROLS SYSTEM LEFT DYNAMIC CORNERING LIGHT MOTOR LEFT HEADLAMP BEAM ADJUSTMENT MOTOR LEFT LOW BEAM REFLECTOR MOTOR LEFT PARKING BRAKE MOTOR LEFT REAR CENTRAL LOCKING LOCK MOTOR MOTRONIC ENGINE COMPONENT POWER SUPPLY REAR WINDOW HEATED WIPER REAR MOTOR WINDOW REAR WINDOW WIPER MOTOR RECIRCULATION FLAP MOTOR RIGHT DYNAMIC CORNERING LIGHT MOTOR RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR RIGHT LOW BEAM REFLECTOR MOTOR RIGHT PARKING BRAKE MOTOR RIGHT REAR CENTRAL LOCKING LOCK MOTOR SEAT TILT ADJUSTMENT MOTOR

AUXILIARY HEATER ANTENNA/ TELEPHONE ANTENNA CENTRAL LOCKING, ANTI-THEFT ALARM SYSTEM ANTENNA HEATED REAR WINDOW HEATED REAR WINDOW/RADIO ANTENNA 2 HEATED REAR WINDOW/ RADIO ANTENNA 2 HEATED REAR WINDOW/ RIGHT ANTENNA 2 RIGHT ANTENNA MODULE

A/C COMPRESSOR REGULATOR VALVE ASR/ ESP BUTTON ASR/ESP BUTTON BACKREST ADJUSTMENT BUTTON CRUISE CONTROL SET BUTTON, CRUISE CONTROL SWITCH DAMPENING ADJUSTMENT BUTTON, INDICATOR LAMP DRIVER'S INTERIOR LOCK BUTTON DRIVER'S INTERIOR LOCKING BUTTON DRIVER'S SIDE POWER WINDOW REGULATOR SWITCH DRIVER'S WINDOW REGULATOR SWITCH DRIVING AUTO PROGRAM HOLD BUTTON BUTTON/ TIRE PRESSURE MONITORING DISPLAY BUTTON ELECTRO- MECHANICAL PARKING BRAKE BUTTON EMERGENCY FLASHER BUTTON EMERGENCY FLASHER INDICATOR LAMP, BUTTON FRESH AIR REGULATOR ILLUMINATION FRONT PASSENGER'S WINDOW REGULATOR SWITCH FUEL PRESSURE REGULATOR VALVE HEATED REAR WINDOW BUTTON IMMEDIATE HEATING BUTTON INCLINATION ADJUSTMENT BUTTON LEFT REAR DOOR WINDOW REGULATOR SWITCH LUMBAR SUPPORT HEIGHT ADJUSTMENT BUTTON LUMBAR SUPPORT HEIGHT/ FORE/AFT ADJUSTMENT BUTTON PARALLEL PARKING ASSISTANCE BUTTON PUSH- BUTTON ILLUMI- NATION PUSH-BUTTON IND RIGHT FRONT DOOR WINDOW REGULATOR SWITCH RIGHT REAR DOOR WINDOW REGULATOR SWITCH SEAT FORE/AFT ADJUSTMENT BUTTON SEAT FORE/AFT/INCLINATION/HEIGHT/ BACKREST ADJUSTMENT BUTTON SEAT HEIGHT ADJUSTMENT BUTTON SEAT MEMORY ADJUSTMENT POSITION BUTTON 2 SEAT POSITION MEMORY BUTTON SEAT POSITION MEMORY BUTTON, ADJUSTMENT POSITION BUTTON TEMPERATURE REGULATOR FLAP MOTOR, POTENTIOMETER/ ACTUATOR TIRE PRESSURE MONITORING DISPLAY BUTTON WASTEGATE BYPASS REGULATOR VALVE WINDOW REGULATOR MOTOR WINDOW SHADE, SUNROOF BUTTON WINDSHIELD WIPER INTERMITTENT REGULATOR

6 PIN CONNECTOR CONVERTER W/ SOCKET, DATA LINK CONNECTOR EXTERNAL AUDIO SOURCE CONNECTOR EXTERNAL AUDIO SOURCE CONNECTOR SHIELD SOCKET 3 SOCKET SOCKET 2 TRAILER SOCKET USB CONNECTOR BASEPLATE

A/C CONTROL MODULE A/C CONTROL MODULE FRONT PASSENGER'S HEATED SEAT ADJUSTER ABS CONTROL MODULE ABS CONTROL MODULE ABS HYDRAULIC UNIT AIR BAG CONTROL MODULE ALL- WHEEL DRIVE CONTROL MODULE ANTI-THEFT IMMOBILIZER CONTROL MODULE AUXILIARY HEATER CONTROL MODULE CLIMATRONIC CONTROL MODULE COMFORT FRONT SYSTEM PASSENGER'S CENTRAL DOOR CONTROL CONTROL MODULE MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE DATA BUS CLIMATRONIC ON BOARD CONTROL MODULE DIAGNOSTIC INTERFACE DRIVER'S DOOR CONTROL MODULE DRIVER'S SEAT ADJUSTMENT CONTROL MODULE ELECTRO- MECHANICAL PARKING BRAKE CONTROL MODULE ELECTRO- MECHANICAL PARKING BRAKE CONVERTER CONTROL MODULE W/ SOCKET ELECTRONIC DAMPING CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE FRESH FRONT AIR HEATED SEATS BLOWER CONTROL CONTROL MODULE MODULE FRONT HEATED SEATS CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE (IN FRONT FRONT PASSENGER'S SIDE DOOR CONTROL MODULE HEADLAMP RANGE/ CORNERING LAMP CONTROL MODULE HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED INSTRUMENT A/C CLUSTER CONTROL CONTROL MODULE MODULE INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE 13 12 INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE W/ DISPLAY UNIT LEFT HIGH INTENSITY GAS DISCHARGE LAMP CONTROL MODULE LEFT REAR DOOR CONTROL MODULE OPERATING ELECTRONICS, TELEPHONE CONTROL MODULE/ TELEPHONE TRANSCEIVER PARALLEL PARKING ASSISTANCE CONTROL MODULE PARKING AID CONTROL MODULE POWER STEERING CONTROL MODULE POWER SUNROOF CONTROL MODULE RADIO/ NAVIGATION DISPLAY CONTROL MODULE RADIO/ NAVIGATION DISPLAY CONTROL MODULE SHIELD RADIO/NAVIGATION DISPLAY CONTROL MODULE RADIO/NAVIGATION DISPLAY UNIT CONTROL MODULE REAR VIEW CAMERA SYSTEM CONTROL MODULE REAR VIEW PARKING CAMERA SYSTEM AID CONTROL CONTROL MODULE MODULE RIGHT HIGH INTENSITY GAS DISCHARGE LAMP CONTROL MODULE RIGHT LEFT REAR REAR DOOR DOOR CONTROL CONTROL MODULE MODULE RIGHT REAR DOOR CONTROL MODULE ROOF BLIND CONTROL MODULE SEAT OCCUPIED RECOGNITION CONTROL MODULE STEERING COLUMN ELECTRONIC SYSTEM CONTROL MODULE STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE TOWING RECOGNITION CONTROL MODULE TRANSMISSION CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE WIPER MOTOR CONTROL MODULE

ABS HYDRAULIC UNIT DRIVER'S DOOR CENTRAL LOCKING LOCK UNIT FRONT PASSENGER'S DOOR CENTRAL LOCKING LOCK UNIT LEFT REAR CENTRAL LOCKING LOCK UNIT REAR LID LOCK UNIT (BOTTOM CENTER OF REAR LUGGAGE COMPARTMENT LIGHT SWITCH REAR LID UNLOCK UNIT RIGHT REAR CENTRAL LOCKING LOCK UNIT

DASH) FUSE PANEL C FRESH AIR BLOWER SERIES RESISTOR W/ FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 3 FUSE 16 FUSE 17 FUSE 4 FUSE 4 FUSE 18 FUSE 11 FUSE 6 FUSE 8 FUSE 8 ENGINE COMPT) FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 16 FUSE 11 FUSE 16 FUSE 12 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 28 FUSE 29 FUSE 29 FUSE 30 FUSE 30 FUSE 33 FUSE 36 FUSE 37 FUSE 40 FUSE 39 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 44 FUSE 21 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 51 FUSE 50 FUSE 52 FUSE 57 FUSE 58 FUSE FUSE 8 FUSE PANEL FUSE PANEL A FUSE PANEL B FUSE PANEL B (LEFT SIDE OF FUSE PANEL C FUSE PANEL C (LOWER FUSE PANEL C (LOWER LEFT END OF FUSE PANEL C (LOWER LEFT FUSE 15 HOT AT ALL TIMES FUSE FUSE PANEL HOT AT ALL TIMES FUSE PANEL HOT AT ALL TIMES FUSE PANEL C HOT AT ALL TIMES FUSE PANEL FUSE 20

DRIVER'S BACKREST HEATING ELEMENT FRONT PASSENGER'S BACKREST HEATING ELEMENT MIRROR HEATER W/ AUXILIARY HEATER W/ AUXILIARY HEATER W/O AUXILIARY HEATER W/ CLIMATRONIC, W/O AUXILIARY HEATER W/ CLIMATRONIC, W/ AUXILIARY HEATER W/O AUXILIARY HEATER

AIR BAG FRONT CONTROL PASSENGER'S MODULE AIR BAG DISABLED INDICATOR LAMP AIR BAG MALFUNCTION INDICATOR BRAKE PAD WEAR INDICATOR CENTRAL LOCKING SAFE INDICATOR LAMP CHANGE AIR PRESSURE GAUGE AIRBAG MALFUNCTION INDICATOR CRUISE CONTROL INDICATOR DOOR AJAR INDICATOR ELECTRIC PARK/ HAND BRAKE MAL- FUNCTION INDICATOR ELECTRO- MECHANICAL POWER STEERING INDICATOR LAMP INSTRUMENT CLUSTER ELECTRO-MECHANICAL POWER STEERING INDICATOR EMERGENCY FLASHER INDICATOR LAMP ENGINE ELECTRONICS WARNING INDICATOR FRONT PASSENGER'S AIR BAG DISABLED INDICATOR LAMP HIGH BEAM INDICATOR HILL DESCENT CONTROL INDICATOR LEFT TURN SIGNAL INDICATOR MULTI-FUNCTION INDICATOR OIL LEVEL INDICATOR PARKING LIGHT INDICATOR REAR WINDOW DEFOGGER INDICATOR LAMP RIGHT TURN SIGNAL INDICATOR SAFETY BELT WARNING INDICATOR SIGNAL INDICATOR TRAILER COUPLING LOCKED INDICATOR LAMP

A/C WARNING LAMP ABS WARNING LAMP ABS WARNING LAMP IND ANTI-THEFT IMMOBILIZER WARNING LAMP ASR/ESP CONTROL LAMP ASR/ESP CONTROL LAMP IND BRAKE ELECTRIC PARK/ SYSTEM HANDBRAKE WARNING MULTIFUNCTION LAMP IND IND LAMP BRAKE PAD WEAR IND LAMP BRAKE SYSTEM WARNING LAMP BRAKE SYSTEM WARNING LAMP IND DOOR AJAR IND LAMP DOOR LOCKS, INTERIOR LIGHTS SYSTEMS DRIVER'S ENTRY LAMP DRIVER'S OUTSIDE MIRROR DRIVER'S EXTERIOR MIRROR TURN SIGNAL LAMP ELECTRIC PARK/ HAND BRAKE MALFUNCTION LAMP IND EXTERIOR LIGHTS, MIRROR SYSTEM FRONT HOOD OPEN WARNING LAMP FRONT PASSENGER'S ENTRY LAMP FRONT PASSENGER'S OUTSIDE MIRROR FRONT PASSENGER'S EXTERIOR MIRROR TURN SIGNAL LAMP FUEL RESERVE WARNING LAMP INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS, SOUND, INTERIOR LIGHTS, SOUND SYSTEMS LEFT BACKUP LAMP LEFT BRAKE/ TAIL LAMP LEFT CORNERING LAMP LEFT FRONT FOG LAMP LEFT FRONT SIDE MARKER LAMP LEFT FRONT TURN SIGNAL LAMP LEFT PARKING LAMP LEFT REAR TURN SIGNAL LAMP LICENSE PLATE LIGHTS OIL LEVEL IND LAMP OIL PRESSURE WARNING LAMP REAR FOG LAMP IND REAR WINDOW DEFOGGER LAMP RIGHT BACKUP LAMP RIGHT BRAKE/ TAIL LAMP RIGHT CORNERING LAMP RIGHT FRONT FOG LAMP RIGHT FRONT FOR LAMP RIGHT FRONT SIDE MARKER LAMP RIGHT PARKING LAMP RIGHT FRONT TURN SIGNAL LAMP LEFT TAILLIGHT LAMP 2 RIGHT REAR TURN SIGNAL LAMP RIGHT TAIL LAMP ASSEMBLY RIGHT TAILLIGHT LAMP 2 SAFETY BELT WARNING LAMP SEATS SYSTEM EXTERIOR LIGHTS SYSTEM TIRE PRESSURE MONITORING DISPLAY IND LAMP WARNING LAMP

ABS RETURN FLOW PUMP COOLANT PUMP HALDEX CLUTCH PUMP HEADLAMP WASHER PUMP METERING PUMP RECIRCULATION PUMP WINDSHIELD, REAR WINDOW WASHER PUMP

ALARM HORN RELAY AUXILIARY HEATER OPERATION RELAY DUAL HORN RELAY DUAL WASHER PUMP RELAY 1 DUAL WASHER PUMP RELAY 2 FRESH AIR BLOWER RELAY HEADLAMP WASHER RELAY HEATED OUTSIDE MIRROR RELAY HOT W/ LOAD REDUCTION RELAY ENERGIZED LOAD REDUCTION RELAY POWER SUPPLY RELAY 2 PREHEATING COOLANT, HIGH HEAT OUTPUT RELAY PREHEATING COOLANT, LOW HEAT OUTPUT RELAY REAR DEFOGGER RELAY REAR WINDOW DEFOGGER RELAY RELAY 2

AIR QUALITY SENSOR ASR/ESP HIGH BUTTON PRESSURE SENSOR BACKREST ADJUSTMENT SENSOR/MOTOR BRAKE PRESSURE SENSOR 1 CENTER FLAP MOTOR, POSITION SENSOR CENTER OUTLET TEMPERATURE SENSOR DRIVER'S HEATED SEAT TEMPERATURE SENSOR/ HEATING ELEMENT DRIVER'S HEATED SEAT TEMPERATURE SENSOR/HEATING ELEMENT EVAPORATOR VENT TEMPERATURE SENSOR FOOTWELL OUTLET TEMPERATURE SENSOR FORE/AFT HEIGHT ADJUSTMENT ADJUSTMENT SENSOR/MOTOR SENSOR/MOTOR FRONT PASSENGER'S HEATED SEAT TEMPERATURE SENSOR/HEATING ELEMENT FRONT PASSENGER'S SEAT HEATING ELEMENT/ TEMPERATURE SENSOR FRONT PASSENGER'S SIDE AIR BAG CRASH SENSOR FUEL LEVEL SENSOR FUEL LEVEL SENSOR 2 HIGH MOUNT BRAKE MAGNETIC LIGHT FIELD SENSOR FOR COMPASS HIGH PRESSURE SENSOR INTAKE MANIFOLD RUNNER POSITION SENSOR INTERIOR MONITORING SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT LEVEL CONTROL SYSTEM SENSOR LEFT FRONT PARALLEL PARKING ASSISTANCE SENSOR LEFT FRONT PARKING AID SENSOR LEFT REAR INNER PARKING AID SENSOR LEFT REAR PARKING AID SENSOR LEFT SWIVEL MODULE POSITION SENSOR LUMBAR SUPPORT FORE/AFT ADJUSTMENT SENSOR, CURVATURE ADJUSTMENT MOTOR LUMBAR SUPPORT HEIGHT ADJUSTMENT SENSOR/MOTOR MAGNETIC FIELD SENSOR OIL LEVEL THERMAL SENSOR OIL PRESSURE/ TEMPERATURE SENSOR OVERHEAT SENSOR OXYGEN SENSOR OXYGEN SENSOR HEATER OXYGEN SENSOR HEATER 1 RAIN/LIGHT RECOGNITION SENSOR RIGHT FOOTWELL VENT TEMPERATURE SENSOR RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR PARKING AID SENSOR RIGHT SWIVEL MODULE POSITION SENSOR SEAT OCCUPIED RECOGNITION PRESSURE SENSOR STEERING ANGLE SENSOR STEERING TORQUE SENSOR TEMPERATURE SENSOR TILT ADJUSTMENT SENSOR, INCLINATION ADJUSTMENT MOTOR WATER SEPARATOR SENSOR

LEFT FRONT BASS SPEAKER LEFT FRONT TREBLE SPEAKER LEFT REAR BASS SPEAKER LEFT REAR TREBLE SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR BASS SPEAKER RIGHT REAR TREBLE SPEAKER W/ REAR SPEAKER

A/C SWITCH ASR/ESP SWITCH AUTOMATIC DAY/NIGHT INTERIOR MIRROR SWITCH BACKUP LIGHT SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LIGHT SWITCH CHILD SAFETY SWITCH DOOR CONTACT SWITCH DRIVER'S DOOR CONTACT SWITCH DRIVER'S MAKE-UP MIRROR LIGHT CONTACT SWITCH DRIVER'S MAKEUP MIRROR LIGHT CONTACT SWITCH DRIVER'S SAFETY BELT SWITCH DRIVER'S SEAT ADJUSTMENT SWITCH DRIVER'S SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER'S SEAT LUMBER SUPPORT ADJUSTMENT SWITCH DRIVER'S SEAT SWITCH DRIVING DYNAMIC REGULATION HIGH PRESSURE SWITCH VALVE 1 DRIVING DYNAMIC REGULATION SWITCH VALVE 1 LEFT REAR ABS OUTLET VALVE RIGHT FRONT FOG LAMP SWITCH FRESH AIR BLOWER SWITCH FRESH AIR BLOWER SWITCH 1 2 3 4 5 FRESH AIR/ RECIRCULATING FLAP SWITCH FRONT HOOD SWITCH FRONT PASSENGER'S MAKE-UP MIRROR LIGHT CONTACT SWITCH FRONT PASSENGER'S MAKEUP MIRROR LIGHT CONTACT SWITCH FRONT PASSENGER'S SAFETY BELT SWITCH GLOVE COMPARTMENT LAMP SWITCH HEADLAMP DIMMER/ FLASHER SWITCH HEADLIGHT DIMMER/ FLASHER SWITCH HEATED REAR WINDOW SWITCH IGNITION SWITCH KEY IGNITION/STARTER SWITCH INSTRUMENT PANEL ILLUMINATION DIMMER SWITCH LEFT FRONT WINDOW SWITCH LEFT REAR DOOR CONTACT SWITCH LEFT REAR WINDOW SWITCH LIGHT SWITCH LIGHT SWITCH ASSEMBLY MIRROR ADJUSTMENT SWITCH ILLUMINATION MIRROR FOLDING SWITCH MIRROR SELECTOR SWITCH MIRROR SWITCH MULTI- FUNCTION SWITCH OUTSIDE MIRROR HEATED SWITCH OUTSIDE MIRROR HEATER SWITCH OUTSIDE MIRROR HEATING SWITCH OUTSIDE MIRROR SWITCH MIRROR ADJUSTMENT SWITCH PARALLEL PARKING CIGARETTE ASSISTANCE LIGHTER SWITCH PASSENGER COMPARTMENT MONITORING SWITCH REAR LID HANDLE UNLOCK SWITCH REAR LID RELEASE SWITCH REAR WINDOW WIPER SWITCH, WINDSHIELD, HEADLAMP WASHER PUMP SWITCH REAR WINDOW WIPER SWITCH/WINDSHIELD, HEADLAMP WASHER PUMP SWITCH RIGHT FRONT WINDOW SWITCH RIGHT REAR DOOR CONTACT SWITCH RIGHT REAR WINDOW SWITCH SWITCH ILLUMINATION LAMP TIPTRONIC SWITCH TURN SIGNAL SWITCH WINDSHIELD WIPER INTERMITTENT SWITCH

ABS HYDRAULIC PUMP RIGHT FRONT ABS INLET VALVE CAMSHAFT ADJUSTMENT VALVE 1 HALDEX CLUTCH CONTROL VALVE LEFT REAR ABS INLET VALVE RIGHT REAR ABS INLET VALVE SOLENOID VALVES

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN BLU/ WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN RED/ WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY) (OR RED/ RED/BLK WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/VIO WIRE PNK WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT) (OR BLK/ BLK/BLU WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/VIO WIRE

5 6 COMPUTER DATA LINES SYSTEM 7 8 COMPUTER DATA LINES SYSTEM 8 BULBS 12 13 COMPUTER DATA LINES SYSTEM (LOWER LEFT END OF (OR (OR (OR ADJUSTMENT MOTORS AIR BAG SPIRAL SPRING/ ANTI-SLIP IND ANTI-THEFT IMMOBILIZER WARNING AUTOMATIC A/C AUTOMATIC DAY/NIGHT INTERIOR MIRROR CD CHANGER SHIELD CHARGING CIRCUIT CIGARETTE LIGHTER COMBUSTION AIR BLOWER COMPT) COMPUTER DATA LINE SYSTEM COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COOLANT FAN COOLING FANS SYSTEM DASH) DATA BUS ON BOARD DIAGNOSTIC INTERFACE DATA BUS ON BOARD DIAGNOSTIC INTERFACE (IN DRIVER'S FOOTWELL, DEFOGGER SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER'S AIR BAG IGNITER DRIVER'S HEAD CURTAIN AIR BAG IGNITER DRIVER'S HEATED OUTSIDE MIRROR DRIVER'S HEATED SEAT ADJUSTER DRIVER'S MAP/ READING LIGHT DRIVER'S OUTSIDE MIRROR DRIVER'S POWER SEAT ADJUSTMENT CIRCUIT BREAKER DRIVER'S SIDE AIR BAG IGNITER DRIVER`S ILLUMINATED MAKE-UP MIRROR LIGHT DRIVER`S INSIDE DOOR HANDLE ILLUMINATION END OF DASH) EXTERIOR LAMPS CIRCUIT EXTERNAL AUDIO SOURCE EXTERNAL AUDIO SOURCE CONNECTION EXTERNAL MULTIMEDIA DEVICE INTERFACE FM LEFT FREQUENCY TAILLAMP FILTER FRESH AIR BLOWER FRESH AIR, RECIRCULATING AIR MODE IND LIGHT FRONT HOOD OPEN FRONT INTERIOR LIGHT FRONT PASSENGER'S FRONT PASSENGER'S AIR BAG IGNITERS FRONT PASSENGER'S HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER'S HEATED OUTSIDE MIRROR FRONT PASSENGER'S HEATED SEAT ADJUSTER FRONT PASSENGER'S ILLUMINATED MAKE-UP MIRROR LIGHT FRONT PASSENGER'S INSIDE DOOR HANDLE ILLUMINATION FRONT PASSENGER'S OUTSIDE MIRROR FRONT PASSENGER'S SIDE AIR BAG IGNITER FUEL GAUGE GLOVE COMPARTMENT LIGHT HEADLIGHTS SYSTEM HEATED REAR WINDOW HIGH BEAM IND HIGH MOUNT BRAKE LIGHT HORNS SYSTEM HOT AT ALL TIMES HOT AT ALL TIMES DRIVER'S POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 IGNITER 1 IGNITER 2 IN PLENUM CHAMBER) INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL INSTRUMENT CLUSTER SYSTEM LATE PRODUCTION EARLY PRODUCTION LEFT "C" PILLAR) LEFT FOOTWELL LIGHT LEFT HEADLAMP ASSEMBLY LEFT HEADLAMP POWER OUTPUT STAGE LEFT LOW BEAM HEADLAMP LEFT HIGH BEAM HEADLAMP LEFT REAR READING LIGHT LEFT TAILLAMP ASSEMBLY LEFT TURN LEFT, RIGHT REAR READING LIGHT LID DOOR) LINES SYSTEM COMPUTER DATA LOW WINDSHIELD WASHER FLUID LEVEL IND LUGGAGE COMPARTMENT LIGHT LUMBAR SUPPORT FORE/AFT ADJUSTMENT MANUAL A/C MAP READING LIGHT MIL IND MIRRORS SYSTEM MULTI- FUNCTION MODULE ODOMETER DISPLAY OIL PRESSURE WARNING IND PASSENGER'S DOOR POWER DISTRIBUTION SYSTEM POWER DISTRIBUTION SYSTEM WIPER/WASHER SYSTEM POWER WINDOWS SYSTEM RADIO/ NAVIGATION DISPLAY DIGITAL CONTROL SATELLITE MODULE RADIO TUNER RCD 510 RIGHT FOOTWELL LIGHT RIGHT HEADLAMP ASSEMBLY RIGHT HEADLAMP POWER OUTPUT STAGE RIGHT HIGH BEAM HEADLAMP RIGHT LOW BEAM HEADLAMP RIGHT REAR READING LIGHT RIGHT TAILLAMP RIGHT TAILLAMP ASSEMBLY SEATS SYSTEM SOLID STATE STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STATE SOLID SUNROOF ILL SUPPLEMENTAL RESTRAINTS SYSTEM TEMPERATURE SELECTOR KNOB POTENTIOMETER TERMINAL 15 TIRE PRESSURE MONITORING DISPLAY IND TO SPARK PLUG TRANSMISSIONS SYSTEMS TRUNK, TAILGATE, FUEL DOORS SYSTEM TV TUNER VEHICLE ELECTRICAL SYSTEM CONTROL W/ CD CHANGER W/ FM FREQUENCY FILTERS W/O FM FREQUENCY FILTERS W/ MEMORY W/ RCD 300 W/ SATELLITE RADIO W/ SUNROOF W/O CD CHANGER W/O MEMORY W/O SATELLITE RADIO W/O SUNROOF WARNING BUZZER WINDSHIELD WIPER/ INTERMITTENT WIPER/WASHER SYSTEM
