Wiring Diagrams for Volkswagen Teramont X I facelift (2021-2024)

Automatic a/c circuit Manual a/c circuit

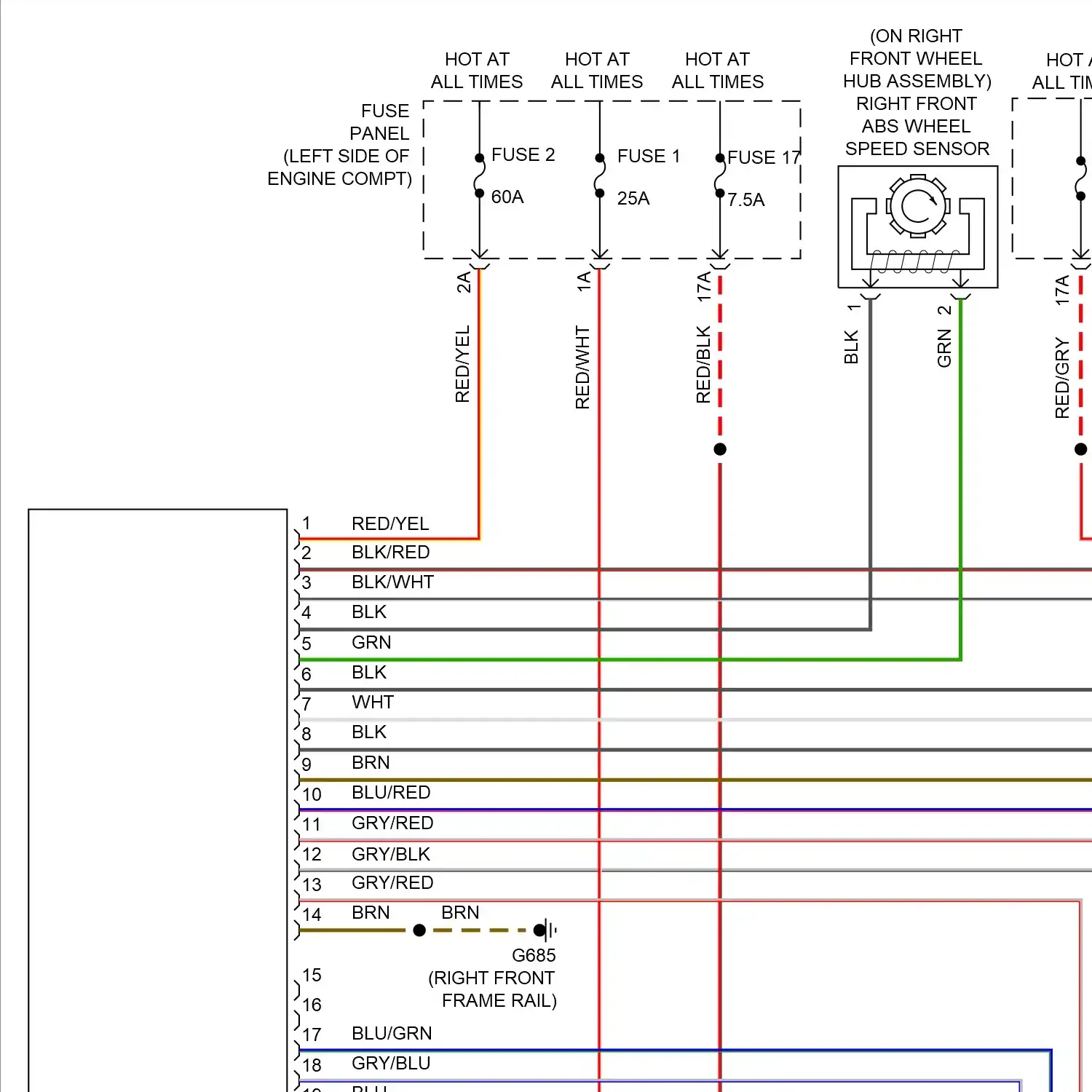

Anti-lock brakes circuit

Access/start circuit Forced entry circuit

Steering column electronic systems control module circuit Vehicle electrical system control module circuit

Computer data lines circuit

Cooling fan circuit

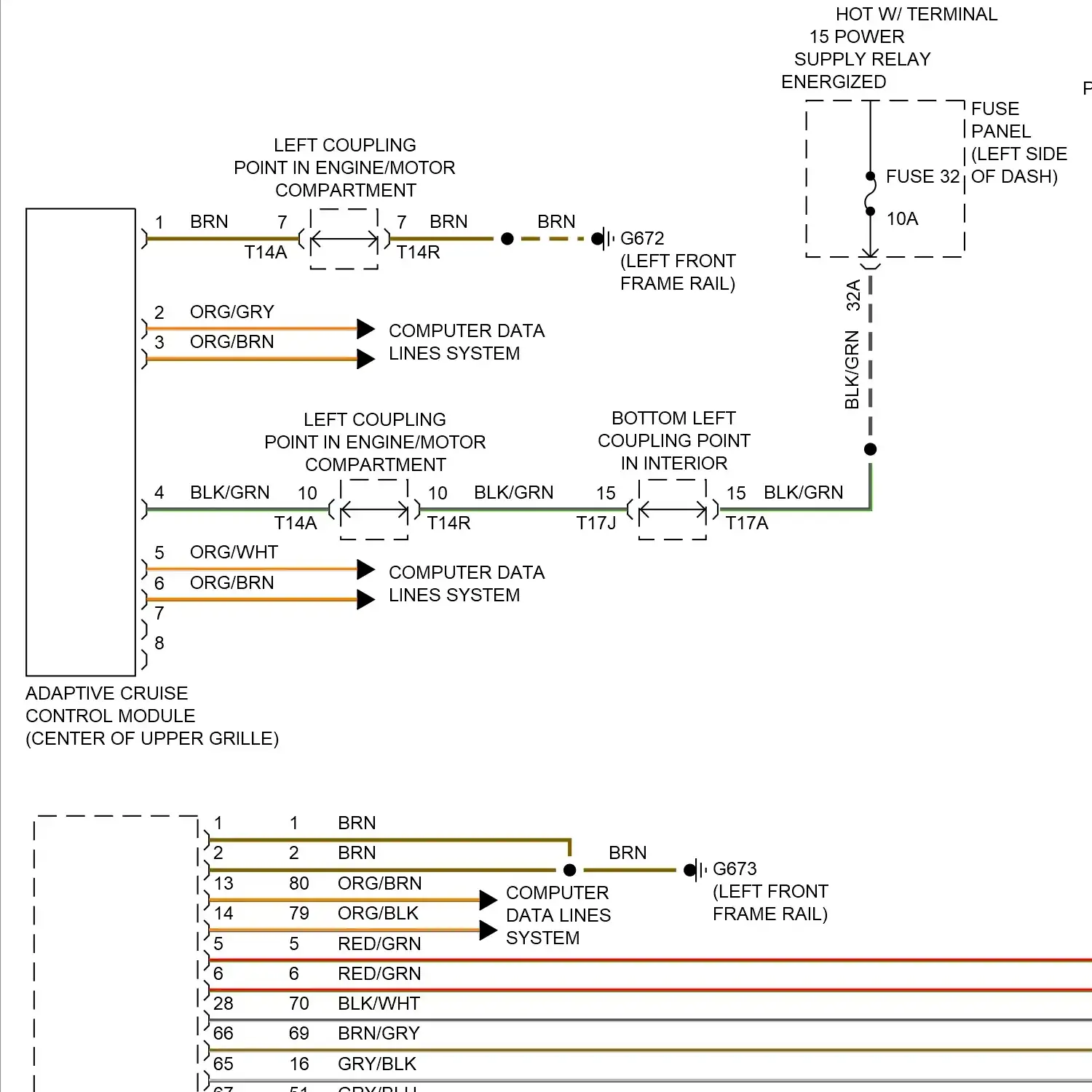

Cruise control circuit

Heated mirrors circuit Rear defogger circuit

Electronic power steering circuit

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 3.6l

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

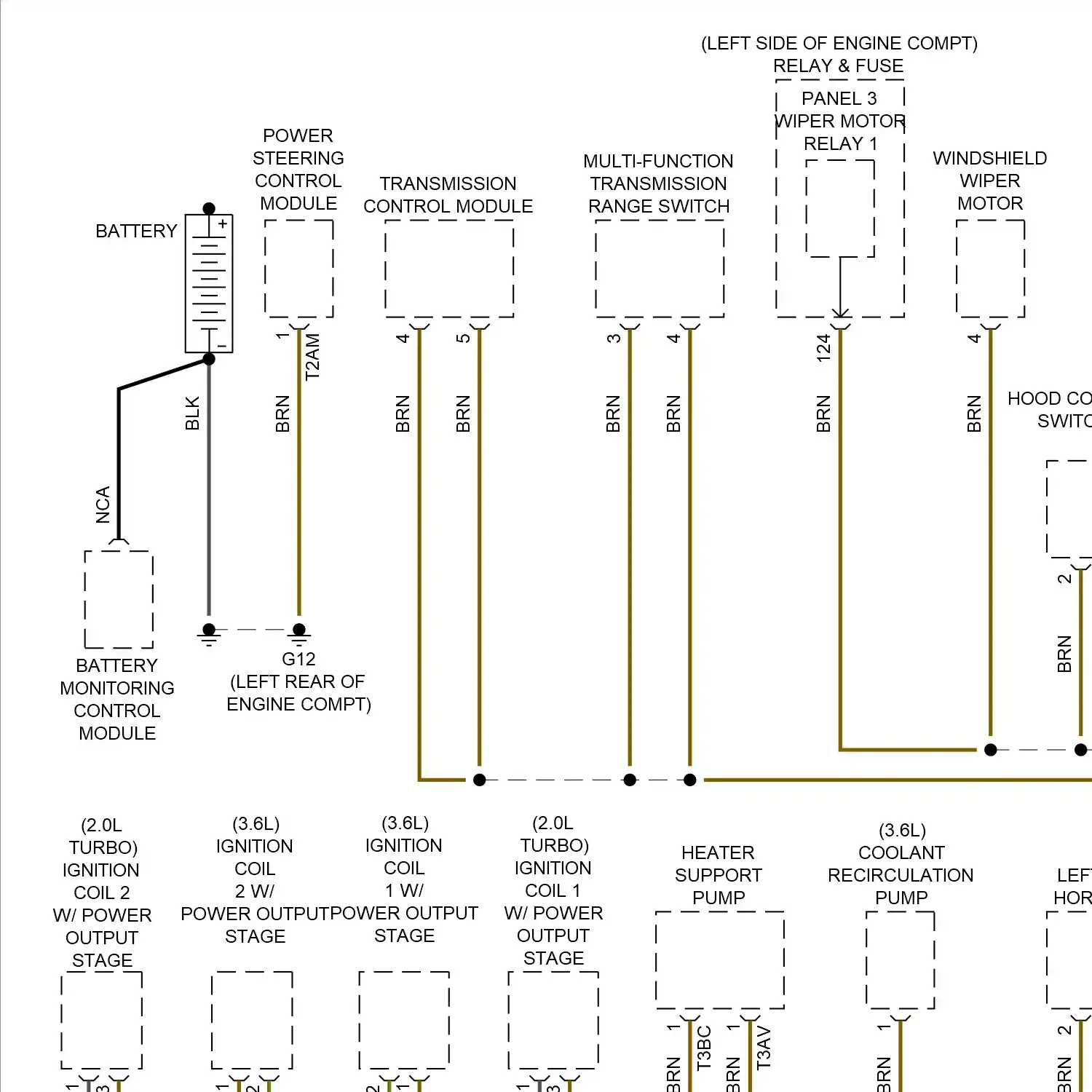

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit

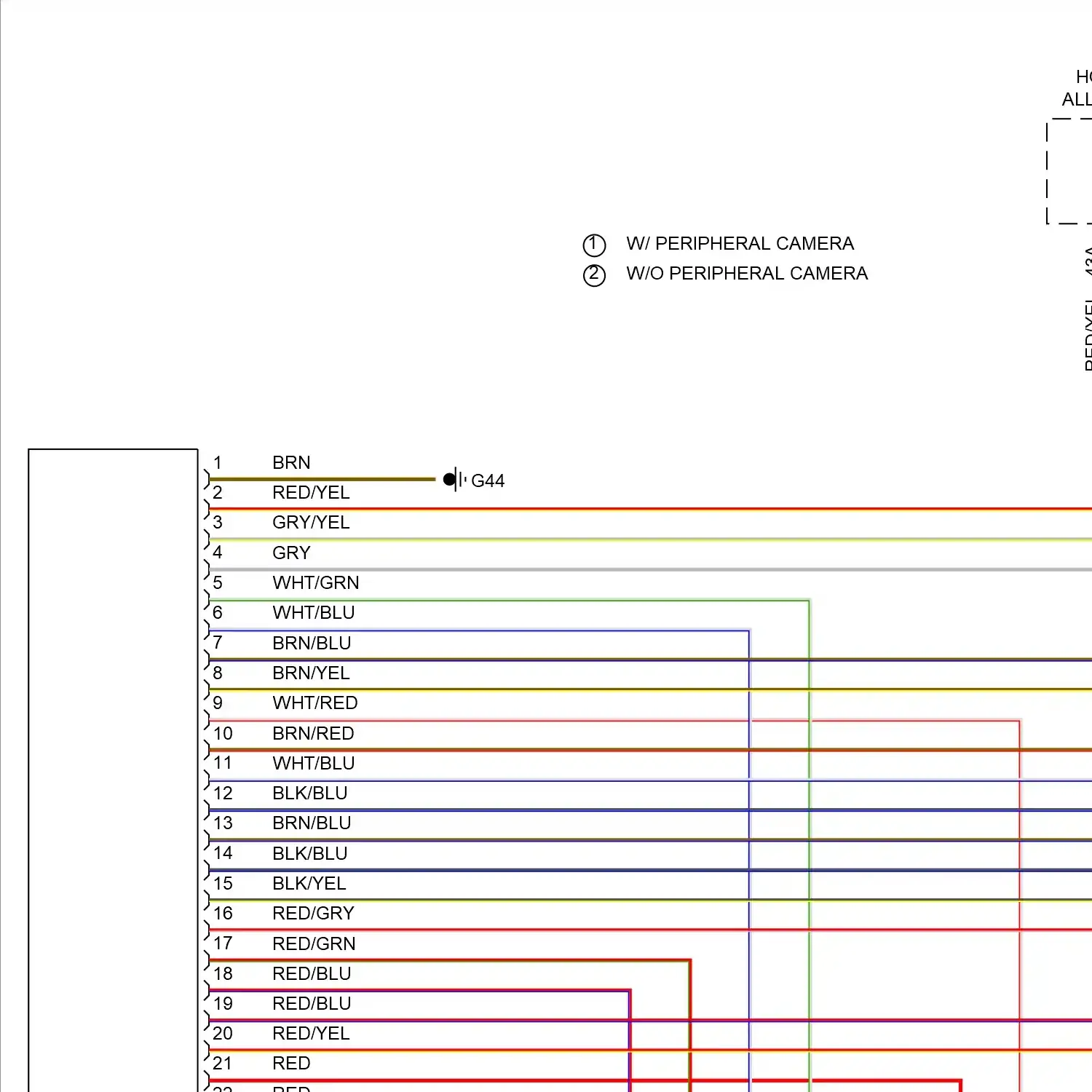

Blind spot monitoring circuit Emergency call circuit Lane change assistance circuit Lane departure warning circuit Navigation circuit, w/ amplifier Navigation circuit, w/o amplifier Parking assistant circuit Peripheral camera circuit Rear view camera circuit

Power distribution circuit

Power door locks circuit

Automatic day/night mirror circuit Power mirrors circuit

Driver power seat circuit Heated seats circuit Heated steering wheel circuit, w/ multi-function steering wheel Heated steering wheel circuit, w/o multi-function steering wheel Passenger power seat circuit Seat ventilation circuit

Power top/sunroof circuit

Power windows circuit

Radio circuit, w/ amplifier Radio circuit, w/o amplifier

Park brake release circuit Shift interlock circuit Steering column circuit

Charging circuit Starting circuit

Supplemental restraints circuit

A/t circuit Awd circuit

Trunk & fuel door release circuit

Chime circuit

Wiper/washer circuit

ALARM HORN ANTI-LOCK BRAKES, INSTRUMENT CLUSTER SYSTEMS ANTI-THEFT IMMOBILIZER READER COIL IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 W/ POWER OUTPUT STAGE IGNITION COIL 6 W/ POWER OUTPUT STAGE LEFT HORN LEFT WASHER NOZZLE HEATER ON BATTERY) REAR LID CENTRAL LOCKING LOCK MODULE RIGHT HORN RIGHT WASHER NOZZLE HEATER SIGNAL HORN ACTIVATION W/ 150-A GENERATOR W/ 180-A GENERATOR

(RIGHT FRONT OF ENGINE ADJUSTMENT MOTOR ADJUSTMENT MOTOR 2 CYLINDER 1 EXHAUST CAM ACTUATOR A CYLINDER 1 EXHAUST CAM ACTUATOR B CYLINDER 2 EXHAUST CAM ACTUATOR A CYLINDER 2 EXHAUST CAM ACTUATOR B CYLINDER 3 EXHAUST CAM ACTUATOR A CYLINDER 3 EXHAUST CAM ACTUATOR B CYLINDER 4 EXHAUST CAM ACTUATOR A CYLINDER 4 EXHAUST CAM ACTUATOR B DRIVER BACKREST ADJUSTMENT MOTOR DRIVER DOOR CENTRAL LOCKING SYSTEM MOTOR DRIVER MIRROR ADJUSTMENT MOTOR DRIVER MIRROR ADJUSTMENT MOTOR 2 DRIVER SEAT ANGLE ADJUSTMENT MOTOR DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR DRIVER SEAT HEIGHT ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR DRIVER WINDSHIELD WIPER MOTOR ENGINE CONTROLS SYSTEM ENGINE CONTROLS, EXTERIOR LIGHTS SYSTEMS FOLDING MOTOR FRONT PASSENGER BACKREST ADJUSTMENT MOTOR FRONT PASSENGER DOOR CENTRAL LOCKING SYSTEM MOTOR FRONT PASSENGER SEAT ANGLE ADJUSTMENT MOTOR FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT MOTOR FRONT PASSENGER SEAT HEIGHT ADJUSTMENT MOTOR FUEL FILLER DOOR CENTRAL LOCKING ACTUATOR FUEL FILLER DOOR CENTRAL LOCKING MOTOR LEFT COUPLING POINT IN ENGINE/ MOTOR COMPARTMENT LEFT COUPLING POINT IN ENGINE/MOTOR COMPARTMENT LEFT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR LEFT PARKING BRAKE MOTOR ON THE SUNROOF MOTOR SUNROOF COUPLING POINT RADIATOR SHUTTER MOTOR REAR LID CENTRAL LOCKING SYSTEM MOTOR REAR LID CLOSING AID MOTOR REAR WINDOW WIPER MOTOR RECIRCULATION DOOR MOTOR RIGHT HEADLAMP RANGE CONTROL ADJUSTMENT MOTOR RIGHT PARKING BRAKE MOTOR RIGHT REAR DOOR CENTRAL LOCKING SYSTEM MOTOR SUNROOF MOTOR SUNROOF SHADE MOTOR TOP CENTER COUPLING POINT ON ENGINE TOP RIGHT COUPLING POINT ON ENGINE W/ ENGINE REMOTE START W/O ENGINE REMOTE START WINDSHIELD WIPER MOTOR

DRIVER SIDE REAR ACCESS/ START AUTHORIZATION ANTENNA GPS ANTENNA GSM ANTENNA LEFT ACCESS/ START AUTHORIZATION ANTENNA LEFT ANTENNA MODULE LUGGAGE COMPARTMENT ACCESS/START SYSTEM ANTENNA PASSENGER SIDE REAR ACCESS/ START AUTHORIZATION ANTENNA RADIO ANTENNA 2 REAR BUMPER ACCESS/START SYSTEM ANTENNA RIGHT ANTENNA MODULE VEHICLE INTERIOR ACCESS/START SYSTEM ANTENNA 1 VEHICLE INTERIOR ACCESS/START SYSTEM ANTENNA 2

A/C COMPRESSOR REGULATOR VALVE ANGLE ADJUSTMENT BUTTON AUTO HOLD BUTTON BACKREST ADJUSTMENT BUTTON CHILD SAFETY LOCK BUTTON CRUISE CONTROL SET BUTTON DRIVER INTERIOR LOCKING BUTTON DRIVER POWER WINDOW BUTTON DRIVER SIDE REAR POWER WINDOW BUTTON DRIVER SIDE REAR WINDOW REGULATOR MOTOR DRIVER SIDE SEAT VENTILATION BUTTON DRIVER SIDE SEAT VENTILATION BUTTON SEAT VENTILATION INDICATOR LAMP 1 DRIVER WINDOW REGULATOR MOTOR ELECTRO- MECHANICAL PARKING BRAKE BUTTON ELECTROMECHANICAL PARKING BRAKE BUTTON EVAP CANISTER PURGE REGULATOR VALVE 1 FRONT INTERIOR LAMP BUTTON FRONT PASSENGER INTERIOR LOCKING BUTTON FRONT PASSENGER POWER WINDOW BUTTON FRONT PASSENGER SIDE SEAT VENTILATION BUTTON FRONT PASSENGER SIDE SEAT VENTILATION BUTTON SEAT VENTILATION INDICATOR LAMP 2 FRONT PASSENGER WINDOW REGULATOR MOTOR FUEL PRESSURE REGULATOR VALVE GENERATOR W/ VOLTAGE REGULATOR IGNITION START BUTTON ILLUMINATION BULB IGNITION START BUTTON ILLUMINATION BULB START SYSTEM BUTTON LEFT FRONT READING LAMP BUTTON LEFT REAR SEAT HEATING BUTTON LEFT SEAT HEATING BUTTON LEFT THIRD ROW READING LAMP BUTTON LUGGAGE COMPARTMENT REAR LID LOCK BUTTON LUMBAR SUPPORT HEIGHT ADJUSTMENT BUTTON MEMORY SEAT POSITION 1 BUTTON MEMORY SEAT POSITION 2 BUTTON MEMORY SEAT POSITION 3 BUTTON PARALLEL PARKING ASSISTANCE BUTTON PARKING AID BUTTON PASSENGER SIDE REAR POWER WINDOW BUTTON PASSENGER SIDE REAR WINDOW REGULATOR MOTOR PUSH BUTTON ILLUMINATION BULB PUSH BUTTON ILLUMINATION LAMP REAR INTERIOR LAMP BUTTON REAR LID REMOTE RELEASE BUTTON REAR WINDOW REGULATOR SAFETY SWITCH RELEASE BUTTON RIGHT FRONT READING LAMP BUTTON RIGHT REAR SEAT HEATING BUTTON RIGHT SEAT HEATING BUTTON RIGHT THIRD ROW READING LAMP BUTTON ROOF SHADE BUTTON 1 SEAT FORWARD/BACK ADJUSTMENT BUTTON SEAT HEIGHT ADJUSTMENT BUTTON SEAT POSITION MEMORY BUTTON START SYSTEM BUTTON START/STOP MODE BUTTON STEERING WHEEL HEATING BUTTON SUNROOF BUTTON TELEMATICS BUTTON MODULE TIPTRONIC DOWNSHIFT BUTTON ON STEERING WHEEL TIPTRONIC UPSHIFT BUTTON ON STEERING WHEEL

DRIVER ASSISTANCE SYSTEMS FRONT CAMERA FRONT PERIPHERAL CAMERA LEFT PERIPHERAL CAMERA REAR PERIPHERAL CAMERA REAR VIEW CAMERA RIGHT PERIPHERAL CAMERA W/ PERIPHERAL CAMERA W/ PERIPHERAL CAMERA W/O PERIPHERAL CAMERA W/O PERIPHERAL CAMERA

TRAILER SOCKET USB CHARGING SOCKET 1 USB CHARGING SOCKET 2 USB CHARGING SOCKET FUSE

A/C CONTROL MODULE ABS CONTROL MODULE ADAPTIVE CRUISE CONTROL MODULE AIR BAG CONTROL MODULE ALL- WHEEL DRIVE CONTROL MODULE BATTERY MONITORING CONTROL MODULE BLIND SPOT DETECTION CONTROL MODULE BLIND SPOT DETECTION CONTROL MODULE 2 CLIMATRONIC CONTROL MODULE CORNERING LAMP, HEADLAMP RANGE CONTROL MODULE DIGITAL SOUND SYSTEM CONTROL MODULE DRIVER DOOR CONTROL MODULE DRIVER SEAT ADJUSTMENT CONTROL MODULE ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE ENGINE TEMPERATURE CONTROL MODULE ENGINE/ MOTOR CONTROL MODULE ENGINE/MOTOR CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE FRONT PASSENGER DOOR CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL TANK LEAK DETECTION CONTROL MODULE GARAGE DOOR OPENER CONTROL MODULE HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED INFORMATION ELECTRONICS CONTROL MODULE 1 INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE LANE CHANGE ASSISTANCE CONTROL MODULE 2 LEAK DETECTION PUMP FUEL TANK LEAK DETECTION CONTROL MODULE LINE CHANGE ASSISTANCE CONTROL MODULE LINE CHANGE ASSISTANCE CONTROL MODULE 2 MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY MULTI-FUNCTION STEERING WHEEL CONTROL MODULE PARKING AID CONTROL MODULE PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE PERIPHERAL CAMERA CONTROL MODULE POWER REAR LID OPENING CONTROL MODULE POWER STEERING CONTROL MODULE RADIATOR FAN CONTROL MODULE REAR FRESH AIR BLOWER CONTROL MODULE REAR LID CONTROL MODULE REAR SEAT HEATING CONTROL MODULE STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING WHEEL TOUCH RECOGNITION CONTROL MODULE STEERING WHEEL TOUCH RECOGNITION POWER CONTROL MODULE SUNROOF CONTROL MODULE THROTTLE VALVE CONTROL MODULE TOWING RECOGNITION CONTROL MODULE TRANSMISSION CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE

DRIVER DOOR LOCK UNIT FRONT PASSENGER AIR BAG UNIT FRONT PASSENGER DOOR LOCK UNIT FUEL DELIVERY UNIT LEFT REAR DOOR LOCK UNIT REAR LID LOCK UNIT RIGHT REAR DOOR LOCK UNIT SELECTOR LEVER TRANSMISSION RANGE POSITION DISPLAY UNIT W/O HEAD UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 38 FUSE 39 FUSE 40 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 49 FUSE 51 FUSE 53 FUSE E FUSE G FUSE J FUSE K FUSE L FUSE PANEL 1 FUSE PANEL 2 FUSE PANEL A FUSE PANEL B FUSE PANEL C REMOTE START SYSTEM FUSE 1

DRIVER BACKREST HEATING ELEMENT DRIVER SEAT HEATING ELEMENT FRONT PASSENGER BACKREST HEATING ELEMENT FRONT PASSENGER SEAT HEATING ELEMENT HEATED STEERING WHEEL HEATER HEATER, A/C CONTROLS LEFT REAR BACKREST HEATING ELEMENT LEFT REAR SEAT HEATER LEFT REAR SEAT HEATING ELEMENT POSITIVE CRANKCASE VENTILATION HEATING ELEMENT RIGHT REAR BACKREST HEATING ELEMENT RIGHT REAR SEAT HEATER RIGHT REAR SEAT HEATING ELEMENT

ABS INDICATOR LAMP AIR BAG INDICATOR LAMP ASR/ ESP INDICATOR LAMP ASR/ESP INDICATOR LAMP AUTO HOLD INDICATOR LAMP BRAKE PAD WEAR INDICATOR LAMP BRAKE SYSTEM INDICATOR LAMP CENTRAL LOCKING SAFE INDICATOR LAMP CRUISE CONTROL INDICATOR LAMP DRIVER INTERIOR LOCKING INDICATOR LAMP ELECTRIC PARKING BRAKE MALFUNCTION INDICATOR LAMP ELECTRO-MECHANICAL PARKING BRAKE INDICATOR LAMP ELECTROMECHANICAL PARKING BRAKE INDICATOR LAMP EMERGENCY FLASHER INDICATOR LAMP FRONT PASSENGER AIR BAG DISABLED INDICATOR LAMP FRONT PASSENGER INTERIOR LOCKING INDICATOR LAMP GENERATOR INDICATOR LAMP HEATED DRIVER SEAT INDICATOR LAMP HEATED FRONT PASSENGER SEAT INDICATOR LAMP HIGH BEAM INDICATOR LAMP LANE ASSISTANCE INDICATOR LAMP LANE CHANGE ASSISTANCE INDICATOR LAMP LEFT CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP LOW FUEL LEVEL INDICATOR LAMP MULTI-FUNCTION INDICATOR MULTI-FUNCTION INDICATOR SELECTION SWITCH OIL LEVEL INDICATOR LAMP OIL PRESSURE INDICATOR LAMP PARALLEL PARKING ASSISTANCE INDICATOR LAMP PARKING AID INDICATOR LAMP PARKING BRAKE INDICATOR LAMP REAR FOG LAMP INDICATOR LAMP REAR POWER WINDOW LOCK INDICATOR LAMP RIGHT CHILD SAFETY LOCK- ACTIVATED- INDICATOR LAMP SEAT BELT INDICATOR LAMP SEAT VENTILATION INDICATOR LAMP 1 SEAT VENTILATION INDICATOR LAMP 2 START/STOP MODE INDICATOR LAMP STEERING WHEEL HEATING INDICATOR LAMP TIRE PRESSURE MONITORING DISPLAY INDICATOR LAMP

BRAKE PAD WEAR IND LAMP BRAKE SYSTEM IND LAMP CENTER CONSOLE ILLUMINATION BULB CUPHOLDER ILLUMINATION BULB DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DRIVER DOOR WARNING LAMP DRIVER ENTRY LAMP DRIVER SIDE DOOR AMBIENT LIGHTING LAMP DRIVER VANITY MIRROR LAMP ENTRY LAMP EXTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM FRONT INTERIOR LAMP FRONT PASSENGER DOOR WARNING LAMP FRONT PASSENGER ENTRY LAMP FRONT PASSENGER VANITY MIRROR LAMP GLOVE COMPARTMENT LAMP HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH-MOUNTED BRAKE LAMP BULB INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP 1 INSTRUMENT PANEL CONTOUR ILLUMINATION LAMP 2 INTERIOR LAMP LANE CHANGE ASSISTANCE WARNING LAMP LEFT BACKUP LAMP BULB LEFT BRAKE LAMP LEFT BRAKE/ TAIL LAMP LEFT DAYTIME RUNNING LAMP BULB LEFT FRONT FOOTWELL LAMP LEFT FRONT READING LAMP LEFT FRONT TURN SIGNAL BULB LEFT HIGH BEAM HEADLAMP BULB LEFT LICENSE PLATE LAMP LEFT LOW BEAM HEADLAMP BULB LEFT REAR FOG LAMP LEFT REAR INTERIOR LAMP LEFT REAR READING LAMP LEFT REAR TURN SIGNAL BULB LEFT TAIL LAMP LEFT TAIL LAMP 2 LEFT TAIL LAMP BULB LEFT THIRD ROW READING LAMP LIGHTS) LUGGAGE COMPARTMENT LAMP LUGGAGE COMPARTMENT LAMP 2 PASSENGER SIDE DOOR AMBIENT LIGHTING LAMP POWER WINDOWS, INTERIOR LIGHTS SYSTEMS REAR INTERIOR LAMP RIGHT BACKUP LAMP BULB RIGHT BRAKE LAMP RIGHT BRAKE/ TAIL LAMP RIGHT DAYTIME RUNNING LAMP BULB RIGHT FRONT FOOTWELL LAMP RIGHT FRONT READING LAMP RIGHT FRONT TURN SIGNAL BULB RIGHT HIGH BEAM HEADLAMP BULB RIGHT LICENSE PLATE LAMP RIGHT LOW BEAM HEADLAMP BULB RIGHT REAR FOG LAMP RIGHT REAR INTERIOR LAMP RIGHT REAR READING LAMP RIGHT REAR TURN SIGNAL BULB RIGHT TAIL LAMP RIGHT TAIL LAMP 2 RIGHT TAIL LAMP BULB RIGHT THIRD ROW READING LAMP SEAT BELT IND LAMP TIRE PRESSURE MONITORING DISPLAY IND LAMP TURN SIGNAL BULB TURN SIGNAL LAMP

COOLANT RECIRCULATION PUMP HEATER SUPPORT PUMP LEAK DETECTION PUMP TRANSFER FUEL PUMP WINDSHIELD, REAR WINDOW WASHER PUMP

A/C CLUTCH RELAY ENGINE COMPONENT POWER SUPPLY RELAY HORN RELAY HOT W/ TERMINAL 15 POWER SUPPLY RELAY ENERGIZED REAR WINDOW DEFOGGER RELAY RELAY & FUSE PANEL 3 RELAY & FUSE PANEL 3 WIPER MOTOR RELAY 1 RELAY & FUSE PANEL 5 RELAY PANEL 5 WINDSHIELD DEFOGGER RELAY REMOTE START SYSTEM RELAY SOCKETS RELAY STARTER RELAY 1 STARTER RELAY 2 TERMINAL 15 POWER SUPPLY RELAY WINDSHIELD DEFOGGER RELAY WINDSHIELD DEFOGGER RELAY RELAY & FUSE PANEL 5 WIPER MOTOR RELAY 1 WIPER MOTOR RELAY 2

ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR 2 AIR DISTRIBUTION DOOR MOTOR, POSITION SENSOR ANTI-THEFT ALARM SYSTEM SENSOR CAMSHAFT POSITION SENSOR CAMSHAFT POSITION SENSOR 3 CHARGE AIR PRESSURE CONTROL MODULE ACTUATOR POSITION SENSOR CHARGE AIR PRESSURE SENSOR DEFROSTER DOOR MOTOR, POSITION SENSOR DRIVER BACKREST ADJUSTMENT MOTOR/SENSOR DRIVER FRONT AIR BAG CRASH SENSOR DRIVER SEAT ANGLE ADJUSTMENT MOTOR, DRIVER SEAT TILT ADJUSTMENT SENSOR DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR/SENSOR DRIVER SEAT HEIGHT ADJUSTMENT MOTOR/SENSOR DRIVER SEAT POSITION SENSOR DRIVER SIDE REAR THORAX AIR BAG CRASH SENSOR DRIVER THORAX AIR BAG CRASH SENSOR ELECTRIC TRAILER BRAKE POSITION SENSOR ENGINE COOLANT LEVEL SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ON ENGINE ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET ENGINE SPEED SENSOR EPC THROTTLE DRIVE ANGLE SENSOR 1 EPC THROTTLE DRIVE ANGLE SENSOR 1 THROTTLE VALVE CONTROL MODULE EPC THROTTLE DRIVE ANGLE SENSOR 2 EVAPORATOR TEMPERATURE SENSOR FOOTWELL VENT TEMPERATURE SENSOR FRESH AIR/RECIRCULATING AIR/BACK PRESSURE DOOR MOTOR, POSITION SENSOR FRONT AIR DISTRIBUTION DOOR MOTOR, POSITION SENSOR FRONT PASSENGER SEAT POSITION SENSOR FRONT PASSENGER THORAX AIR BAG CRASH SENSOR FUEL LEVEL SENSOR FUEL PRESSURE SENSOR HEATED OXYGEN SENSOR HEATED OXYGEN SENSOR 2 HEATED STEERING WHEEL SENSOR HORIZONTAL POSITION SENSOR HORIZONTAL POSITION SENSOR VERTICAL POSITION SENSOR INTAKE AIR TEMPERATURE SENSOR INTAKE MANIFOLD RUNNER POSITION SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT EXTERIOR DOOR HANDLE TOUCH SENSOR LEFT FRONT PARALLEL PARKING ASSISTANCE SENSOR LEFT FRONT PARKING AID SENSOR LEFT FRONT SEAT TEMPERATURE SENSOR LEFT FRONT TEMPERATURE CONTROL DOOR MOTOR, POSITION SENSOR LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR CENTER PARKING AID SENSOR LEFT REAR HEATED SEAT TEMPERATURE SENSOR LEFT REAR PARALLEL PARKING ASSISTANCE SENSOR LEFT REAR PARKING AID SENSOR LEFT VENT TEMPERATURE SENSOR LOW FUEL PRESSURE SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR MASS AIRFLOW SENSOR TEMPERATURE SENSOR MASS AIRFLOW MEASUREMENT MODULE OIL LEVEL THERMAL SENSOR OUTSIDE AIR TEMPERATURE SENSOR OXYGEN SENSOR 1 AFTER CATALYTIC CONVERTER OXYGEN SENSOR 1 HEATER AFTER CATALYTIC CONVERTER OXYGEN SENSOR 2 AFTER CATALYTIC CONVERTER OXYGEN SENSOR 2 BEFORE CATALYTIC CONVERTER OXYGEN SENSOR 2 HEATER OXYGEN SENSOR 2 HEATER AFTER CATALYTIC CONVERTER OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR HEATER PASSENGER OCCUPANT DETECTION SYSTEM PRESSURE SENSOR PASSENGER SIDE FRONT AIR BAG CRASH SENSOR PASSENGER SIDE REAR THORAX AIR BAG CRASH SENSOR POSITION SENSOR POSITION SENSOR 2 POWER REAR LID OPENING SENSOR POWER REAR LID OPENING SENSOR 2 RAIN/ LIGHT RECOGNITION SENSOR RAIN/LIGHT RECOGNITION SENSOR REAR AIR DISTRIBUTION DOOR MOTOR, POSITION SENSOR REAR AIR DISTRIBUTION MOTOR, REAR TEMPERATURE CONTROL DOOR MOTOR POSITION SENSOR REAR LID MOTOR 1 SENSOR REAR LID MOTOR 1, REAR LID MOTOR 1 SENSOR REAR LID MOTOR 2 SENSOR REAR LID MOTOR 2, REAR LID MOTOR 2 SENSOR REAR TEMPERATURE CONTROL DOOR MOTOR, POSITION SENSOR REAR VENT TEMPERATURE SENSOR REFRIGERANT CIRCUIT PRESSURE SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT EXTERIOR DOOR HANDLE TOUCH SENSOR RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT FRONT SEAT TEMPERATURE SENSOR RIGHT FRONT TEMPERATURE CONTROL DOOR MOTOR, POSITION SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR HEATED SEAT TEMPERATURE SENSOR RIGHT REAR PARALLEL PARKING ASSISTANCE SENSOR RIGHT REAR PARKING AID SENSOR RIGHT VENT TEMPERATURE SENSOR STEERING TORQUE SENSOR TEMPERATURE CONTROL DOOR MOTOR, POSITION SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SPEED SENSOR 1 TRANSMISSION OUTPUT SPEED SENSOR VACUUM SENSOR VERTICAL POSITION SENSOR WINDOW DEFOGGER FOR FRONT SENSOR SYSTEM WINDSHIELD WASHER FLUID LEVEL SENSOR

CENTER SPEAKER EMERGENCY CALL MODULE SPEAKER LEFT EFFECTS SPEAKER LEFT FRONT BASS SPEAKER LEFT FRONT TREBLE SPEAKER LEFT REAR BASS SPEAKER LEFT REAR TREBLE SPEAKER RIGHT EFFECTS SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR BASS SPEAKER RIGHT REAR TREBLE SPEAKER

AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR SWITCH BACKUP SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LAMP SWITCH CENTER CONSOLE SWITCH MODULE 2 CENTER INSTRUMENT PANEL SWITCH MODULE CENTER SWITCH MODULE CENTER SWITCH MODULE IN INSTRUMENT PANEL CRUISE CONTROL SWITCH DOOR CONTACT SWITCH DRIVER DOOR CENTRAL LOCKING SYSTEM SWITCH DRIVER DOOR CONTACT SWITCH DRIVER LOCK CYLINDER CONTACT SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER VANITY MIRROR LAMP CONTACT SWITCH EMERGENCY FLASHER SWITCH ENGINE HOOD CONTACT SWITCH EXTERIOR REAR VIEW MIRROR HEATING SWITCH FRONT INTERIOR LAMP DOOR CONTACT SWITCH FRONT PASSENGER CENTRAL LOCKING SYSTEM SWITCH FRONT PASSENGER DOOR CONTACT SWITCH FRONT PASSENGER SEAT BELT SWITCH FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH GLOVE COMPARTMENT LAMP SWITCH HOOD CONTACT SWITCH 2 IGNITION SWITCH KEY LOCK SOLENOID IGNITION/ STARTER SWITCH IGNITION/STARTER SWITCH LEFT REAR CENTRAL LOCKING SWITCH LEFT REAR CENTRAL LOCKING SYSTEM MOTOR LEFT REAR DOOR CONTACT SWITCH LEFT REAR DOOR CONTACT SWITCH LEFT REAR HEATED SEAT SWITCH LEFT REAR READING LAMP SWITCH LEVEL 3 OIL PRESSURE SWITCH LIGHT SWITCH MIRROR ADJUSTING SWITCH MIRROR ADJUSTMENT SWITCH ILLUMINATION BULB MIRROR FOLDING SWITCH MIRROR HEATING SWITCH MIRROR SELECTOR SWITCH MULTI-FUNCTION TRANSMISSION RANGE SWITCH OIL PRESSURE SWITCH REDUCED OIL PRESSURE SWITCH RIGHT REAR CENTRAL LOCKING SWITCH RIGHT REAR DOOR CONTACT SWITCH RIGHT REAR HEATED SEAT SWITCH RIGHT REAR READING LAMP SWITCH ROTARY LIGHT SWITCH TURN SIGNAL SWITCH WINDSHIELD WIPER INTERMITTENT MODE SWITCH

AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 1 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 2 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 3 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 4 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 5 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 6 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 7 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 8 CAMSHAFT ADJUSTMENT VALVE 1 COOLANT REGULATION VALVE COOLANT SHUT-OFF VALVE CYLINDER BLOCK COOLANT VALVE EXHAUST CAMSHAFT ADJUSTMENT VALVE 1 INTAKE MANIFOLD RUNNER CONTROL VALVE OIL PRESSURE REGULATION VALVE PISTON COOLING NOZZLE CONTROL VALVE SHIFT LOCK SOLENOID SOLENOID VALVE 1 SOLENOID VALVE 2 TRANSMISSION COOLANT VALVE TURBOCHARGER RECIRCULATION VALVE

BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/RED WIRE ORG/VIO WIRE ORG/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

2.0L TURBO 2.0L TURBO 3.6L 3.6L ACCESS/ START SYSTEM INTERFACE ACCESS/START SYSTEM INTERFACE AIR BAG SPIRAL SPRING/RETURN SPRING W/ SLIP RING AIR CONDITIONING SYSTEM AIR CONDITIONING, COOLING FANS, INSTRUMENT CLUSTER SYSTEMS AM FREQUENCY FILTER ANTI-THEFT SYSTEM ATLAS 2.0L TURBO ATLAS CROSS SPORT 2.0L TURBO BACKUP LAMPS CIRCUIT BOTTOM LEFT COUPLING POINT IN INTERIOR BOTTOM RIGHT COUPLING POINT IN INTERIOR CAN BUS SUNROOF COUPLING POINT CENTER COUPLING POINT IN INTERIOR CHARGING CIRCUIT COMPRESSOR MAGNETIC CLUTCH COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEMS COOLING FANS SYSTEM COUPLING POINT IN INTERIOR COUPLING POINT ON ROOF CROSS SPORT CROSS SPORT 2.0L CROSS SPORT 3.6L CROSS SPORT EXCEPT CROSS SPORT CYLINDER 1 FUEL INJECTOR CYLINDER 1 FUEL INJECTOR 2 CYLINDER 2 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR 2 CYLINDER 3 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR 2 CYLINDER 4 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR 2 CYLINDER 5 FUEL INJECTOR CYLINDER 6 FUEL INJECTOR DATA BUS ON BOARD DIAGNOSTIC INTERFACE DATA LINES DEFOGGER SYSTEM DIAGNOSTIC CONNECTION DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, TRUNK, TAILGATE, FUEL DOORS SYSTEMS DRIVER AIR BAG IGNITER DRIVER AUTOMATIC DIMMING EXTERIOR REAR VIEW MIRROR DRIVER BELT FORCE LIMITER DRIVER DOOR POWER WINDOW CONTROL HEAD DRIVER EXTERIOR REAR VIEW MIRROR DRIVER HEAD CURTAIN AIR BAG IGNITER DRIVER SEAT BACKREST COUPLING POINT DRIVER SEAT BELT TENSIONER IGNITER 1 DRIVER SEAT BELT TENSIONER IGNITER 2 DRIVER SIDE HEATED SEAT DRIVER THORAX AIR BAG IGNITER DRIVING PROFILE SELECTION CONTROL HEAD EARLY PRODUCTION EARLY PRODUCTION LATE PRODUCTION EPC THROTTLE DRIVE EXCEPT CROSS SPORT EXCEPT CROSS SPORT 2.0L EXCEPT CROSS SPORT 3.6L EXCEPT CROSS SPORT CROSS SPORT EXTERIOR LAMPS CIRCUIT EXTERIOR REAR VIEW MIRROR ADJUSTER FRESH AIR BLOWER FRONT INFORMATION DISPLAY CONTROL HEAD FRONT PARKING AID WARNING BUZZER FRONT PASSENGER AIR BAG IGNITER 1 FRONT PASSENGER AIR BAG IGNITER 2 FRONT PASSENGER BELT FORCE LIMITER FRONT PASSENGER EXTERIOR REAR VIEW MIRROR FRONT PASSENGER HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER POWER SEAT ADJUSTMENT CIRCUIT BREAKER 1 FRONT PASSENGER SEAT BACKREST COUPLING POINT FRONT PASSENGER SEAT BELT TENSIONER IGNITER 1 FRONT PASSENGER SEAT BELT TENSIONER IGNITER 2 FRONT PASSENGER THORAX AIR BAG IGNITER FRONT SEAT PASSENGER BACKREST COUPLING POINT FUEL FILLER DOOR UNLOCK GARAGE DOOR OPENER CONTROL HEAD HEADLIGHTS SYSTEM HEATED STEERING WHEEL HORNS SYSTEM HOT AT ALL TIMES INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INTERIOR REAR VIEW MIRROR LATE PRODUCTION LEFT BOTTOM COUPLING POINT IN INTERIOR LEFT COUPLING POINT ON REAR LID LEFT FRONT DOOR COUPLING POINT LEFT FRONT EXTERIOR DOOR HANDLE COUPLING POINT LEFT FRONT HEADLAMP LEFT FRONT SEAT ADJUSTMENT CONTROL HEAD LEFT FRONT SEAT ADJUSTMENT CONTROL HEAD 2 LEFT FRONT SEAT BACKREST FAN 1 LEFT FRONT SEAT COUPLING STATION LEFT FRONT SEAT CUSHION FAN 1 LEFT HEADLAMP POWER OUTPUT MODULE LEFT LED HEADLAMP POWER OUTPUT MODULE 1 LEFT MULTI-FUNCTION BUTTONS ON STEERING WHEEL LEFT REAR DOOR COUPLING POINT LEFT REAR EXTERIOR DOOR HANDLE LEFT REAR EXTERIOR DOOR HANDLE COUPLING POINT LEFT REAR SEAT COUPLING POINT LEFT REAR SEAT COUPLING STATION MIRRORS SYSTEM MULTIMEDIA SYSTEM CONTROL HEAD NAVIGATION SYSTEM POWER DISTRIBUTION POWER DISTRIBUTION SYSTEM RADIATOR FAN RADIATOR FAN 2 REAR A/C DISPLAY CONTROL HEAD REAR FRESH AIR BLOWER REAR LID CLOSING AID REAR LID COUPLING POINT REAR LID HANDLE REAR LID WARNING BUZZER REAR PARKING AID WARNING BUZZER REAR WINDOW REAR WINDOW DEFOGGER RIGHT COUPLING POINT IN LUGGAGE COMPARTMENT RIGHT FRONT DOOR COUPLING POINT RIGHT FRONT EXTERIOR DOOR HANDLE COUPLING POINT RIGHT FRONT HEADLAMP RIGHT FRONT SEAT ADJUSTMENT CONTROL HEAD RIGHT FRONT SEAT BACKREST FAN 1 RIGHT FRONT SEAT COUPLING STATION RIGHT FRONT SEAT CUSHION FAN 1 RIGHT HEADLAMP POWER OUTPUT MODULE RIGHT LED HEADLAMP POWER OUTPUT MODULE 1 RIGHT LID COUPLING POINT RIGHT MULTI-FUNCTION BUTTONS ON STEERING WHEEL RIGHT REAR DOOR COUPLING POINT RIGHT REAR EXTERIOR DOOR COUPLING POINT RIGHT REAR EXTERIOR DOOR HANDLE RIGHT REAR EXTERIOR DOOR HANDLE COUPLING POINT RIGHT REAR SEAT COUPLING POINT RIGHT REAR SEAT COUPLING STATION ROOF COUPLING POINT SEATS SYSTEM SELECTOR LEVER SELECTOR MECHANISM SHIFT INTERLOCK, TRANSMISSIONS SYSTEMS SOUND SYSTEMS STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STORAGE COMPARTMENT W/ CELL PHONE INTERFACE STORAGE COMPARTMENT) SUPPLEMENTAL RESTRAINTS SYSTEM TELEPHONE MICROPHONE TERMINAL 15 SUPPLY TERMINAL 30 SUPPLY THROTTLE BODY ASSEMBLY TO ACCESS/ START SYSTEM TO SPARK PLUG TRAILER CIRCUIT BREAKER TRAILER WIRING HARNESS COUPLING POINT TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM USB CONNECTION 1 USB DISTRIBUTOR W/ ADAPTIVE CRUISE CONTROL W/ AMBIENT LIGHTING W/ CRUISE CONTROL W/ HEATED SEATS W/ HEATED STEERING WHEEL W/ HEATED STEERING WHEEL 3 4 W/ HIGH BEAM ASSIST W/ INTERIOR MONITORING W/ LED W/ LED TAIL LAMPS W/ MEMORY W/ MULTI-FUNCTION STEERING WHEEL W/ POWER DRIVER SEAT W/ SUNROOF W/O ACCESS/ START AUTHORIZATION SYSTEM W/O HEATED SEATS W/O HEATED STEERING WHEEL W/O HIGH BEAM ASSIST W/O INTERIOR MONITORING W/O LED W/O MULTI-FUNCTION STEERING WHEEL W/O POWER DRIVER SEAT W/O TRAILER HITCH WINDSHIELD DEFOGGER WIPER/WASHER SYSTEM
