Wiring Diagrams for Volkswagen Passat B5 (1996-2001)

Automatic a/c circuit Heater circuit Manual a/c circuit

Automatic a/c circuit Heater circuit Manual a/c circuit

Anti-lock brake circuits, without traction control Anti-lock brake circuits, with traction control

Anti-theft circuit

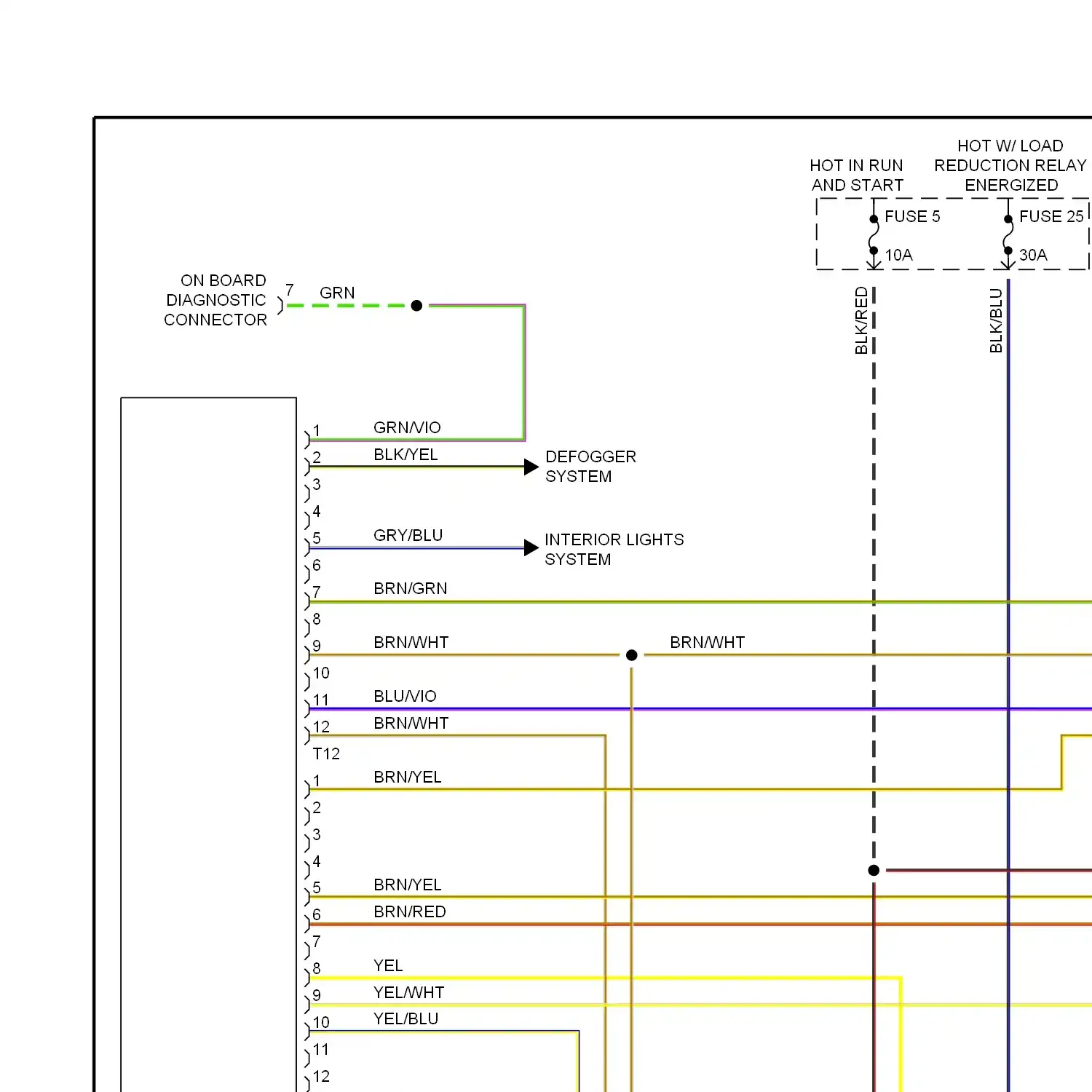

Computer data lines

Cooling fan circuit, auto a/c Dual speed cooling fan circuit, manual a/c Single speed cooling fan circuit, manual a/c

Cruise control circuit

Defogger circuit

Wiring diagram engine performance 1.8l turbos

Wiring diagram engine performance 2.8ls

Back-up lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlight circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory system circuits

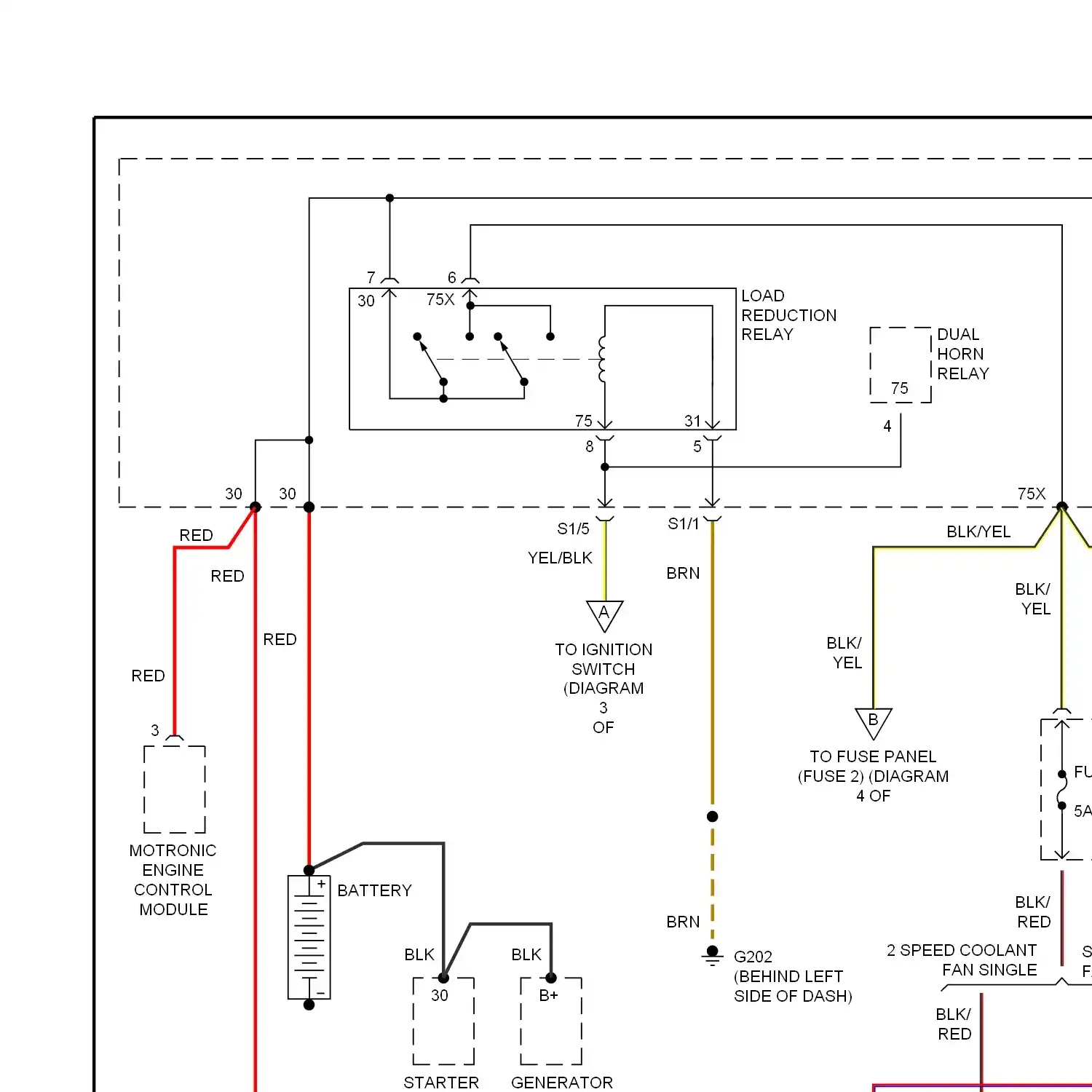

Power distribution circuit

Power door lock circuit

Automatic day/night mirror circuit Power mirrors circuit

Heated seats circuit Power seats circuit

Sunroof circuit

Power window circuit

Radio circuits

Shift interlock circuit

Charging circuit Starting circuit, a/t Starting circuit, m/t

Supplemental restraint circuit

1.8l, a/t circuit

2.8l, a/t circuit

Trunk & fuel door release circuit

Wiper/washer circuit

A/C DIODE ALARM HORN ANTI-LOCK BRAKES SYSTEM GENERATOR WARNING GENERATOR WARNING LIGHT IGNITION COIL IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 4 LEFT WASHER NOZZLE HEATER LOCK OFF LOCK ON RIGHT WASHER NOZZLE HEATER SELECTOR LEVER LIGHT DIODE

DRIVER'S BACKREST ADJUSTING MOTOR DRIVER'S SEAT BACKREST ADJUSTING MOTOR DRIVER'S SEAT FORE/ AFT ADJUSTING MOTOR DRIVER'S SEAT FORE/AFT ADJUSTING MOTOR DRIVER'S SEAT FRONT HEIGHT ADJUSTING MOTOR DRIVER'S SEAT REAR HEIGHT ADJUSTING MOTOR ENGINE COOLANT LEVEL/ TEMP WARNING ENGINE OVER- HEAT IND ENGINE TEMP FOLD-IN MIRROR MOTOR FRESH AIR BLOWER MOTOR FRESH- RECIRCULATING AIR DOOR SERVO MOTOR FRESH/RECIRC AIR DOOR SERVO MOTOR FRESH/RECIRCULATING AIR DOOR SERVO MOTOR FUEL TANK LID UNLOCK MOTOR PASSENGER'S BACKREST ADJUSTING MOTOR PASSENGER'S SEAT FORE/AFT ADJUSTING MOTOR PASSENGER'S SEAT FRONT HEIGHT ADJUSTING MOTOR PASSENGER'S SEAT REAR HEIGHT ADJUSTING MOTOR REAR LID REMOTE UNLOCK MOTOR SECONDARY AIR INJECTION PUMP MOTOR WINDOW MOTOR WINDSHIELD WIPER MOTOR

ANTENNA AMPLIFIER

EVAPORATIVE EMISSION CANISTER PURGE REGULATOR VALVE SUN ROOF REGULATOR WINDSHIELD WIPER INTERMITTENT REGULATOR

12 VOLT SOCKET DATA LINK CONNECTOR ON BOARD DIAGNOSTIC CONNECTOR

A/C CUT-OFF CONTROL MODULE A/C CUTOFF CONTROL MODULE ABS CONTROL MODULE AIR BAG CONTROL MODULE CLIMATIC CONTROL MODULE CLIMATRONIC CONTROL MODULE CLIMATRONIC CONTROL MODULE A/C PRESSURE SWITCH COMFORT SYSTEM CENTRAL CONTROL MODULE CONTROL MODULE CONTROL MODULE WITH INDICATOR UNIT COOLANT FAN CONTROL MODULE CRUISE CONTROL CONTROL MODULE DIESEL DIRECT FUEL INJECTION ENGINE CONTROL MODULE DRIVER'S HEATED SEAT CONTROL MODULE DRIVER'S SIDE DOOR CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE LEFT REAR DOOR CONTROL MODULE LEFT REAR DOOR CONTROL MODULE SEDAN ONLY SEDAN ONLY MEMORY SEAT CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE PASSENGER'S HEATED SEAT CONTROL MODULE PASSENGER'S SIDE DOOR CONTROL MODULE POWER SUN ROOF CONTROL MODULE POWER SUNROOF CONTROL MODULE RIGHT REAR DOOR CONTROL MODULE TRANSMISSION CONTROL MODULE

6 6 4 4 DRIVER'S DRIVER'S SIDE SIDE CENTRAL CENTRAL LOCKING LOCKING UNIT UNIT 6 6 LEFT LEFT REAR REAR CENTRAL CENTRAL LOCKING LOCKING UNIT UNIT CD CHANGER UNIT DRIVER'S SIDE CENTRAL LOCKING LOCK UNIT LEFT REAR CENTRAL LOCKING LOCK UNIT LEFT REAR CENTRAL LOCKING UNIT MODULE W/ INDICATOR UNIT PASSENGER'S SIDE CENTRAL LOCKING LOCK UNIT PASSENGER'S SIDE CENTRAL LOCKING UNIT RIGHT REAR CENTRAL LOCKING LOCK UNIT

FRESH AIR BLOWER SERIES RESISTANCE WITH FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 5 FUSE 5 7.5 FUSE 5 FUSE 7 FUSE 6 FUSE 7 FUSE 9 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 18 FUSE 20 FUSE 19 FUSE 21 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 37 FUSE 38 FUSE 40 FUSE 42 FUSE 42 FUSE 51 FUSE 44 FUSE 51 FUSE 53 FUSE 144 FUSE 111 FUSE 184 FUSE FUSE FUSE PANEL FUSE PANEL FUSE 34 HOT IN ON OR START FUSE PANEL FUSE 32

HEADLIGHT WASHER PUMP LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY RIGHT HIGH BEAM HEADLIGHT

DEFOGGER HEATING ELEMENT DRIVER'S BACKREST HEATING ELEMENT DRIVER'S SEAT HEATING ELEMENT HEATER CONTROL PANEL HEATER-A/C CONTROL PANEL PASSENGER'S BACKREST HEATING ELEMENT PASSENGER'S SEAT HEATING ELEMENT

MULTI- FUNCTION INDICATOR MODE SELECT SWITCH MULTI-FUNCTION INDICATOR MULTI-FUNCTION INDICATOR MEMORY SWITCH ON INDICATOR P/N WARNING INDICATOR

HOT WITH LIGHTS ON ILLUM- INATION LAMP INSTRUMENT PANEL VENT ILLUMINATION LIGHTS INTERIOR LIGHTS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM LICENSE PLATE LIGHTS RADIO, INTERIOR LIGHTS SYSTEM

ABS RETURN FLOW PUMP AFTER-RUN COOLANT PUMP COOLANT PUMP CRUISE CONTROL VACUUM PUMP FUEL PUMP WINDSHIELD WASHER PUMP WINDSHIELD, REAR WINDOW WASHER PUMP

ABS RETURN FLOW PUMP RELAY ABS SOLENOID VALVE RELAY COOLANT FAN CONTROL RELAY D+ SELECTOR LEVER RELAY DAYTIME RUNNING LIGHTS CHANGE- OVER RELAY DUAL HORN RELAY EIGHT FOLD AUXILIARY RELAY PANEL FIRST SPEED COOLANT FAN CONTROL RELAY FIRST SPEED COOLANT FAN CONTROL RELAY SECOND SPEED COOLANT FAN CONTROL RELAY FOG LIGHT RELAY FUEL PUMP RELAY HOT IN ON, FROM LOAD REDUCTION RELAY HOT W/ LOAD REDUCTION RELAY ENERGIZED LOAD REDUCTION RELAY REAR LID MOTOR REMOTE UNLOCK RELAY REAR LID REMOTE UNLOCK MOTOR RELAY RELAY PANEL SECOND SPEED COOLANT FAN CONTROL RELAY SELECTOR LEVER LIGHT RELAY STARTING INTERLOCK RELAY THIRTEEN -FOLD AUXILIARY RELAY PANEL THIRTEENFOLD AUXILIARY RELAY PANEL WIPER/ WASHER INTERMITTENT RELAY WIPER/WASHER INTERMITTENT RELAY

AIR FLOW FLAP MOTOR AND POSITION SENSOR CAMSHAFT POSITION SENSOR 1 CAMSHAFT POSITION SENSOR 2 CENTER OUTLET TEMPERATURE SENSOR CENTRAL FLAP MOTOR AND POSITION SENSOR DRIVER'S HEATED SEAT TEMPERATURE SENSOR DRIVER'S SEAT TEMPER- ATURE SENSOR ENGINE COOLANT LEVEL SENSOR ENGINE SPEED SENSOR FOOTWELL/DEFROSTER FLAP MOTOR AND POSITION SENSOR FRESH AIR INTAKE DUCT TEMPERATURE SENSOR HEATED OXYGEN SENSOR SHIELD KNOCK SENSOR 1 KNOCK SENSOR #2 MASS AIRFLOW SENSOR OXYGEN SENSOR SHIELD PASSENGER'S HEATED SEAT TEMPERATURE SENSOR PASSENGER'S SEAT TEMPER- ATURE SENSOR RAIN SENSOR SPEEDO- METER VEHICLE SPEED SENSOR SUNLIGHT PHOTO SENSOR TEMP REGULATR FLAP MOTOR AND POSITION SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION VEHICLE SPEED SENSOR

A/C PRESSURE SWITCH AFTER- A/C SWITCH AMBIENT TEMPERATURE SWITCH ANTI-SLIP CONTROL SWITCH BACK-UP LIGHT SWITCH BACK-UP LIGHT SWITCH AUTOMATIC DAY/NIGHT MIRROR BACKREST ADJUST SWITCH BLOWER SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LIGHT SWITCH CIGARETTE LIGHTER REAR WINDOW DEFOGGER SWITCH CLUTCH PEDAL POSITION SWITCH COOLANT FAN CONTROL THERMAL SWITCH CRUISE CONTROL SWITCH DRIVER'S SEAT SWITCH DRIVER'S SIDE INTERIOR LOCK SWITCH DRIVER'S SIDE POWER WINDOW SWITCH EMERGENCY FLASHER SWITCH FRESH AIR BLOWER SWITCH FRESH/ RECIRC SWITCH FROM PARKING BRAKE WARNING LIGHT SWITCH (DIAGRAM FRONT HEIGHT ADJUST SWITCH UP HEAD OFF OFF PARK PARK HEADLIGHT SWITCH HEADLIGHT DIMMER/ FLASHER SWITCH HEATED MIRROR SWITCH HOOD ALARM SWITCH HORN SWITCH HOT AT ALL TIMES IGNITION SWITCH IGNITION SWITCH INSTRUMENT PANEL LIGHT DIMMER SWITCH KEY SWITCH KEY-IN IGNITION SWITCH KICK DOWN SWITCH KICKDOWN SWITCH LEFT FRONT TRACTION CONTROL SWITCH-OVER VALVE LEFT FRONT WINDOW SWITCH LEFT MAKE-UP MIRROR LIGHT SWITCH LEFT REAR WINDOW SWITCH LIGHT SWITCH LIMIT SWITCH MIRROR HEATER LOW DIMMER SWITCH LUGGAGE COMPARTMENT LIGHT SWITCH LUGGAGE COMPARTMENT LIGHT SWITCH TRUNK LID CENTRAL LOCKING SWITCH MEMORY SEAT LOCK OUT SWITCH MEMORY SEAT SWITCH MIRROR ADJUSTMENT SWITCH MIRROR FOLD AWAY SWITCH MIRROR FOLDING SWITCH MIRROR HEATER LIMIT SWITCH MIRROR HEATER SWITCH MIRROR SELECT SWITCH MIRROR SELECTOR SWITCH MULTI-FUNCTION TRANSMISSION RANGE SWITCH OFF LEFT MAKE-UP MIRROR LIGHT SWITCH ON FOG LIGHT SWITCH PARKING BRAKE WARNING LIGHT SWITCH PASSENGER'S SEAT SWITCH PASSENGER'S SIDE INTERIOR LOCK SWITCH PASSENGER'S SIDE WINDOW SWITCH POWER MIRROR SWITCH REAR HEIGHT ADJUST SWITCH UP REAR LID REMOTE UNLOCK SWITCH REAR WINDOW DEFOGGER SWITCH REAR WINDOW SAFETY SWITCH REMOTE FUEL TANK DOOR SWITCH RIGHT FRONT TRACTION CONTROL SWITCH-OVER VALVE RIGHT FRONT WINDOW SWITCH RIGHT MAKE-UP MIRROR LIGHT SWITCH RIGHT REAR WINDOW SWITCH RIGHT REAR WINDOW SWITCH LEFT REAR WINDOW SWITCH SEAT ADJUST SWITCH SHIFT LOCK SOLENOID MULTI-FUNCTION TRANSMISSION RANGE SWITCH TIPTRONIC SWITCH TIPTRONIC SWITCH/ SELECTOR LEVEL POSITION ILLUMINATION TURN SIGNAL SWITCH WASHER SWITCH WINDSHIELD WIPER INTERMITTENT SWITCH WINDSHIELD WIPER/ WASHER SWITCH WINDSHIELD WIPER/WASHER SWITCH

CAMSHAFT ADJUSMENT VALVE 1 CAMSHAFT ADJUSMENT VALVE 2 LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE LEFT FRONT TRACTION CONTROL OUTLET VALVE LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT FRONT TRACTION CONTROL OUTLET VALVE RIGHT REAR ABS INLET VALVE RIGHT REAR ABS OUTLET VALVE SHIFT LOCK SOLENOID SOLENOID VALVES

BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/WHT/GRN WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/GRN WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

1.8L 1.8L ONLY 2 2 LEFT LEFT REAR REAR ENTRY ENTRY LIGHT LIGHT 2 SPEED COOLANT FAN SINGLE SPEED COOLANT FAN 2.8L ONLY 1995 VFTC 1999 MODEL ONLY (CENTER A/C CLUTCH A/C COMPRESSOR CLUTCH ABS WARNING ABS WARNING IND AFTER- AIR BAG CONTROL AIR CONDITIONING SYTEM AIRBAG MALFUNCTION ANTI-THEFT SYSTEM AUTOMATIC DAY/NIGHT INTERIOR MIRROR AUTOMATIC DAY/NIGHT MIRROR BACK- UP LIGHT BACKREST ADJUST BRAKE SYSTEM WARNING BRAKE TAIL BRAKE/ PARKING BRAKE CENTER DASH VENT ILLUM- INATION CIGARETTE LIGHTER CIRCUIT BREAKER CIRCUIT BREAKER 37 CIRCUIT BREAKER 44 CIRCUIT BREAKER 80 COMPUTER DATA LINES SYSTEM COOLANT FAN COOLANT TEMP GAUGE CRUISE CONTROL SYSTEM DE- FOG DEFOGGER SYSTEM DIGITAL CLOCK DIGITAL DISPLAY LIGHT DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM PASSENGER'S SIDE HEATED OUTSIDE MIRROR DOOR ON DRIVER SIDE MIRROR DRIVER'S AIR BAG IGNITOR DRIVER'S POWER SEAT CIRCUIT BREAKER DRIVER'S SIDE AIR BAG IGNITOR DRIVER'S SIDE HEATED OUTSIDE MIRROR DRIVER'S SIDE POWER MIRROR DRIVER'S SIDE REAR AIR BAG HEAD IGNITOR DRIVER'S SIDE REAR AIR BAG IGNITOR DUAL HORNS FLASH TO PASS FLOOR OUTLET TEMPERATURE SENDER FOG HIGH FOLD-IN FORE/AFT ADJUST FRESH AIR BLOWER FRESH AIR BLOWER SERIES RESISTANCE FRONT HEIGHT ADJUST FRONT INTERIOR LIGHT FUEL GAUGE FUEL INJECTORS GLOVE COMPARTMENT LIGHT HEAD OFF PARK HEATED OXYGEN HEATED REAR WINDOW HIGH BEAM HIGH BEAM IND HIGH MOUNT BRAKE LIGHT HOT AT ALL TIMES HOT IN HOT IN ACC OR RUN HOT IN ON HOT IN ON OR ACC HOT IN ON OR START HOT IN ON, START HOT IN RUN AND START HOT WITH HIGH BEAMS ON IGNITION COILS ILLUMI- NATION INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM LEFT CENTER READING LIGHT LEFT DASH VENT ILLUM- INATION LEFT DOWN UP RIGHT LEFT FRONT ENTRY LIGHT LEFT FRONT TURN SIGNAL, SIDE MARKER LIGHT LEFT FRONT TWEETER LEFT FRONT WOOFER LEFT HEAD- LIGHT ASSEMBLY LOW LEFT MAKE-UP MIRROR LIGHT LEFT REAR READING LIGHT LEFT REAR TAILLIGHT ASSEMBLY LEFT REAR TWEETER LEFT REAR WOOFER LEFT RIGHT LEFT RIGHT TURN IND TURN IND LEFT SIDE TURN SIGNAL LIGHT LEFT TURN LOW FUEL LEVEL WARNING LUGGAGE COMPARTMENT LIGHT MIRROR ADJUSTMENT MOTORS MIRROR ADJUSTMENT SWITCHES MIRRORS SYSTEM MIRRORS SYSTEM, DOOR LOCKS SYSTEM, TRUNK, TAILGATE, FUEL DOORS SYSTEM NOT USED NOT USED ODOMETER DISPLAY OFF HEAD PARK OIL PRESSURE WARNING OIL PRESSURE WARNING BUZZER ON DOOR ON OFF ON OFF/ SAVE ON ON OFF OUTSIDE TEMP PARKING BRAKE IND. PASSENGER SIDE MIRROR PASSENGER'S AIR BAG IGNITOR PASSENGER'S POWER SEAT CIRCUIT BREAKER PASSENGER'S SIDE AIR BAG IGNITOR PASSENGER'S SIDE POWER MIRROR PASSENGER'S SIDE REAR AIR BAG HEAD IGNITOR PASSENGER'S SIDE REAR AIR BAG IGNITOR POWER OUTPUT STAGE POWER TOPS SYSTEM POWER WINDOWS SYSTEM, MIRRORS SYSTEM, TRUNK, TAILGATE, FUEL DOORS SYSTEM REAR FOG LIGHT REAR HEAD AIR BAG IGNITERS REAR HEIGHT ADJUST REAR LID UNLOCK REAR LID UNLOCKED WARNING LIGHT RES+ RIGHT CENTER READING LIGHT RIGHT DASH VENT ILLUM- INATION RIGHT FRONT ENTRY LIGHT RIGHT FRONT TURN SIGNAL/ SIDE MARKER LIGHT RIGHT FRONT TWEETER RIGHT FRONT WOOFER RIGHT HEAD- LIGHT ASSEMBLY LOW RIGHT LEFT RIGHT MAKE-UP MIRROR LIGHT RIGHT REAR ENTRY LIGHT RIGHT REAR READING LIGHT RIGHT REAR TAILLIGHT ASSEMBLY RIGHT REAR TWEETER RIGHT REAR WOOFER RIGHT SIDE TURN SIGNAL LIGHT RIGHT TURN SEDAN ONLY SELECTOR LEVER POSITION ILLUMINATION SELECTOR LEVER WARNING LIGHT SOLID STATE SPARK PLUG SPARK PLUG SPARK PLUG SPARK PLUGS 2, 4 SPARK PLUGS 1, 6 SPARK PLUGS 3, 5 STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM TRACTION CONTROL TRACTION CONTROL IND TRANS- MISSION SYSTEM TRANS- MISSIONS SYSTEM TRANS- MISSIONS SYSTEM AIR CONDITIONING SYSTEM TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM VEHICLE SPEED VEHICLE SPEED SIGNAL VOLTAGE STABILIZER W/ A/T W/ CLIMATRONIC AIR CONDITIONING W/ DRIVER DOOR MOUNTED REAR LID REMOTE UNLOCK/ REMOTE FUEL TANK SWITCHES W/ MEMORY SEATS WAGON ONLY WAGON SEDAN
