Volkswagen Passat B4 (1993-1997) passenger's side heated mirror Wiring diagrams
This page contains all the electrical diagrams for the component. passenger's side heated mirror, in which he is found in the car Volkswagen Passat B4 (1993-1997). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
passenger's side heated mirror wiring diagram (1 of 2)
ALARM HOOD SWITCH
ALARM HORN
ALARM SYSTEM CONTROL MODULE
AUTOMATIC TRANSMISSION CONSOLE LIGHT
B+4
BLK WIRE
BRN WIRE
CRUISE CONTROL MODULE
DRIVER'S BACKREST HEAT ELEMENT
DRIVER'S SEAT HEATER CONTROL MODULE
DRIVER'S SEAT HEATER TEMPERATURE SENSOR/SEAT HEAT ELEMENT
DRIVER'S SIDE HEATED MIRROR
DRIVER'S SIDE MIRROR MAGNETIC CLUTCH
FRONT POWER WINDOW SWITCH
FUSE/ RELAY PANEL
HEADLIGHT WASHER SYSTEM RELAY
KICK DOWN SWITCH
LEFT FRONT CENTRAL LOCKING SYSTEM SWITCH
LEFT FRONT POWER WINDOW CONTROL MODULE
LEFT REAR POWER WINDOW CONTROL MODULE
LEFT REAR POWER WINDOW SWITCH
LEFT WASHER NOZZLE HEATER
MIRROR ADJUSTMENT SWITCH
MULTI-FUNCTION TRANSMISSION RANGE SWITCH
PARK/ NEUTRAL POSITION RELAY
PASSENGER'S BACKREST HEAT ELEMENT
PASSENGER'S HEATER TEMPERATURE SENSOR/SEAT HEAT ELEMENT
PASSENGER'S SEAT HEAT REGULATING SWITCH
PASSENGER'S SEAT HEATER CONTROL MODULE
PASSENGER'S SIDE HEATED MIRROR
PASSENGER'S SIDE MIRROR MAGNETIC CLUTCH
REAR POWER WINDOWS CONSOLE SWITCH
RIGHT FRONT CENTRAL LOCKING SYSTEM SWITCH
RIGHT FRONT POWER WINDOW CONTROL MODULE
RIGHT FRONT WINDOW SWITCH
RIGHT REAR POWER WINDOW CONTROL MODULE
RIGHT REAR POWER WINDOW SWITCH
RIGHT WASHER NOZZLE HEATER
TRANSMISSION CONTROL MODULE
Go to component -> Ground distribution circuit (3 of 4) -> PASSENGER'S SIDE HEATED MIRROR

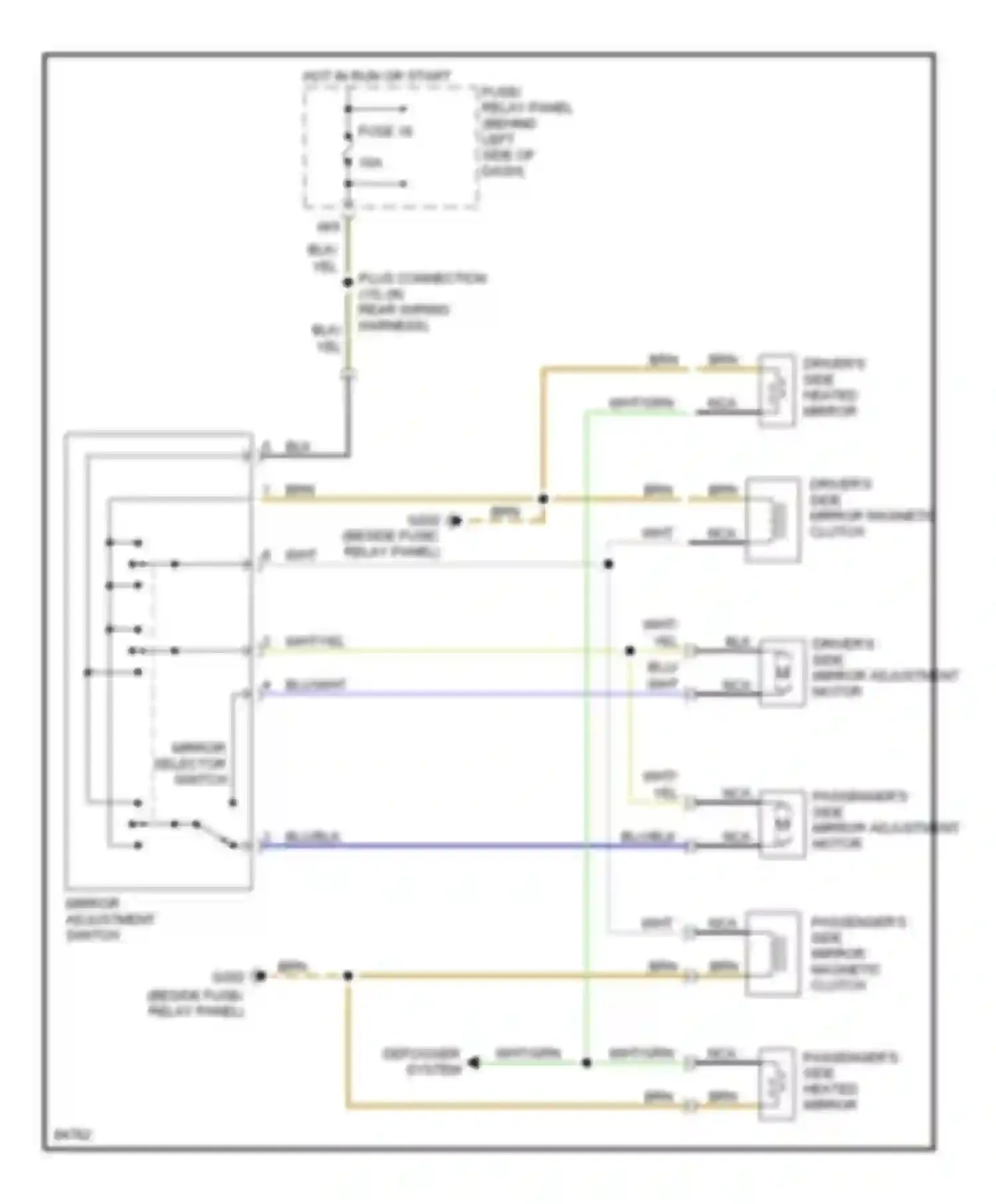

passenger's side heated mirror wiring diagram (2 of 2)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/WHT WIRE
BRN WIRE
DEFOGGER SYSTEM
DRIVER'S SIDE HEATED MIRROR
DRIVER'S SIDE MIRROR ADJUSTMENT MOTOR
DRIVER'S SIDE MIRROR MAGNETIC CLUTCH
FUSE 16
FUSE/ RELAY PANEL (BEHIND LEFT SIDE OF DASH)
HOT IN RUN OR START
M/5
MIRROR ADJUSTMENT SWITCH
MIRROR SELECTOR SWITCH
NCA WIRE
PASSENGER'S SIDE HEATED MIRROR
PASSENGER'S SIDE MIRROR ADJUSTMENT MOTOR
PASSENGER'S SIDE MIRROR MAGNETIC CLUTCH
PLUS CONNECTION (15) (IN REAR WIRING HARNESS)
WHT WIRE
WHT/GRN WIRE
WHT/YEL WIRE
YEL WIRE
Go to component -> Power mirrors circuit -> PASSENGER'S SIDE HEATED MIRROR
