Volkswagen Passat B4 (1993-1997) left front central locking system/activator switch Wiring diagram
This page shows the only wiring diagram for the component.left front central locking system/activator switch, which is found in the car Volkswagen Passat B4 (1993-1997). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

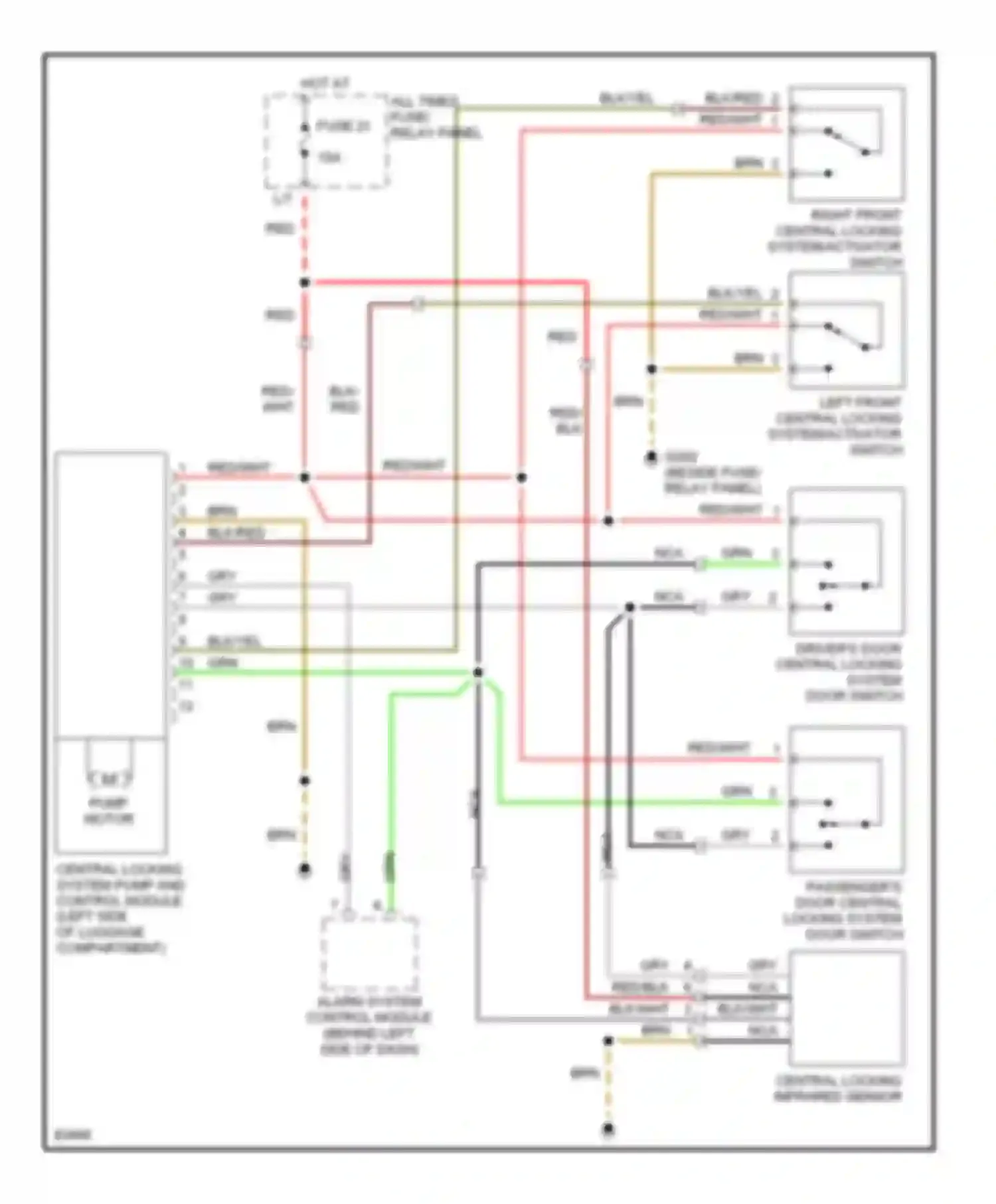

Wiring diagram left front central locking system/activator switch (1 of 1)
ALARM SYSTEM CONTROL MODULE (BEHIND LEFT SIDE OF DASH)
BLK WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BRN WIRE
CENTRAL LOCKING INFRARED SENSOR
DRIVER'S DOOR CENTRAL LOCKING SYSTEM DOOR SWITCH
GRN WIRE
GRY WIRE
HOT AT ALL TIMES FUSE/ RELAY PANEL FUSE 21
L/7
LEFT FRONT CENTRAL LOCKING SYSTEM/ACTIVATOR SWITCH
NCA WIRE
PASSENGER'S DOOR CENTRAL LOCKING SYSTEM DOOR SWITCH
PUMP MOTOR
RED WIRE
RED/BLK WIRE
RED/WHT WIRE
RIGHT FRONT CENTRAL LOCKING SYSTEM/ACTIVATOR SWITCH
WHT WIRE
Go to component -> Power door locks circuit -> LEFT FRONT CENTRAL LOCKING SYSTEM/ACTIVATOR SWITCH
