Wiring Diagrams for Volkswagen Passat (North America) I facelift (2015-2019)

Automatic a/c circuit

Anti-lock brakes circuit

Access/start circuit Forced entry circuit

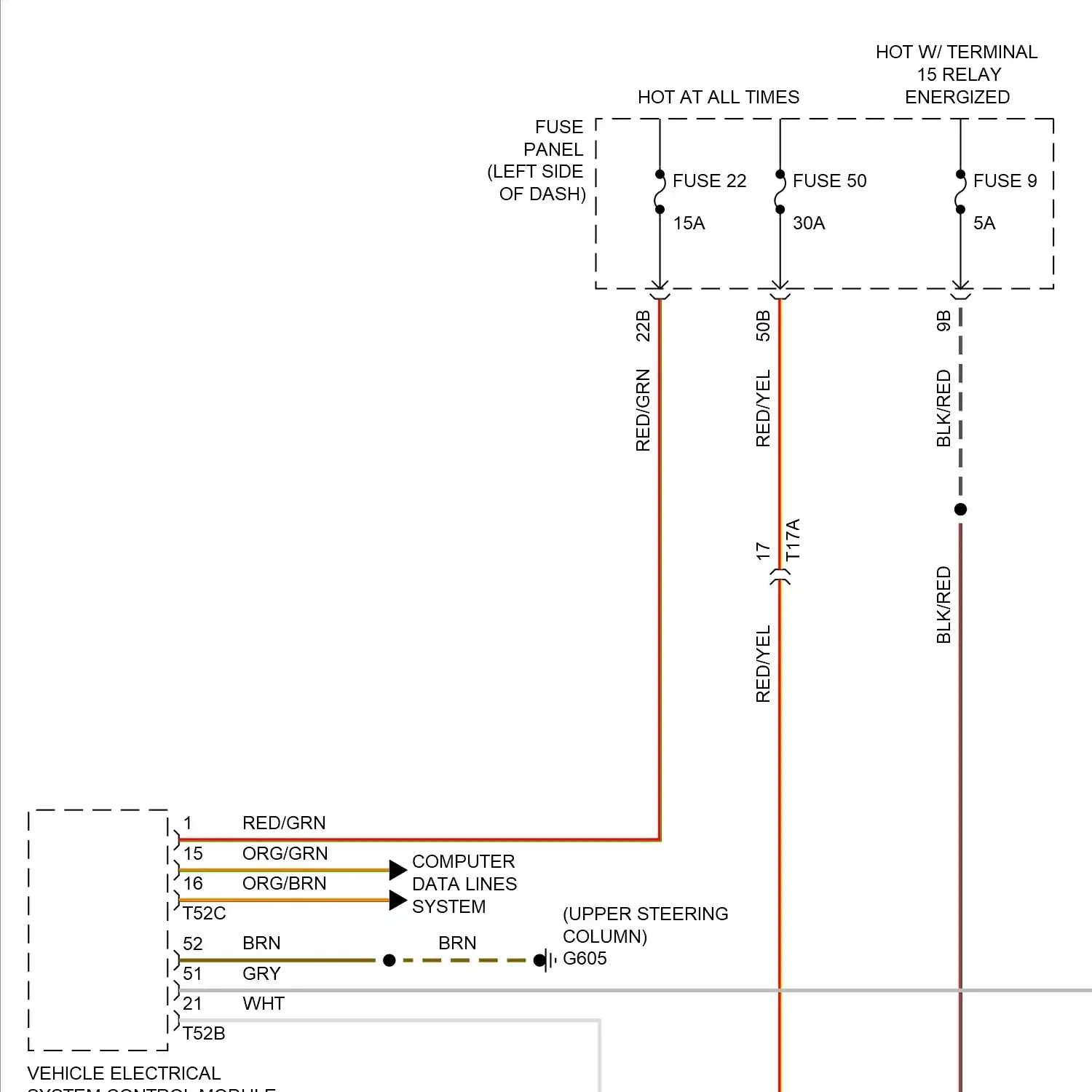

Steering column electronic systems control module circuit Vehicle electrical system control module circuit

Computer data lines circuit

Cooling fan circuit

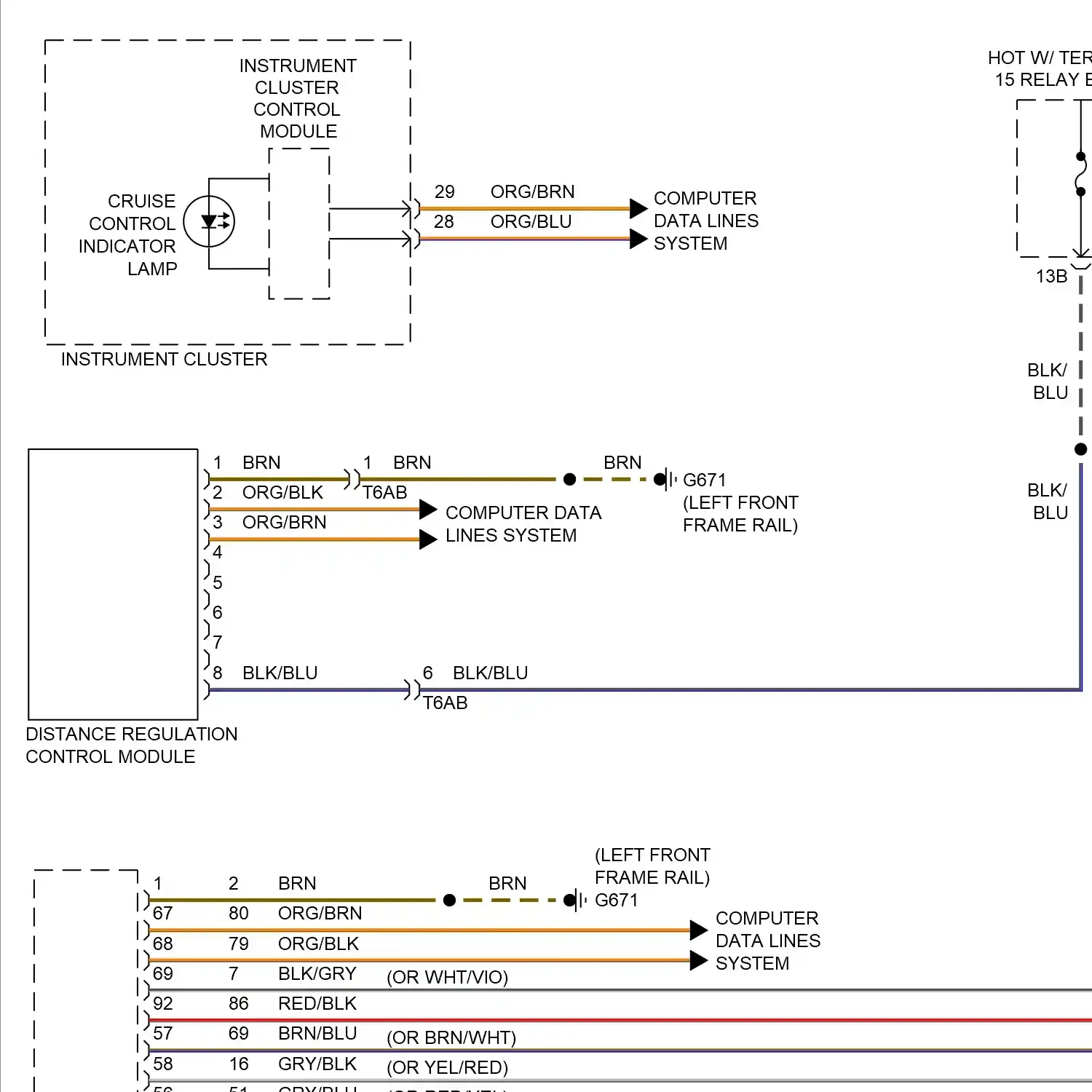

Cruise control circuit

Defoggers circuit

Electronic power steering circuit

Wiring diagram engine performance 1.8l turbo

Wiring diagram engine performance 3.6l

Backup lamps circuit Exterior lamps circuit, w/ led headlamps Exterior lamps circuit, w/o led headlamps

Ground distribution circuit

Headlights circuit

Horn circuit

Electronic compass circuit Instrument cluster circuit

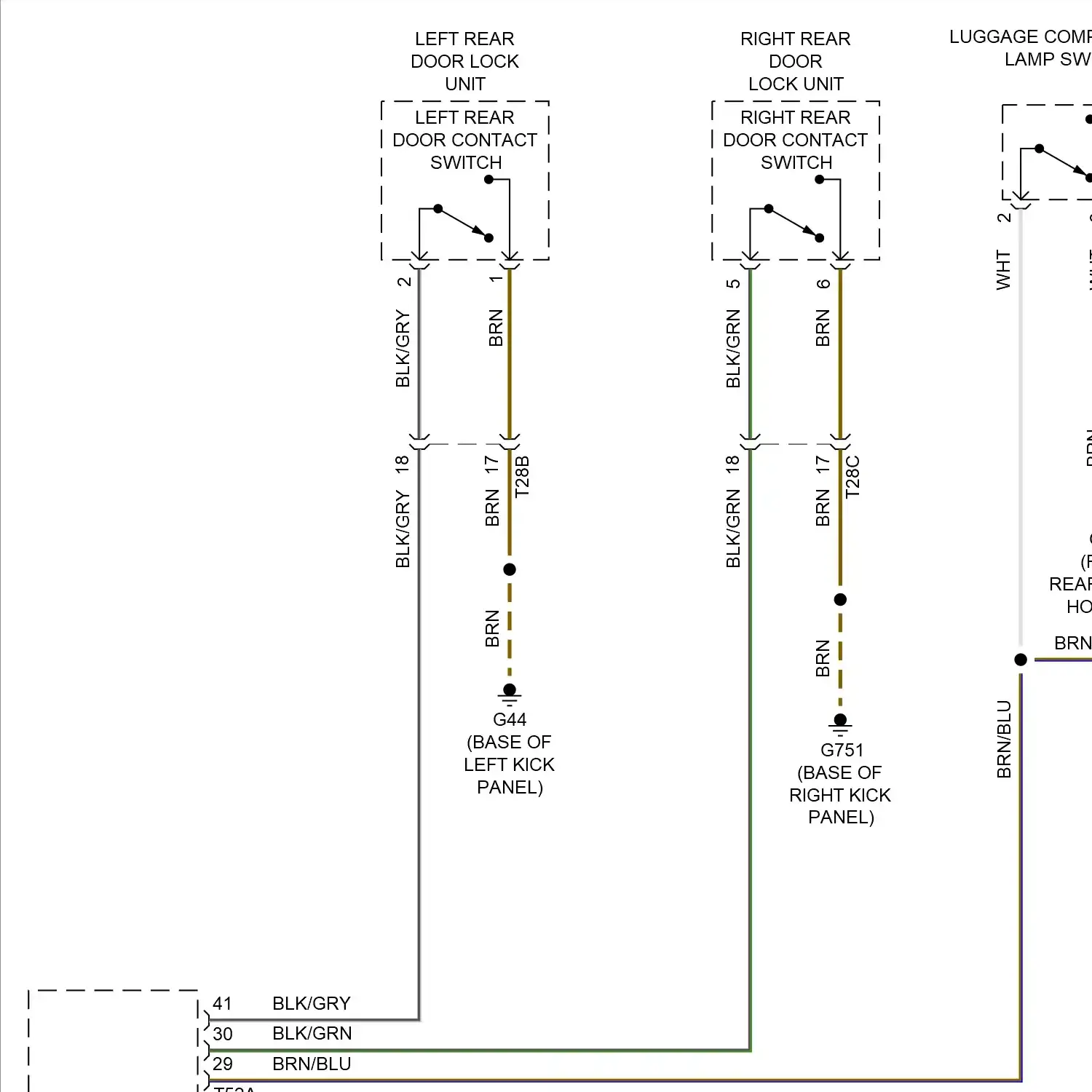

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit Memory mirrors circuit

Blind spot monitoring circuit Emergency call circuit Lane departure warning circuit Navigation circuit, w/ amplifier Navigation circuit, w/o amplifier Parking assistant circuit Rear view camera circuit

Power distribution circuit

Power door locks circuit

Automatic day/night mirror circuit Power mirrors circuit

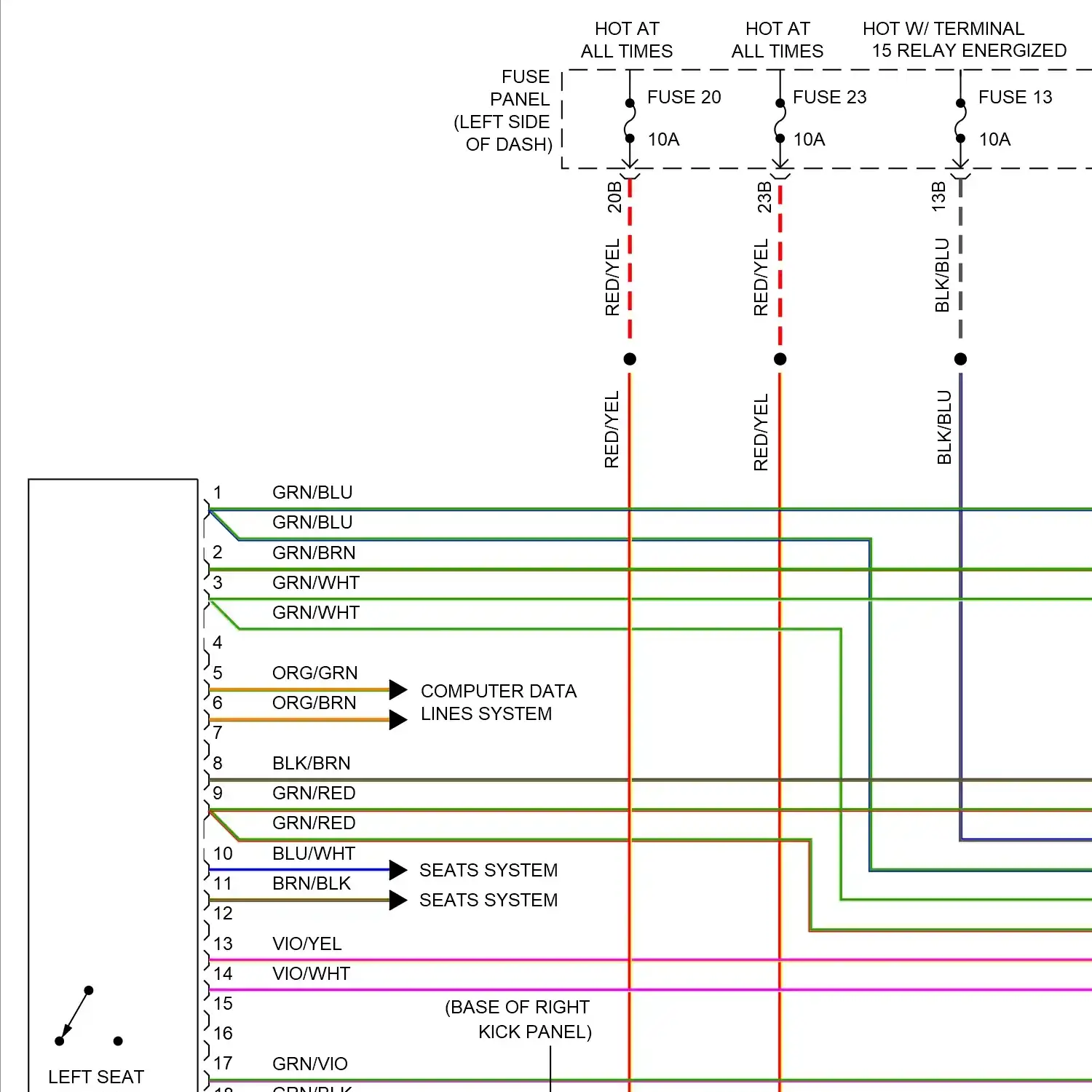

Driver power seat circuit Heated seats circuit Passenger power seat circuit

Power top/sunroof circuit

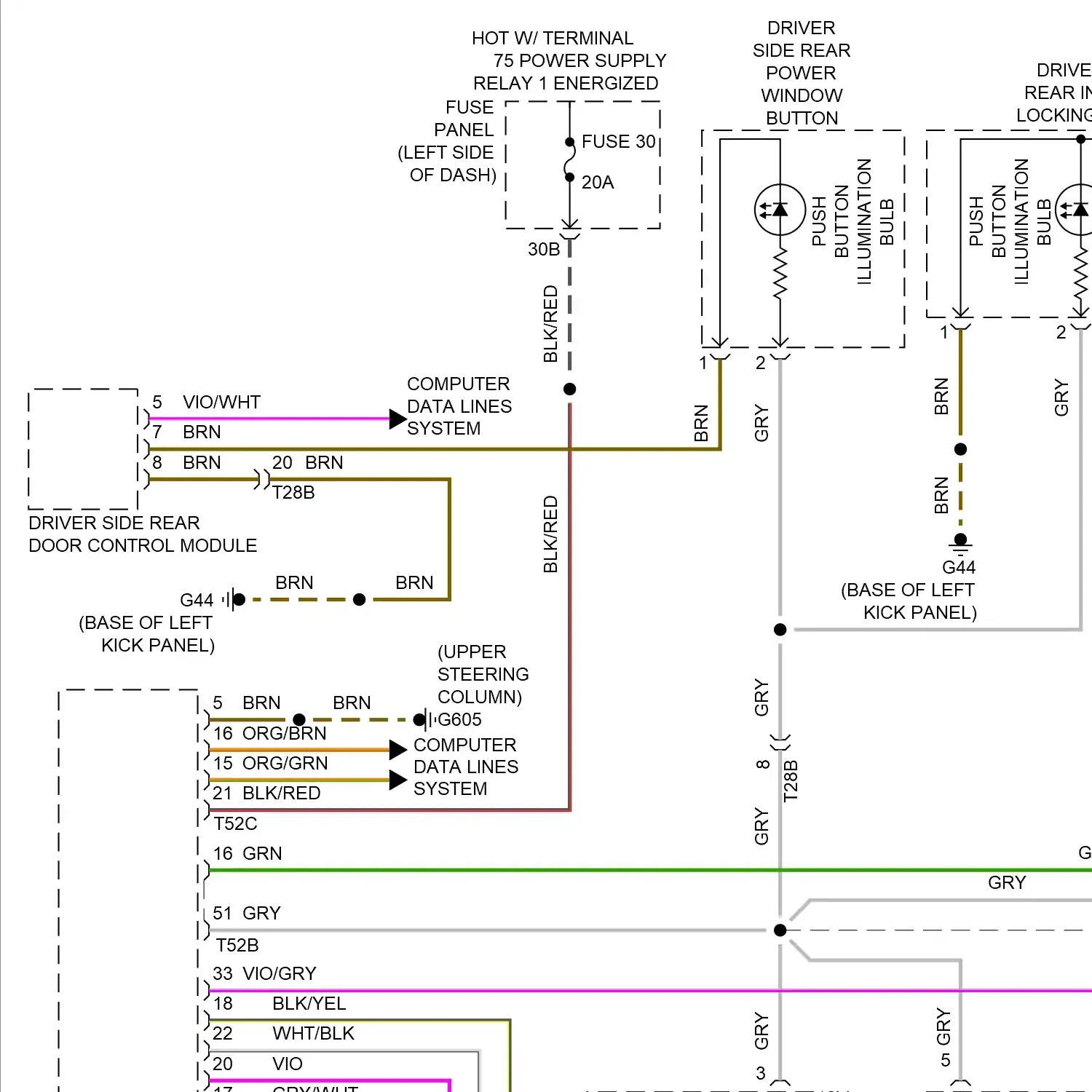

Power windows circuit

Radio circuit, w/ amplifier Radio circuit, w/o amplifier

1.8l turbo, shift interlock circuit

3.6l, shift interlock circuit

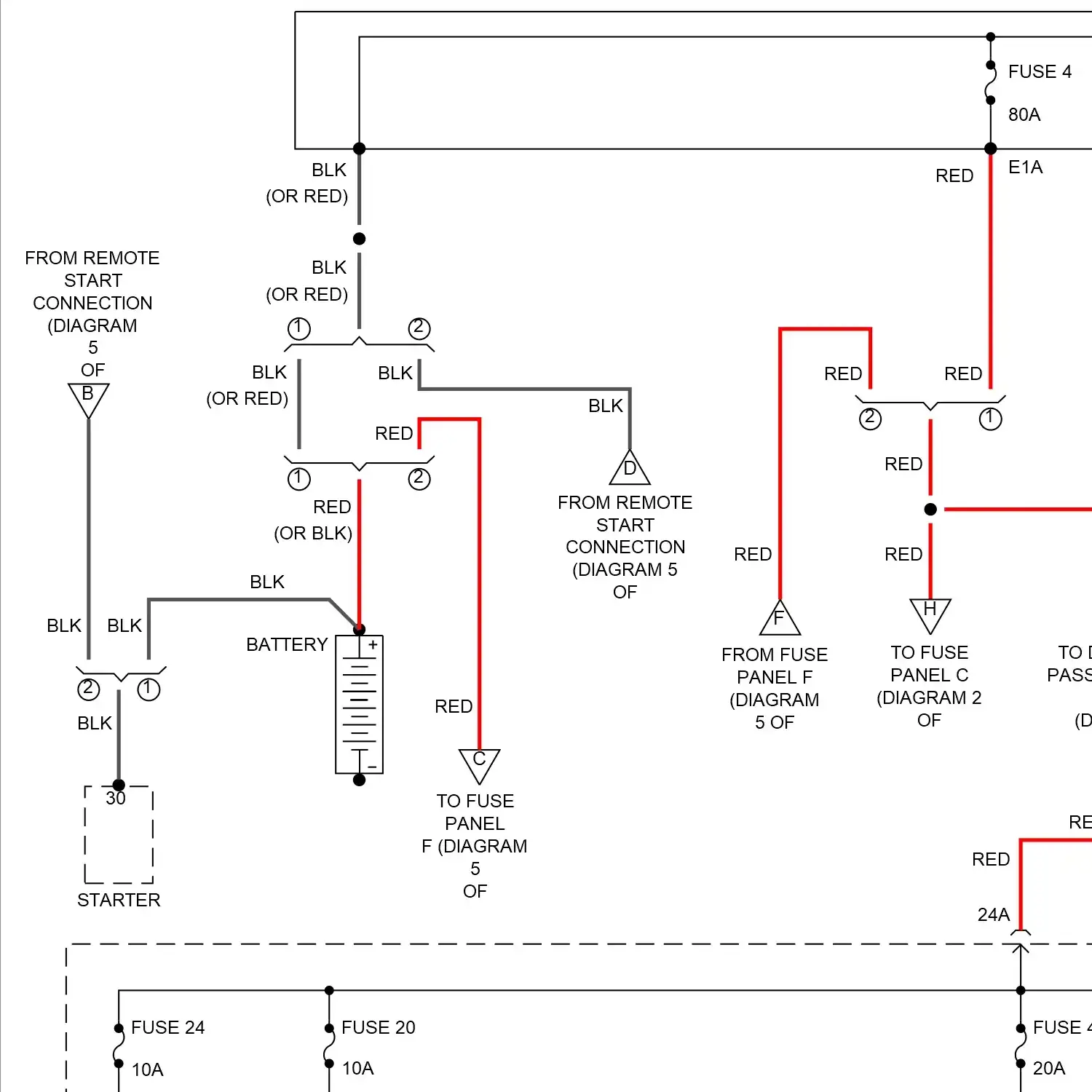

1.8l turbo, charging circuit 1.8l turbo, starting circuit

3.6l, charging circuit 3.6l, starting circuit

Supplemental restraints circuit

A/t circuit Direct shift a/t circuit

Trunk & fuel door release circuit

Buzzer circuit Tire pressure monitoring circuit

Wiper/washer circuit

ALARM HORN ANTI-THEFT IMMOBILIZER READER COIL BATTERY INTERRUPT IGNITER CHILD SAFETY LOCK ACTIVATED IND LAMP FUEL FILLER DOOR LOCK IND FUEL FILLER DOOR LOCK IND LAMP GENERATOR IND HIGH TONE HORN HORN SIGNAL ACTIVATION IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 W/ POWER OUTPUT STAGE IGNITION COIL 6 W/ POWER OUTPUT STAGE LEFT WASHER NOZZLE HEATER LOW TONE HORN RIGHT WASHER NOZZLE HEATER SHIFT LOCK IND

(RIGHT FRONT OF ENGINE ADJUSTMENT MOTOR ADJUSTMENT MOTOR 2 CHARGE AIR PRESSURE ACTUATOR DRIVER BACKREST ADJUSTMENT MOTOR DRIVER DOOR CENTRAL LOCKING SYSTEM MOTOR DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR DRIVER SEAT HEIGHT ADJUSTMENT MOTOR DRIVER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR ELECTRO- MECHANICAL POWER STEERING MOTOR ENGINE CONTROLS SYSTEM ENGINE COOLANT LEVEL/ TEMPERATURE LAMP IND ENGINE COOLANT LEVEL/TEMPERATURE IND ENGINE COOLANT TEMPERATURE GAUGE ENGINE ELECTRONICS IND FRESH AIR BLOWER MOTOR FRONT PASSENGER BACKREST ADJUSTMENT MOTOR FRONT PASSENGER DOOR CENTRAL LOCKING SYSTEM MOTOR FRONT PASSENGER SEAT FORWARD/BACK ADJUSTMENT MOTOR FRONT PASSENGER SEAT HEIGHT ADJUSTMENT MOTOR FRONT PASSENGER SEAT LUMBAR SUPPORT CURVATURE ADJUSTMENT MOTOR FUEL FILLER DOOR LOCK MOTOR LEFT REAR CENTRAL LOCKING LOCK MOTOR REAR LID CENTRAL LOCKING SYSTEM MOTOR RIGHT REAR CENTRAL LOCKING LOCK MOTOR SECONDARY AIR INJECTION PUMP MOTOR STARTING/CHARGING, ENGINE CONTROLS SYSTEMS STEERING COLUMN LOCK ACTUATOR SUNROOF MOTOR

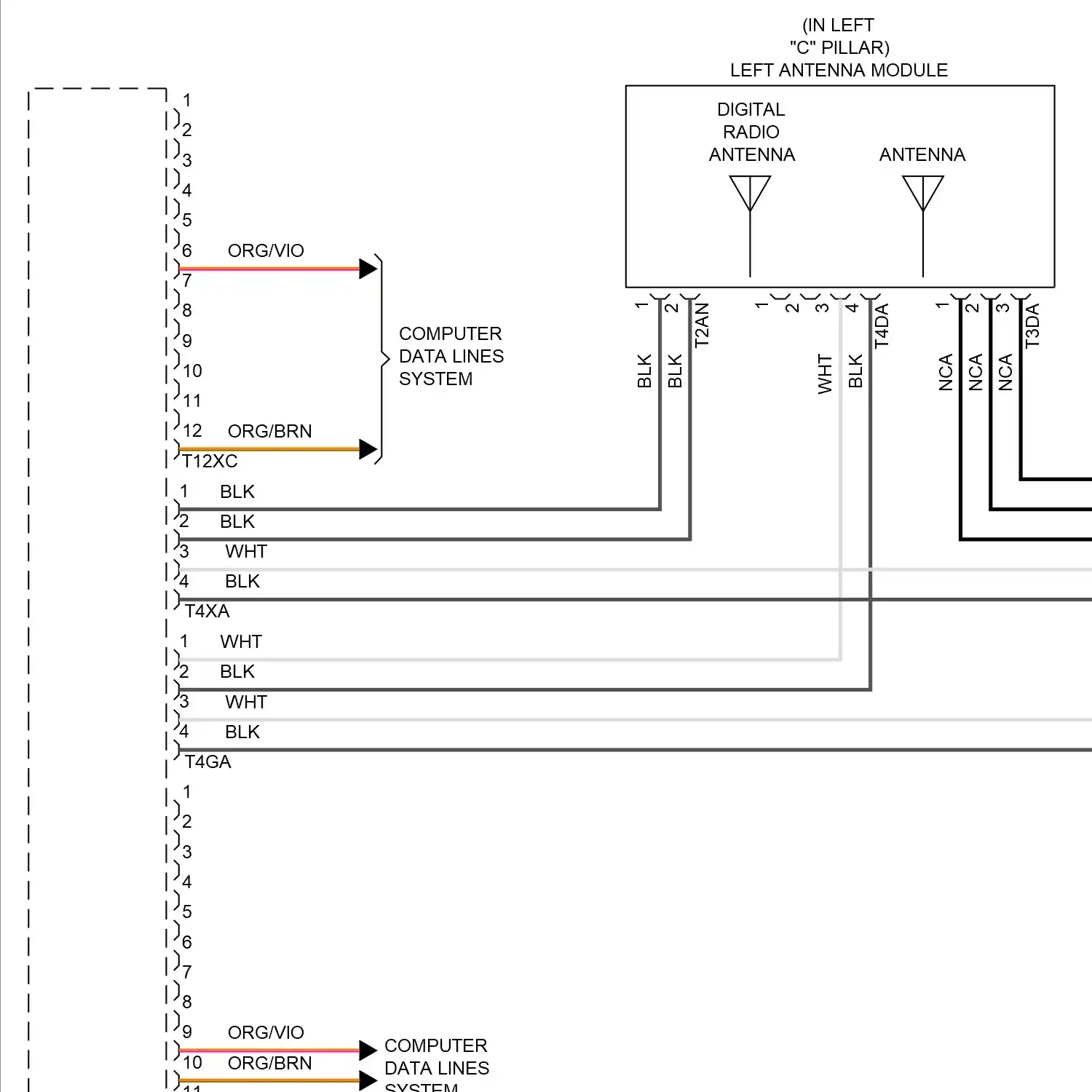

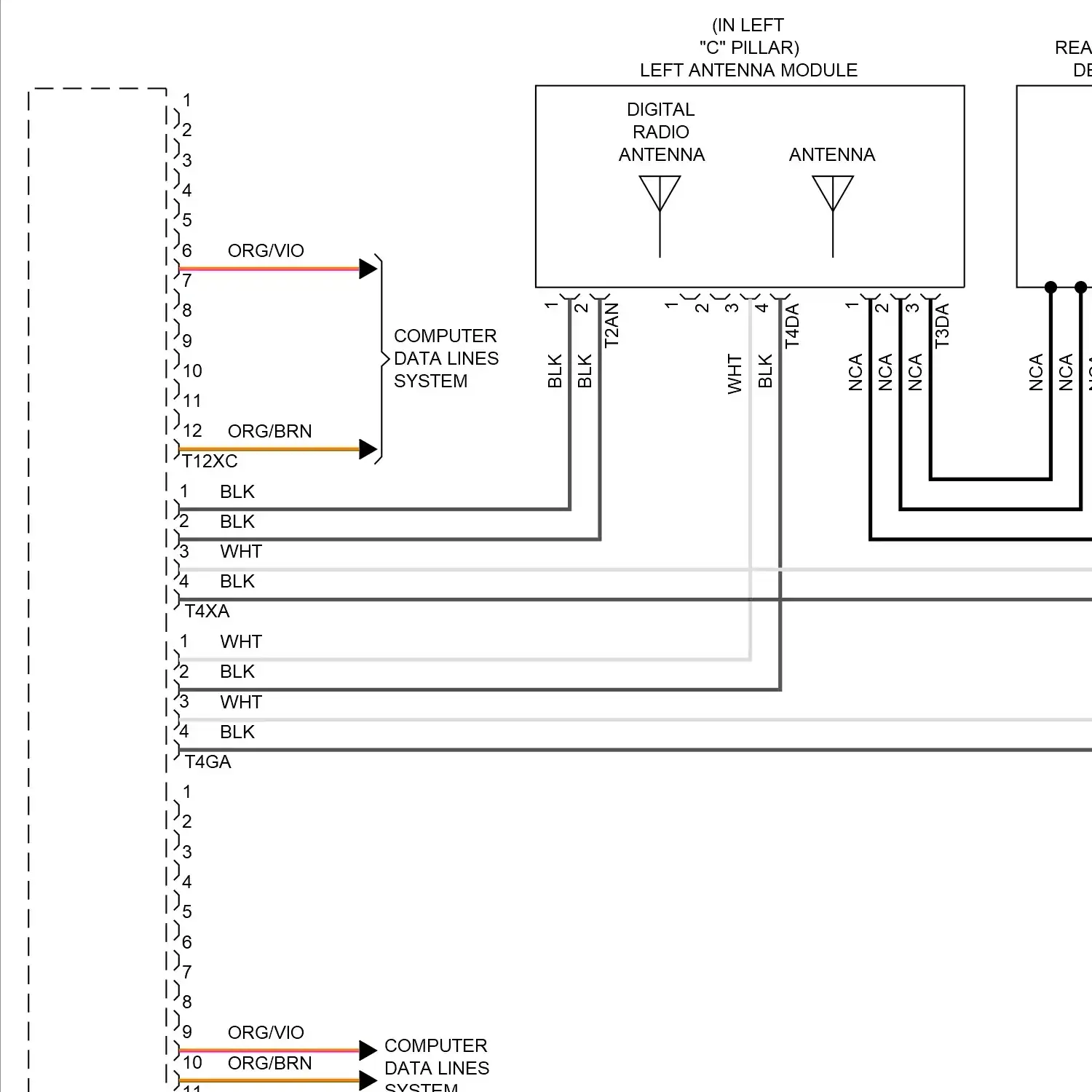

DIGITAL RADIO ANTENNA GPS ANTENNA GSM ANTENNA GSM ANTENNA/ TELEPHONE ANTENNA LEFT ANTENNA MODULE LUGGAGE COMPARTMENT ACCESS/START AUTHORIZATION ANTENNA RADIO ANTENNA 2 REAR BUMPER ACCESS/START AUTHORIZATION ANTENNA RIGHT ANTENNA MODULE ROOF ANTENNA VEHICLE INTERIOR ACCESS/START AUTHORIZATION ANTENNA 1 VEHICLE INTERIOR ACCESS/START AUTHORIZATION ANTENNA 2

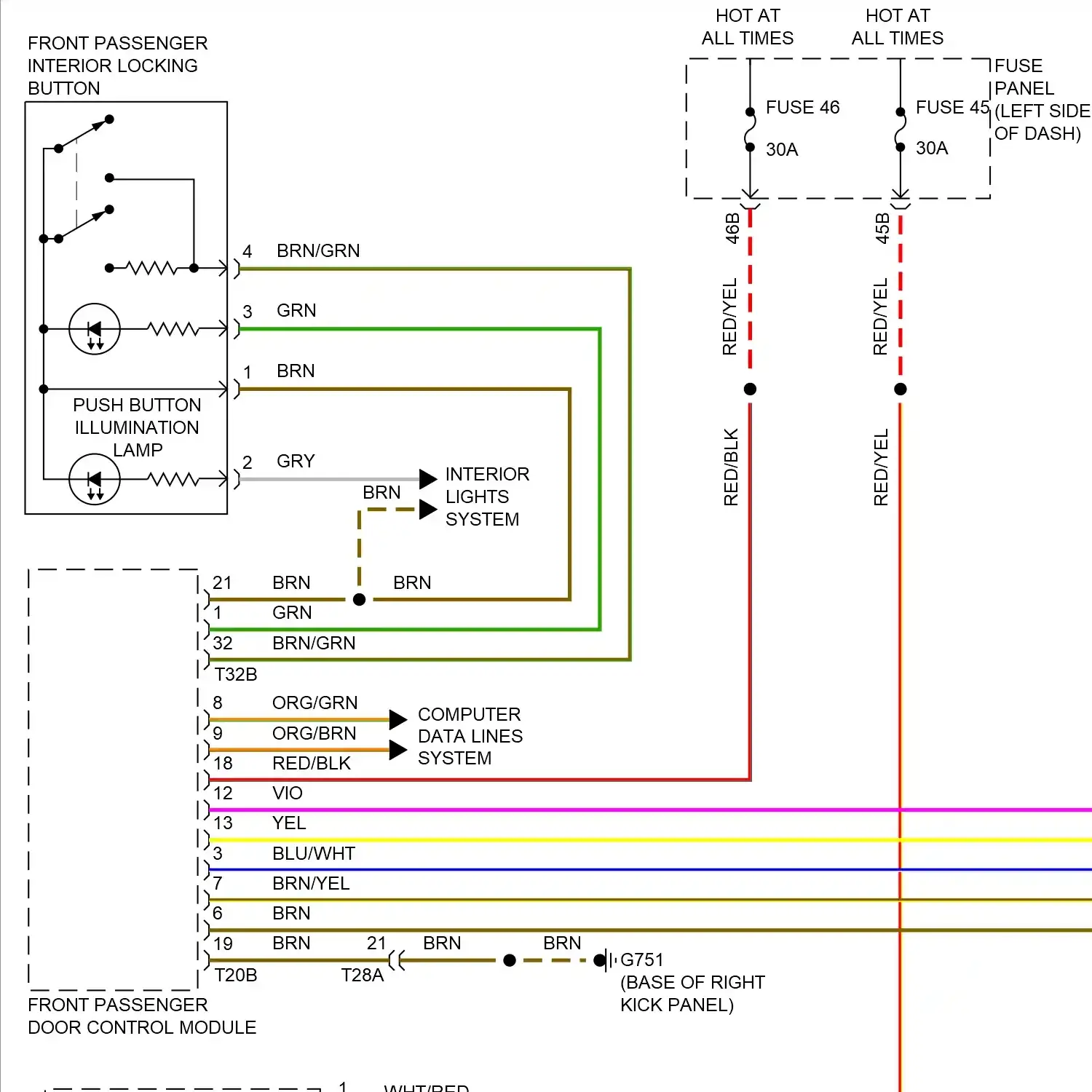

A/C COMPRESSOR REGULATOR VALVE ASSISTANCE BUTTON BACKREST ADJUSTMENT BUTTON CHILD SAFETY LOCK BUTTON CRUISE CONTROL SWITCH, CRUISE CONTROL SET-BUTTON DRIVER INTERIOR LOCKING BUTTON DRIVER POWER WINDOW BUTTON DRIVER SIDE REAR INTERIOR LOCKING BUTTON DRIVER SIDE REAR POWER WINDOW BUTTON DRIVER SIDE REAR WINDOW REGULATOR MOTOR DRIVER WINDOW REGULATOR MOTOR EMERGENCY CALL BUTTON EMERGENCY FLASHER BUTTON EVAP CANISTER PURGE REGULATOR VALVE 1 FORWARD/BACK ADJUSTMENT BUTTON FRONT PASSENGER INTERIOR LOCKING BUTTON FRONT PASSENGER POWER WINDOW BUTTON FRONT PASSENGER WINDOW REGULATOR MOTOR FUEL PRESSURE REGULATOR VALVE GENERATOR W/ VOLTAGE REGULATOR HEIGHT ADJUSTMENT BUTTON IGNITION START BUTTON ILLUMINATION BULB LEFT REAR SEAT HEATING BUTTON LEFT SEAT HEATING BUTTON LUMBAR SUPPORT FORWARD/ BACK ADJUSTMENT BUTTON MEMORY BUTTON PARALLEL PARKING ASSISTANCE BUTTON PARKING AID BUTTON PASSENGER SIDE REAR INTERIOR LOCKING BUTTON PASSENGER SIDE REAR POWER WINDOW BUTTON PASSENGER SIDE REAR WINDOW REGULATOR MOTOR PUSH BUTTON PUSH BUTTON ILLUMINATION BULB PUSH BUTTON ILLUMINATION LAMP REAR LID HANDLE RELEASE BUTTON REAR LID REMOTE RELEASE BUTTON RELEASE BUTTON RIGHT REAR SEAT HEATING BUTTON RIGHT SEAT HEATING BUTTON START SYSTEM BUTTON SUNROOF ADJUSTMENT REGULATOR SUNROOF TILT BUTTON 1 TIPTRONIC DOWNSHIFT BUTTON TIPTRONIC UPSHIFT BUTTON TIRE PRESSURE MONITORING DISPLAY BUTTON WINDSHIELD WIPER INTERMITTENT REGULATOR

DRIVER ASSISTANCE SYSTEM FRONT CAMERA DRIVER ASSISTANCE SYSTEMS FRONT CAMERA REAR VIEW CAMERA REAR VIEW CAMERA CIRCUIT

12 V SOCKET 12 V SOCKET 2

ABS CONTROL MODULE ACCESS/ START AUTHORIZATION CONTROL MODULE ACCESS/START AUTHORIZATION CONTROL MODULE AIR BAG CONTROL MODULE ANTI-THEFT IMMOBILIZER CONTROL MODULE BLIND SPOT DETECTION CONTROL MODULE BLIND SPOT DETECTION CONTROL MODULE 2 CLIMATRONIC CONTROL MODULE CONTROL MODULE DISTANCE REGULATION CONTROL MODULE DRIVER DOOR CONTROL MODULE DRIVER SEAT ADJUSTMENT CONTROL MODULE DRIVER SIDE REAR DOOR CONTROL MODULE ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE ELECTRONICS STEERING COLUMN LOCK CONTROL MODULE EMERGENCY CALL MODULE, COMMUNICATION UNIT CONTROL MODULE ENGINE CONTROL MODULE FRESH AIR BLOWER CONTROL MODULE FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER SEAT HEATING ELEMENT W/ SEAT OCCUPANT DETECTION CONTROL MODULE FRONT PASSENGER'S DOOR CONTROL MODULE FRONT SEAT HEATING CONTROL MODULE FUEL PUMP CONTROL MODULE FUEL TANK LEAK DETECTION CONTROL MODULE HOT W/ MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY ENERGIZED INFORMATION ELECTRONIC CONTROL MODULE 1 INFORMATION ELECTRONICS CONTROL MODULE 1 INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT CLUSTER INSTRUMENT CLUSTER INSTRUMENT CLUSTER CONTROL MODULE LEFT DAYTIME RUNNING LAMP, POSITION LAMP CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY MULTI-FUNCTION STEERING WHEEL CONTROL MODULE PARKING AID CONTROL MODULE PARKING AID, PARALLEL PARKING ASSISTANCE CONTROL MODULE PARKING AID/PARALLEL PARKING ASSISTANCE CONTROL MODULE PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE PASSENGER SIDE REAR DOOR CONTROL MODULE POWER STEERING CONTROL MODULE POWER SUNROOF CONTROL MODULE RADIATOR FAN CONTROL MODULE REAR LID OPENER CONTROL MODULE REAR SEAT HEATING CONTROL MODULE RIGHT DAYTIME RUNNING LAMP, POSITION LAMP CONTROL MODULE STEERING COLUMN ELECTRONICS CONTROL MODULE STEERING COLUMN ELECTRONICS CONTROL MODULE CIRCUIT STEERING COLUMN ELECTRONICS CONTROL MODULE CIRCUIT AIR CONDITIONING SYSTEM THROTTLE VALVE CONTROL MODULE TRANSMISSION CONTROL MODULE VEHICLE ELECTRICAL SYSTEM CONTROL MODULE WIPER MOTOR CONTROL MODULE

DRIVER DOOR LOCK UNIT FRONT PASSENGER AIR BAG UNIT FRONT PASSENGER DOOR LOCK UNIT FUEL DELIVERY UNIT LEFT REAR DOOR LOCK UNIT REAR LID LOCK UNIT RIGHT REAR DOOR LOCK UNIT

FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 34 FUSE 35 FUSE 36 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 53 FUSE 57 FUSE PANEL A FUSE PANEL B FUSE PANEL C FUSE PANEL F

DRIVER BACKREST HEATING ELEMENT DRIVER SEAT HEATING ELEMENT FRONT PASSENGER BACKREST HEATING ELEMENT HEATING ELEMENT LEFT REAR BACKREST HEATING ELEMENT LEFT REAR BENCH SEAT HEATING ELEMENT MIRROR HEATER POSITIVE CRANKCASE VENTILATION HEATING ELEMENT RIGHT REAR BACKREST HEATING ELEMENT RIGHT REAR BENCH SEAT HEATING ELEMENT

AIR BAG INDICATOR LAMP BRAKE SYSTEM INDICATOR LAMP CRUISE CONTROL INDICATOR LAMP DAYTIME RUNNING LAMP INDICATOR DRIVER INTERIOR LOCKING INDICATOR LAMP ELECTRONIC POWER CONTROL MALFUNCTION INDICATOR LAMP EMERGENCY FLASHER INDICATOR LAMP ENGINE COOLANT LEVEL/TEMPERATURE INDICATOR LAMP FRONT PASSENGER AIR BAG DISABLED INDICATOR LAMP FUEL FILLER DOOR LOCK INDICATOR LAMP GENERATOR INDICATOR LAMP LEFT TURN SIGNAL INDICATOR LAMP LOW FUEL LEVEL INDICATOR LAMP MALFUNCTION INDICATOR LAMP OIL PRESSURE INDICATOR LAMP PARKING BRAKE INDICATOR LAMP SWITCH RIGHT TURN SIGNAL INDICATOR LAMP SEAT BELT INDICATOR LAMP STEERING INDICATOR LAMP TIRE PRESSURE MONITORING DISPLAY INDICATOR LAMP

ABS IND LAMP ANTI-THEFT IMMOBILIZER SYSTEM IND LAMP ASR/ESP IND LAMP BLIND SPOT DETECTION WARNING LAMP BRAKE PAD WEAR IND LAMP BRAKE SYSTEM IND LAMP CIGARETTE LIGHTER ILLUMINATION BULB DAYTIME RUNNING LAMP IND DOOR AJAR IND LAMP DRIVER DOOR AMBIENT LIGHTING BULB DRIVER DOOR WARNING LAMP DRIVER VANITY MIRROR LAMP EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS, MIRRORS SYSTEMS FRONT INTERIOR LAMP FRONT PASSENGER DOOR AMBIENT LIGHTING BULB FRONT PASSENGER DOOR WARNING LAMP FRONT PASSENGER VANITY MIRROR LAMP GLOVE COMPARTMENT LAMP HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH BEAM IND LAMP HIGH-MOUNTED BRAKE LAMP HIGH-MOUNTED BRAKE LAMP BULB HOOD-OPEN IND LAMP ILLUMINATION BULB IND LAMP LAMP FAILURE IND LEFT BACKUP LAMP LEFT BRAKE/ TAIL LAMP LEFT BRAKE/ TURN SIGNAL LAMP LEFT CENTER READING LAMP LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE LEFT FOG LAMP LEFT FRONT FOOTWELL ILLUMINATION BULB LEFT FRONT SIDE MARKER LAMP LEFT FRONT TURN SIGNAL/ SIDE MARKER LAMP LEFT HIGH BEAM HEADLAMP BULB LEFT LICENSE PLATE LAMP LEFT LOW BEAM HEADLAMP BULB LEFT REAR DOOR AMBIENT LIGHTING BULB LEFT REAR INTERIOR LOCKING IND LAMP LEFT REAR READING LAMP LEFT REAR SIDE MARKER LAMP LEFT TAIL LAMP LEFT TAIL LAMP 2 LIGHTS) LOW FUEL LEVEL IND LAMP LUGGAGE COMPARTMENT LAMP OIL LEVEL IND LAMP OIL PRESSURE IND LAMP REAR FOG LAMP REAR FOG LAMP BULB REAR INTERIOR LAMP RIGHT BACKUP LAMP RIGHT BRAKE/ TAIL LAMP RIGHT BRAKE/ TURN SIGNAL LAMP RIGHT CENTER READING LAMP RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE RIGHT FOG LAMP RIGHT FRONT FOG LAMP BULB RIGHT FRONT FOOTWELL ILLUMINATION BULB RIGHT FRONT SIDE MARKER LAMP RIGHT FRONT TURN SIGNAL/ SIDE MARKER LAMP RIGHT HIGH BEAM HEADLAMP BULB RIGHT LICENSE PLATE LAMP RIGHT LOW BEAM HEADLAMP BULB RIGHT REAR DOOR AMBIENT LIGHTING BULB RIGHT REAR INTERIOR LOCKING IND LAMP RIGHT REAR READING LAMP RIGHT REAR SIDE MARKER LAMP RIGHT TAIL LAMP RIGHT TAIL LAMP 2 SEAT BELT IND LAMP SIGNAL BULB TIRE PRESSURE MONITORING DISPLAY IND LAMP TURN SIGNAL BULB WINDSHIELD WASHER FLUID LEVEL IND LAMP

ABS HYDRAULIC PUMP AFTER-RUN COOLANT PUMP COOLANT RECIRCULATION PUMP LEAK DETECTION PUMP TRANSFER FUEL PUMP WINDSHIELD WASHER PUMP

A/C CLUTCH RELAY ENGINE COMPONENT POWER SUPPLY RELAY HORN RELAY HOT W/ TERMINAL 15 RELAY ENERGIZED HOT W/ TERMINAL 75 POWER SUPPLY RELAY 1 ENERGIZED REAR WINDOW DEFOGGER RELAY RECIRCULATION PUMP RELAY RELAY & FUSE PANEL 2 REMOTE START SYSTEM RELAY SECONDARY AIR INJECTION PUMP RELAY STARTER RELAY 1 STARTER RELAY 2 TERMINAL 15 RELAY TERMINAL 75 POWER SUPPLY RELAY 1 WIPER MOTOR RELAY 1 WIPER MOTOR RELAY 2

ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR 2 BRAKE PRESSURE SENSOR 1 CAMSHAFT POSITION SENSOR CAMSHAFT POSITION SENSOR 2 CHARGE AIR PRESSURE ACTUATOR POSITION SENSOR CHARGE AIR PRESSURE SENSOR CLUTCH OIL TEMPERATURE SENSOR/ TRANSMISSION INPUT SPEED SENSOR CLUTCH POSITION SENSOR COMPASS MAGNETIC FIELD SENSOR COMPASS MAGNETIC FIELD SENSOR MODULE DRIVE SHAFT SPEED SENSOR 1 DRIVE SHAFT SPEED SENSOR 2 DRIVER EXTERIOR DOOR HANDLE TOUCH SENSOR, ACCESS/START AUTHORIZATION ANTENNA DRIVER FRONT AIR BAG CRASH SENSOR DRIVER SEAT FORWARD/BACK ADJUSTMENT MOTOR, SEAT FORWARD/BACK ADJUSTMENT SENSOR DRIVER SEAT HEATING ELEMENT, TEMPERATURE SENSOR DRIVER SIDE REAR THORAX AIR BAG CRASH SENSOR DRIVER THORAX AIR BAG CRASH SENSOR DRIVESHAFT SPEED SENSOR 1 DRIVESHAFT SPEED SENSOR 2 ENGINE COOLANT LEVEL SENSOR ENGINE COOLANT TEMPERATURE SENSOR ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET ENGINE SPEED SENSOR EPC THROTTLE DRIVE ANGLE SENSOR 1 EPC THROTTLE DRIVE ANGLE SENSOR 2 ESP SENSOR UNIT EVAPORATOR TEMPERATURE SENSOR FRONT PASSENGER THORAX AIR BAG CRASH SENSOR FRONT SENSOR SYSTEM WINDOW DEFOGGER FUEL LEVEL SENSOR FUEL PRESSURE SENSOR HEATED OXYGEN SENSOR HEATER FOR OXYGEN SENSOR 1 AFTER CATALYTIC CONVERTER HIGH PRESSURE SENSOR HORIZONTAL POSITION SENSOR INTAKE MANIFOLD RUNNER POSITION SENSOR INTAKE MANIFOLD SENSOR KNOCK SENSOR 1 KNOCK SENSOR #2 LEFT FOOTWELL VENT TEMPERATURE SENSOR LEFT FRONT ABS WHEEL SPEED SENSOR LEFT FRONT CENTER PARKING AID SENSOR LEFT FRONT PARALLEL PARKING ASSISTANCE SENSOR LEFT FRONT PARKING AID SENSOR LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR CENTER PARKING AID SENSOR LEFT REAR PARALLEL PARKING ASSISTANCE SENSOR LEFT REAR PARKING AID SENSOR LEFT VENT TEMPERATURE SENSOR LOW FUEL PRESSURE SENSOR MASS AIR FLOW SENSOR, INTAKE AIR TEMPERATURE SENSOR OIL LEVEL THERMAL SENSOR OUTSIDE AIR TEMPERATURE SENSOR OXYGEN HEATED SENSOR OXYGEN HEATED SENSOR 2 OXYGEN SENSOR 1 AFTER CATALYTIC CONVERTER OXYGEN SENSOR 1 HEATER AFTER CATALYTIC CONVERTER OXYGEN SENSOR 2 AFTER CATALYTIC CONVERTER OXYGEN SENSOR 2 BEFORE CATALYTIC CONVERTER OXYGEN SENSOR 2 HEATER AFTER CATALYTIC CONVERTER OXYGEN SENSOR 2 HEATER BEFORE CATALYTIC CONVERTER OXYGEN SENSOR AFTER CATALYTIC CONVERTER OXYGEN SENSOR HEATED BEFORE CATALYTIC CONVERTER OXYGEN SENSOR HEATER PASSENGER SIDE FRONT AIR BAG CRASH SENSOR PASSENGER SIDE REAR THORAX AIR BAG CRASH SENSOR POWER REAR LID OPENER SENSOR RAIN/LIGHT RECOGNITION SENSOR REAR LID OPENER SENSOR 2 RIGHT FOOTWELL VENT TEMPERATURE SENSOR RIGHT FRONT ABS WHEEL SPEED SENSOR RIGHT FRONT CENTER PARKING AID SENSOR RIGHT FRONT PARALLEL PARKING ASSISTANCE SENSOR RIGHT FRONT PARKING AID SENSOR RIGHT REAR ABS WHEEL SPEED SENSOR RIGHT REAR CENTER PARKING AID SENSOR RIGHT REAR PARALLEL PARKING ASSISTANCE SENSOR RIGHT REAR PARKING AID SENSOR RIGHT VENT TEMPERATURE SENSOR SECONDARY AIR INJECTION SENSOR 1 SELECTOR LEVER SENSOR SYSTEM CONTROL MODULE SENSOR 1 SENSOR 2 STEERING ANGLE SENSOR STEERING TORQUE SENSOR SUN LIGHT PHOTO SENSOR 2 SUNLIGHT PHOTO SENSOR SUNLIGHT PHOTO SENSOR 2 TEMPERATURE SENSOR TRANSMISSION FLUID TEMPERATURE SENSOR TRANSMISSION INPUT SPEED SENSOR TRANSMISSION INPUT SPEED SENSOR, CLUTCH OIL TEMPERATURE SENSOR TRANSMISSION OUTPUT SPEED SENSOR TRANSMISSION OUTPUT SPEED SENSOR 2 TRANSVERSE ACCELERATION SENSOR, ROTATION RATE SENSOR VERTICAL POSITION SENSOR W/ RAIN/LIGHT RECOGNITION SENSOR WINDOW DEFOGGER FRONT SENSOR SYSTEM WINDSHIELD WASHER FLUID LEVEL SENSOR

LEFT FRONT BASS SPEAKER LEFT FRONT TREBLE SPEAKER LEFT REAR BASE SPEAKER LEFT REAR TREBLE SPEAKER RIGHT FRONT BASE SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR BASE SPEAKER RIGHT REAR TREBLE SPEAKER

BACKUP SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LAMP SWITCH DRIVER DOOR CONTACT SWITCH DRIVER SEAT BELT SWITCH DRIVER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH DRIVER SEAT LUMBER SUPPORT ADJUSTMENT SWITCH DRIVER VANITY MIRROR LAMP CONTACT SWITCH DRIVING DYNAMICS REGULATION HIGH PRESSURE SWITCH VALVE 2 ENGINE HOOD CONTACT SWITCH EXTERIOR REAR VIEW MIRROR HEATING SWITCH FRONT FOG LAMP SWITCH FRONT PASSENGER DOOR CONTACT SWITCH FRONT PASSENGER SEAT BELT SWITCH FRONT PASSENGER SEAT LUMBAR SUPPORT ADJUSTMENT SWITCH FRONT PASSENGER SEAT LUMBER SUPPORT ADJUSTMENT SWITCH FRONT PASSENGER VANITY MIRROR LAMP CONTACT SWITCH GLOVE COMPARTMENT LAMP SWITCH HEADLAMP DIMMER/ FLASHER SWITCH HEADLAMP SWITCH ILLUMINATION BULB IGNITION SWITCH KEY LOCK SOLENOID IGNITION/ STARTER SWITCH IGNITION/STARTER SWITCH INSTRUMENT PANEL, SWITCH ILLUMINATION DIMMER SWITCH LEFT REAR DOOR CONTACT SWITCH LIGHT SWITCH LUGGAGE COMPARTMENT LAMP SWITCH MIRROR ADJUSTING SWITCH MIRROR ADJUSTMENT SWITCH ILLUMINATION BULB MIRROR FOLDING SWITCH MIRROR HEATING SWITCH MIRROR SELECTOR SWITCH MULTI-FUNCTION TRANSMISSION RANGE SWITCH OIL PRESSURE SWITCH REAR FOG LAMP SWITCH REAR LID REMOTE LOCK KEY SWITCH REDUCED OIL PRESSURE SWITCH RIGHT REAR DOOR CONTACT SWITCH ROTARY LIGHT SWITCH SELECTOR LEVER PARK POSITION LOCK SWITCH SELECTOR LEVER SWITCH TIPTRONIC SWITCH TURN SIGNAL SWITCH TURN SIGNAL SWITCH/ HEADLAMP DIMMER/ FLASHER SWITCH WINDSHIELD WIPER INTERMITTENT MODE SWITCH WINDSHIELD WIPER SWITCH WINDSHIELD WIPER/WASHER SWITCH

AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 1 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 2 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 3 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 4 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 5 AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVE 7 CAMSHAFT ADJUSTMENT VALVE 1 EXHAUST CAMSHAFT ADJUSTMENT VALVE 1 INTAKE MANIFOLD RUNNER CONTROL VALVE LEFT FRONT ABS INLET VALVE LEFT FRONT ABS OUTLET VALVE OIL PRESSURE REGULATION VALVE RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE SECONDARY AIR INJECTION SOLENOID VALVE SHIFT LOCK SOLENOID SOLENOID VALVE 1 SOLENOID VALVE 2 SOLENOID VALVES TURBOCHARGER RECIRCULATION VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/GRY WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/GRY WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY GRY WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/VIO WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE

1.8L TURBO 1.8L TURBO 3.6L 3.6L 3.6L 1.8L TURBO (OR ABS IND. ADAPTER CABLE AIR BAG IND AIR BAG SPIRAL SPRING/RETURN SPRING W/ SLIP RING AIR CONDITIONING SYSTEM AIR RECIRCULATION DOOR ANALOG CLOCK ANTI-THEFT ANTI-THEFT IMMOBILIZER SYSTEM IND ANTI-THEFT SYSTEM ASR/ESP IND ASSISTANCE) AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR AUTOMATIC TRANSMISSION HYDRAULIC PRESSURE SENSORS AUTOMATIC TRANSMISSION PRESSURE REGULATING VALVES BACKREST ADJUSTMENT BACKUP LAMPS CIRCUIT BLIND SPOT DETECTION WARNING BRAKE PAD WEAR IND BRAKE SYSTEM IND CHARGE AIR PRESSURE GAUGE CHARGING CIRCUIT COMPRESSOR MAGNETIC CLUTCH COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COOLING FANS SYSTEM CRUISE CONTROL IND DATA BUS ON BOARD DIAGNOSTIC INTERFACE DATA LINES DEFOGGER SYSTEM DEFROSTER DOOR DIAGNOSTIC CONNECTION DOOR AJAR IND DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVE ANGLE DRIVER AIR BAG IGNITER DRIVER DOOR POWER WINDOW CONTROL HEAD DRIVER EXTERIOR DOOR HANDLE DRIVER EXTERIOR REAR VIEW MIRROR DRIVER HEAD CURTAIN AIR BAG IGNITER DRIVER SEAT BELT TENSIONER IGNITER 1 DRIVER SEAT BELT TENSIONER IGNITER 2 DRIVER THORAX AIR BAG IGNITER DRIVER, FRONT PASSENGER SEAT CIRCUIT BREAKER DSG TRANSMISSION MECHATRONIC DUAL-CLUTCH TRANSMISSION MECHATRONIC ELECTRO- MECHANICAL POWER STEERING IND ELECTROMECHANICAL POWER ELECTRONIC POWER CONTROL MALFUNCTION IND EPC THROTTLE EPC THROTTLE DRIVE EXTERIOR REAR VIEW MIRROR ADJUSTER EXTERNAL AUDIO SOURCE CONNECTION EXTERNAL MULTI-MEDIA DEVICE INTERFACE EXTERNAL MULTIMEDIA DEVICE INTERFACE FORWARD/BACK ADJUSTMENT FRONT PARKING AID WARNING BUZZER FRONT PASSENGER EXTERIOR DOOR HANDLE FRONT PASSENGER EXTERIOR REAR VIEW MIRROR FRONT PASSENGER HEAD CURTAIN AIR BAG IGNITER FRONT PASSENGER SEAT BELT TENSIONER IGNITER 1 FRONT PASSENGER SEAT BELT TENSIONER IGNITER 2 FRONT PASSENGER THORAX AIR BAG IGNITER FUEL GAUGE FUEL INJECTOR 1 CYLINDER FUEL INJECTOR 2 CYLINDER FUEL INJECTOR 3 CYLINDER FUEL INJECTOR 4 CYLINDER FUEL INJECTOR 5 CYLINDER FUEL INJECTOR 6 CYLINDER GARAGE DOOR OPENER CONTROL HEAD GEAR POSITION DISTANCE SENSORS GLOW PLUG IND GROUND DISTRIBUTION SYSTEM HEADLIGHTS SYSTEM HIGH BEAM IND HOOD OPEN IND HORNS SYSTEM HOT AT ALL TIMES IGNITER 1 IGNITER 2 IGNITION COILS W/ POWER OUTPUT STAGE INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT LEFT "C" PILLAR) LEFT FRONT HEADLAMP LEFT FRONT SEAT ADJUSTMENT CONTROL HEAD LEFT FRONT SEAT ADJUSTMENT CONTROL HEAD 2 LEFT FRONT SEAT ADJUSTMENT CONTROL HEAD HEIGHT ADJUSTMENT LEFT FRONT TEMPERATURE CONTROL DOOR LEFT FRONT TURN SIGNAL LEFT LICENSE PLATE LEFT MULTI-FUNCTION BUTTONS LEFT MULTI-FUNCTION STEERING WHEEL BUTTONS LEFT TURN SIGNAL IND LINES SYSTEM LOCKING, LOW FUEL LEVEL IND MALFUNCTION IND MIRRORS SYSTEM NAVIGATION SYSTEM OIL LEVEL IND OIL PRESSURE IND PARALLEL PARKING PARKING AID PEDAL POSITION POWER DISTRIBUTION SYSTEM RADIATOR FAN RADIATOR FAN 2 REAR LID HANDLE REAR PARKING AID WARNING BUZZER REAR WINDOW DEFOGGER REMOTE START CONNECTION RIGHT FRONT HEADLAMP RIGHT FRONT SEAT ADJUSTMENT CONTROL HEAD RIGHT FRONT TEMPERATURE CONTROL DOOR RIGHT FRONT TURN SIGNAL RIGHT LICENSE PLATE RIGHT MULTI-FUNCTION BUTTONS ON STEERING WHEEL RIGHT MULTI-FUNCTION STEERING WHEEL BUTTONS RIGHT TURN SIGNAL IND SEAT BELT IND SEAT POS 1 SEAT POS 2 SEAT POS 3 SEATS SYSTEM SELECTOR LEVEL SELECTOR LEVER STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM SUNROOF ADJUSTER SUPPLEMENTAL RESTRAINTS SYSTEM TELEPHONE MICROPHONE TIRE PRESSURE MONITORING DISPLAY IND TO SPARK PLUG TO SPARK PLUG 1 TO SPARK PLUG 2 TO SPARK PLUG 3 TO SPARK PLUG 4 TO VEHICLE ELECTRICAL SYSTEM TRANSMISSION ASSEMBLY TRANSMISSION RANGE DISPLAY TRANSMISSIONS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM USB DISTRIBUTOR W/ ACCESS/ START AUTHORIZATION SYSTEM W/ LED W/ LED HEADLAMPS W/ LED HEADLAMPS W/O LED HEADLAMPS W/ MEMORY W/ MEMORY SEATS W/ PARALLEL PARKING ASSISTANCE W/ POWER DRIVER SEAT W/ POWER DRIVER SEATS W/ REMOTE START FUNCTION W/O REMOTE START FUNCTION W/O ACCESS/ START AUTHORIZATION SYSTEM W/O ACCESS/START AUTHORIZATION SYSTEM W/ ACCESS/START AUTHORIZATION SYSTEM W/O LED W/O LED HEADLAMPS W/O MEMORY W/O MEMORY SEATS W/O POWER DRIVER SEATS W/O REMOTE START W/O REMOTE START W/ REMOTE START WARNING BUZZER, TONE WINDSHIELD WASHER FLUID LEVEL IND WIPER/WASHER SYSTEM
