Volkswagen Jetta III (1992-1998) passenger's seat temperature sensor Wiring diagram
This page shows the only wiring diagram for the component.passenger's seat temperature sensor, which is found in the car Volkswagen Jetta III (1992-1998). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

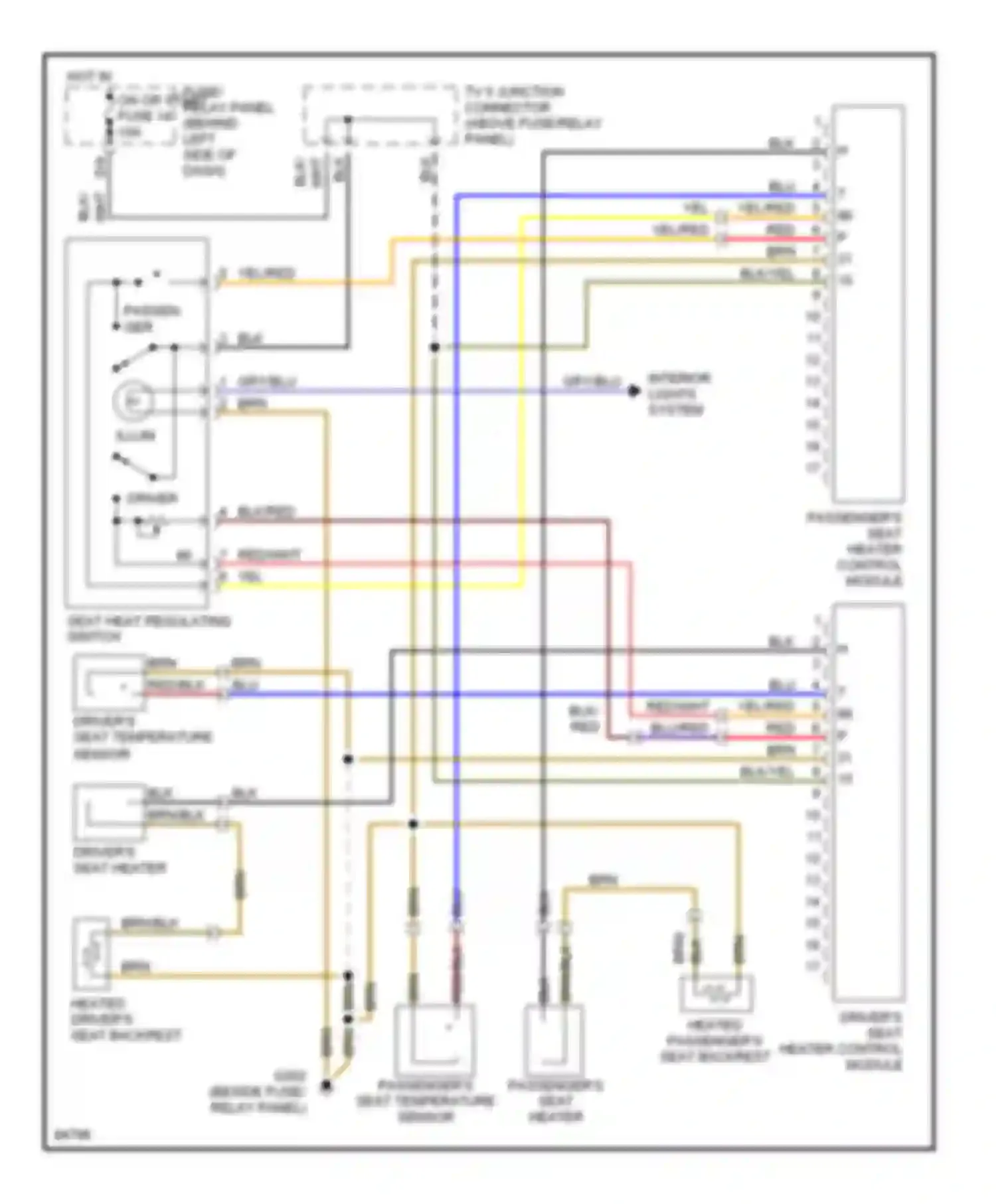

Wiring diagram passenger's seat temperature sensor (1 of 1)
BLK WIRE
BLK/ WHT WIRE
BLK/RED WIRE
BLK/YEL WIRE
BLU WIRE
BLU/RED WIRE
BRN WIRE
BRN/BLK WIRE
D/9
DRIVER'S SEAT HEATER
DRIVER'S SEAT HEATER CONTROL MODULE
DRIVER'S SEAT TEMPERATURE SENSOR
FUSE/ RELAY PANEL (BEHIND LEFT SIDE OF DASH)
GRY/BLU WIRE
HEATED DRIVER'S SEAT BACKREST
HEATED PASSENGER'S SEAT BACKREST
HOT IN ON OR START FUSE 14
ILLUM
PASSEN- GER
PASSENGER'S SEAT HEATER
PASSENGER'S SEAT HEATER CONTROL MODULE
PASSENGER'S SEAT TEMPERATURE SENSOR
RED WIRE
RED/BLK WIRE
RED/WHT WIRE
SEAT HEAT REGULATING SWITCH
TV 5 JUNCTION CONNECTOR (ABOVE FUSE/RELAY PANEL)
WHT/ BLK WIRE
YEL WIRE
YEL/RED WIRE
Go to component -> Heated seats circuit -> PASSENGER'S SEAT TEMPERATURE SENSOR
