Volkswagen Jetta III (1992-1998) 1 3 2 fog light indicator Wiring diagram
This page shows the only wiring diagram for the component.1 3 2 fog light indicator, which is found in the car Volkswagen Jetta III (1992-1998). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

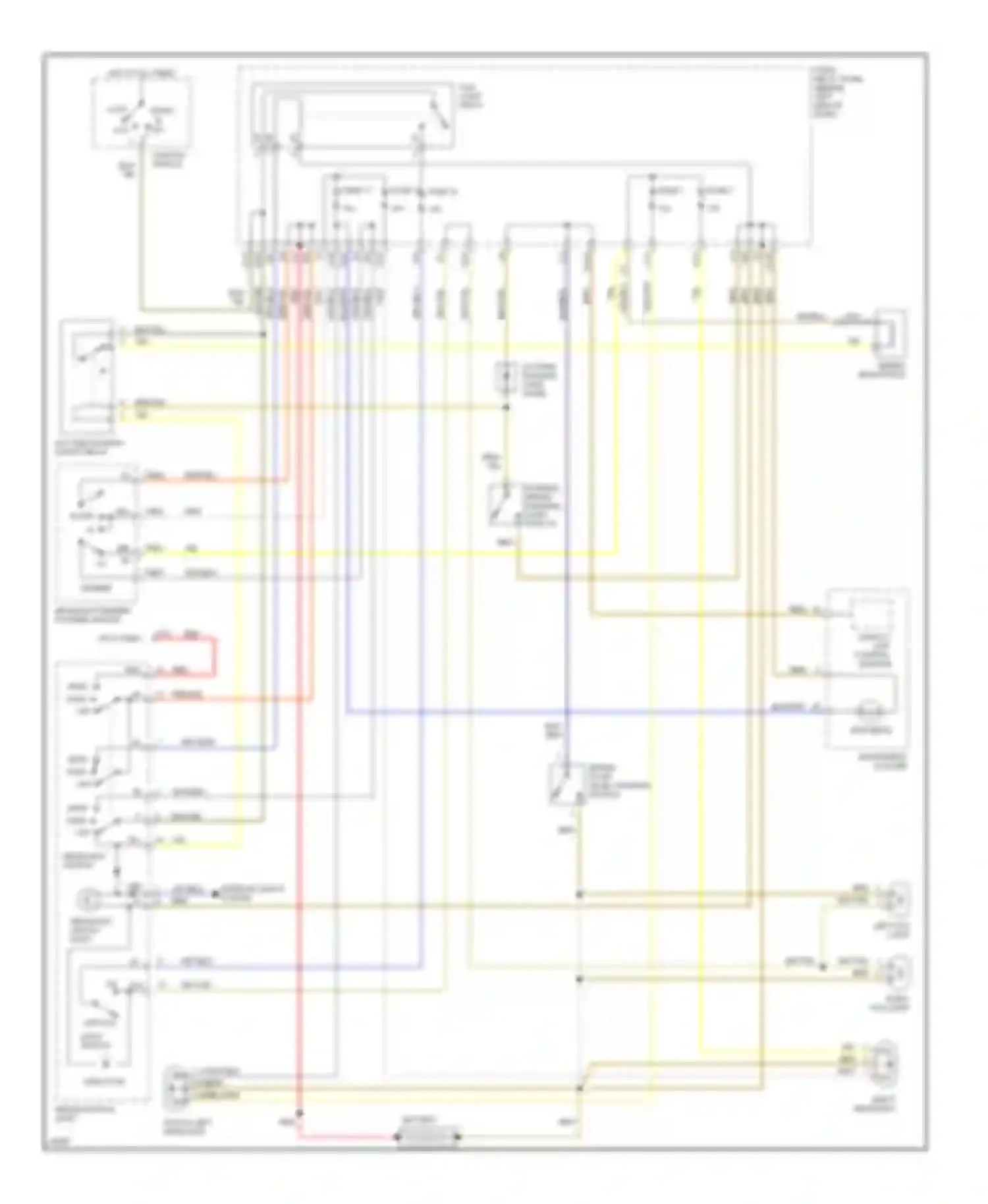

Wiring diagram 1 3 2 fog light indicator (1 of 1)
1 3 2 FOG LIGHT INDICATOR
BATTERY
BLK WIRE
BLK/YEL WIRE
BLU WIRE
BLU/BRN WIRE
BLU/WHT WIRE
BRAKE FLUID LEVEL WARNING SWITCH
BRN WIRE
BRN/YEL WIRE
C/1
DAYTIME RUNNING LIGHT DIODE
DAYTIME RUNNING LIGHTS RELAY
DIMMER
DISPLAY UNIT CONTROL MODULE
FLASH HI
FOG LIGHT RELAY
FUSE 1
FUSE 10
FUSE 11
FUSE 12
FUSE 2
FUSE/ RELAY PANEL (BEHIND LEFT SIDE OF DASH)
GRY/BLU WIRE
GRY/GRN WIRE
GRY/YEL WIRE
HEAD PARK OFF
HEAD PARK OFF TFL
HEADLIGHT DIMMER/ FLASHER SWITCH
HEADLIGHT SWITCH
HEADLIGHT SWITCH LIGHT
HEADLIGHT/FOG LIGHT SWITCH LEFT HEADLIGHT
HIGH BEAM
HOT AT ALL TIMES
IGNITION SWITCH
INSTRUMENT CLUSTER
J/1
J/2
J/3
J/4
L/1
L/6
LEFT FOG LIGHT
LOCK
NCA WIRE
OFF FOG LIGHT SWITCH
P/1
P/4
PARKING BRAKE WARNING LIGHT SWITCH
R/10
R/5
R/7
R/8
R/9
RED WIRE
RED/YEL WIRE
RIGHT FOG LIGHT
RIGHT HEADLIGHT
SERIES RESISTANCE
SRA
WHT WIRE
WHT/BLK WIRE
Y/3
YEL WIRE
YEL/BLU WIRE
YEL/WHT WIRE
Go to component -> Headlight circuit, with drl -> 1 3 2 FOG LIGHT INDICATOR
