Volkswagen Golf Mk7 (2012-2017) top center coupling point of engine Wiring diagram
This page shows the only wiring diagram for the component.top center coupling point of engine, which is found in the car Volkswagen Golf Mk7 (2012-2017). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

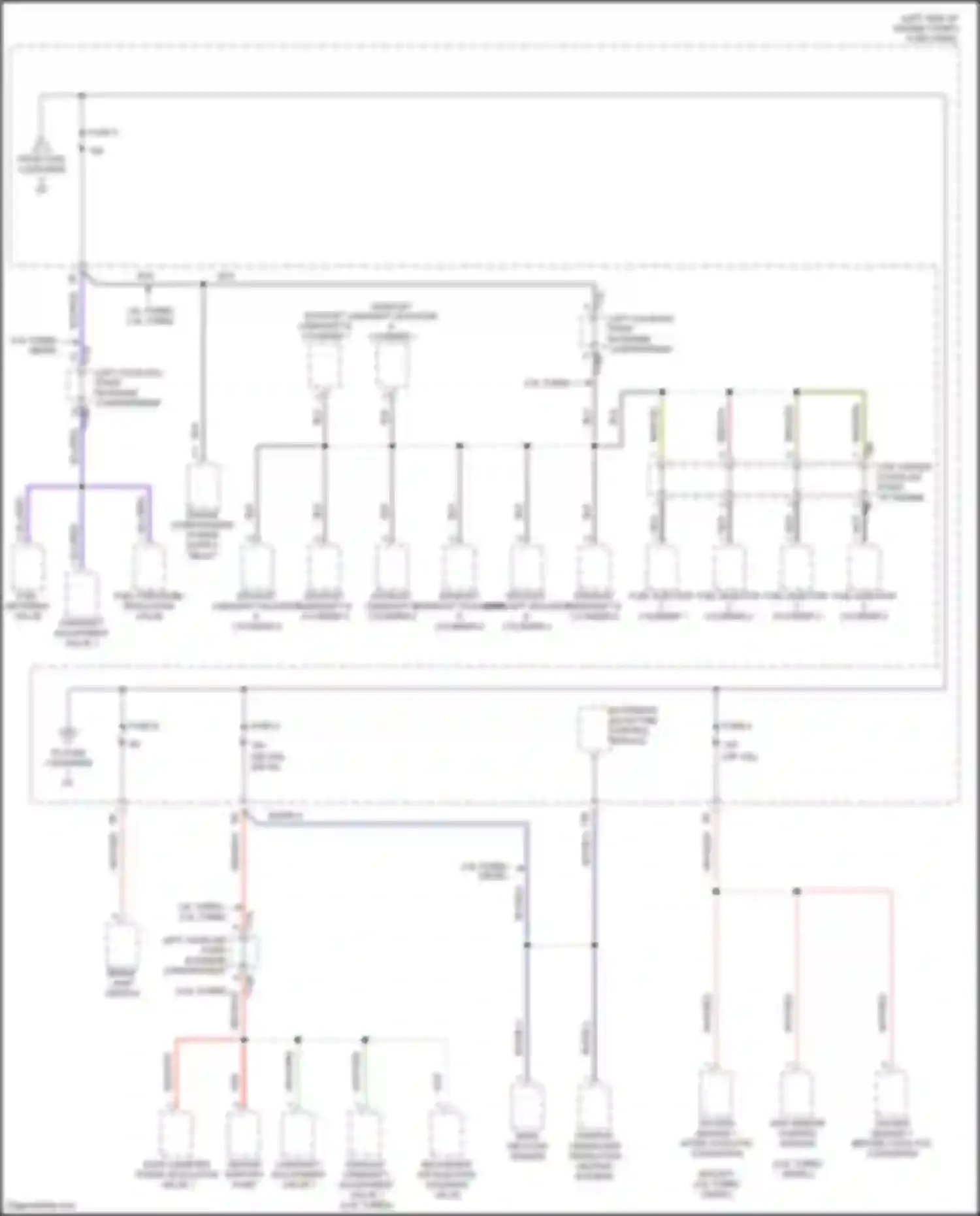

Wiring diagram top center coupling point of engine (1 of 1)
1.8L TURBO, 2.0L TURBO
2.0L TURBO
2.0L TURBO DIESEL
AUTOMATIC GLOW TIME CONTROL MODULE
BLK WIRE
BLK/BLU WIRE
BLU/RED WIRE
BRAKE LAMP SWITCH
BRN/GRN WIRE
BRN/GRY WIRE
BRN/VIO WIRE
BRN/YEL WIRE
CAMSHAFT ADJUSTMENT VALVE 1
ENGINE COMPARTMENT POWER SUPPLY RELAY
EVAP CANISTER PURGE REGULATOR VALVE 1
EXCEPT 2.0L TURBO DIESEL
EXHAUST CAMSHAFT ADJUSTER A CYLINDER 1
EXHAUST CAMSHAFT ADJUSTER A CYLINDER 2
EXHAUST CAMSHAFT ADJUSTER A CYLINDER 3
EXHAUST CAMSHAFT ADJUSTER A CYLINDER 4
EXHAUST CAMSHAFT ADJUSTMENT VALVE 1
EXHAUST CAMSHAFT B CYLINDER 1
EXHAUST CAMSHAFT B CYLINDER 2
EXHAUST CAMSHAFT B CYLINDER 3
EXHAUST CAMSHAFT B CYLINDER 4
FROM FUSE 4 (DIAGRAM 2 OF 6)
FUEL INJECTOR 2 CYLINDER 1
FUEL INJECTOR 2 CYLINDER 2
FUEL INJECTOR 2 CYLINDER 3
FUEL INJECTOR 2 CYLINDER 4
FUEL METERING VALVE
FUEL PRESSURE REGULATOR VALVE
FUSE 5
FUSE 6
FUSE 8
FUSE 9
FUSE PANEL B
GRY/RED WIRE
HEATER SUPPORT PUMP
LEFT COUPLING POINT IN ENGINE COMPARTMENT
MASS AIR FLOW SENSOR
NCA WIRE
NOX SENSOR CONTROL MODULE
OXYGEN SENSOR 1 (BEFORE CATALYTIC CONVERTER)
OXYGEN SENSOR 1 AFTER CATALYTIC CONVERTER
POSITIVE CRANKCASE VENTILATION HEATING ELEMENT
RED WIRE
RED/WHT WIRE
SECONDARY AIR INJECTION SOLENOID VALVE
TO FUSE 7 (DIAGRAM 1 OF 6)
TOP CENTER COUPLING POINT OF ENGINE
WHT WIRE
WHT/GRN WIRE
WHT/RED WIRE
Go to component -> Power distribution circuit (3 of 6) -> TOP CENTER COUPLING POINT OF ENGINE
