Exterior lamps circuit for Volkswagen Golf R VIII (2020-2024)

BACKUP LAMPS CIRCUIT BLK/BLU WIRE BLK/GRN WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BRN WIRE CENTER INSTRUMENT PANEL SWITCH MODULE COMPUTER DATA LINES SYSTEM DRIVER DOOR CONTROL MODULE DRIVER EXTERIOR REAR VIEW MIRROR EMERGENCY FLASHER BUTTON EMERGENCY FLASHER INDICATOR LAMP FUSE 12 FUSE 44 FUSE 45 FUSE PANEL C GRY/BLK WIRE GRY/BRN WIRE GRY/RED WIRE HEADLAMP DIMMER/ FLASHER SWITCH HOT AT ALL TIMES ILLUMINATION CONTROL HEAD LEFT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE LEFT FRONT HEADLAMP LEFT FRONT TURN SIGNAL BULB LEFT STATIONARY CORNERING LAMP LIGHT SWITCH MIRRORS SYSTEM ORG/BRN WIRE ORG/GRY WIRE POSITION LAMP BUTTON POSITION LAMP INDICATOR LAMP REAR FOG LAMP BUTTON REAR FOG LAMP INDICATOR LAMP REAR LID COUPLING POINT RED WIRE RED/WHT WIRE RIGHT BACKUP LAMP BULB RIGHT TAIL LAMP 2 RIGHT TAIL LAMP BULB 2 STEERING COLUMN ELECTRONICS CONTROL MODULE TURN SIGNAL BULB TURN SIGNAL SWITCH VEHICLE ELECTRICAL SYSTEM CONTROL MODULE VIO/BLU WIRE VIO/GRN WIRE VIO/WHT WIRE W/ MEMORY W/O MEMORY WHT WIRE YEL WIRE

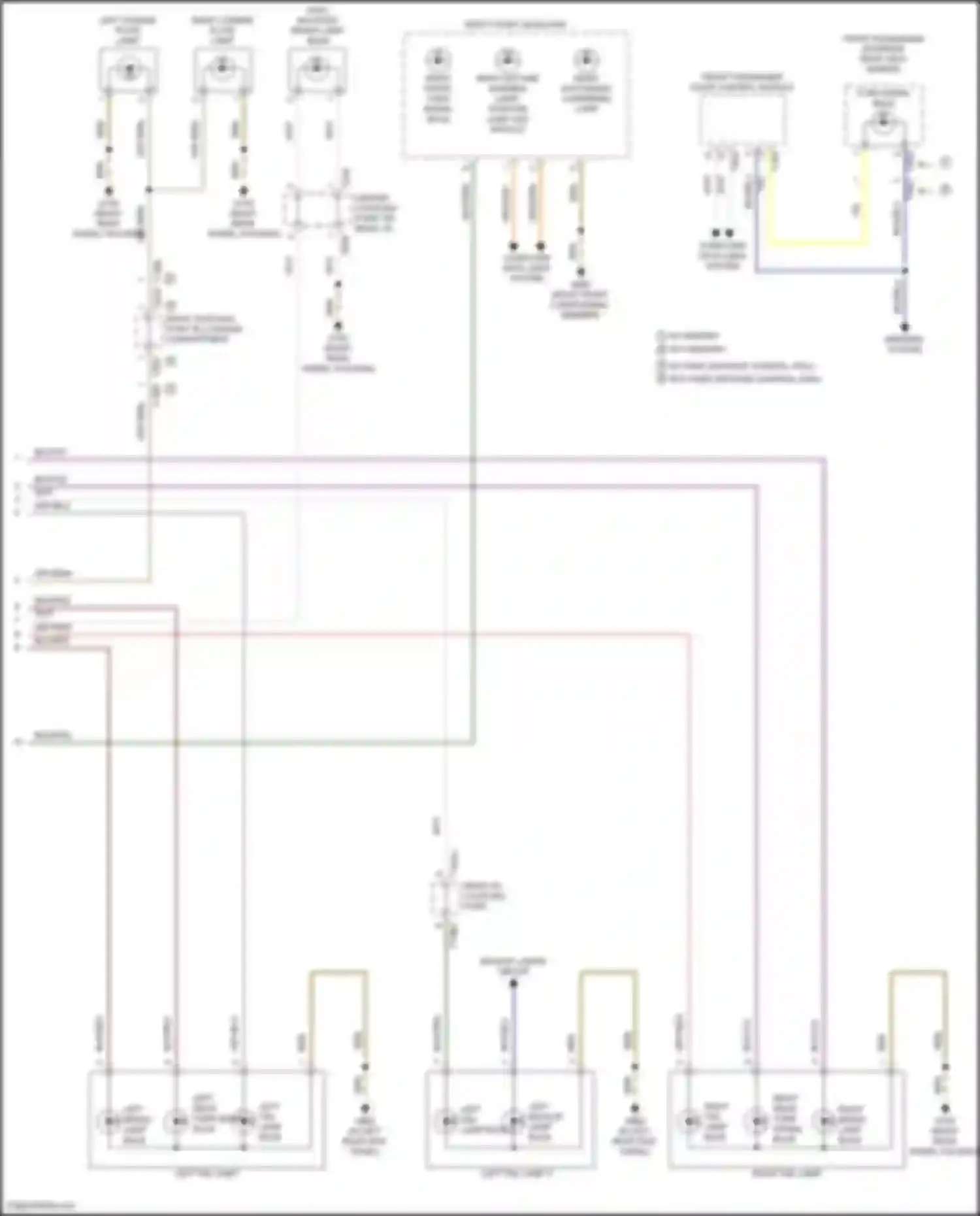

BACKUP LAMPS CIRCUIT BLK/BLU WIRE BLK/GRN WIRE BLK/RED WIRE BLK/VIO WIRE BRN WIRE CENTER COUPLING POINT ON REAR LID COMPUTER DATA LINES SYSTEM FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER EXTERIOR REAR VIEW MIRROR GRY/BLK WIRE GRY/BRN WIRE GRY/RED WIRE HIGH-MOUNTED BRAKE LAMP BULB LEFT BACKUP LAMP BULB LEFT BRAKE LAMP BULB LEFT LICENSE PLATE LAMP LEFT REAR TURN SIGNAL BULB LEFT TAIL LAMP LEFT TAIL LAMP 2 LEFT TAIL LAMP BULB LEFT TAIL LAMP BULB 2 MIRRORS SYSTEM ORG/BRN WIRE ORG/GRY WIRE REAR LID COUPLING POINT RIGHT BRAKE LAMP BULB RIGHT COUPLING POINT IN LUGGAGE COMPARTMENT RIGHT DAYTIME RUNNING LAMP, POSITION LAMP LED MODULE RIGHT FRONT HEADLAMP RIGHT FRONT TURN SIGNAL BULB RIGHT LICENSE PLATE LAMP RIGHT REAR TURN SIGNAL BULB RIGHT STATIONARY CORNERING LAMP RIGHT TAIL LAMP RIGHT TAIL LAMP BULB TURN SIGNAL BULB W/ MEMORY W/ PARK DISTANCE CONTROL (PDC) W/O MEMORY W/O PARK DISTANCE CONTROL (PDC) WHT WIRE YEL WIRE
