Volkswagen Bora III (2012-2018) w/ multi-media interface w/o multi-media interface Wiring diagram
This page shows the only wiring diagram for the component.w/ multi-media interface w/o multi-media interface, which is found in the car Volkswagen Bora III (2012-2018). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

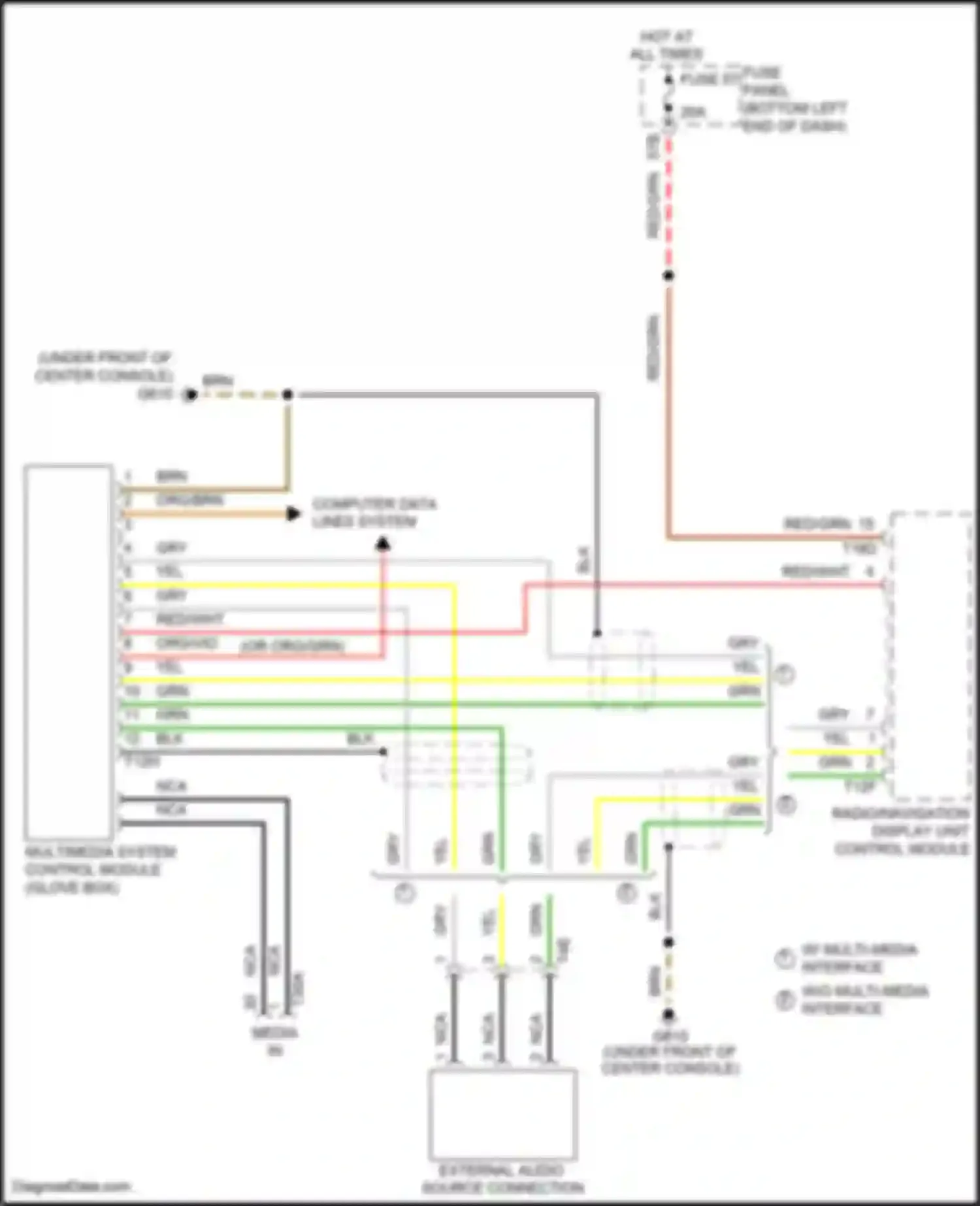

Wiring diagram w/ multi-media interface w/o multi-media interface (1 of 1)
BLK WIRE
BRN WIRE
COMPUTER DATA LINES SYSTEM
EXTERNAL AUDIO SOURCE CONNECTION
FUSE 57
FUSE PANEL C
GLOVE BOX)
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
MULTIMEDIA SYSTEM CONTROL MODULE
NCA WIRE
ORG/BRN WIRE
ORG/VIO WIRE
RADIO/NAVIGATION DISPLAY UNIT CONTROL MODULE
RED/GRN WIRE
RED/WHT WIRE
W/ MULTI-MEDIA INTERFACE W/O MULTI-MEDIA INTERFACE
YEL WIRE
Go to component -> Multimedia interface circuit -> W/ MULTI-MEDIA INTERFACE W/O MULTI-MEDIA INTERFACE
