Wiring Diagrams for Volkswagen Beetle A4 facelift (2005-2011)

Manual a/c circuit

Anti-lock brakes circuit

Anti-theft circuit, convertible Anti-theft circuit, except convertible

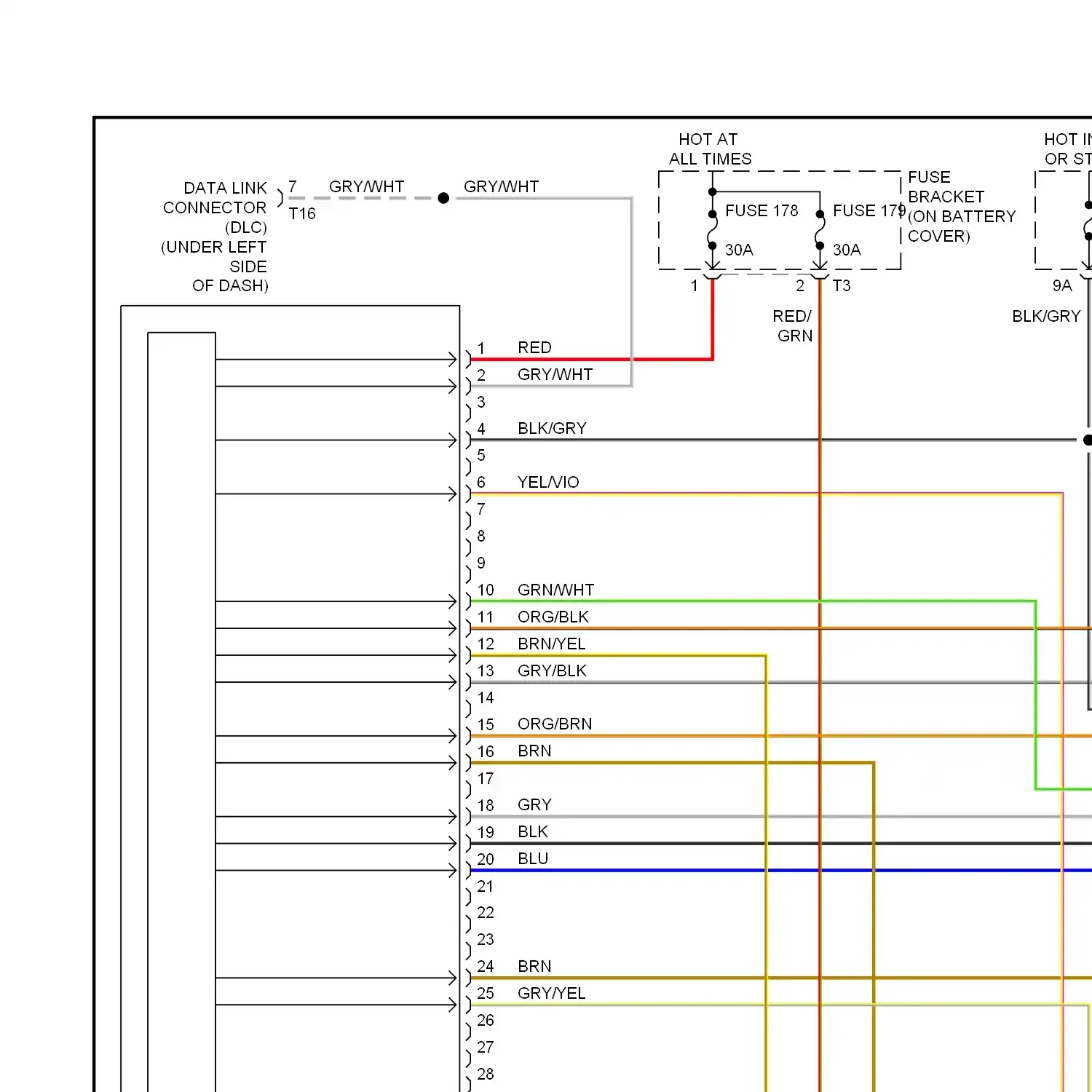

Data link connector circuit, convertible Data link connector circuit, except convertible High/low bus circuit, convertible High/low bus circuit, except convertible

Cooling fan circuit

Cruise control circuit

Defoggers circuit

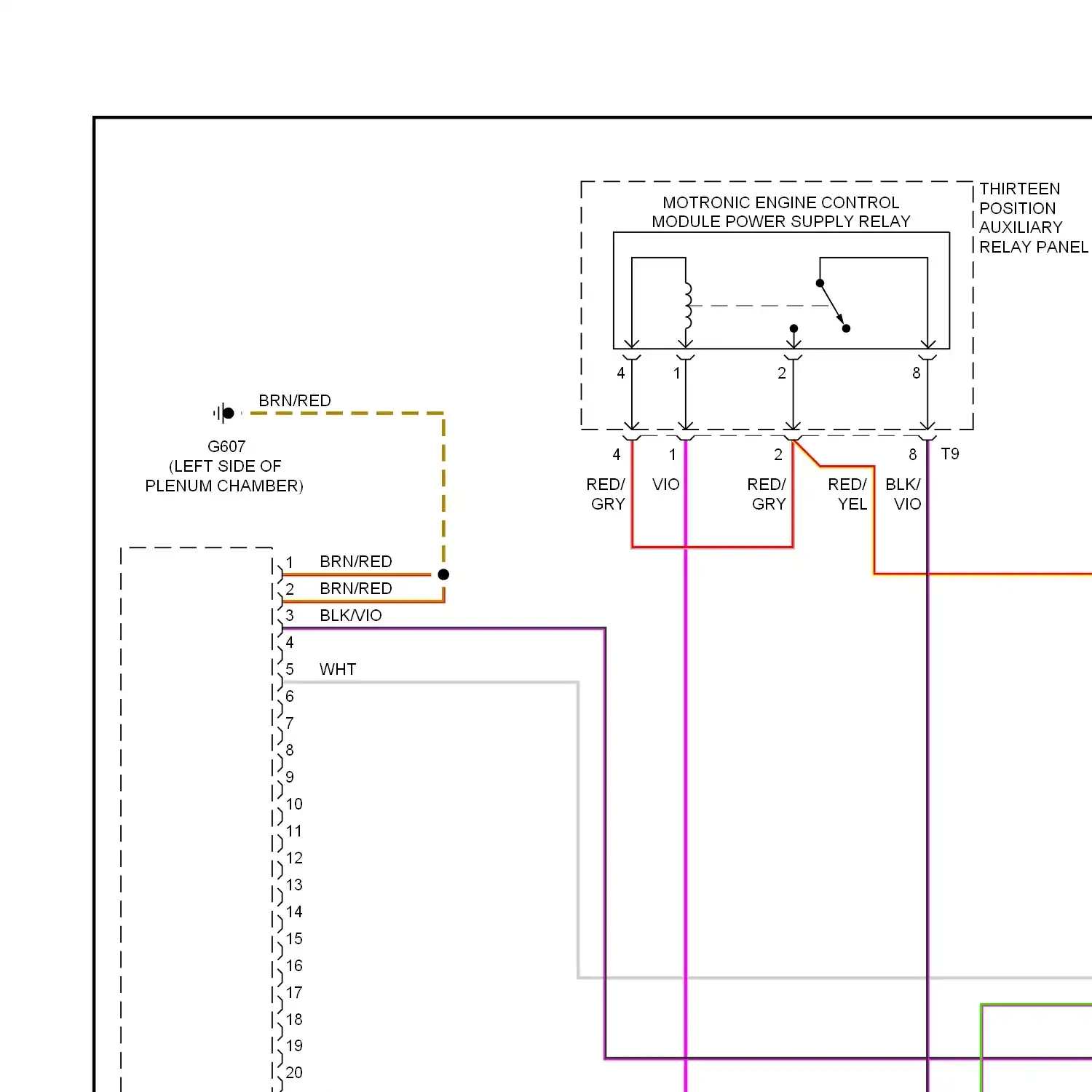

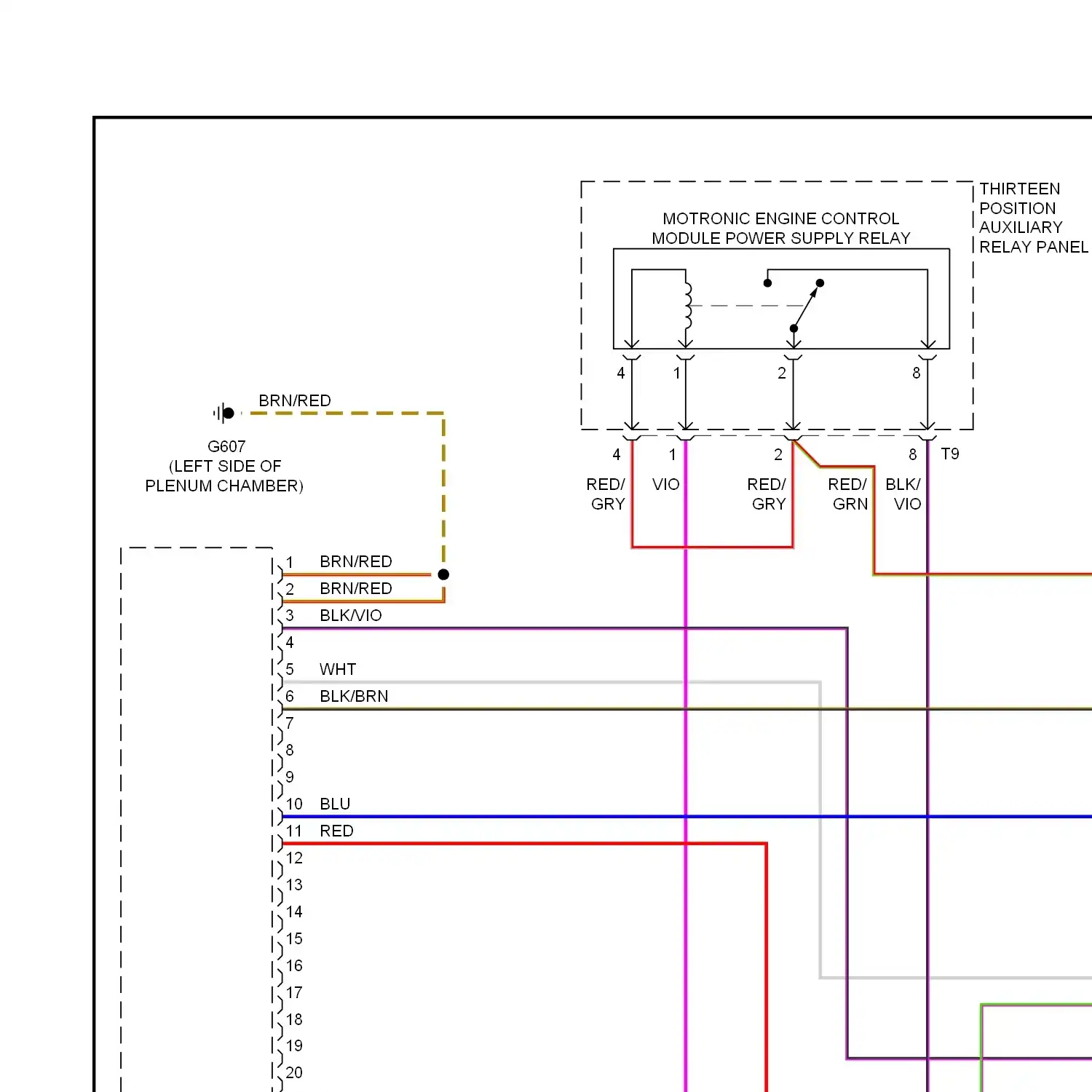

Wiring diagram engine performance 2.5l, bpr Wiring diagram engine performance 2.5l, bps

Backup lamps circuit, a/t convertible Backup lamps circuit, direct shift automatic transmission Backup lamps circuit, except a/t convertible Backup lamps circuit, m/t Exterior lamps circuit

Ground distribution circuit

Headlights circuit, with high intensity discharge Headlights circuit, without high intensity discharge

Horn circuit

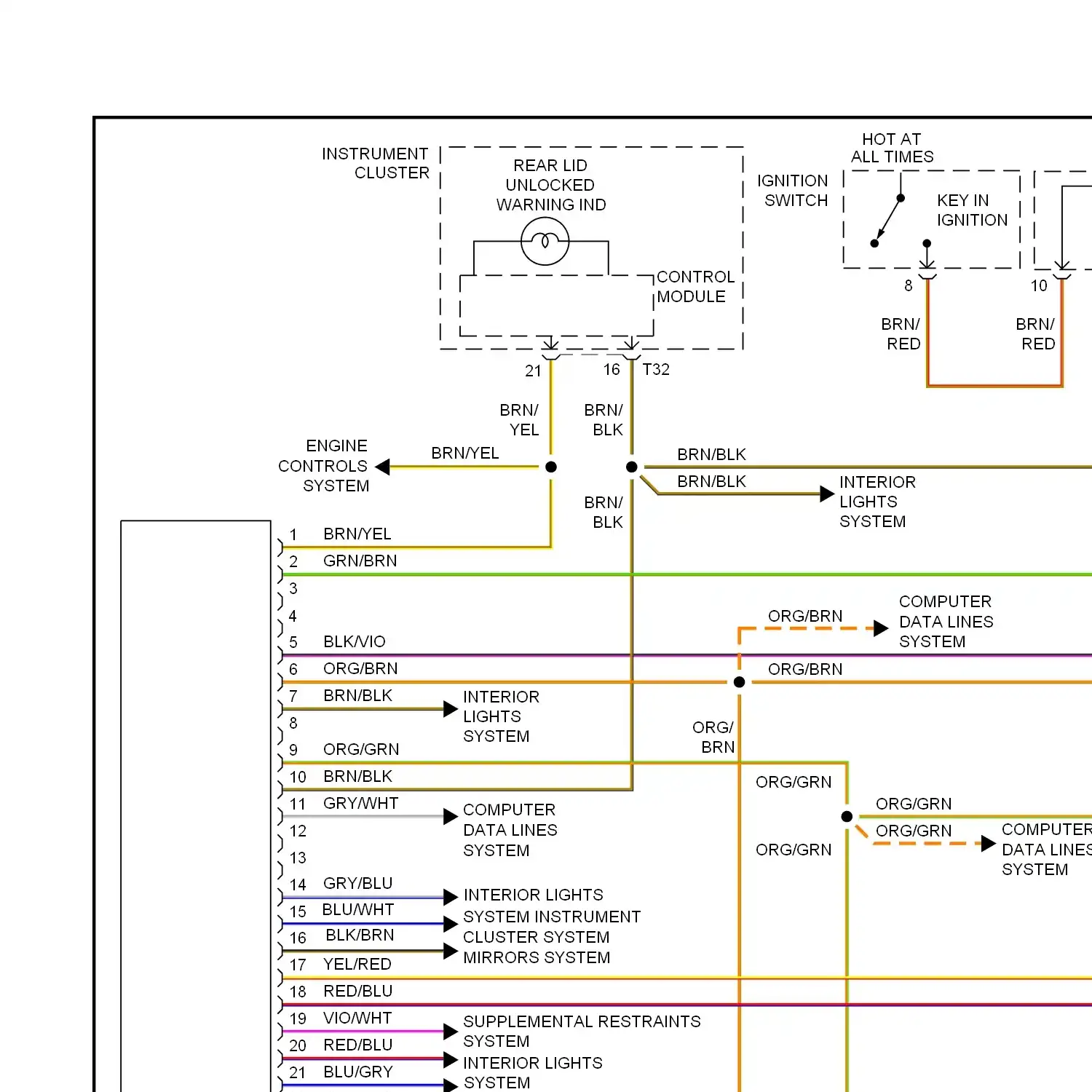

Digital clock circuit, convertible Digital clock circuit, except convertible Indicators & gauges circuit, convertible Indicators & gauges circuit, except convertible

Courtesy lamps circuit, convertible Courtesy lamps circuit, except convertible Instrument illumination circuit, convertible Instrument illumination circuit, except convertible

Power distribution circuit

Power door locks circuit, convertible Power door locks circuit, except convertible

Automatic day/night mirror circuit Power mirrors circuit, convertible Power mirrors circuit, except convertible

Heated seats circuit

Convertible top circuit, manual convertible top Convertible top circuit, power convertible top Sunroof circuit

Power windows circuit, convertible Power windows circuit, except convertible

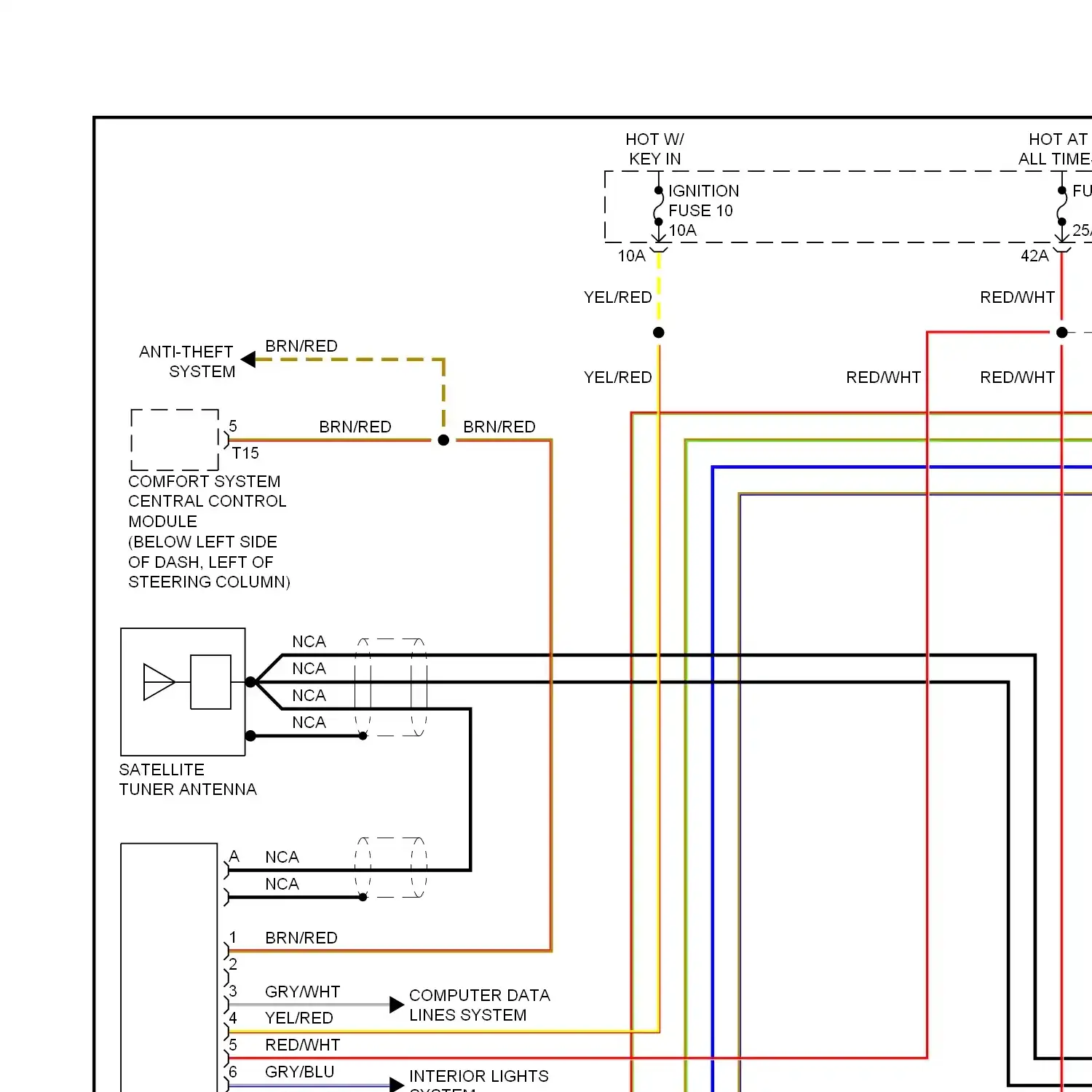

Base radio circuit, convertible without satellite radio Base radio circuit, convertible with satellite radio Base radio circuit, except convertible without satellite radio Base radio circuit, except convertible with satellite radio Premium radio circuit, without satellite radio Premium radio circuit, with satellite radio

Shift interlock circuit

Charging circuit Starting circuit, a/t convertible Starting circuit, a/t except convertible Starting circuit, direct shift automatic transmission Starting circuit, m/t engine code bpr Starting circuit, m/t engine code bps

Supplemental restraints circuit

Transmission circuit, 6 speed a/t Transmission circuit, direct shift automatic transmission

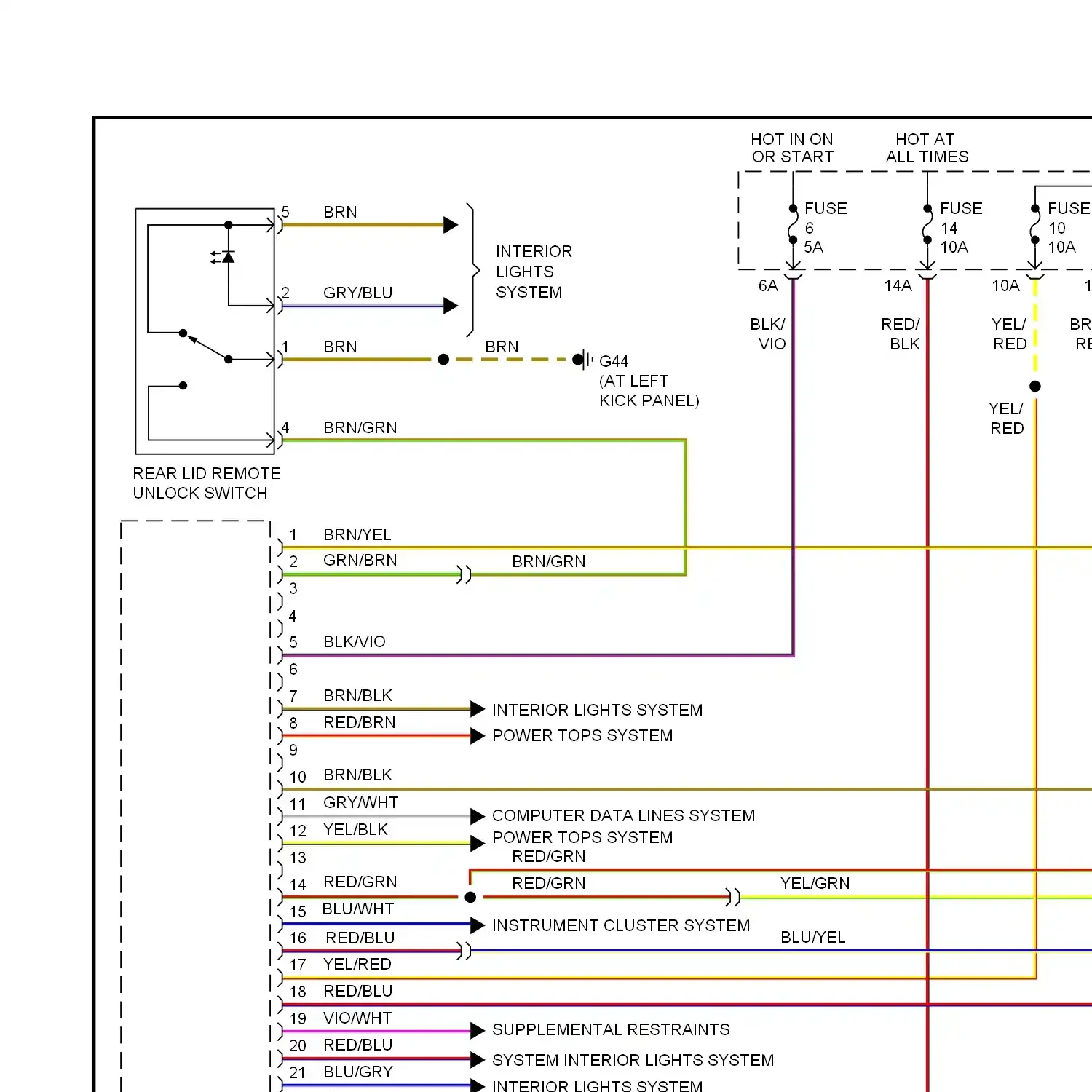

Deck lid release circuit, convertible Deck lid release circuit, except convertible Fuel door release circuit, convertible Fuel door release circuit, except convertible

Warning systems circuit

Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-THEFT IMMOBILIZER INDUCTION COIL ANTI-THEFT IMMOBILIZER READING COIL BLOCKING DIODE GENERATOR WARNING IND GENERATOR WARNING LIGHT HIGH TONE HORN IGNITION COIL 1 W/ POWER OUTPUT STAGE IGNITION COIL 2 W/ POWER OUTPUT STAGE IGNITION COIL 3 W/ POWER OUTPUT STAGE IGNITION COIL 4 W/ POWER OUTPUT STAGE IGNITION COIL 5 W/ POWER OUTPUT STAGE LEFT RIGHT GLOVE WASHER WASHER COMPARTMENT NOZZLE NOZZLE LIGHT HEATER HEATER LEFT WASHER NOZZLE HEATER LOCK ON LOW TONE HORN ON LOCK REAR LID UN- LOCK LAMP IND RIGHT WASHER NOZZLE HEATER SIGNAL HORN ACTIVATION SIGNAL HORN, DUAL TONE HORN

COMPUTER ENGINE DATA CONTROLS LINES SYSTEM SYSTEM DOOR, INTEGRAL TO WINDOW MOTOR) ENGINE CONTROLS SYSTEM ENGINE COOLANT LEVEL/TEMP WARNING IND FRESH/ RECIRCULATING AIR DOOR MOTOR LEFT HEADLIGHT BEAM ADJUSTING MOTOR LEFT LEFT HEADLIGHT HEADLIGHT BEAM RANGE ADJUSTING CONTROL MOTOR MODULE LEFT TOP LOCK MOTOR REAR LID CENTRAL LOCKING SYSTEM MOTOR RIGHT HEADLIGHT BEAM ADJUSTING MOTOR RIGHT TOP LOCK MOTOR SUNROOF MOTOR W/ 2.5L ENGINE BPR WINDOW MOTOR WINDSHIELD WIPER MOTOR

ANTENNA AMPLIFIER CENTRAL LOCKING, ANTI-THEFT WARNING SYSTEM ANTENNA SATELLITE TUNER ANTENNA TIRE PRESSURE MONITORING ANTENNA

A/C COMPRESSOR REGULATOR VALVE ASR/ESP BUTTON DRIVER'S DOOR POWER WINDOW REGULATOR CENTRAL SWITCH LEFT FRONT WINDOW REGULATOR SWITCH LEFT REAR POWER WINDOW WINDOW REGULATOR REGULATOR MOTOR MOTOR LEFT REAR WINDOW REGULATOR MOTOR PASSENGER DOOR WINDOW REGULATOR SWITCH PASSENGER'S SIDE POWER WINDOW REGULATOR SWITCH POWER MIRROR SWITCH DRIVER'S DOOR WINDOW REGULATOR CENTRAL SWITCH REAR WINDOW REGULATOR SAFETY SWITCH RIGHT REAR WINDOW REGULATOR MOTOR SUNROOF REGULATOR WINDSHIELD WIPER INTERMITTENT REGULATOR

AUDIO SOURCE CONNECTOR AUXILIARY EXTERNAL AUDIO SOURCE CONNECTOR COOLANT FAN CONNECTOR DATA LINK CONNECTOR SOCKET 2 SOCKET (CONVE-

ABS CONTROL MODULE AIR BAG CONTROL MODULE AIRBAG CONTROL MODULE ANTI-THEFT IMMOBILIZER CONTROL MODULE COMFORT INSTRUMENT SYSTEM CLUSTER CENTRAL SYSTEM CONTROL MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE COMFORT SYSTEM CENTRAL CONTROL MODULE TIRE PRESSURE MONITORING CONTROL MODULE CONTROL MODULE CONTROL MODULE W/ INDICATOR UNIT CONVERTIBLE TOP CONTROL MODULE COOLANT FAN CONTROL MODULE DRIVER DOOR CONTROL MODULE DRIVER'S HEATED SEAT CONTROL MODULE DRIVER'S SIDE DOOR CONTROL MODULE FRONT PASSENGER DOOR CONTROL MODULE FRONT PASSENGER'S HEATED SEAT CONTROL MODULE GARAGE DOOR OPENER CONTROL MODULE HIGH INTENSITY GAS DISCHARGE LAMP CONTROL MODULE INSTRUMENT CLUSTER CONTROL MODULE INSTRUMENT TRANSMISSION CLUSTER CONTROL DIGITAL CONTROL MODULE CLOCK MODULE LEFT HEADLIGHT RANGE CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE MOTRONIC ENGINE CONTROL MODULE POWER SUPPLY RELAY PASSENGER SIDE DOOR CONTROL MODULE PASSENGER'S HEATED SEAT CONTROL MODULE PASSENGER'S SIDE DOOR CONTROL MODULE PASSENGER'S SIDE DOOR CONTROL MODULE (IN PASSENGER'S POWER SUNROOF CONTROL MODULE RIGHT HEADLIGHT RANGE CONTROL MODULE SEAT OCCUPIED RECOGNITION CONTROL MODULE TIRE PRESSURE MONITORING CONTROL MODULE TRANS- MISSION CONTROL MODULE TRANSMISSION CONTROL MODULE

CD CHANGER UNIT DRIVER DOOR CENTERL LOCKING UNIT DRIVER DOOR CENTRAL LOCKING LOCK UNIT DRIVER'S SIDE CENTRAL LOCKING UNIT FRONT PASSENGER DOOR CENTRAL LOCKING LOCK UNIT LOCKING UNIT PASSENGER'S SIDE CENTRAL LOCKING UNIT PASSENGER'S SIDE CENTRAL LOCKING UNIT CLOSE

ALARM SYSTEM ANTI- THEFT ENGINE DISABLE FUSE ALARM SYSTEM ANTI-THEFT ENGINE DISABLE FUSE FUSE 111 CENTRAL LOCKING/ ANTI- THEFT WARNING SYSTEM FUSE CENTRAL LOCKING/ ANTI-THEFT WARNING SYSTEM FUSE FUSE 144 CONVERTIBLE TOP FUSE DIRECT SHIFT GEARBOX MECHATRONIC FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 3 FUSE 23 FUSE 4 FUSE 22 FUSE 13 FUSE 5 FUSE 5 FUSE 12 FUSE 6 FUSE 7 FUSE 7 FUSE 6 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 15 FUSE 13 FUSE 18 FUSE 18 FUSE 21 FUSE 20 FUSE 19 FUSE 20 FUSE 19 FUSE 22 FUSE 21 FUSE 23 FUSE 23 FUSE 22 FUSE 5 FUSE 3 FUSE 24 FUSE 24 FUSE 33 FUSE 25 FUSE 26 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 44 FUSE 36 FUSE 37 FUSE 16 FUSE 38 FUSE 40 FUSE 41 FUSE 42 FUSE 39 FUSE 44 FUSE 130 FUSE 144 FUSE 162 FUSE 163 FUSE 164 FUSE 176 FUSE 177 FUSE 178 FUSE 179 FUSE 180 FUSE 228 FUSE 229 FUSE 237 FUSE 239 FUSE 2 FUSE 243 FUSE 337 FUSE FUSE FUSE HOLDER FUSE PANEL HOT AT ALL TIMES FUSE 42 HOT AT ALL TIMES FUSE 238 HOT IN ON OR START FUSE 11 HOT W/ KEY IN IGNITION FUSE 5 FUSE 10 HOT W/ KEY IN IGNITION FUSE 10

HEADLIGHT WASHER PUMP LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

DRIVER'S BACKREST HEATING ELEMENT FRONT PASSENGER'S BACKREST HEATING ELEMENT FRONT PASSENGER'S SEAT HEATING ELEMENT HEATER-A/C CONTROL PANEL INSTRUMENT CLUSTER HEATER- A/C CONTROL PANEL

DRIVER'S CENTRAL SIDE LOCKING INTERIOR SAFE LOCK INDICATOR SWITCH LAMP GLOW PLUG INDICATOR LAMP IND MULTI-FUNCTION INDICATOR REAR WINDOW DEFOGGER INDICATOR

ASR/ESP CONTROL LAMP ASR/ESP CONTROL LAMP IND ELECTRONIC POWER CONTROL LAMP IND FRONT PASSENGER EXTERIOR MIRROR TURN SIGNAL LAMP INTERIOR LIGHTS SYSTEM INSTRUMENT CLUSTER SYSTEM MIRRORS SYSTEM INTERIOR LIGHTS SYSTEM POWER TOPS SYSTEM LEFT BACKUP LAMP LEFT BRAKE/ TAILLIGHT LAMP LEFT FRONT FOG LAMP LEFT FRONT SIDE MARKER LAMP LEFT FRONT TURN SIGNAL LAMP LEFT PARKING LAMP LEFT REAR SIDE MARKER LAMP LEFT REAR TURN SIGNAL LAMP LICENSE PLATE LIGHTS REAR LID UNLOCK LAMP IND RIGHT BACKUP LAMP RIGHT BRAKE/ TAILLIGHT LAMP RIGHT FRONT FOG LAMP RIGHT PARKING LAMP RIGHT REAR SIDE MARKER LAMP RIGHT REAR TURN SIGNAL LAMP RIGHT RIGHT FRONT FRONT SIDE TURN MARKER SIGNAL LAMP LAMP SELECTOR LEVEL POSITION P/N WARNING LAMP SUPPLEMENTAL RESTRAINTS SYSTEM INTERIOR LIGHTS SUPPLEMENTAL RESTRAINTS SYSTEM INTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM TIRE PRESSURE MONITORING DISPLAY IND LAMP TIRE PRESSURE MONITORING DISPLAY IND LAMP IND

ABS HYDRAULIC PUMP CONVERTIBLE TOP HYDRAULIC PUMP CONVERTIBLE TOP HYDRAULIC PUMP, RELAYS FUEL PUMP LEAK DETECTION PUMP TRANSFER FUEL PUMP WINDSHIELD, REAR WINDOW WASHER PUMP

BACKUP LIGHT RELAY DAYTIME RUNNING LIGHTS CHANGE- OVER RELAY FOG LIGHT RELAY FUEL FUEL PUMP PRIMER RELAY RELAY FUEL PRIMER RELAY HORN RELAY HOT W/ FUEL PRIMER RELAY ENERGIZED HOT W/ LOAD REDUCTION RELAY ENERGIZED LEFT HIGH/ LOW BEAM SWITCH OVER RELAY LEFT SIDE OF DASH, INTEGRAL TO RELAY PANEL) LOAD REDUCTION RELAY PARK/ NEUTRAL POSITION RELAY PARK/NEUTRAL POSITION RELAY RIGHT HIGH/ LOW BEAM SWITCH OVER RELAY STARTER INTERLOCK RELAY THIRTEEN POSITION AUXILIARY RELAY PANEL THIRTEEN POSITION AUXILIARY RELAY PANEL (BEHIND FOG- LIGHT RELAY WIPER/ WASHER INTERMITTENT RELAY WIPER/WASHER INTERMITTENT RELAY

BRAKE BOOSTER SENSOR 1 DRIVER'S FRONT AIR- BAG CRASH SENSOR DRIVER'S HEATED SEAT TEMPER- ATURE SENSOR DRIVER'S SEAT HEATING ELEMENT DRIVER'S HEATED SEAT TEMPERATURE SENSOR ESP SENSOR UNIT EVAPORATOR VENT TEMPERATURE SENSOR FRONT PASSENGER'S HEATED SEAT TEMPER- ATURE SENSOR FUEL LEVEL SENSOR HEATED OXYGEN SENSOR HIGH PRESSURE SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT LEVEL CONTROL SYSTEM SENSOR LEFT FRONT TIRE PRESSURE MONITORING SENSOR LEFT REAR ABS WHEEL SPEED SENSOR LEFT REAR LEVEL CONTROL SYSTEM SENSOR LEFT REAR TIRE PRESSURE MONITORING SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR OXYGEN SENSOR BEHIND 3-WAY CATAYTIC PASSENGER'S FRONT AIR BAG CRASH SENSOR PASSENGER'S HEATED SEAT TEMPERATURE SENSOR RAIN SENSOR RIGHT FRONT TIRE PRESSURE MONITORING SENSOR RIGHT REAR TIRE PRESSURE MONITORING SENSOR SEAT OCCUPIED RECOGNITION BELT FORCE SENSOR SEAT OCCUPIED RECOGNITION PRESSURE SENSOR SPEEDO- METER VEHICLE SPEED SENSOR STEERING ANGLE SENSOR TRANS- TRANS- MISSION MISSION FLUID RPM TEMP- SENSOR ERATURE SENSOR

LEFT FRONT BASS SPEAKER LEFT FRONT MIDRANGE SPEAKER LEFT FRONT TREBLE SPEAKER LEFT LEFT FRONT FRONT MIDRANGE BASS SPEAKER SPEAKER LEFT REAR BASS SPEAKER LEFT REAR TREBLE SPEAKER LEFT RIGHT REAR REAR TREBLE TREBLE SPEAKER SPEAKER RIGHT FRONT BASS SPEAKER RIGHT FRONT MIDRANGE SPEAKER RIGHT FRONT TREBLE SPEAKER RIGHT REAR BASS SPEAKER RIGHT REAR TREBLE SPEAKER

A/C SWITCH ASR/ ESP SWITCH ASR/ESP SWITCH BRAKE FLUID LEVEL WARNING SWITCH BRAKE LIGHT SWITCH CLUTCH PEDAL SWITCH CONVER- TIBLE TOP OPERATION SWITCH CONVERTIBLE CONVERTIBLE TOP CONTROL TOP OPEN MODULE POSITION SWITCH CONVERTIBLE TOP CLOSED COVER SWITCH CONVERTIBLE TOP OPEN POSITION SWITCH CONVERTIBLE TOP OPERATION SWITCH CONVERTIBLE TOP SWITCH ILLUMINATION CONVERTIBLE TOP TONNEAU COVER SWITCH CONVERTIBLE TOP TONNEAU LOCK SWITCH COOLANT FAN CONTROL THERMAL SWITCH CRUISE CONTROL SWITCH DIMMER SWITCH DRIVER INTERIOR LOCK SWITCH DRIVER INTERIOR LOCKING SWITCH DRIVER VANITY MIRROR LIGHT CONTACT SWITCH DRIVER'S MAKE-UP MIRROR LIGHT CONTACT SWITCH DRIVER'S SIDE INTERIOR LOCK SWITCH EMERGENCY FLASHER SWITCH FRESH AIR BLOWER SWITCH FRESH AIR BLOWER/ RECIRCULATED AIR SWITCH FRESH/ RECIRC FLAP SWITCH FRESH/AIR RECIRCULATING AIR SWITCH FRONT PASSENGER INTERIOR LOCK SWITCH FRONT PASSENGER VANITY MIRROR LIGHT CONTACT SWITCH GLOVE COMPARTMENT LAMP SWITCH GLOVE COMPARTMENT SWITCH HEAD OFF PARK PARK HEADLIGHT SWITCH HEADLIGHT DIMMER/ FLASHER SWITCH HEADLIGHT DIMMER/ FLASHER SWITCH FLASH TO PASS HEATED MIRRORS SWITCH HOOD ALARM SWITCH HOT AT ALL TIMES IGNITION SWITCH HOT AT ALL TIMES IGNITION SWITCH KEY IN IGNITION HOT AT ALL TIMES IGNITION/ STARTER SWITCH IGNITION SWITCH IGNITION/ STARTER SWITCH INSTRUMENT PANEL DIMMING SWITCH INSTRUMENT PANEL LIGHT DIMMER SWITCH KEY-IN IGNITION SWITCH LEFT CONVERTIBLE CONVERTIBLE TOP CLOSED TOP CLOSED POSITION SWITCH LOCK SWITCH LEFT CONVERTIBLE TOP CLOSED LOCK SWITCH LEFT CONVERTIBLE TOP OPEN LOCK SWITCH LEFT FRONT POWER WINDOW SWITCH LEFT FRONT SEAT BELT MICRO SWITCH LEFT FRONT WINDOW SWITCH LEFT HIGH/ LOW BEAM SWITCH LEFT MAKE-UP MIRROR LIGHT SWITCH LIGHT SWITCH LIGHT SWITCH FOG LIGHT SWITCH HEAD ON OFF OFF LIGHT SWITCH ON WARNING BUZZER LUGGAGE COMPARTMENT LIGHT SWITCH MIRROR ADJUSTMENT SWITCH MIRROR ADJUSTMENT SWITCH ILLUMINATION MIRROR SELECTOR SWITCH MULTI-FUNCTION TRANSMISSION RANGE SWITCH OIL PRESSURE SWITCH OUTSIDE MIRROR HEATING SWITCH PARKING BRAKE WARNING LIGHT SWITCH PASSENGER'S SIDE INTERIOR LOCK SWITCH POWER MIRROR SWITCH POWER WINDOW SWITCH REAR LID REMOTE POWER UNLOCK MIRROR SWITCH SWITCH REAR LID REMOTE UNLOCK SWITCH REAR LID REMOTE UNLOCK SWITCH LEFT FRONT WINDOW SWITCH REAR LID UNLOCK SWITCH REAR WINDOW DEFOGGER SWITCH REAR WINDOW DEFOGGER SWITCH FRONT PASSENGER INTERIOR LOCK SWITCH REMOTE FUEL TANK FLAP SWITCH REMOTE/ FUEL TANK DOOR SWITCH LEFT FRONT WINDOW SWITCH RIGHT CONVERTIBLE TOP CLOSED LOCK SWITCH RIGHT CONVERTIBLE TOP OPEN LOCK SWITCH RIGHT FRONT WINDOW SWITCH RIGHT HIGH/ LOW BEAM SWITCH RIGHT MAKE-UP MIRROR LIGHT SWITCH TRUNK LID RELEASE SWITCH TRUNK LID RELEASE, LUGGAGE COMPARTMENT LAMP SWITCH TURN SIGNAL SWITCH WINDSHIELD ALARM WIPER/WASHER HORN SWITCH WINDSHIELD WIPER/ WASHER SWITCH WINDSHIELD WIPER/WASHER SWITCH

CAMSHAFT ADJUSTMENT VALVE 1 LEFT REAR ABS INLET VALVE LEFT REAR ABS OUTLET VALVE LEFT ROLLOVER SOLENOID RIGHT FRONT ABS INLET VALVE RIGHT FRONT ABS OUTLET VALVE RIGHT REAR ABS INLET VALVE RIGHT ROLLOVER SOLENOID SHIFT LOCK PNP SELECTOR SOLENOID LEVER SCALE LIGHT SHIFT LOCK SOLENOID SOLENOID VALVES VALVE BODY

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/WHT/GRN WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/RED WIRE BLU/VIO WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/RED WIRE BRN/VIO WIRE BRN/WHT WIRE BRN/YEL WIRE GRN GRY/ WIRE GRN WIRE GRN/BLK WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/RED WIRE GRN/VIO WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/GRN WIRE GRY/RED WIRE GRY/VIO WIRE GRY/WHT WIRE GRY/YEL WIRE NCA WIRE ORG VIO/ WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/BRN WIRE ORG/GRN WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/BRN WIRE RED/GRN WIRE RED/GRY WIRE RED/VIO WIRE RED/WHT WIRE RED/YEL WIRE RUN WIRE VIO WIRE VIO/BLK WIRE VIO/BLU WIRE VIO/BRN WIRE VIO/GRN WIRE VIO/GRY WIRE VIO/ORG WIRE VIO/RED WIRE VIO/WHT WIRE VIO/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/GRY WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE WIRE TAPED TO WIRING HARNESS YEL GRY/ WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/RED WIRE YEL/VIO WIRE YEL/WHT WIRE

2 1 SOLID STATE 3 4 CLOSE OPEN 5 6 7 8 9 10 11 12 13 14 15 INSTRUMENT CLUSTER SYSTEM 6 SPEED 6 SPEED A/T 6-SPEED A/T DIRECT SHIFT 6-SPEED A/T DIRECT SHIFT A/T (ON RIGHT SIDE OF LUGGAGE COMPARTMENT, (OR ABS WARNING ABS WARNING IND AIR BAG MALFUNCTION IND. AIR BAG SPIRAL SPRING/RETURN SPRING W/SLIP RING AIR CONDITIONING SYSTEM ANTI SLIP ILLUM ANTI-THEFT SYSTEM ANTI-THEFT, DOOR LOCKS, SOUND SYSTEMS ASC WARNING ASHTRAY LIGHT AUTOMATIC DAY/NIGHT INTERIOR MIRROR AUXILIARY EXTERNAL BRAKE PAD WEAR IND BRAKE SYSTEM WARNING BRAKE SYSTEM WARNING IND CD CHANGER CENTRAL LOCKING/ ANTI-THEFT WARNING SYSTEM CIGARETTE LIGHTER CIRCUIT BREAKER 43 CIRCUIT BREAKER 43 COMPUTER DATA LINES SYSTEM COMFORT SYSTEM CENTRAL MODULE COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM POWER TOPS SYSTEM CONVERTIBLE EXCEPT CONVERTIBLE CONVERTIBLE LATE PRODUCTION CONVERTIBLE TOP CIRCUIT BREAKER COOLANT TEMPE- RATURE GAUGE COOLING FANS SYSTEM CRUISE CONTROL LIGHT IND CRUISE CONTROL SYSTEM CYLINDER 1 FUEL INJECTOR CYLINDER 2 FUEL INJECTOR CYLINDER 3 FUEL INJECTOR CYLINDER 4 FUEL INJECTOR CYLINDER 5 FUEL INJECTOR DEFOGGER SYSTEMS DIGITAL CLOCK DIGITAL DISPLAY LIGHT DIGITAL DISPLAY LIGHT IND DIRECT SHIFT DIRECT SHIFT GEARBOX MECHAN- TRONIC DIRECT SHIFT GEARBOX MECHATRONIC DIRECT SHIFT GEARBOX MECHTRONIC DRIVER EXTERIOR MIRROR TURN SIGNAL LIGHT DRIVER ILLUM- INATED VANITY MIRROR LIGHT DRIVER SIDE AIRBAG IGNITER 1 DRIVER SIDE AIRBAG IGNITER 2 DRIVER SIDE HEATED OUTSIDE MIRROR DRIVER'S SIDE POWER MIRROR DRIVER'S SIDE SIDE AIR BAG IGNITER EARLY PRODUCTION EXCEPT CONVERTIBLE EXCEPT CONVERTIBLE, CONVERTIBLE EARLY PRODUCTION FRESH AIR BLOWER FRONT INTERIOR LIGHT FRONT PASSENGER DOOR CENTRAL FRONT PASSENGER EXTERIOR MIRROR TURN SIGNAL LIGHT FRONT PASSENGER ILLUMINATED VANITY MIRROR LIGHT FRONT PASSENGER SIDE HEATED OUTSIDE MIRROR FUEL DOOR RELEASE CIRCUIT FUEL FUEL INJECTION INJECTION FUEL GAUGE FUEL INJECTION GLOVE COMPARTMENT LIGHT HEAD OFF OFF PARK PARK HEAD OFF PARK HEAD PARK HEADLIGHTS SYSTEM HEATED OXYGEN HEATED REAR WINDOW HIGH BEAM IND HIGH MOUNT BRAKE LIGHT HOT AT ALL TIMES HOT AT ALL TIMES CIRCUIT BREAKER 43 HOT IN ON HOT IN ON OR START HOT IN RUN OR START HOT W/ KEY IN IGNITION IGNITION COILS INSTRUMENT CLUSTER INSTRUMENT CLUSTER HIGH BEAM IND INSTRUMENT CLUSTER SYSTEM INSTRUMENT PANEL ILLUMINATION DIMMER KEY IN IGNITION LATE PRODUCTION LEFT BACKUP LIGHT LEFT FRONT FOG LIGHT LEFT FRONT TURN SIGNAL LIGHT LEFT FRONT SIDE MARKER LIGHT LEFT FRONT TWEETER LEFT FRONT WOOFER LEFT HEAD LIGHT ASSEMBLY LEFT HEAD- LIGHT ASSEMBLY PARK LEFT MAKE-UP MIRROR LIGHT LEFT PARKING LIGHT LEFT REAR READING LIGHT LEFT REAR WOOFER LEFT RIGHT LEFT RIGHT LICENSE LICENSE PLATE PLATE LIGHT LIGHT LEFT RIGHT TURN IND TURN IND LEFT SEAT BELT TENSIONER IGNITER LEFT TURN IND LOW FUEL LEVEL WARNING IND LOW HIGH LUGGAGE COMPARTMENT LIGHT M/T A/T MANUAL CONVERTIBLE TOP POWER CONVERTIBLE TOP MIRROR ADJUSTMENT SWITCHES ODOMETER DISPLAY OFF HEAD PARK OFF PARK OIL PRESSURE WARNING IND ON DOOR OPEN CLOSE PARK LOW HIGH HIGH PARKING BRAKE IND. PASSENGER SIDE AIR BAG OFF IND WARNING LIGHT PASSENGER'S SIDE AIR BAG IGNITER 1, 2 PASSENGER'S SIDE POWER MIRROR PASSENGER'S SIDE SIDE AIR BAG IGNITER POWER TOPS SYSTEM POWER WINDOW CIRCUIT BREAKER PRODUCTION) REAR LID UNLOCKED WARNING IND REAR WINDOW DEFOGGER ILLUMINATION RIGHT BACKUP LIGHT RIGHT COOLANT FAN RIGHT FRONT FOG LIGHT RIGHT FRONT SIDE MARKER LIGHT RIGHT FRONT TURN SIGNAL LIGHT RIGHT FRONT TWEETER RIGHT FRONT WOOFER RIGHT HEAD LIGHT ASSEMBLY RIGHT MAKE-UP MIRROR LIGHT RIGHT PARKING LIGHT RIGHT REAR POWER RIGHT REAR READING LIGHT RIGHT REAR TURN SIGNAL LIGHT LEFT REAR TURN SIGNAL LIGHT RIGHT REAR WOOFER RIGHT SEAT BELT TENSIONER IGNITER RIGHT TURN IND RTIBLE) SATELLITE RADIO SELECTOR LEVEL POSITION P/N WARNING LIGHT SET SW SOLID STATE SOUND SYSTEMS STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM TIRE PRESSURE MONITORING DISPLAY IND TO SPARK PLUG TRANS- MISSION A/T RPM HYDRAULIC SENDER PRESSURE SENDER W/ AUTOMATIC DAY/NIGHT INTERIOR MIRROR W/ ESP W/O AUTOMATIC DAY/NIGHT INTERIOR MIRROR WARNING BUZZER
