Toyota Yaris III (2010-2014) map light assembly Wiring diagram
This page shows the only wiring diagram for the component.map light assembly, which is found in the car Toyota Yaris III (2010-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

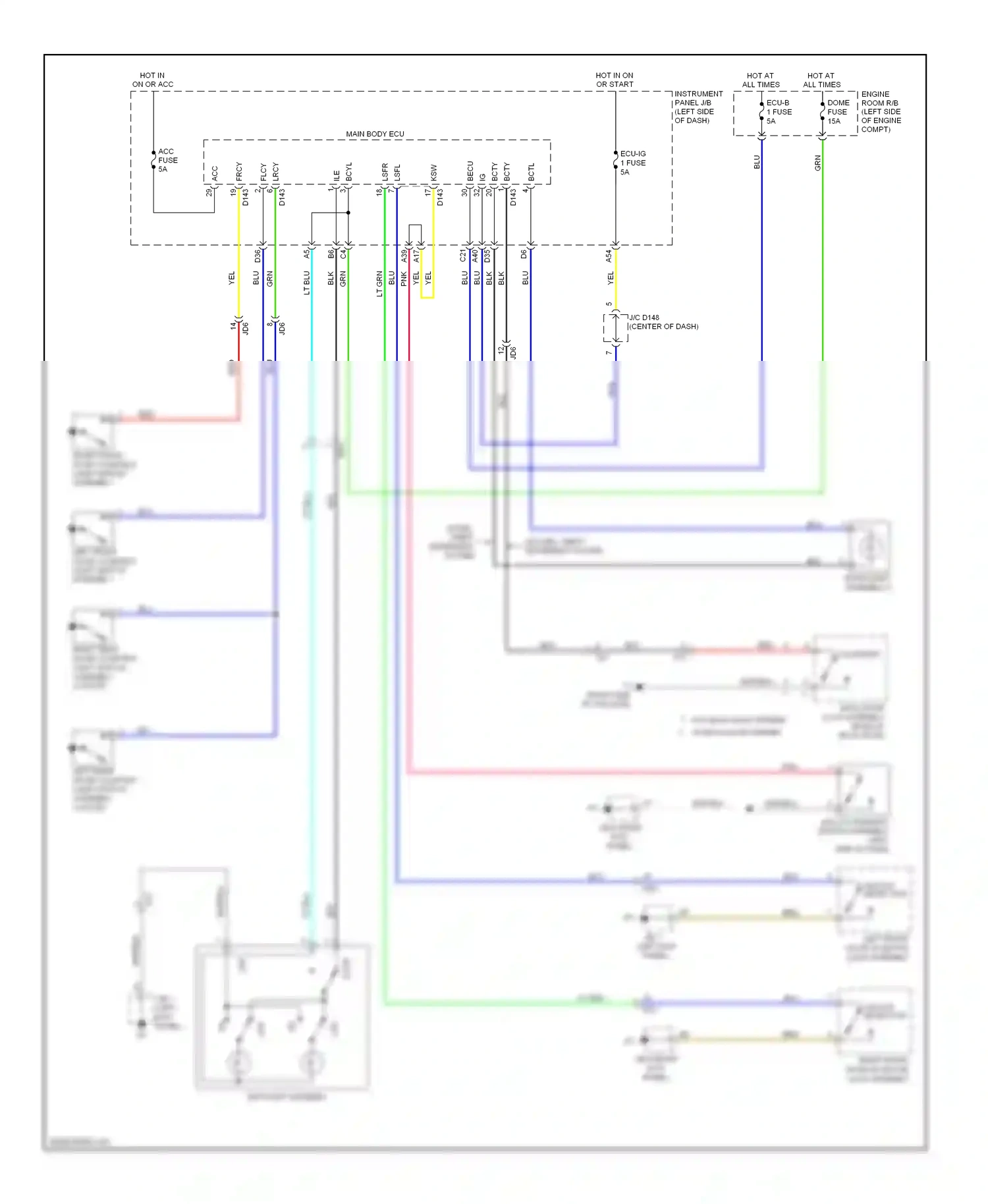

Wiring diagram map light assembly (1 of 1)
BACK DOOR LOCK ASSEMBLY (BASE OF BACK DOOR)
BLK WIRE
BLU WIRE
BRN WIRE
COURTESY
DOME FUSE
DOOR
ECU- IG 1 FUSE
ECU-B 1 FUSE
ENGINE ROOM R/B (LEFT SIDE OF ENGINE COMPT)
FUSE
GRN WIRE
HOT AT ALL TIMES
HOT IN ON OR ACC
HOT IN ON OR START
INSTRUMENT PANEL J/B (LEFT SIDE OF DASH)
J/B 7 (LEFT KICK PANEL)
J/B 8 (RIGHT KICK PANEL)
LEFT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
LEFT FRONT DOOR W/ MOTOR LOCK ASSEMBLY
LEFT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (5 DOOR)
LT BLU WIRE
LT GRN WIRE
MAIN BODY ECU
MAP LIGHT ASSEMBLY
OFF
PNK WIRE
RED WIRE
RIGHT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
RIGHT FRONT DOOR W/ MOTOR LOCK ASSEMBLY
RIGHT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (5 DOOR)
ROOM LIGHT ASSEMBLY 2
UNLOCK DETECTION
UNLOCK WARNING SWITCH ASSEMBLY (LEFT SIDE OF DASH)
W/ DRL, THEFT DETERRENT SYSTEM
W/O BACK DOOR OPENER W/ BACK DOOR OPENER
W/O DRL, THEFT DETERRENT SYSTEM
WHT/BLK WIRE
YEL WIRE
Go to component -> Courtesy lamps circuit, hatchback -> MAP LIGHT ASSEMBLY
