Wiring Diagrams for Toyota Tundra III (2021-2024)

Acoustic vehicle altering system circuit Front active spoiler system circuit Grille shutter circuit

Automatic a/c circuit

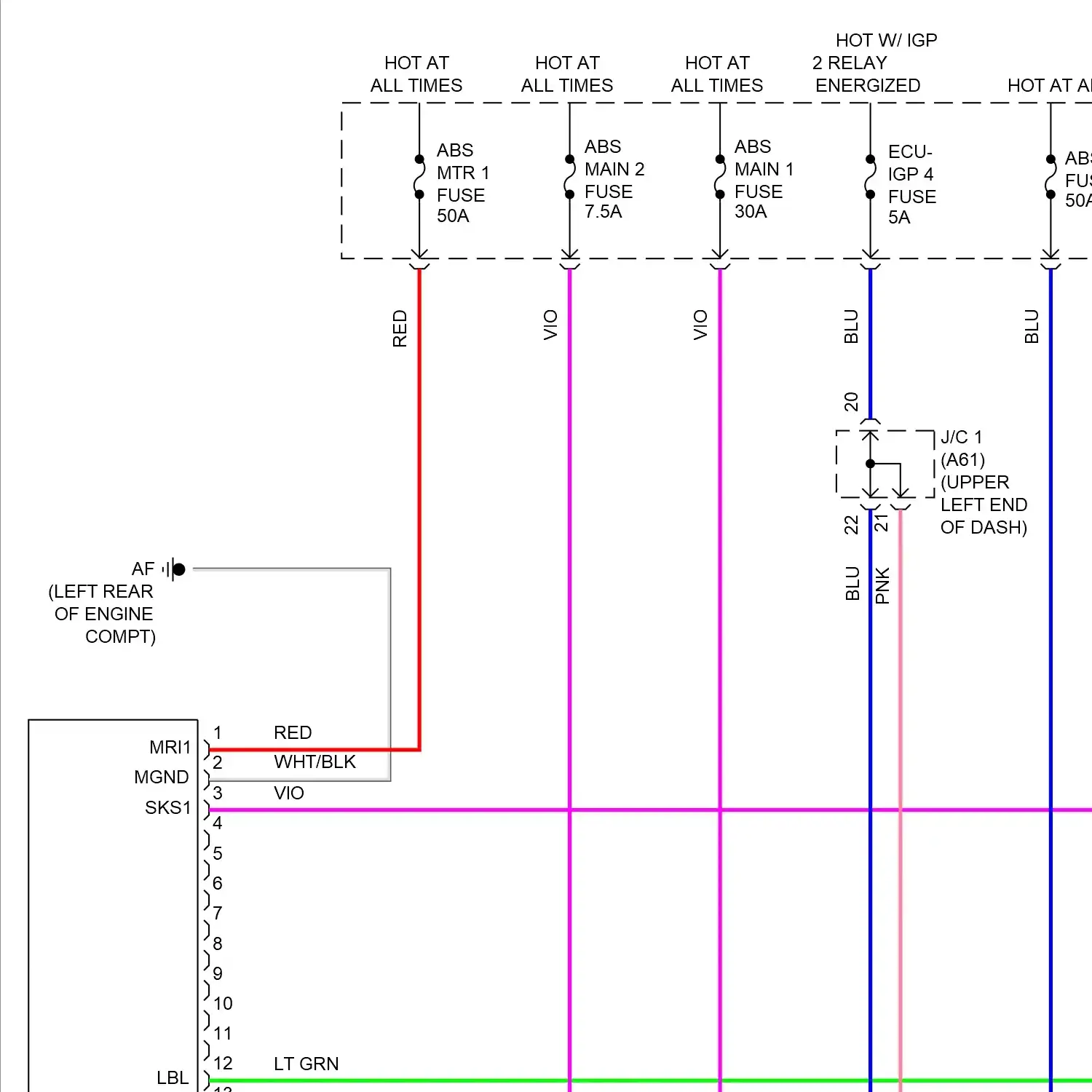

Anti-lock brakes circuit, except hybrid Anti-lock brakes circuit, hybrid

Forced entry circuit Immobilizer circuit

Body ecu circuit Semiconductor power integration ecu circuit

Computer data lines circuit, except hybrid Computer data lines circuit, hybrid

Battery cooling fan circuit Cooling fan circuit

Cruise control circuit

Front deicer circuit Mirror heater & rear defogger circuit

Electronic power steering circuit Power tilt steering column circuit

Electronic suspension circuit, w/ adaptive variable suspension Electronic suspension circuit, w/o adaptive variable suspension

Wiring diagram engine performance 3.4l turbo

Wiring diagram engine performance 3.4l turbo hybrid, engine controls circuit Wiring diagram engine performance 3.4l turbo hybrid, hybrid system circuit

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit, w/ headlamp ecu Headlights circuit, w/o headlamp ecu

Horn circuit

Instrument cluster circuit, w/ 12.3 inch monitor Instrument cluster circuit, w/ 4.2 inch monitor

Cargo light circuit Courtesy lamps circuit Instrument illumination circuit

Memory mirrors circuit Memory power tilt & power telescopic circuit Memory seat circuit

Blind spot monitoring circuit Lane departure warning circuit Navigation circuit, w/ built-in amplifier Navigation circuit, w/ separate amplifier Parking assistant circuit, w/o panoramic Parking assistant circuit, w/ panoramic Telematics circuit

Power distribution circuit, except hybrid Power distribution circuit, hybrid

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit, 2-way lumbar support Passenger power seat circuit, 4-way lumbar support Rear heated seats circuit

Power top/sunroof circuit, w/o panoramic Power top/sunroof circuit, w/ panoramic

Power windows circuit

Radio circuit, w/ built-in amplifier Radio circuit, w/ separate amplifier

Electric parking brake circuit Shift interlock circuit

Charging circuit Starting circuit Stop & start circuit

Supplemental restraints circuit

4wd circuit A/t circuit

Fuel door release circuit Retractable running boards circuit Tailgate release circuit

Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

AIR CONDITIONING AMPLIFIER ASSEMBLY ANTI-LOCK BRAKES SYSTEM AUXILIARY BATTERY BATTERY COOLING BLOWER ASSEMBLY BATTERY COOLING BLOWER ASSEMBLY 2 HIGH PITCHED HORN ASSEMBLY HOOD LOCK ASSEMBLY HV BATTERY JUNCTION BLOCK ASSEMBLY HV SUPPLY BATTERY ASSEMBLY HYBRID BATTERY TERMINAL BLOCK HYBRID VEHICLE BATTERY IGNITION COIL ASSEMBLY 1 IGNITION COIL ASSEMBLY 2 IGNITION COIL ASSEMBLY 3 IGNITION COIL ASSEMBLY 4 IGNITION COIL ASSEMBLY 5 IGNITION COIL ASSEMBLY 6 LEFT FRONT DOOR LOCK ASSEMBLY LOW PITCHED HORN ASSEMBLY RIGHT FRONT DOOR LOCK ASSEMBLY SECURITY HORN ASSEMBLY STARTER ASSEMBLY STEREO COMPONENT AMPLIFIER ASSEMBLY TELEMATICS TRANSCEIVER W/ BUILT IN TYPE AMPLIFIER W/ BUILT-IN AMPLIFIER W/ BUILT-IN AMPLIFIER AUDIO SYSTEM W/ SEPARATE AMPLIFIER W/ SEPARATE AMPLIFIER AUDIO SYSTEM W/O BUILT-IN TYPE AMPLIFIER WIRELESS DOOR LOCK BUZZER

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE BLOWER W/ FAN MOTOR SUB ASSEMBLY COMPRESSOR W/ MOTOR ASSEMBLY CONDENSER BLOWER MOTOR ASSEMBLY COOLING FAN W/ CONTROLLER MOTOR ENGINE CONTROLS SYSTEM ENGINE ROOM J/B 1 ENGINE ROOM J/B 2 ENGINE ROOM R/B 1 ENGINE ROOM R/B 2 FRONT SPOILER LINK MOTOR SUB-ASSEMBLY FUEL LID LOCK W/ MOTOR ASSEMBLY HV MOTOR CONTROL INVERTER ASSEMBLY LEFT HEADLIGHT LEVELING MOTOR LEFT PARKING BRAKE ACTUATOR ASSEMBLY LEFT REAR ABSORBER CONTROL ACTUATOR LEFT REAR DOOR W/ MOTOR LOCK ASSEMBLY LEFT SIDE AUTO STEP MOTOR ASSEMBLY RIGHT HEADLIGHT LEVELING MOTOR RIGHT PARKING BRAKE ACTUATOR ASSEMBLY RIGHT REAR ABSORBER CONTROL ACTUATOR RIGHT REAR DOOR W/ MOTOR LOCK ASSEMBLY RIGHT SIDE AUTO STEP MOTOR ASSEMBLY SERVO MOTOR TAILGATE LOCK ACTUATOR ASSEMBLY W/ MOTOR COMPRESSOR ASSEMBLY WINDSHIELD WIPER MOTOR ASSEMBLY

ELECTRICAL KEY ANTENNA INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 2

GENERATOR W/ REGULATOR ASSEMBLY LEFT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR DOOR WINDOW REGULATOR SUB ASSEMBLY LEFT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY POWER WINDOW REGULATOR MOTOR ASSEMBLY POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT REAR DOOR WINDOW REGULATOR SUB ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

FORWARD RECOGNITION CAMERA LEFT SIDE TELEVISION CAMERA ASSEMBLY REAR TELEVISION CAMERA ASSEMBLY REAR TELEVISION CAMERA ASSEMBLY 2 RIGHT FRONT TELEVISION CAMERA ASSEMBLY RIGHT REAR TELEVISION CAMERA ASSEMBLY RIGHT SIDE TELEVISION CAMERA ASSEMBLY

DATA LINK CONNECTOR 3 OPTION CONNECTOR 1 OPTION CONNECTOR 2 POWER OUTLET SOCKET ASSEMBLY 1 POWER OUTLET SOCKET ASSEMBLY 2 POWER OUTLET SOCKET ASSEMBLY 3 SHORT CONNECTOR 1 USB CHARGER SOCKET USB CHARGER SOCKET 2 WIRING HARNESS CONNECTOR

ENGINE CONTROL MODULE

4 WHEEL DRIVE CONTROL ECU ABSORBER CONTROL ECU AIR BAG ECU ASSEMBLY AIR CONDITIONING UNIT ASSEMBLY CLEARANCE WARNING ECU ASSEMBLY ECU- DCC 1 FUSE ECU- IGP 1 FUSE ECU- IGP 2 FUSE ECU-ACC FUSE ECU-B 1 FUSE ECU-B 2 FUSE ECU-B 3 FUSE ECU-DCC 2 FUSE ECU-IGP 3 FUSE ECU-IGP 4 FUSE ECU-IGR 1 FUSE ECU-IGR 2 FUSE ECU-IGR 3 FUSE ECU-IGR 4 FUSE ECU-IGR 4 IGR FUSE ENGINE STOP, START ECU FUEL PUMP CONTROL ECU HYBRID VEHICLE ECU ASSEMBLY LEFT FRONT POSITION CONTROL ECU ASSEMBLY LEFT HEADLIGHT ECU SUB-ASSEMBLY LEFT OUTER MIRROR CONTROL ECU ASSEMBLY MAIN BODY ECU MULTIPLEX NETWORK STEERING ECU MULTIPLEX NETWORK STEERING ECU HEATING ELEMENT MULTIPLEX TILT, TELESCOPIC ECU NETWORK GATEWAY ECU PARKING ASSIST ECU RIGHT HEADLIGHT ECU SUB-ASSEMBLY RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY SEMICONDUCTOR POWER INTEGRATION ECU SEMICONDUCTOR POWER INTEGRATION ECU CIRCUIT SIDE AUTO STEP CONTROLLER ECU ASSEMBLY STEERING ECU STEERING HEATER ECU STRG-ECU FUSE SUSPENSION CONTROL ECU TRANSMISSION CONTROL ECU ASSEMBLY W/O HEADLIGHT ECU W/O TRAILER BRAKE CONTROL ECU

A/BAG-IGR FUSE A/C RR FUSE A/F 1 FUSE A/F 2 FUSE A/F- MAIN FUSE ABS 1 FUSE ABS 2 FUSE ABS MAIN 2 FUSE ABS MTR 1 FUSE ABS- MAIN 1 FUSE AIRSUS FUSE AIRSUS- IGR FUSE ALT FUSE AMP 1 FUSE AMP 2 FUSE AVS FUSE BATT FAN 1 FUSE BATT FAN 2 FUSE BATT- FAN MAIN 1 FUSE BATT-S 1 FUSE BATT-S 2 FUSE BBC 1 FUSE BBC 2 FUSE BBC 3 FUSE BBC 4 FUSE BBC 5 FUSE BCC 1 FUSE BKUP LP FUSE CDS FAN FUSE D/C CUT FUSE D/L FUSE DC/DC FUSE DCM FUSE DEICER FUSE DOME CUT FUSE DOME FUSE DOOR BACK FUSE DOOR F/L FUSE DOOR F/R FUSE DOOR R/L FUSE DOOR R/R FUSE ECT-1 FUSE ECT-B FUSE ECT-IGP FUSE EDU 1 FUSE EDU 2 FUSE EDU 3 FUSE EDU 4 FUSE EDU- MAIN FUSE EFI 1 FUSE EFI 2 FUSE EFI 3 FUSE EFI 4 FUSE EFI- IGP FUSE EFI- MAIN 1 FUSE EFI- MAIN 2 FUSE EFI- MAIN 3 FUSE EFI-B 1 FUSE EFI-B 2 FUSE EFI-B 3 FUSE ENG- IGR 1 FUSE ENG-IGR 2 FUSE ENG-IGR 3 FUSE EPS-1 FUSE EPS-2 FUSE EPS- IGR 2 FUSE EPS-IGR FUSE ETCS FUSE FAN 1 FUSE FAN-2 FUSE FUEL OPN-PU FUSE G/H FUSE GRILLE SHUTTER FUSE HAZ FUSE HORN FUSE HTR FUSE IGCT 1 FUSE IGCT 2 FUSE IGCT 3 FUSE IGCT 4 FUSE IGCT- MAIN FUSE IGN FUSE IGN/ INJ- MAIN FUSE IGN/INJ- MAIN FUSE INJ FUSE INV FUSE INV W/ PMP 1 FUSE INV W/ PMP 2 FUSE J/B ALT 1 FUSE J/B ALT 2 FUSE J/B-B FUSE LED BEAM FUSE MAIN R/B FUSE METER-IGR FUSE MIR MTR FUSE OBD FUSE OIL PMP FUSE P/ OUTLET 1 FUSE P/I FUSE P/SEAT D FUSE P/SEAT P FUSE P/W BACK 1 FUSE PBD FUSE PCU FUSE PFS 1 FUSE PFS 2 FUSE PM IGCT FUSE PRB FUSE PTC HTR 1 FUSE PTC HTR 2 FUSE RADIO FUSE S ROOF FUSE S-HORN FUSE S/HTR F/L FUSE S/HTR F/R FUSE S/HTR R/L FUSE S/HTR RR FUSE S/ROOF FUSE SHADE FUSE SPOILER FR FUSE ST FUSE STOP FUSE STRG LOCK FUSE SUB BATT FUSE SUB R/B FUSE TAIL GATE FUSE TI, TE FUSE TOWING BKUP FUSE TOWING BRK FUSE TOWING FUSE TOWING TAIL FUSE TOWING- IGR FUSE USB 1 FUSE WASHER FUSE WIPER FUSE

LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

FORWARD RECOGNITION W/ HEATER HOOD SUB-ASSEMBLY HEATER ACCESSORY ASSEMBLY HEATER ASSEMBLY HEATER ELEMENT LEFT FRONT SEAT CUSHION HEATER ASSEMBLY LEFT SEAT HEATER ASSEMBLY QUICK HEATER ASSEMBLY RIGHT FRONT SEAT CUSHION HEATER ASSEMBLY RIGHT SEAT HEATER ASSEMBLY STEERING HEATER

SHIFT POSITION INDICATOR TRANSFER POSITION INDICATOR

DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS, DEFOGGER, NAVIGATION SYSTEMS INTERIOR LIGHTS LEFT INTERIOR ILLUMINATION LAMP ASSEMBLY 1 RIGHT INTERIOR ILLUMINATION LAMP ASSEMBLY 1 RIGHT INTERIOR ILLUMINATION LAMP ASSEMBLY 2

BRAKE BOOSTER W/ ACCUMULATOR PUMP ASSEMBLY ELECTRIC WATER PUMP ASSEMBLY FUEL SUCTION W/ PUMP, GAUGE TUBE ASSEMBLY

A/F RELAY ACC RELAY AIRSUS RELAY ALL DOOR LOCK RELAY ALL DR LOCK RELAY BATT FAN 1 RELAY BATT-FAN 1 RELAY LUGGAGE ROOM R/B 1 CARGO LP RELAY CDS FAN RELAY CDS FAN RELAY ENGINE ROOM R/B 1 D DOOR UNLOCK RELAY D DR UNLOCK RELAY DEICER RELAY DOME CUT RELAY DOOR BACK RELAY EDU RELAY EFI MAIN 2 RELAY EFI- MAIN 1 RELAY EFI- MAIN 3 RELAY FUEL OPN RELAY HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ EFI MAIN 3 RELAY ENERGIZED HOT W/ EFI-MAIN 1 RELAY ENERGIZED HOT W/ IG RELAY ENERGIZED HOT W/ IGCT RELAY ENERGIZED HOT W/ IGP 1 RELAY ENERGIZED HOT W/ IGP 2 RELAY ENERGIZED HOT W/ IGR 1 RELAY ENERGIZED HOT W/ IGR 2 RELAY ENERGIZED HOT W/ IGR 3 RELAY ENERGIZED HOT W/ IGR 4 RELAY ENERGIZED IGCT RELAY IGN/INJ RELAY IGP 1 RELAY IGP 2 RELAY IGR 1 RELAY IGR 2 RELAY IGR 3 RELAY IGR 4 RELAY INV RELAY INV W/ PMP RELAY L/D DOOR UNLOCK RELAY L/D-DR UNLOCK RELAY MAIN RELAY MIR REVERSE LP RELAY MIR RLY+S RELAY MIR RLY-S RELAY MIR RLY-S RELAY POWER DISTRIBUTION BOX ASSEMBLY MIR RTC 1 RELAY MIR RTC 2 RELAY MIR RTC RELAY 1 MIR RTC RELAY 2 OIL PMP RELAY P/OUTLET RELAY P/W BACK 1 RELAY P/W BACK 2 RELAY P/W BACK RELAY 1 P/W BACK RELAY 2 PANEL RELAY PRECHARGE RELAY PTC HTR RELAY 1 PTC HTR RELAY 2 PWR EXT RELAY PWR RTC RELAY RELAY ENERGIZED RR DEF RELAY S-HORN RELAY ST RELAY SUB BATT RELAY TAIL GATE 1 RELAY TAIL GATE 2 RELAY TAIL RELAY TAILGATE 1 RELAY TAILGATE 2 RELAY TAILGATE RELAY 1 TAILGATE RELAY 2 TOWING BK/UP RELAY TOWING CONVERTER RELAY TOWING TAIL RELAY TOWING TAIL RLY-S RELAY WINDSHIELD WIPER RELAY ASSEMBLY WIPER RELAY

A/C EVAPORATOR TEMPERATURE SENSOR ACCELERATOR PEDAL W/ SENSOR ROD ASSEMBLY AIR BAG W/ ECU SENSOR ASSEMBLY AIR CONDITIONING PRESSURE SENSOR AIR FUEL RATIO SENSOR AIR FUEL RATIO SENSOR 2 AIR FUEL RATIO SENSOR 2 SHIELD AIR FUEL RATIO SENSOR 3 AIR FUEL RATIO SENSOR 3 SHIELD AIR FUEL RATIO SENSOR 4 AIR FUEL RATIO SENSOR 4 SHIELD AIR FUEL RATIO SENSOR SHIELD AUTOMATIC LIGHT CONTROL SENSOR BATTERY STATE SENSOR ASSEMBLY BATTERY VOLTAGE SENSOR BRAKE PEDAL STROKE SENSOR ASSEMBLY CRANK POSITION SENSOR CURRENT SENSOR E.F.I. ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL LEVEL SENSOR LEFT ACCELERATION SENSOR ASSEMBLY LEFT BLIND SPOT MONITOR SENSOR LEFT EFI VACUUM SENSOR ASSEMBLY LEFT FLOOR SIDE AIR BAG SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT CORNER ULTRASONIC SENSOR LEFT FRONT OCCUPANT CLASSIFICATION SENSOR LEFT FRONT SPEED SENSOR LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR CORNER ULTRASONIC SENSOR LEFT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LEFT REAR OCCUPANT CLASSIFICATION SENSOR LEFT REAR SPEED SENSOR LEFT SEAT POSITION AIR BAG SENSOR LEFT SIDE AIR BAG PRESSURE SENSOR LEFT SIDE AIR BAG SENSOR ASSEMBLY 2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY OIL TEMPERATURE SENSOR RAIN SENSOR RIGHT ACCELERATION SENSOR ASSEMBLY RIGHT BLIND SPOT MONITOR SENSOR RIGHT EFI VACUUM SENSOR ASSEMBLY RIGHT FLOOR SIDE AIR BAG SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT CORNER ULTRASONIC SENSOR RIGHT FRONT SPEED SENSOR RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR CORNER ULTRASONIC SENSOR RIGHT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RIGHT REAR SPEED SENSOR RIGHT SIDE AIR BAG PRESSURE SENSOR RIGHT SIDE AIR BAG SENSOR ASSEMBLY 2 STEERING SENSOR THROTTLE W/ THROTTLE POSITION SENSOR BODY ASSEMBLY TORQUE SENSOR TURBO PRESSURE SENSOR 1 TURBO PRESSURE SENSOR 2 VACUUM SENSOR ASSEMBLY VAPOR PRESSURE SENSOR

6 SPEAKER CENTER FRONT SPEAKER ASSEMBLY 2 LEFT FRONT SPEAKER ASSEMBLY 1 LEFT FRONT SPEAKER ASSEMBLY 2 LEFT FRONT SPEAKER ASSEMBLY 3 LEFT REAR SPEAKER ASSEMBLY LEFT REAR SPEAKER ASSEMBLY 2 RIGHT FRONT SPEAKER ASSEMBLY 1 RIGHT FRONT SPEAKER ASSEMBLY 2 RIGHT FRONT SPEAKER ASSEMBLY 3 RIGHT REAR SPEAKER ASSEMBLY RIGHT REAR SPEAKER ASSEMBLY 2 SPEAKER W/ BOX ASSEMBLY 1 VEHICLE APPROACHING SPEAKER ASSEMBLY VEHICLE APPROACHING SPEAKER ASSEMBLY 2 VEHICLE APPROACHING SPEAKER CONTROLLER

AUTO HIGH BEAM SWITCH BACK DOOR OPENER SWITCH ASSEMBLY COMBINATION SWITCH ASSEMBLY COMBINATION SWITCH ASSEMBLY 2 D AUTO SWITCH D DOWN SWITCH D UP SWITCH DECK LIGHT SWITCH ASSEMBLY DIMMER SWITCH DOOR CONTROL SWITCH ASSEMBLY FOG SWITCH FRONT VERTICAL SWITCH FRONT WASHER SWITCH FRONT WIPER SWITCH FUEL LID OPENER SWITCH HEADLIGHT LEVELING SWITCH HORN SWITCH INTER LOCK SWITCH LEFT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT FRONT POWER SEAT SWITCH LEFT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT STEERING SWITCH LEFT STEERING SWITCH STEERING PAD SWITCH ASSEMBLY LEVEL WARNING SWITCH ASSEMBLY LIFTER SWITCH LIGHT EMITTING DIODE ILLUMINATION SWITCH LIGHT SWITCH LUGGAGE ELECTRICAL KEY SWITCH LUMBAR H/R SWITCH LUMBAR U/D SWITCH MAIN SWITCH ASSEMBLY MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY NON-CONTACT SWITCH NON-CONTACT SWITCH RIGHT FRONT SEAT INNER BELT ASSEMBLY OUTER MIRROR EXTEND SWITCH OUTER MIRROR LIGHT SWITCH OUTER MIRROR SWITCH ASSEMBLY P SWITCH PARK/ NEUTRAL POSITION SWITCH ASSEMBLY PARK/NEUTRAL POSITION SWITCH ASSEMBLY PARKING SUPPORT BRAKE CANCEL SWITCH PUSH START SWITCH RECLINING SWITCH REFRESHING SEAT SWITCH RIGHT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT FRONT POWER SEAT SWITCH RIGHT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT STEERING SWITCH RL SWITCH RR SWITCH SEAT MEMORY SWITCH SEAT VARIABLE CUSHION SWITCH SIDE AUTO STEP SWITCH ASSEMBLY SLIDE SWITCH STEERING HEATER SWITCH STEERING PAD SWITCH ASSEMBLY STEERING WHEEL SWITCH HOUSING STOP LIGHT SWITCH STOP LIGHT SWITCH ASSEMBLY SWITCH, VOLUME ASSEMBLY TAIL GATE COURTESY SWITCH TAILGATE COURTESY SWITCH TILT, TELESCOPIC SWITCH TRAILER BRAKE CONTROL SWITCH TRANSFER POSITION SWITCH TRIP SWITCH TURN SIGNAL SWITCH VOLUME SWITCH W/L SWITCH W/O LUGGAGE ELECTRICAL KEY SWITCH WARNING CANCELING SWITCH ASSEMBLY WINDSHIELD WIPER SWITCH ASSEMBLY

DUTY VACUUM SWITCHING VALVE FUEL TANK SOLENOID MAIN VALVE ASSEMBLY HEIGHT CONTROL VALVE SUB- ASSEMBLY 2 LEFT AIR BY-PASS VALVE ASSEMBLY RIGHT AIR BY-PASS VALVE ASSEMBLY

+B PNK CANP WIRE BLK WIRE BLK) PPL WIRE BLK/DK GRN WIRE BLK/GRY WIRE BLK/WHT WIRE BLU WIRE BLU/BLK WIRE BLU/LT BLU WIRE BRN WIRE BRN/BLK WIRE BRN/YEL WIRE CAND PNK CANU WIRE CANN PNK CANP WIRE EC- PPL/PNK +B WIRE FR+ PPL/PNK FL+ WIRE GRN WIRE GRN/BLK WIRE GRY WIRE GRY/BLK WIRE GRY/WHT WIRE LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/WHT WIRE PLKC PNK WIRE PNK CANH WIRE PNK CLS WIRE PNK IGR WIRE PNK IND WIRE PNK LIN WIRE PNK SLC WIRE PNK SLS WIRE PNK SWIL WIRE PNK UL WIRE PNK VC WIRE PNK VCI WIRE PNK WCSW WIRE PNK WIRE PNK/ MPX+ WIRE PNK/BLK WIRE PNK/WHT WIRE PPL BLK) WIRE PPL/BLK WIRE PPL/BLU WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/ORG WIRE PPL/PNK IG WIRE PPL/PNK WIRE PPL/RED WIRE PPL/VIO WIRE PPL/WHT WIRE PTNK PNK WIRE RED WIRE RED/BLK WIRE RED/WHT WIRE SL PNK SR WIRE SSC PNK FSL+ WIRE TEM- PNK TIM- WIRE VIO WIRE VIO/BLK WIRE WHT PNK/ WIRE WHT WIRE WHT/BLK WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/RED WIRE

1) RIGHT TURN 2) RIGHT LANE CHANGE 3) NEUTRAL 4) LEFT LANE CHANGE 5) LEFT TURN 2 WAY 2-4 2-WAY LUMBAR SUPPORT 4-WAY LUMBAR SUPPORT 3.4L TURBO 3.4L TURBO 3.4L TURBO HYBRID 3.4L TURBO HYBRID 3.4L TURBO HYBRID W/ LED ILLUMINATION 4-WAY 4-WAY LUMBAR SUPPORT 4.2 INCH MONITOR 12.3 INCH MONITOR 14 INCH DISPLAY (LEFT REAR WHEEL (OR +BM +BWP +IG +SM -TR -TW -WR A/T CIRCUIT ACTIVE BODYWORKS SYSTEM AIR CONDITIONING CONTROL ASSEMBLY AIR CONDITIONING SYSTEM AIRSUS- IGR ANTI-THEFT SYSTEM AUTO HEAD BACK WINDOW ASSEMBLY BACKUP LAMPS BAT HEAD BBL+ BBR+ BCB+ BCL+ BCR+ BCV- BDL- BEDR PPL GND BFG EL BSL+ BSR+ BUS - CAN I/F CAN I/F CANL CAN JUNCTION TERMINAL 1 CAN JUNCTION TERMINAL 2 CAN L CANN PPL GND CB+ CB+ CV+ CENTER ACTIVE NOISE CONTROL MICROPHONE CENTER CONSOLE CENTER INNER REAR SEAT BELT ASSEMBLY CENTER STOP LIGHT ASSEMBLY CHARCOAL CANISTER ASSEMBLY CHARCOAL CANISTER SUB- ASSEMBLY 2 CLEARANCE WARNING BUZZER 1 CLEARANCE WARNING BUZZER 2 COMBINATION METER ASSEMBLY COMMUNICATION IC COMPUTER DATA LINES SYSTEM CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY COOLING FANS SYSTEM CREW CAB CSW+ CTR + CV+ CV- SHIELD SGND DCV+ DEFOGGER SYSTEM DIRECT FUEL INJECTOR ASSEMBLY 1 DIRECT FUEL INJECTOR ASSEMBLY 1 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 2 DIRECT FUEL INJECTOR ASSEMBLY 2 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 3 DIRECT FUEL INJECTOR ASSEMBLY 3 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 4 DIRECT FUEL INJECTOR ASSEMBLY 4 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 5 DIRECT FUEL INJECTOR ASSEMBLY 5 SHIELD DIRECT FUEL INJECTOR ASSEMBLY 6 DIRECT FUEL INJECTOR ASSEMBLY 6 SHIELD DK+ DOOR LOCKS, ANTI-THEFT SYSTEMS DOUBLE CAB DOWN AUTO DRL OFF EC+ ECO RUN VEHICLE CONVERTER ASSEMBLY EFC+ EL CR EL L OFF HF HU ELECTRICAL KEY, TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY ELECTRICAL KEY, TPMS RECEIVER ASSEMBLY ELECTROCHROMIC MIRROR CIRCUIT ENG- IGR 1 EX+ EXCEPT HYBRID FAL+ FAR- FLASHER CIRCUIT FLUID COUPLING ASSEMBLY FP- FR RR FRONT MARKER LIGHT ASSEMBLY FRONT VERTICAL FRV- FSL- FSW+ FUSIBLE LINK BLOCK ASSEMBLY GA- GB+ GROUND DISTRIBUTION SYSTEM GROUND J/C 3 GVO+ GVO- SHIELD GVG HEAD AUTO TAIL HEAD BAT ESS HEAD DRL OFF HEADLIGHTS SYSTEM HEIGHT CONTROL COMPRESSOR ASSEMBLY HF HU HF HU EL HORNS SYSTEM HOT AT ALL TIMES HU HF HYBRID SYSTEM HYBRID SYSTEM CIRCUIT ICL- ICR+ ID CODE BOX ILL ILL ILL+ ILL- AUTO UP ILL- ILL+ UP IND- PPL INNER REAR SEAT CENTER BELT ASSEMBLY INNER REAR VIEW MIRROR ASSEMBLY INSTRUMENT CLUSTER SYSTEM STARTING/CHARGING SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INSTRUMENT PANEL PASSENGER W/O DOOR AIR BAG ASSEMBLY JC-18 L OFF LCB+ LCV- LCV- SHIELD SGND LED AUTO LED ILLUMINATION LIGHT LEFT "C" PILLAR) LEFT ACTIVE NOISE CONTROL MICROPHONE LEFT BACK STEP ASSEMBLY LEFT BED LIGHT LEFT CURTAIN SHIELD AIR BAG ASSEMBLY LEFT CURTAIN SHIELD AIR BAG ASSEMBLY SHIELD LEFT FOG LIGHT ASSEMBLY LEFT FRONT COURTESY LIGHT ASSEMBLY LEFT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LEFT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LEFT FRONT SEAT AIR BAG ASSEMBLY LEFT FRONT SEAT CUSHION PANEL SUB-ASSEMBLY LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT FRONT SEAT OUTER BELT ASSEMBLY LEFT FRONT SIDE MARKER LIGHT ASSEMBLY LEFT LUMBAR SUPPORT ADJUSTER ASSEMBLY LEFT OUTER REAR VIEW MIRROR ASSEMBLY LEFT REAR COMBINATION LIGHT ASSEMBLY LEFT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LEFT REAR LIGHT ASSEMBLY LEFT REAR SEAT BACK CLIMATE CONTROL BLOWER LEFT REAR SEAT CUSHION CLIMATE CONTROL BLOWER LEFT REAR SEAT OUTER BELT ASSEMBLY LEFT REAR SIDE MARKER LIGHT ASSEMBLY LEFT SEAT BACK CLIMATE CONTROL BLOWER LEFT SEAT CUSHION CLIMATE CONTROL BLOWER LEFT TELEPHONE MICROPHONE ASSEMBLY LEFT VISOR ASSEMBLY LFT- LH 0 LH - LIGHT CONTROL RHEOSTAT LM+R LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 1 LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 2 LRD+ LRI- LRO- LRU+ LSP + LUGGAGE ROOM R/B 1 LUMBAR SUPPORT MAT) MCI- MCO- METER MIRROR SUB-ASSEMBLY MG+ MIRRORS SYSTEM MOBILE WIRELESS CHARGER CRADLE ASSEMBLY MODE L MODE RR MPER MH MR- MRL+ NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NE+ ODO CANL OIL PRESSURE SENDER GAGE ASSEMBLY OIL PRESSURE SENDER GAUGE ASSEMBLY PK- PL- PLR+ PORT FUEL INJECTOR ASSEMBLY 1 PORT FUEL INJECTOR ASSEMBLY 2 PORT FUEL INJECTOR ASSEMBLY 3 PORT FUEL INJECTOR ASSEMBLY 4 PORT FUEL INJECTOR ASSEMBLY 5 PORT FUEL INJECTOR ASSEMBLY 6 POWER DISTRIBUTION BOX ASSEMBLY POWER DISTRIBUTION SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS, POWER TOPS SYSTEMS PPL GND PPL ID PPL LH E PPL PPL ID PR- PRR- RADIATOR SHUTTER ASSEMBLY RADIO, DISPLAY RECEIVER ASSEMBLY RAL+ RAR+ RBE+ RCB+ RCL- RCV+ SHIELD SGND RF+ RH 0 PPL RH E RH- RIGHT ACTIVE NOISE CONTROL MICROPHONE RIGHT BED LIGHT RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY SHIELD RIGHT END OF DASH) RIGHT FOG LIGHT ASSEMBLY RIGHT FRONT COURTESY LIGHT ASSEMBLY RIGHT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RIGHT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RIGHT FRONT SEAT AIR BAG ASSEMBLY RIGHT FRONT SEAT INNER BELT ASSEMBLY RIGHT FRONT SEAT OUTER BELT ASSEMBLY RIGHT FRONT SIDE MARKER LIGHT ASSEMBLY RIGHT INTERIOR ILLUMINATION LIGHT ASSEMBLY 1 RIGHT LUMBAR SUPPORT ADJUSTER ASSEMBLY RIGHT OUTER REAR VIEW MIRROR ASSEMBLY RIGHT REAR COMBINATION LIGHT ASSEMBLY RIGHT REAR DOOR RIGHT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RIGHT REAR LIGHT ASSEMBLY RIGHT REAR SEAT BACK CLIMATE CONTROL BLOWER RIGHT REAR SEAT CUSHION CLIMATE CONTROL BLOWER RIGHT REAR SEAT OUTER BELT ASSEMBLY RIGHT REAR SIDE MARKER LIGHT ASSEMBLY RIGHT SEAT BACK CLIMATE CONTROL BLOWER RIGHT SEAT CUSHION CLIMATE CONTROL BLOWER RIGHT TELEPHONE MICROPHONE ASSEMBLY RIGHT VISOR ASSEMBLY RM+ RM+R ROOF CONSOLE BOX ASSEMBLY RV ILL SEATS SYSTEM SERVICE PLUG SET- SFL- SFR- SG-1 SG-2 SG-3 SG-4 SG-6 SG-7 SHIELD DCSD SHIELD SGND SHIELD SHIELD SL- SLIDING ROOF HOUSING SUB-ASSEMBLY SLT- SLU+ SP- SPI+ SPIRAL CABLE SPIRAL CABLE SUB-ASSEMBLY SPO- SPOT LIGHT ASSEMBLY SR- SRR+ SSR+ STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/ CHARGING, ACTIVE BODYWORKS SYSTEMS STARTING/CHARGING SYSTEM STEERING COLUMN ASSEMBLY STEERING WHEEL) STEREO COMPONENT EQUALIZER ASSEMBLY STEREO JACK ADAPTER ASSEMBLY 1 STIN PPL GND SUPPLEMENTAL RESTRAINTS SYSTEM TAIL AUTO TAIL GATE 1 TAIL GATE 2 TL TR TRAILER REVERSE ASSIST LIGHT ASSEMBLY TRANSFER ASSEMBLY TRANSMISSION FLOOR SHIFT TRANSMISSION FLOOR SHIFT ASSEMBLY TRANSMISSIONS SYSTEM TRN+ TRUNK, TAILGATE, FUEL DOORS SYSTEM TURBOCHARGER SUB-ASSEMBLY 1 TURBOCHARGER SUB-ASSEMBLY 2 TURN L IND TURN R IND TWL- TWR+ UDO+ UP AUTO USB+ SHIELD USBS VHP- VOLTAGE INVERTER ASSEMBLY VOR- VOT+ VVL+ VVR+ W-OFF W/ 4.2 INCH MONITOR W/ 12.3 INCH MONITOR W/ 12.3 INCH MONITOR W/ 4.2 INCH MONITOR W/ BED LIGHT W/ CREW CAB W/ DOUBLE CAB W/ LED W/ MEMORY W/ PANORAMIC ROOF W/ POWER RUNNING BOARD W/ SLIDE OUTER MIRROR W/ SLIDE TYPE OUTER MIRROR W/ STANDARD OUTER MIRROR W/ STANDARD TYPE OUTER MIRROR W/ STOP/ START SYSTEM W/ TELEMATICS SYSTEM W/ TRAILER REVERSE ASSIST LIGHT W/O BED LIGHT W/O LED W/O MEMORY W/O PANORAMIC ROOF W/O POWER RUNNING BOARD W/O SLIDE OUTER MIRROR W/O STOP/ START SYSTEM W/O TELEMATICS SYSTEM W/O TRAILER REVERSE ASSIST LIGHT WELL) WGM- WINDSHIELD WASHER JAR ASSEMBLY WIPER/WASHER SYSTEM
