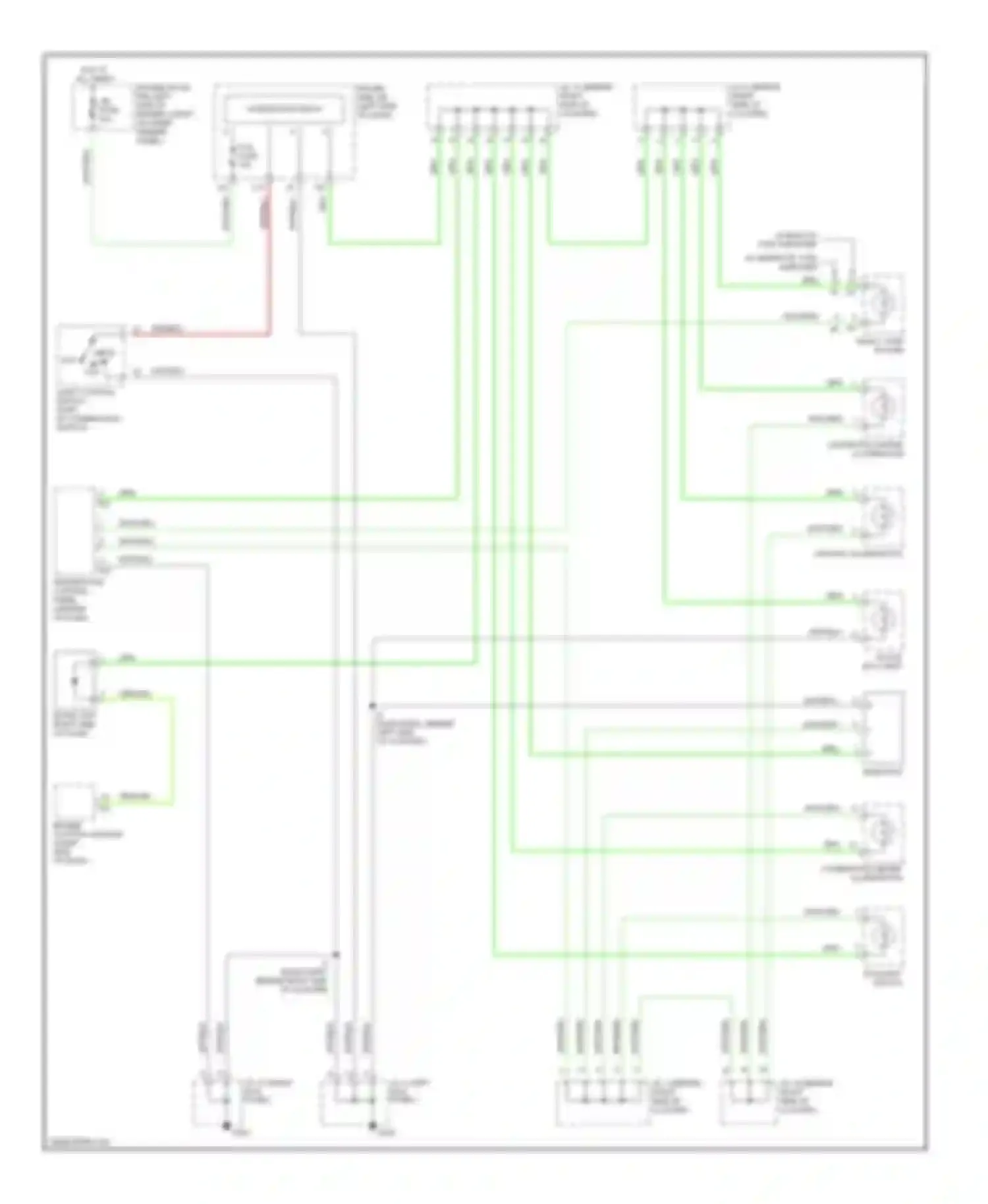

Instrument illumination circuit for Toyota Tundra I (2000-2002)

ASHTRAY ILLUMINATION CIGARETTE LIGHTER ILLUMINATION COMBINATION METER (ILLUMINATION) DASH HARN, (BEHIND LEFT SIDE OF CLUSTER) DIODE (TOP RIGHT SIDE OF DASH) DRIVER SIDE J/B (LEFT SIDE OF DASH) ENGINE CONTROL MODULE (RIGHT SIDE OF DASH) ENGINE ROOM R/B (LEFT SIDE OF ENGINE COMPT, ON INNER FENDER PANEL) FOGLIGHT SWITCH GLOVE BOX LIGHT GRN WIRE GRN/YEL WIRE HEAD OFF TAIL HOT AT ALL TIMES INTEGRATION CONTROL, PANEL (CENTER OF DASH) INTEGRATION RELAY J/B FUSE J/C 10 (BEHIND RIGHT SIDE OF CLUSTER) J/C 13 (RIGHT KICK J/C 3 (LEFT KICK J/C 7 (BEHIND RIGHT SIDE OF CLUSTER) J/C 8 (BEHIND RIGHT SIDE OF CLUSTER) LIGHT CONTROL SWITCH (PART OF COMBINATION SWITCH) PANEL) RADIO, TAPE PLAYER RED/BLK WIRE RHEOSTAT TAIL FUSE W/ BUILT-IN TYPE AMPLIFIER W/ SEPERATE TYPE AMPLIFIER WHT/BLK WIRE WHT/GRN WIRE
