Toyota Tercel L50 facelift (1997-1999) defroster mode switch Wiring diagrams
This page contains all the electrical diagrams for the component. defroster mode switch, in which he is found in the car Toyota Tercel L50 facelift (1997-1999). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

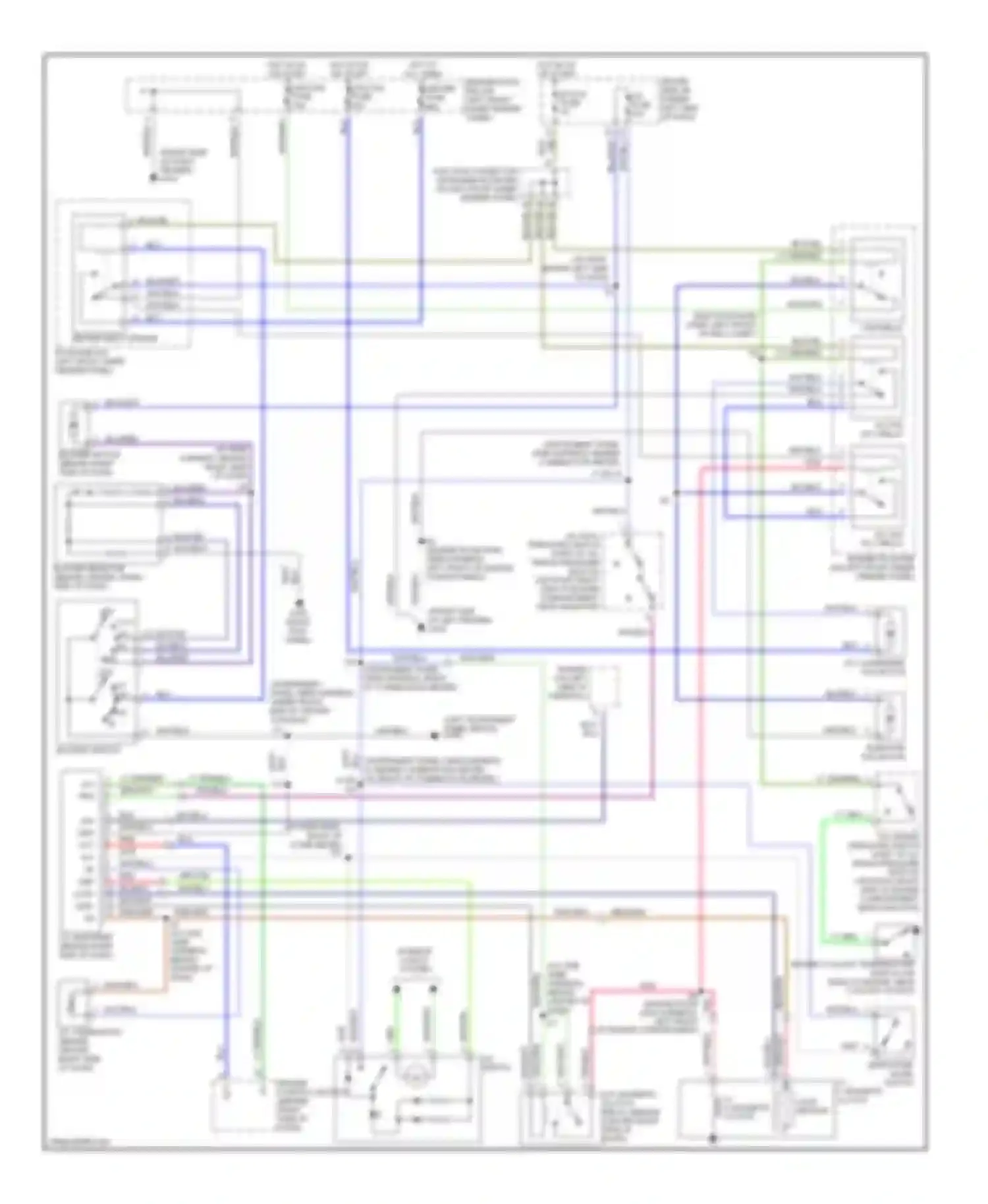

Wiring diagram defroster mode switch (1 of 2)
1 2 3 4 5 6 7 8 9 10 PRS
2 1 PNK WIRE
A/C AMPLIFIER (BEHIND RIGHT SIDE OF DASH)
A/C CONDENSER FAN MOTOR
A/C MAGNETIC CLUTCH
A/C MAGNETIC CLUTCH RELAY (BEHIND CENTER RIGHT SIDE OF DASH)
A/C SWITCH
A/C THERMISTOR (BEHIND CENTER RIGHT SIDE OF DASH)
AC FAN NO.2 RELAY
AC FAN NO.3 RELAY
ACT
ACT GND A/C TE LED
BLK/ WHT WIRE
BLK/ YEL WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLOWER MOTOR (BEHIND RIGHT SIDE OF DASH)
BLOWER RESISTOR (BEHIND CENTER, RIGHT SIDE OF DASH)
BLOWER SWITCH
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
CDS FAN FUSE
DEFROSTER MODE SWITCH
DRIVER SIDE J/B (UNDER LEFT SIDE OF DASH) A/C FUSE
ECU-IG FUSE
ENGINE CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
ENGINE COOLANT TEMPERATURE SWITCH (ON REAR OF ENGINE, NEAR COOLANT OUTLET)
ENGINE ROOM R/B (ON LEFT FRONT INNER FENDER PANEL)
FAN RELAY
GRN WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEATER FUSE
HEATER RELAY ENGINE ROOM R/B (ON LEFT FRONT INNER FENDER PANEL)
HI OFF LO
HOT AT ALL TIMES
HOT IN ON OR START
JUNCTION CONNECTOR (IN ENGINE ROOM R/B, ON LEFT FRONT INNER FENDER PANEL)
LT GRN WIRE
LT GRN/BLK WIRE
LT GRN/RED WIRE
MGC SG
OFF LO 3 2 6
PNK WIRE
PNK/BLK WIRE
PNK/BLU WIRE
PNK/GRN WIRE
RAD FAN FUSE
RADIATOR FAN MOTOR
RED WIRE
WHT WIRE
WHT/ BLU WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/GRN WIRE
WHT/RED WIRE
Go to component -> A/c circuit, without power steering -> DEFROSTER MODE SWITCH
Wiring diagram defroster mode switch (2 of 2)
2 1 PNK WIRE
A/C CONDENSER FAN MOTOR
A/C MAGNETIC CLUTCH
A/C MAGNETIC CLUTCH RELAY (BEHIND CENTER RIGHT SIDE OF DASH)
A/C SWITCH
A/C THERMISTOR (BEHIND CENTER RIGHT SIDE OF DASH)
AC FAN NO.2 RELAY
AC FAN NO.3 RELAY
ACT
BLK WIRE
BLK/ WHT WIRE
BLK/ YEL WIRE
BLK/BLU WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLOWER MOTOR (BEHIND RIGHT SIDE OF DASH)
BLOWER RESISTOR (BEHIND CENTER, RIGHT SIDE OF DASH)
BLOWER SWITCH
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
BLU/YEL WIRE
CDS FAN FUSE
DEFROSTER MODE SWITCH
DRIVER SIDE J/B (UNDER LEFT SIDE OF DASH) A/C FUSE
ECU-IG FUSE
ENGINE CONTROL MODULE (BEHIND RIGHT SIDE OF DASH)
ENGINE COOLANT TEMPERATURE SWITCH (ON REAR OF ENGINE, NEAR COOLANT OUTLET)
ENGINE ROOM R/B (ON LEFT FRONT INNER FENDER PANEL)
FAN RELAY
GRN WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HEATER FUSE
HEATER RELAY ENGINE ROOM R/B (ON LEFT FRONT INNER FENDER PANEL)
HI OFF LO
HOT AT ALL TIMES
HOT IN ON OR START
IGN GND ACT A/C TE LED LOCK MGC SG
IGNITER (ON LEFT SIDE OF FIREWALL)
JUNCTION CONNECTOR (IN ENGINE ROOM R/B, ON LEFT FRONT INNER FENDER PANEL)
LOCK SENSOR
LT GRN WIRE
LT GRN/BLK WIRE
LT GRN/RED WIRE
OFF LO 3 2 6
PNK WIRE
PNK/BLK WIRE
PNK/BLU WIRE
PNK/GRN WIRE
PRS
RAD FAN FUSE
RADIATOR FAN MOTOR
RED WIRE
RED/GRN WIRE
RED/WHT WIRE
WHT WIRE
WHT/ BLU WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/GRN WIRE
WHT/RED WIRE
Go to component -> A/c circuit, with power steering -> DEFROSTER MODE SWITCH
