Radio circuit, with built-in amplifier for Toyota Tacoma II (2004-2011)

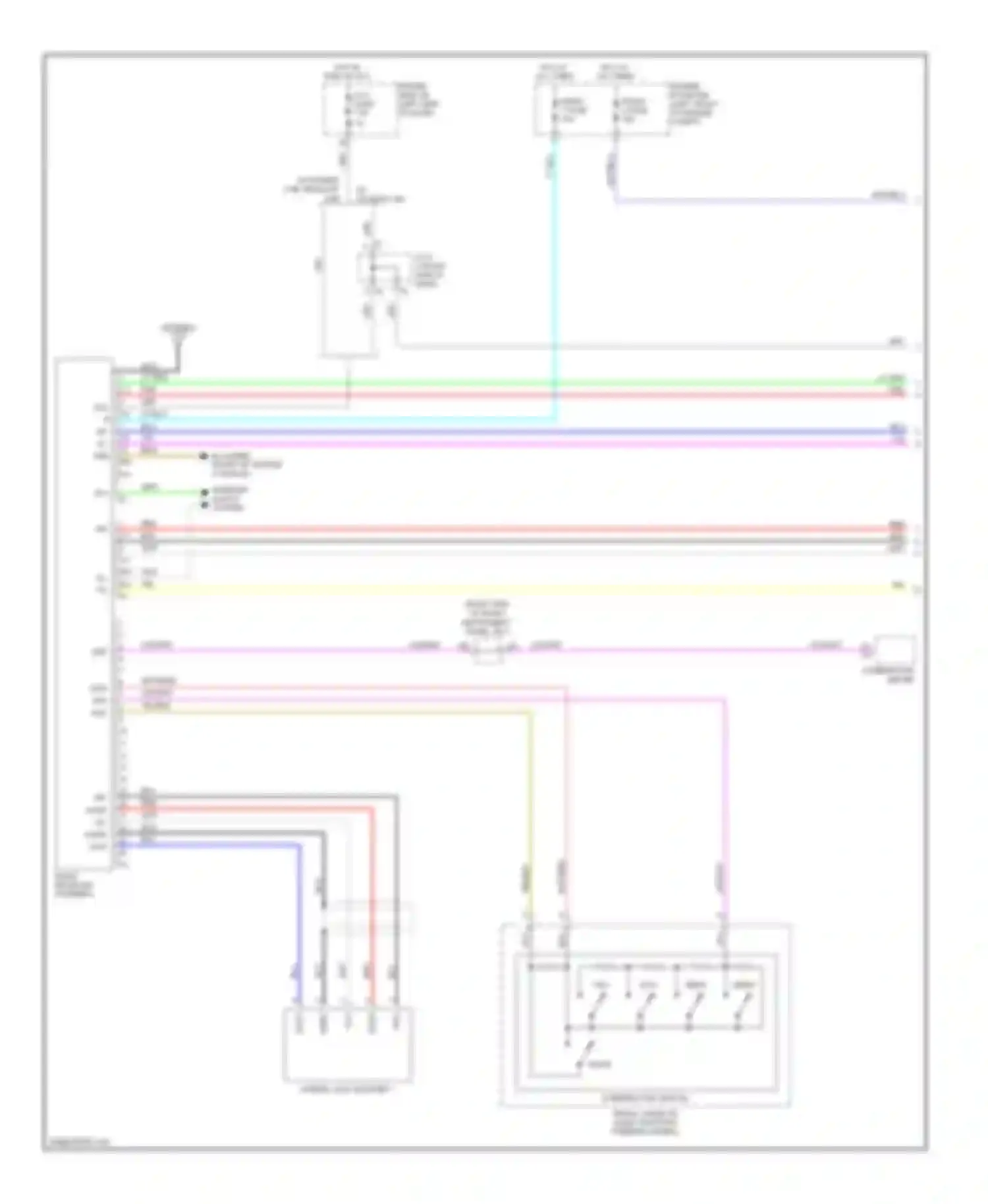

1 2 3 4 5 6 7 8 9 10 FR+ FL+ 1 2 3 4 5 6 RR+ RL+ RR- AGND ALO ANTENNA ARI ASGN ALI AGND AUXI ARO ASGN AUXO BLK WIRE BLU WIRE BRN WIRE COMBINATION METER DRIVER SIDE J/B (LEFT SIDE OF DASH) EAU ENGINE ROOM R/B (LEFT FRONT OF ENGINE COMPT) FR- FL- GND FUSE GRN WIRE GRY WIRE HOT AT ALL TIMES HOT IN RUN OR ACC ID (UNDER FRONT OF CENTER CONSOLE) ILL- RL- INTERIOR LIGHTS SYSTEM ILL + J/C 4, 5 (RIGHT SIDE OF DASH) LT BLU WIRE LT GRN WIRE MODE NCA WIRE PNK WIRE RADIO 1 FUSE RADIO 2 FUSE RADIO RECEIVER ASSEMBLY RED WIRE SEEK SPIRAL CABLE (W/ AUDIO SWITCH IN STEERING WHEEL) STEERING PAD SWITCH STEREO JACK ADAPTER 1 SWG VIO WIRE VIO/WHT WIRE VOL (-) VOL+ SEEK+ W/ DOUBLE CAB, REGULAR W/ ACCESS CAB CAB WHT WIRE WHT/BLU WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE

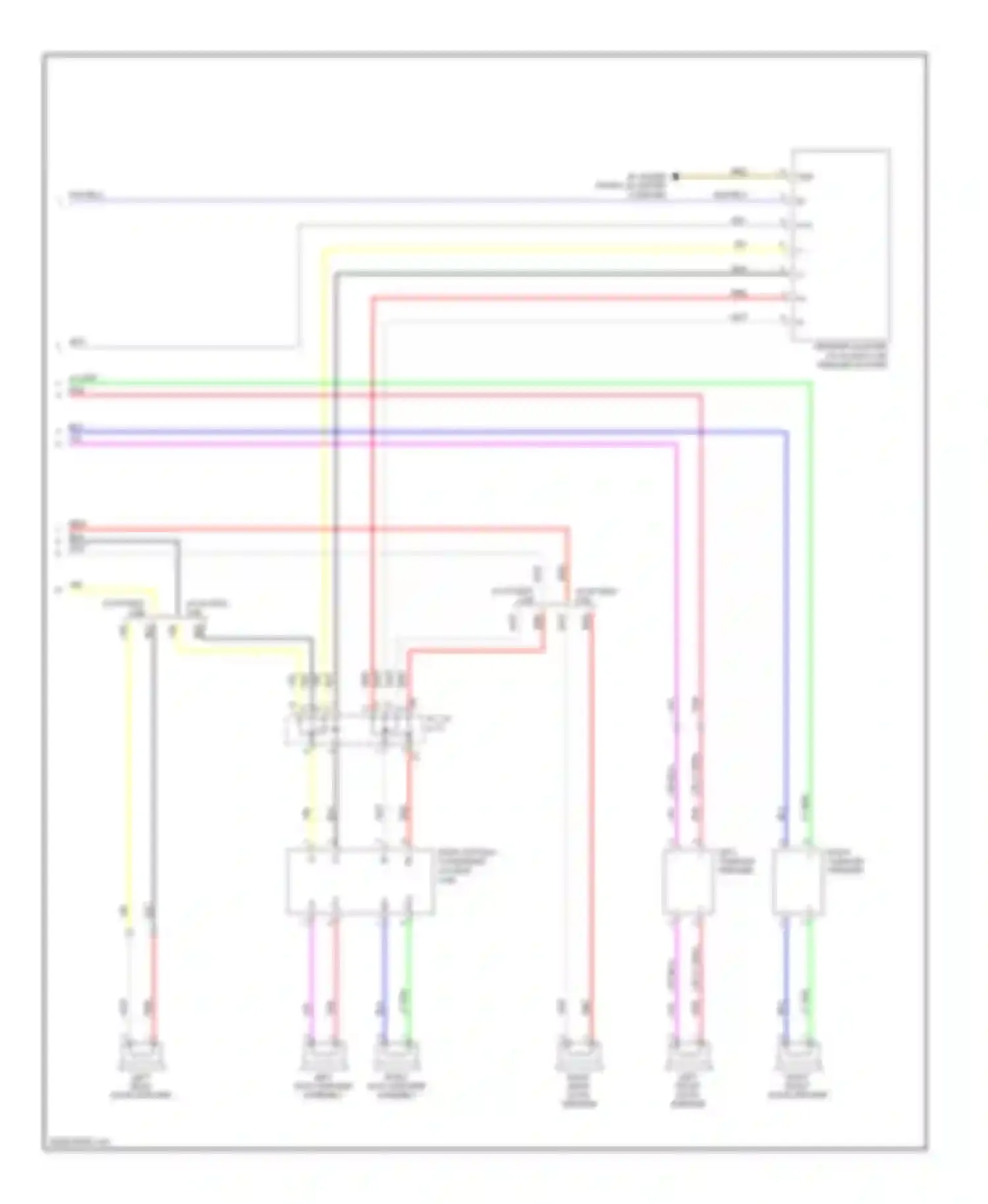

BLK WIRE BLU WIRE BRN WIRE GRY WIRE ID (UNDER FRONT OF CENTER CONSOLE) LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT ROOF SPEAKER ASSEMBLY LEFT TWEETER SPEAKER LI+ LT GRN WIRE PNK WIRE R/O RADIO SETTING CONDENSER (ACCESS CAB) RED WIRE RI+ RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER RIGHT ROOF SPEAKER ASSEMBLY RIGHT TWEETER SPEAKER SPEAKER (WOOFER) (W/ ACCESS CAB, SPEAKER WOOFER) VIO WIRE W/ ACCESS CAB W/ DOUBLE CAB WHT WIRE WHT/BLU WIRE YEL WIRE
