Wiring Diagrams for Toyota Sienna III facelift 2 (2017-2020)

Automatic a/c circuit

Anti-lock brakes circuit

Forced entry circuit, w/o smart key system Forced entry circuit, w/ smart key system Immobilizer circuit, w/o smart key system Immobilizer circuit, w/ smart key system

Body control modules circuit

Computer data lines circuit

Cooling fan circuit

Cruise control circuit Dynamic laser cruise control circuit

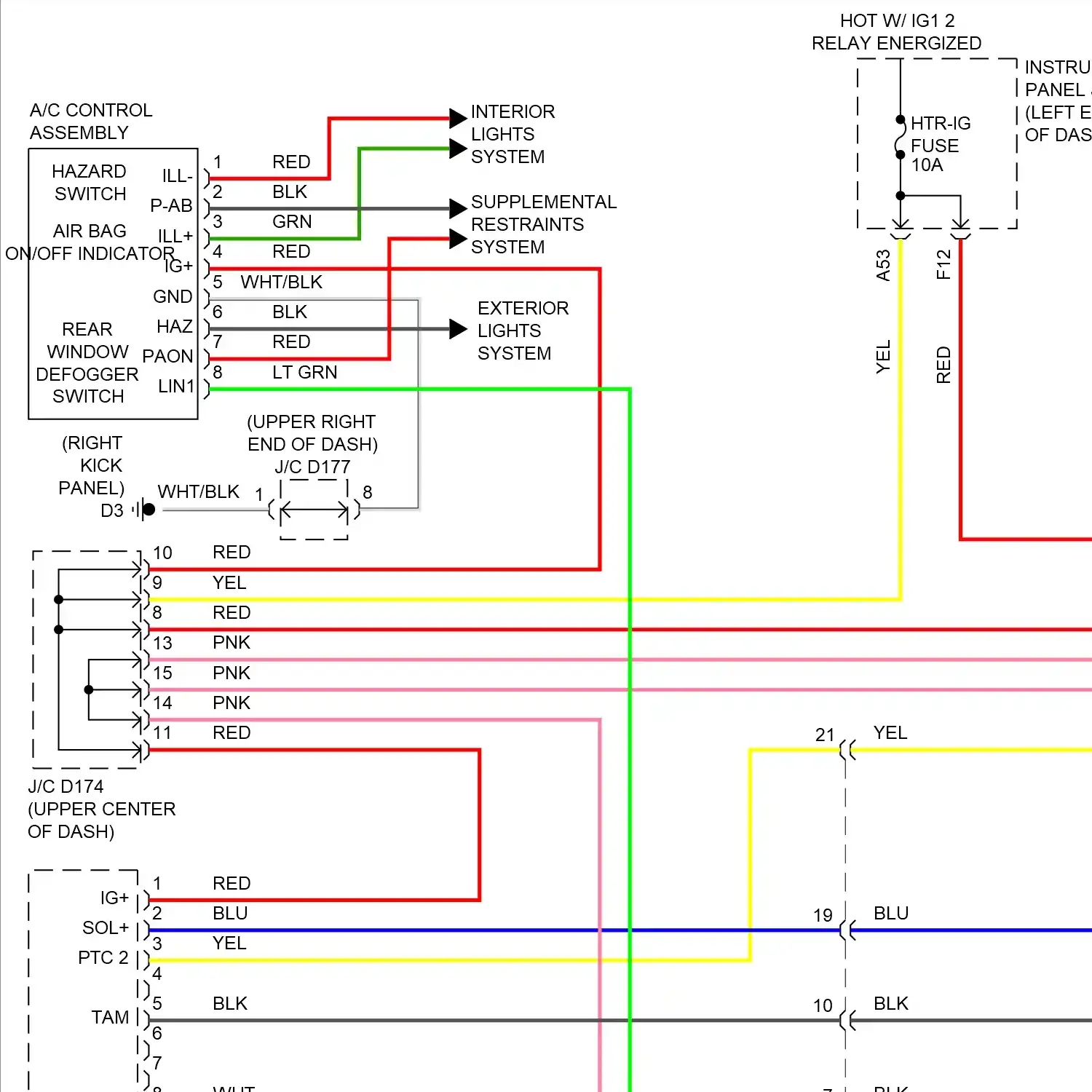

Front deicer circuit Mirror heater & rear defogger circuit

Electronic power steering circuit

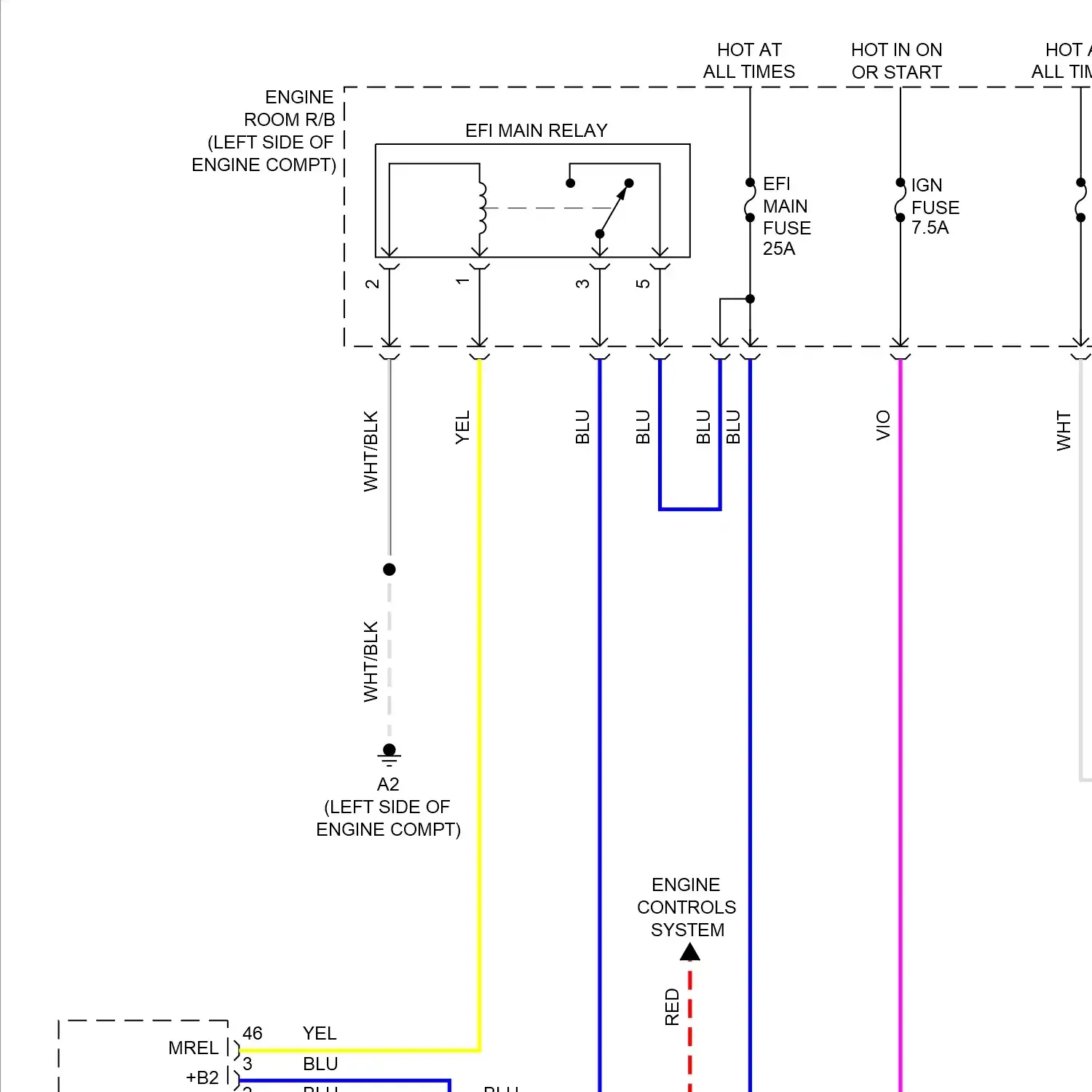

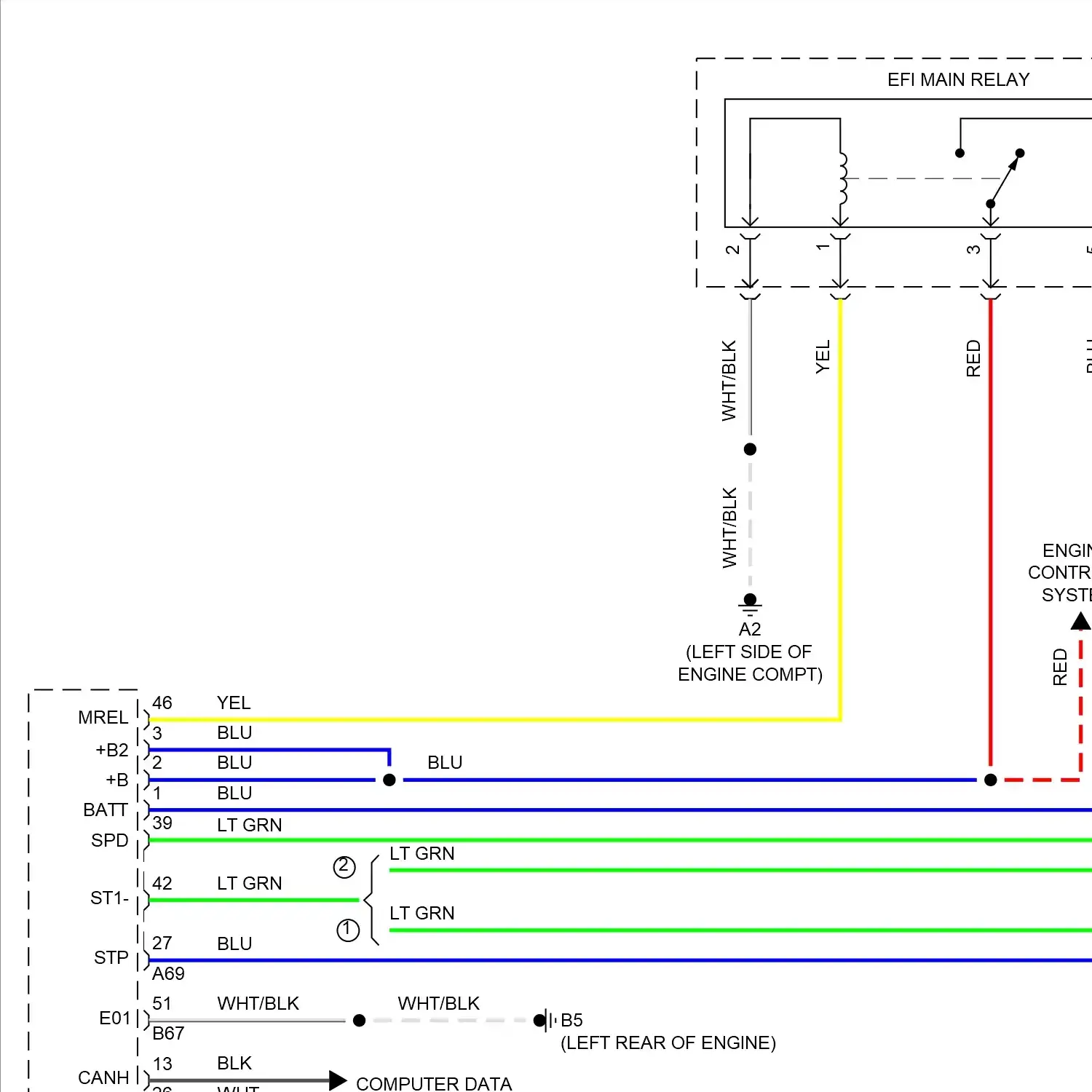

Wiring diagram engine performance 3.5l

Backup lamps circuit Exterior lamps circuit

Ground distribution circuit

Headlights circuit

Horn circuit

Instrument cluster circuit

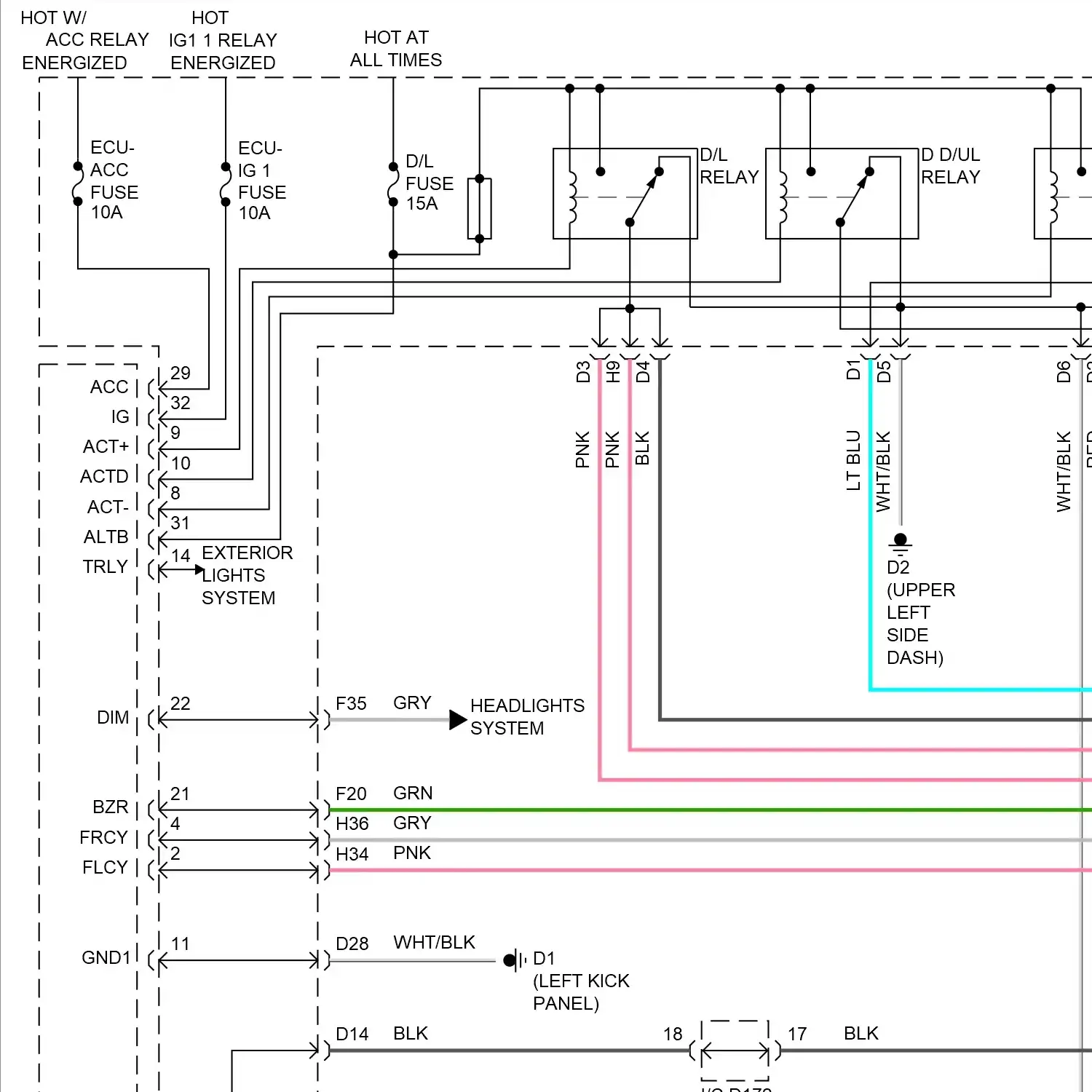

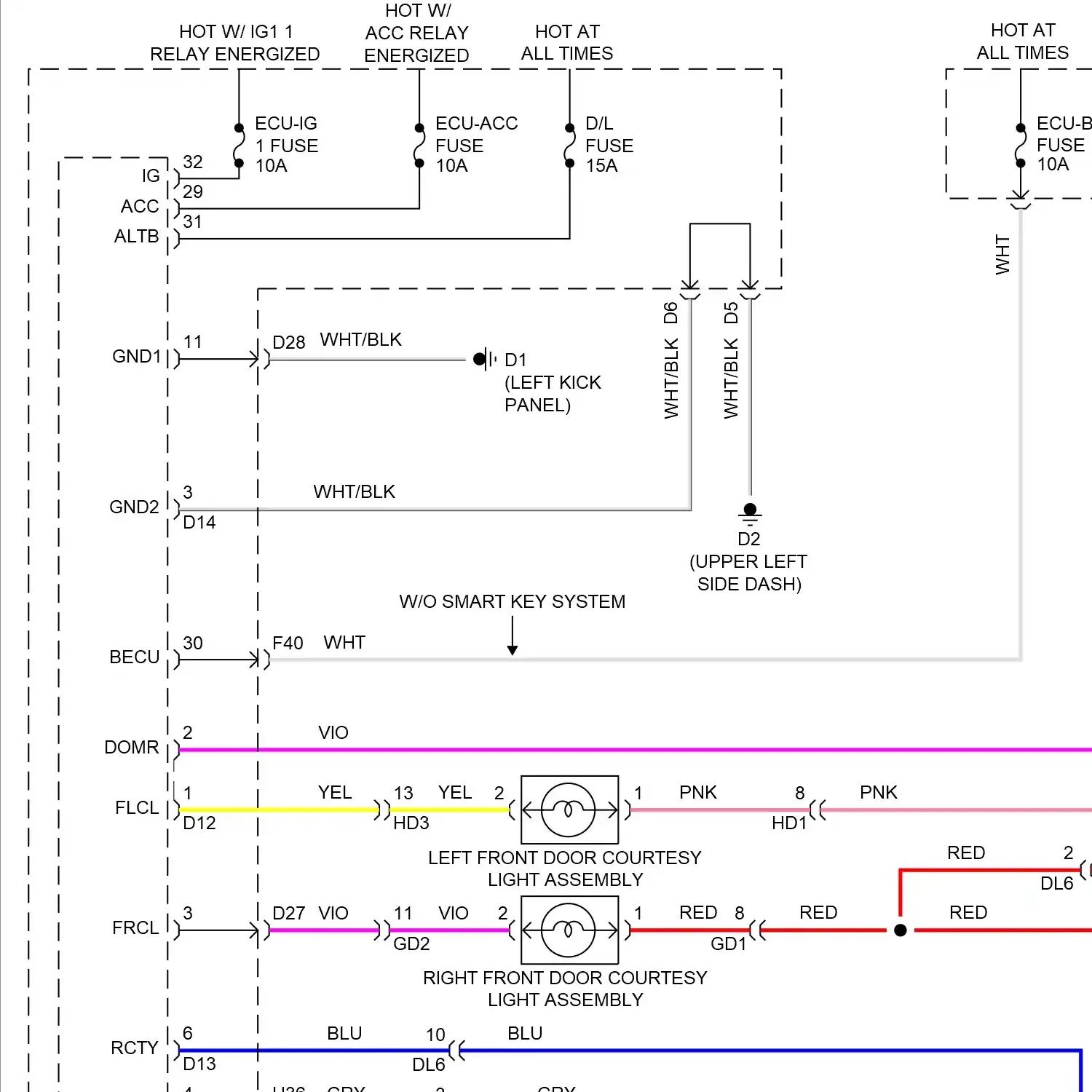

Courtesy lamps circuit Instrument illumination circuit

Memory mirrors circuit Memory seat circuit

Blind spot monitoring circuit Lane departure warning circuit Navigation circuit, w/ built-in amplifier Navigation circuit, w/ separate amplifier Parking assistant circuit Rear sonar circuit Telematics circuit

Power distribution circuit

Power door locks circuit, w/o smart key system Power door locks circuit, w/ smart key system

Electrochromic mirror circuit Power mirrors circuit

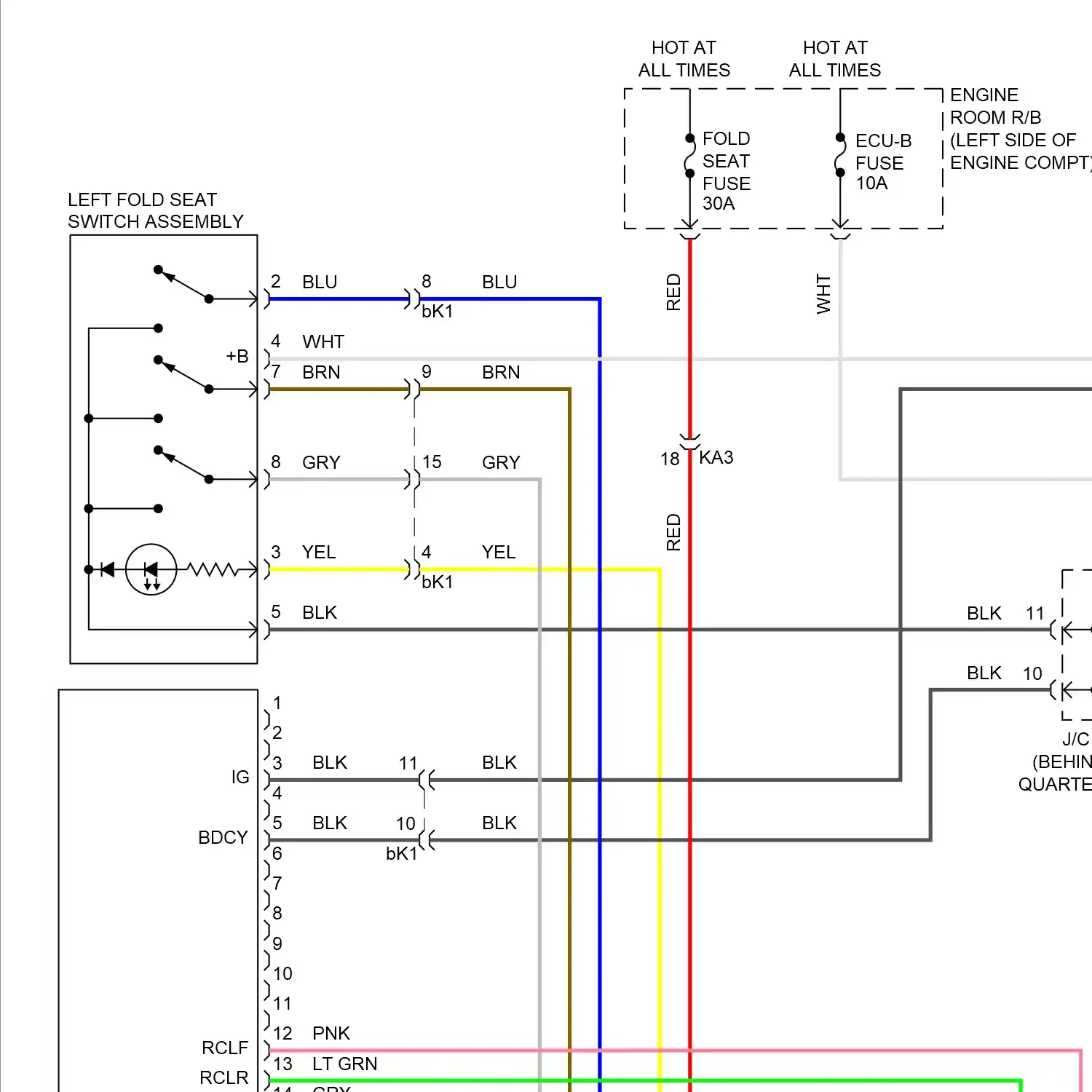

Auto access seat circuit Driver power seat circuit Heated seats circuit Heated steering wheel circuit Passenger power seat circuit Third row folding seat circuit

Power top/sunroof circuit

Power windows circuit Rear quarter windows circuit

Radio circuit, w/ built-in amplifier Radio circuit, w/ separate amplifier

Shift interlock circuit, w/o smart key system Shift interlock circuit, w/ smart key system Steering column circuit

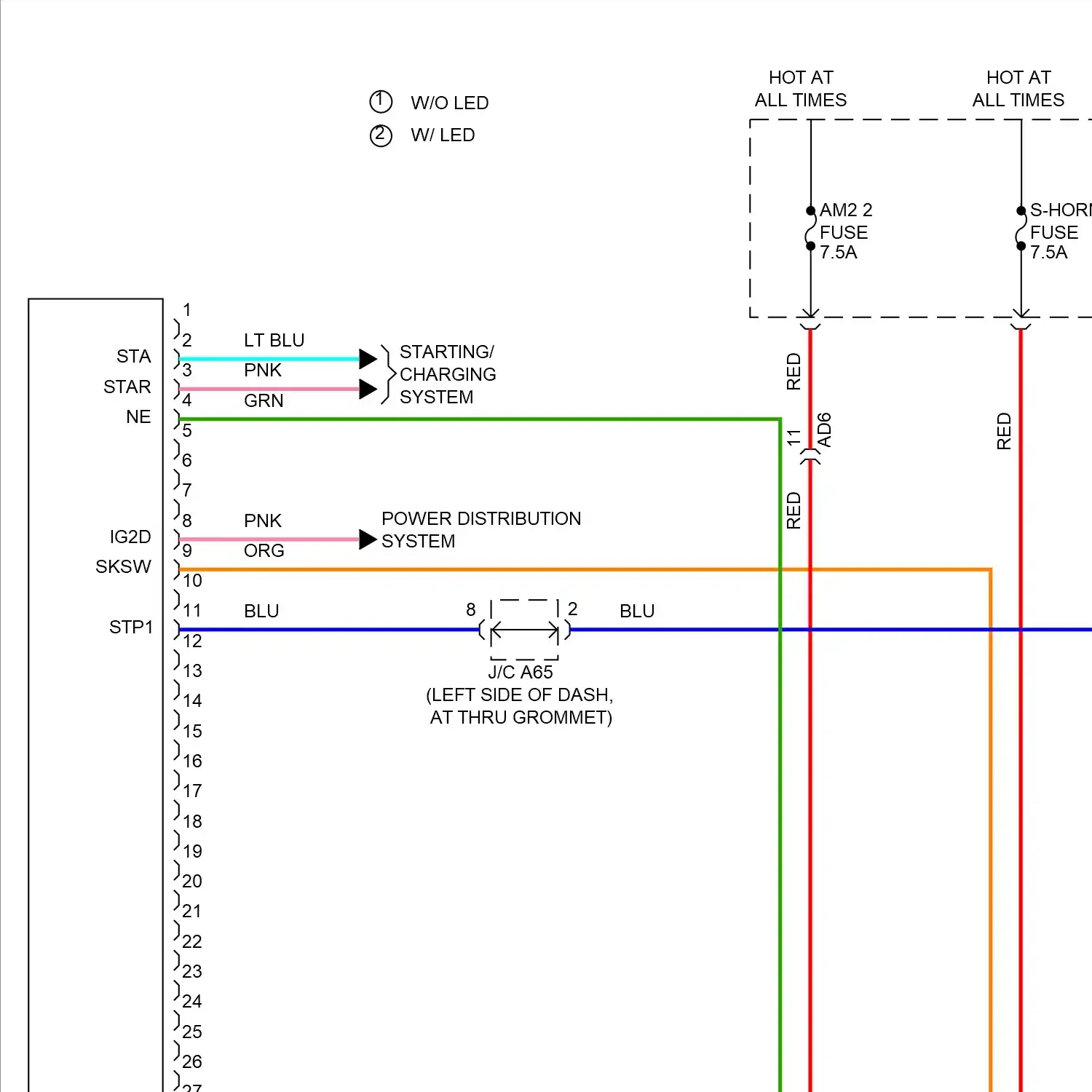

Charging circuit Starting circuit, w/o smart key system Starting circuit, w/ smart key system

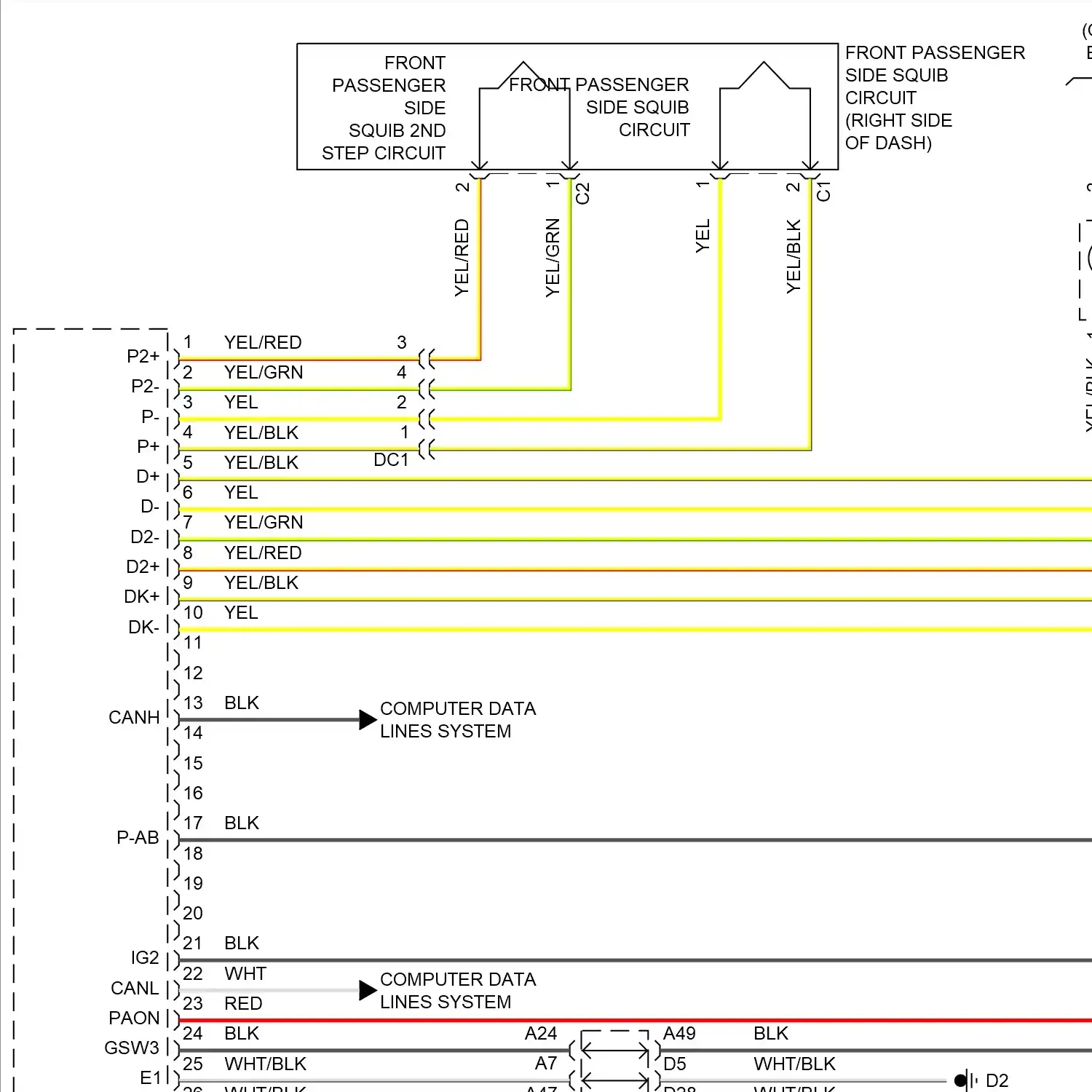

Supplemental restraints circuit

A/t circuit Awd circuit

Back door opener circuit, w/o power back door Back door opener circuit, w/ power back door Power sliding door circuit

Key reminder & seat belt warning circuit Tire pressure monitoring circuit

Front wiper/washer circuit, w/ auto wiper system Front wiper/washer circuit, w/o auto wiper system Rear wiper/washer circuit

A/C AMPLIFIER ASSEMBLY ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, ELECTRONIC POWER STEERING SYSTEMS ANTI-LOCK BRAKES, EXTERIOR LIGHTS SYSTEMS ANTI-LOCK BRAKES, INSTRUMENT CLUSTER, HEADLIGHTS SYSTEMS BACK DOOR LOCK ASSEMBLY GENERATOR ASSEMBLY HIGH PITCHED HORN ASSEMBLY IGNITION COIL ASSEMBLY 1 IGNITION COIL ASSEMBLY 2 IGNITION COIL ASSEMBLY 3 IGNITION COIL ASSEMBLY 4 IGNITION COIL ASSEMBLY 5 IGNITION COIL ASSEMBLY 6 KEY COIL LEFT POWER SLIDE DOOR LOCK ASSEMBLY LEFT SLIDE DOOR FULL OPEN STOP LOCK ASSEMBLY LOCK OFF LOW PITCHED HORN ASSEMBLY RIGHT POWER SLIDE DOOR LOCK ASSEMBLY RIGHT SLIDE DOOR FULL OPEN STOP LOCK ASSEMBLY SECURITY HORN ASSEMBLY STARTER ASSEMBLY STEREO COMPONENT AMPLIFIER ASSEMBLY TRANSPONDER KEY COIL W/ BUILT-IN AMPLIFIER W/ SEPARATE AMPLIFIER W/ STEREO COMPONENT AMPLIFIER WIRELESS DOOR LOCK BUZZER

BACK DOOR MOTOR BLOWER W/ FAN MOTOR SUB ASSEMBLY BRAKE ACTUATOR ASSEMBLY ENGINE CONTROLS SYSTEM ENGINE CONTROLS, TRANSMISSIONS SYSTEMS ENGINE ROOM J/B ENGINE ROOM R/B EXTERIOR LIGHTS, ENGINE CONTROLS, TRANSMISSIONS SYSTEMS FOLDING MOTOR LEFT FOLDING MOTOR LEFT FRONT DOOR W/ MOTOR LOCK ASSEMBLY LEFT FRONT LUMBAR SUPPORT FORWARD, BACK MOTOR ASSEMBLY LEFT FRONT POWER SEAT LIFT POSITION MOTOR ASSEMBLY LEFT FRONT POWER SEAT RECLINING POSITION MOTOR ASSEMBLY LEFT FRONT POWER SEAT SLIDE POSITION MOTOR ASSEMBLY LEFT FRONT POWER SEAT VERTICAL POSITION MOTOR ASSEMBLY LEFT POWER VENT WINDOW MOTOR ASSEMBLY MAIN FAN MOTOR RATCH RELEASE ACTUATOR REAR BLOWER MOTOR CONTROL REAR BLOWER W/ FAN MOTOR SUB- ASSEMBLY REAR OF ENGINE COMPT) REAR WASHER MOTOR, PUMP ASSEMBLY REAR WIPER MOTOR REAR WIPER, MOTOR, BRACKET ASSEMBLY RELEASE CLOSER MOTOR RIGHT FOLDING MOTOR RIGHT FRONT DOOR W/ MOTOR LOCK ASSEMBLY RIGHT FRONT POWER SEAT RECLINING POSITION MOTOR ASSEMBLY RIGHT FRONT POWER SEAT SLIDE POSITION MOTOR ASSEMBLY RIGHT POWER VENT WINDOW MOTOR ASSEMBLY SLIDE DOOR MOTOR STEERING LOCK ACTUATOR ASSEMBLY SUB FAN MOTOR THROTTLE W/ MOTOR BODY ASSEMBLY WINDSHIELD WASHER MOTOR, PUMP ASSEMBLY WINDSHIELD WIPER MOTOR ASSEMBLY

GPS ANTENNA OUTSIDE LUGGAGE ELECTRICAL KEY ANTENNA RADIO ANTENNA TELEPHONE MAIN ANTENNA TELEPHONE SUB ANTENNA TIRE PRESSURE WARNING ANTENNA, RECEIVER

LEFT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

FORWARD RECOGNITION CAMERA FRONT TELEVISION CAMERA ASSEMBLY REAR TELEVISION CAMERA ASSEMBLY SIDE TELEVISION CAMERA

CENTER POWER POINT SOCKET ASSEMBLY CENTER USB CHANGER SOCKET DATA LINK CONNECTOR 3 FRONT POWER OUTLET SOCKET ASSEMBLY FRONT POWER POINT SOCKET ASSEMBLY LOW SIDE USB CHANGER SOCKET REAR POWER OUTLET SOCKET ASSEMBLY REAR POWER POINT SOCKET ASSEMBLY REAR SIDE USB CHANGER SOCKET

AWD ECU ASSEMBLY CERTIFICATION ECU ASSEMBLY CLEARANCE WARNING ECU ASSEMBLY COOLING FAN ECU CTRL ECU DRIVING SUPPORT ECU ASSEMBLY ECU- IG 1 FUSE ECU-ACC FUSE ECU-B 2 FUSE ECU-B FUSE ECU-IG 2 FUSE ECU-IG 3 FUSE FUEL PUMP CONTROL ECU HEADLIGHT SWIVEL ECU ASSEMBLY LEFT FOLD SEAT CONTROL ECU LEFT OUTER MIRROR CONTROL ECU ASSEMBLY LEFT POSITION CONTROL ECU, SWITCH ASSEMBLY MAIN BODY ECU MAIN BODY ECU INSTRUMENT PANEL J/B NETWORK GATEWAY ECU OCCUPANT DETECTION ECU PARKING ASSIST ECU PNK LIGHT CTRL ECU WIRE POSITION CONTROL ECU ASSEMBLY POWER BACK DOOR UNIT ASSEMBLY POWER MANAGEMENT CONTROL ECU POWER STEERING ECU ASSEMBLY RIGHT FOLD SEAT CONTROL ECU RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY SEAT BELT CONTROL ECU SHIFT LOCK CONTROL ECU SUB-ASSEMBLY SHIFT LOCK CONTROL SUB-ASSEMBLY ECU TIRE PRESSURE WARNING ECU TRANSPONDER KEY ECU ASSEMBLY WIP ECU FUSE

A/A SEAT FUSE A/C MG FUSE A/C RR FUSE A/F FUSE ALT FUSE AMP 1 FUSE AMP 2 FUSE CIG FUSE D INJ FUSE D/L FUSE DCM FUSE DEF FUSE DEICER FUSE DOME FUSE DRL FUSE DSS 1 FUSE EFI 2 FUSE EFI MAIN FUSE EFI- MAIN 2 FUSE EPS FUSE EPS-IG FUSE ETCS FUSE FAN FUSE FOG FR FUSE FOLD SEAT FUSE FUSE BLOCK GAUGE 1 FUSE GAUGE 2 FUSE H-LP LH FUSE H-LP LH HI FUSE H-LP RH FUSE H-LP RH HI FUSE H-LP- MAIN FUSE HAZ FUSE HORN FUSE HTR FUSE HTR-IG FUSE IGN FUSE INJ FUSE INV FUSE J/B ALT FUSE LED DRL FUSE MAIN FUSE MIR HTR FUSE MIRROR FUSE OBD FUSE P/OUTLET 1 FUSE P/OUTLET 2 FUSE P/OUTLET FUSE P/OUTLET MAIN FUSE P/SEAT F/L FUSE P/VENT FUSE PANEL FUSE PBD FUSE PSD-LH FUSE PSD-RH FUSE PTC HTR 1 FUSE PTC HTR 2 FUSE PTC HTR 3 FUSE RAD 1 FUSE RAD 2 FUSE RSE FUSE S-HORN FUSE S-HTR F/L FUSE S-HTR F/R FUSE S/ROOF FUSE SHIFT LOCK FUSE SMART FUSE ST 2 FUSE ST FUSE STOP FUSE STRG HTR FUSE STRG LOCK 2 FUSE TAIL FUSE VSC 1 FUSE VSC 2 FUSE WASHER FUSE WASHER RR FUSE WELCAB FUSE WIP FUSE WIP RR FUSE

LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

FORWARD RECOGNITION W/ HEATER HOOD SUB-ASSEMBLY LEFT SEAT HEATER CONTROL SUB-ASSEMBLY MIRROR HEATER QUICK HEATER ASSEMBLY RIGHT SEAT HEATER CONTROL SUB-ASSEMBLY STEERING WHEEL HEATER CONTROL ASSEMBLY W/ SEAT HEATER W/ STEERING HEATER W/O MIRROR HEATER W/O SEAT HEATER W/O STEERING HEATER

AIR BAG ON/OFF INDICATOR BLIND SPOT MONITOR INDICATOR DOOR INDICATOR

ANTI THEFT, INTERIOR LIGHTS, DOOR LOCKS SYSTEMS EXTERIOR LIGHTS EXTERIOR LIGHTS, HEADLIGHTS, INTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS, INSTRUMENT CLUSTER SYSTEMS EXTERIOR LIGHTS, INTERIOR LIGHTS SYSTEMS INTERIOR LIGHTS, EXTERIOR LIGHTS, NAVIGATION, DEFOGGER SYSTEMS LIGHTS SYSTEM WARNING, INTERIOR LIGHTS SYSTEMS

CANISTER PUMP MODULE FUEL PUMP ASSEMBLY FUEL PUMP ASSEMBLY SHIELD LEAK DETECTION PUMP

1 RELAY ENERGIZED A/C MG RELAY A/F HTR RELAY ACC 2 RELAY ACC RELAY BK D/L RELAY D D/UL RELAY D INJ RELAY D INJ RELAY SHIELD D/L RELAY D/UL RELAY DEF RELAY DEICER RELAY DRL RELAY EFI MAIN 2 RELAY EFI MAIN RELAY EFI MAIN RELAY 2 FAN RELAY FOG FR RELAY FOG FR RELAY R/B 3 H-LP RELAY HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ P/POINT RELAY ENERGIZED HOT W/ P/W MAIN RELAY ENERGIZED INV RELAY LEFT DOOR CONTROL RELAY LIGHT CUT RELAY MIR HTR RELAY P/POINT RELAY P/W MAIN RELAY PTC HTR RELAY 1 PTC HTR RELAY 2 PTC HTR RELAY 3 REAR WIPER RELAY RELAY ENERGIZED RIGHT DOOR CONTROL RELAY S-HORN RELAY ST RELAY STOP LP RELAY TAIL RELAY WINDSHIELD WIPER RELAY ASSEMBLY

6 SENSOR A/C EVAPORATOR TEMPERATURE SENSOR A/C SOLAR SENSOR AIR BAG SENSOR ASSEMBLY AMBIENT TEMPERATURE SENSOR AUTOMATIC LIGHT CONTROL SENSOR CANISTER PRESSURE SENSOR CRANK POSITION SENSOR E.F.I. ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL LEVEL SENSOR HALL IC SENSOR LEFT BLIND SPOT MONITOR SENSOR LEFT DOOR SIDE AIR BAG SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT OCCUPANT CLASSIFICATION SENSOR LEFT FRONT SPEED SENSOR LEFT FRONT ULTRASONIC SENSOR 1 LEFT POWER BACK DOOR SENSOR ASSEMBLY LEFT POWER SLIDE DOOR SENSOR ASSEMBLY LEFT REAR CENTER ULTRASONIC SENSOR 1 LEFT REAR OCCUPANT CLASSIFICATION SENSOR LEFT REAR SPEED SENSOR LEFT REAR ULTRASONIC SENSOR 1 LEFT SIDE AIR BAG SENSOR ASSEMBLY MILLIMETER WAVE RADAR SENSOR ASSEMBLY POWER STEERING TORQUE SENSOR RAIN SENSOR RESOLVER SENSOR RIGHT BLIND SPOT MONITOR SENSOR RIGHT DOOR SIDE AIR BAG SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT OCCUPANT CLASSIFICATION SENSOR RIGHT FRONT SPEED SENSOR RIGHT FRONT ULTRASONIC SENSOR 1 RIGHT POWER BACK DOOR SENSOR ASSEMBLY RIGHT POWER SLIDE DOOR SENSOR ASSEMBLY RIGHT REAR CENTER ULTRASONIC SENSOR 1 RIGHT REAR OCCUPANT CLASSIFICATION SENSOR RIGHT REAR SPEED SENSOR RIGHT REAR ULTRASONIC SENSOR 1 RIGHT SIDE AIR BAG SENSOR ASSEMBLY RIGHT SIDE AIR BAG SENSOR ASSEMBLY SHIELD ROOM TEMPERATURE SENSOR ROOM TEMPERATURE SENSOR 2 SEAT POSITION AIR BAG SENSOR SLIDE DOOR SENSOR STEERING SENSOR YAW RATE SENSOR ASSEMBLY

4 SPEAKER 6 SPEAKER 6 SPEAKER W/ SAFETY CONNECT FRONT SPEAKER ASSEMBLY 3 LEFT FRONT SPEAKER ASSEMBLY 1 LEFT FRONT SPEAKER ASSEMBLY 2 LEFT QUARTER SIDE SPEAKER ASSEMBLY LEFT REAR SPEAKER ASSEMBLY LEFT REAR SPEAKER ASSEMBLY 2 REAR SPEAKER ASSEMBLY 3 RIGHT FRONT SPEAKER ASSEMBLY 1 RIGHT FRONT SPEAKER ASSEMBLY 2 RIGHT QUARTER SIDE SPEAKER ASSEMBLY RIGHT REAR SPEAKER ASSEMBLY RIGHT REAR SPEAKER ASSEMBLY 2

BACK DOOR OPENER SWITCH ASSEMBLY BACK SONAR/ CLEARANCE SONAR SWITCH ASSEMBLY BACK SONAR/CLEARANCE SONAR SWITCH ASSEMBLY BRAKE PEDAL LOAD SENSING SWITCH BUCKLE SWITCH BUCKLE SWITCH RIGHT FRONT SEAT INNER BELT ASSEMBLY CHILD PROTECTOR SWITCH CRUISE CONTROL MAIN SWITCH CRUISE CONTROL SWITCH CRUISE CONTROL SWITCH CRUISE CONTROL MAIN SWITCH CUT SWITCH DIMMER SWITCH DOME LIGHT CUT SWITCH DOOR CONTROL SWITCH ASSEMBLY DOOR LOCK CONTROL SWITCH DRIVER SIDE AUTO SWITCH DRIVER SIDE DOWN SWITCH DRIVER SIDE UP SWITCH ENGINE HOOD COURTESY SWITCH ENGINE OIL PRESSURE SWITCH ASSEMBLY ENGINE SWITCH FOG SWITCH FRONT PASSENGER SIDE CONTROL SWITCH FRONT SLIDING ROOF SWITCH FRONT WASHER SWITCH FRONT WIPER SWITCH FULL LATCH SWITCH HALF LATCH SWITCH HAZARD SWITCH HEADLIGHT DIMMER SWITCH ASSEMBLY HEADLIGHT LEVELING SWITCH HOLD AWAY SWITCH HORN SWITCH IGNITION OR STARTER SWITCH ASSEMBLY LEFT FOLD SEAT SWITCH ASSEMBLY LEFT FRONT DOOR COURTESY LIGHT SWITCH LEFT FRONT POWER SEAT SWITCH LEFT FRONT POWER SEAT SWITCH ASSEMBLY LEFT FRONT SEAT LOCK SWITCH LEFT POWER SLIDE DOOR CONTROL SWITCH 1 LEFT REAR DOOR COURTESY LIGHT SWITCH LEFT REAR SEAT LOCK SWITCH LEFT REAR SIDE CONTROL SWITCH LEFT SEAT HEATER SWITCH LEFT STEERING SWITCH LEVEL WARNING SWITCH ASSEMBLY LIGHT CONTROL SWITCH MOOD LIGHT CUT SWITCH OPERATION SWITCH OUTER MIRROR SWITCH ASSEMBLY P DETECTION SWITCH PARK/NEUTRAL POSITION SWITCH ASSEMBLY PARKING BRAKE SWITCH ASSEMBLY PATTERN SELECT SWITCH ASSEMBLY PAWL SWITCH POWER QUARTER WINDOW SWITCH POWER SLIDE DOOR CLOSE SWITCH POWER SLIDE DOOR MAIN SWITCH POWER SLIDE DOOR OPEN SWITCH PRE-COLLISION SYSTEM CANCEL SWITCH ASSEMBLY REAR SLIDING ROOF CUT SWITCH REAR SLIDING ROOF SWITCH REAR WASHER, WIPER SWITCH REAR WINDOW DEFOGGER SWITCH RECLINING SWITCH RETRACT LOCK SWITCH RIGHT FOLD SEAT SWITCH ASSEMBLY RIGHT FRONT DOOR CONTROL SWITCH RIGHT FRONT DOOR COURTESY LIGHT SWITCH RIGHT FRONT POWER SEAT SWITCH RIGHT FRONT SEAT LOCK SWITCH RIGHT POWER SLIDE DOOR CONTROL SWITCH 1 RIGHT REAR DOOR COURTESY LIGHT SWITCH RIGHT REAR SEAT LOCK SWITCH RIGHT REAR SIDE CONTROL SWITCH RIGHT SEAT HEATER SWITCH RIGHT STEERING SWITCH SEAT MEMORY SWITCH SELECT SWITCH SLIDE ROOF MOTOR SWITCH SMART POWER SLIDE DOOR SWITCH SOS SWITCH STEERING HEATER SWITCH STEERING PAD SWITCH ASSEMBLY STOP LIGHT SWITCH ASSEMBLY TIRE PRESSURE WARNING RESET SWITCH TRANSMISSION CONTROL SWITCH TURN SIGNAL SWITCH UN-LOCK WARNING SWITCH ASSEMBLY VACUUM WARNING SWITCH ASSEMBLY VSC OFF SWITCH WINDOW LOCK SWITCH WINDSHIELD WIPER SWITCH ASSEMBLY

KEY INTERLOCK SOLENOID SHIFT LOCK SOLENOID VENT VALVE

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/RED WIRE BLK/WHT WIRE BLU WIRE BLU/BLK WIRE BLU/RED WIRE BLU/WHT WIRE BRN WIRE CANH PNK WIRE CANL PNK CANH WIRE CANN PNK CANP WIRE FSR- PNK BGND WIRE GREEN IND GRN WIRE GRN/BLK WIRE GRN/WHT WIRE GRY WIRE LT BLU WIRE LT GRN WIRE MGC PNK WIRE NCA WIRE ORG/ WIRE PNK 1 WIRE PNK BLW WIRE PNK CANH WIRE PNK CSW WIRE PNK RCLF WIRE PNK RDA WIRE PNK RSW+ WIRE PNK WIRE RED WIRE RED/BLK WIRE SIL PNK CANH WIRE VIO WIRE WHT WIRE WHT/BLK WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/RED WIRE

(IF (LOWER REAR OF DRIVER'S DOOR +BM +S SI +SM +SSW A/C CONTROL ASSEMBLY A/C CONTROL ASSEMBLY 2 A/T SHIFT LEVER ILLUMINATION AIR CONDITIONING SYSTEM AIR CONDITIONING, DEFOGGER SYSTEMS AIR CONDITIONING, HEADLIGHTS SYSTEMS ANTI-THEFT SYSTEM ANTI-THEFT, DOOR LOCKS SYSTEMS ANTI-THEFT, DOOR LOCKS, HORNS SYSTEMS B+ BUS BACKUP LAMPS CIRCUIT BBL+ BBR+ BCB+ BCL+ BCR+ BCV- BEHIND LEFT QUARTERPANEL) BSL+ BSR+ BUS - BUS G CA+ CAN I/F CAN I/F I/F CAN L CAN-L CAN-H CANADA USA CB+ CDL+ CDR+ CENTER STOP LIGHT ASSEMBLY CL- CLEARANCE WARNING BUZZER 1 CLUSTER SYSTEM COMBINATION METER ASSEMBLY COMPRESSOR ASSEMBLY W/ PULLEY COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONSOLE CUP HOLDER BOX SUB ASSEMBLY COOLING FANS SYSTEM COURTESY LAMPS CIRCUIT CR LH CRUISE CONTROL SYSTEM CRUISE CONTROL, NAVIGATION SYSTEMS CSW+ CTR + CV+ DC- DCV+ DEFOGGER SYSTEM DISC PLAYER ASSEMBLY DISPLAY DRIVER DISTANCE CONTROL DK+ DOME LIGHT DOOR CONTROL RECEIVER DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, POWER WINDOWS SYSTEMS DOOR LOCKS, INSTRUMENT CLUSTER SYSTEMS DOOR OFF DRIVER DISPLAY DRL AUTO DRL B DRL E EC MIRROR EC+ ELECTRO MAGNETIC CONTROL COUPLING SUB-ASSEMBLY ELECTRONIC POWER STEERING SYSTEM ETM- EX+ EXCEPT USA USA FCP+ FIRST STEP FLASH HIGH FLASHER CIRCUIT FP- FRONT A/C BLOWER ASSEMBLY FRONT INDOOR ELECTRICAL KEY OSCILLATOR FRONT PASSENGER SIDE SQUIB CIRCUIT FRONT SLIDING ROOF FRONT VERTICAL FSW+ FULL LATCH FUSIBLE LINK BLOCK ASSEMBLY GARAGE DOOR OPENER GAUGE FUEL SENDER GAUGE ASSEMBLY GROUND DISTRIBUTION SYSTEM GVO+ HALF LATCH HDMI TERMINAL HEADLIGHTS SYSTEM HORNS SYSTEM HOT AT ALL TIMES HOT IN ON OR HOT IN ON OR ACC HOT IN ON OR START HOT W/ ICL- ICR+ IGNITION KEY CYLINDER LIGHT IGNITION KEY CYLINDER LIGHT IND IND KSW INDOOR LUGGAGE COMPARTMENT ELECTRICAL KEY OSCILLATOR INNER REAR VIEW MIRROR ASSEMBLY INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INSTRUMENT PANEL J/B INTAKE MASS AIR FLOW METER SUB-ASSEMBLY J/B-ALT FUSIBLE LINK KLS+ LATCH) LCB+ LCV- LED CPU DRIVER LED DRIVER LEFT "C" PILLAR) LEFT CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY LEFT CURTAIN SHIELD AIR BAG ASSEMBLY LEFT FOG LIGHT ASSEMBLY LEFT FRONT DOOR COURTESY LIGHT ASSEMBLY LEFT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT HEADPHONE TERMINAL LEFT LICENSE PLATE LIGHT ASSEMBLY LEFT OUTER REAR VIEW MIRROR ASSEMBLY LEFT POWER SLIDE DOOR LEFT POWER SLIDE DOOR IND LEFT REAR COMBINATION LIGHT ASSEMBLY LEFT REAR LIGHT ASSEMBLY LEFT SIDE AIR BAG SQUIB CIRCUIT LEFT SLIDE DOOR HANDLE ASSEMBLY LEFT TURN IND LEFT UP LEFT VANITY LIGHT ASSEMBLY LINES SYSTEM LM+R LO HI LO INT LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 1 KNEE AIR BAG LSP + LSWR 3 4 LUMBAR SUPPORT M+ MV MH M+ MV MH BSR+ MAGNETIC CLUTCH MCI- MCO- MEMORY SYSTEMS MEMORY, SEATS SYSTEMS MG+ MIC - MIRRORS SYSTEM MIRRORS, NAVIGATION SYSTEMS MIST OFF MIST OFF AUTO MLP BSR+ MLP FOOT LIGHT MOOD LIGHT MR- MRY SET MSM+ NAVIGATION RECEIVER ASSEMBLY NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NAVIGATION, SOUND, POWER WINDOWS, AIR CONDITIONING, DOOR LOCKS SYSTEMS NE+ NORMAL POSITION NS+ OFF DRL OFF OFF HOOK OFF INT OFF LO INT OFF WASHER ON DOME ON HOOK ON OFF ON+WASHER ON+WASHER HI PKB FRCY PL- POWER BACK DOOR POWER BACK DOOR CSW POWER BACK DOOR IND POWER BACK DOOR WARNING BUZZER POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PR- PRETENSIONER LEFT FRONT SEAT OUTER BELT ASSEMBLY PTC 1 PTC 2 + PTC 3 + PURGE VSV R/B 3 RADIO, DISPLAY RECEIVER ASSEMBLY RCB+ RCL- REAR A/C BLOWER ASSEMBLY REAR INDOOR ELECTRICAL KEY OSCILLATOR REAR SEAT 3 POINT TYPE BELT ASSEMBLY REAR SEAT W/ ADJUSTER FRAME ASSEMBLY REAR SLIDING ROOF REMOTE CONTROL MIRROR RH CR RH CR CR RIGHT CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY SHIELD RIGHT DOWN RIGHT END OF DASH) RIGHT FOG LIGHT ASSEMBLY RIGHT FRONT DOOR COURTESY LIGHT ASSEMBLY RIGHT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RIGHT FRONT SEAT AIR BAG ASSEMBLY RIGHT FRONT SEAT INNER BELT ASSEMBLY RIGHT FRONT SEAT OUTER BELT ASSEMBLY RIGHT HEADPHONE TERMINAL RIGHT LICENSE PLATE LIGHT ASSEMBLY RIGHT OUTER REAR VIEW MIRROR ASSEMBLY RIGHT POWER SLIDE DOOR RIGHT POWER SLIDE DOOR IND RIGHT REAR COMBINATION LIGHT ASSEMBLY RIGHT REAR LIGHT ASSEMBLY RIGHT REAR ROOM LIGHT ASSEMBLY RIGHT SIDE AIR BAG SQUIB CIRCUIT RIGHT SLIDE DOOR HANDLE ASSEMBLY RIGHT TURN IND RIGHT VANITY LIGHT ASSEMBLY RM+R ROOF CONSOLE BOX ASSEMBLY S+B SCB+ SCV+ SEAT CONTROL RECEIVER SEATS SYSTEM SEATS, MEMORY, NAVIGATION SYSTEMS SECOND STEP SECURITY IND SELECTABLE FORCE LIMITER SFL- SFR- SG-2 SG-4 SHIFT INTERLOCK SYSTEM SHORT PIN SKID CONTROL BUZZER ASSEMBLY SL- SLC+ SLIDING ROOF DRIVE GEAR ASSEMBLY SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY SLS+ SLT- SLU+ SOL + SPI+ SPIRAL CABLE SUB-ASSEMBLY SPO- SR- SSR+ STARTING CIRCUIT STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN ASSEMBLY STEREO JACK ADAPTER ASSEMBLY 1 SUNROOF ASSEMBLY SUPPLEMENTAL RESTRAINTS SYSTEM TAIL HEAD OFF DRL OFF DRL AUTO TELEVISION DISPLAY ASSEMBLY TELL- TALES TIRE) TRANSAXLE ASSEMBLY) TRANSMISSIONS SYSTEM TRG+ TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN LIGHT TURN STOP/TAIL MARKER TURN/PARKING/ MARKER TURN/STOP/TAIL MARKER TWL- TWR+ UDO+ VOLTAGE INVERTER ASSEMBLY VOR- VOT+ VVL+ VVR+ W/ HEATED STEERING WHEEL SYSTEM W/O HEATED STEERING WHEEL SYSTEM W/ HID W/ LED W/ LED STOP LIGHT W/ LED STOP LIGHT W/O LED STOP LIGHT W/ LED W/O LED W/ LED W/O LED W/ HID W/O HID W/ LUMBAR SUPPORT W/O LUMBAR SUPPORT W/ MEMORY W/ MEMORY W/O MEMORY W/ NAVIGATION W/ PANORAMIC VIEW MONITOR W/O PANORAMIC VIEW MONITOR W/ POWER BACK DOOR W/O POWER BACK DOOR W/ POWER BACK DOOR, SLIDING ROOF, POWER SLIDE DOOR W/ PULLEY COMPRESSOR ASSEMBLY W/ REAR SEAT ENTERTAINMENT SYSTEM W/ REAR SLIDING ROOF W/ SAFETY CONNECT W/ SAFETY CONNECT W/O SAFETY CONNECT W/ SLIDING ROOF W/ SLIDING ROOF W/O SLIDING ROOF W/ SMART KEY SYSTEM W/O SMART KEY SYSTEM W/ SMART KEY W/ SMART KEY SYSTEM W/O SMART KEY SYSTEM W/ THEFT- DETERRENT SYSTEM W/ VEHICLE DYNAMICS INTEGRATED MANAGEMENT W/ WIDE ANGLE BACK MONITOR W/O AUTO ACCESS SEAT SYSTEM W/ AUTO ACCESS SEAT SYSTEM W/O AUTOMATIC GLARE- RESISTANT EC MIRROR W/O DYNAMIC RADAR CRUISE CONTROL W/O HEATED STEERING WHEEL SYSTEM W/O HID W/O HID W/ HID W/O LED W/O LED STOP LIGHT W/O LED W/ LED W/O LUMBAR SUPPORT W/O MEMORY W/O MEMORY W/ MEMORY W/O NAVIGATION W/O POWER BACK DOOR, SLIDING ROOF, POWER SLIDE DOOR W/O REAR SLIDING ROOF W/O SAFETY CONNECT W/O SMART KEY W/O SMART KEY SYSTEM W/ SMART KEY SYSTEM W/O POWER BACK DOOR W/O WIDE ANGLE BACK MONITOR WARNING SYSTEMS WARNING, AIR CONDITIONING, COOLING FANS SYSTEMS WATER INLET W/ THERMOSTAT SUB-ASSEMBLY WFL- WFR- WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM
