Toyota Sienna I (1997-2003) comb- ination switch turn signal switch wiring diagram
This page shows the only wiring diagram for the component.comb- ination switch turn signal switch, which is found in the car Toyota Sienna I (1997-2003). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

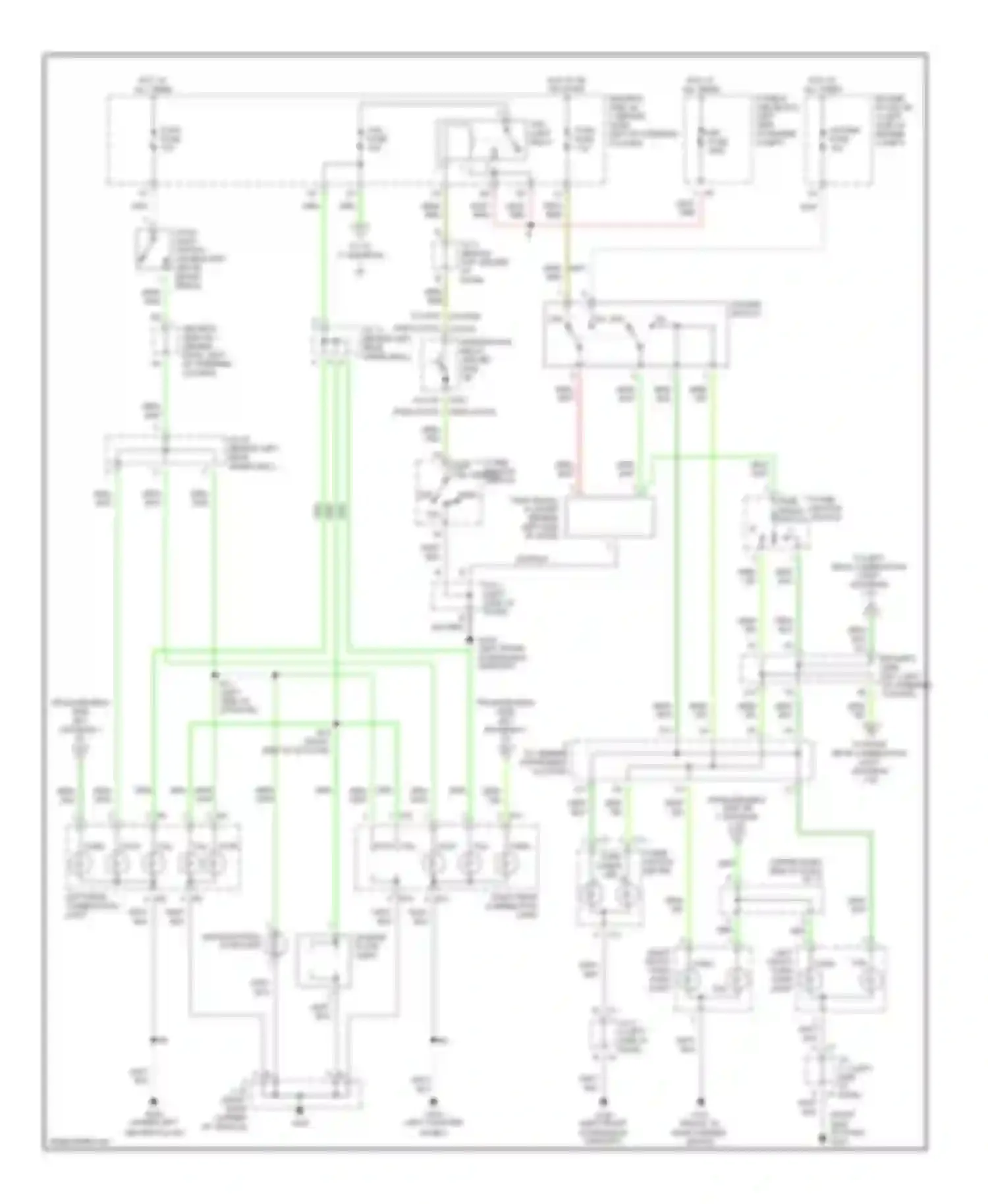

comb- ination switch turn signal switch wiring diagram (1 of 1)
10 4 (W/ PWR LOCKS) (W/O PWR LOCKS)
5 9 (W/O PWR LOCKS) (W/ PWR LOCKS)
BLK WIRE
COMB- INATION METER TURN SIGNAL IND
COMB- INATION SWITCH LIGHT CTRL SWITCH
COMB- INATION SWITCH TURN SIGNAL SWITCH
DRIVER'S SIDE J/B 1 (BEHIND DASH, LEFT OF STEERING COLUMN)
DRIVER'S SIDE J/B 1 (LEFT OF STEERING COLUMN)
ENGINE ROOM J/B 2 (LEFT SIDE OF ENGINE COMPT)
FROM DRIVER'S SIDE J/B 1 (DIAGRAM 1 OF 1)
FUSIBLE LINK BLOCK (LEFT SIDE OF ENGINE COMPT)
GRN WIRE
HAZARD FUSE
HAZARD SWITCH
HIGH MOUNTED STOPLIGHT
HOT AT ALL TIMES
HOT IN ON OR START
INP FUSE
INTEGRATION RELAY (DRIVER SIDE J/B 1)
J/B 3 (BEHIND INSTRUMENT CLUSTER)
J/C 2, 3 (LEFT SIDE OF DASH)
J/C 20 (BEHIND LEFT REAR WHEELWELL)
J/C 21 (BEHIND LEFT REAR WHEELWELL)
J/C 22 (RIGHT REAR CORNER OF VEHICLE)
J/C 3 (LEFT SIDE OF DASH)
J/C 5 (BEHIND TOP CENTER OF DASH)
LEFT FRONT TURN/ PARK LIGHT TURN
LEFT QUARTER PANEL)
LEFT REAR COMBINATION LIGHT
LICENSE PLATE LIGHT
OFF HEAD
OFF OFF ON
ORG/ WIRE
RED WIRE
RIGHT FRONT TURN/ PARK LIGHT TURN
RIGHT REAR COMBINATION LIGHT
STOP FUSE
STOP LIGHT SWITCH (ON BRACKET, ABOVE BRAKE PEDAL)
TAIL
TAIL FUSE
TAIL LIGHT RELAY
TAIL STOP
TAIL STOP TURN
TAIL STOP TURN TAIL STOP
TO J/C 17 (DIAGRAM 1 OF 1)
TO LEFT REAR COMBINATION LIGHT (DIAGRAM 1 OF 1)
TO RIGHT REAR COMBINATION LIGHT (DIAGRAM 1 OF 1)
TURN FUSE
TURN SIGNAL FLASHER (BEHIND LEFT SIDE OF DASH)
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Exterior lamps circuit -> COMB- INATION SWITCH TURN SIGNAL SWITCH
