Wiring Diagrams for Toyota Sequoia III (2022-2024)

Acoustic vehicle altering system circuit Grille shutter circuit

Automatic a/c circuit

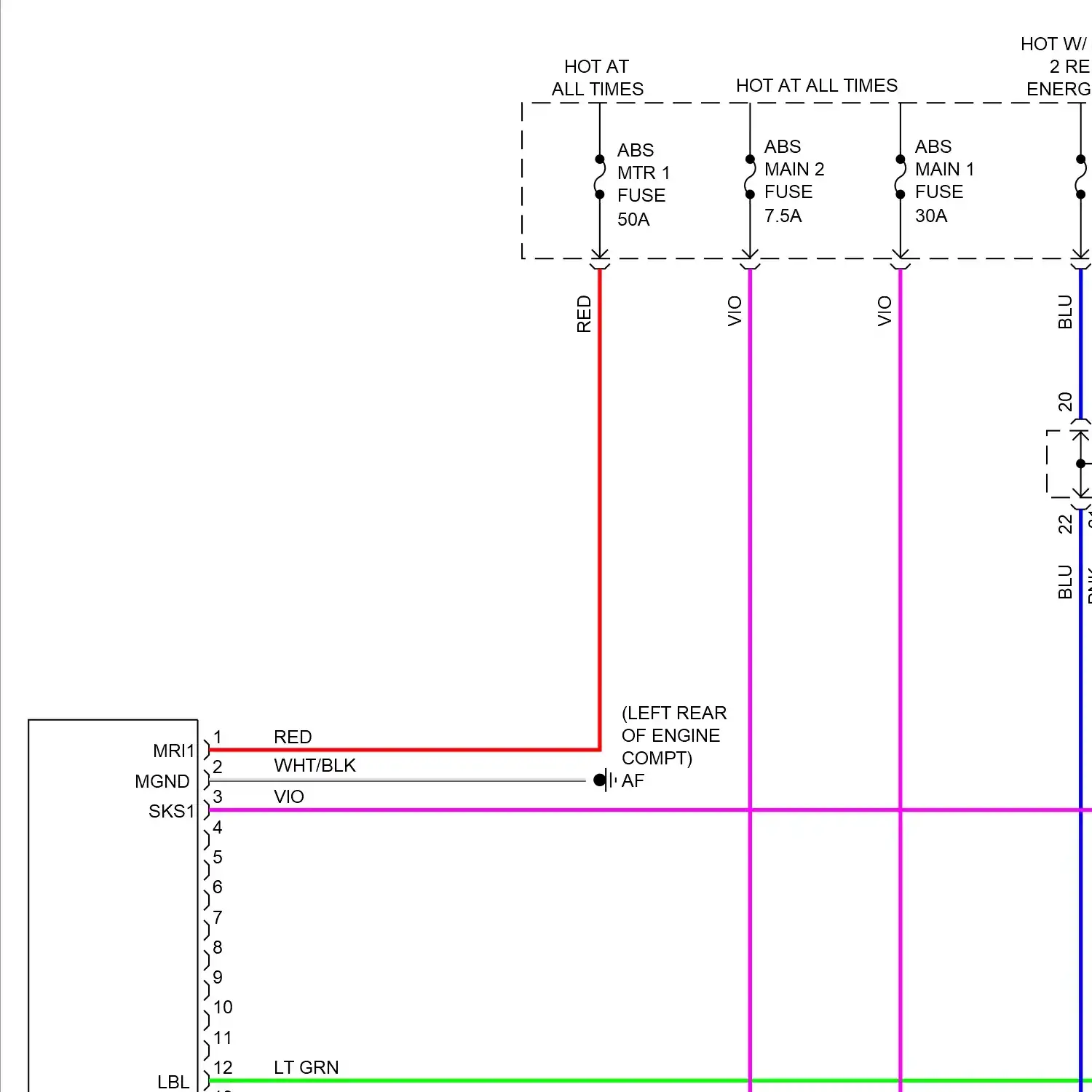

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit

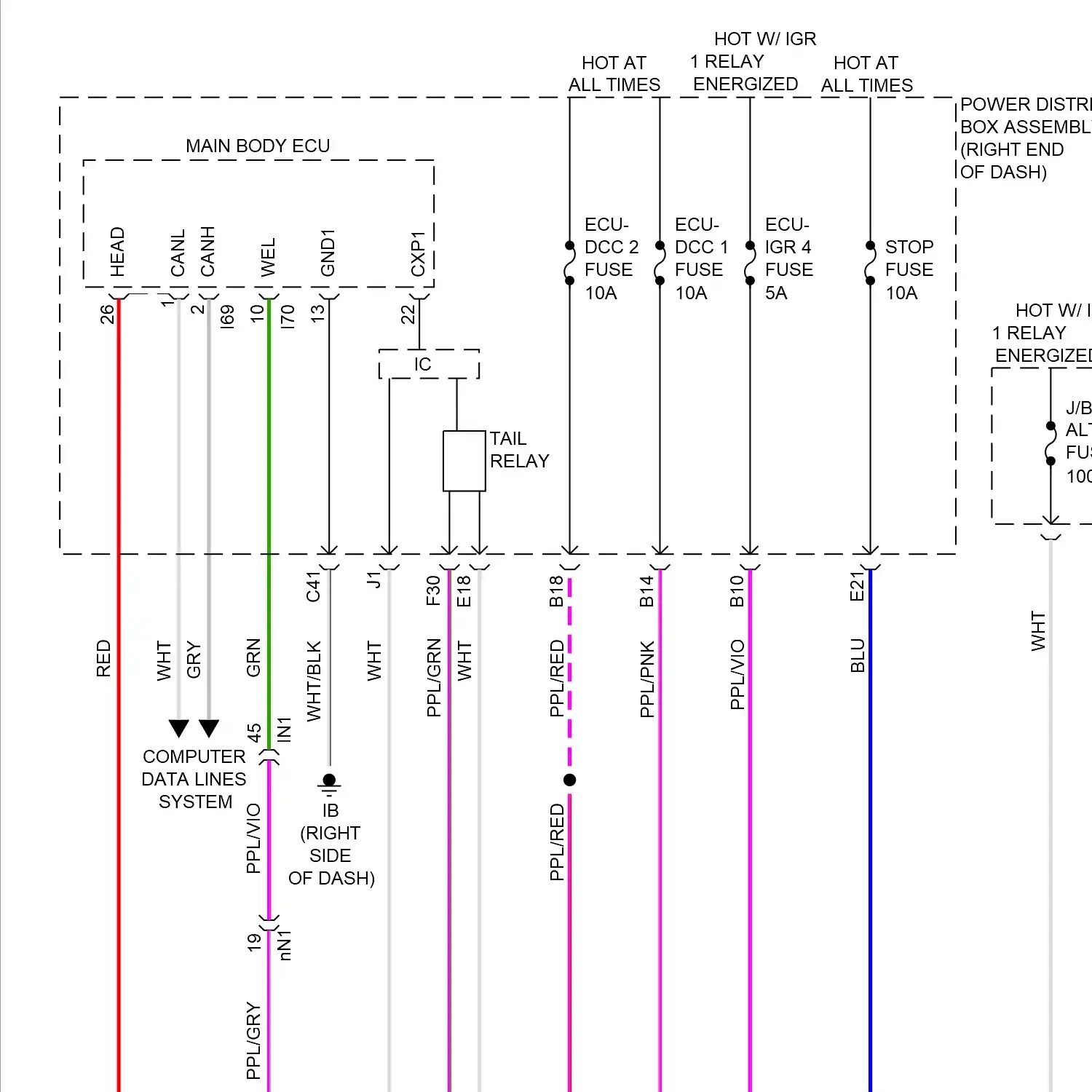

Body ecu circuit Semiconductor power integration ecu circuit

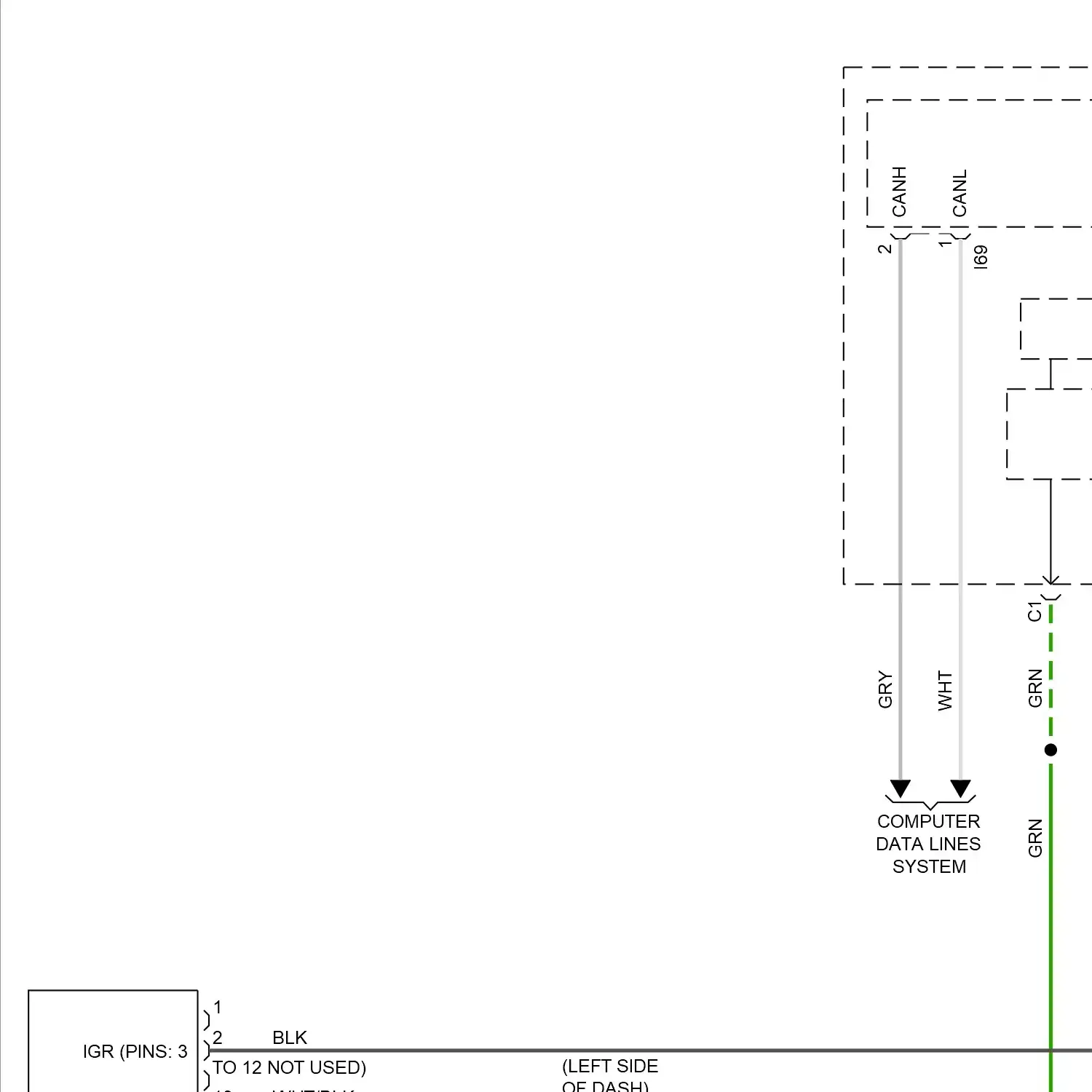

Computer data lines circuit

Battery cooling fan circuit Cooling fan circuit

Cruise control circuit

Front deicer circuit Mirror heater & rear defogger circuit

Electronic power steering circuit Power tilt steering column circuit

Electronic suspension circuit, w/ adaptive variable suspension Electronic suspension circuit, w/o adaptive variable suspension

Wiring diagram engine performance 3.4l turbo, engine controls circuit Wiring diagram engine performance 3.4l turbo, hybrid system circuit

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Headlights circuit, w/ headlamp ecu Headlights circuit, w/o headlamp ecu

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory mirrors circuit Memory power tilt & power telescopic circuit Memory seat circuit

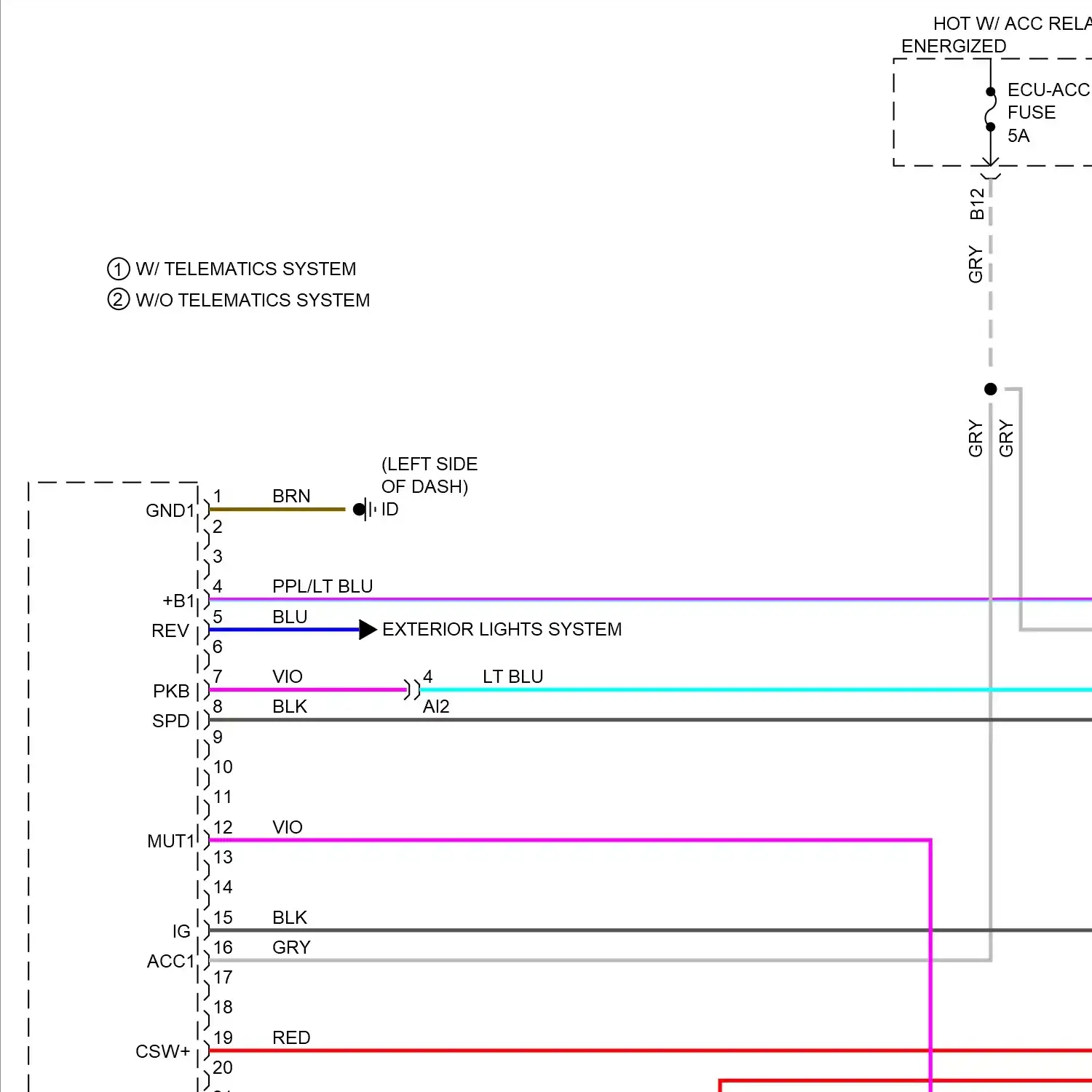

Blind spot monitoring circuit Lane departure warning circuit Navigation circuit, w/ built-in amplifier Navigation circuit, w/ separate amplifier Parking assistant circuit, w/o panoramic Parking assistant circuit, w/ panoramic Telematics circuit

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit, 2-way lumbar support Passenger power seat circuit, 4-way lumbar support Rear heated seats circuit Third row folding seat circuit

Power top/sunroof circuit, w/o panoramic Power top/sunroof circuit, w/ panoramic

Power windows circuit

Radio circuit, w/ built-in amplifier Radio circuit, w/ separate amplifier

Electric parking brake circuit Shift interlock circuit

Starting/charging circuit

Supplemental restraints circuit

4wd circuit A/t circuit

Back door opener circuit, w/o power back door Back door opener circuit, w/ power back door Fuel door release circuit Retractable running boards circuit

Key reminder & seat belt warning circuit Tire pressure monitoring circuit

Front wiper/washer circuit Rear wiper/washer circuit

AIR CONDITIONING AMPLIFIER ASSEMBLY AUXILIARY BATTERY BACK WINDOW LOCK ASSEMBLY BATTERY COOLING BLOWER ASSEMBLY BATTERY COOLING BLOWER ASSEMBLY 2 HIGH PITCHED HORN ASSEMBLY HOOD LOCK ASSEMBLY HV BATTERY JUNCTION BLOCK ASSEMBLY HV SUPPLY BATTERY ASSEMBLY HYBRID BATTERY TERMINAL BLOCK IGNITION COIL ASSEMBLY 1 IGNITION COIL ASSEMBLY 2 IGNITION COIL ASSEMBLY 3 IGNITION COIL ASSEMBLY 4 IGNITION COIL ASSEMBLY 5 IGNITION COIL ASSEMBLY 6 LEFT FRONT DOOR LOCK ASSEMBLY LOW PITCHED HORN ASSEMBLY RIGHT FRONT DOOR LOCK ASSEMBLY SECURITY HORN ASSEMBLY STARTER ASSEMBLY STEREO COMPONENT AMPLIFIER ASSEMBLY STEREO COMPONENT EQUALIZER AMPLIFIER TELEMATICS TRANSCEIVER W/ BUILT-IN AMPLIFIER W/ BUILT-IN AMPLIFIER AUDIO SYSTEM W/ SEPARATE AMPLIFIER W/ SEPARATE AMPLIFIER AUDIO SYSTEM W/O BUILT-IN AMPLIFIER W/O LIGHT EMITTING DIODE ILLUMINATION

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE BACK DOOR W/ MOTOR LOCK ASSEMBLY BLOWER MOTOR CONTROL BLOWER W/ FAN MOTOR SUB ASSEMBLY COMPRESSOR ASSEMBLY W/ MOTOR COMPRESSOR W/ MOTOR ASSEMBLY CONDENSER BLOWER MOTOR ASSEMBLY COOLING FAN W/ CONTROLLER MOTOR ENGINE CONTROLS SYSTEM ENGINE ROOM J/B 1 ENGINE ROOM J/B 2 ENGINE ROOM R/B 1 ENGINE ROOM R/B 2 FUEL LID W/ MOTOR LOCK ASSEMBLY HV MOTOR CONTROL INVERTER ASSEMBLY INVERTER WATER PUMP W/ MOTOR ASSEMBLY LEFT HEADLIGHT LEVELING MOTOR LEFT PARKING BRAKE ACTUATOR ASSEMBLY LEFT POWER REAR SEAT MOTOR ASSEMBLY 1 LEFT POWER REAR SEAT MOTOR ASSEMBLY 2 LEFT REAR DOOR W/ MOTOR LOCK ASSEMBLY LEFT SIDE AUTO STEP MOTOR ASSEMBLY REAR BLOWER W/ FAN MOTOR SUB- ASSEMBLY REAR WIPER MOTOR ASSEMBLY RIGHT HEADLIGHT LEVELING MOTOR RIGHT PARKING BRAKE ACTUATOR ASSEMBLY RIGHT POWER REAR SEAT MOTOR ASSEMBLY 1 RIGHT POWER REAR SEAT MOTOR ASSEMBLY 2 RIGHT REAR DOOR W/ MOTOR LOCK ASSEMBLY RIGHT SIDE AUTO STEP MOTOR ASSEMBLY SERVO MOTOR WINDSHIELD WIPER MOTOR ASSEMBLY

ELECTRICAL KEY ANTENNA ELECTRICAL KEY ANTENNA 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY 2

LEFT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LEFT REAR DOOR WINDOW REGULATOR SUB ASSEMBLY LEFT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY POWER WINDOW REGULATOR SWITCH ASSEMBLY RIGHT FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RIGHT REAR DOOR WINDOW REGULATOR SUB ASSEMBLY RIGHT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

FORWARD RECOGNITION CAMERA LEFT SIDE TELEVISION CAMERA ASSEMBLY REAR TELEVISION CAMERA ASSEMBLY RIGHT FRONT TELEVISION CAMERA ASSEMBLY RIGHT SIDE TELEVISION CAMERA ASSEMBLY

DATA LINK CONNECTOR 3 LEFT USB CHARGER SOCKET 3 OPTION CONNECTOR 1 POWER OUTLET SOCKET ASSEMBLY 1 POWER OUTLET SOCKET ASSEMBLY 2 POWER OUTLET SOCKET ASSEMBLY 4 RIGHT USB CHARGER SOCKET 3 USB CHARGER SOCKET USB CHARGER SOCKET 2 WIRING HARNESS CONNECTOR

4 WHEEL DRIVE CONTROL ECU ABSORBER CONTROL ECU AIR BAG ECU ASSEMBLY AIR CONDITIONING UNIT ASSEMBLY CLEARANCE WARNING ECU ASSEMBLY ECU- DCC 1 FUSE ECU- IGP 1 FUSE ECU- IGP 2 FUSE ECU-ACC FUSE ECU-B 1 FUSE ECU-B 2 FUSE ECU-B 3 FUSE ECU-DCC 2 FUSE ECU-IGP 3 FUSE ECU-IGP 4 FUSE ECU-IGR 1 FUSE ECU-IGR 2 FUSE ECU-IGR 3 FUSE ECU-IGR 4 FUSE FOLD SEAT CONTROL ECU FUEL PUMP CONTROL ECU HYBRID VEHICLE ECU ASSEMBLY LEFT FRONT POSITION CONTROL ECU ASSEMBLY LEFT HEADLIGHT ECU SUB-ASSEMBLY LEFT OUTER MIRROR CONTROL ECU ASSEMBLY LEFT POWER BACK DOOR UNIT ASSEMBLY LEFT POWER BACK DOOR UNIT ASSEMBLY SHIELD MAIN BODY ECU MULTIPLEX NETWORK DOOR ECU MULTIPLEX NETWORK STEERING ECU MULTIPLEX TILT, TELESCOPIC ECU NETWORK GATEWAY ECU PARKING ASSIST ECU REAR COOLING UNIT EXPANSION VALVE RIGHT HEADLIGHT ECU SUB-ASSEMBLY RIGHT OUTER MIRROR CONTROL ECU ASSEMBLY RIGHT POWER BACK DOOR UNIT ASSEMBLY SET RIGHT POWER BACK DOOR UNIT ASSEMBLY SHIELD SEMICONDUCTOR POWER INTEGRATION ECU SEMICONDUCTOR POWER INTEGRATION ECU CIRCUIT SIDE AUTO STEP CONTROLLER ECU ASSEMBLY STEERING HEATER ECU STRG-ECU FUSE SUSPENSION CONTROL ECU TRANSMISSION CONTROL ECU ASSEMBLY W/O HEADLIGHT ECU

A/BAG-IGR FUSE A/C RR FUSE A/F 1 FUSE A/F 2 FUSE A/F- MAIN FUSE ABS 1 FUSE ABS 2 FUSE ABS MAIN 2 FUSE ABS MTR 1 FUSE ABS- MAIN 1 FUSE AIRSUS FUSE AIRSUS- IGR FUSE AMP 1 FUSE AMP 2 FUSE AVS FUSE BACK DOOR FUSE BATT FAN MAIN 2 FUSE BATT MAIN 1 FUSE BATT MAIN 2 FUSE BATT- FAN MAIN 1 FUSE BATT-S 1 FUSE BATT-S 2 FUSE BKUP LP FUSE CDS FAN FUSE D/C CUT FUSE D/L FUSE DC/DC FUSE DCM FUSE DEICER FUSE DOME CUT FUSE DOME FUSE DOOR BACK FUSE DOOR F/L FUSE DOOR F/R FUSE DOOR R/L FUSE DOOR R/R FUSE ECT-1 FUSE ECT-B FUSE ECT-IGP FUSE EDU 1 FUSE EDU 2 FUSE EDU 3 FUSE EDU 4 FUSE EDU- MAIN FUSE EFI 1 FUSE EFI 2 FUSE EFI 3 FUSE EFI 4 FUSE EFI- IGP FUSE EFI- MAIN 1 FUSE EFI- MAIN 2 FUSE EFI- MAIN 3 FUSE EFI-B 1 FUSE EFI-B 2 FUSE EFI-B 3 FUSE ENG- IGR 1 FUSE ENG-IGR 2 FUSE ENG-IGR 3 FUSE EPS-1 FUSE EPS-2 FUSE EPS-IGR FUSE ETCS FUSE FAN 1 FUSE FAN-2 FUSE FUEL OPN-SUV FUSE G/H FUSE GRILLE SHUTTER FUSE HAZ FUSE HORN FUSE HTR FUSE IGCT 1 FUSE IGCT 2 FUSE IGCT 3 FUSE IGCT 4 FUSE IGCT- MAIN FUSE IGN FUSE IGN/INJ- MAIN FUSE IGT/ INJ- MAIN FUSE INJ FUSE INV FUSE INV W/ PMP 1 FUSE INV W/ PMP 2 FUSE J/B ALT 1 FUSE J/B ALT 2 FUSE J/B-B FUSE LED BEAM FUSE METER-IGR FUSE MIR MTR FUSE OBD FUSE OIL PMP FUSE OIL PUMP FUSE P/ OUTLET 1 FUSE P/I FUSE P/SEAT D FUSE P/SEAT P FUSE PBD FUSE PCU FUSE PFS 1 FUSE PFS 2 FUSE PM IGCT FUSE PRB FUSE PTC HTR 1 FUSE PTC HTR 2 FUSE RADIO FUSE S ROOF FUSE S-HORN FUSE S/HTR F/L FUSE S/HTR F/R FUSE S/HTR R/L FUSE S/HTR RR FUSE S/ROOF FUSE SHADE FUSE ST FUSE STOP FUSE SUB BATT FUSE TI, TE FUSE TOWING BKUP FUSE TOWING BRK FUSE TOWING FUSE TOWING TAIL FUSE TOWING- IGR FUSE USB 1 FUSE USB 2 FUSE WASHER FUSE WIPER FUSE WIPER RR FUSE

LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

FORWARD RECOGNITION W/ HEATER HOOD SUB-ASSEMBLY HEATER ACCESSORY ASSEMBLY HEATER ELEMENT LEFT FRONT SEAT CUSHION HEATER ASSEMBLY LEFT SEAT HEATER ASSEMBLY QUICK HEATER ASSEMBLY RIGHT FRONT SEAT CUSHION HEATER ASSEMBLY RIGHT SEAT HEATER ASSEMBLY STEERING HEATER

SHIFT POSITION INDICATOR TRANSFER POSITION INDICATOR

DOOR LOCKS, ANTI-THEFT, INTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS, DEFOGGER, NAVIGATION SYSTEMS INTERIOR LIGHTS LEFT INTERIOR ILLUMINATION LAMP ASSEMBLY 1 RIGHT INTERIOR ILLUMINATION LAMP ASSEMBLY 1 RIGHT INTERIOR ILLUMINATION LAMP ASSEMBLY 2

BRAKE BOOSTER W/ ACCUMULATOR PUMP ASSEMBLY ELECTRIC WATER PUMP ASSEMBLY FUEL SUCTION W/ PUMP, GAGE TUBE ASSEMBLY FUEL SUCTION W/ PUMP, GAUGE TUBE ASSEMBLY

A/F RELAY ACC RELAY AIRSUS RELAY ALL DOOR LOCK RELAY ALL DR LOCK RELAY BACK DOOR RELAY BATT FAN 1 RELAY BATT FAN 2 RELAY CDS FAN RELAY D DOOR UNLOCK RELAY D DR UNLOCK RELAY DEICER RELAY DOME CUT RELAY DOOR BACK RELAY EDU RELAY EFI MAIN 2 RELAY EFI- MAIN 1 RELAY EFI- MAIN 3 RELAY FUEL OPN RELAY GLS HTCH 1 RELAY GLS HTCH 2 RELAY GLS HTCH RELAY 1 GLS HTCH RELAY 2 HORN RELAY HOT W/ ACC RELAY ENERGIZED HOT W/ EFI MAIN 3 RELAY ENERGIZED HOT W/ EFI-MAIN 1 RELAY ENERGIZED HOT W/ IGCT RELAY ENERGIZED HOT W/ IGP 1 RELAY ENERGIZED HOT W/ IGP 2 RELAY ENERGIZED HOT W/ IGR 1 RELAY ENERGIZED HOT W/ IGR 2 RELAY ENERGIZED HOT W/ IGR 3 RELAY ENERGIZED HOT W/ IGR 4 RELAY ENERGIZED IGCT RELAY IGN/INJ RELAY IGN/INJ RELAY 1 IGP 1 RELAY IGP 2 RELAY IGR 1 RELAY IGR 2 RELAY IGR 3 RELAY IGR 4 RELAY INV RELAY INV W/ PMP RELAY INV W/PMP RELAY L/D DOOR UNLOCK RELAY L/D-DR UNLOCK RELAY MAIN RELAY MIR HTR RELAY MIR RLY+S RELAY MIR RLY-S RELAY MIR RTC 1 RELAY MIR RTC 2 RELAY MIR RTC RELAY 1 MIR RTC RELAY 2 OIL PMP RELAY P/OUTLET RELAY PANEL RELAY PRECHARGE RELAY PTC HTR RELAY 1 PTC HTR RELAY 2 PWR EXT RELAY PWR RTC RELAY RELAY ENERGIZED RR DEF RELAY S-HORN RELAY ST RELAY SUB BATT RELAY TAIL RELAY TOWING BK/UP RELAY TOWING CONVERTER RELAY TOWING TAIL RELAY TOWING TAIL RLY-S RELAY WINDSHIELD WIPER RELAY ASSEMBLY WIPER RELAY

ACCELERATOR PEDAL W/ SENSOR ROD ASSEMBLY AIR CONDITIONING PRESSURE SENSOR AIR FUEL RATIO SENSOR AIR FUEL RATIO SENSOR 2 AIR FUEL RATIO SENSOR 2 SHIELD AIR FUEL RATIO SENSOR 3 AIR FUEL RATIO SENSOR 3 SHIELD AIR FUEL RATIO SENSOR 4 AIR FUEL RATIO SENSOR 4 SHIELD AIR FUEL RATIO SENSOR SHIELD AUTOMATIC LIGHT CONTROL SENSOR BATTERY STATE SENSOR ASSEMBLY BATTERY VOLTAGE SENSOR BRAKE PEDAL STROKE SENSOR ASSEMBLY CRANK POSITION SENSOR CURRENT SENSOR E.F.I. ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL LEVEL SENSOR EVAPORATOR SENSOR KICK DOOR CONTROL SENSOR ASSEMBLY LEFT ACCELERATION SENSOR ASSEMBLY LEFT BLIND SPOT MONITOR SENSOR LEFT EFI VACUUM SENSOR ASSEMBLY LEFT FLOOR SIDE AIR BAG SENSOR LEFT FRONT AIR BAG SENSOR LEFT FRONT CENTER ULTRASONIC SENSOR LEFT FRONT CORNER ULTRASONIC SENSOR LEFT FRONT OCCUPANT CLASSIFICATION SENSOR LEFT FRONT SPEED SENSOR LEFT POWER BACK DOOR SENSOR ASSEMBLY LEFT REAR CENTER ULTRASONIC SENSOR LEFT REAR CORNER ULTRASONIC SENSOR LEFT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LEFT REAR OCCUPANT CLASSIFICATION SENSOR LEFT REAR SPEED SENSOR LEFT SEAT POSITION AIR BAG SENSOR LEFT SIDE AIR BAG PRESSURE SENSOR LEFT SIDE SENSOR ASSEMBLY 2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY OIL TEMPERATURE SENSOR RAIN SENSOR RIGHT ACCELERATION SENSOR ASSEMBLY RIGHT BLIND SPOT MONITOR SENSOR RIGHT EFI VACUUM SENSOR ASSEMBLY RIGHT FLOOR SIDE AIR BAG SENSOR RIGHT FRONT AIR BAG SENSOR RIGHT FRONT CENTER ULTRASONIC SENSOR RIGHT FRONT CORNER ULTRASONIC SENSOR RIGHT FRONT SPEED SENSOR RIGHT POWER BACK DOOR SENSOR ASSEMBLY RIGHT REAR CENTER ULTRASONIC SENSOR RIGHT REAR CORNER ULTRASONIC SENSOR RIGHT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY RIGHT REAR SPEED SENSOR RIGHT SIDE AIR BAG PRESSURE SENSOR RIGHT SIDE AIR BAG SENSOR ASSEMBLY 2 STEERING SENSOR THROTTLE W/ THROTTLE POSITION SENSOR BODY ASSEMBLY TORQUE SENSOR TURBO PRESSURE SENSOR 1 TURBO PRESSURE SENSOR 2 VACUUM SENSOR ASSEMBLY VAPOR PRESSURE SENSOR

CENTER FRONT SPEAKER ASSEMBLY 2 LEFT FRONT SPEAKER ASSEMBLY 1 LEFT FRONT SPEAKER ASSEMBLY 2 LEFT FRONT SPEAKER ASSEMBLY 3 LEFT REAR SPEAKER ASSEMBLY LEFT REAR SPEAKER ASSEMBLY 2 LEFT REAR SPEAKER ASSEMBLY 3 RIGHT FRONT SPEAKER ASSEMBLY 1 RIGHT FRONT SPEAKER ASSEMBLY 2 RIGHT FRONT SPEAKER ASSEMBLY 3 RIGHT REAR SPEAKER ASSEMBLY RIGHT REAR SPEAKER ASSEMBLY 2 RIGHT REAR SPEAKER ASSEMBLY 3 SPEAKER W/ BOX ASSEMBLY 1 VEHICLE APPROACHING SPEAKER ASSEMBLY VEHICLE APPROACHING SPEAKER ASSEMBLY 2 VEHICLE APPROACHING SPEAKER CONTROLLER

AUTO HIGH BEAM SWITCH BACK DOOR CONTROL SWITCH COMBINATION SWITCH ASSEMBLY COMBINATION SWITCH ASSEMBLY 2 D AUTO SWITCH DECK LIGHT SWITCH ASSEMBLY DIMMER SWITCH DIMMER, PASSING SWITCH DOOR CONTROL SWITCH ASSEMBLY DRIVER DOWN SWITCH DRIVER UP SWITCH FOG SWITCH FRONT VERTICAL SWITCH FRONT WIPER SWITCH FRONT, REAR WASHER SWITCH FUEL LID OPENER SWITCH GLASS HATCH OPENER SWITCH ASSEMBLY HEADLIGHT LEVELING SWITCH HORN SWITCH INTER LOCK SWITCH LEFT FOLD SEAT SWITCH ASSEMBLY 1 LEFT FOLD SEAT SWITCH ASSEMBLY 2 LEFT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT FRONT POWER SEAT SWITCH LEFT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LEFT REAR POWER SEAT SWITCH LEFT STEERING SWITCH LEVEL WARNING SWITCH ASSEMBLY LICENSE PLATE LIGHT ASSEMBLY W/ BACK DOOR OPENER SWITCH LIFTER SWITCH LIGHT CONTROL SWITCH LIGHT EMITTING DIODE ILLUMINATION SWITCH LIGHT SWITCH LUMBAR H/R SWITCH LUMBAR U/D SWITCH MAIN SWITCH ASSEMBLY MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY NON-CONTACT SWITCH NON-CONTACT SWITCH RIGHT FRONT SEAT INNER BELT ASSEMBLY OUTER MIRROR EXTEND SWITCH OUTER MIRROR LIGHT SWITCH OUTER MIRROR SWITCH ASSEMBLY P SWITCH PARK/ NEUTRAL POSITION SWITCH ASSEMBLY PARK/NEUTRAL POSITION SWITCH ASSEMBLY PARKING SUPPORT BRAKE CANCEL SWITCH PUSH START SWITCH REAR WIPER SWITCH RECLINING SWITCH RIGHT FOLD SEAT SWITCH ASSEMBLY 1 RIGHT FOLD SEAT SWITCH ASSEMBLY 2 RIGHT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT FRONT POWER SEAT SWITCH RIGHT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RIGHT REAR POWER SEAT SWITCH RIGHT STEERING SWITCH RL SWITCH RR SWITCH SEAT MEMORY SWITCH SEAT VARIABLE CUSHION SWITCH SIDE AUTO STEP SWITCH ASSEMBLY SLIDE SWITCH STEERING HEATER SWITCH STEERING PAD SWITCH ASSEMBLY STEERING WHEEL SWITCH HOUSING STOP LIGHT SWITCH STOP LIGHT SWITCH ASSEMBLY SWITCH, VOLUME ASSEMBLY TILT, TELESCOPIC SWITCH TRAILER BRAKE CONTROL SWITCH TRANSFER POSITION SWITCH TRIP SWITCH TURN SIGNAL SWITCH VOLUME SWITCH W/L SWITCH WINDSHIELD WIPER SWITCH ASSEMBLY

DUTY VACUUM SWITCHING VALVE FUEL TANK SOLENOID MAIN VALVE ASSEMBLY HEIGHT CONTROL VALVE SUB- ASSEMBLY 2 LEFT AIR BY-PASS VALVE ASSEMBLY RIGHT AIR BY-PASS VALVE ASSEMBLY

(OR RED/ WIRE +B PNK CANP WIRE AHBI PNK AHID WIRE BLK WIRE BLK/DK GRN WIRE BLK/GRY WIRE BLK/WHT WIRE BLU WIRE BLU/BLK WIRE BRN WIRE BRN/BLK WIRE BRN/YEL WIRE CAND PNK CANU WIRE CANN PNK CANP WIRE EC- PPL/PNK +B WIRE FL+ PNK FL- WIRE GND PNK EFIO WIRE GRN WIRE GRN/BLK WIRE GRY WIRE GRY/BLK WIRE GRY/WHT WIRE LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/WHT WIRE PLKC PNK WIRE PNK CANH WIRE PNK CLS WIRE PNK IGB WIRE PNK IGR WIRE PNK ILE WIRE PNK LIN WIRE PNK RM+ WIRE PNK RRTR WIRE PNK SI WIRE PNK SLC WIRE PNK SLS WIRE PNK SRF WIRE PNK UL WIRE PNK VC WIRE PNK VCI WIRE PNK WCSW WIRE PNK WIRE PNK/ MPX+ WIRE PNK/BLK WIRE PNK/WHT WIRE PPL PNK WIRE PPL/BLK WIRE PPL/BLU WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/LT BLU WIRE PPL/LT GRN WIRE PPL/ORG WIRE PPL/PNK IG WIRE PPL/PNK WIRE PPL/RED WIRE PPL/VIO WIRE PPL/WHT WIRE PTNK PNK WIRE RED WIRE RED/BLK WIRE RED/WHT WIRE SG-8 PNK SG-9 WIRE SI PNK IG WIRE SL PNK SR WIRE SSC PNK FSL+ WIRE STPO PPL/PNK STP WIRE TEM- PNK TIM- WIRE TFAL PNK TFAR WIRE VIO WIRE VIO/BLK WIRE WHT WIRE WHT/BLK WIRE YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/RED WIRE

1) RIGHT TURN 2) RIGHT LANE CHANGE 3) NEUTRAL 4) LEFT LANE CHANGE 5) LEFT TURN 2 3 FLCY 2 PASSENGER SEAT 2-4 2-WAY LUMBAR SUPPORT 4-WAY LUMBAR SUPPORT (RIGHT SIDE OF TRANSMISSION +BM +BWP +SM -TR -TW -WR A/M RR A/T CIRCUIT ACTIVE BODYWORKS SYSTEM AIR CONDITIONING CONTROL ASSEMBLY AIR CONDITIONING CONTROL ASSEMBLY 2 AIR CONDITIONING SYSTEM ANTI-THEFT SYSTEM AUTO HEAD AUTO TAIL BACKUP LAMPS CIRCUIT BAT HEAD BBL+ BBR+ BCB+ BCL+ BCR+ BCV- BCV- SHIELD SGND BD+2 BD- BD-2 BDL- BFC- BFG EL BSL+ BSR+ BUS - BUS G BUS-B CAN I/F CAN JUNCTION TERMINAL 1 CAN JUNCTION TERMINAL 2 CAN L CB+ CBR+ CEB+ CEB+ CEV- CENTER ACTIVE NOISE CONTROL MICROPHONE CENTER CONSOLE CENTER STOP LIGHT ASSEMBLY CEV+ SHIELD SGND CEV- CHARCOAL CANISTER ASSEMBLY CLEARANCE WARNING BUZZER 1 CLEARANCE WARNING BUZZER 2 COMBINATION METER ASSEMBLY COMMUNICATION IC COMPUTER DATA LINES SYSTEM CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY COOLING FANS SYSTEM CSW+ CTR + CV+ CV- SHIELD SGND DC- DEFOGGER SYSTEM DK+ DOOR LOCKS, ANTI-THEFT SYSTEMS DRIVER'S DOOR DRL OFF EC+ EFC+ EL EL EL L OFF HU HF ELECTRICAL KEY, TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY ELECTROCHROMIC MIRROR CIRCUIT ES PPL EP ESS BAT EX+ FAL+ FAR- FLASHER CIRCUIT FLUID COUPLING ASSEMBLY FP- FR RR FR WASH FRONT MARKER LIGHT ASSEMBLY FRONT VERTICAL FRV- FSL- FSW+ FUSIBLE LINK BLOCK ASSEMBLY GA- GB+ GROUND J/C 3 GVO+ GVO- SHIELD GVG HEAD AUTO TAIL HEAD DRL OFF HEADLIGHTS SYSTEM HEIGHT CONTROL COMPRESSOR ASSEMBLY HF HU HF HU EL HF HU L OFF HORNS SYSTEM HOT AT ALL TIMES HU HF HU HF EL HYBRID SYSTEM HYBRID SYSTEM CIRCUIT ICL- ICR+ ID CODE BOX IGNITION LEVELING ASSEMBLY 4 ILL ILL IND- PPL INNER REAR REAR VIEW MIRROR ASSEMBLY INNER REAR VIEW MIRROR ASSEMBLY INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER SYSTEM STARTING/CHARGING SYSTEM INSTRUMENT PANEL PASSENGER W/O DOOR AIR BAG ASSEMBLY L OFF L OFF L OFF LBR- LCB+ LCV- LCV- SHIELD SGND LED ILLUMINATION LIGHT LEFT "C" PILLAR) LEFT ACTIVE NOISE CONTROL MICROPHONE LEFT CURTAIN SHIELD AIR BAG ASSEMBLY LEFT CURTAIN SHIELD AIR BAG ASSEMBLY SHIELD LEFT FOG LIGHT ASSEMBLY LEFT FRONT COURTESY LIGHT ASSEMBLY LEFT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LEFT FRONT DOOR OUTSIDE HANDLE ASSEMBLY LEFT FRONT SEAT AIR BAG ASSEMBLY LEFT FRONT SEAT CUSHION PANEL SUB-ASSEMBLY LEFT FRONT SEAT INNER BELT ASSEMBLY LEFT FRONT SEAT OUTER BELT ASSEMBLY LEFT FRONT SIDE MARKER LIGHT ASSEMBLY LEFT INNER REAR SEAT BELT ASSEMBLY 1 LEFT INNER REAR SEAT BELT ASSEMBLY 2 LEFT LUMBAR SUPPORT ADJUSTER ASSEMBLY LEFT OUTER REAR VIEW MIRROR ASSEMBLY LEFT REAR COMBINATION LIGHT ASSEMBLY LEFT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LEFT REAR INNER SEAT BELT ASSEMBLY 1 LEFT REAR INNER SEAT BELT ASSEMBLY 2 LEFT REAR LIGHT ASSEMBLY LEFT REAR SEAT BACK CLIMATE CONTROL BLOWER LEFT REAR SEAT CUSHION CLIMATE CONTROL BLOWER LEFT REAR SEAT INNER BELT ASSEMBLY 1 LEFT REAR SEAT INNER BELT ASSEMBLY 2 LEFT REAR SEAT OUTER BELT ASSEMBLY LEFT REAR SIDE MARKER LIGHT ASSEMBLY LEFT SEAT BACK CLIMATE CONTROL BLOWER LEFT SEAT CUSHION CLIMATE CONTROL BLOWER LEFT SPOT LIGHT ASSEMBLY 2 LEFT SPOT LIGHT ASSEMBLY 3 LEFT TELEPHONE MICROPHONE ASSEMBLY LEFT VISOR ASSEMBLY LFT- LH 0 LH - LIGHT CONTROL RHEOSTAT LM+R LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 1 LOWER INSTRUMENT PANEL AIR BAG ASSEMBLY 2 LRD+ LRI- LRO- LRU+ LSP + LUGGAGE COMPARTMENT LIGHT ASSEMBLY LUGGAGE ROOM R/B 1 LUMBAR SUPPORT MAT) MCI- MCO- MEMORY SYSTEMS METER MIRROR SUB-ASSEMBLY MIRRORS SYSTEM MIRRORS, MEMORY SYSTEMS MOBILE WIRELESS CHARGER CRADLE ASSEMBLY MODE L MODE RR MPER MH MR- MRL+ NAVIGATION SYSTEM NE+ ODO CANL OIL PRESSURE SENDER GAUGE ASSEMBLY OVERHEAD CONSOLE PK- PL- PLR+ POWER BACK DOOR WARNING BUZZER POWER DISTRIBUTION BOX ASSEMBLY POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM PPL BLGD PPL BRGD PPL EP PPL GND PPL ID PPL IE PPL LH E PPL PPL ID PR- PRR- R CL RADIATOR SHUTTER ASSEMBLY RADIO, DISPLAY RECEIVER ASSEMBLY RAL+ RAR+ RBE+ RBR- RCB+ RCL- RCV+ SHIELD SGND REAR ACTIVE NOISE CONTROL MICROPHONE RF+ RH 0 PPL RH E RH- RIGHT ACTIVE NOISE CONTROL MICROPHONE RIGHT CURTAIN AIR BAG ASSEMBLY SHIELD RIGHT CURTAIN SHIELD AIR BAG ASSEMBLY RIGHT END OF DASH) RIGHT FOG LIGHT ASSEMBLY RIGHT FRONT COURTESY LIGHT ASSEMBLY RIGHT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RIGHT FRONT DOOR OUTSIDE HANDLE ASSEMBLY RIGHT FRONT SEAT AIR BAG ASSEMBLY RIGHT FRONT SEAT INNER BELT ASSEMBLY RIGHT FRONT SEAT OUTER BELT ASSEMBLY RIGHT FRONT SIDE MARKER LIGHT ASSEMBLY RIGHT INTERIOR ILLUMINATION LIGHT ASSEMBLY 1 RIGHT LUMBAR SUPPORT ADJUSTER ASSEMBLY RIGHT OUTER REAR VIEW MIRROR ASSEMBLY RIGHT REAR COMBINATION LIGHT ASSEMBLY RIGHT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RIGHT REAR INNER SEAT BELT ASSEMBLY 1 RIGHT REAR LIGHT ASSEMBLY RIGHT REAR SEAT BACK CLIMATE CONTROL BLOWER RIGHT REAR SEAT BELT ASSEMBLY INNER 1 RIGHT REAR SEAT CUSHION CLIMATE CONTROL BLOWER RIGHT REAR SEAT INNER BELT ASSEMBLY 1 RIGHT REAR SEAT LAP TYPE BELT ASSEMBLY 1 RIGHT REAR SEAT LAP TYPE BELT ASSEMBLY 2 RIGHT REAR SIDE MARKER LIGHT ASSEMBLY RIGHT SEAT BACK CLIMATE CONTROL BLOWER RIGHT SEAT CUSHION CLIMATE CONTROL BLOWER RIGHT SPOT LIGHT ASSEMBLY 3 RIGHT TELEPHONE MICROPHONE ASSEMBLY RIGHT VISOR ASSEMBLY RM+ RM+R ROOF CONSOLE BOX ASSEMBLY RR INT RR ON RR WASH RV ILL SEATS SYSTEM SECOND LEFT SPOT LIGHT ASSEMBLY SECOND RIGHT SPOT LIGHT ASSEMBLY SERVICE PLUG SET- SFL- SFR- SG-1 SG-2 SG-3 SG-4 SG-6 SG-7 SHIELD GVG SHIELD SGND SHIELD SHIELD SINGLE PASSENGER SEAT SL- SLIDING ROOF HOUSING SUB-ASSEMBLY SLT- SLU+ SP- SPI+ SPIRAL CABLE SUB-ASSEMBLY SPO- SPOT LIGHT ASSEMBLY SR- SRR+ SSR+ STARTING/ CHARGING SYSTEM STEERING COLUMN ASSEMBLY STEREO COMPONENT EQUALIZER ASSEMBLY STEREO JACK ADAPTER ASSEMBLY 1 SUPPLEMENTAL RESTRAINTS SYSTEM TAIL AUTO TAIL AUTO HEAD THIRD LEFT SPOT LIGHT ASSEMBLY THIRD RIGHT SPOT LIGHT ASSEMBLY THR+ TL TR TOP OF TRANSMISSION) TRAILER REVERSE ASSIST LIGHT ASSEMBLY TRANSFER ASSEMBLY TRANSMISSION FLOOR SHIFT TRANSMISSION FLOOR SHIFT ASSEMBLY TRANSMISSIONS SYSTEM TRN+ TRUNK, TAILGATE, FUEL DOORS SYSTEM TURBOCHARGER SUB-ASSEMBLY 1 TURBOCHARGER SUB-ASSEMBLY 2 TURN L IND TURN R IND TWL- TWR+ UDO+ UP AUTO VHP- VOLTAGE INVERTER ASSEMBLY VOR- VOT+ VVL+ VVR+ W-OFF W/ 14 INCH DISPLAY W/ AIR SUSPENSION W/ LED W/ MEMORY W/ PANORAMIC ROOF W/ POWER BACK FOLD W/ POWER FOLD SEAT W/ POWER RUNNING BOARD W/ RUNNING BOARD W/ SLIDE OUTER MIRROR W/ STANDARD OUTER MIRROR W/ TELEMATICS SYSTEM W/O AIR SUSPENSION W/O MEMORY W/O POWER BACK FOLD W/O POWER FOLD SEAT W/O POWER RUNNING BOARD W/O RUNNING BOARD W/O TELEMATICS SYSTEM WGM- WINDSHIELD WASHER JAR ASSEMBLY WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM
