Toyota Prius V (2023-2024) Grille shutter circuit

Grille shutter circuit

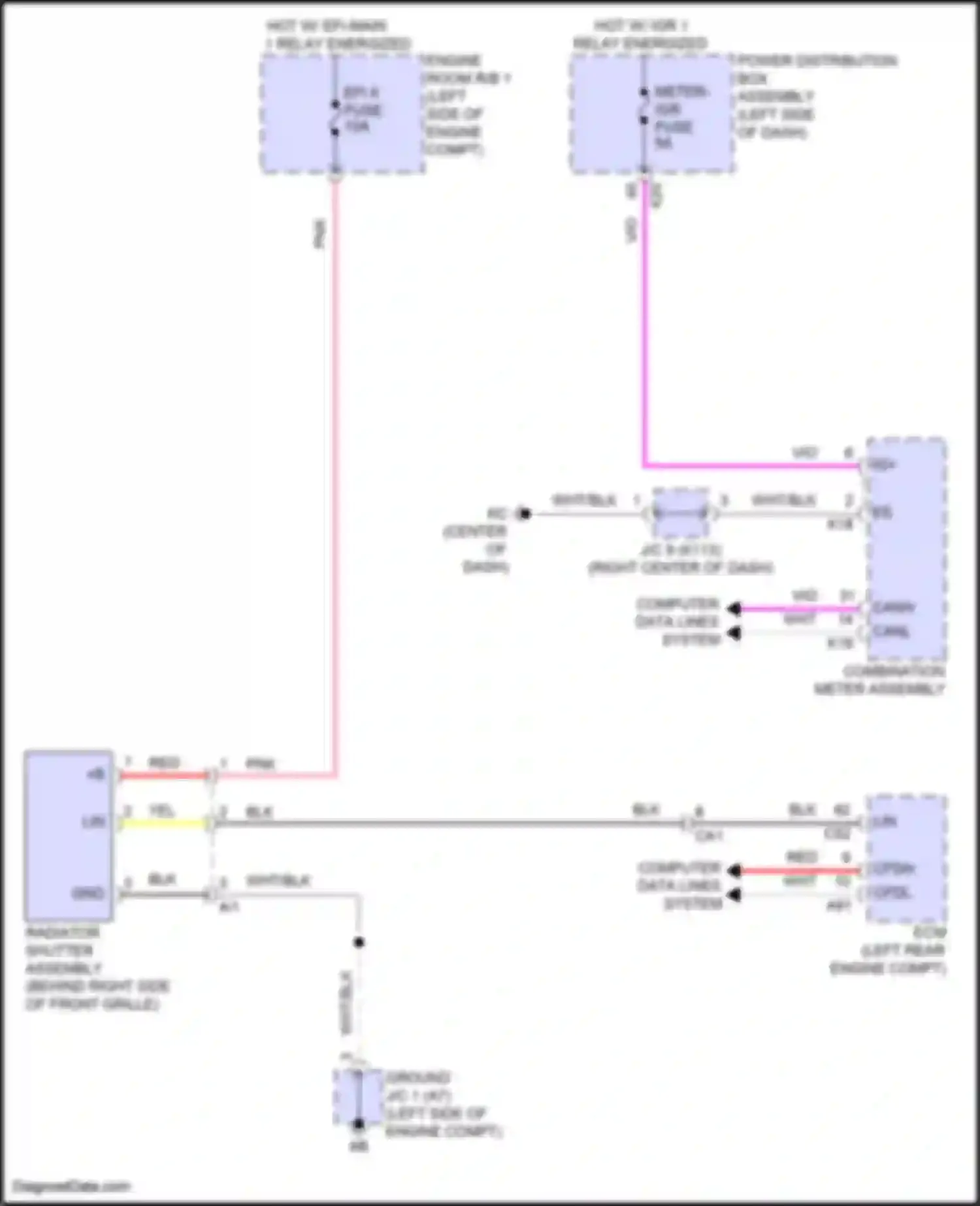

Car Wiring Diagrams for Prius Toyota V (2023-2024): Grille shutter circuit

BLK WIRE CFDH CFDL COMBINATION METER ASSEMBLY COMPUTER DATA LINES SYSTEM EFI 4 FUSE ENGINE ROOM R/B 1 HOT W/ EFI-MAIN 1 RELAY ENERGIZED HOT W/ IGR 1 RELAY ENERGIZED METER-IGR FUSE PNK WIRE POWER DISTRIBUTION BOX ASSEMBLY RADIATOR SHUTTER ASSEMBLY RED WIRE VIO WIRE WHT WIRE WHT/BLK WIRE YEL WIRE
