Toyota Prius I facelift (2000-2003) left rear combin- ation light Wiring diagrams
This page contains all the electrical diagrams for the component. left rear combin- ation light, in which he is found in the car Toyota Prius I facelift (2000-2003). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

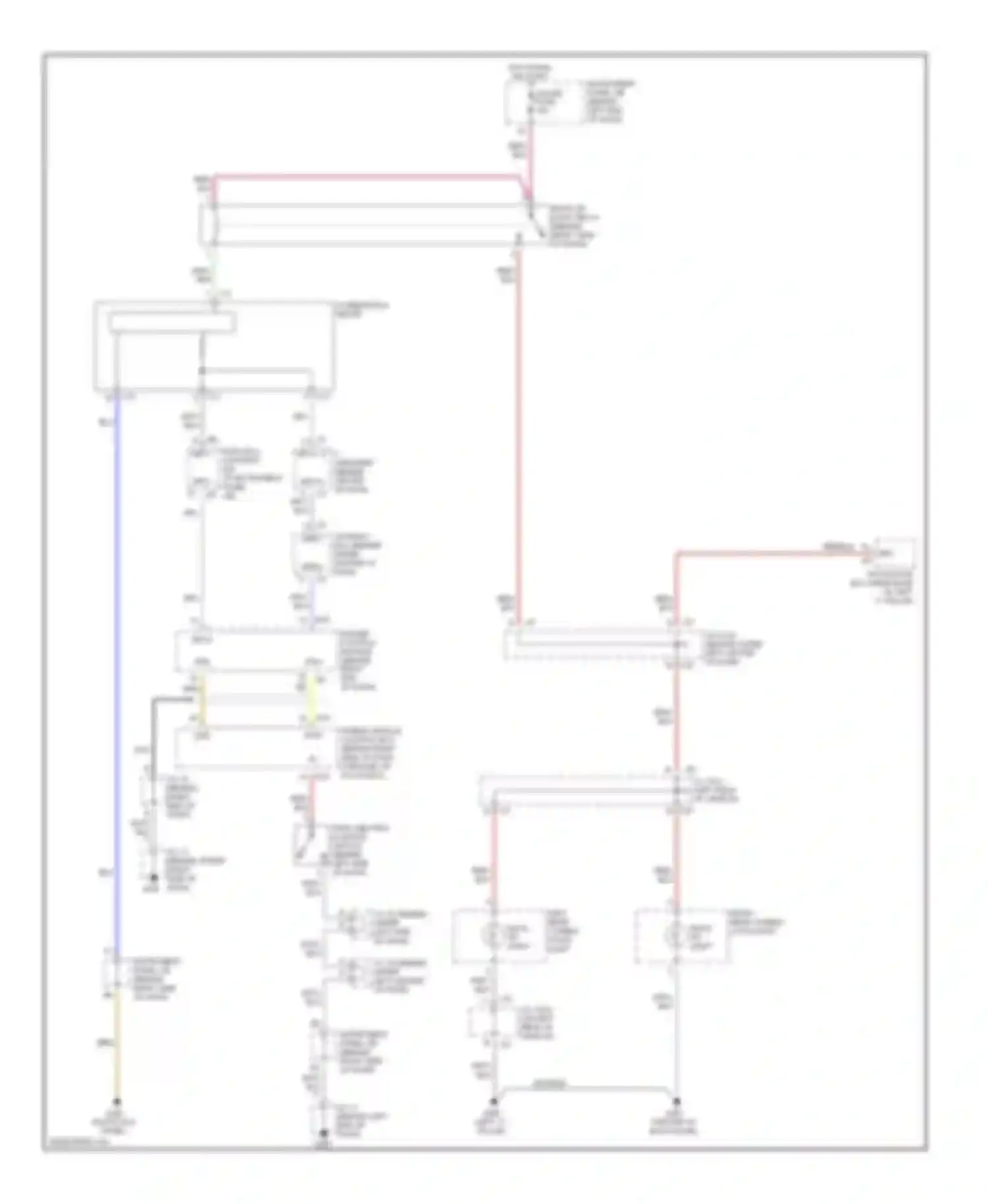

left rear combin- ation light wiring diagram (1 of 2)
BACK- UP LIGHT
BACK-UP LIGHT RELAY (BEHIND RIGHT SIDE OF DASH)
BLK WIRE
BLU WIRE
BODY ECU (ON RIGHT SID OF INSTRUMENT PANEL J/B) MPX+
BRN WIRE
COMBINATION METER
ENGINE CONTROL MODULE (BEHIND RIGHT END OF DASH)
GATEWAY ECU (BEHIND UPPER CENTER OF DASH)
GAUGE FUSE
GRN WIRE
GRY WIRE
HOT IN RUN OR START
HTE-
INSTRUMENT PANEL J/B (BEHIND LEFT END OF DASH)
INSTRUMENT PANEL J/B (BEHIND RIGHT SIDE OF DASH)
J/C 11 (BEHIND LEFT END OF DASH)
J/C 17 (BEHIND UPPER RIGHT SIDE OF DASH)
J/C 18 (BEHIND RIGHT END OF DASH)
J/C 22 (BEHIND UPPER LEFT SIDE OF DASH)
J/C 24 (BEHIND UPPER LEFT CENTER OF DASH)
J/C 27/28 (BEHIND UPPER LEFT CENTER OF DASH)
J/C 30/31 (LEFT REAR OF VEHICLE)
J/C 32/33 (ON LEFT REAR OF VEHICLE)
LEFT "C" PILLAR)
LEFT REAR COMBIN- ATION LIGHT
MPX
MPX+ A/C AMPLIFIER (BEHIND CENTER OF DASH)
NAVIGATION ECU (NEAR BASE OF LEFT "C" PILLAR)
NCA WIRE
PARK/ NEUTRAL POSITION SWITCH (BEHIND LEFT SIDE OF DASH)
RED WIRE
RED/BLK WIRE
REV
RIGHT REAR COMBIN- ATION LIGHT
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Back-up lamps circuit -> LEFT REAR COMBIN- ATION LIGHT

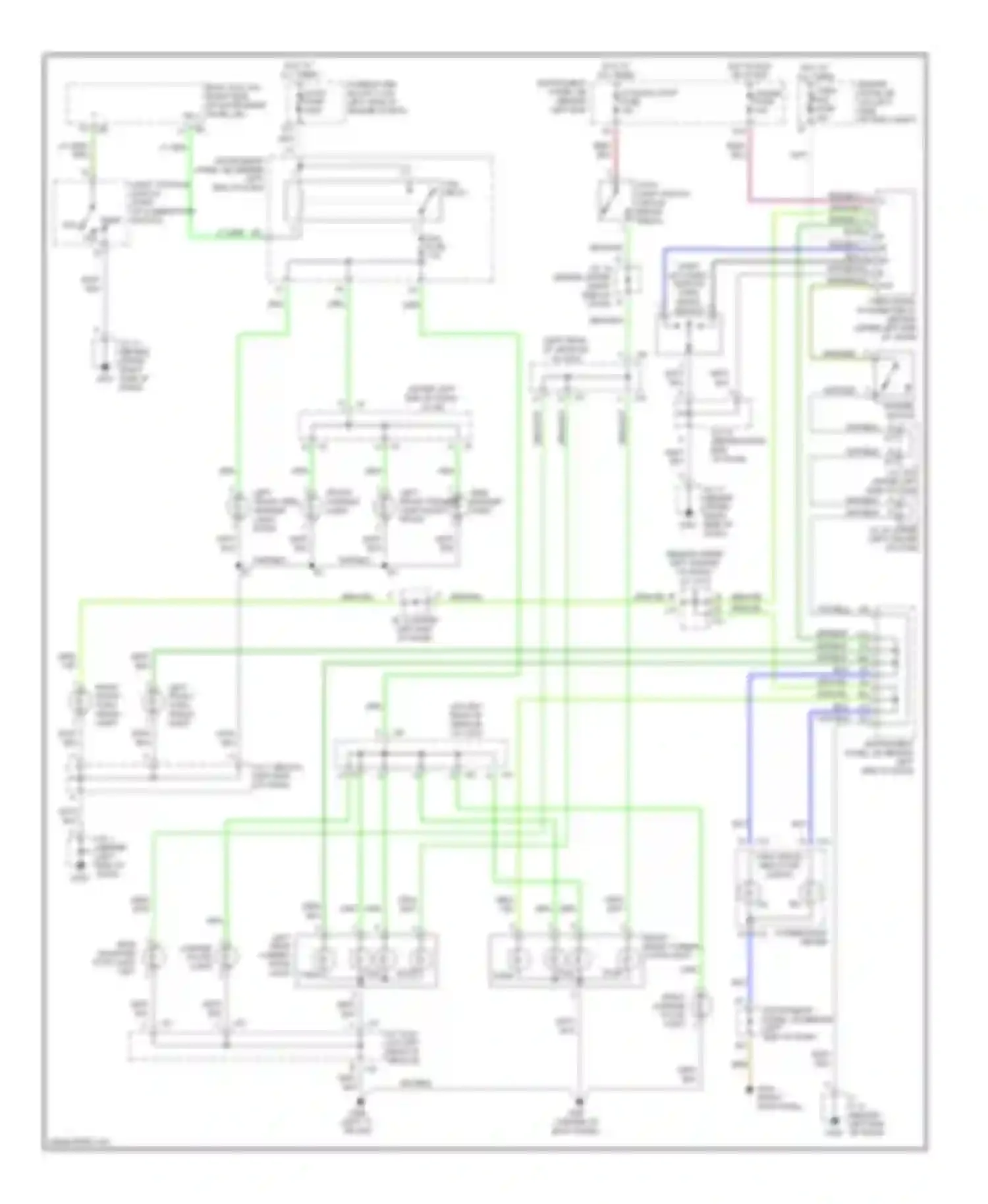

left rear combin- ation light wiring diagram (2 of 2)
1 2 3 4 5 6 7 8 IG LR LL
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BODY ECU (ON RIGHT SIDE OF INSTRUMENT PANEL J/B)
BRN WIRE
COMBINATION METER
DC/DC FUSE
EL ER
ENGINE ROOM J/B (ON LEFT SIDE OF ENG COMPT)
FUSIBLE LINK BLOCK 1 (ON LEFT SIDE OF ENGINE COMPT)
GAUGE FUSE
GRN WIRE
GRN/BLK WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRN/YEL WIRE
HAZARD SWITCH
HEAD
HIGH MOUNTED STOP LIGHT LEFT LICENSE PLATE LIGHT
HOT AT ALL TIMES
HOT IN RUN OR START
INSTRUMENT PANEL J/B (BEHIND LEFT END OF DASH)
INSTRUMENT PANEL J/B (BEHIND LEFT END OF DASH) STOP FUSE
J/C 1 (BEHIND LEFT END OF DASH)
J/C 11 (BEHIND LEFT END OF DASH) (RIGHT KICK PANEL)
J/C 14 (BEHIND UPPER RIGHT SIDE OF DASH)
J/C 17 (BEHIND UPPER RIGHT SIDE OF DASH)
J/C 18 (BEHIND RIGHT END OF DASH)
J/C 22/23 (UPPER LEFT SIDE OF DASH)
J/C 24 (UPPER LEFT CENTER OF DASH)
J/C 32/33 (ON LEFT REAR OF VEHICLE)
J/C 4 (UPPER LEFT END OF DASH)
J/C 7 (BELOW LEFT END OF DASH)
LEFT "C" PILLAR)
LEFT FRONT PARKING LIGHT RIGHT FRONT SIDE MARKER LIGHT
LEFT FRONT SIDE MARKER LIGHT RIGHT FRONT PARKING LIGHT
LEFT FRONT TURN SIGNAL LIGHT
LEFT REAR COMBIN- ATION LIGHT
LIGHT CONTROL SWITCH (PART OF COMBINATION SWITCH)
LT GRN WIRE
OFF
RED WIRE
RED/BLU WIRE
RH LH
RIGHT FRONT TURN SIGNAL LIGHT
RIGHT LICENSE PLATE LIGHT
RIGHT REAR COMBIN- ATION LIGHT
STOP
STOP- LIGHT SWITCH (ABOVE BRAKE PEDAL)
TAIL
TAIL FUSE
TAIL RELAY
TAIL STOP
TURN
TURN SIGNAL FLASHER RELAY (BEHIND UPPER LEFT END OF DASH)
TURN SIGNAL INDICATOR LIGHTS
TURN, HAZ FUSE
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Exterior lamps circuit -> LEFT REAR COMBIN- ATION LIGHT
