Toyota Matrix E130 (2002-2008) glass hatch courtesy switch Wiring diagrams
This page contains all the electrical diagrams for the component. glass hatch courtesy switch, in which he is found in the car Toyota Matrix E130 (2002-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
glass hatch courtesy switch wiring diagram (1 of 3)
13 12 3 PCTY LP 2 LP
BACK DOOR COURTESY SWITCH
BH (AT LEFT QUARTERPANEL)
BLK WIRE
BLU WIRE
BLU/WHT WIRE
CENTER J/B (BEHIND LEFT SIDE OF DASH)
CENTER J/B (W/O DOOR LOCK CONTROL) (BEHIND LEFT SIDE OF DASH)
COMBINATION METER
DCTY
DOOR FUSE
DOOR IND
ENGINE ROOM R/B (INTEGRAL TO ENGINE ROOM J/B) DOME FUSE
GAUGE FUSE
GLASS HATCH COURTESY SWITCH
HOT AT ALL TIMES
HOT IN ON OR START
IE (BEHIND LEFT SIDE OF DASH)
INSTRUMENT PANEL J/B
INTEGRATION RELAY (ON INSTRUMENT PANEL J/B)
INTERIOR LIGHT)
J/C 11 (AT LEFT SIDE OF BACK DOOR)
J/C 2 (BEHIND LEFT SIDE OF DASH)
J/C 7 (AT RIGHT KICK PANEL) IG
LEFT FRONT DOOR COURTESY SWITCH
LEFT REAR DOOR COURTESY SWITCH (FORWARD OF LEFT REAR WHEELWELL)
LUGGAGE COMPARTMENT LIGHT
ON DOOR OFF
P-DR
PERSONAL LIGHT
RED WIRE
RED/BLK WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT FRONT DOOR COURTESY SWITCH
RIGHT REAR DOOR COURTESY SWITCH
W/ DOOR LOCK CONTROL
W/ MOON- ROOF
W/O AUTOMATIC GLARE- RESISTANT EC MIRROR
W/O DOOR LOCK CONTROL
W/O MOON- ROOF
WHT WIRE
WHT/BLK WIRE
WIPER/WASHER SYSTEM
Go to component -> Courtesy lamps circuit -> GLASS HATCH COURTESY SWITCH

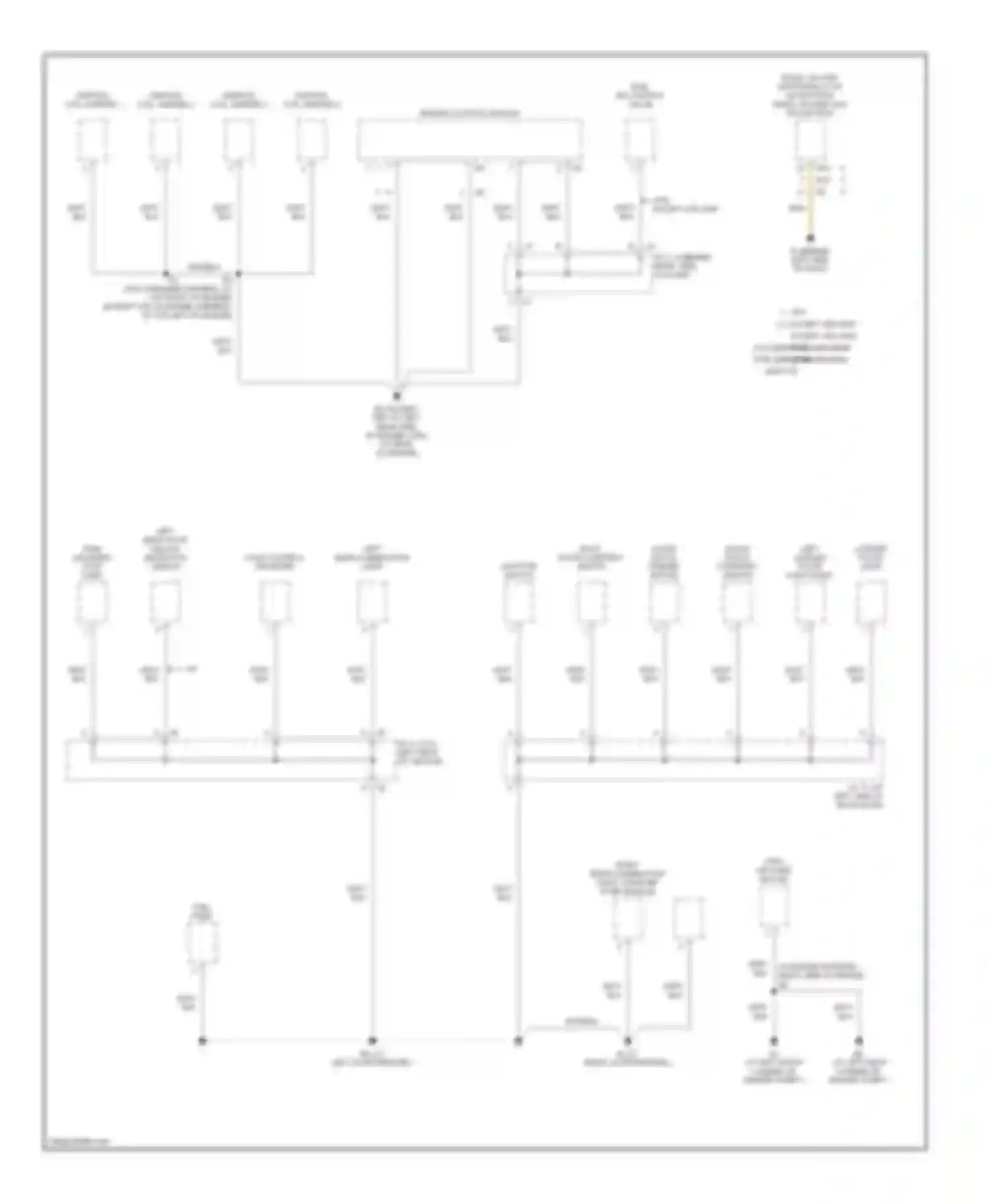

glass hatch courtesy switch wiring diagram (2 of 3)
4 5 6 SEPARATE TYPE AMPLIFIER BUILT-IN TYPE AMPLIFIER W/ NAVIGATION
A/T
BACK DOOR COURTESY SWITCH
BH (AT LEFT QUARTERPANEL)
BI (AT RIGHT QUARTERPANEL)
BLK WIRE
BRN WIRE
DOOR CONTROL RECEIVER
ED (EXCEPT XRS: AT LEFT REAR SIDE OF ENGINE, XRS: AT REAR OF ENGINE)
ENGINE CONTROL MODULE
FUEL PUMP
GLASS HATCH COURTESY SWITCH
GLASS HATCH OPENER MOTOR
HIGH MOUNTED STOP LIGHT
IDLE AIR CONTROL VALVE
IF (BEHIND LEFT SIDE OF DASH)
IGNITION COIL, IGNITER 1
IGNITION COIL, IGNITER 2
IGNITION COIL, IGNITER 3
IGNITION COIL, IGNITER 4
J/C 11 (AT LEFT SIDE OF BACK DOOR)
J/C 3, 4 (BEHIND RIGHT SIDE OF DASH)
J/C 8, 9 (AT LEFT REAR OF VEHICLE)
JUNCTION SWITCH
LEFT LICENSE PLATE LIGHT RIGHT LICENSE PLATE LIGHT
LEFT REAR COMBINATION LIGHT
LEFT REAR DOOR UNLOCK DETECTION SWITCH
RADIO, PLAYER WITH DISPLAY (W/ NAVIGATION) RADIO, PLAYER (W/O NAVIGATION)
RIGHT REAR COMBINATION LIGHT CANISTER PUMP MODULE
WHT WIRE
WHT/BLK WIRE
XRS
XRS 2 3
Go to component -> Ground distribution circuit (2 of 4) -> GLASS HATCH COURTESY SWITCH

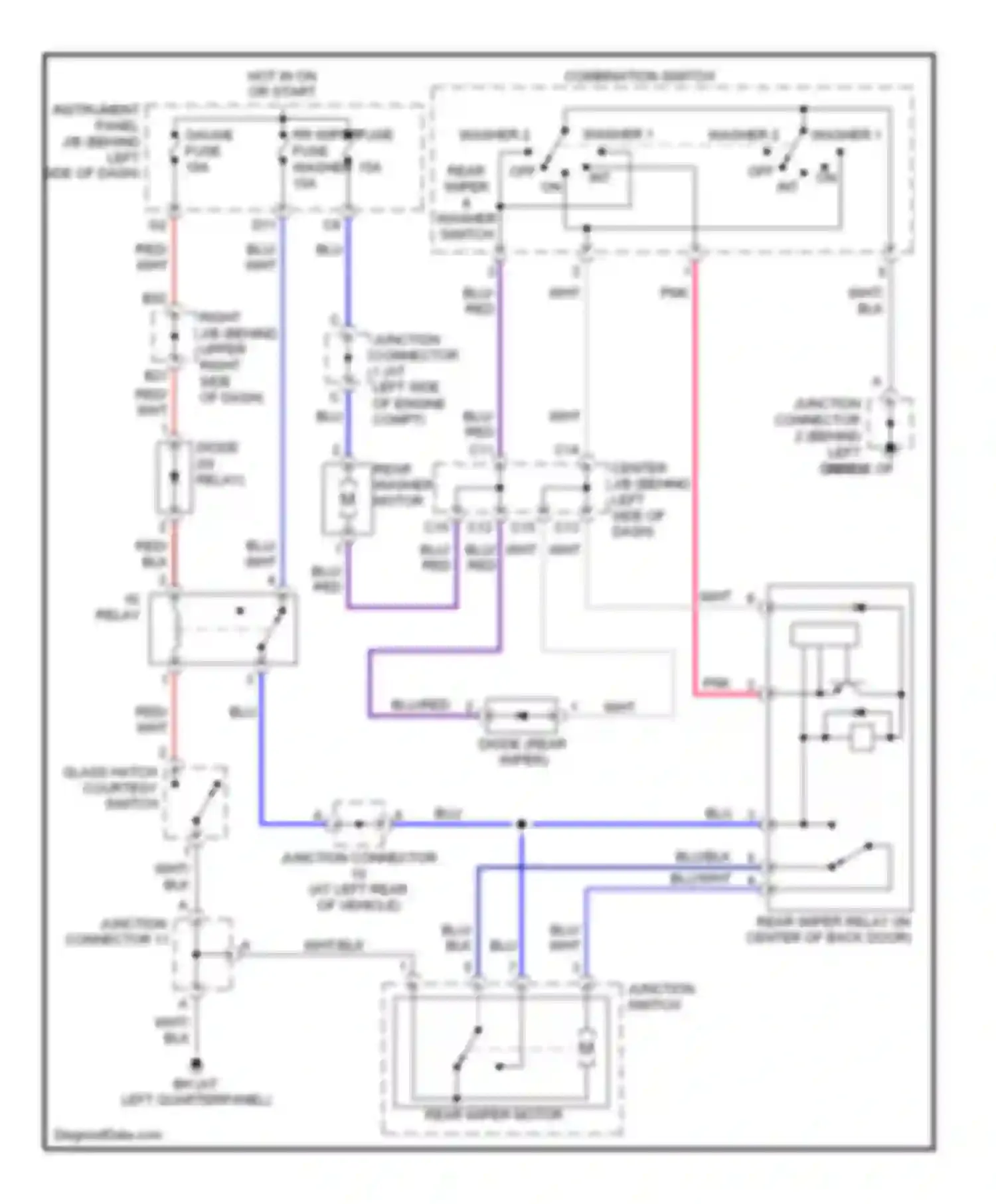

glass hatch courtesy switch wiring diagram (3 of 3)
BH (AT LEFT QUARTERPANEL)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/RED WIRE
BLU/WHT WIRE
CENTER J/B (BEHIND LEFT SIDE OF DASH)
COMBINATION SWITCH
DIODE (IG RELAY)
DIODE (REAR WIPER)
GLASS HATCH COURTESY SWITCH
HOT IN ON OR START
IG RELAY
INSTRUMENT PANEL J/B (BEHIND LEFT SIDE OF DASH) GAUGE FUSE
JUNCTION CONNECTOR 1 (AT LEFT SIDE OF ENGINE COMPT)
JUNCTION CONNECTOR 10 (AT LEFT REAR OF VEHICLE)
JUNCTION CONNECTOR 11
JUNCTION CONNECTOR 2 (BEHIND LEFT SIDE IE OF DASH)
JUNCTION SWITCH
OFF ON INT
PNK WIRE
REAR WASHER MOTOR
REAR WIPER MOTOR
REAR WIPER OFF INT ON
REAR WIPER RELAY (IN CENTER OF BACK DOOR)
RED WIRE
RIGHT J/B (BEHIND UPPER RIGHT SIDE OF DASH)
RR WIPER FUSE WASHER FUSE
WASHER 1 WASHER 2
WASHER 2 WASHER 1
WASHER SWITCH
WHT WIRE
WHT/BLK WIRE
Go to component -> Rear wiper/washer circuit -> GLASS HATCH COURTESY SWITCH
